NISSAN LEAF 2016 1.G First Responders Guide

High Strength Steel Locations
== High strength steel
AAYIA0056GBFRG–31

3-3.5 High Voltage Battery Damage and Fluid Leaks
The high voltage battery contains electrolyte solution. To avoid exposure to electrolyte
solution
and serious personal injury, always wear appropriate solvent resistant Personal
Protective Equipment (PPE) and read the following precautions:
• Electrolyte solution is a skin irritant.
• Electrolyte solution is an eye irritant – If contact with eyes, rinse with plenty of water and see a doctor immediately.
• If electrolyte leak occurs, wear appropriate solvent resistant PPE and use a dry cloth to clean up the spilled electrolyte. Be sure to adequately ventilate the area.
• Electrolyte solution is highly flammable
• Electrolyte liquid or fumes that have come into contact with water vapors in the air will create an oxidized substance. This substance may irritate skin and eyes. In these
cases, rinse with plenty of water and see a doctor immediately.
• Electrolyte fumes (when inhaled) can cause respiratory irritation and acute intoxication. Move to fresh air and wash mouth with water. See a doctor immediately.
If electrolyte solution leakage, or damage such as any problem with the high voltage battery casing are
observed, first responders should attempt to neutralize the battery by applying a large volume of water to the
battery pack while wearing appropriate Personal Protective Equipment (PPE) . The neutralization process
helps stabilize the thermal condition of the battery pack but does not discharge the battery.
High voltage Battery Electrolyte Solution Characteristics: • Clear in color
• Sweet odor
• Similar viscosity to water
• Since the high voltage battery is made up of many small sealed battery modules, electrolyte solutionleakage should be minimal.
NOTE:
Other fluids in the vehicle are the same as those in a conventional internal combustion
vehicle.
3-3.6 Accessing the Occupants 1. Remove windowsa. Perform window removal the same as a normal vehicle.
2. Remove doors a. The doors are removable with hand tools or basic rescue tools such as electrical/hydraulicrescue tools. It may be easier to remove the doors by cutting door hinges.
3. Adjust steering wheel and front seat position (if necessary)
FRG–32

a. Steering wheel can be adjusted up/down by
pushing the lock lever down (1) , moving the
steering wheel (2) and pulling the lock lever up (3)
to lock the steering wheel in place.
b. Front seat can be adjusted forward/backward manually by pulling up and holding lever (1) and tilted forward/backward manually by pulling up and holding lever (2) .
4. Remove front seat head restraint (if necessary) . The front seat head restraint can be removed by
pressing the lock knob and pulling it up.
5. Unfasten the seat belt. Seat belt can be unfastened by pressing the release
button. If seat belt cannot be unfastened, cut it with
a belt cutter. 1
3 2
AAYIA0122ZZ 21
AAYIA0146ZZ
AAYIA0079ZZ
AAYIA0080ZZ
FRG–33

3-4 Storing The Vehicle
For
vehicle storage information, refer to Roadside Assistance Guide or Dismantling Guide located at
www.nissanusa.com orwww.nissan-techinfo.com.
FRG–34

4. Emergency Quick Reference Guide
The
following is for emergency quick reference only. It does not replace the detailed safety information and
procedures in this manual.
FRG–35

AAYIA0144GB

AAYIA0145GB

AAYIA0146GB

AAYIA0147GB

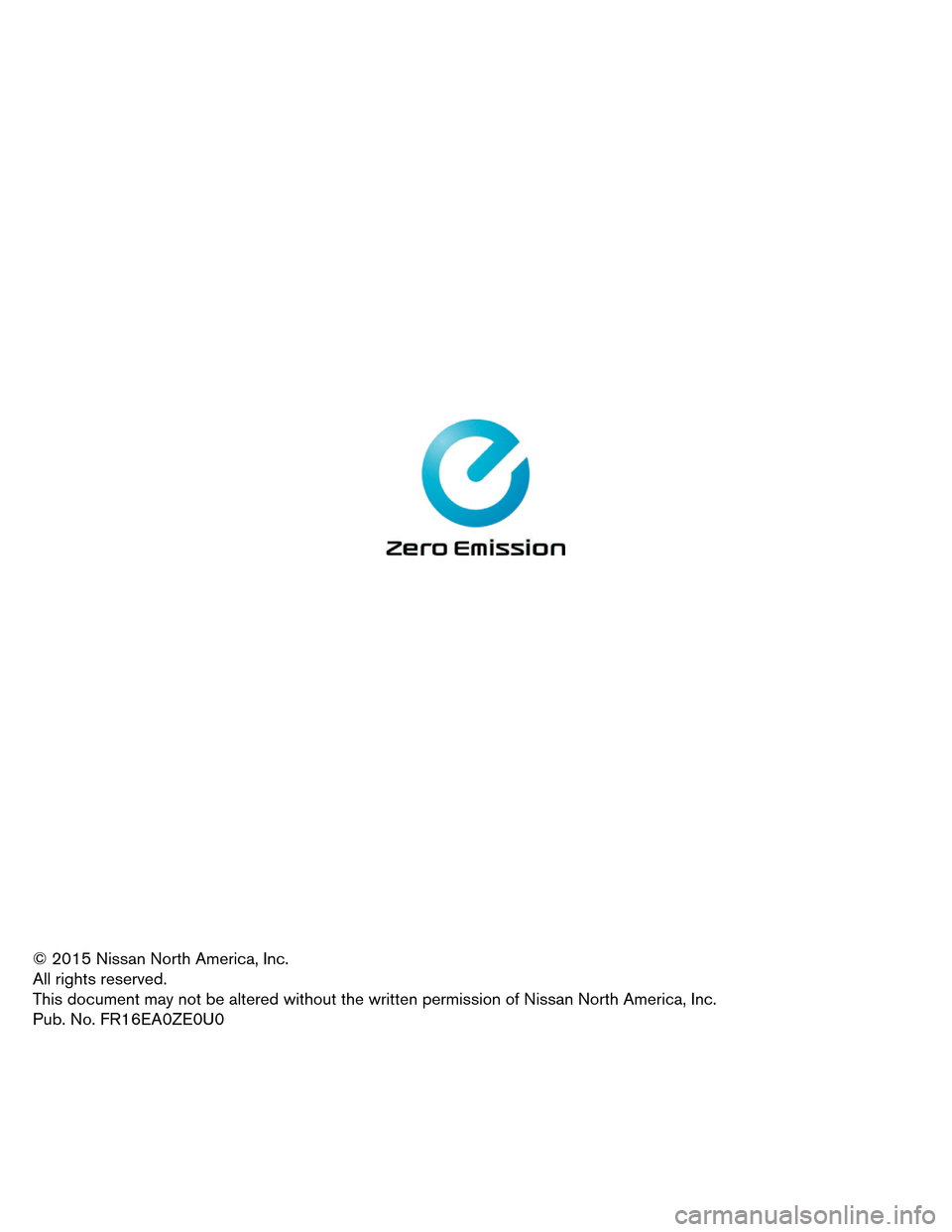

© 2015 Nissan North America, Inc.
All
rights reserved.
This document may not be altered without the written permission of Nissan North America, Inc.
Pub. No. FR16EA0ZE0U0
