Notification of consecutive intersections
on ordinary roads:
INI0136
When the road has three or more consecutive
intersections ahead, voice guidance will an-
nounce the following.
1. ªIn about a quarter mile (400 meters) , right(left) turn, then in about a quarter mile (400
meters) left (right) turn.º
2. ªLeft (right) turn ahead, then in about a quarter mile (400 meters) right (left) turn.º Notification of freeway entrance:
INI0137
1. ªIn about a quarter mile (400 meters) free-
way entrance on your right onto (road
number and direction) .º
2. ªFreeway entrance on your right onto (road number and direction) .º
&RQGLWLRQ
3-33
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Notification of freeway junction:
INI01381. ªIn about 1 mile (2 kilometers) , keep to theright (left) onto (road number and direction) ,
then in about a quarter mile (400 meters)
keep to the right (left) .º
2. ªKeep to the right (left) onto (road number and direction) , then in about a quarter mile
(400 meters) keep to the right (left) onto
(road number and direction) .º
3. ªKeep to the right (left) onto (road number and direction) .º Notification of freeway exit:
INI0139
1. ªIn about 1 mile (2 kilometers) , exit on your
right.º
2. ªTake the second exit on your right.º
Notification when approaching destina-
tion:
Ordinary road:
When approaching the destination, voice gui-
dance will announce, ªYou have arrived at your
destination.º To reach your final destination, refer
to the map screen.
Dark green road:
After passing the last turning point on a
suggested route, voice guidance will announce,
ªThe route to your destination includes roads
through incomplete map areas. Voice guidance
&RQGLWLRQ
3-34
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
will not be provided in these areas.º When
approaching the endpoint of the suggested road,
voice guidance will announce, ªEntering the road
with incomplete map data. The route will be
shown in a different color in this area. Please
follow traffic regulations.º
INFO:
Actual voice guidance may vary depending on
road conditions and information registered in the
system.
Route guidance screensENJN1502-120906-1EC15C97-38ED-4C88-9336-8B6A6573F8DEVarious guidance screens are displayed on the
touch screen display during route guidance.
The settings of the guidance screens can be
changed.
ªMap view settingsº (page 3-12) Route guidance on map screen:
5GB0604X
When route guidance starts, the small turn arrow
and the distance to the next guide point are
displayed in the upper right corner of the map
screen. This arrow indicates the turning direction
at the next guide point (corner or intersection) .
The distance is also displayed. When approach-
ing a guide point, enlarged intersection view is
displayed. Also, there may be cases where next
street names are announced. Enlarged intersection view:
5GB0437X
When approaching a guide point, the system
automatically changes to the split screen and
shows an enlarged view of the intersection on
the left screen. To switch to the full map screen
while the enlarged intersection view is displayed,
push


> (GLW    0RGHO (1-1 (91$01&*. @
Junction guidance:
5GB0438X
While driving on a freeway, when the vehicle is
approximately 1 mile (approximately 2 km) from a
junction, the system automatically switches to
the split screen and displays an enlarged view of
the junction on the left screen. After the vehicle
passes the junction, the system automatically
returns to the full screen mode. To switch to the
full map screen while the enlarged junction view
is displayed, push


> (GLW    0RGHO (1-1 (91$01&*. @

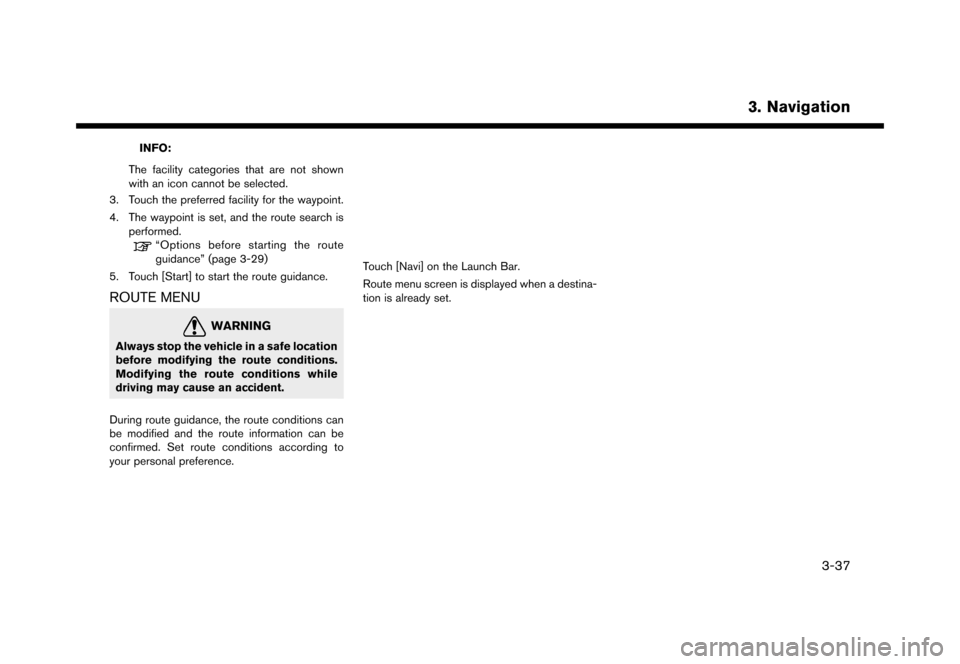

INFO:
The facility categories that are not shown
with an icon cannot be selected.
3. Touch the preferred facility for the waypoint.
4. The waypoint is set, and the route search is performed.
ªOptions before starting the route
guidanceº (page 3-29)
5. Touch [Start] to start the route guidance.
ROUTE MENUENJN1502-120906-A1C01E8A-570A-408B-B0D8-CEBD91E269C3
WARNING(1-1&%$&$%&)((%%Always stop the vehicle in a safe location
before modifying the route conditions.
Modifying the route conditions while
driving may cause an accident.
During route guidance, the route conditions can
be modified and the route information can be
confirmed. Set route conditions according to
your personal preference.
5GB0442X
Touch [Navi] on the Launch Bar.
Route menu screen is displayed when a destina-
tion is already set.
&RQGLWLRQ
3-37
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
Available settings
Setting itemAction
[New Destination] Sets the new destination.
ªSetting new destinationº (page 3-40)
[Cancel Route] Cancels the current route guidance.
[Route Info] [Turn List] Displays the details of the suggested route.
[Simulation] Simulates the route guidance. This function provides a detailed image of the
route with voice guidance.
ªConfirming routeº (page 3-40)
[Store Route] A calculated route can be stored. A route can be stored only when it includes at
least one waypoint.
[Map Scroll] A map scrolled further will be displayed.
[Edit/Add to Route] A destination or waypoint can be edited to a route that has already been set.
ªEditing routeº (page 3-40)
[Settings] [Guidance Settings] [Guidance Voice] Activates or deactivates voice guidance.
[Guidance Volume] Adjust the volume level of voice guidance.
[Traffic Announcement] Activates or deactivates the traffic information announcements.
[Route Settings] [Basic Route Type] Set the route search conditions.
ªRoute Settingsº (page 3-47)
[Other Routing Choices]
[Show Destination] [Move Location] Displays a map screen and allows the location of the destination to be adjusted.
[Nearby POIs] Search for points of interest near the current vehicle location, such as
restaurants and charging stations, etc. The location can be set as a waypoint.
[Save Location] Save the destination in the Address Book.
[Recalculate] Manually search for the route again after changing the search conditions, etc.
and have the system calculate a route.
ªRecalculating routeº (page 3-43)
&RQGLWLRQ
3-38
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
[Traffic Detour]Set the route search condition to detour traffic jam and traffic accident.ªSearching for detour route using traffic informationº (page 3-43)
[Detour] A detour of a specified distance can be calculated.
ªSetting detour routeº (page 3-44)
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SXM information services.
&RQGLWLRQ
3-39
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
SETTING NEW DESTINATIONENJN1502-51BD1B5C-9429-445F-BDE5-CD6141F3BC65When the destination is already set, new
destination can be set.
1. Touch [Navi] on the Launch Bar.
2. Touch [New Destination].
3.Touch the preferred destination setting
method.
ªSetting destinationº (page 3-17)
INFO:
You can also set a waypoint with this operation.
CANCELING ROUTEENJN1502-8DC58B15-9628-42A9-83C4-AE2C6B35D56BIt is possible to delete a destination and all
waypoints that have already been set.
1. Touch [Navi] on the Launch Bar.
2. Touch [Cancel Route].
3. A confirmation message is displayed. Touch [Yes] to delete the currently set destinations
and waypoints.
INFO:
The deleted destination and waypoints cannot
be reactivated.
CONFIRMING ROUTEENJN1502-8B990E34-30A8-4D48-967C-29510AA4560CThe route information can be confirmed and the
suggested route simulation can be performed.
1. Touch [Navi] on the Launch Bar.
2. Touch [Route Info].
5GB0480X
3. Touch the preferred item.
Available items . [Turn List]:
Displays the details of the suggested route
guidance.
. [Simulation]:
Simulate the route guidance. This function
provides a detailed image of the route with
voice guidance.
Touch the following keys for operation.
: Pauses the simulation.
: Resumes the simulation.
: Ends the simulation.
. [Store Route]:
A calculated route can be stored. A maximum
of 5 routes can be stored. The stored routes
can easily be recalled for future use.
. [Map Scroll]:
Displays a map screen where the location of
the destination can be confirmed.
EDITING ROUTEENJN1502-120906-0CFA5674-26DB-4DBD-94B4-07D1D137A60E
5GB0443X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Edit the following settings and touch [Cal-
culate].
Available settings
&RQGLWLRQ
3-40
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
*1[Add Destination]:
Touch to add a new destination.
*2Current destination:
Touch to edit or delete the destination.
ªEditing/deleting destination or way-
pointº (page 3-41)
*3Condition for calculating a route to the
destination/waypoint:
Changes the conditions for route calcula-
tion.
ªChanging route calculation condi-
tionsº (page 3-42)
*4[Add Waypoint]:
Touch to add a waypoint.
ªSetting destination or waypointº
(page 3-41)
*5Current waypoint:
Modifies or deletes the waypoint.
ªEditing/deleting destination or way-
pointº (page 3-41)
*6[Calculate]:
After editing the route, the system recalcu-
lates a route with new conditions.
Setting destination or waypointENJN1502-120906-0BB2FCA4-907D-47E4-BFE0-38F304C36A5CA destination or waypoint can be added to a
route that has already been set. Up to 5
waypoints besides one destination can be set.
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
5GB0444X
3. Touch [Add Destination] or [Add Waypoint].
INFO:
If [Add Destination] is selected, the current
destination changes to a waypoint.
4. Set a destination or waypoint. The method of searching for a destination or waypoint is the
same as the one for a destination.
ªSetting destinationº (page 3-17)
5. Touch [Add to Route] to add the location to the route. 6.
The route information with the selected
location added to the route is displayed.
Adjust the route calculation conditions as
necessary.
ªChanging route calculation condi-
tionsº (page 3-42)
7. Touch [Calculate] to confirm the route
change. The route will be recalculated.
INFO:
. The prior route will be deleted automatically.
. Destinations or waypoints can also be added
from the Map Menu.
ªScrolled location map screenº
(page 3-17)
Editing/deleting destination or way-
point
ENJN1502-120906-CD749FF6-3A0C-4C28-9B11-71083532CB3DA destination or waypoint that has already been
set can be modified or deleted.
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch a destination or waypoint that is
already set.
&RQGLWLRQ
3-41
3. Navigation


> (GLW    0RGHO (1-1 (91$01&*. @
5GB0445X
4. Touch the item you would like to set.Available settings
.[Delete]:A selected destination or waypoint that
has already been set can be deleted.
.[Change Order]:The order of a destination and waypoints
that are already set can be changed.
.[Move Dest.]:
The location of the destination or way-
point can be adjusted by moving the
cross pointer across the map on the
touch screen display.
5. Touch [Calculate] to apply the change.
INFO:
If the destination is deleted, the final waypoint of
the route becomes the destination.
Changing route calculation conditionsENJN1502-120906-2CFF4089-B7EE-40B4-A210-DBBEF76EF02BEach section of the route between waypoints
can have different route calculation conditions.
5GB0575X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch the route condition shown on the preferred section of the route to the destina-
tion or waypoint.
4. Touch the preferred condition.
ªRoute Settingsº (page 3-47)
5. The conditions are changed and the display returns to the edit route screen.
6. Touch [Calculate] to apply the change.
INFO:
. The recalculated route may not be the
shortest route because the system prioritizes
roads that are easy to drive on for safety
reasons.
Changing order of destination and
waypoints
ENJN1502-A503E69F-4403-4F87-813B-70DF8CB10CE1The order of a destination and waypoints that are
already set can be changed.
5GB0447X
1. Touch [Navi] on the Launch Bar.
2. Touch [Edit/Add to Route].
3. Touch a destination or waypoint that is
already set.
4. Touch [Change Order].
5. Touch a preferred destination or waypoint to replace the previously selected destination
or waypoint.
&RQGLWLRQ
3-42
3. Navigation
