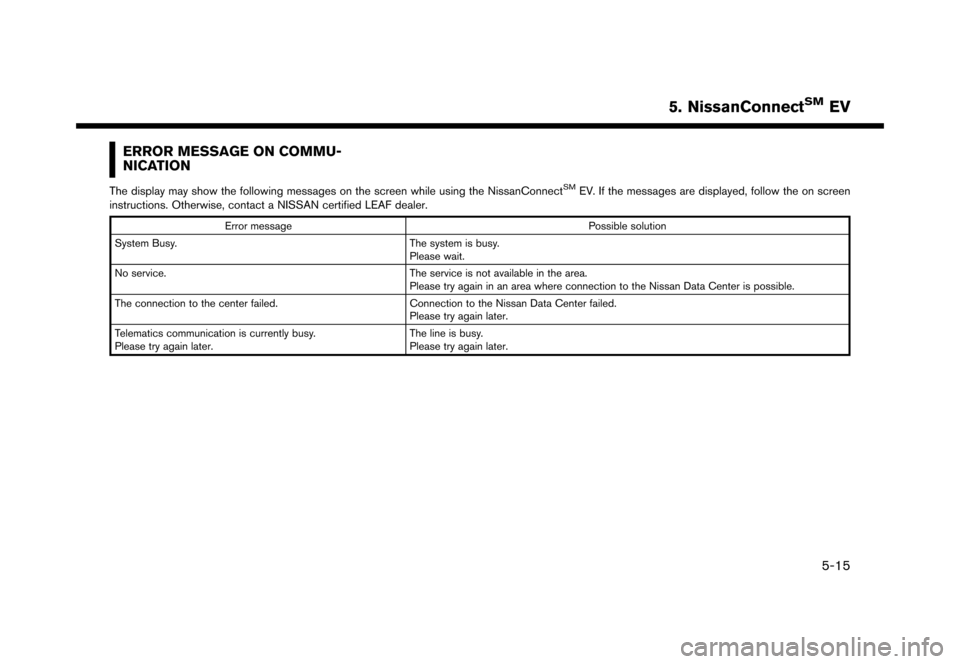

ERROR MESSAGE ON COMMU-
NICATION
GUID-A4CD8C22-D2D0-4FAC-A08B-2ECB0AB57954The display may show the following messages on the screen while using the NissanConnectSMEV. If the messages are displayed, follow the on screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.
Error message Possible solution
System Busy. The system is busy.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the Nissan Data Center is possible.
The connection to the center failed. Connection to the Nissan Data Center failed.
Please try again later.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
&RQGLWLRQ
5-15
5. NissanConnectSMEV


> (GLW    0RGHO (1-1 (91$01&*. @

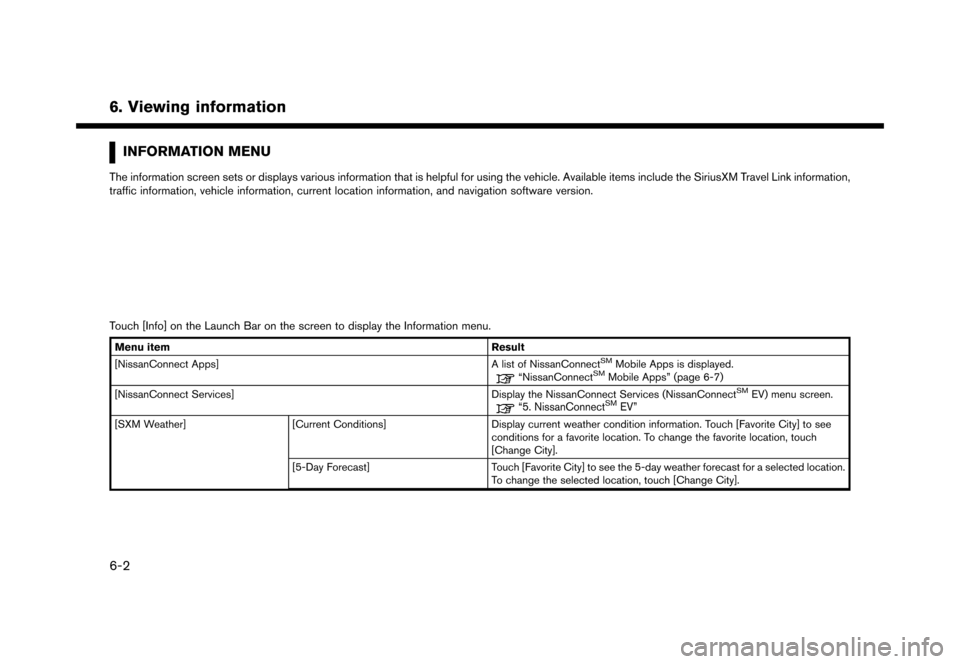

INFORMATION MENUENJN1502-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information,
traffic information, vehicle information, current location information, and navigation software version.
5GH0409X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 6-7)
[NissanConnect Services] Display the NissanConnect Services (NissanConnectSMEV) menu screen.ª5. NissanConnectSMEVº
[SXM Weather][Current Conditions] Display current weather condition information. Touch [Favorite City] to see
conditions for a favorite location. To change the favorite location, touch
[Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location.
To change the selected location, touch [Change City].
&RQGLWLRQ
6-2
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
Menu itemResult
[Graphical Map] Display a graphical map of the weather information on the display. Initially, the
system will display all available information. Touch the scale button to show
[Zoom In]/[Zoom Out] for changing the map scale to 320 miles (640 km) U.S.,
32 miles (64 km) Middle scale or 5 miles (10 km) Detail scale. Touch [Radar] to
stop displaying the weather radar map. Touch [Chart] to stop displaying
weather surface features and pressure, when the map scale is U.S. Touch
[Storm] to stop displaying Storm information, when the map scale is U.S. or
Middle scale. Touch [Winds] to stop displaying wind information, when map
scale is Detail scale.
[Alert Map] Show Alert Map information on the display. Touch [Legend] to display the
detailed contents of information used for the current warning/advisory map by
type. Touch the scale button to show [Zoom In]/[Zoom Out] for changing the
map scale to 320 miles (640 km) U.S., 32 miles (64 km) Middle scale or 5 miles
(10 km) Detail scale.
[Weather Alert] Turn the weather alert on/off.
[SXM Traffic] [Info on Route] Touch to display traffic information detected on the route to the destination.
[Nearby Traffic Info] Touch to display traffic information detected near the current vehicle location.
[SXM Sports] Touch [Yes] to view a list of available sports that can be added or touch [No] to
go back. Select a favorite sport and division/conference from the list to view
scores. A favorite team cannot be selected. When viewing a favorite, a list of
recent and near future games/events is displayed. Touch [Tune] to go to a
channel that is broadcasting the event live. A score will also display while the
event is broadcasting. Touch [Delete One] to delete a favorite sport or [Delete
All] to delete all favorite sports. Up to 10 sports can be saved.
&RQGLWLRQ
6-3
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
Menu itemResult
[SXM Stocks] To add a favorite stock, touch [Yes] to display a List of Matching Stocks. Select
a stock by performing a search or typing in the symbol. Touch [Yes] to add a
stock to the list or touch [No] to go back. Touching [Add Stock] will also allow
adding a favorite stock. Once a stock is added, it's price, trend, and date can
be viewed. Red indicates the stock is down and green indicates the stock is up.
Touch [Delete Stock] to [Delete All] or [Delete One]. Up to 20 stocks can be
saved. Only supported stocks can be added.
[SXM Movie Listings] [Nearby Theaters] Displays a list of theaters by distance. Select the theater for Theater Details
such as its location and phone number. While viewing the Theater Details,
touch [Go here] for route guidance. While viewing the list of Nearby Theaters,
touch [Movies] to display a list of movies that are playing at that theater. Select
the movie to display Movie Details including the rating, running time, and show
times.
[Current Movies] Displays a list of movies that are currently playing. Touch [Details] to display
Movie Details including the rating, running time, and show times. While viewing
the list of Current Movies, select the movie to display a list of Nearby Theaters.
Select the theater for Theater Details such as its location and phone number.
Touch [Movies] for a detailed description and show times of the selected
movie. Touch [Go Here] for route guidance to the selected theater.
[Vehicle] [Energy Info] [Energy Econo-
my]Estimated driving range, average energy economy and instant energy economy
are displayed.
ªViewing energy economy informationº (page 2-8)
[History] The previous 10 histories of the average energy economy are displayed.
ªViewing energy economy historyº (page 2-9)
[Energy Usage] Estimated driving range and energy usage of various systems are displayed.
ªViewing energy usage informationº (page 2-9)
&RQGLWLRQ
6-4
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
Menu itemResult
[Maintenance] [Battery] Maintenance intervals can be displayed and changed. Register preferred interval by touching [+]/[-] and turn on/off the reminder by touching [ON].
Touch [Reset Distance] to reset the interval.
The maintenance reminder will be automatically displayed when both of the
following conditions are met:
.
the vehicle is driven the set distance and the power switch is pushed to the
LOCK position.
.the power switch is pushed to the ACC or ON position the next time you drive
the vehicle after the set value has been reached.
Touch [OK] on the reminder screen to return to the previous screen.
[Air Conditioner
Filter]
[Tire]
[Other Reminder]
[Charging Station Info] [Near Current Location] Location information about the charging stations around the selected area can
be checked. Touch the preferred charging station from the list. Touch [Show
Map] to display the selected charging station and to set it as a destination.
Touch [Call] to make a call to the charging station. Touch [Details] to display
detail information such as the type and number of charging devices at the
charging station.
Touch [Options] to select option items.
ªFinding charging stationº (page 3-20)
[Near Destination]
[Near Scroll Position]
[Near City Center]
[Where am I?] The name and distance of the next/previous street, and other information that
indicates the current vehicle location are displayed. GPS coordinates and
altitude are shown on the bottom right.
[SXM Weather Alerts] Display the list of weather alerts.
Touch [Nearby Current] to display nearby current alerts, touch [Nearby
Destination] to display nearby destination alerts.
[Navigation Version] Displays the information of the current map version, program version, unit code,
etc.
[GPS Position] Displays GPS information, such as number of satellites, latitude/longitude, and
approximate altitude.
&RQGLWLRQ
6-5
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
NISSANCONNECTSMMOBILE
APPS
ENJN1502-9EE53D94-8959-46EC-8F9C-62F6145D53D6
NISSANCONNECTSMMOBILE APPS
SMARTPHONE INTEGRATION
ENJN1502-F3FB5C7B-9BEF-4D5C-B8B9-4FD75434EE73This vehicle is equipped with smartphone
integration technology. This allows many com-
patible smartphone applications to be displayed
and easily controlled through the vehicle's touch
screen display.
Laws in some jurisdictions may restrict the use of
some of the applications and features, such as
social networking and texting. Check local
regulations for any requirements.
INFO:
A compatible smartphone and registration is
required to use mobile applications or to access
connected features of certain vehicle applica-
tions.
REGISTERING WITH NISSANCON-
NECTSMMOBILE APPSENJN1502-1D9523C3-4B2E-46EB-B3C5-3BD2228F295CTo use the smartphone integration feature, it is
necessary for the user to register. In order to
register, visit the NissanConnect
SMwebsite for
more information and to sign up. Once regis-
tered, download the NissanConnect
SMApp from your compatible phone's application download
source and then log into the application.
For more information about this technology, visit
the website or contact NissanConnect
SMMobile
Apps and EV customer service.
For U.S. customers:
Website:
www.NissanUSA.com/connect
For Canadian customers: Website:
www.Nissan.ca/NissanConnect (English)
www.Nissan.ca/NissanConnect/fr (French)
CONNECTING PHONEENJN1502-895B9E8A-9FC4-4A3B-A26E-C0E1DA7804A6To use this feature, a compatible smartphone
must be connected via Bluetooth


> (GLW    0RGHO (1-1 (91$01&*. @
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S.
1-877-447-0011
For Canada
1-877-438-9677
INFO:
. If a contract is not completed for the
SiriusXM Travel Link information service, a
message appears and it will not be possible
to check the information on the traffic
information system.
5GH0262X
Example
.The weather information is available only for
areas that provide weather information to SiriusXM Travel Link.
. Not all vehicles or devices are capable of
receiving all services offered by SiriusXM.
Data displays and individual product avail-
ability vary by vehicle hardware. Current
information and features may not be available
in all locations, or on all receivers. SiriusXM is
not responsible for any errors or inaccuracies
in the data services or their use in the vehicle.
Notes on SiriusXM Traffic informationENJN1502-120906-3C768737-3150-4B3D-BA4F-F358165C07E4.The SiriusXM Traffic information service is
not provided for some cities. In addition, the
cities for which the traffic information service
is provided may be changed.
. In some cases, infrastructure problems may
prevent the complete display of the traffic
information. This is not a malfunction.
. Due to infrastructure problems, or due to the
time when the traffic information service
broadcast is received, the displayed informa-
tion may differ from the actual traffic condi-
tions.
. Depending on the traffic information, a
detour route may be slower than the original
route. .
SiriusXM Satellite Radio and SiriusXM Traffic
subscriptions are sold separately or as a
package, and are continuous until you call
SiriusXM to cancel. See SiriusXM Customer
Agreement for complete terms at the Sir-
iusXM website.
SiriusXM website:
For U.S.
www. siriusxm.com
For Canada
www.siriusxm.ca (English)
www.siriusxm.ca/fr (French)
SiriusXM Travel Link is available in select
markets. For more information, refer to the
SiriusXM website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/traffic
For Canada
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-travel-link (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-travel-link (French)
Listener Care:
For U.S.
&RQGLWLRQ
6-9
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
1-877-447-0011
For Canada
1-877-438-9677
. SiriusXM Traffic is available in over 130
metropolitan markets. For the most current
list of markets covered, please refer to the
SiriusXM website or call Listener Care.
SiriusXM website:
For U.S.
www.siriusxm.com/siriusxmtraffic
For Canada
www.siriusxm.ca/siriusxm-traffic-services/
siriusxm-traffic (English)
www.siriusxm.ca/fr/services-siriusxm-
traffic/siriusxm-traffic (French)
Listener Care:
For U.S.
1-877-447-0011
For Canada
1-877-438-9677
. Due to road maintenance, infrastructure
problems (e.g. malfunction of road sensors,
outage of central computer of infrastructure)
or natural disasters, there are times when
some or all traffic information may not be available.
. Incident information is based on human
collection. Not all incidents that have hap-
pened are collected and provided.
. Due to infrastructure problems, or transmis-
sion delay, there are times when the informa-
tion may differ from the actual condition.
Always observe safe driving practices and
follow all traffic regulations.
. Due to the coverage and quality of traffic
information and road conditions, it is not
always possible for the system to provide the
shortest time route even when traffic in-
formation is considered.
. Traffic information that is displayed may differ
from information from other media (e.g.,
radio) , as other media may use different
information sources.
&RQGLWLRQ
6-10
6. Viewing information


> (GLW    0RGHO (1-1 (91$01&*. @
4. Touch [Connect].
INFO:
Touch [Edit] to change the device name.
Touch [Delete] to delete the device from the
device list.
5. When the device selection is successful, a message on the touch screen display
indicates that the cellular phone was se-
lected.
INFO:
To select a phone, Bluetooth


> (GLW    0RGHO (1-1 (91$01&*. @
.Push <>on the steering wheel.
. Touch [Answer].
Rejecting a call:
To reject the call, touch [Decline].
Holding a call:
To hold the call, touch [Hold Call].
During a callENJN1502-120906-C160F19D-493E-4687-BE13-1F6A2E523B4E
5GF0070X
The screen as illustrated will appear during a call.
To hang up the phone, touch [Hang up]. Call from a second person:
5GF0071X
When another phone call is received during a
call, the screen as illustrated will appear.
Rejecting call from a second person:
To reject a call from the second person and
continue the conversation with the first caller,
touch [Decline].
Answering call from a second person:
To answer the call from the second person and
place the first caller on hold, take one of the
following actions.
. Push <
>on the steering wheel.
. Touch [Answer].
5GF0072X
The screen as illustrated will appear during a call
with a second person.
To hang up the phone and return to the
conversation with the first caller, touch [Hang
up].
To switch between two calls on line, touch
[Switch Call].
Operations during a call:
There are some options available other than
hanging up a call or answering/rejecting incom-
ing calls.
Touch one of the following displayed keys on the
screen to take action.
&RQGLWLRQ
7-5
7. Hands-Free Phone
