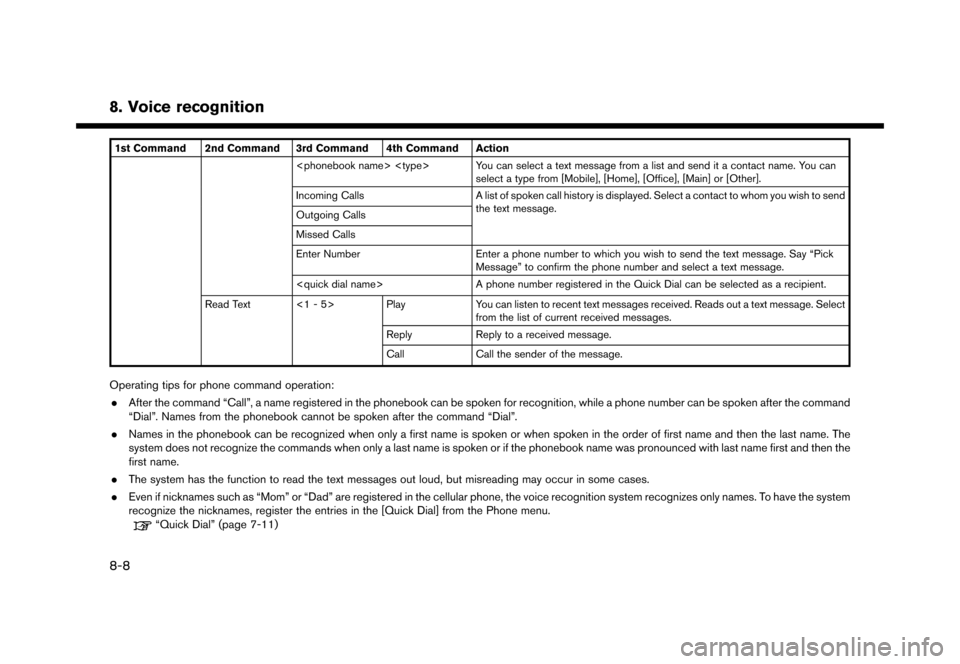

Page 198 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd Command 3rd Command 4th Command Action
Incoming Calls A list of spoken call history is displayed. Select a contact to whom you wish to send
the text message.
Outgoing Calls
Missed Calls
Enter Number Enter a phone number to which you wish to send the text message. Say ªPick
Messageº to confirm the phone number and select a text message.
Read Text <1 - 5> Play You can listen to recent text messages received. Reads out a text message. Select
from the list of current received messages.
Reply Reply to a received message.
Call Call the sender of the message.
Operating tips for phone command operation:
. After the command ªCallº, a name registered in the phonebook can be spoken for recognition, while a phone number can be spoken after the command
ªDialº. Names from the phonebook cannot be spoken after the command ªDialº.
. Names in the phonebook can be recognized when only a first name is spoken or when spoken in the order of first name and then the last name. The
system does not recognize the commands when only a last name is spoken or if the phonebook name was pronounced with last name first and then the
first name.
. The system has the function to read the text messages out loud, but misreading may occur in some cases.
. Even if nicknames such as ªMomº or ªDadº are registered in the cellular phone, the voice recognition system recognizes only names. To have the system
recognize the nicknames, register the entries in the [Quick Dial] from the Phone menu.
ªQuick Dialº (page 7-11)
& R Q G L W L R Q
8-8
8. Voice recognition

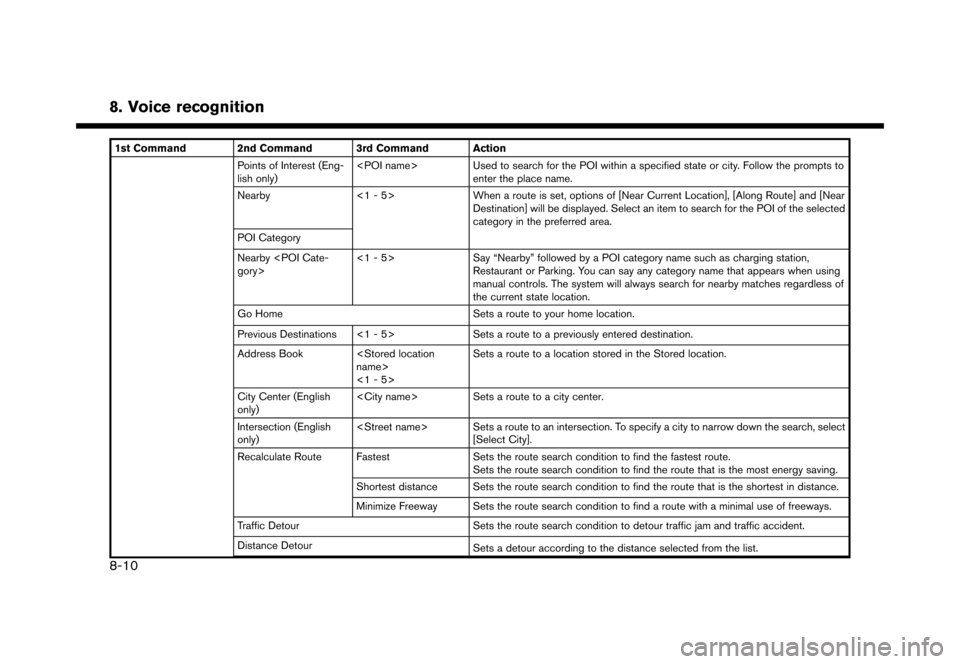

Page 200 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd Command 3rd Command ActionPoints of Interest (Eng-
lish only)
Used to search for the POI within a specified state or city. Follow the prompts to
enter the place name.
Nearby <1 - 5>When a route is set, options of [Near Current Location], [Along Route] and [Near
Destination] will be displayed. Select an item to search for the POI of the selected
category in the preferred area.
POI Category
Nearby
Say ªNearbyº followed by a POI category name such as charging station,
Restaurant or Parking. You can say any category name that appears when using
manual controls. The system will always search for nearby matches regardless of
the current state location.
Go Home Sets a route to your home location.
Previous Destinations <1 - 5> Sets a route to a previously entered destination.
Address Book
<1 - 5>Sets a route to a location stored in the Stored location.
City Center (English
only)
Sets a route to a city center.
Intersection (English
only)
[Select City].
Recalculate Route Fastest Sets the route search condition to find the fastest route.
Sets the route search condition to find the route that is the most energy saving.
Shortest distance Sets the route search condition to find the route that is the shortest in distance.
Minimize Freeway Sets the route search condition to find a route with a minimal use of freeways.
Traffic Detour Sets the route search condition to detour traffic jam and traffic accident.
Distance Detour Sets a detour according to the distance selected from the list.
& R Q G L W L R Q
8-10
8. Voice recognition
Page 201 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd Command 3rd Command ActionPrevious Start Point Sets a route with the previous starting point as a destination.
Cancel Route Cancels route and deletes the destination/waypoints.
Zoom In Zooms in the map scale by 1 step.
Zoom In <1-13> Increases the magnification of the map by the number of steps specified.
Zoom Out Zooms out the map scale by 1 step.
Zoom Out <1-13> Decreases the magnification of the map by the number of steps specified.
Zoom Streets Change to the street map.
North Up Sets the 2D full map to North Up.
Heading Up Sets the 2D full map to Heading Up.
Full Map Displays a full map.
Split Map Displays a split map.
2D Map Change the current map to a 2D Heading Up map.
3D Map Change the current map to a 3D map.
Repeat Voice Guidance Speaks the current navigation guidance.
Voice Guidance ON Turns the navigation guidance on.
Voice Guidance OFF Turns the navigation guidance off.
Show POI Icons Select a category of POI the icon you wish to display on map. Selected POI icons
will be displayed on the map screen.
Remove POI Icons Select a category of the POI icon you wish to delete from the map. Selected POI
icons will be deleted from the map screen.
Route Information Display the route information.
& R Q G L W L R Q
8-11
8. Voice recognition
Page 202 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd Command 3rd Command ActionWhere am I? Displays the information of the current position.
Operating tips for navigation command operation:
. Depending on the area where the vehicle is located (such as in Puerto Rico, Guam, etc.) , the system may not recognize the general navigation
commands.
. Points Of Interest:
Ð The POI commands searches for Points of Interest registered in the navigation system.
Ð When searching for POI, the search is conducted within the current state/province or the state/province specified by ªChange Stateº command. To change the state/province, speak ªChange Stateº after the prompt and then after the next prompt, speak the name of the state/province for which
you wish to conduct the POI search. The state/province will be reset to the current state each time the voice recognition session is restarted.
Ð The following POI main categories cannot be used for ªPoints of Interestº search with voice command operations while all registered categories can be recognized for ªNearbyº search:
Others, Repair, Rental Car Agency, Parking, Police Station, Administration, ATM, Other Leisure, Bars & Clubs, Other Dealers, Motorcycle
Dealership, Medical Offices, Post Office, Auto Parts, Banquets & Food Delivery, Carwash, Copying, Day Care, Fire Station, Laundry & Cleaners,
Office Supply, Other Services, Other Shopping, Package Delivery
. Street Address:
Ð Alphabet letters cannot be included when speaking a house number. When a specified house number cannot be found, a location representing the address will be displayed.
Ð Speak in a natural conversational speed without pausing between words for better recognition.
Ð When the system recognizes the command incorrectly, correct the search conditions using commands such as ªChange Stateº, ªChange Cityº, ªChange Streetº or ªChange House Numberº.
& R Q G L W L R Q
8-12
8. Voice recognition
Page 205 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd Command 3rd Command ActioniPod Show Albums Displays a list of Albums in the iPod
Page 206 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
.When selecting ªYesº in the pop-up screen that displays after a new USB audio device is connected, the USB audio device is registered in the voice
recognition system and is selected automatically. One iPod
Page 207 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
1st Command 2nd CommandAction
Maintenance Displays maintenance information screen.
INFO:
A SiriusXM Travel Link or SiriusXM Traffic subscription is necessary to receive SiriusXM information services.
ªSiriusXM Travel Linkº (page 6-8)
Zero Emission Command
1st Command 2nd Command Action
Zero Emission Driving Range
Displays the driving range screen.
Nearby Stations Near Current Location Searches for charging stations near current location.
Along RouteSearches for charging stations along route.
Near Destination Searches for charging stations near destination.
Update Stations Updates nearby charging stations.
Energy Economy Displays Energy Economy information.
Energy Usage Displays Energy Usage information.
& R Q G L W L R Q
8-17
8. Voice recognition
Page 209 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
9 General system information
Current vehicle location...
........................................................... 9-2
Display of current vehicle location ...
.................................. 9-2
What is GPS (Global Positioning System)? ...
................ 9-2
Incorrect display of vehicle position ...
............................... 9-3
Detailed Map Coverage Areas (MCA) for
navigation system ...
................................................................ 9-5
When gray/dark green road is displayed on map ...
....... 9-5
Route calculation ...
....................................................................... 9-6
Route guidance ...
........................................................................\
. 9-7
Repeating voice guidance ...
................................................. 9-7
Notes on voice guidance ...
................................................... 9-7 Map data
...
........................................................................\
............. 9-9
How to handle the Map SD card ...
.................................. 9-9
How to order map data updates ...
................................... 9-9
About map data ...
................................................................. 9-9
End-user terms ...
............................................................... 9-10
How to handle display ...
.......................................................... 9-13
Characteristics of liquid crystal display ...
.................... 9-13
Maintenance of display ...
................................................. 9-13
How to handle the SD card ...
................................................ 9-14
How to handle CD and USB memory ...
.............................. 9-14
CD ...
........................................................................\
............. 9-14
USB memory device ...
...................................................... 9-15
& R Q G L W L R Q
Page 210 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
CURRENT VEHICLE LOCATIONENJN1502-120906-3DB2B298-7959-42E7-A529-EBC2E6E1A510
DISPLAY OF CURRENT VEHICLE
LOCATION
ENJN1502-120906-AC334D4E-00C5-4F0B-889E-D50DC5D61202This navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.
WHAT IS GPS (Global Positioning
System)?
ENJN1502-120906-A33AD639-F86B-4DA8-B59E-2726CD899634GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detect the position of the vehicle by
utilizing the principle of triangulation.
Positioning adjustmentGUID-397DB4FB-31B2-4B95-A408-0734E5AE4532When the system judges that the vehicle position
is not accurate based on vehicle speed and gyro
sensor data calculations, the system will auto-
matically adjust the position of the vehicle icon
using GPS signals.
Receiving signals from GPS satellitesGUID-BE69F8F9-5318-4090-9ED5-74A3046914D7The reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receive
GPS signals.
NAI0422
*
Inside tunnels or parking garages
NAI0423 *
In areas with numerous tall buildings
NAI0424
*
Under multi-layered highways
NAI0425
*
Areas with numerous tall trees
& R Q G L W L R Q
9-2
9. General system information
Page 211 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
NAI0713
*
In a canyon
INFO:
The GPS antenna is located on the instrument
panel inside the vehicle. Do not place any
objects, especially cellular phones or transcei-
vers, on the instrument panel. Because the
strength of the GPS signal is approximately one
billionth of that of TV waves, phones and
transceivers will affect or may totally disrupt the
signal.
INCORRECT DISPLAY OF VEHICLE
POSITION
ENJN1502-120906-B4EC1A08-66C4-4494-8E5E-6CB5C47F02B9The following cases may affect the display
accuracy of the vehicle's position or traveling
direction. The accuracy will return to normal if the
driving conditions return to normal.
NAI0426
*
When there is a similar road nearby.
NAI0427
*
When the vehicle is traveling in an area with
a grid pattern road system.
NAI0428
*
When the vehicle is passing through a large
Y-shaped intersection/junction.
NAI0429
*
When the vehicle is traveling on a contin-
uous, slowly curving road.
& R Q G L W L R Q
9-3
9. General system information
