NISSAN LEAF 2016 1.G Navigation Manual
Manufacturer: NISSAN, Model Year: 2016, Model line: LEAF, Model: NISSAN LEAF 2016 1.GPages: 264, PDF Size: 4.99 MB
Page 161 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
5GH0260X
*1Contents:
The contents of the NissanConnectSMEV
feeds are displayed.
*2Menu:
Stops the Text-to-Speech voice announce-
ments and displays the operation menu
items on the right side of the screen.
*3[]/[]:
Turns to the next or previous page if the
information has a number of content pages.
*4:
If the information contains map information,
the icon be displayed. It can be set as the
destination.
*5:
If the information contains phone number
information, the icon is displayed. It is
possible to make a phone call to the facility.
5GH0261X
After parking the vehicle in a safe location and
touching [Menu], the operation menu is dis-
played on the right side of the screen.
INFO:
The availability of the operation menu items
differs depending on the contents of the
selected information.
STORING FAVORITESGUID-39D6EF5F-C754-4E77-A421-1D9B341E164FFavorite feeds selected from the information
feeds can be stored in a folder.
1. Touch [Info] on the Launch Bar and touch [NissanConnect Services].
2. Touch [Favorite Feeds].
3. Touch [Add New]. A folder list is displayed.
4. Touch the preferred folder from the list. An information feed list is displayed. 5. Touch a favorite feed to be stored.
6. Check the contents of the message, then
touch [Yes]. When the contents of the
information are sent to the Nissan Data
Center, the registration is completed.
INFO:
. The contents that are entered in the favorites
folder need to be transmitted to the Nissan
Data Center. Registration of the contents is
not completed until the data is transmitted to
the Nissan Data Center.
. A message is displayed if communication is
interrupted while downloading information.
Touch [Yes] to restart the download.
VIEWING NISSANCONNECTSMEV
RECORDS
GUID-90E10400-2E12-467B-91BA-A2FF2D68745EThe information feeds that were referred to
previously are displayed. A maximum of 3 feeds
can be stored in the history.
1. Touch [Info] on the Launch Bar and touch
[NissanConnect Services].
2. Touch [History]. An Information feed list is displayed.
& R Q G L W L R Q
5-9
5. NissanConnectSMEV
Page 162 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

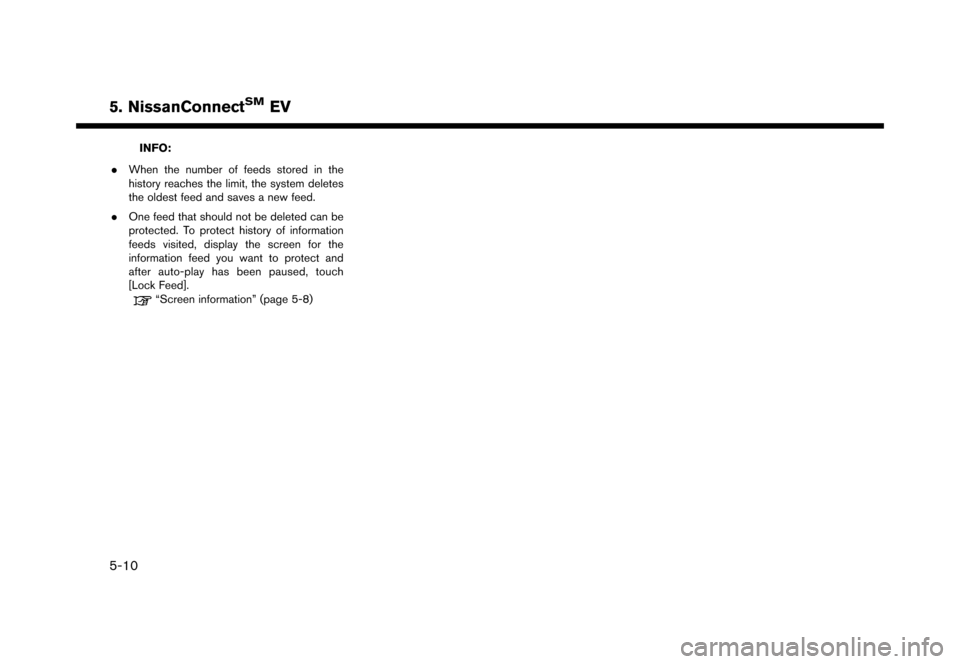

INFO:
. When the number of feeds stored in the
history reaches the limit, the system deletes
the oldest feed and saves a new feed.
. One feed that should not be deleted can be
protected. To protect history of information
feeds visited, display the screen for the
information feed you want to protect and
after auto-play has been paused, touch
[Lock Feed].
ªScreen informationº (page 5-8)
& R Q G L W L R Q
5-10
5. NissanConnectSMEV
Page 163 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

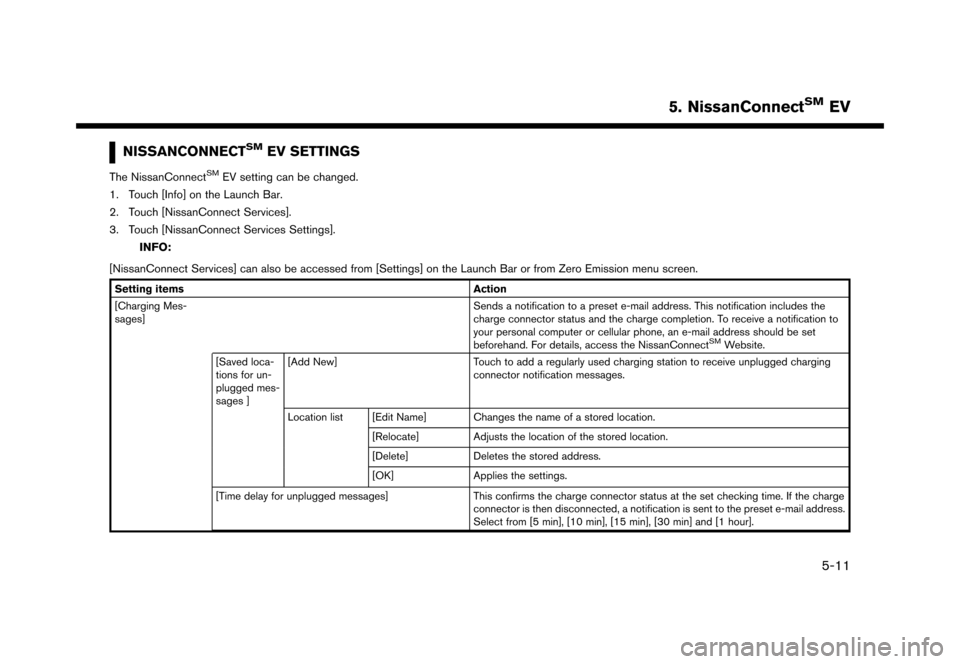

NISSANCONNECTSMEV SETTINGSENJN1502-BBEF517A-55F1-402B-8D8A-30E8BDC9B301The NissanConnectSMEV setting can be changed.
1. Touch [Info] on the Launch Bar.
2. Touch [NissanConnect Services].
3. Touch [NissanConnect Services Settings].
INFO:
[NissanConnect Services] can also be accessed from [Settings] on the Launch Bar or from Zero Emission menu screen.
Setting items Action
[Charging Mes-
sages] Sends a notification to a preset e-mail address. This notification includes the
charge connector status and the charge completion. To receive a notification to
your personal computer or cellular phone, an e-mail address should be set
beforehand. For details, access the NissanConnect
SMWebsite.
[Saved loca-
tions for un-
plugged mes-
sages ] [Add New]
Touch to add a regularly used charging station to receive unplugged charging
connector notification messages.
Location list [Edit Name] Changes the name of a stored location. [Relocate] Adjusts the location of the stored location.
[Delete] Deletes the stored address.
[OK] Applies the settings.
[Time delay for unplugged messages] This confirms the charge connector status at the set checking time. If the charge
connector is then disconnected, a notification is sent to the preset e-mail address.
Select from [5 min], [10 min], [15 min], [30 min] and [1 hour].
& R Q G L W L R Q
5-11
5. NissanConnectSMEV
Page 164 of 264
![NISSAN LEAF 2016 1.G Navigation Manual
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
[Send unplugged status to Data Center]With this item turned on, the system recognizes that t](/img/5/478/w960_478-163.png "NISSAN LEAF 2016 1.G Navigation Manual
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
[Send unplugged status to Data Center]With this item turned on, the system recognizes that t")
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
[Send unplugged status to Data Center]With this item turned on, the system recognizes that the charge connector is not
connected to the vehicle even though the charge timer function is set, the system
transmits this information to the Nissan Data Center. When the Nissan Data Center
receives the information, it will send an e-mail to the specified address to inform you
of the charge connector status.
[Send Charging Status to Data Center] With this item turned on, if a battery charge is interrupted before it is completed, the
system recognizes this and transmits this information to the Nissan Data Center.
When the Nissan Data Center receives the information, it will send an e-mail to the
specified address to inform you of the battery charge status.
[Delete Saved Locations & Reset Message Settings] Saved locations for charging messages will be deleted and charging messages settings will set to the factory default settings.
[Sign in] NissanConnect
SMEV registration cannot be completed from this menu. For
registration, please visit the NissanConnectSMWebsite.
[Auto-Update Stations] When this item is turned on, new charging station information will be downloaded
monthly from the Nissan Data Center, automatically updating the map data.
[Service Reminders] The information that is sent from the Nissan Data Center is displayed.
[Information Feed
Setting] [Download
Automatically][Select Download Interval]
Select automatic download interval from [Never], [Power on] (downloaded when
power is turned on) , [Every 30 min], [Every 60 min] and [Every 120 min].
[Select Information Feed] Select an information feed from the list to start the automatic download of the feed.
[Edit Feed
List] [Add to Favorites]
A maximum of 16 favorite feeds selected from the information feeds can be stored
in a folder.
ªStoring favoritesº (page 5-9)
[Update Feed List] Connect to the Nissan Data Center and update the information feed list.
[Initialize Feed List] Restore the information feed list to the factory default setting.
[Delete All Information Feed History] All information feed history will be deleted.
& R Q G L W L R Q
5-12
5. NissanConnectSMEV
Page 165 of 264
![NISSAN LEAF 2016 1.G Navigation Manual
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

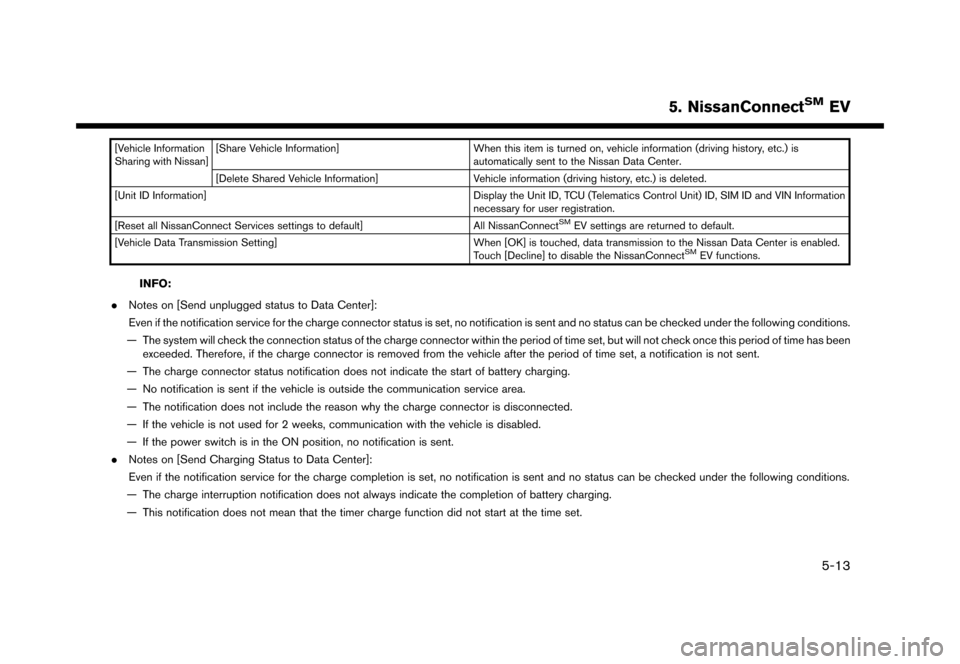

[Vehicle Information
Sharing with Nissan][Share Vehicle Information]
When this item is turne](/img/5/478/w960_478-164.png "NISSAN LEAF 2016 1.G Navigation Manual
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
[Vehicle Information
Sharing with Nissan][Share Vehicle Information]
When this item is turne")
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
[Vehicle Information
Sharing with Nissan][Share Vehicle Information]
When this item is turned on, vehicle information (driving history, etc.) is
automatically sent to the Nissan Data Center.
[Delete Shared Vehicle Information] Vehicle information (driving history, etc.) is deleted.
[Unit ID Information] Display the Unit ID, TCU (Telematics Control Unit) ID, SIM ID and VIN Information
necessary for user registration.
[Reset all NissanConnect Services settings to default] All NissanConnect
SMEV settings are returned to default.
[Vehicle Data Transmission Setting] When [OK] is touched, data transmission to the Nissan Data Center is enabled.
Touch [Decline] to disable the NissanConnect
SMEV functions.
INFO:
. Notes on [Send unplugged status to Data Center]:
Even if the notification service for the charge connector status is set, no notification is sent and no status can be checked under the following conditions.
Ð The system will check the connection status of the charge connector within the period of time set, but will not check once this period of time has been exceeded. Therefore, if the charge connector is removed from the vehicle after the period of time set, a notification is not sent.
Ð The charge connector status notification does not indicate the start of battery charging.
Ð No notification is sent if the vehicle is outside the communication service area.
Ð The notification does not include the reason why the charge connector is disconnected.
Ð If the vehicle is not used for 2 weeks, communication with the vehicle is disabled.
Ð If the power switch is in the ON position, no notification is sent.
. Notes on [Send Charging Status to Data Center]:
Even if the notification service for the charge completion is set, no notification is sent and no status can be checked under the following conditions.
Ð The charge interruption notification does not always indicate the completion of battery charging.
Ð This notification does not mean that the timer charge function did not start at the time set.
& R Q G L W L R Q
5-13
5. NissanConnectSMEV
Page 166 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

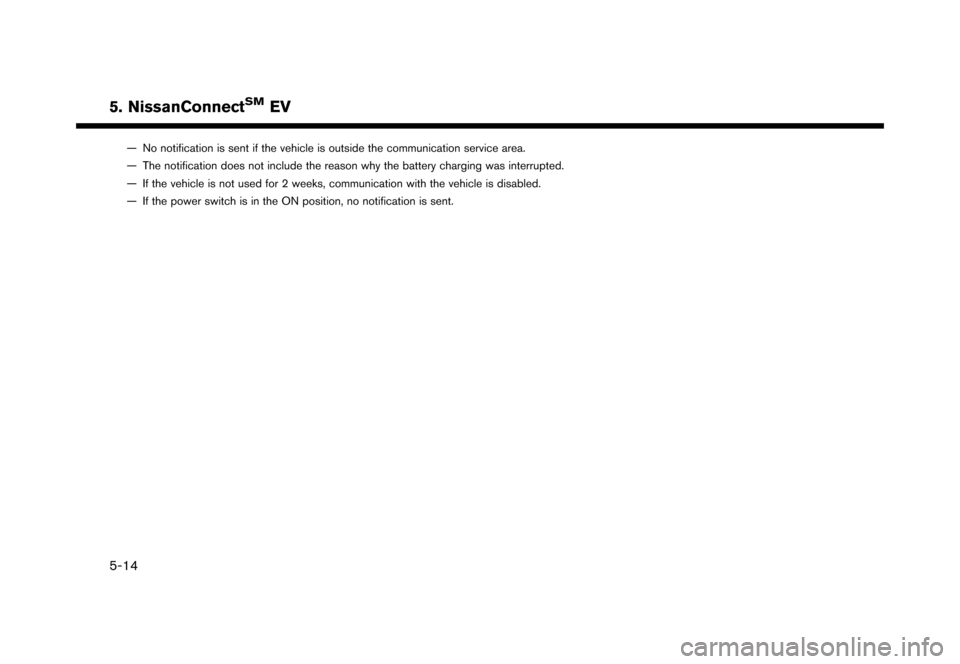

Ð No notification is sent if the vehicle is outside the communication service area.
Ð The notification does not include the reason why the battery charging was interrupted.
Ð If the vehicle is not used for 2 weeks, communication with the vehicle is disabled.
Ð If the power switch is in the ON position, no notification is sent.
& R Q G L W L R Q
5-14
5. NissanConnectSMEV
Page 167 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
ERROR MESSAGE ON COMMU-
NICATION
GUID-A4CD8C22-D2D0-4FAC-A08B-2ECB0AB57954The display may show the following messages on the screen while using the NissanConnectSMEV. If the messages are displayed, follow the on screen
instructions. Otherwise, contact a NISSAN certified LEAF dealer.
Error message Possible solution
System Busy. The system is busy.
Please wait.
No service. The service is not available in the area.
Please try again in an area where connection to the Nissan Data Center is possible.
The connection to the center failed. Connection to the Nissan Data Center failed.
Please try again later.
Telematics communication is currently busy.
Please try again later. The line is busy.
Please try again later.
& R Q G L W L R Q
5-15
5. NissanConnectSMEV
Page 168 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

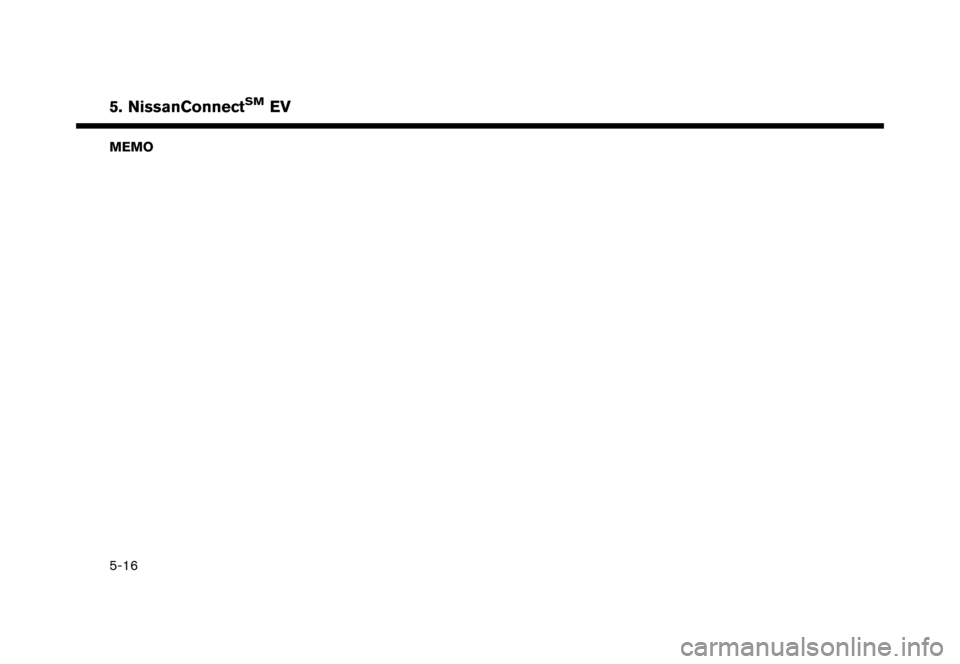

MEMO
& R Q G L W L R Q
5-16
5. NissanConnectSMEV
Page 169 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @

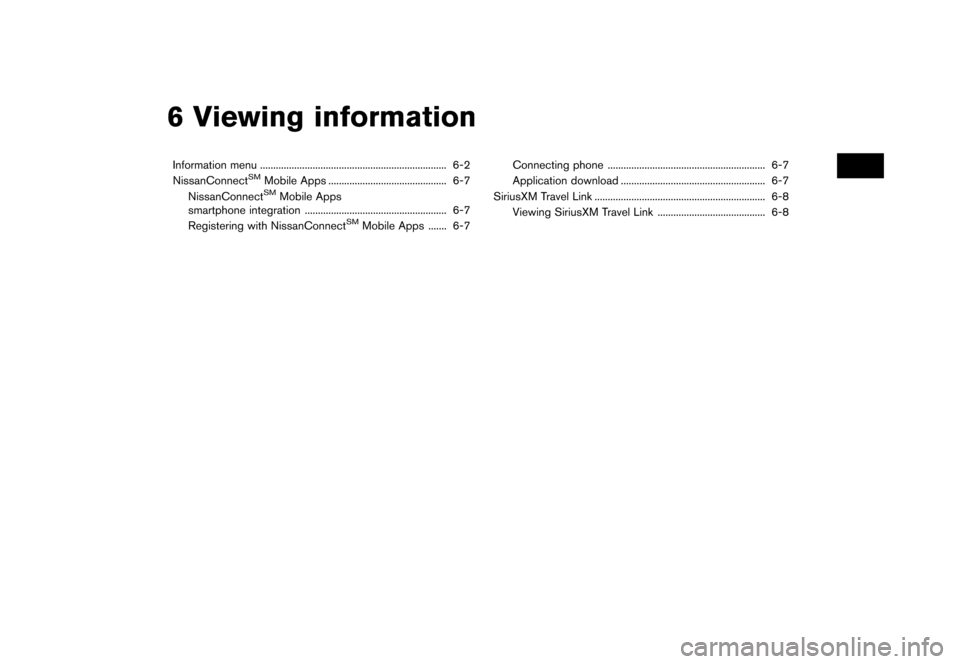

6 Viewing information
Information menu...
....................................................................... 6-2
NissanConnectSMMobile Apps ...
............................................. 6-7
NissanConnectSMMobile Apps
smartphone integration ...
...................................................... 6-7
Registering with NissanConnect
SMMobile Apps ...
....... 6-7 Connecting phone
...
............................................................ 6-7
Application download ...
....................................................... 6-7
SiriusXM Travel Link ...
................................................................. 6-8
Viewing SiriusXM Travel Link ...
......................................... 6-8
& R Q G L W L R Q
Page 170 of 264
> ( G L W 0 R G H O ( 1 - 1 ( 9 1 $ 0 1 & * . @
INFORMATION MENUENJN1502-120906-5E9B2C85-D229-414A-96FE-2A3389057A2BThe information screen sets or displays various information that is helpful for using the vehicle. Available items include the SiriusXM Travel Link information,
traffic information, vehicle information, current location information, and navigation software version.
5GH0409X
Touch [Info] on the Launch Bar on the screen to display the Information menu.
Menu itemResult
[NissanConnect Apps] A list of NissanConnectSMMobile Apps is displayed.ªNissanConnectSMMobile Appsº (page 6-7)
[NissanConnect Services] Display the NissanConnect Services (NissanConnectSMEV) menu screen.ª5. NissanConnectSMEVº
[SXM Weather][Current Conditions] Display current weather condition information. Touch [Favorite City] to see
conditions for a favorite location. To change the favorite location, touch
[Change City].
[5-Day Forecast] Touch [Favorite City] to see the 5-day weather forecast for a selected location.
To change the selected location, touch [Change City].
