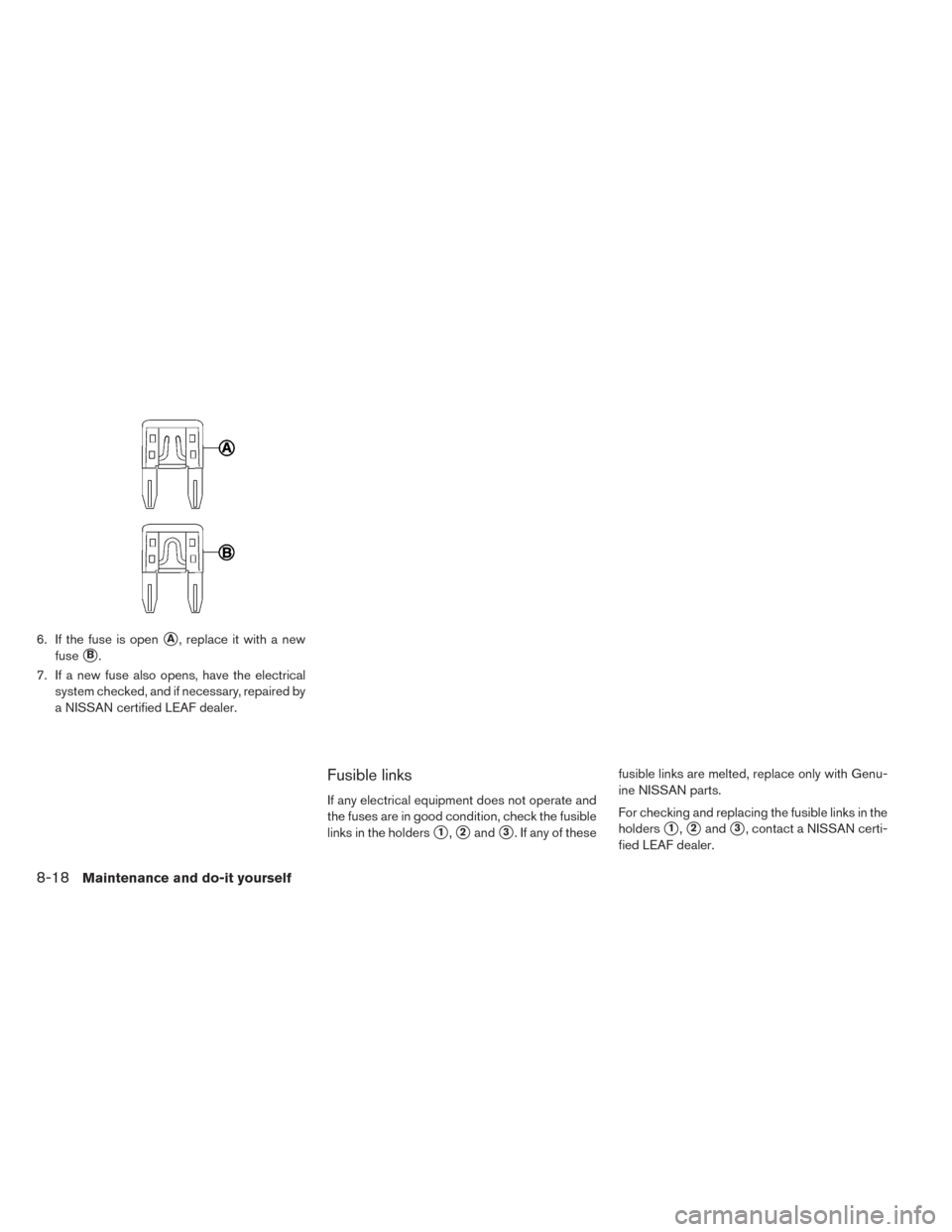

6. If the fuse is openA, replace it with a new
fuse
B.
7. If a new fuse also opens, have the electrical system checked, and if necessary, repaired by
a NISSAN certified LEAF dealer.
Fusible links
If any electrical equipment does not operate and
the fuses are in good condition, check the fusible
links in the holders
1,2and3. If any of these fusible links are melted, replace only with Genu-
ine NISSAN parts.
For checking and replacing the fusible links in the
holders1,2and3, contact a NISSAN certi-
fied LEAF dealer.
8-18Maintenance and do-it yourself
Page 372 of 437

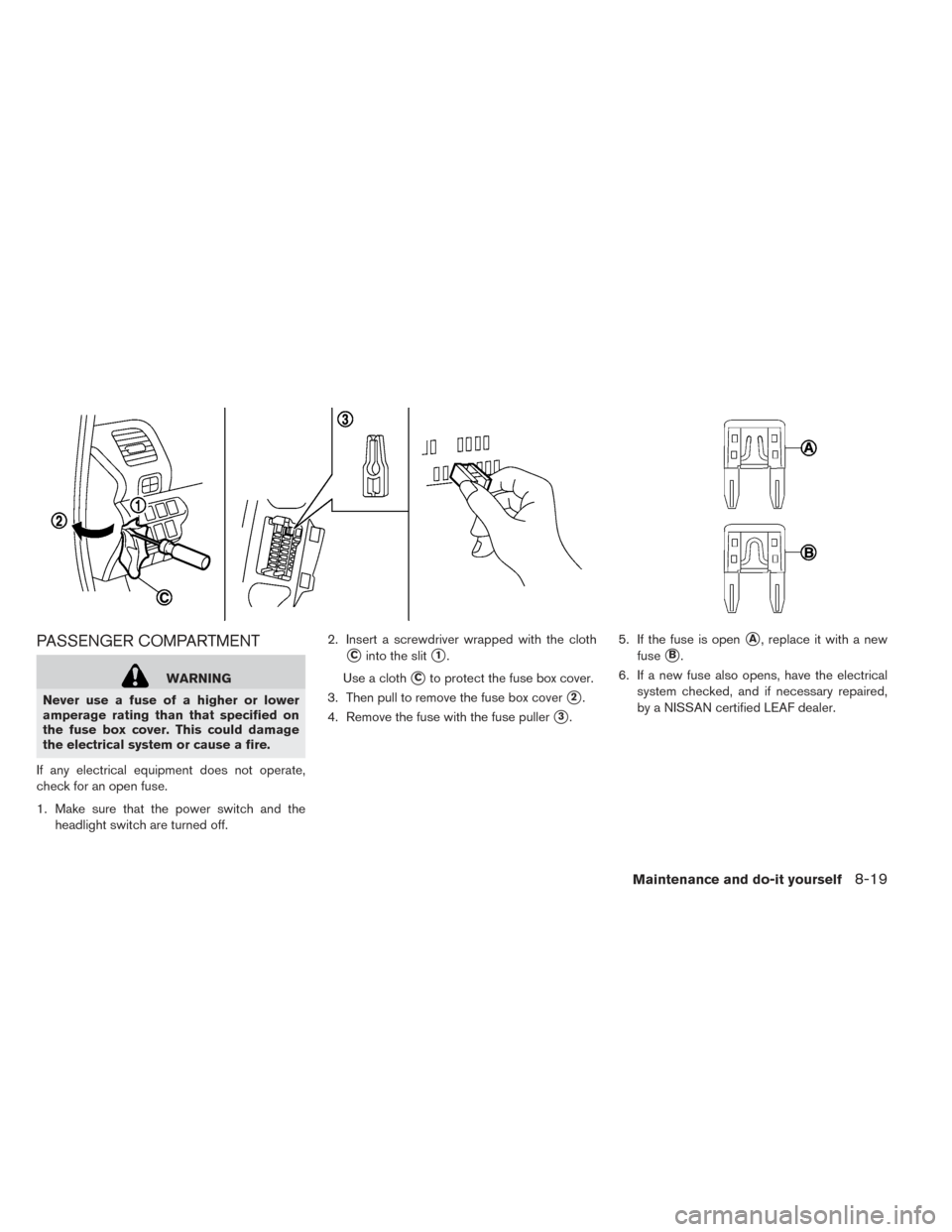

PASSENGER COMPARTMENT
WARNING
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Make sure that the power switch and the headlight switch are turned off. 2. Insert a screwdriver wrapped with the cloth
Cinto the slit1.
Use a cloth
Cto protect the fuse box cover.
3. Then pull to remove the fuse box cover
2.
4. Remove the fuse with the fuse puller
3. 5. If the fuse is open
A, replace it with a new
fuse
B.
6. If a new fuse also opens, have the electrical system checked, and if necessary repaired,
by a NISSAN certified LEAF dealer.
Maintenance and do-it yourself8-19
Page 373 of 437

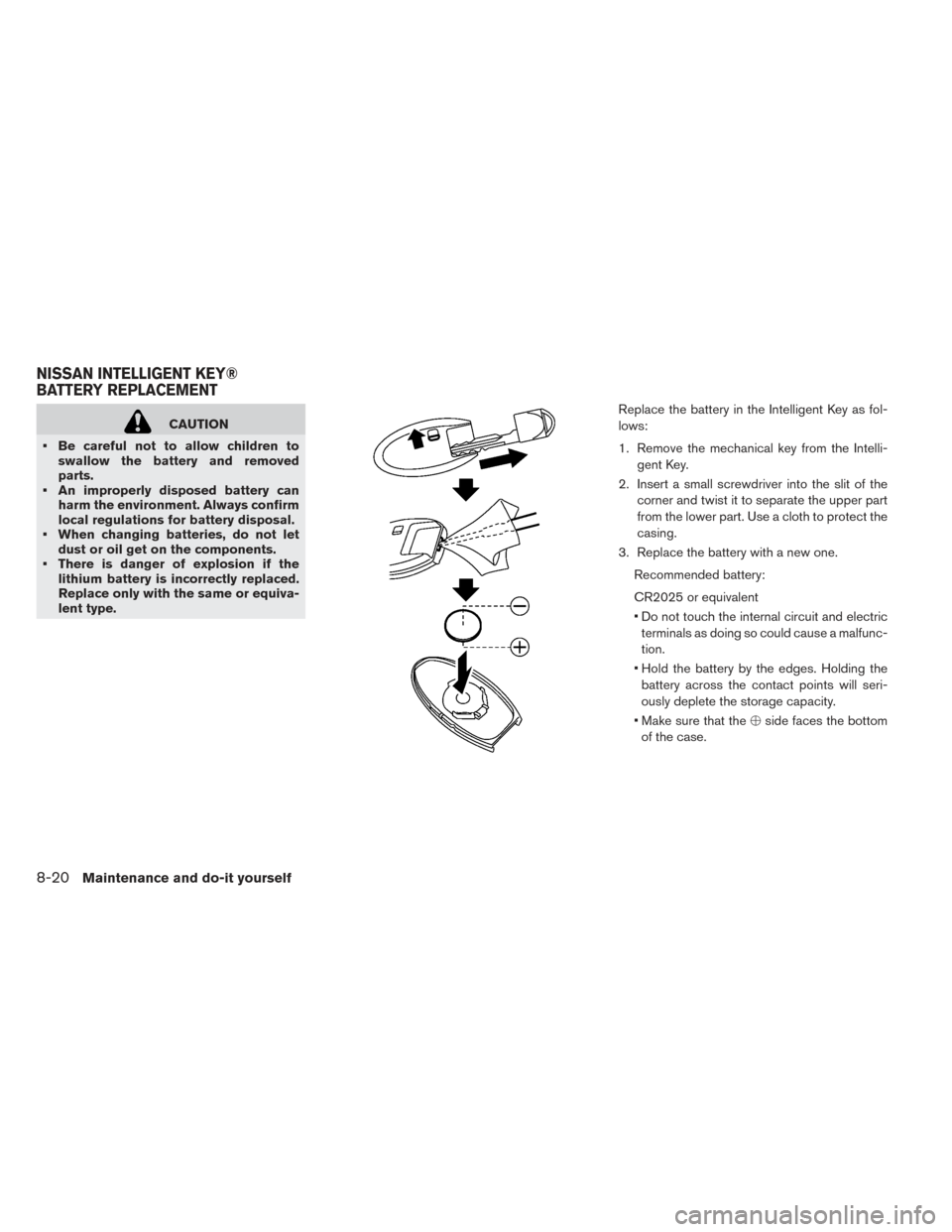

CAUTION
• Be careful not to allow children to swallow the battery and removed
parts.
• An improperly disposed battery can harm the environment. Always confirm
local regulations for battery disposal.
• When changing batteries, do not let dust or oil get on the components.
• There is danger of explosion if the lithium battery is incorrectly replaced.
Replace only with the same or equiva-
lent type. Replace the battery in the Intelligent Key as fol-
lows:
1. Remove the mechanical key from the Intelli-
gent Key.
2. Insert a small screwdriver into the slit of the corner and twist it to separate the upper part
from the lower part. Use a cloth to protect the
casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
• Do not touch the internal circuit and electricterminals as doing so could cause a malfunc-
tion.
• Hold the battery by the edges. Holding the battery across the contact points will seri-
ously deplete the storage capacity.
• Make sure that the side faces the bottom
of the case.
NISSAN INTELLIGENT KEY®
BATTERY REPLACEMENT
8-20Maintenance and do-it yourself
Page 374 of 437

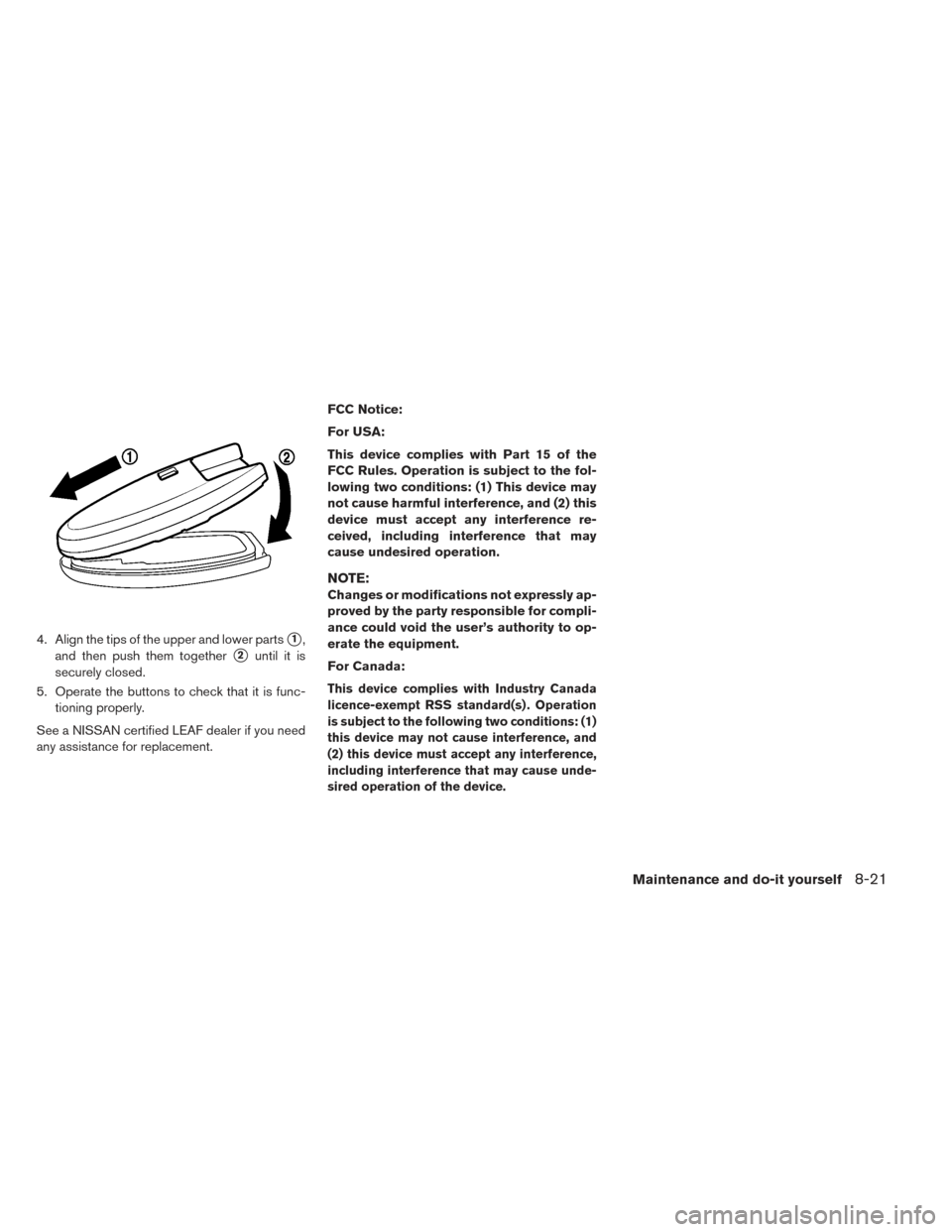

4. Align the tips of the upper and lower parts1,
and then push them together
2until it is
securely closed.
5. Operate the buttons to check that it is func- tioning properly.
See a NISSAN certified LEAF dealer if you need
any assistance for replacement. FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Operation
is subject to the following two conditions: (1)
this device may not cause interference, and
(2) this device must accept any interference,
including interference that may cause unde-
sired operation of the device.
Maintenance and do-it yourself8-21
Page 375 of 437
1. Headlight assembly
2. Map light
3. Room light
4. High-mounted stop light
5. Rear combination light
6. Cargo light
7. License plate light
8. Side marker light
9. Fog light (if so equipped)
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN certified LEAF
dealer.
LIGHTS
8-22Maintenance and do-it yourself
Page 376 of 437

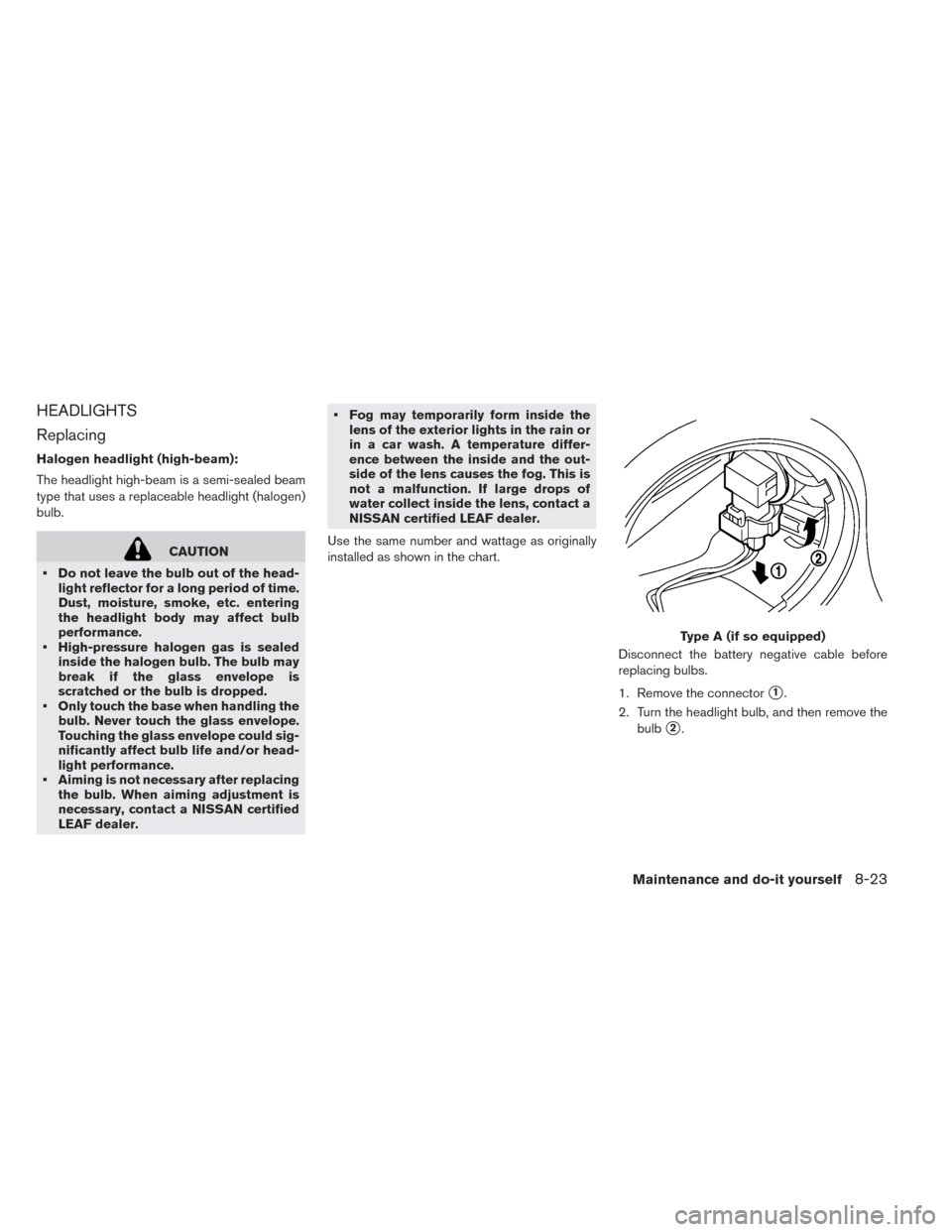

HEADLIGHTS
Replacing
Halogen headlight (high-beam):
The headlight high-beam is a semi-sealed beam
type that uses a replaceable headlight (halogen)
bulb.
CAUTION
• Do not leave the bulb out of the head- light reflector for a long period of time.
Dust, moisture, smoke, etc. entering
the headlight body may affect bulb
performance.
• High-pressure halogen gas is sealed inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
• Only touch the base when handling the bulb. Never touch the glass envelope.
Touching the glass envelope could sig-
nificantly affect bulb life and/or head-
light performance.
• Aiming is not necessary after replacing the bulb. When aiming adjustment is
necessary, contact a NISSAN certified
LEAF dealer. • Fog may temporarily form inside the
lens of the exterior lights in the rain or
in a car wash. A temperature differ-
ence between the inside and the out-
side of the lens causes the fog. This is
not a malfunction. If large drops of
water collect inside the lens, contact a
NISSAN certified LEAF dealer.
Use the same number and wattage as originally
installed as shown in the chart.
Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector
1.
2. Turn the headlight bulb, and then remove the bulb
2.
Type A (if so equipped)
Maintenance and do-it yourself8-23
Page 377 of 437
Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector
1.
2. Turn the headlight bulb, and then remove the bulb
2.

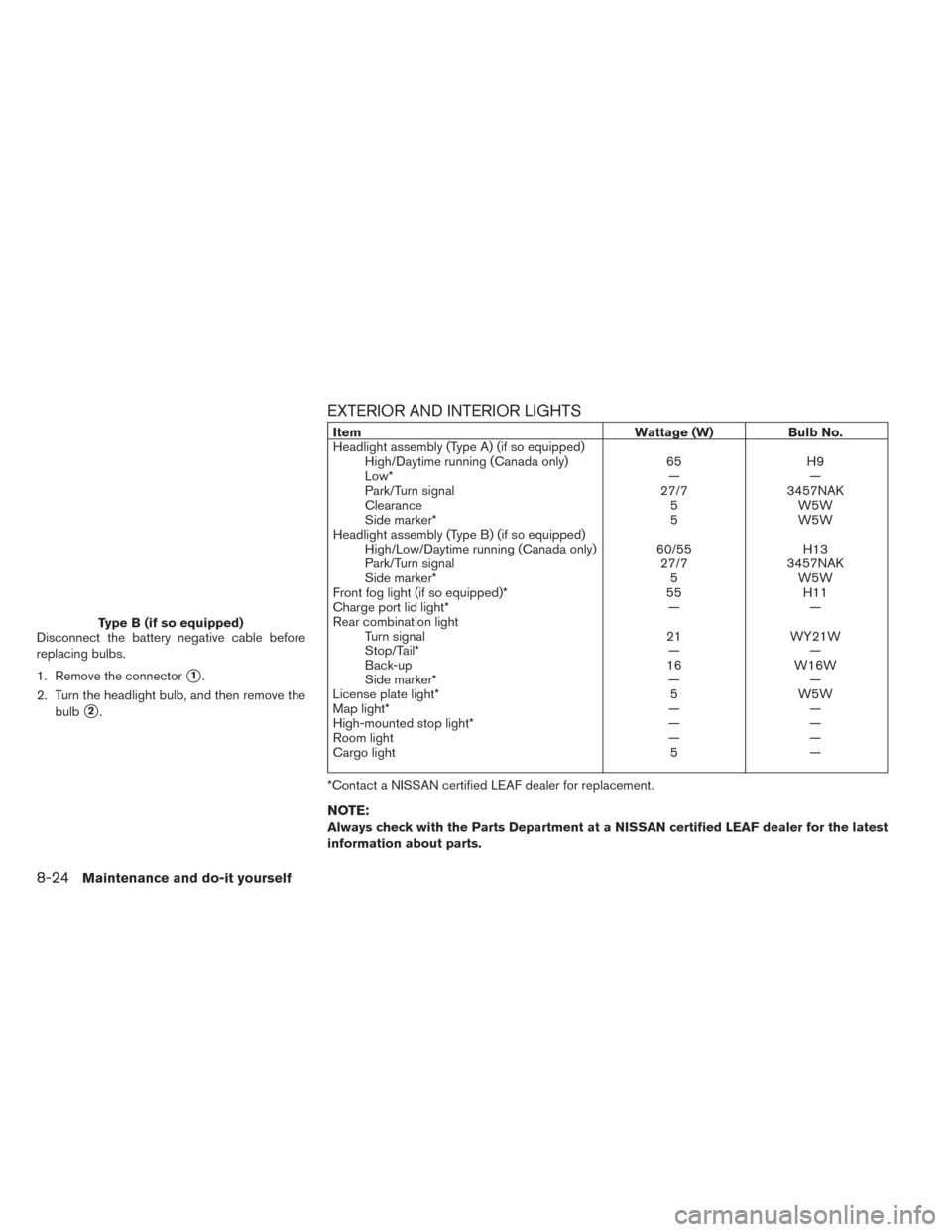

EXTERIOR AND INTERIOR LIGHTS
Item Wattage (W)Bulb No.
Headlight assembly (Type A) (if so equipped) High/Daytime running (Canada only) 65H9
Low* ——
Park/Turn signal 27/73457NAK
Clearance 5W5W
Side marker* 5W5W
Headlight assembly (Type B) (if so equipped) High/Low/Daytime running (Canada only) 60/55 H13
Park/Turn signal 27/73457NAK
Side marker* 5W5W
Front fog light (if so equipped)* 55H11
Charge port lid light* ——
Rear combination light Turn signal 21WY21W
Stop/Tail* ——
Back-up 16W16W
Side marker* ——
License plate light* 5W5W
Map light* ——
High-mounted stop light* ——
Room light ——
Cargo light 5—
*Contact a NISSAN certified LEAF dealer for replacement.
NOTE:
Always check with the Parts Department at a NISSAN certified LEAF dealer for the latest
information about parts.
Type B (if so equipped)
8-24Maintenance and do-it yourself
Page 378 of 437

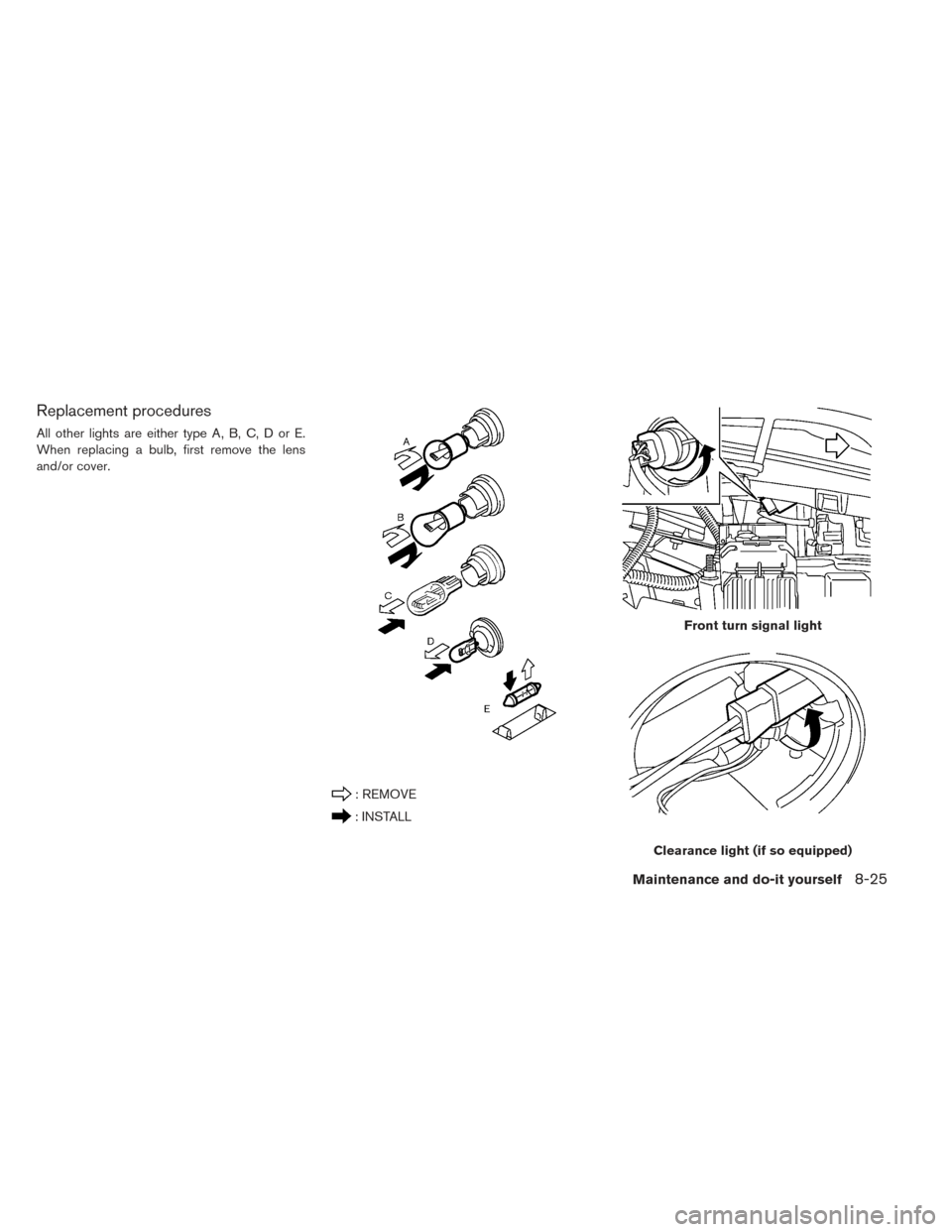

Replacement procedures
All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
: REMOVE
: INSTALL
Front turn signal light
Clearance light (if so equipped)
Maintenance and do-it yourself8-25
Page 379 of 437

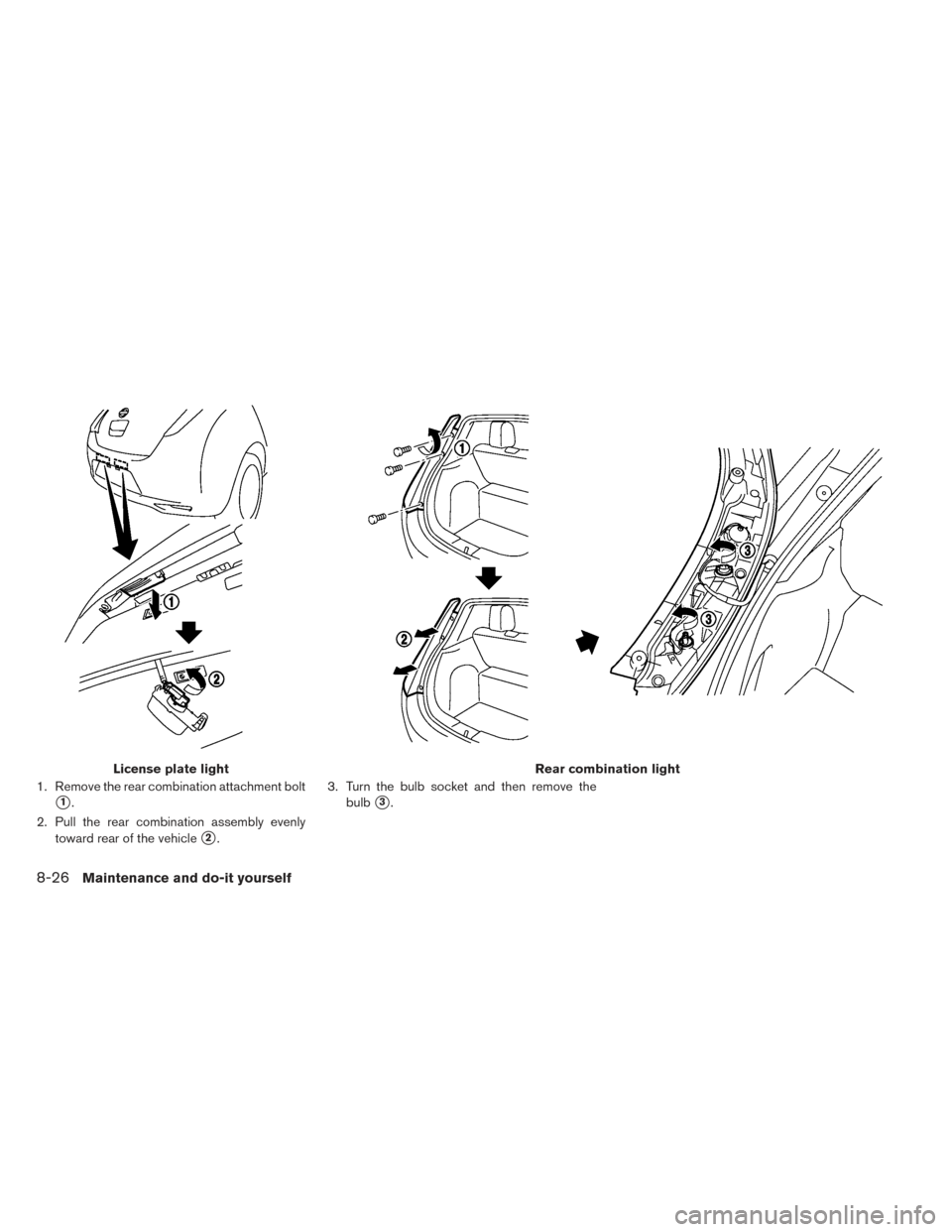

1. Remove the rear combination attachment bolt
1.
2. Pull the rear combination assembly evenly toward rear of the vehicle
2. 3. Turn the bulb socket and then remove the
bulb
3.
License plate lightRear combination light
8-26Maintenance and do-it yourself
Page 380 of 437

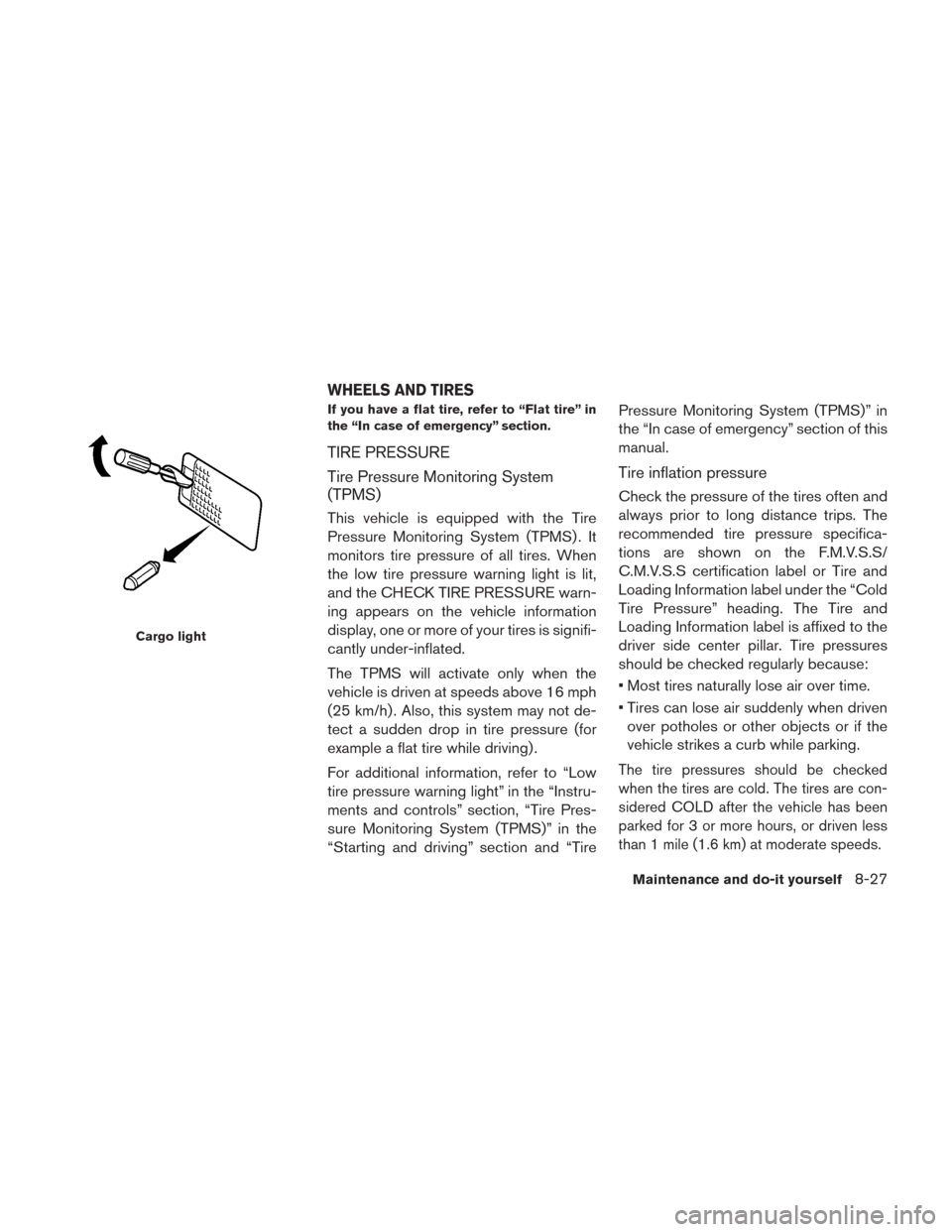

If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire
Pressure Monitoring System (TPMS) . It
monitors tire pressure of all tires. When
the low tire pressure warning light is lit,
and the CHECK TIRE PRESSURE warn-
ing appears on the vehicle information
display, one or more of your tires is signifi-
cantly under-inflated.
The TPMS will activate only when the
vehicle is driven at speeds above 16 mph
(25 km/h) . Also, this system may not de-
tect a sudden drop in tire pressure (for
example a flat tire while driving) .
For additional information, refer to “Low
tire pressure warning light” in the “Instru-
ments and controls” section, “Tire Pres-
sure Monitoring System (TPMS)” in the
“Starting and driving” section and “TirePressure Monitoring System (TPMS)” in
the “In case of emergency” section of this
manual.
Tire inflation pressure
Check the pressure of the tires often and
always prior to long distance trips. The
recommended tire pressure specifica-
tions are shown on the F.M.V.S.S/
C.M.V.S.S certification label or Tire and
Loading Information label under the “Cold
Tire Pressure” heading. The Tire and
Loading Information label is affixed to the
driver side center pillar. Tire pressures
should be checked regularly because:
• Most tires naturally lose air over time.
• Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are con-
sidered COLD after the vehicle has been
parked for 3 or more hours, or driven less
than 1 mile (1.6 km) at moderate speeds.
Cargo light
WHEELS AND TIRES
Maintenance and do-it yourself8-27
