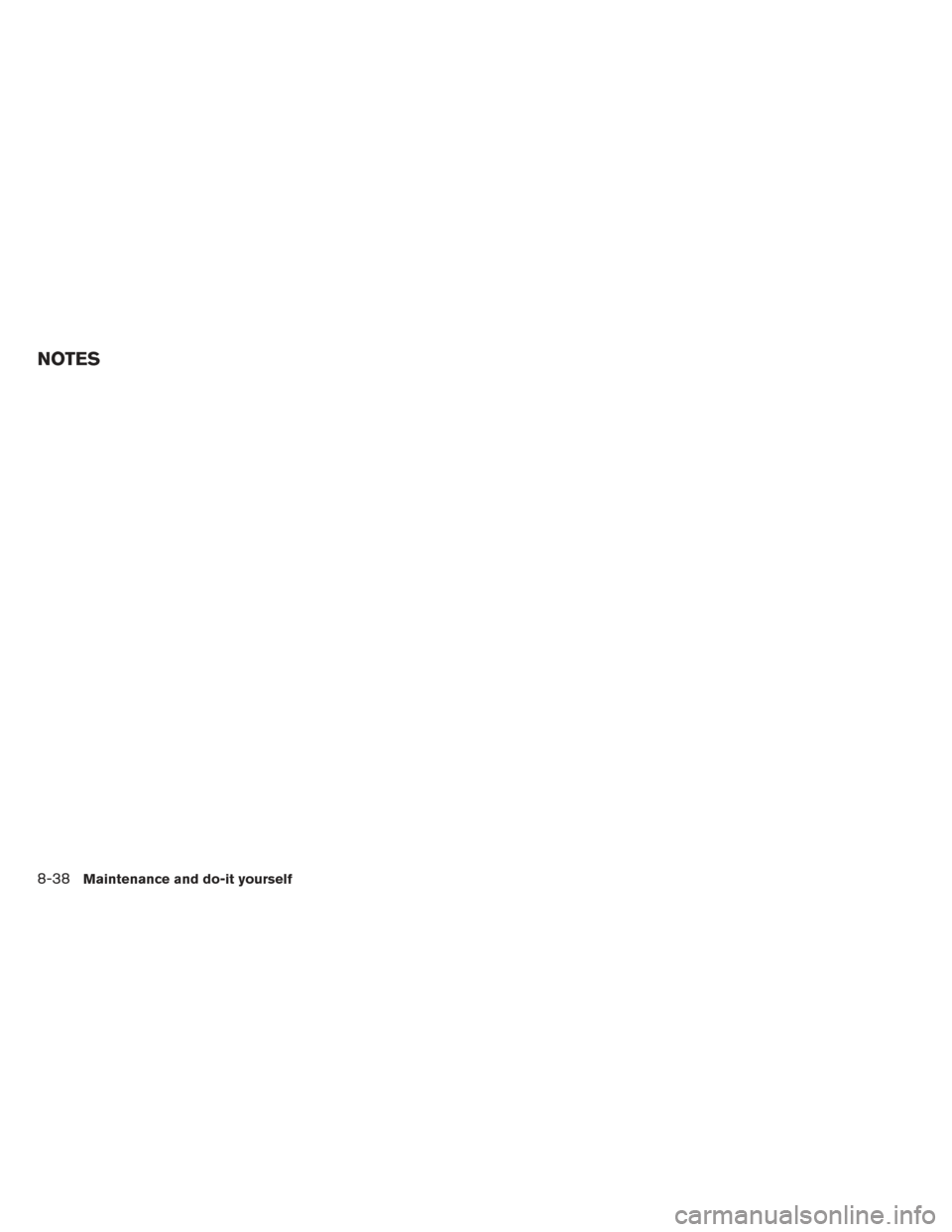

NOTES
8-38Maintenance and do-it yourself
Page 392 of 437

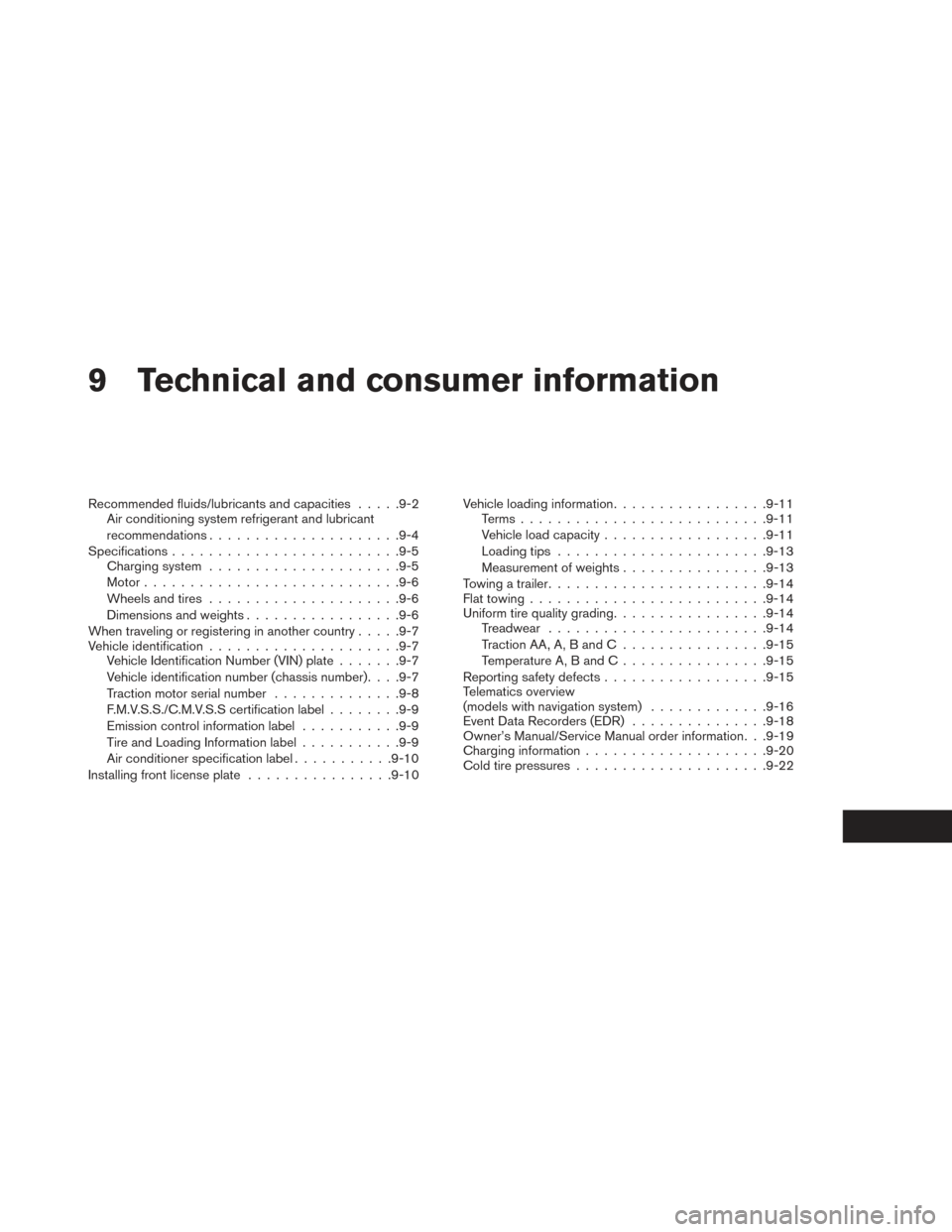

9 Technical and consumer information
Recommended fluids/lubricants and capacities.....9-2
Air conditioning system refrigerant and lubricant
recommendations .................... .9-4
Specifications ........................ .9-5
Charging system .................... .9-5
Motor ........................... .9-6
Wheels and tires .................... .9-6
Dimensions and weights ................ .9-6
When traveling or registering in another country .....9-7
Vehicle identification .................... .9-7
Vehicle Identification Number (VIN) plate .......9-7
Vehicle identification number (chassis number). . . .9-7
Traction motor serial number ..............9-8
F.M.V.S.S./C.M.V.S.S certification label ........9-9
Emission control information label ...........9-9
Tire and Loading Information label ...........9-9
Air conditioner specification label ...........9-10
Installing front license plate ................9-10Vehicle loading information
.................9-11
Terms .......................... .9-11
Vehicle load capacity ................. .9-11
Loading tips ...................... .9-13
Measurement of weights ................9-13
Towing a trailer ....................... .9-14
Flat towing ......................... .9-14
Uniform tire quality grading .................9-14
Treadwear ....................... .9-14
Traction AA, A, B and C ................9-15
Temperature A, B and C ................9-15
Reporting safety defects ................. .9-15
Telematics overview
(models with navigation system) .............9-16
Event Data Recorders (EDR) ...............9-18
Owner’s Manual/Service Manual order information. . .9-19
Charging information ................... .9-20
Cold tire pressures .................... .9-22
Page 393 of 437

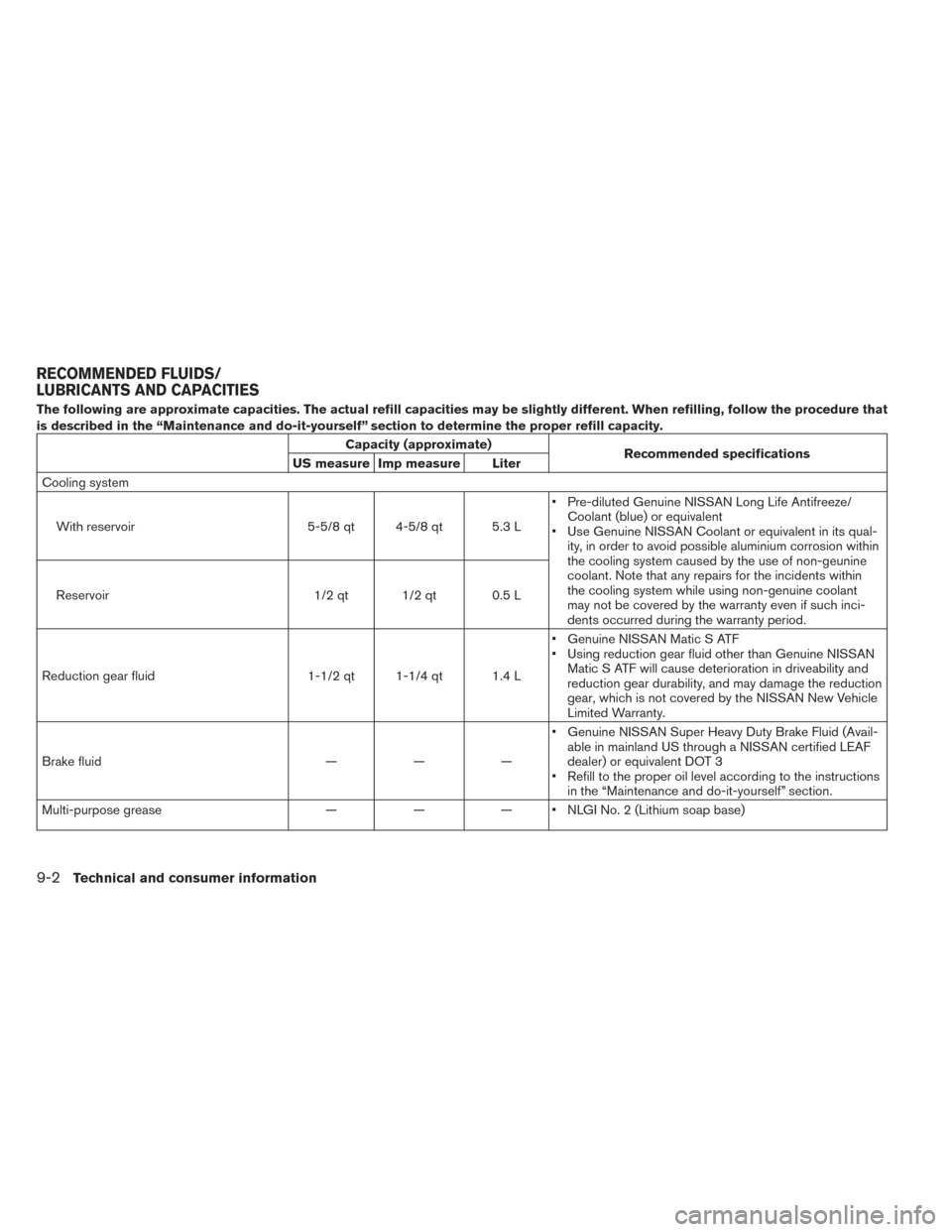

The following are approximate capacities. The actual refill capacities may be slightly different. When refilling, follow the procedure that
is described in the “Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (approximate)Recommended specifications
US measure Imp measure Liter
Cooling system
With reservoir 5-5/8 qt 4-5/8 qt 5.3 L • Pre-diluted Genuine NISSAN Long Life Antifreeze/
Coolant (blue) or equivalent
• Use Genuine NISSAN Coolant or equivalent in its qual- ity, in order to avoid possible aluminium corrosion within
the cooling system caused by the use of non-geunine
coolant. Note that any repairs for the incidents within
the cooling system while using non-genuine coolant
may not be covered by the warranty even if such inci-
dents occurred during the warranty period.
Reservoir 1/2 qt 1/2 qt 0.5 L
Reduction gear fluid 1-1/2 qt 1-1/4 qt 1.4 L• Genuine NISSAN Matic S ATF
• Using reduction gear fluid other than Genuine NISSAN
Matic S ATF will cause deterioration in driveability and
reduction gear durability, and may damage the reduction
gear, which is not covered by the NISSAN New Vehicle
Limited Warranty.
Brake fluid ———• Genuine NISSAN Super Heavy Duty Brake Fluid (Avail-
able in mainland US through a NISSAN certified LEAF
dealer) or equivalent DOT 3
• Refill to the proper oil level according to the instructions in the “Maintenance and do-it-yourself” section.
Multi-purpose grease ——— • NLGI No. 2 (Lithium soap base)
RECOMMENDED FLUIDS/
LUBRICANTS AND CAPACITIES
9-2Technical and consumer information
Page 394 of 437

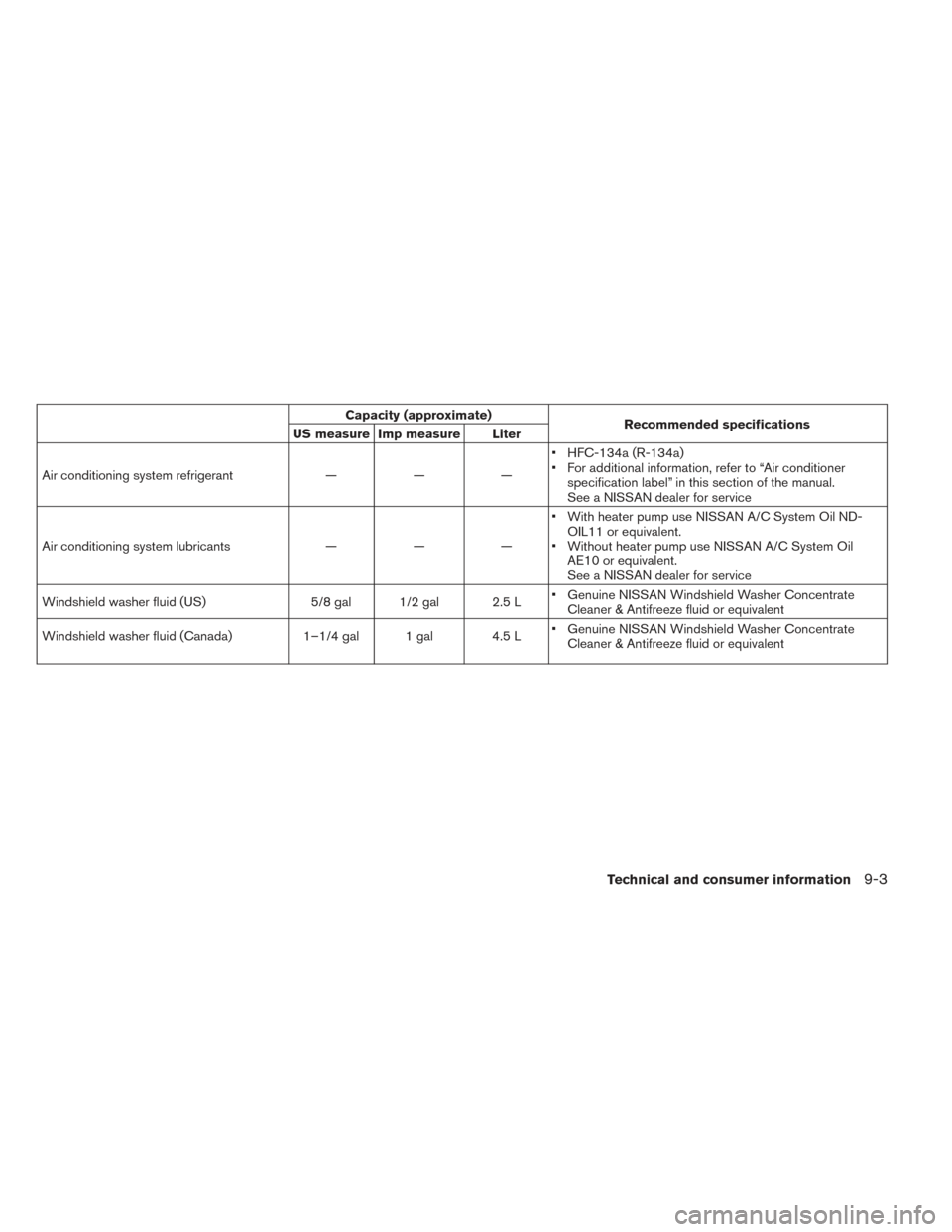

Capacity (approximate)Recommended specifications
US measure Imp measure Liter
Air conditioning system refrigerant — — — • HFC-134a (R-134a)
• For additional information, refer to “Air conditioner
specification label” in this section of the manual.
See a NISSAN dealer for service
Air conditioning system lubricants ———• With heater pump use NISSAN A/C System Oil ND-
OIL11 or equivalent.
• Without heater pump use NISSAN A/C System Oil AE10 or equivalent.
See a NISSAN dealer for service
Windshield washer fluid (US) 5/8 gal 1/2 gal 2.5 L• Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze fluid or equivalent
Windshield washer fluid (Canada) 1–1/4 gal 1 gal 4.5 L• Genuine NISSAN Windshield Washer Concentrate
Cleaner & Antifreeze fluid or equivalent
Technical and consumer information9-3
Page 395 of 437

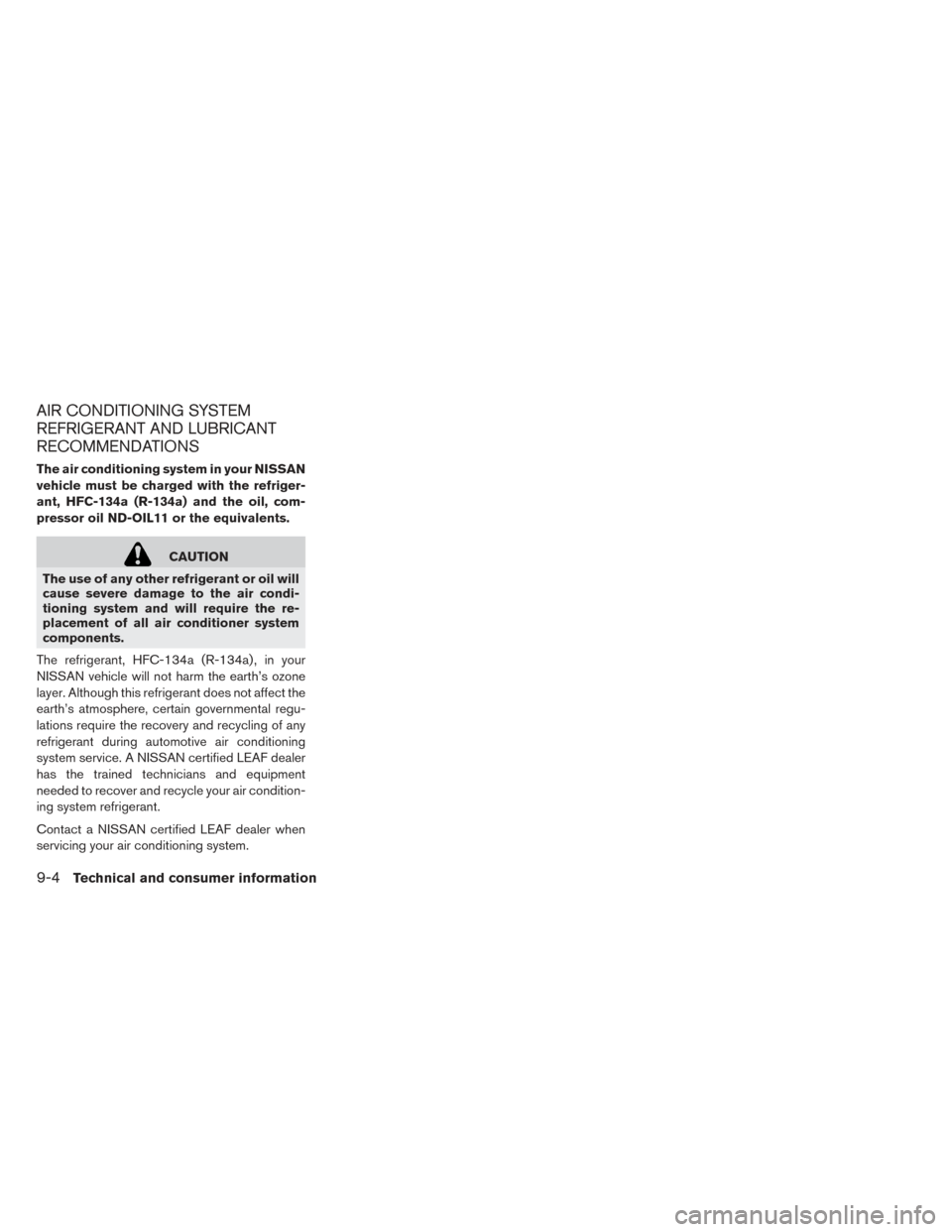

AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONS
The air conditioning system in your NISSAN
vehicle must be charged with the refriger-
ant, HFC-134a (R-134a) and the oil, com-
pressor oil ND-OIL11 or the equivalents.
CAUTION
The use of any other refrigerant or oil will
cause severe damage to the air condi-
tioning system and will require the re-
placement of all air conditioner system
components.
The refrigerant, HFC-134a (R-134a) , in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect the
earth’s atmosphere, certain governmental regu-
lations require the recovery and recycling of any
refrigerant during automotive air conditioning
system service. A NISSAN certified LEAF dealer
has the trained technicians and equipment
needed to recover and recycle your air condition-
ing system refrigerant.
Contact a NISSAN certified LEAF dealer when
servicing your air conditioning system.
9-4Technical and consumer information
Page 396 of 437

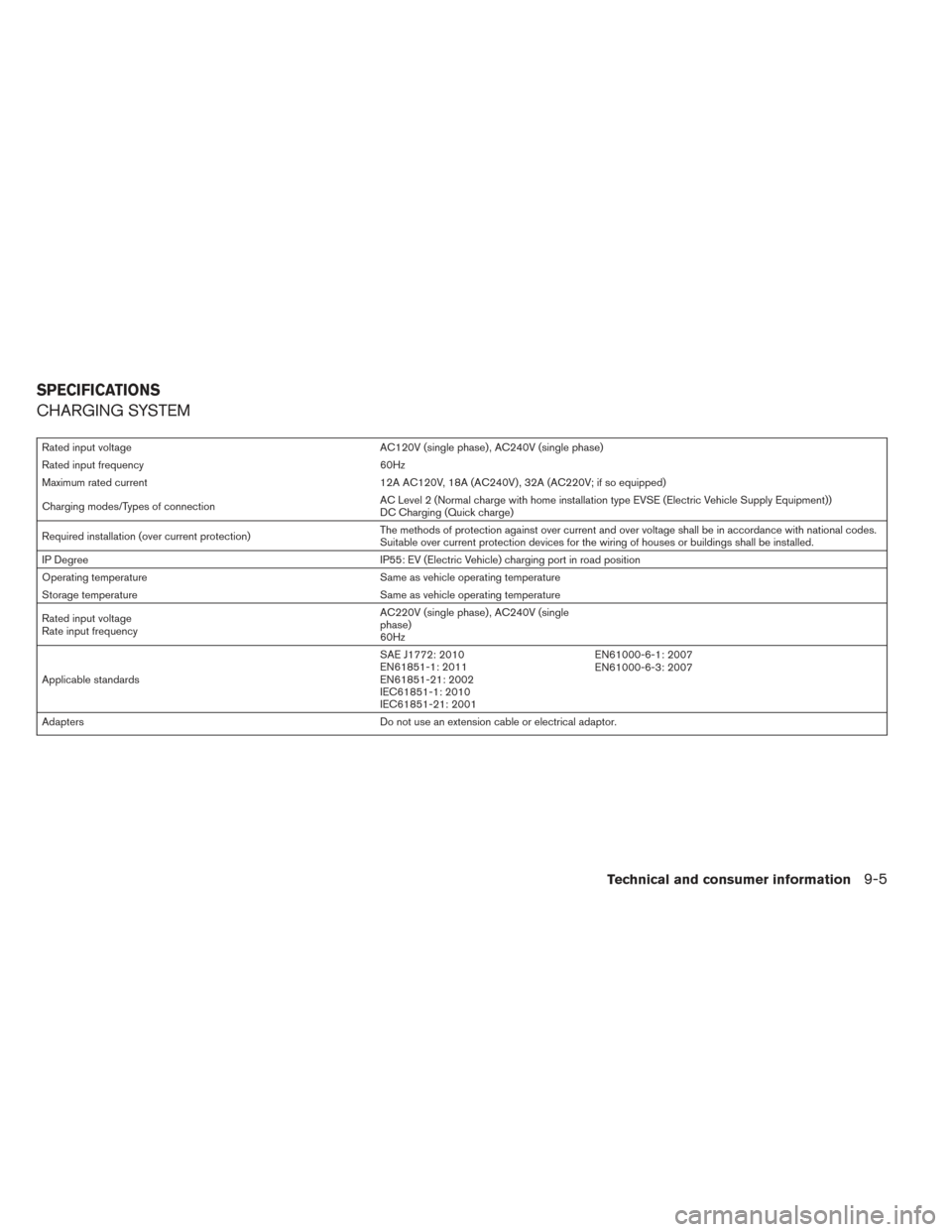

CHARGING SYSTEM
Rated input voltageAC120V (single phase) , AC240V (single phase)
Rated input frequency 60Hz
Maximum rated current 12A AC120V, 18A (AC240V) , 32A (AC220V; if so equipped)
Charging modes/Types of connection AC Level 2 (Normal charge with home installation type EVSE (Electric Vehicle Supply Equipment))
DC Charging (Quick charge)
Required installation (over current protection) The methods of protection against over current and over voltage shall be in accordance with national codes.
Suitable over current protection devices for the wiring of houses or buildings shall be installed.
IP Degree IP55: EV (Electric Vehicle) charging port in road position
Operating temperature Same as vehicle operating temperature
Storage temperature Same as vehicle operating temperature
Rated input voltage
Rate input frequency AC220V (single phase) , AC240V (single
phase)
60Hz
Applicable standards SAE J1772: 2010
EN61851-1: 2011
EN61851-21: 2002
IEC61851-1: 2010
IEC61851-21: 2001EN61000-6-1: 2007
EN61000-6-3: 2007
Adapters Do not use an extension cable or electrical adaptor.
SPECIFICATIONS
Technical and consumer information9-5
Page 397 of 437

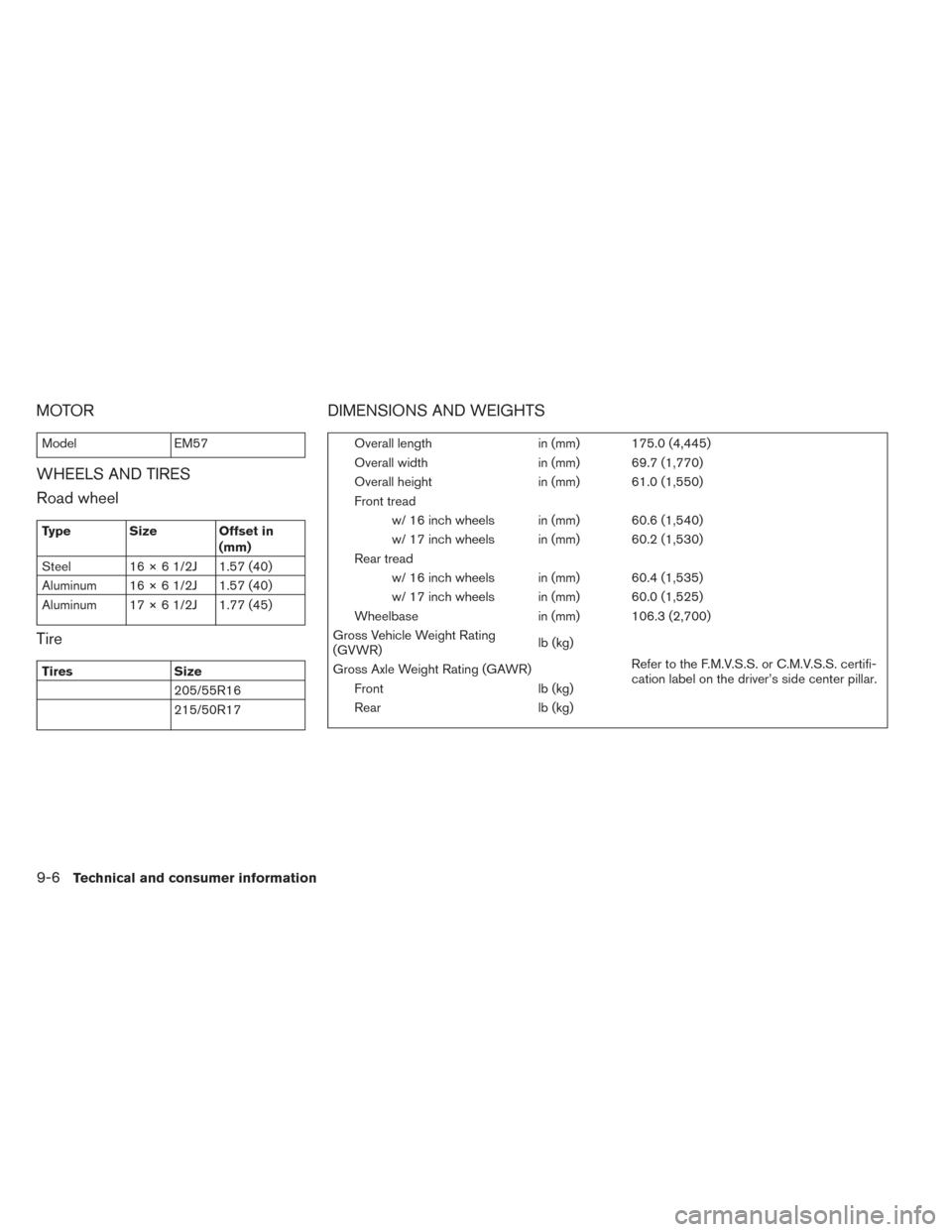

MOTOR
ModelEM57
WHEELS AND TIRES
Road wheel
Type Size Offset in
(mm)
Steel 16 × 6 1/2J 1.57 (40)
Aluminum 16 × 6 1/2J 1.57 (40)
Aluminum 17 × 6 1/2J 1.77 (45)
Tire
Tires Size
205/55R16
215/50R17
DIMENSIONS AND WEIGHTS
Overall length in (mm) 175.0 (4,445)
Overall width in (mm) 69.7 (1,770)
Overall height in (mm) 61.0 (1,550)
Front tread w/ 16 inch wheels in (mm) 60.6 (1,540)
w/ 17 inch wheels in (mm) 60.2 (1,530)
Rear tread w/ 16 inch wheels in (mm) 60.4 (1,535)
w/ 17 inch wheels in (mm) 60.0 (1,525)
Wheelbase in (mm) 106.3 (2,700)
Gross Vehicle Weight Rating
(GVWR) lb (kg)
Refer to the F.M.V.S.S. or C.M.V.S.S. certifi-
cation label on the driver’s side center pillar.
Gross Axle Weight Rating (GAWR)
Front lb (kg)
Rear lb (kg)
9-6Technical and consumer information
Page 398 of 437

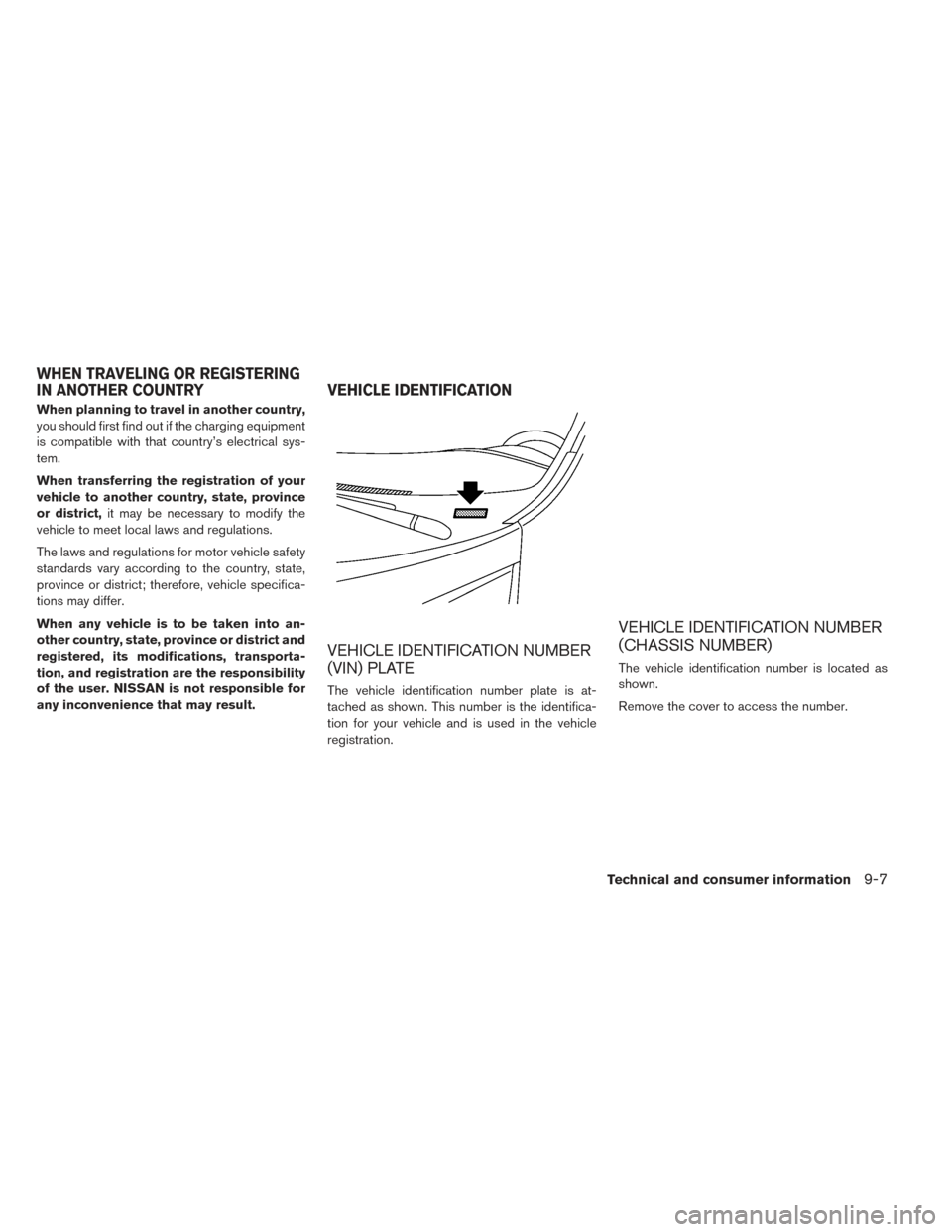

When planning to travel in another country,
you should first find out if the charging equipment
is compatible with that country’s electrical sys-
tem.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle safety
standards vary according to the country, state,
province or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district and
registered, its modifications, transporta-
tion, and registration are the responsibility
of the user. NISSAN is not responsible for
any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)
The vehicle identification number is located as
shown.
Remove the cover to access the number.
WHEN TRAVELING OR REGISTERING
IN ANOTHER COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information9-7
Page 399 of 437

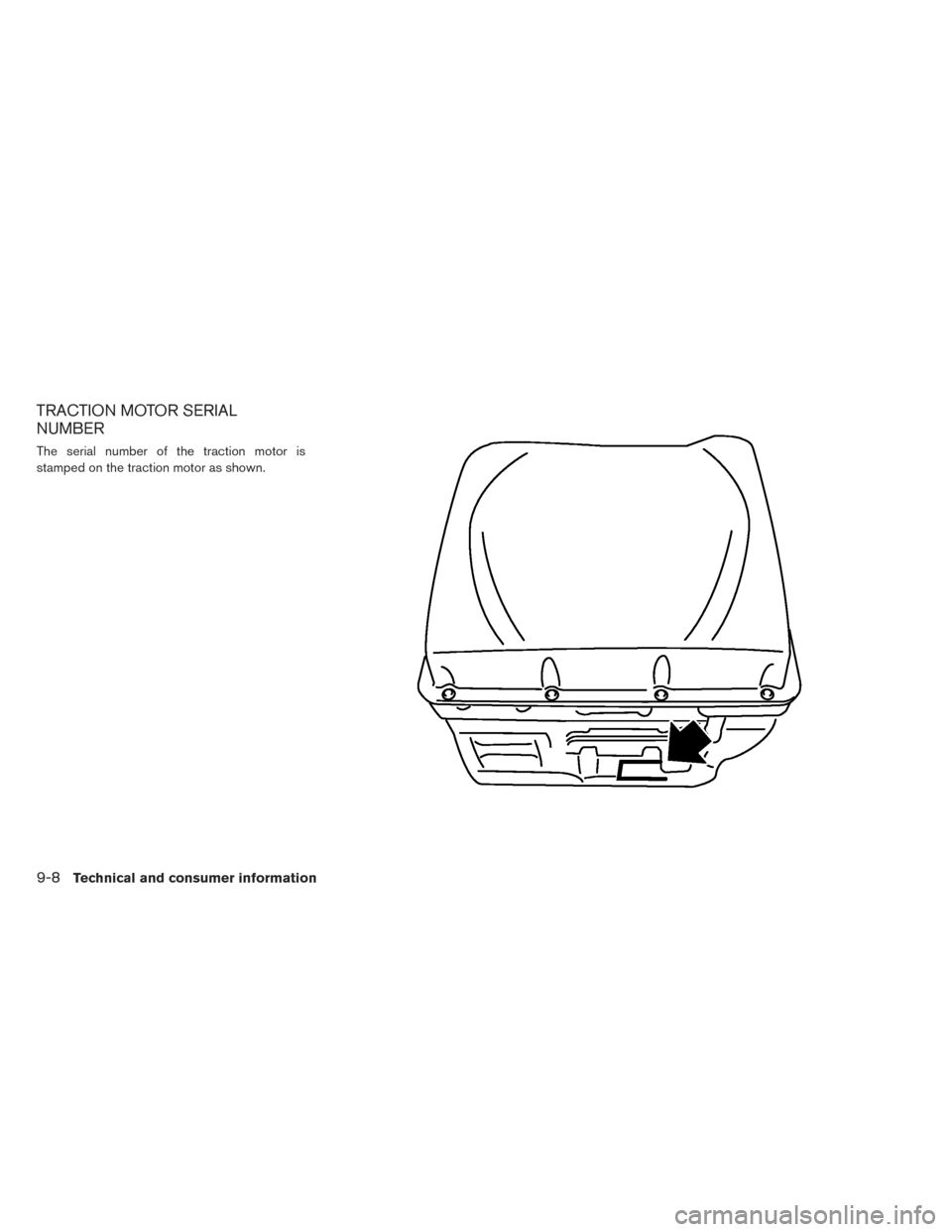

TRACTION MOTOR SERIAL
NUMBER
The serial number of the traction motor is
stamped on the traction motor as shown.
9-8Technical and consumer information
Page 400 of 437

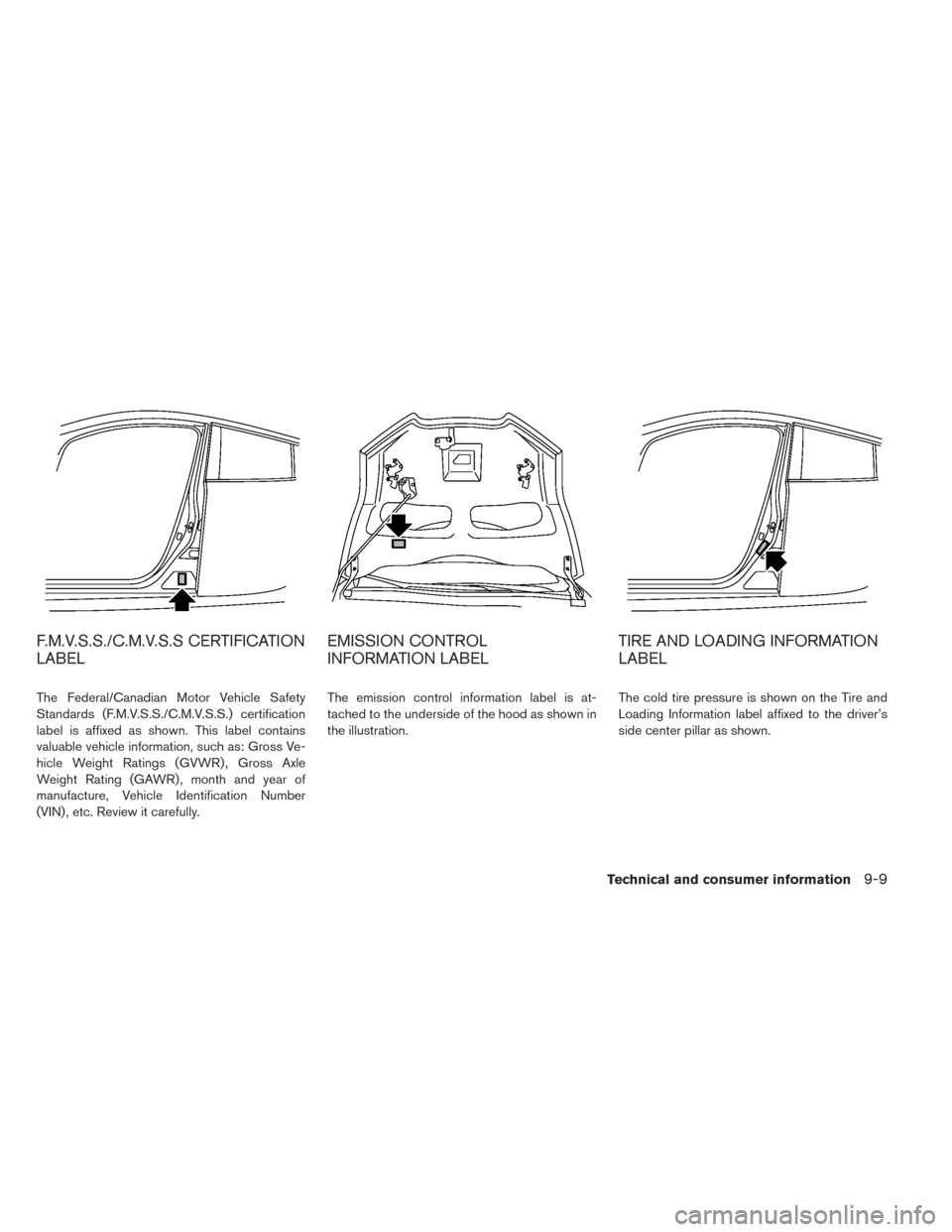

F.M.V.S.S./C.M.V.S.S CERTIFICATION
LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross Ve-
hicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown in
the illustration.
TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the driver’s
side center pillar as shown.
