engine NISSAN LEAF 2017 1.G Dismantling Guide

1. About The Nissan LEAF®
This
vehicle uses two types of batteries. One is a 12-volt battery that is the same as the battery in vehicles
powered by internal combustion engines, and the other is the high-voltage battery for the traction motor
which propels the vehicle. The high-voltage battery is encased in steel and mounted underneath the vehicle.
The vehicle must be plugged-in in order for the high-voltage battery to be recharged. Additionally, the
vehicle system can recharge the high-voltage battery by converting driving force into electricity while the
vehicle is decelerating or being driven downhill. This is called regenerative charging. This vehicle is
considered to be an environmentally friendly vehicle because it does not emit exhaust gases.
DG–5

3-2 Preparation Items
Preparation Items
Specification Purpose
Personal Protective
Equipment (PPE):
Insulated gloves Up to 1,000V
For protection from high-voltage
electrical
shock
Insulated shoes –
Safety

shield –
Leather

gloves Must be able to fasten tight
around

the wrist (worn over
insulated gloves) . To protect insulated gloves
Wrenches Size:10mm
T
o remove the service plug access
cover bolts.
To remove the 12-volt battery terminal
bolt.
Solvent resistant protection
gloves –
To utilize in the event of a high-
voltage battery electrolytic solution
leak.
Solvent resistant protection
shoes –
Absorbent pad The same pad used for internal
combustion engine fluids can be
used. To absorb any high-voltage battery
electrolytic solution leakage.
Standard fire fighting
equipment Standard fire fighting equipment
Depending on type of fire (vehicle
or battery) use standard fire
fighting equipment (water or
extinguisher) . To extinguish a fire.
Insulated tape Insulating
To cover any damaged harnesses to
protect from and prevent electrical
shock. Tape should cover all bare or
damaged wire.
DG–15

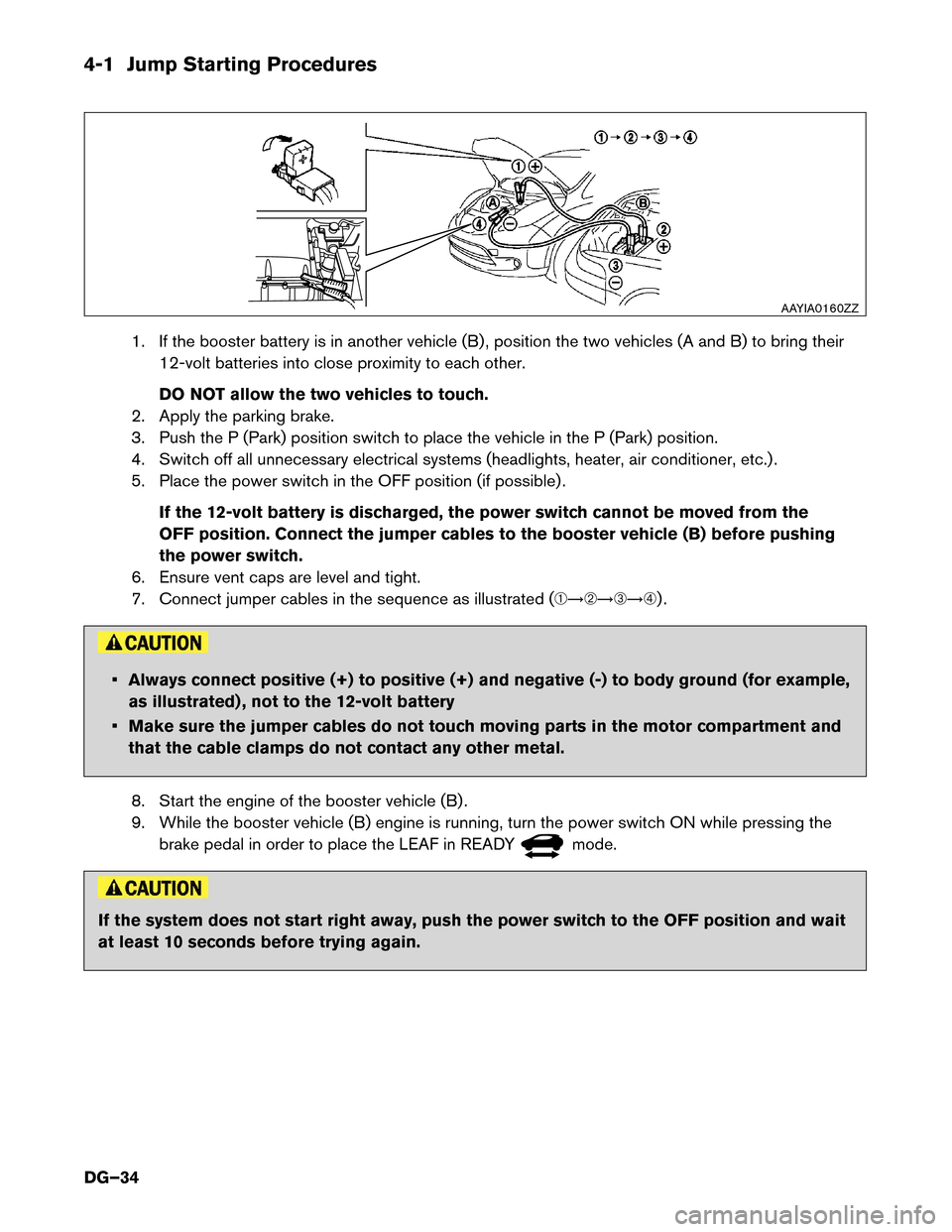

4-1 Jump Starting Procedures
1. If the booster battery is in another vehicle (B) , position the two vehicles (A and B) to bring their
12-volt batteries into close proximity to each other.
DO NOT allow the two vehicles to touch.
2. Apply the parking brake.
3. Push the P (Park) position switch to place the vehicle in the P (Park) position.
4. Switch off all unnecessary electrical systems (headlights, heater, air conditioner, etc.) .
5. Place the power switch in the OFF position (if possible) .
If the 12-volt battery is discharged, the power switch cannot be moved from the
OFF position. Connect the jumper cables to the booster vehicle (B) before pushing
the power switch.
6. Ensure vent caps are level and tight.
7. Connect jumper cables in the sequence as illustrated () . • Always connect positive (+) to positive (+) and negative (-) to body ground (for example,
as
illustrated) , not to the 12-volt battery
• Make sure the jumper cables do not touch moving parts in the motor compartment and that the cable clamps do not contact any other metal.
8. Start the engine of the booster vehicle (B) .
9. While the booster vehicle (B) engine is running, turn the power switch ON while pressing the brake pedal in order to place the LEAF in READY mode.
If the system does not start right away, push the power switch to the OFF position and wait
at

least 10 seconds before trying again. AAYIA0160ZZ
