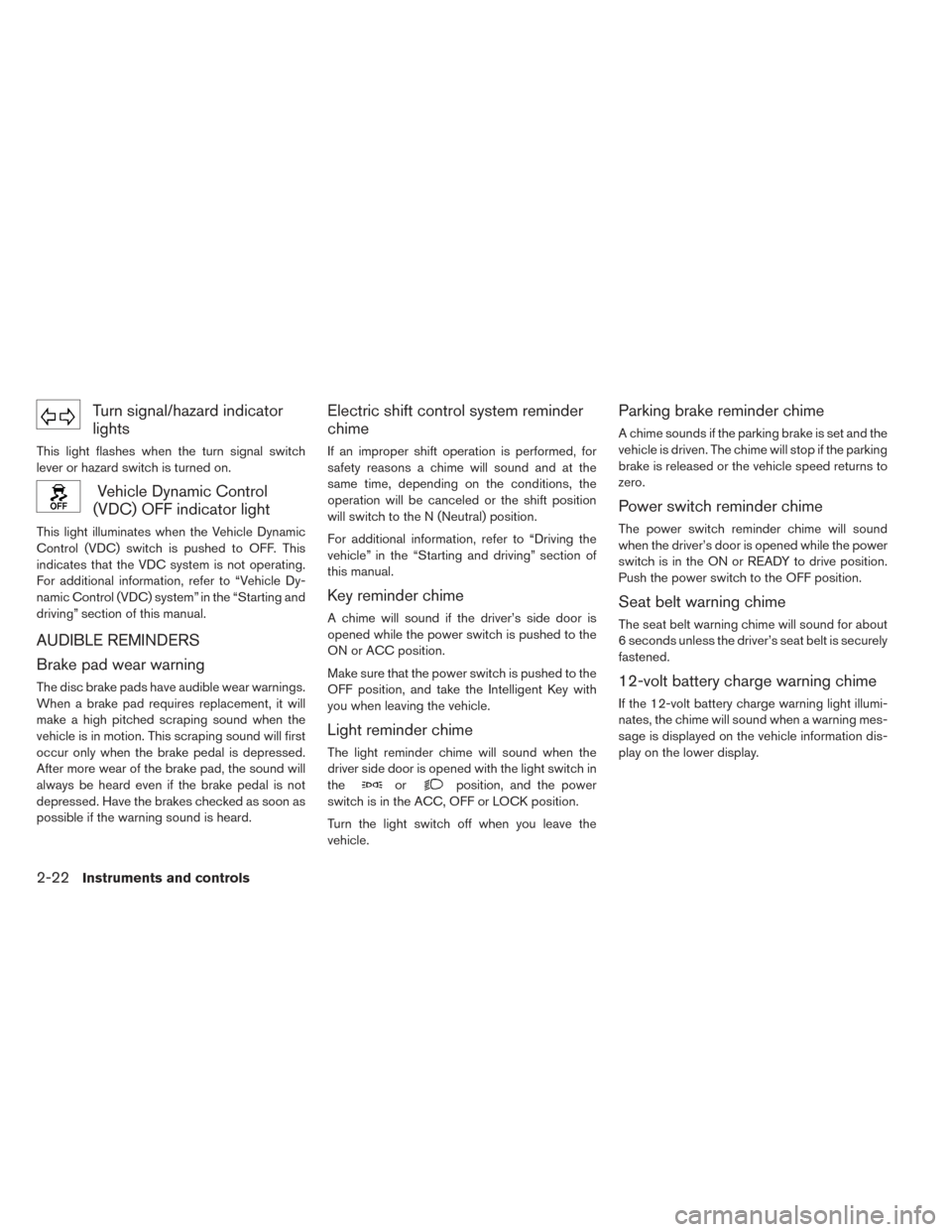

Turn signal/hazard indicator
lights
This light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control
(VDC) OFF indicator light
This light illuminates when the Vehicle Dynamic
Control (VDC) switch is pushed to OFF. This
indicates that the VDC system is not operating.
For additional information, refer to “Vehicle Dy-
namic Control (VDC) system” in the “Starting and
driving” section of this manual.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a brake pad requires replacement, it will
make a high pitched scraping sound when the
vehicle is in motion. This scraping sound will first
occur only when the brake pedal is depressed.
After more wear of the brake pad, the sound will
always be heard even if the brake pedal is not
depressed. Have the brakes checked as soon as
possible if the warning sound is heard.
Electric shift control system reminder
chime
If an improper shift operation is performed, for
safety reasons a chime will sound and at the
same time, depending on the conditions, the
operation will be canceled or the shift position
will switch to the N (Neutral) position.
For additional information, refer to “Driving the
vehicle” in the “Starting and driving” section of
this manual.
Key reminder chime
A chime will sound if the driver’s side door is
opened while the power switch is pushed to the
ON or ACC position.
Make sure that the power switch is pushed to the
OFF position, and take the Intelligent Key with
you when leaving the vehicle.
Light reminder chime
The light reminder chime will sound when the
driver side door is opened with the light switch in
the
orposition, and the power
switch is in the ACC, OFF or LOCK position.
Turn the light switch off when you leave the
vehicle.
Parking brake reminder chime
A chime sounds if the parking brake is set and the
vehicle is driven. The chime will stop if the parking
brake is released or the vehicle speed returns to
zero.
Power switch reminder chime
The power switch reminder chime will sound
when the driver’s door is opened while the power
switch is in the ON or READY to drive position.
Push the power switch to the OFF position.
Seat belt warning chime
The seat belt warning chime will sound for about
6 seconds unless the driver’s seat belt is securely
fastened.
12-volt battery charge warning chime
If the 12-volt battery charge warning light illumi-
nates, the chime will sound when a warning mes-
sage is displayed on the vehicle information dis-
play on the lower display.
2-22Instruments and controls

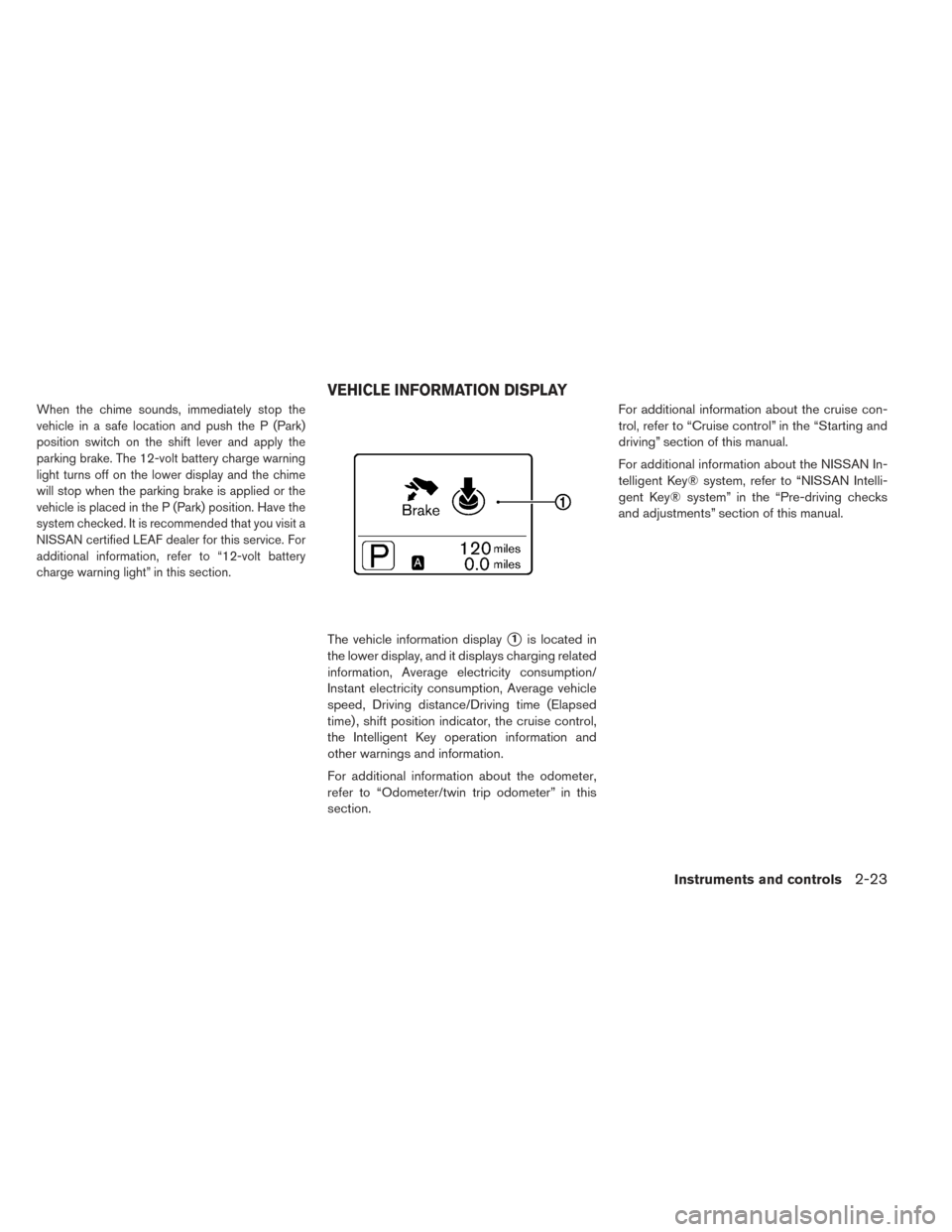

When the chime sounds, immediately stop the
vehicle in a safe location and push the P (Park)
position switch on the shift lever and apply the
parking brake. The 12-volt battery charge warning
light turns off on the lower display and the chime
will stop when the parking brake is applied or the
vehicle is placed in the P (Park) position. Have the
system checked. It is recommended that you visit a
NISSAN certified LEAF dealer for this service. For
additional information, refer to “12-volt battery
charge warning light” in this section.
The vehicle information display1is located in
the lower display, and it displays charging related
information, Average electricity consumption/
Instant electricity consumption, Average vehicle
speed, Driving distance/Driving time (Elapsed
time) , shift position indicator, the cruise control,
the Intelligent Key operation information and
other warnings and information.
For additional information about the odometer,
refer to “Odometer/twin trip odometer” in this
section. For additional information about the cruise con-
trol, refer to “Cruise control” in the “Starting and
driving” section of this manual.
For additional information about the NISSAN In-
telligent Key® system, refer to “NISSAN Intelli-
gent Key® system” in the “Pre-driving checks
and adjustments” section of this manual.
VEHICLE INFORMATION DISPLAY
Instruments and controls2-23

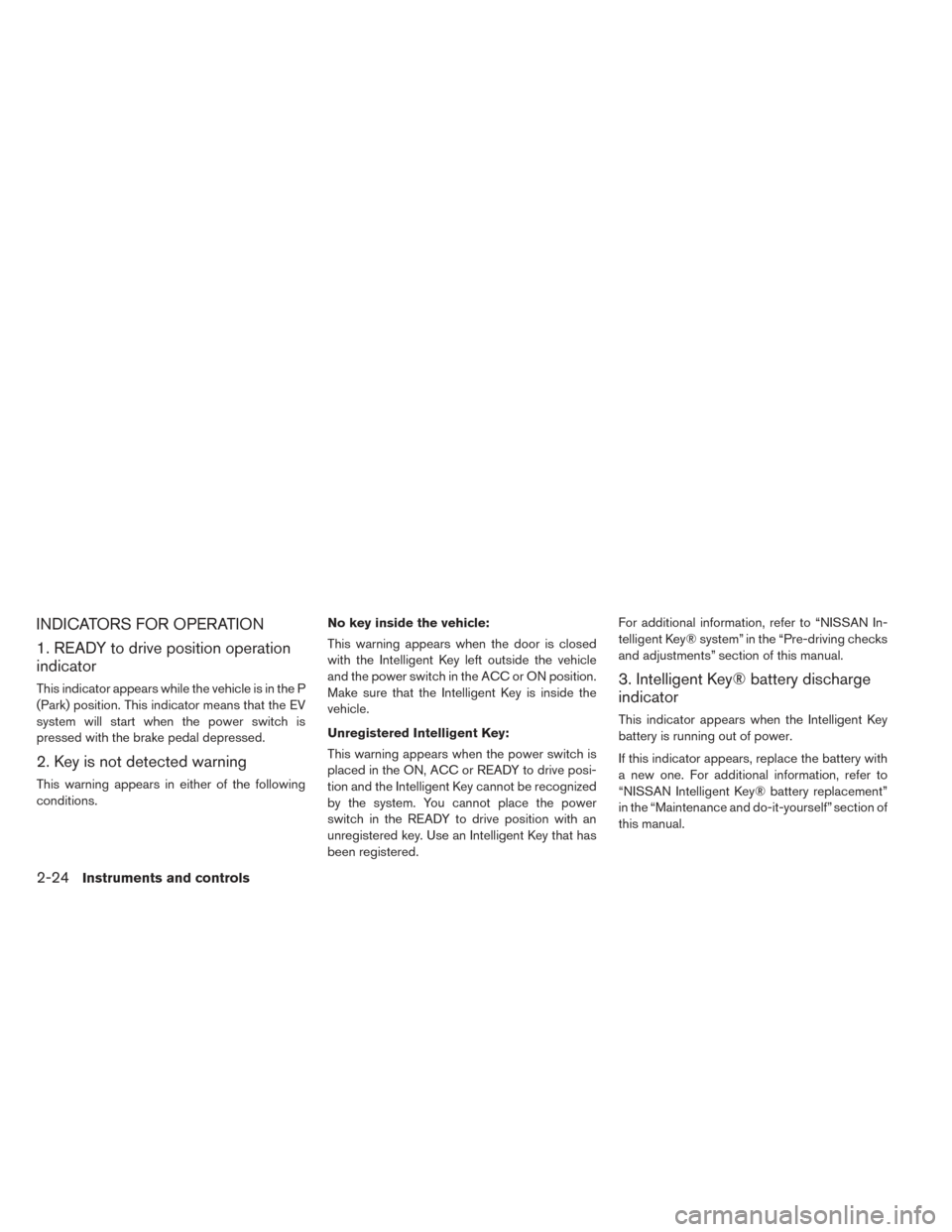

INDICATORS FOR OPERATION
1. READY to drive position operation
indicator
This indicator appears while the vehicle is in the P
(Park) position. This indicator means that the EV
system will start when the power switch is
pressed with the brake pedal depressed.
2. Key is not detected warning
This warning appears in either of the following
conditions.No key inside the vehicle:
This warning appears when the door is closed
with the Intelligent Key left outside the vehicle
and the power switch in the ACC or ON position.
Make sure that the Intelligent Key is inside the
vehicle.
Unregistered Intelligent Key:
This warning appears when the power switch is
placed in the ON, ACC or READY to drive posi-
tion and the Intelligent Key cannot be recognized
by the system. You cannot place the power
switch in the READY to drive position with an
unregistered key. Use an Intelligent Key that has
been registered.For additional information, refer to “NISSAN In-
telligent Key® system” in the “Pre-driving checks
and adjustments” section of this manual.
3. Intelligent Key® battery discharge
indicator
This indicator appears when the Intelligent Key
battery is running out of power.
If this indicator appears, replace the battery with
a new one. For additional information, refer to
“NISSAN Intelligent Key® battery replacement”
in the “Maintenance and do-it-yourself” section of
this manual.
2-24Instruments and controls

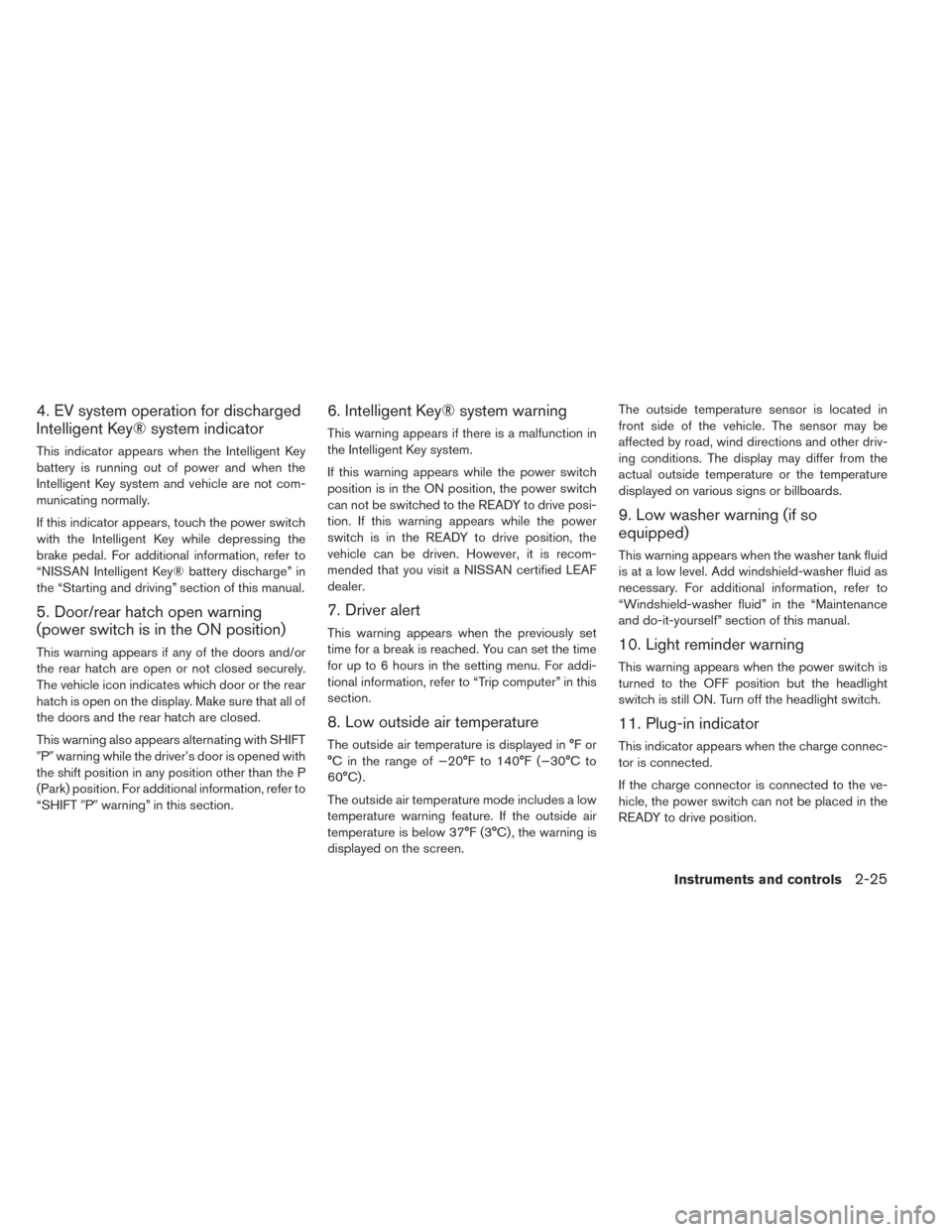

4. EV system operation for discharged
Intelligent Key® system indicator
This indicator appears when the Intelligent Key
battery is running out of power and when the
Intelligent Key system and vehicle are not com-
municating normally.
If this indicator appears, touch the power switch
with the Intelligent Key while depressing the
brake pedal. For additional information, refer to
“NISSAN Intelligent Key® battery discharge” in
the “Starting and driving” section of this manual.
5. Door/rear hatch open warning
(power switch is in the ON position)
This warning appears if any of the doors and/or
the rear hatch are open or not closed securely.
The vehicle icon indicates which door or the rear
hatch is open on the display. Make sure that all of
the doors and the rear hatch are closed.
This warning also appears alternating with SHIFT
Pwarning while the driver’s door is opened with
the shift position in any position other than the P
(Park) position. For additional information, refer to
“SHIFT Pwarning” in this section.
6. Intelligent Key® system warning
This warning appears if there is a malfunction in
the Intelligent Key system.
If this warning appears while the power switch
position is in the ON position, the power switch
can not be switched to the READY to drive posi-
tion. If this warning appears while the power
switch is in the READY to drive position, the
vehicle can be driven. However, it is recom-
mended that you visit a NISSAN certified LEAF
dealer.
7. Driver alert
This warning appears when the previously set
time for a break is reached. You can set the time
for up to 6 hours in the setting menu. For addi-
tional information, refer to “Trip computer” in this
section.
8. Low outside air temperature
The outside air temperature is displayed in °F or
°C in the range of −20°F to 140°F (−30°C to
60°C) .
The outside air temperature mode includes a low
temperature warning feature. If the outside air
temperature is below 37°F (3°C) , the warning is
displayed on the screen. The outside temperature sensor is located in
front side of the vehicle. The sensor may be
affected by road, wind directions and other driv-
ing conditions. The display may differ from the
actual outside temperature or the temperature
displayed on various signs or billboards.
9. Low washer warning (if so
equipped)
This warning appears when the washer tank fluid
is at a low level. Add windshield-washer fluid as
necessary. For additional information, refer to
“Windshield-washer fluid” in the “Maintenance
and do-it-yourself” section of this manual.
10. Light reminder warning
This warning appears when the power switch is
turned to the OFF position but the headlight
switch is still ON. Turn off the headlight switch.
11. Plug-in indicator
This indicator appears when the charge connec-
tor is connected.
If the charge connector is connected to the ve-
hicle, the power switch can not be placed in the
READY to drive position.
Instruments and controls2-25

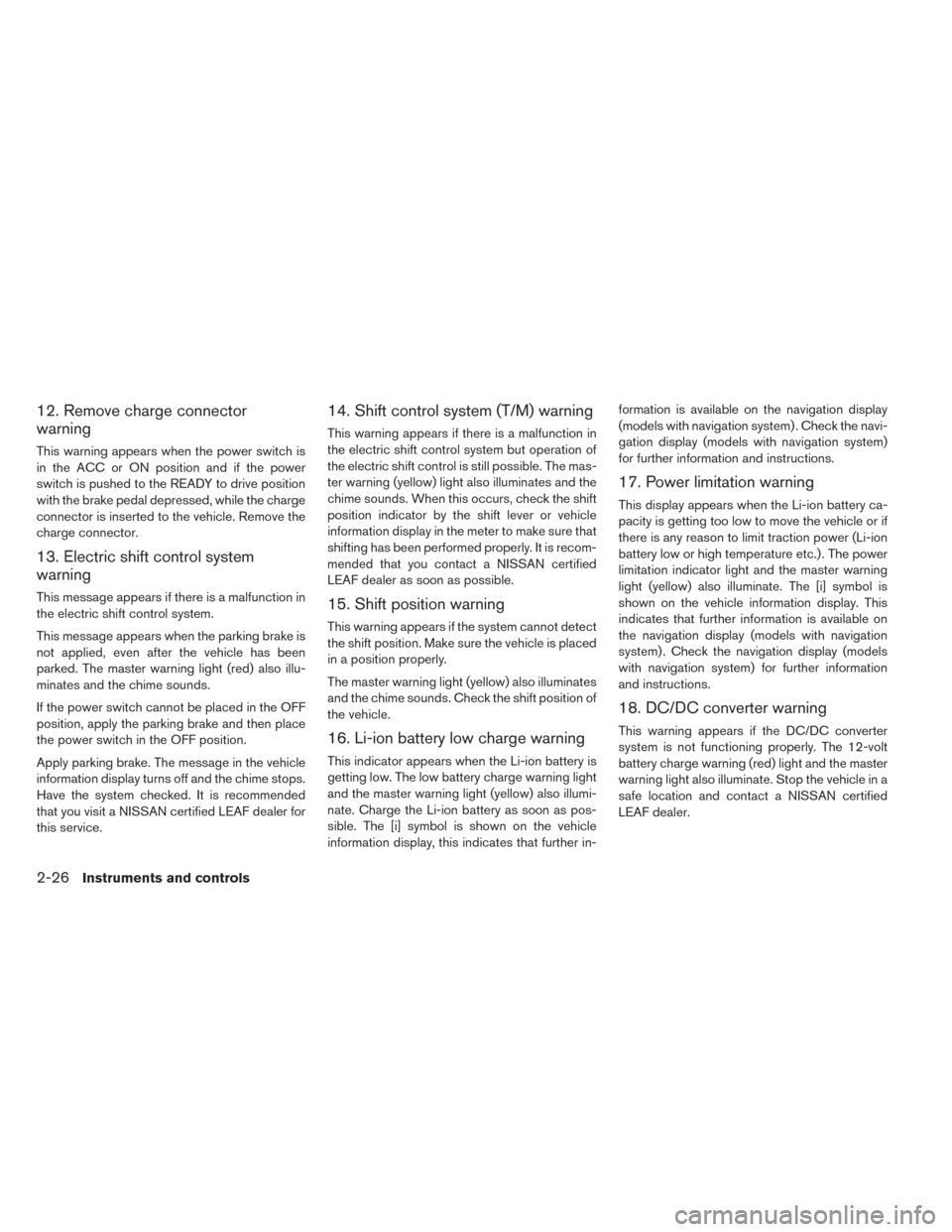

12. Remove charge connector
warning
This warning appears when the power switch is
in the ACC or ON position and if the power
switch is pushed to the READY to drive position
with the brake pedal depressed, while the charge
connector is inserted to the vehicle. Remove the
charge connector.
13. Electric shift control system
warning
This message appears if there is a malfunction in
the electric shift control system.
This message appears when the parking brake is
not applied, even after the vehicle has been
parked. The master warning light (red) also illu-
minates and the chime sounds.
If the power switch cannot be placed in the OFF
position, apply the parking brake and then place
the power switch in the OFF position.
Apply parking brake. The message in the vehicle
information display turns off and the chime stops.
Have the system checked. It is recommended
that you visit a NISSAN certified LEAF dealer for
this service.
14. Shift control system (T/M) warning
This warning appears if there is a malfunction in
the electric shift control system but operation of
the electric shift control is still possible. The mas-
ter warning (yellow) light also illuminates and the
chime sounds. When this occurs, check the shift
position indicator by the shift lever or vehicle
information display in the meter to make sure that
shifting has been performed properly. It is recom-
mended that you contact a NISSAN certified
LEAF dealer as soon as possible.
15. Shift position warning
This warning appears if the system cannot detect
the shift position. Make sure the vehicle is placed
in a position properly.
The master warning light (yellow) also illuminates
and the chime sounds. Check the shift position of
the vehicle.
16. Li-ion battery low charge warning
This indicator appears when the Li-ion battery is
getting low. The low battery charge warning light
and the master warning light (yellow) also illumi-
nate. Charge the Li-ion battery as soon as pos-
sible. The [i] symbol is shown on the vehicle
information display, this indicates that further in-formation is available on the navigation display
(models with navigation system) . Check the navi-
gation display (models with navigation system)
for further information and instructions.
17. Power limitation warning
This display appears when the Li-ion battery ca-
pacity is getting too low to move the vehicle or if
there is any reason to limit traction power (Li-ion
battery low or high temperature etc.) . The power
limitation indicator light and the master warning
light (yellow) also illuminate. The [i] symbol is
shown on the vehicle information display. This
indicates that further information is available on
the navigation display (models with navigation
system) . Check the navigation display (models
with navigation system) for further information
and instructions.
18. DC/DC converter warning
This warning appears if the DC/DC converter
system is not functioning properly. The 12-volt
battery charge warning (red) light and the master
warning light also illuminate. Stop the vehicle in a
safe location and contact a NISSAN certified
LEAF dealer.
2-26Instruments and controls

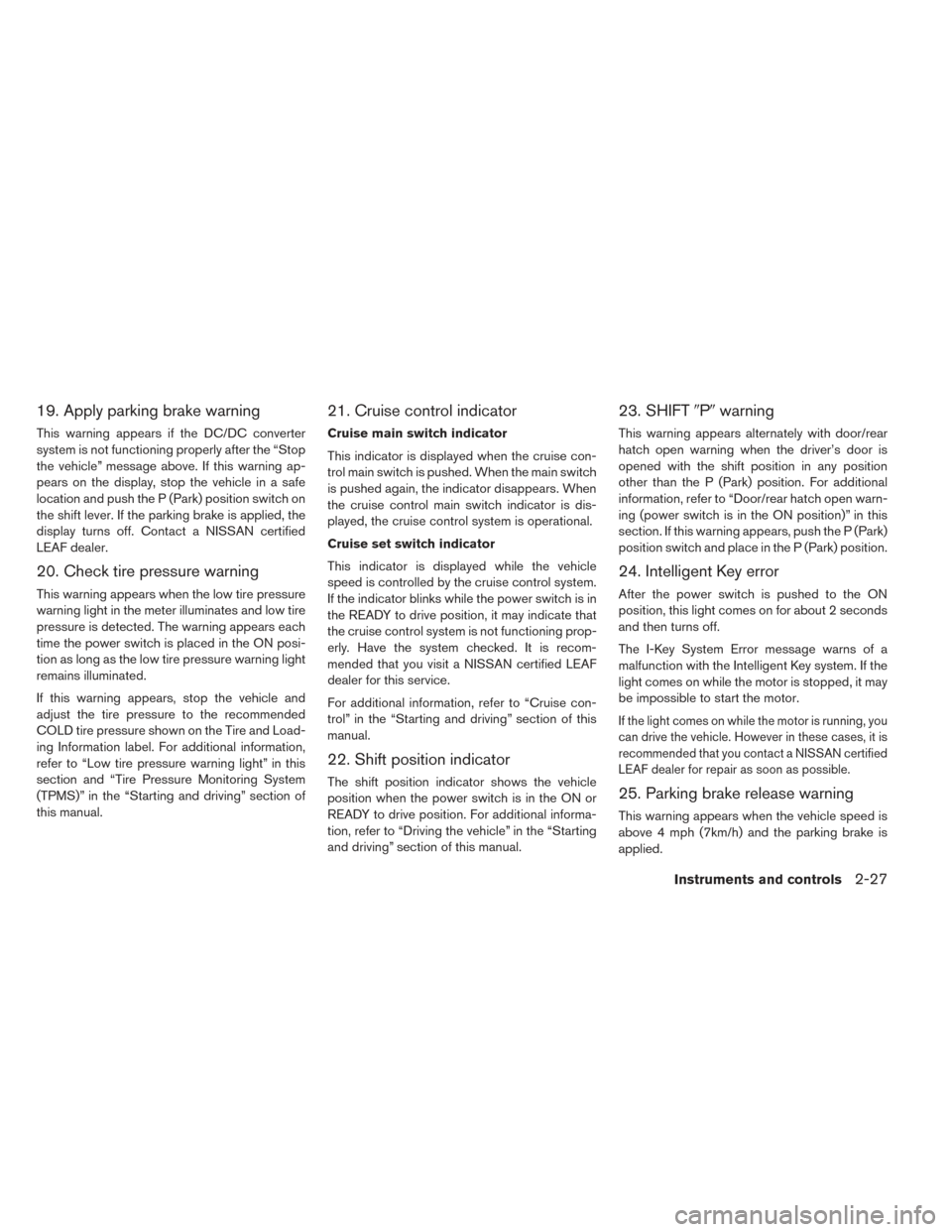

19. Apply parking brake warning
This warning appears if the DC/DC converter
system is not functioning properly after the “Stop
the vehicle” message above. If this warning ap-
pears on the display, stop the vehicle in a safe
location and push the P (Park) position switch on
the shift lever. If the parking brake is applied, the
display turns off. Contact a NISSAN certified
LEAF dealer.
20. Check tire pressure warning
This warning appears when the low tire pressure
warning light in the meter illuminates and low tire
pressure is detected. The warning appears each
time the power switch is placed in the ON posi-
tion as long as the low tire pressure warning light
remains illuminated.
If this warning appears, stop the vehicle and
adjust the tire pressure to the recommended
COLD tire pressure shown on the Tire and Load-
ing Information label. For additional information,
refer to “Low tire pressure warning light” in this
section and “Tire Pressure Monitoring System
(TPMS)” in the “Starting and driving” section of
this manual.
21. Cruise control indicator
Cruise main switch indicator
This indicator is displayed when the cruise con-
trol main switch is pushed. When the main switch
is pushed again, the indicator disappears. When
the cruise control main switch indicator is dis-
played, the cruise control system is operational.
Cruise set switch indicator
This indicator is displayed while the vehicle
speed is controlled by the cruise control system.
If the indicator blinks while the power switch is in
the READY to drive position, it may indicate that
the cruise control system is not functioning prop-
erly. Have the system checked. It is recom-
mended that you visit a NISSAN certified LEAF
dealer for this service.
For additional information, refer to “Cruise con-
trol” in the “Starting and driving” section of this
manual.
22. Shift position indicator
The shift position indicator shows the vehicle
position when the power switch is in the ON or
READY to drive position. For additional informa-
tion, refer to “Driving the vehicle” in the “Starting
and driving” section of this manual.
23. SHIFTPwarning
This warning appears alternately with door/rear
hatch open warning when the driver’s door is
opened with the shift position in any position
other than the P (Park) position. For additional
information, refer to “Door/rear hatch open warn-
ing (power switch is in the ON position)” in this
section. If this warning appears, push the P (Park)
position switch and place in the P (Park) position.
24. Intelligent Key error
After the power switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
The I-Key System Error message warns of a
malfunction with the Intelligent Key system. If the
light comes on while the motor is stopped, it may
be impossible to start the motor.
If the light comes on while the motor is running, you
can drive the vehicle. However in these cases, it is
recommended that you contact a NISSAN certified
LEAF dealer for repair as soon as possible.
25. Parking brake release warning
This warning appears when the vehicle speed is
above 4 mph (7km/h) and the parking brake is
applied.
Instruments and controls2-27

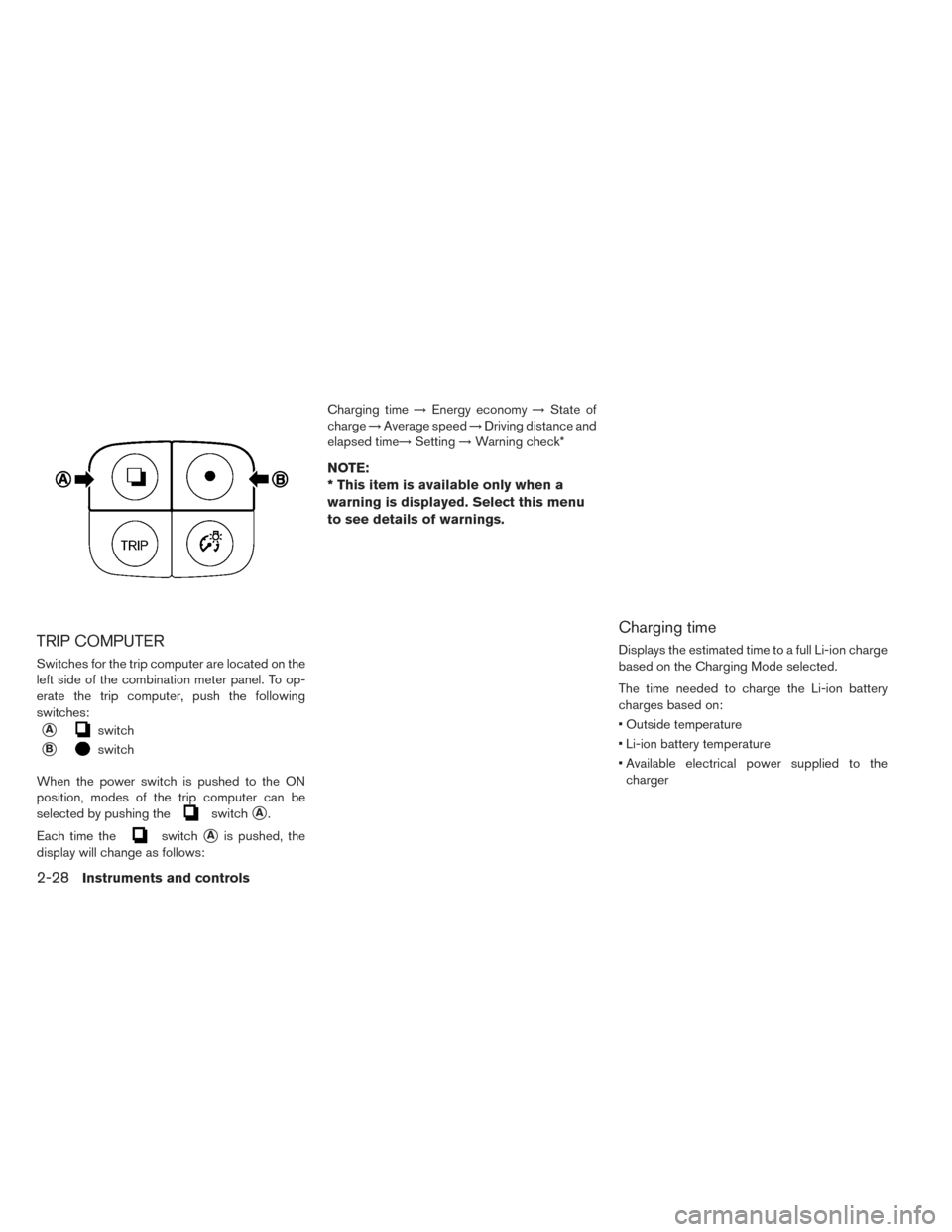

TRIP COMPUTER
Switches for the trip computer are located on the
left side of the combination meter panel. To op-
erate the trip computer, push the following
switches:
Aswitch
Bswitch
When the power switch is pushed to the ON
position, modes of the trip computer can be
selected by pushing the
switchA.
Each time the
switchAis pushed, the
display will change as follows: Charging time
→Energy economy →State of
charge →Average speed →Driving distance and
elapsed time→ Setting→Warning check*
NOTE:
* This item is available only when a
warning is displayed. Select this menu
to see details of warnings.
Charging time
Displays the estimated time to a full Li-ion charge
based on the Charging Mode selected.
The time needed to charge the Li-ion battery
charges based on:
• Outside temperature
• Li-ion battery temperature
• Available electrical power supplied to the
charger
2-28Instruments and controls

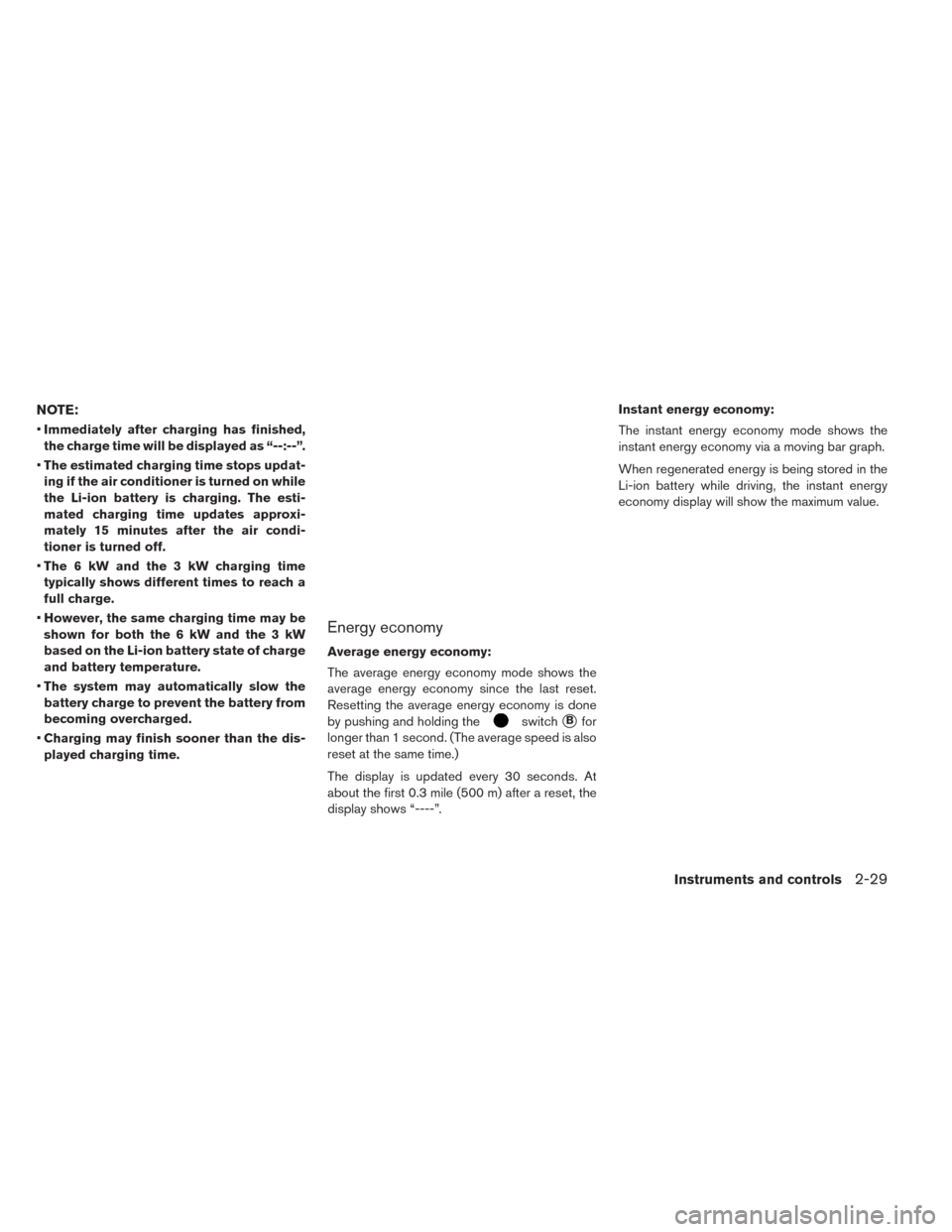

NOTE:
•Immediately after charging has finished,
the charge time will be displayed as “--:--”.
• The estimated charging time stops updat-
ing if the air conditioner is turned on while
the Li-ion battery is charging. The esti-
mated charging time updates approxi-
mately 15 minutes after the air condi-
tioner is turned off.
• The 6 kW and the 3 kW charging time
typically shows different times to reach a
full charge.
• However, the same charging time may be
shown for both the 6 kW and the 3 kW
based on the Li-ion battery state of charge
and battery temperature.
• The system may automatically slow the
battery charge to prevent the battery from
becoming overcharged.
• Charging may finish sooner than the dis-
played charging time.
Energy economy
Average energy economy:
The average energy economy mode shows the
average energy economy since the last reset.
Resetting the average energy economy is done
by pushing and holding the
switchBfor
longer than 1 second. (The average speed is also
reset at the same time.)
The display is updated every 30 seconds. At
about the first 0.3 mile (500 m) after a reset, the
display shows “----”. Instant energy economy:
The instant energy economy mode shows the
instant energy economy via a moving bar graph.
When regenerated energy is being stored in the
Li-ion battery while driving, the instant energy
economy display will show the maximum value.
Instruments and controls2-29

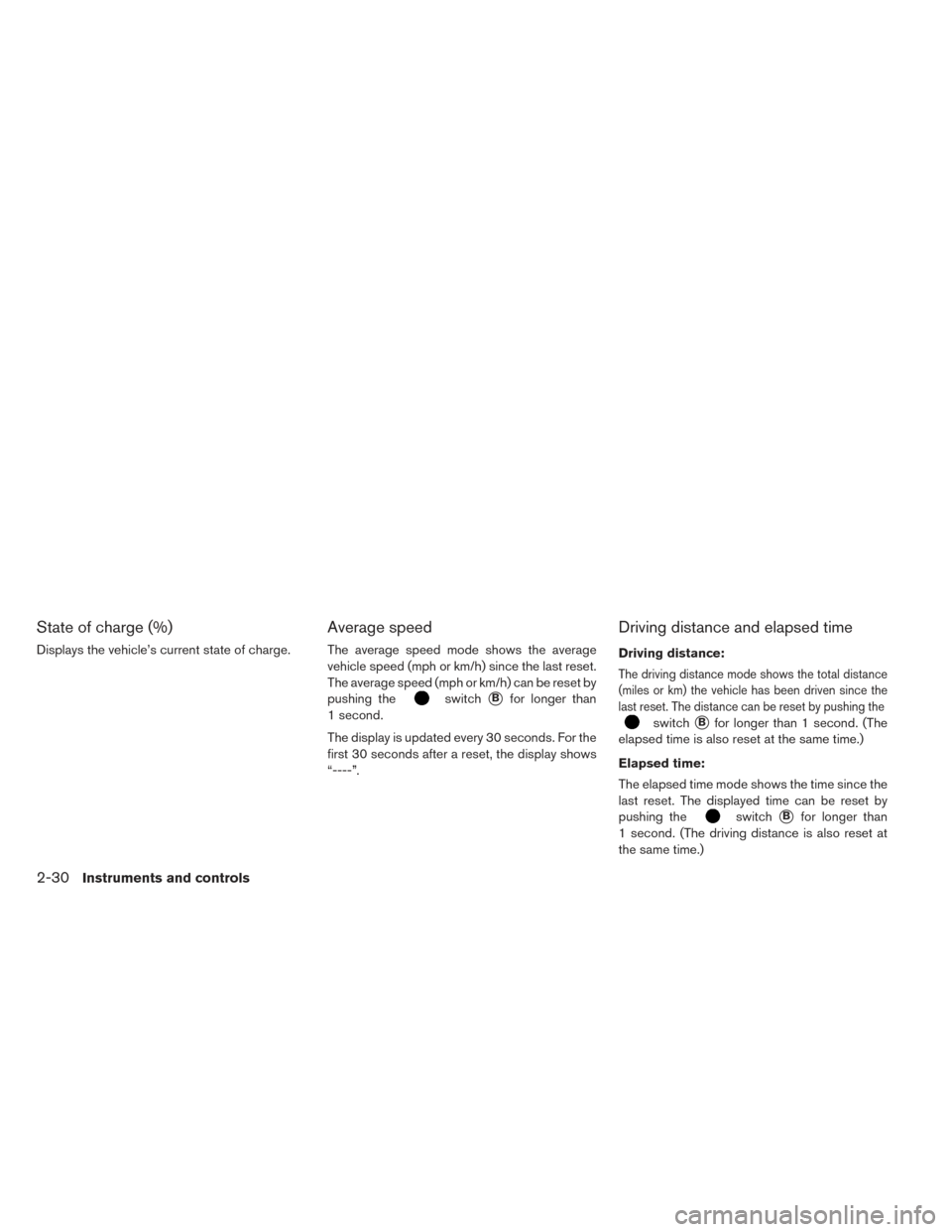

State of charge (%)
Displays the vehicle’s current state of charge.
Average speed
The average speed mode shows the average
vehicle speed (mph or km/h) since the last reset.
The average speed (mph or km/h) can be reset by
pushing the
switchBfor longer than
1 second.
The display is updated every 30 seconds. For the
first 30 seconds after a reset, the display shows
“----”.
Driving distance and elapsed time
Driving distance:
The driving distance mode shows the total distance
(miles or km) the vehicle has been driven since the
last reset. The distance can be reset by pushing the
switchBfor longer than 1 second. (The
elapsed time is also reset at the same time.)
Elapsed time:
The elapsed time mode shows the time since the
last reset. The displayed time can be reset by
pushing the
switchBfor longer than
1 second. (The driving distance is also reset at
the same time.)
2-30Instruments and controls

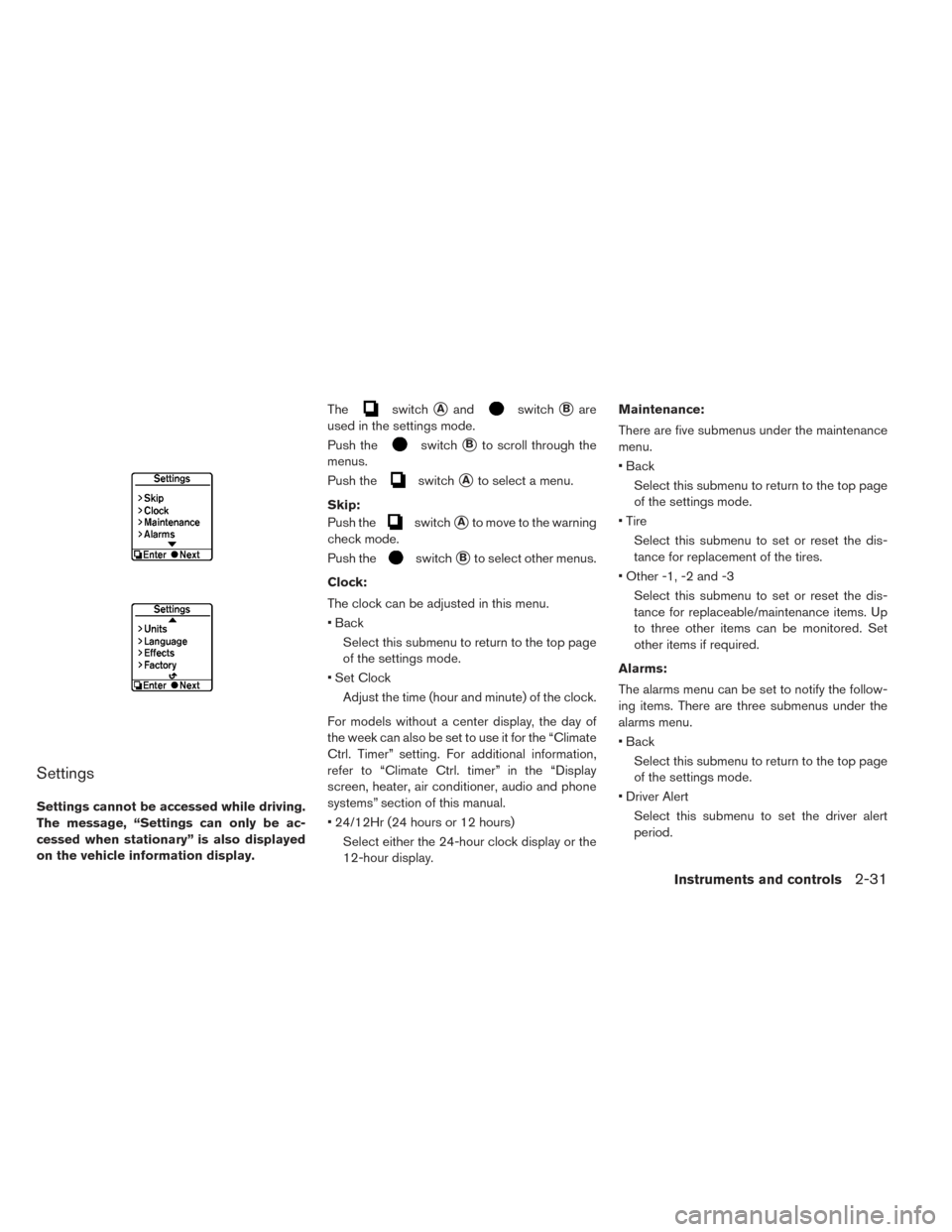

Settings
Settings cannot be accessed while driving.
The message, “Settings can only be ac-
cessed when stationary” is also displayed
on the vehicle information display.The
switchAandswitchBare
used in the settings mode.
Push the
switchBto scroll through the
menus.
Push the
switchAto select a menu.
Skip:
Push the
switchAto move to the warning
check mode.
Push the
switchBto select other menus.
Clock:
The clock can be adjusted in this menu.
• Back Select this submenu to return to the top page
of the settings mode.
• Set Clock Adjust the time (hour and minute) of the clock.
For models without a center display, the day of
the week can also be set to use it for the “Climate
Ctrl. Timer” setting. For additional information,
refer to “Climate Ctrl. timer” in the “Display
screen, heater, air conditioner, audio and phone
systems” section of this manual.
• 24/12Hr (24 hours or 12 hours) Select either the 24-hour clock display or the
12-hour display. Maintenance:
There are five submenus under the maintenance
menu.
• Back
Select this submenu to return to the top page
of the settings mode.
• Tire Select this submenu to set or reset the dis-
tance for replacement of the tires.
• Other -1, -2 and -3 Select this submenu to set or reset the dis-
tance for replaceable/maintenance items. Up
to three other items can be monitored. Set
other items if required.
Alarms:
The alarms menu can be set to notify the follow-
ing items. There are three submenus under the
alarms menu.
• Back Select this submenu to return to the top page
of the settings mode.
• Driver Alert Select this submenu to set the driver alert
period.
Instruments and controls2-31
