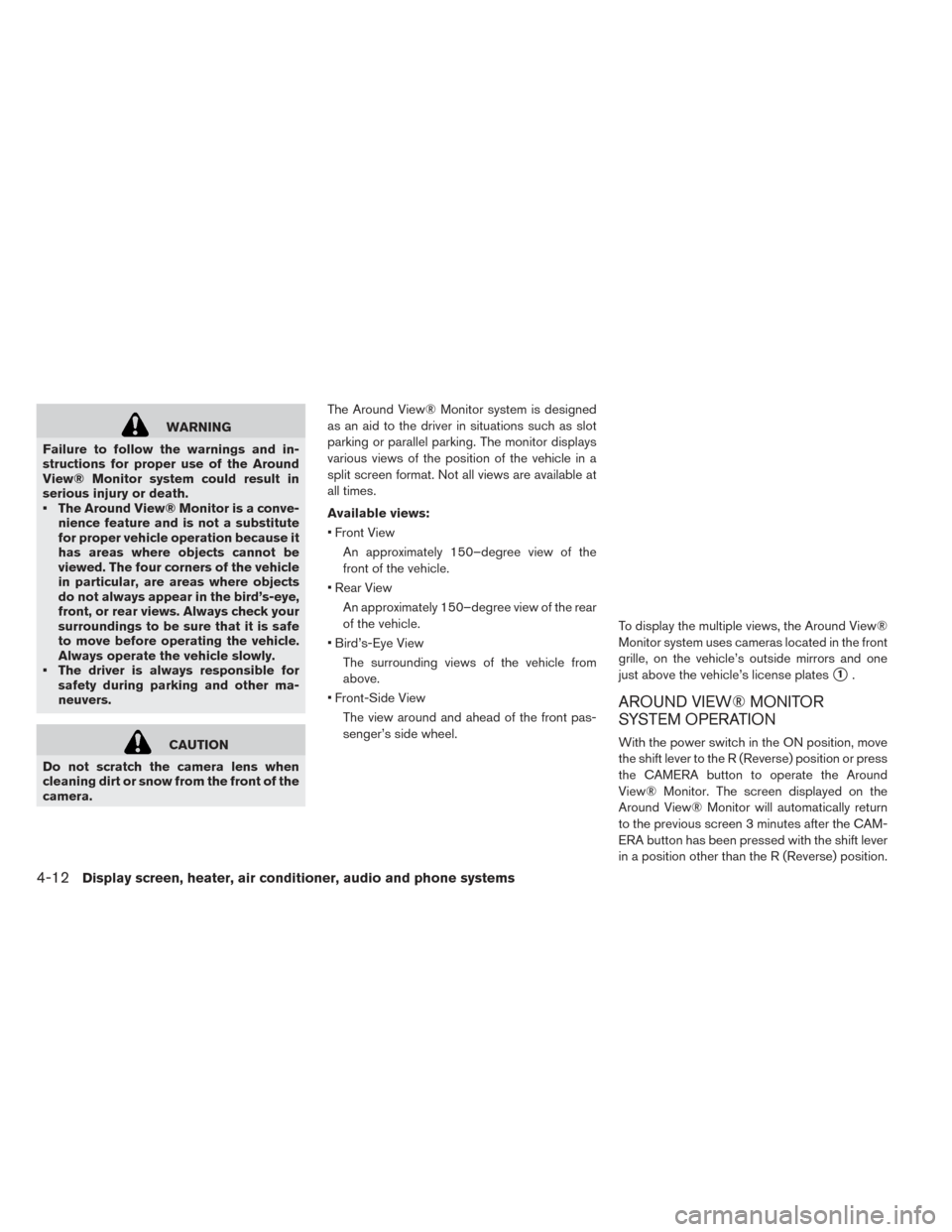

WARNING
Failure to follow the warnings and in-
structions for proper use of the Around
View® Monitor system could result in
serious injury or death.
• The Around View® Monitor is a conve- nience feature and is not a substitute
for proper vehicle operation because it
has areas where objects cannot be
viewed. The four corners of the vehicle
in particular, are areas where objects
do not always appear in the bird’s-eye,
front, or rear views. Always check your
surroundings to be sure that it is safe
to move before operating the vehicle.
Always operate the vehicle slowly.
• The driver is always responsible for safety during parking and other ma-
neuvers.
CAUTION
Do not scratch the camera lens when
cleaning dirt or snow from the front of the
camera. The Around View® Monitor system is designed
as an aid to the driver in situations such as slot
parking or parallel parking. The monitor displays
various views of the position of the vehicle in a
split screen format. Not all views are available at
all times.
Available views:
• Front View
An approximately 150–degree view of the
front of the vehicle.
• Rear View An approximately 150–degree view of the rear
of the vehicle.
• Bird’s-Eye View The surrounding views of the vehicle from
above.
• Front-Side View The view around and ahead of the front pas-
senger’s side wheel. To display the multiple views, the Around View®
Monitor system uses cameras located in the front
grille, on the vehicle’s outside mirrors and one
just above the vehicle’s license plates
1.
AROUND VIEW® MONITOR
SYSTEM OPERATION
With the power switch in the ON position, move
the shift lever to the R (Reverse) position or press
the CAMERA button to operate the Around
View® Monitor. The screen displayed on the
Around View® Monitor will automatically return
to the previous screen 3 minutes after the CAM-
ERA button has been pressed with the shift lever
in a position other than the R (Reverse) position.
4-12Display screen, heater, air conditioner, audio and phone systems

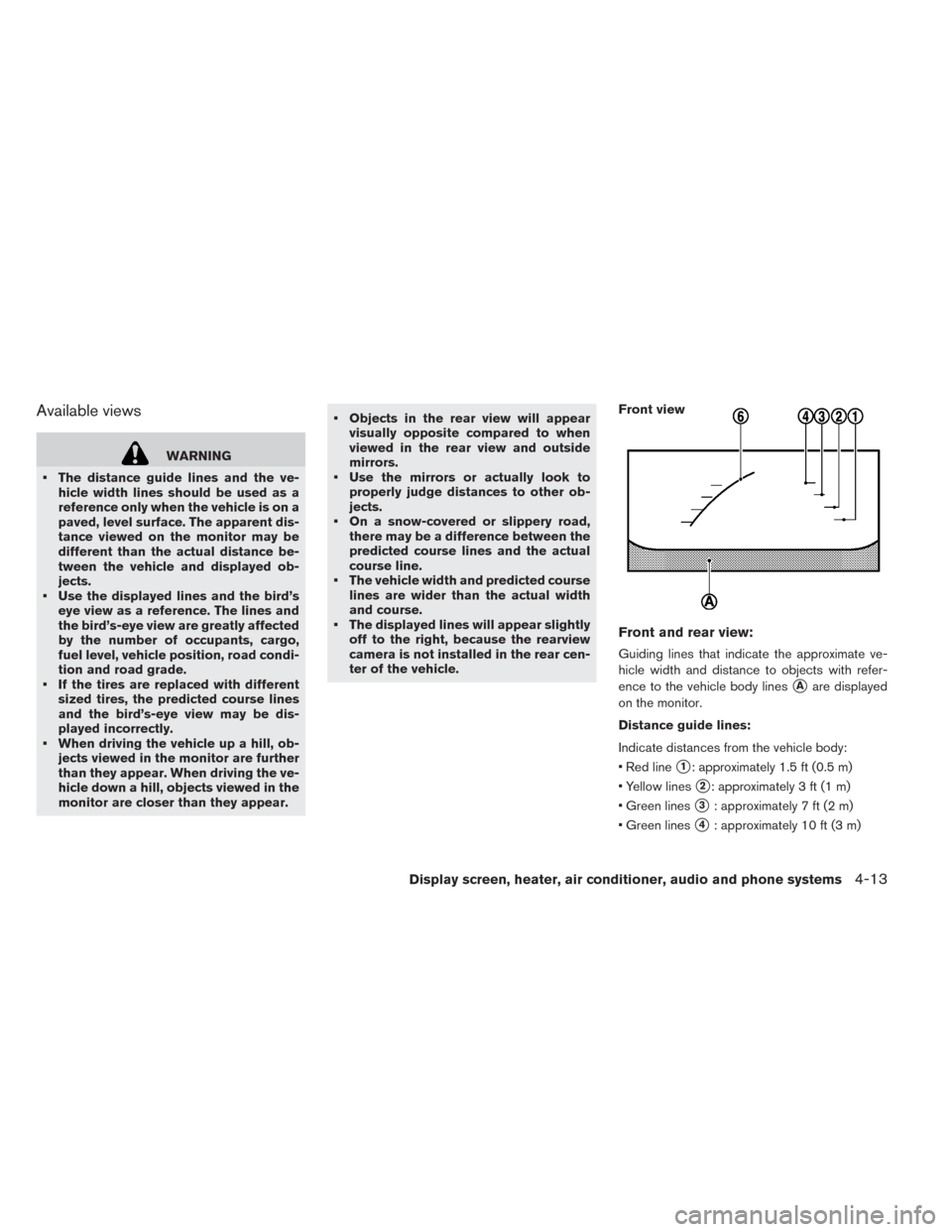

Available views
WARNING
• The distance guide lines and the ve- hicle width lines should be used as a
reference only when the vehicle is on a
paved, level surface. The apparent dis-
tance viewed on the monitor may be
different than the actual distance be-
tween the vehicle and displayed ob-
jects.
• Use the displayed lines and the bird’s eye view as a reference. The lines and
the bird’s-eye view are greatly affected
by the number of occupants, cargo,
fuel level, vehicle position, road condi-
tion and road grade.
• If the tires are replaced with different sized tires, the predicted course lines
and the bird’s-eye view may be dis-
played incorrectly.
• When driving the vehicle up a hill, ob- jects viewed in the monitor are further
than they appear. When driving the ve-
hicle down a hill, objects viewed in the
monitor are closer than they appear. • Objects in the rear view will appear
visually opposite compared to when
viewed in the rear view and outside
mirrors.
• Use the mirrors or actually look to properly judge distances to other ob-
jects.
• On a snow-covered or slippery road, there may be a difference between the
predicted course lines and the actual
course line.
• The vehicle width and predicted course lines are wider than the actual width
and course.
• The displayed lines will appear slightly off to the right, because the rearview
camera is not installed in the rear cen-
ter of the vehicle.
Front and rear view:
Guiding lines that indicate the approximate ve-
hicle width and distance to objects with refer-
ence to the vehicle body lines
Aare displayed
on the monitor.
Distance guide lines:
Indicate distances from the vehicle body:
• Red line
1: approximately 1.5 ft (0.5 m)
• Yellow lines
2: approximately 3 ft (1 m)
• Green lines
3: approximately 7 ft (2 m)
• Green lines
4: approximately 10 ft (3 m)
Front view
Display screen, heater, air conditioner, audio and phone systems4-13

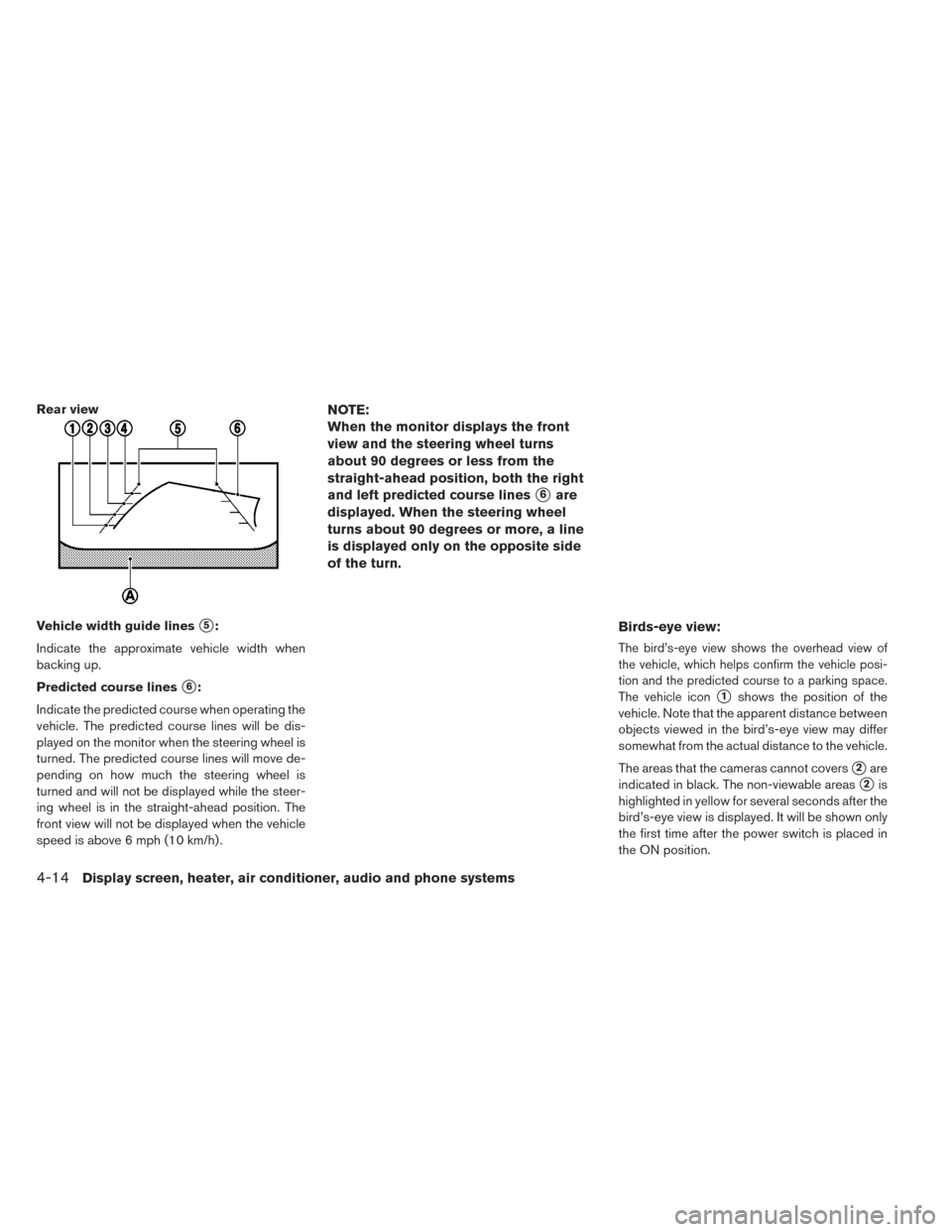

Vehicle width guide lines5:
Indicate the approximate vehicle width when
backing up.
Predicted course lines
6:
Indicate the predicted course when operating the
vehicle. The predicted course lines will be dis-
played on the monitor when the steering wheel is
turned. The predicted course lines will move de-
pending on how much the steering wheel is
turned and will not be displayed while the steer-
ing wheel is in the straight-ahead position. The
front view will not be displayed when the vehicle
speed is above 6 mph (10 km/h) .
NOTE:
When the monitor displays the front
view and the steering wheel turns
about 90 degrees or less from the
straight-ahead position, both the right
and left predicted course lines
6are
displayed. When the steering wheel
turns about 90 degrees or more, a line
is displayed only on the opposite side
of the turn.
Birds-eye view:
The bird’s-eye view shows the overhead view of
the vehicle, which helps confirm the vehicle posi-
tion and the predicted course to a parking space.
The vehicle icon
1shows the position of the
vehicle. Note that the apparent distance between
objects viewed in the bird’s-eye view may differ
somewhat from the actual distance to the vehicle.
The areas that the cameras cannot covers
2are
indicated in black. The non-viewable areas
2is
highlighted in yellow for several seconds after the
bird’s-eye view is displayed. It will be shown only
the first time after the power switch is placed in
the ON position.
Rear view
4-14Display screen, heater, air conditioner, audio and phone systems

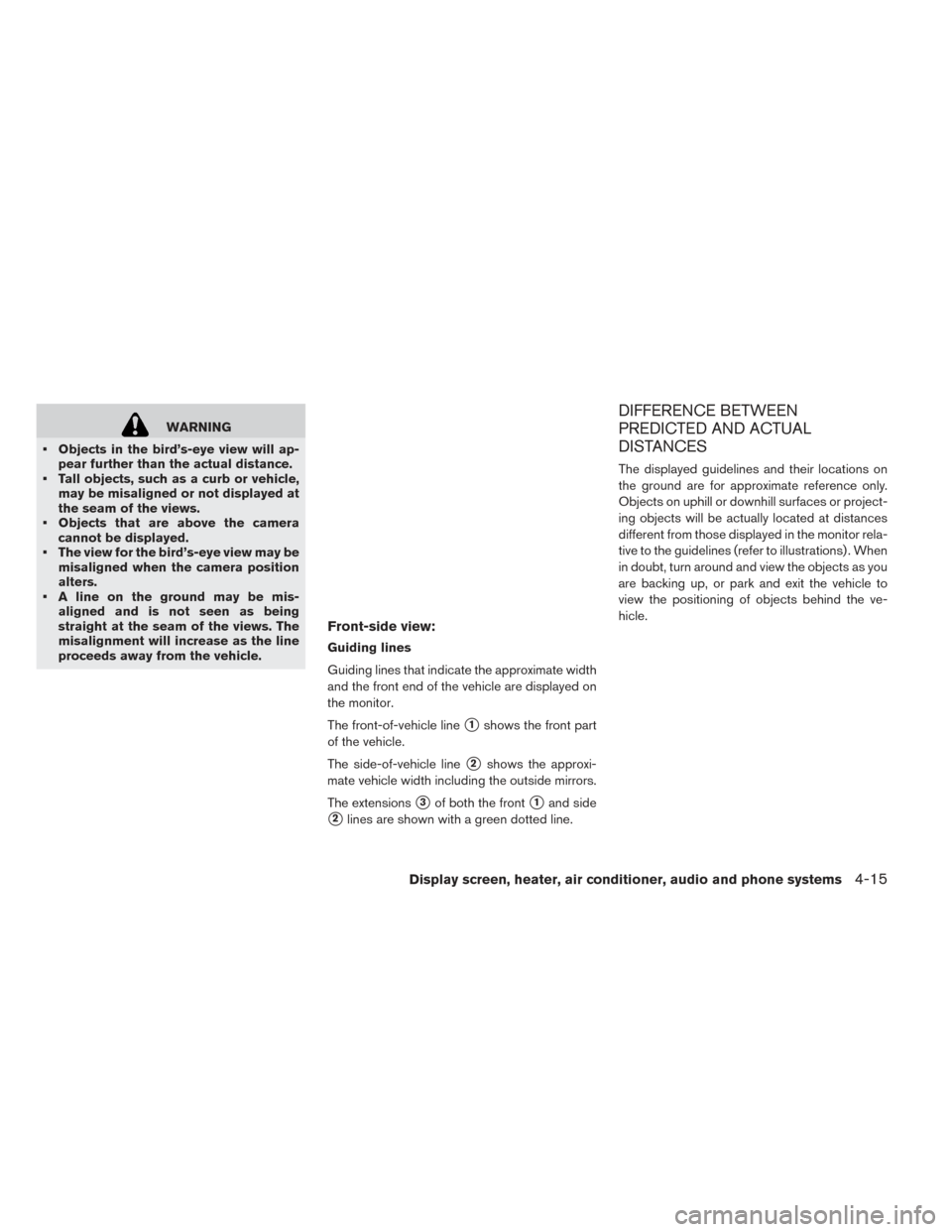

WARNING
• Objects in the bird’s-eye view will ap- pear further than the actual distance.
• Tall objects, such as a curb or vehicle, may be misaligned or not displayed at
the seam of the views.
• Objects that are above the camera cannot be displayed.
• The view for the bird’s-eye view may be misaligned when the camera position
alters.
• A line on the ground may be mis- aligned and is not seen as being
straight at the seam of the views. The
misalignment will increase as the line
proceeds away from the vehicle.
Front-side view:
Guiding lines
Guiding lines that indicate the approximate width
and the front end of the vehicle are displayed on
the monitor.
The front-of-vehicle line
1shows the front part
of the vehicle.
The side-of-vehicle line
2shows the approxi-
mate vehicle width including the outside mirrors.
The extensions
3of both the front1and side
2lines are shown with a green dotted line.
DIFFERENCE BETWEEN
PREDICTED AND ACTUAL
DISTANCES
The displayed guidelines and their locations on
the ground are for approximate reference only.
Objects on uphill or downhill surfaces or project-
ing objects will be actually located at distances
different from those displayed in the monitor rela-
tive to the guidelines (refer to illustrations) . When
in doubt, turn around and view the objects as you
are backing up, or park and exit the vehicle to
view the positioning of objects behind the ve-
hicle.
Display screen, heater, air conditioner, audio and phone systems4-15

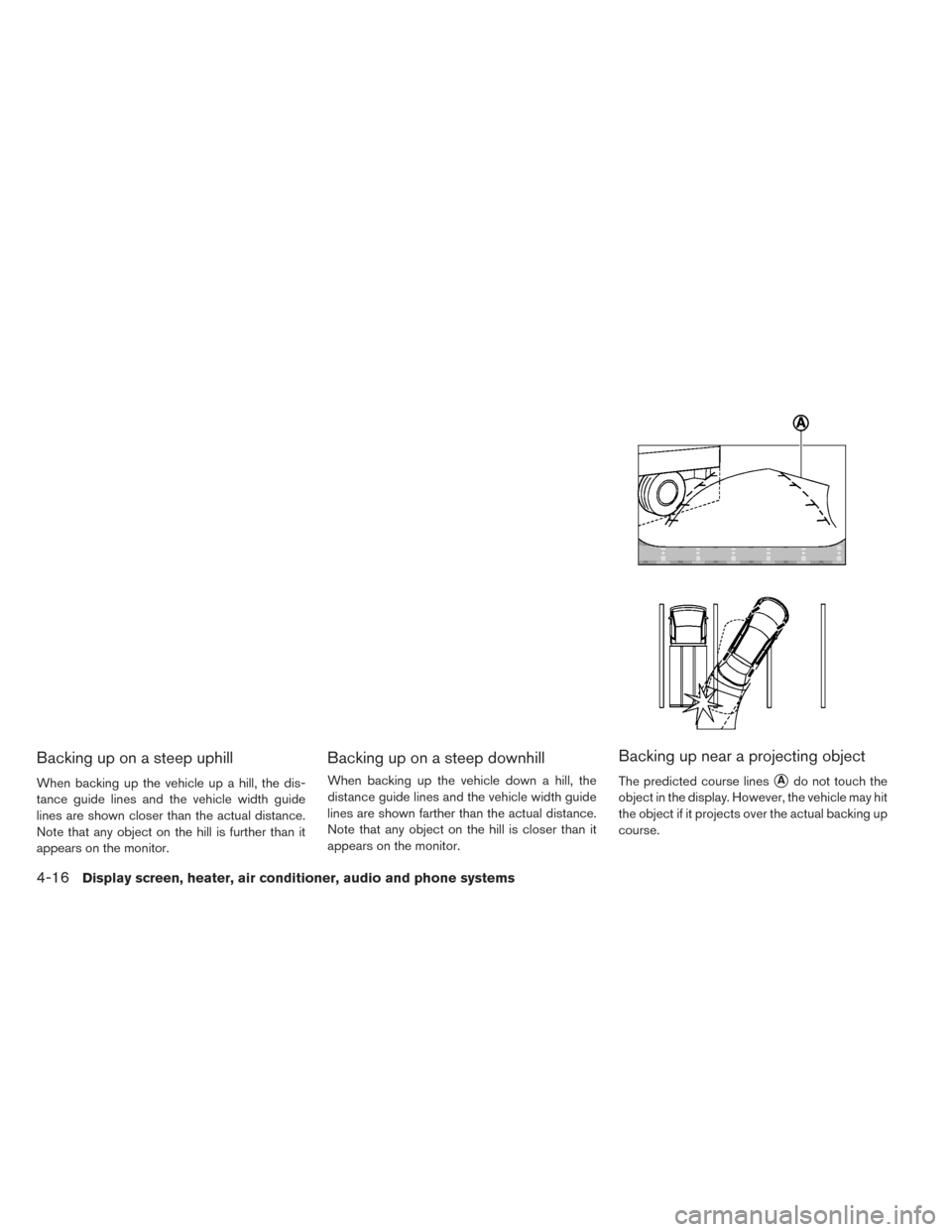

Backing up on a steep uphill
When backing up the vehicle up a hill, the dis-
tance guide lines and the vehicle width guide
lines are shown closer than the actual distance.
Note that any object on the hill is further than it
appears on the monitor.
Backing up on a steep downhill
When backing up the vehicle down a hill, the
distance guide lines and the vehicle width guide
lines are shown farther than the actual distance.
Note that any object on the hill is closer than it
appears on the monitor.
Backing up near a projecting object
The predicted course linesAdo not touch the
object in the display. However, the vehicle may hit
the object if it projects over the actual backing up
course.
4-16Display screen, heater, air conditioner, audio and phone systems

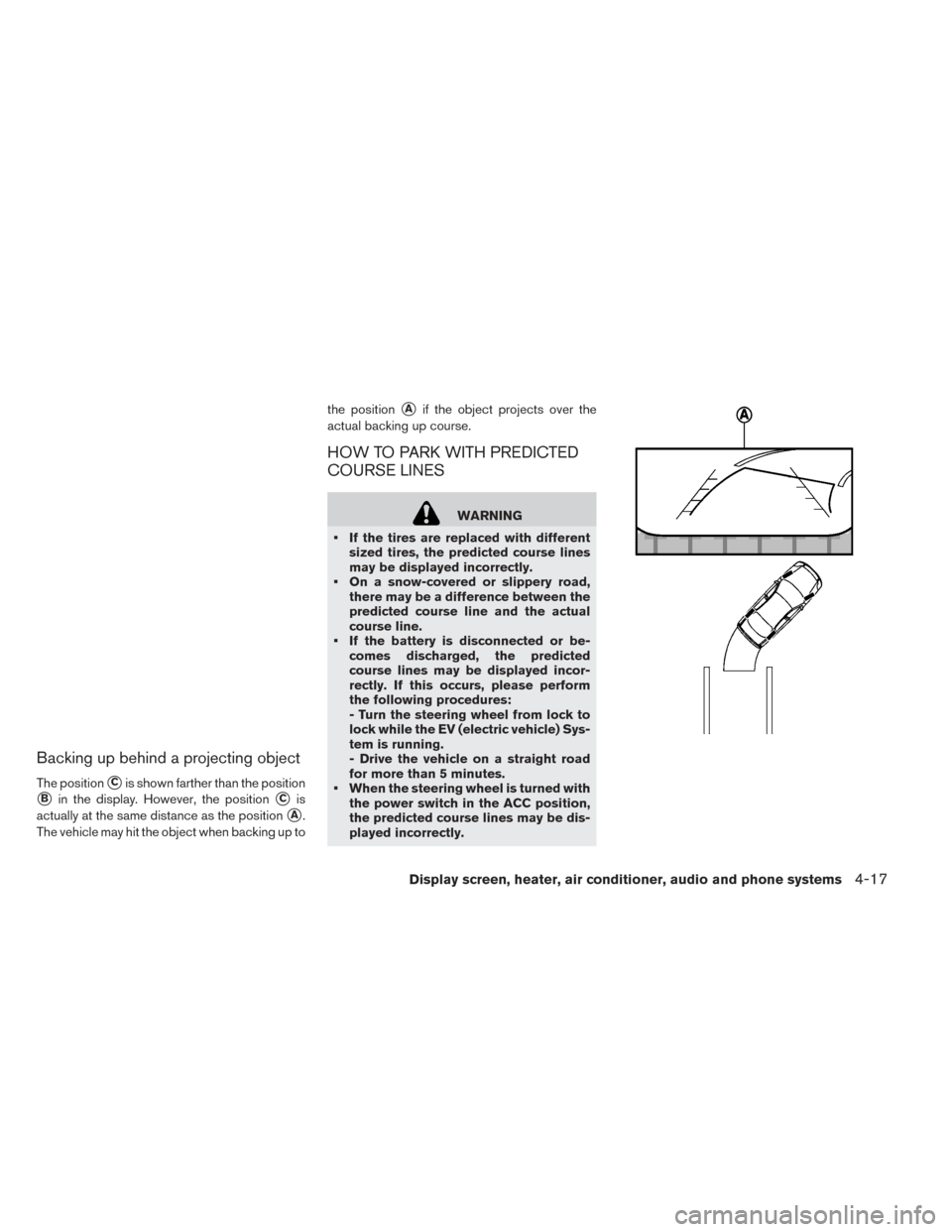

Backing up behind a projecting object
The positionCis shown farther than the position
Bin the display. However, the positionCis
actually at the same distance as the position
A.
The vehicle may hit the object when backing up to the position
Aif the object projects over the
actual backing up course.
HOW TO PARK WITH PREDICTED
COURSE LINES
WARNING
• If the tires are replaced with different sized tires, the predicted course lines
may be displayed incorrectly.
• On a snow-covered or slippery road, there may be a difference between the
predicted course line and the actual
course line.
• If the battery is disconnected or be- comes discharged, the predicted
course lines may be displayed incor-
rectly. If this occurs, please perform
the following procedures:
- Turn the steering wheel from lock to
lock while the EV (electric vehicle) Sys-
tem is running.
- Drive the vehicle on a straight road
for more than 5 minutes.
• When the steering wheel is turned with the power switch in the ACC position,
the predicted course lines may be dis-
played incorrectly.
Display screen, heater, air conditioner, audio and phone systems4-17

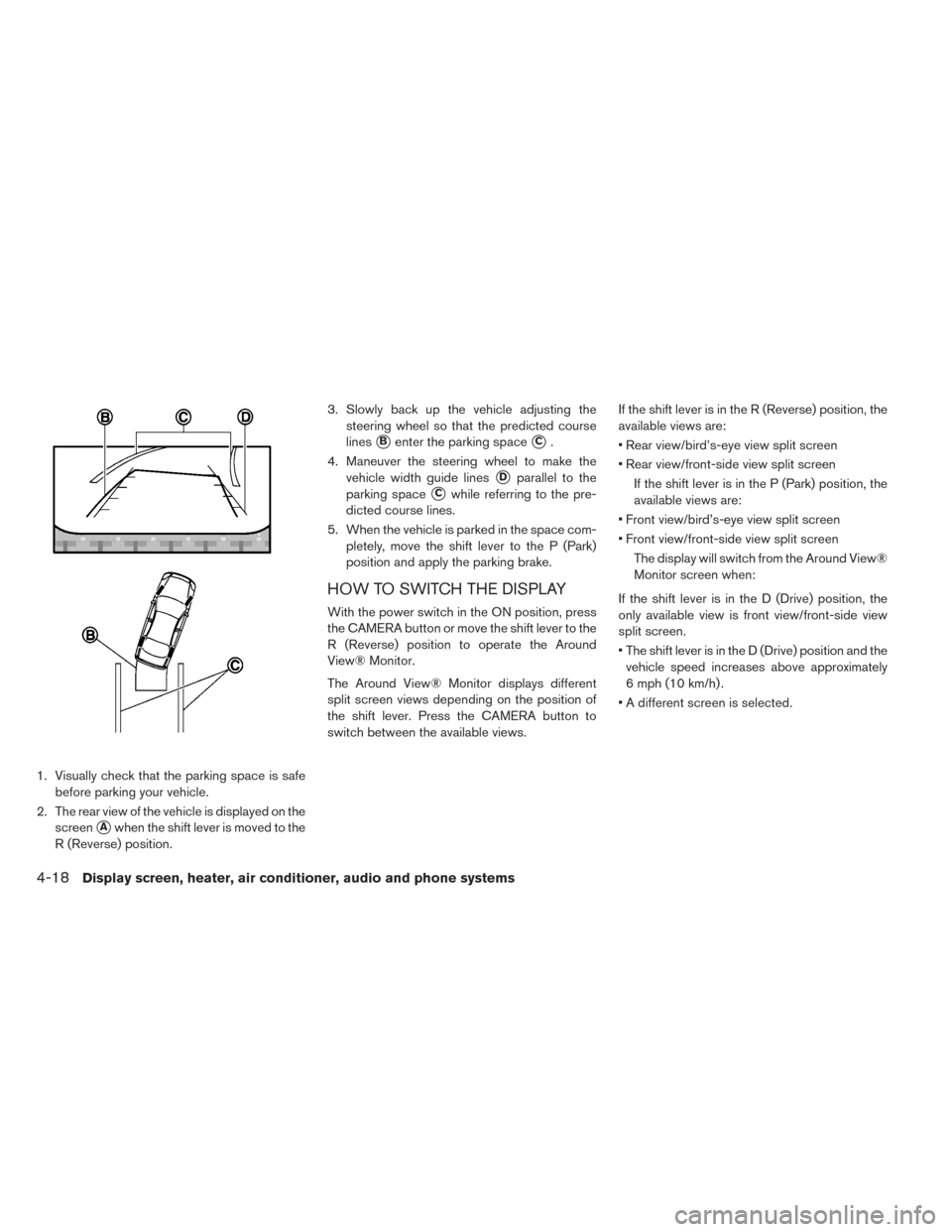

1. Visually check that the parking space is safebefore parking your vehicle.
2. The rear view of the vehicle is displayed on the screen
Awhen the shift lever is moved to the
R (Reverse) position. 3. Slowly back up the vehicle adjusting the
steering wheel so that the predicted course
lines
Benter the parking spaceC.
4. Maneuver the steering wheel to make the vehicle width guide lines
Dparallel to the
parking space
Cwhile referring to the pre-
dicted course lines.
5. When the vehicle is parked in the space com- pletely, move the shift lever to the P (Park)
position and apply the parking brake.
HOW TO SWITCH THE DISPLAY
With the power switch in the ON position, press
the CAMERA button or move the shift lever to the
R (Reverse) position to operate the Around
View® Monitor.
The Around View® Monitor displays different
split screen views depending on the position of
the shift lever. Press the CAMERA button to
switch between the available views. If the shift lever is in the R (Reverse) position, the
available views are:
• Rear view/bird’s-eye view split screen
• Rear view/front-side view split screen
If the shift lever is in the P (Park) position, the
available views are:
• Front view/bird’s-eye view split screen
• Front view/front-side view split screen The display will switch from the Around View®
Monitor screen when:
If the shift lever is in the D (Drive) position, the
only available view is front view/front-side view
split screen.
• The shift lever is in the D (Drive) position and the vehicle speed increases above approximately
6 mph (10 km/h) .
• A different screen is selected.
4-18Display screen, heater, air conditioner, audio and phone systems

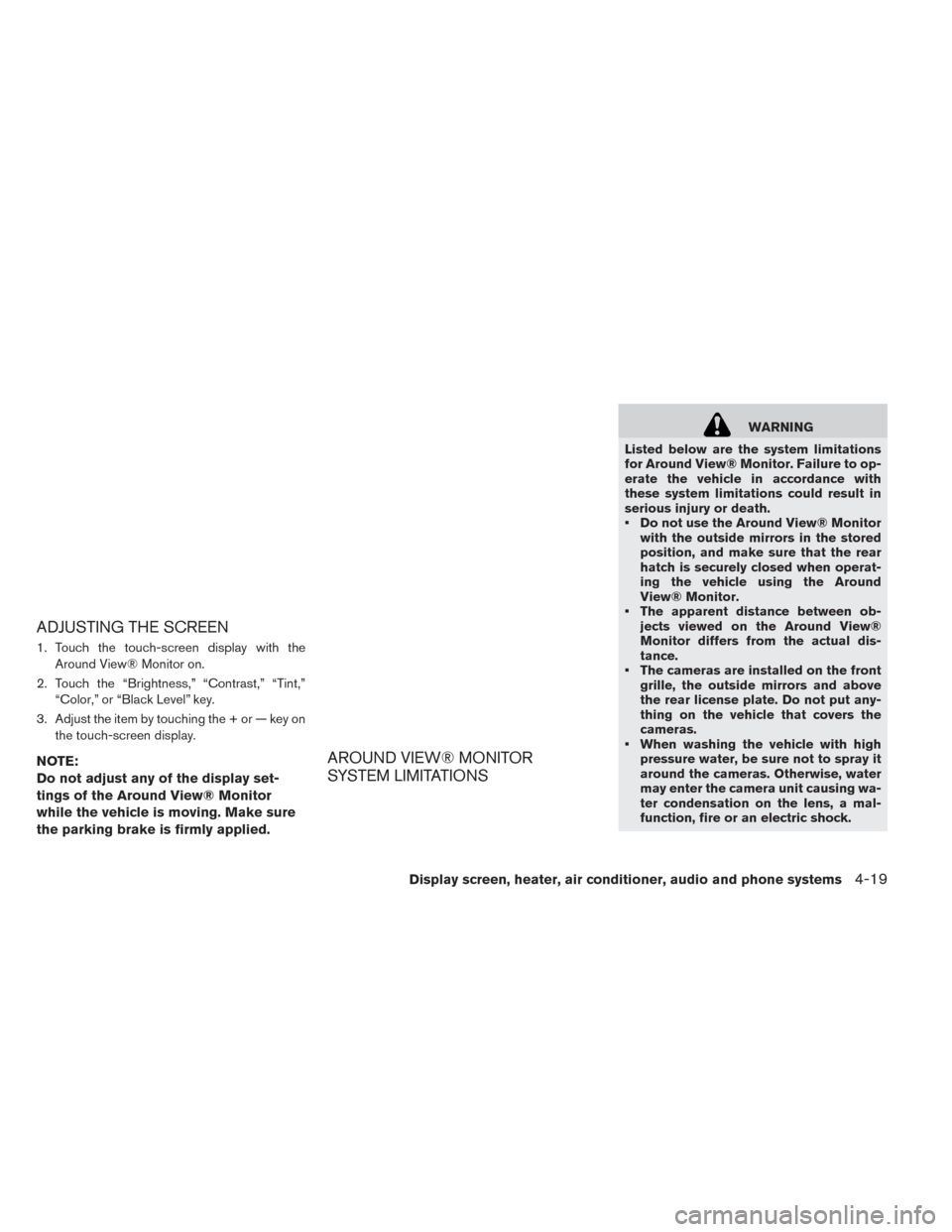

ADJUSTING THE SCREEN
1. Touch the touch-screen display with theAround View® Monitor on.
2. Touch the “Brightness,” “Contrast,” “Tint,” “Color,” or “Black Level” key.
3. Adjust the item by touching the + or — key on the touch-screen display.
NOTE:
Do not adjust any of the display set-
tings of the Around View® Monitor
while the vehicle is moving. Make sure
the parking brake is firmly applied.AROUND VIEW® MONITOR
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations
for Around View® Monitor. Failure to op-
erate the vehicle in accordance with
these system limitations could result in
serious injury or death.
• Do not use the Around View® Monitor with the outside mirrors in the stored
position, and make sure that the rear
hatch is securely closed when operat-
ing the vehicle using the Around
View® Monitor.
• The apparent distance between ob- jects viewed on the Around View®
Monitor differs from the actual dis-
tance.
• The cameras are installed on the front grille, the outside mirrors and above
the rear license plate. Do not put any-
thing on the vehicle that covers the
cameras.
• When washing the vehicle with high pressure water, be sure not to spray it
around the cameras. Otherwise, water
may enter the camera unit causing wa-
ter condensation on the lens, a mal-
function, fire or an electric shock.
Display screen, heater, air conditioner, audio and phone systems4-19

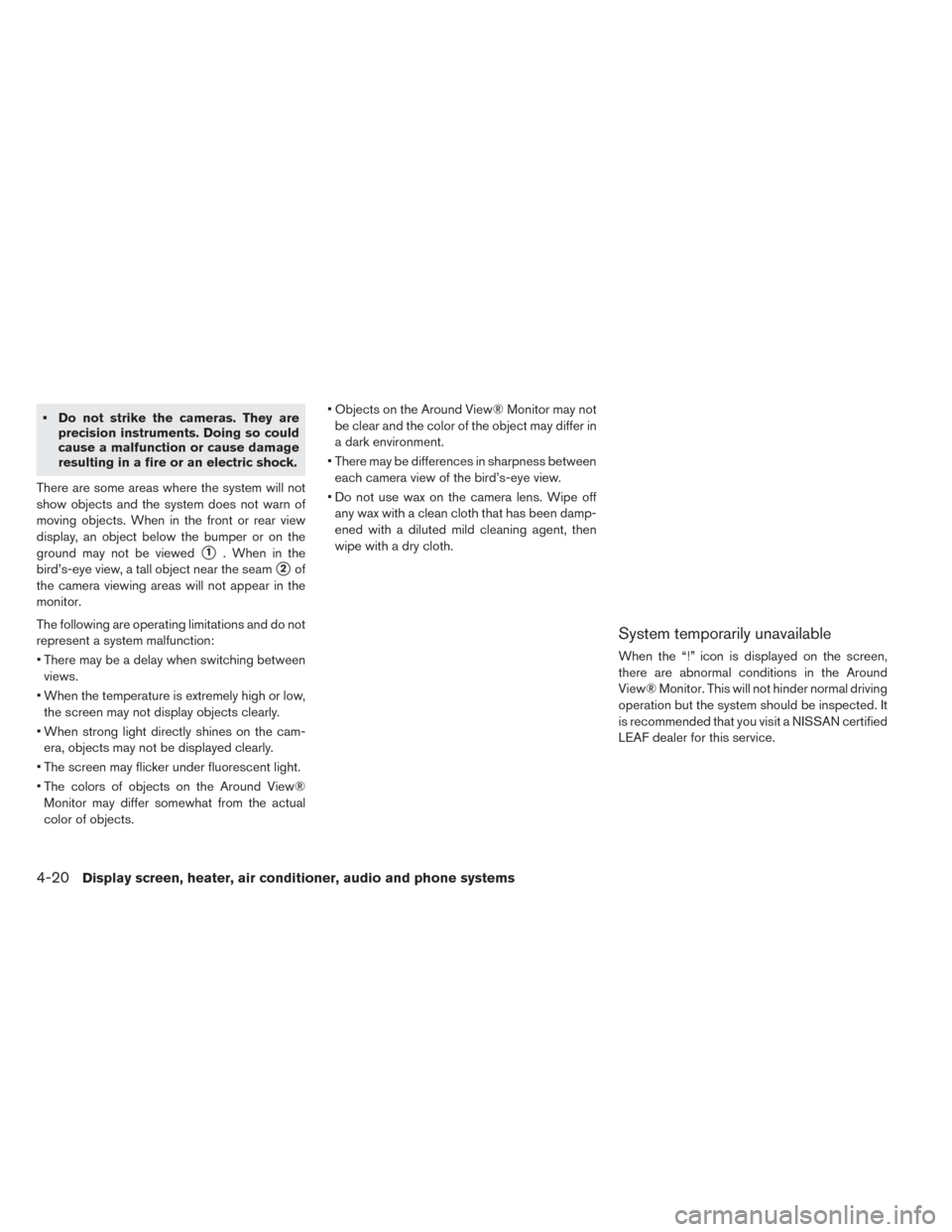

• Do not strike the cameras. They areprecision instruments. Doing so could
cause a malfunction or cause damage
resulting in a fire or an electric shock.
There are some areas where the system will not
show objects and the system does not warn of
moving objects. When in the front or rear view
display, an object below the bumper or on the
ground may not be viewed
1. When in the
bird’s-eye view, a tall object near the seam
2of
the camera viewing areas will not appear in the
monitor.
The following are operating limitations and do not
represent a system malfunction:
• There may be a delay when switching between views.
• When the temperature is extremely high or low, the screen may not display objects clearly.
• When strong light directly shines on the cam- era, objects may not be displayed clearly.
• The screen may flicker under fluorescent light.
• The colors of objects on the Around View® Monitor may differ somewhat from the actual
color of objects. • Objects on the Around View® Monitor may not
be clear and the color of the object may differ in
a dark environment.
• There may be differences in sharpness between each camera view of the bird’s-eye view.
• Do not use wax on the camera lens. Wipe off any wax with a clean cloth that has been damp-
ened with a diluted mild cleaning agent, then
wipe with a dry cloth.
System temporarily unavailable
When the “!” icon is displayed on the screen,
there are abnormal conditions in the Around
View® Monitor. This will not hinder normal driving
operation but the system should be inspected. It
is recommended that you visit a NISSAN certified
LEAF dealer for this service.
4-20Display screen, heater, air conditioner, audio and phone systems

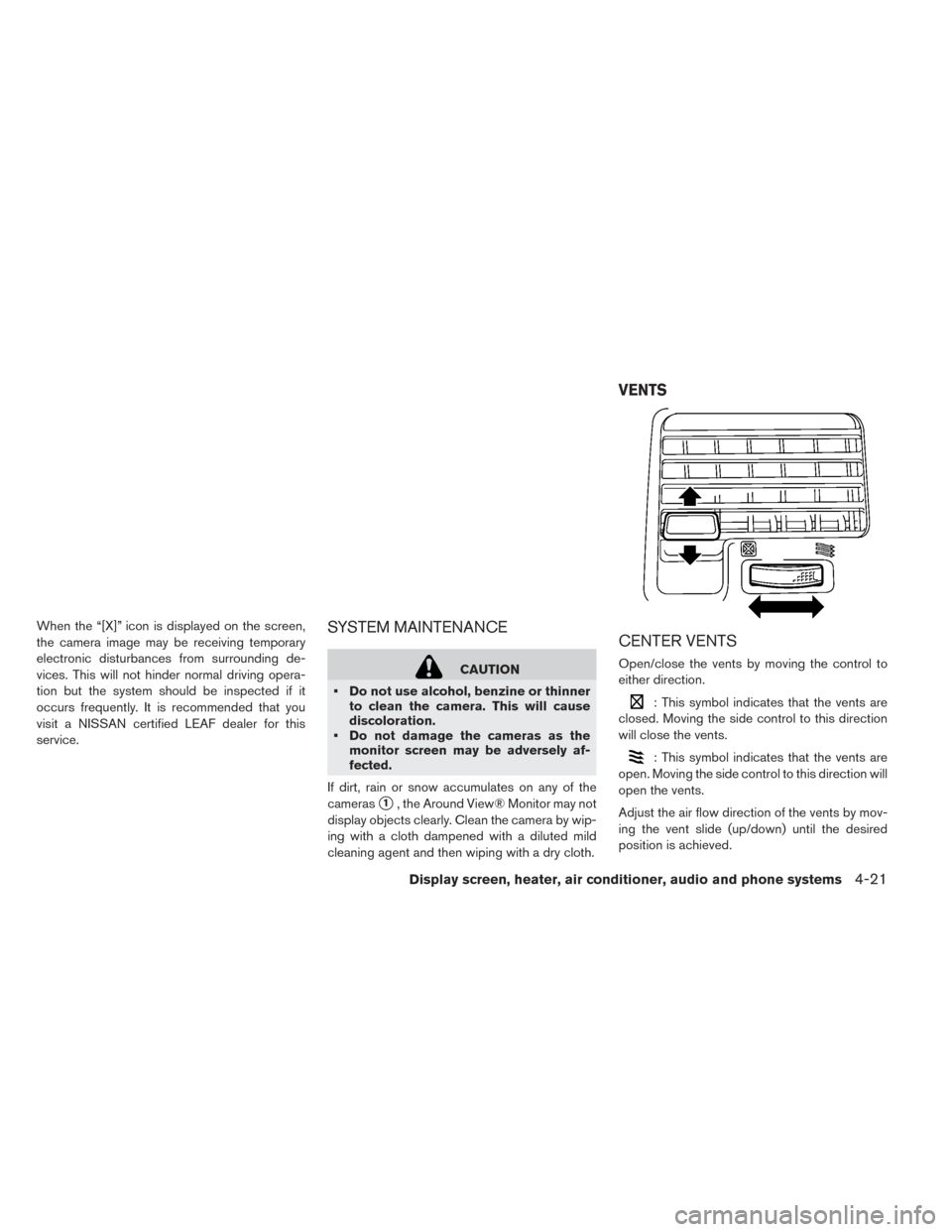

When the “[X]” icon is displayed on the screen,
the camera image may be receiving temporary
electronic disturbances from surrounding de-
vices. This will not hinder normal driving opera-
tion but the system should be inspected if it
occurs frequently. It is recommended that you
visit a NISSAN certified LEAF dealer for this
service.SYSTEM MAINTENANCE
CAUTION
• Do not use alcohol, benzine or thinner to clean the camera. This will cause
discoloration.
• Do not damage the cameras as the monitor screen may be adversely af-
fected.
If dirt, rain or snow accumulates on any of the
cameras
1, the Around View® Monitor may not
display objects clearly. Clean the camera by wip-
ing with a cloth dampened with a diluted mild
cleaning agent and then wiping with a dry cloth.
CENTER VENTS
Open/close the vents by moving the control to
either direction.
: This symbol indicates that the vents are
closed. Moving the side control to this direction
will close the vents.
: This symbol indicates that the vents are
open. Moving the side control to this direction will
open the vents.
Adjust the air flow direction of the vents by mov-
ing the vent slide (up/down) until the desired
position is achieved.
VENTS
Display screen, heater, air conditioner, audio and phone systems4-21
