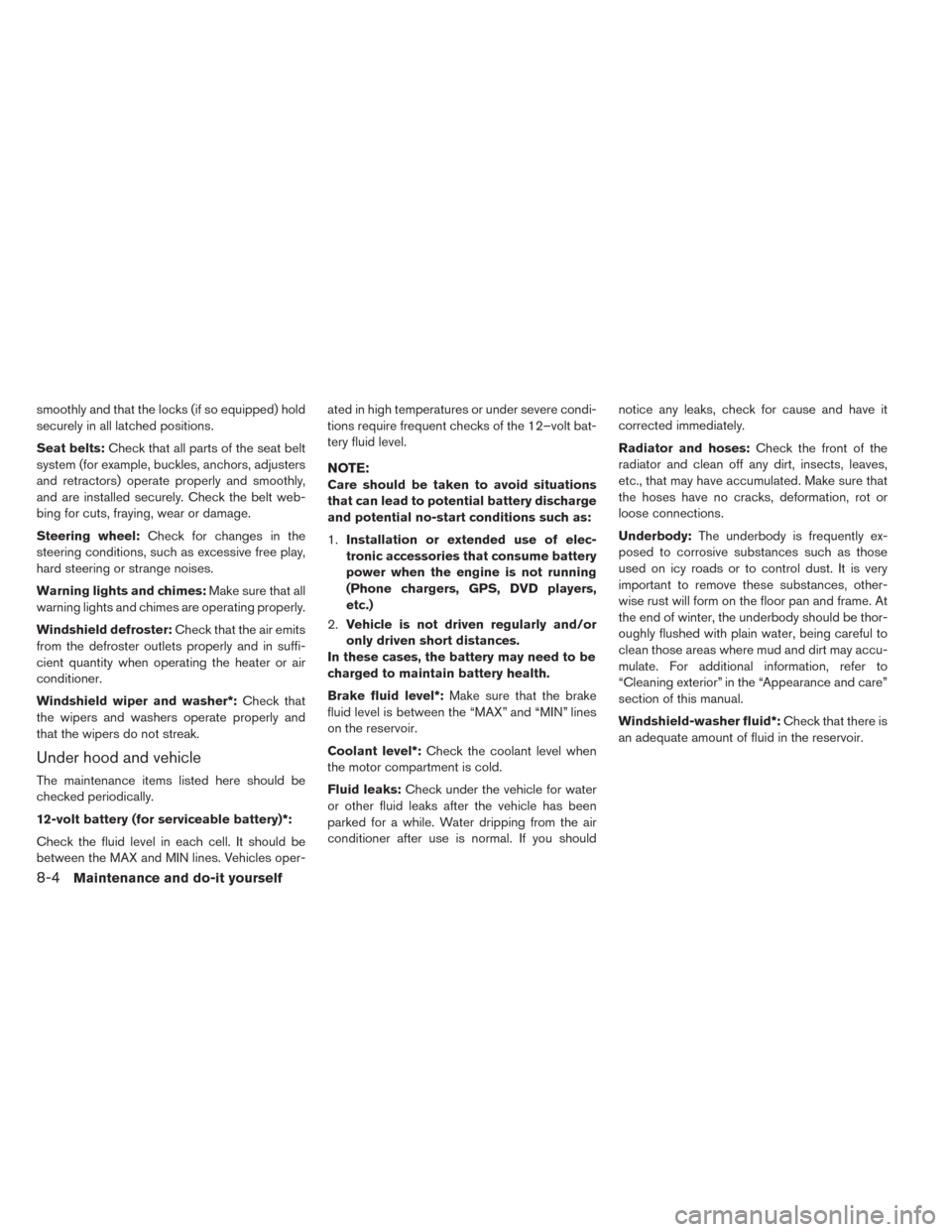

smoothly and that the locks (if so equipped) hold
securely in all latched positions.
Seat belts:Check that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel: Check for changes in the
steering conditions, such as excessive free play,
hard steering or strange noises.
Warning lights and chimes: Make sure that all
warning lights and chimes are operating properly.
Windshield defroster: Check that the air emits
from the defroster outlets properly and in suffi-
cient quantity when operating the heater or air
conditioner.
Windshield wiper and washer*: Check that
the wipers and washers operate properly and
that the wipers do not streak.
Under hood and vehicle
The maintenance items listed here should be
checked periodically.
12-volt battery (for serviceable battery)*:
Check the fluid level in each cell. It should be
between the MAX and MIN lines. Vehicles oper- ated in high temperatures or under severe condi-
tions require frequent checks of the 12–volt bat-
tery fluid level.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1.
Installation or extended use of elec-
tronic accessories that consume battery
power when the engine is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health.
Brake fluid level*: Make sure that the brake
fluid level is between the “MAX” and “MIN” lines
on the reservoir.
Coolant level*: Check the coolant level when
the motor compartment is cold.
Fluid leaks: Check under the vehicle for water
or other fluid leaks after the vehicle has been
parked for a while. Water dripping from the air
conditioner after use is normal. If you should notice any leaks, check for cause and have it
corrected immediately.
Radiator and hoses:
Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure that
the hoses have no cracks, deformation, rot or
loose connections.
Underbody: The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances, other-
wise rust will form on the floor pan and frame. At
the end of winter, the underbody should be thor-
oughly flushed with plain water, being careful to
clean those areas where mud and dirt may accu-
mulate. For additional information, refer to
“Cleaning exterior” in the “Appearance and care”
section of this manual.
Windshield-washer fluid*: Check that there is
an adequate amount of fluid in the reservoir.
8-4Maintenance and do-it yourself

When performing any inspection or maintenance
work on your vehicle, always take care to prevent
serious accidental injury to yourself or damage to
the vehicle. The following are general precau-
tions that should be closely observed.
WARNING
• The EV system uses high voltage up to approximately DC 400 volt. The system
can be hot during and after starting
and when the vehicle is shut off. Be
careful of both the high voltage and
the high temperature. Obey the labels
that are attached to the vehicle.
• Never disassemble, remove or replace high-voltage parts and cables as well
as their connectors. High-voltage
cables are colored orange.
• Disassembling, removing or replacing those parts or cables can cause severe
burns or electric shock that may result
in serious injury or death. The vehicle
high-voltage system has no user ser-
viceable parts. Take your vehicle to the
NISSAN certified LEAF dealer for any
necessary maintenance. • Park the vehicle on a level surface,
apply the parking brake securely and
chock the wheels to prevent the ve-
hicle from moving. Push the P (Park)
position switch on the shift lever or
place the vehicle into the N (Neutral)
position.
• If you must work with the EV (Electric vehicle) system is turned on, keep
hands, clothing, hair and tools away
from moving fans and any other mov-
ing parts.
• Make sure that the power switch is in the OFF or LOCK position when per-
forming any part replacement or re-
pairs.
• It is advisable to secure or remove any loose clothing and remove any jewelry,
such as rings, watches, etc. before
working on your vehicle.
• Always wear eye protection whenever you work on your vehicle.
• Never get under the vehicle while it is supported only by a jack. If it is neces-
sary to work under the vehicle, support
it with safety stands.
• Keep smoking materials, flames and sparks away from the 12-volt battery.
CAUTION
• Do not work under the hood while the motor compartment is hot. Push the
power switch in the OFF position and
wait until it cools down.
• Avoid direct contact with used coolant. Improperly disposed coolant and/or
other vehicle fluids can damage the
environment. Always conform to local
regulations for the disposal of vehicle
fluids.
• Never connect or disconnect the bat- tery or any transistorized component
while the power switch is in the ON
position.
• Your vehicle is equipped with an auto- matic cooling fan. It may come on at
any time without warning, even if the
power switch is not in the ACC, ON or
READY to drive position. To avoid in-
jury, always disconnect the negative
12-volt battery cable before working
near the fan.
• Before performing any electrical main- tenance work on the vehicle such as
the battery, fuses or bulb replacement,
confirm the following:
– The charge connector is removedfrom the vehicle.

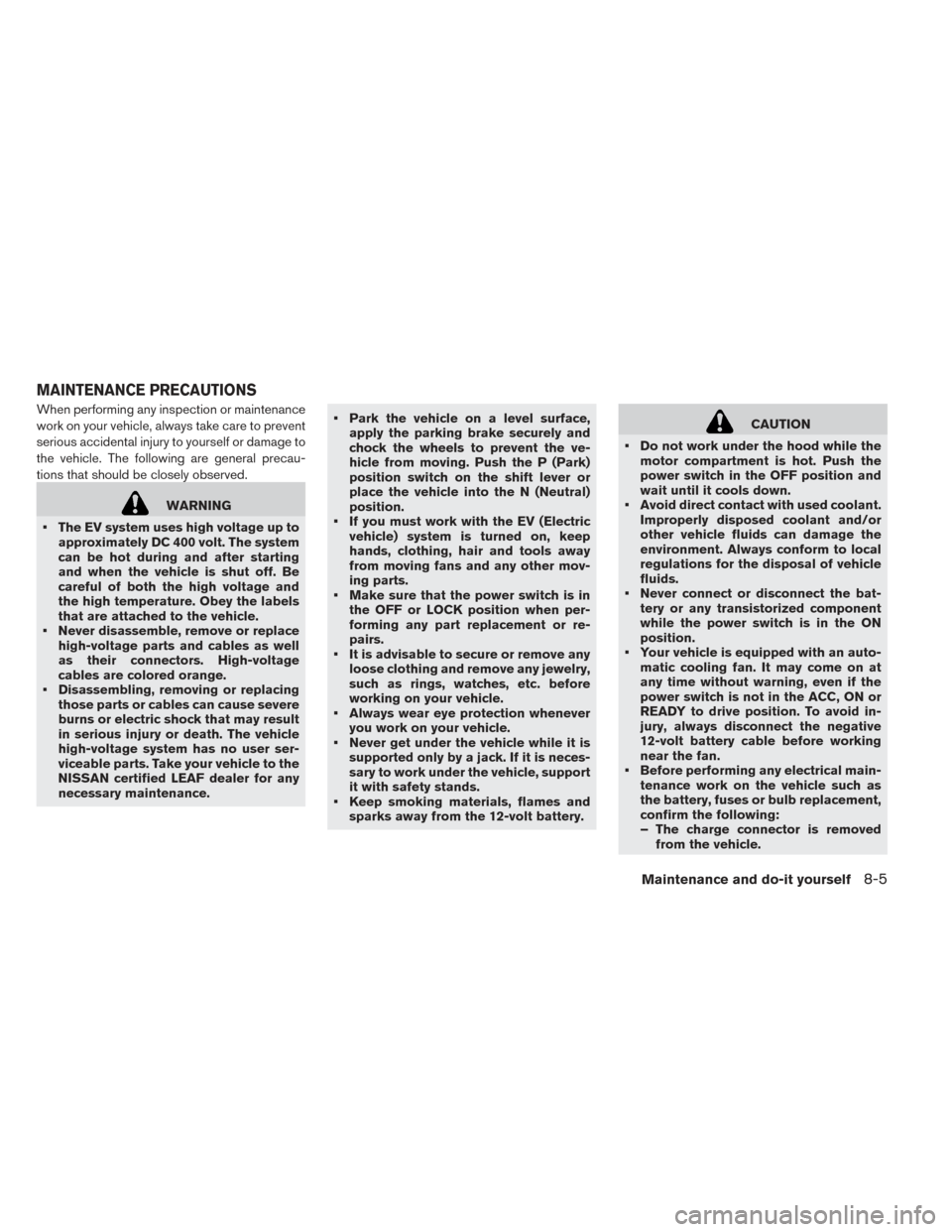

MAINTENANCE PRECAUTIONS
Maintenance and do-it yourself8-5

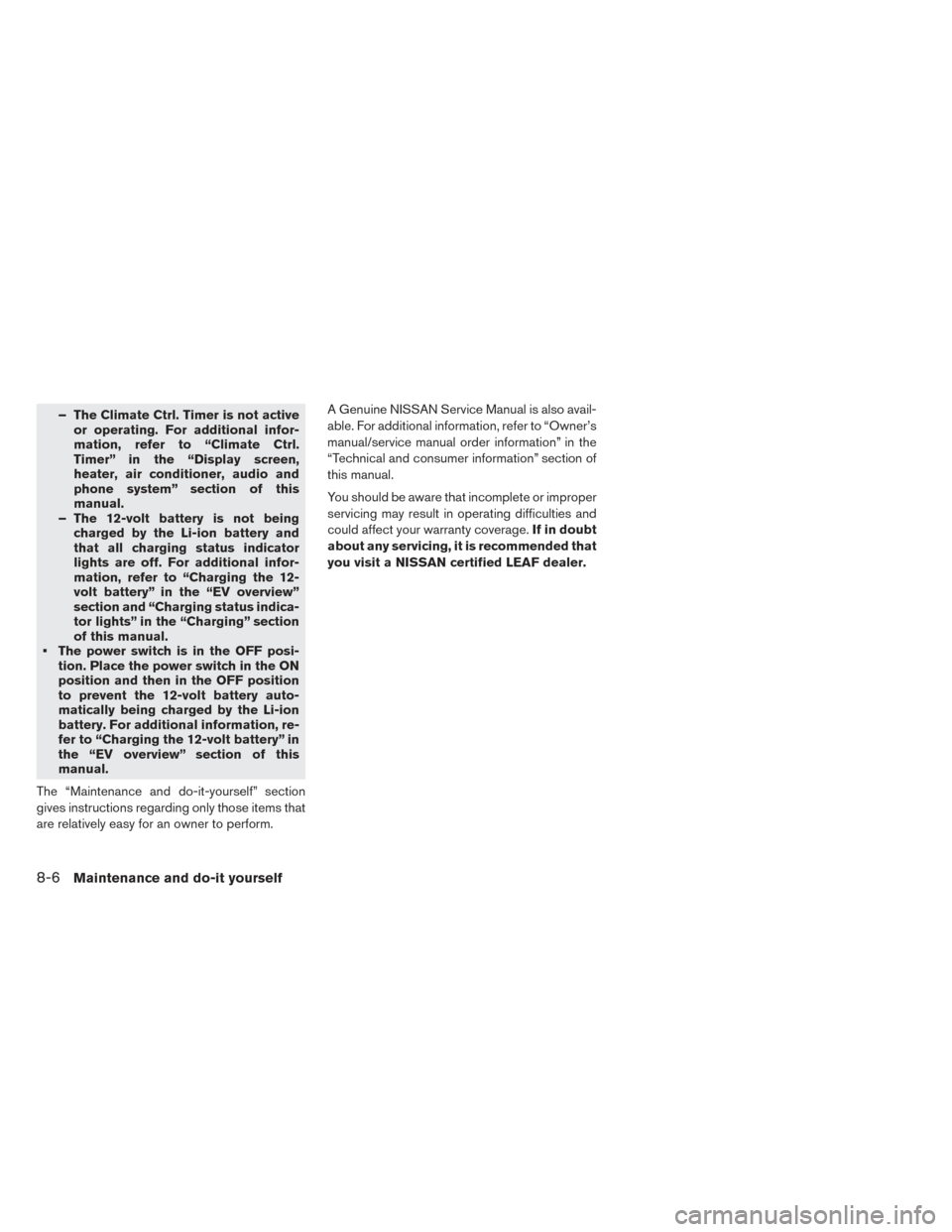

– The Climate Ctrl. Timer is not activeor operating. For additional infor-
mation, refer to “Climate Ctrl.
Timer” in the “Display screen,
heater, air conditioner, audio and
phone system” section of this
manual.
– The 12-volt battery is not being charged by the Li-ion battery and
that all charging status indicator
lights are off. For additional infor-
mation, refer to “Charging the 12-
volt battery” in the “EV overview”
section and “Charging status indica-
tor lights” in the “Charging” section
of this manual.
• The power switch is in the OFF posi- tion. Place the power switch in the ON
position and then in the OFF position
to prevent the 12-volt battery auto-
matically being charged by the Li-ion
battery. For additional information, re-
fer to “Charging the 12-volt battery” in
the “EV overview” section of this
manual.
The “Maintenance and do-it-yourself” section
gives instructions regarding only those items that
are relatively easy for an owner to perform. A Genuine NISSAN Service Manual is also avail-
able. For additional information, refer to “Owner’s
manual/service manual order information” in the
“Technical and consumer information” section of
this manual.
You should be aware that incomplete or improper
servicing may result in operating difficulties and
could affect your warranty coverage.
If in doubt
about any servicing, it is recommended that
you visit a NISSAN certified LEAF dealer.
8-6Maintenance and do-it yourself

1. Brake fluid reservoir
2. 12-volt battery
3. Fuse/Fusible link holder
4. Fuse/Fusible link holder
5. Coolant reservoir cap
6. Windshield-washer fluid reservoir
7. Fuse/Fusible link holder
MOTOR COMPARTMENT CHECK
LOCATIONS
Maintenance and do-it yourself8-7

The cooling system is filled at the factory with a
pre-diluted mixture of 50% Genuine NISSAN
Long Life Antifreeze/Coolant (blue) and 50% wa-
ter to provide year-round antifreeze and coolant
protection. The antifreeze solution contains rust
and corrosion inhibitors. Additional cooling sys-
tem additives are not necessary.
WARNING
• Never remove the coolant tank cap when the motor compartment is hot.
Wait until the motor compartment cool
down.
• The coolant tank is equipped with a special type coolant tank cap. To pre-
vent damage to the motor compart-
ment, use only a Genuine NISSAN
coolant tank cap.
CAUTION
• Never use any additives in the coolant such as radiator sealer in the cooling
system. This may cause damage to
electrical equipment such as the motor
and inverter. • When adding or replacing coolant, be
sure to use only a Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent. Genuine NISSAN Long Life
Antifreeze/Coolant (blue) is pre-
diluted to provide antifreeze protec-
tion to −34°F (−37°C) . If additional
freeze protection is needed due to the
weather conditions where you operate
your vehicle, add Genuine NISSAN
Long Life Antifreeze/Coolant (blue)
concentrate following the directions
on the container. If and equivalent
coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) is
used, follow the coolant manufacture’s
instructions to maintain minimum an-
tifreeze protection to −34°F (−37°C) .
The use of other types of coolant solu-
tions other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) or
equivalent may damage the cooling
system. • The life expectancy of the factory-fill
coolant is 125,000 miles (200,000 km)
or 15 years. Mixing any other type of
coolant other than Genuine NISSAN
Long Life Antifreeze/Coolant (blue) ,
including Genuine NISSAN Long Life
Antifreeze/Coolant (green) , or the use
of non-distilled water will reduce the
life expectancy of the factory-filled
coolant. For additional information, re-
fer to the NISSAN Service and Mainte-
nance Guide.

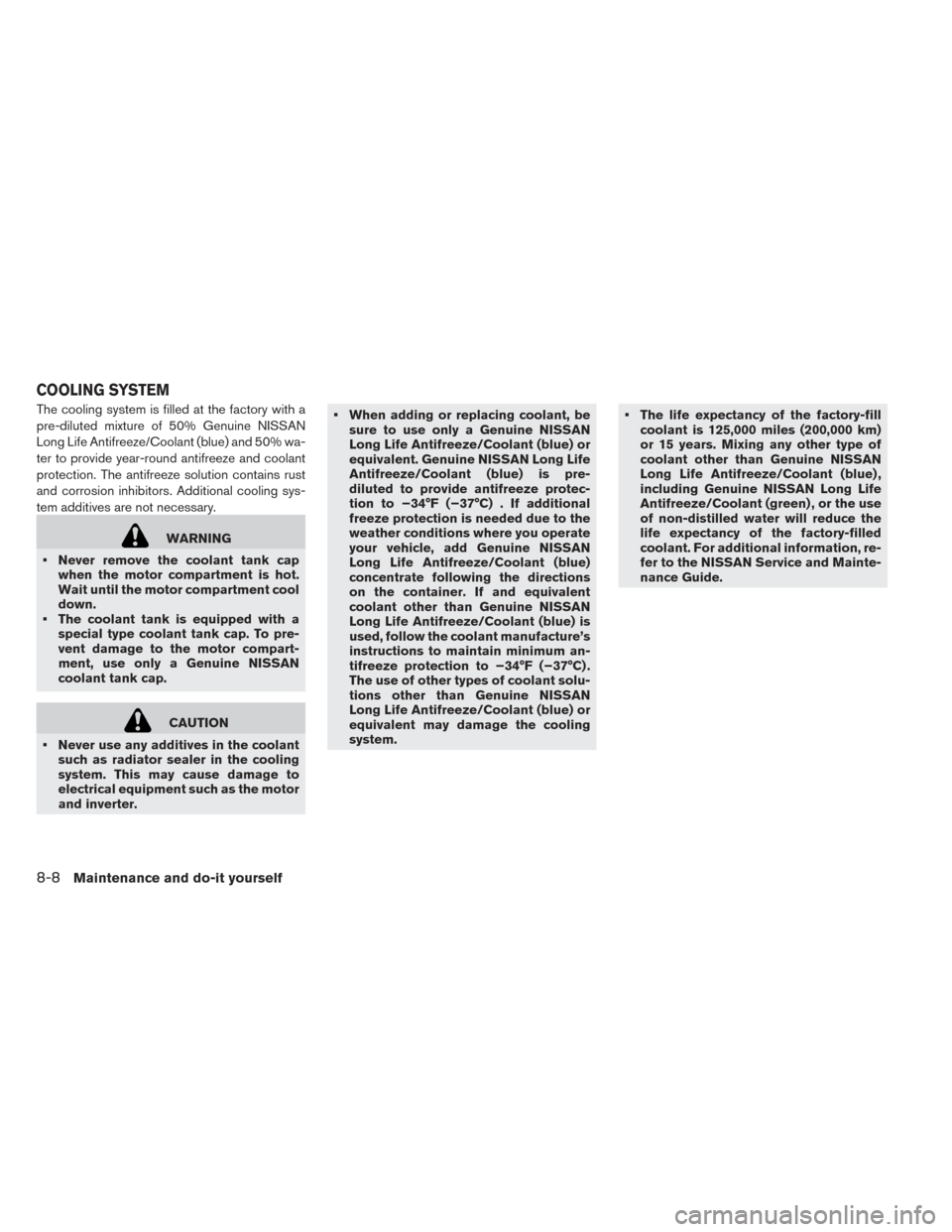

COOLING SYSTEM
8-8Maintenance and do-it yourself

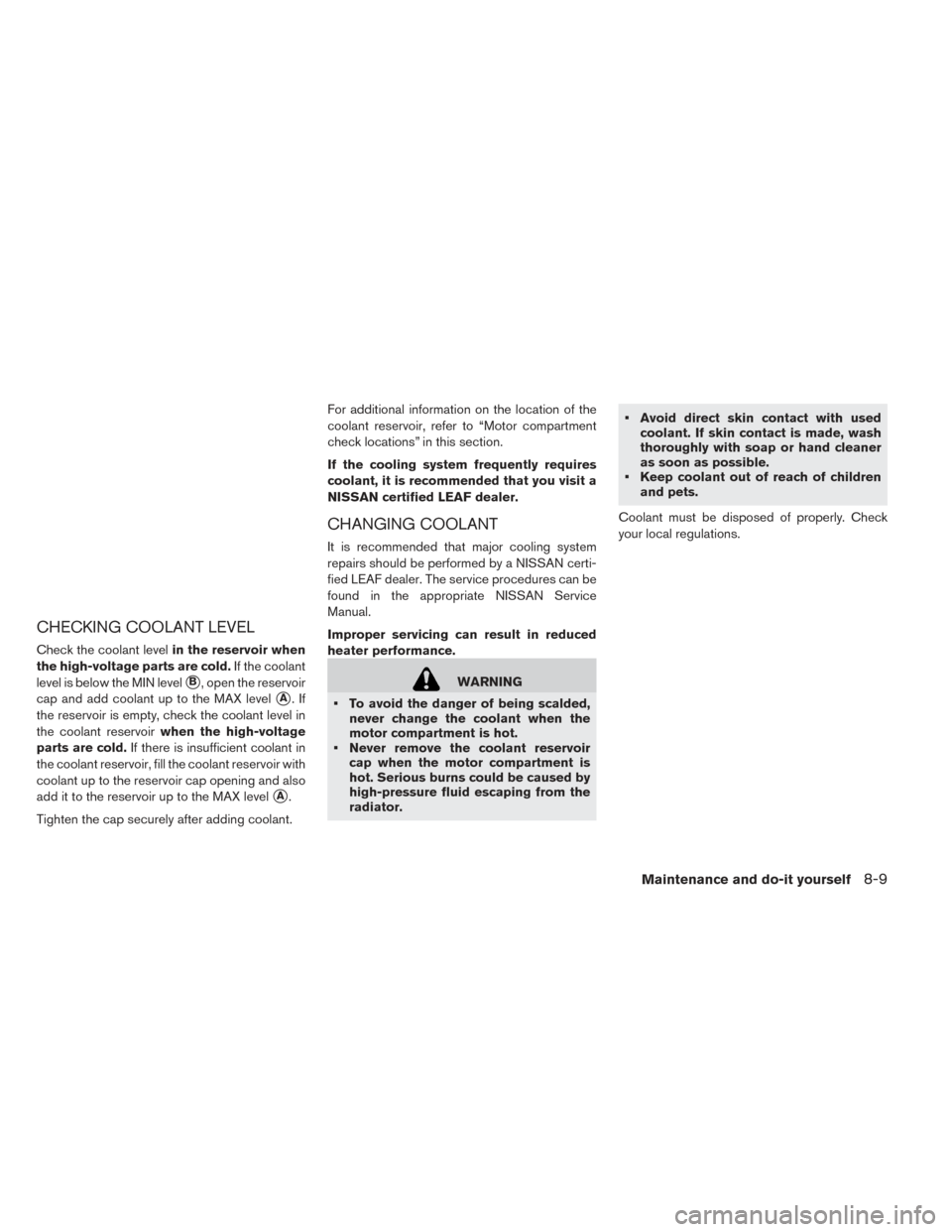

CHECKING COOLANT LEVEL
Check the coolant levelin the reservoir when
the high-voltage parts are cold. If the coolant
level is below the MIN level
B, open the reservoir
cap and add coolant up to the MAX level
A.If
the reservoir is empty, check the coolant level in
the coolant reservoir when the high-voltage
parts are cold. If there is insufficient coolant in
the coolant reservoir, fill the coolant reservoir with
coolant up to the reservoir cap opening and also
add it to the reservoir up to the MAX level
A.
Tighten the cap securely after adding coolant. For additional information on the location of the
coolant reservoir, refer to “Motor compartment
check locations” in this section.
If the cooling system frequently requires
coolant, it is recommended that you visit a
NISSAN certified LEAF dealer.
CHANGING COOLANT
It is recommended that major cooling system
repairs should be performed by a NISSAN certi-
fied LEAF dealer. The service procedures can be
found in the appropriate NISSAN Service
Manual.
Improper servicing can result in reduced
heater performance.
WARNING
• To avoid the danger of being scalded, never change the coolant when the
motor compartment is hot.
• Never remove the coolant reservoir cap when the motor compartment is
hot. Serious burns could be caused by
high-pressure fluid escaping from the
radiator. • Avoid direct skin contact with used
coolant. If skin contact is made, wash
thoroughly with soap or hand cleaner
as soon as possible.
• Keep coolant out of reach of children and pets.
Coolant must be disposed of properly. Check
your local regulations.
Maintenance and do-it yourself8-9

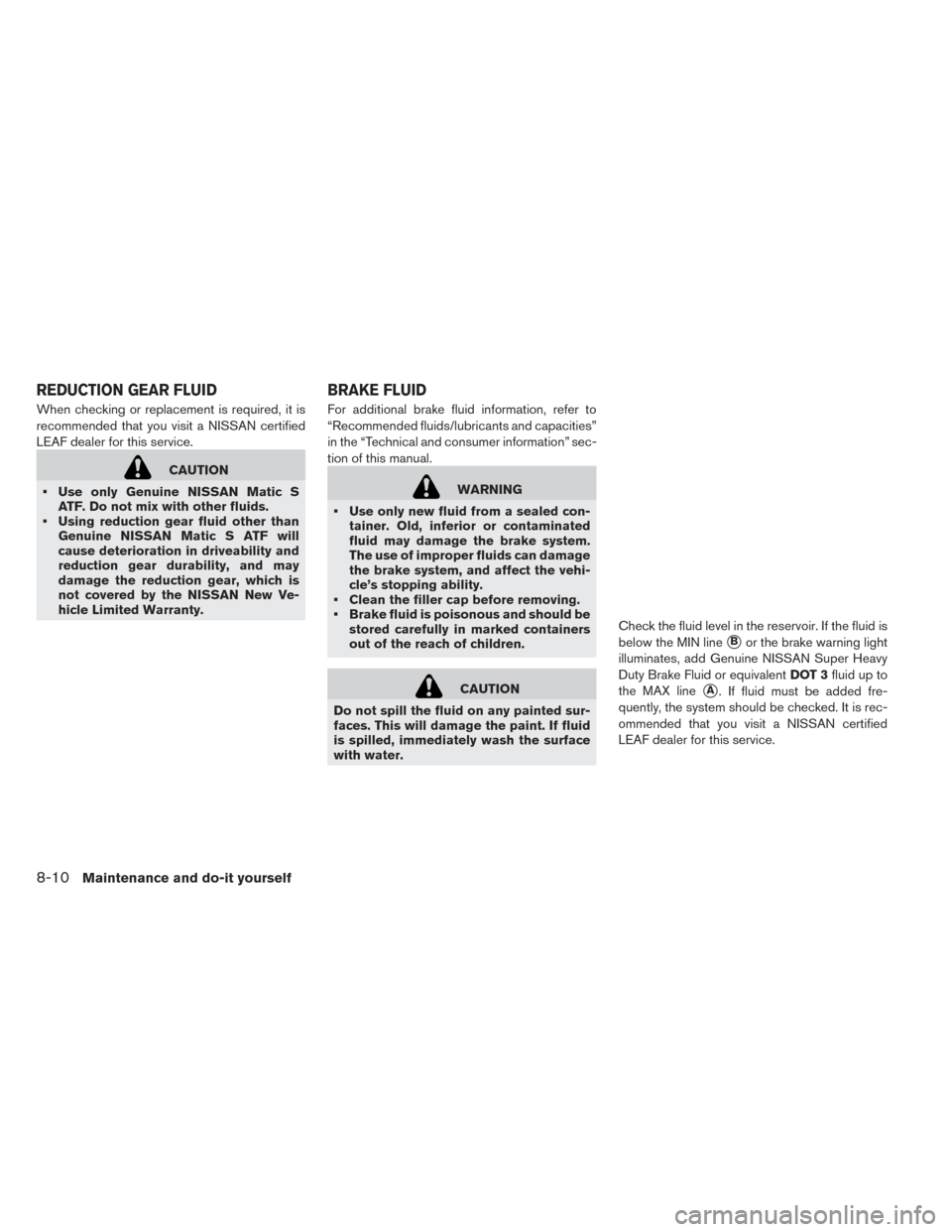

When checking or replacement is required, it is
recommended that you visit a NISSAN certified
LEAF dealer for this service.
CAUTION
• Use only Genuine NISSAN Matic S ATF. Do not mix with other fluids.
• Using reduction gear fluid other than Genuine NISSAN Matic S ATF will
cause deterioration in driveability and
reduction gear durability, and may
damage the reduction gear, which is
not covered by the NISSAN New Ve-
hicle Limited Warranty. For additional brake fluid information, refer to
“Recommended fluids/lubricants and capacities”
in the “Technical and consumer information” sec-
tion of this manual.
WARNING
• Use only new fluid from a sealed con- tainer. Old, inferior or contaminated
fluid may damage the brake system.
The use of improper fluids can damage
the brake system, and affect the vehi-
cle’s stopping ability.
• Clean the filler cap before removing.
• Brake fluid is poisonous and should be stored carefully in marked containers
out of the reach of children.
CAUTION
Do not spill the fluid on any painted sur-
faces. This will damage the paint. If fluid
is spilled, immediately wash the surface
with water. Check the fluid level in the reservoir. If the fluid is
below the MIN line
Bor the brake warning light
illuminates, add Genuine NISSAN Super Heavy
Duty Brake Fluid or equivalent DOT 3fluid up to
the MAX line
A. If fluid must be added fre-
quently, the system should be checked. It is rec-
ommended that you visit a NISSAN certified
LEAF dealer for this service.
REDUCTION GEAR FLUID BRAKE FLUID
8-10Maintenance and do-it yourself

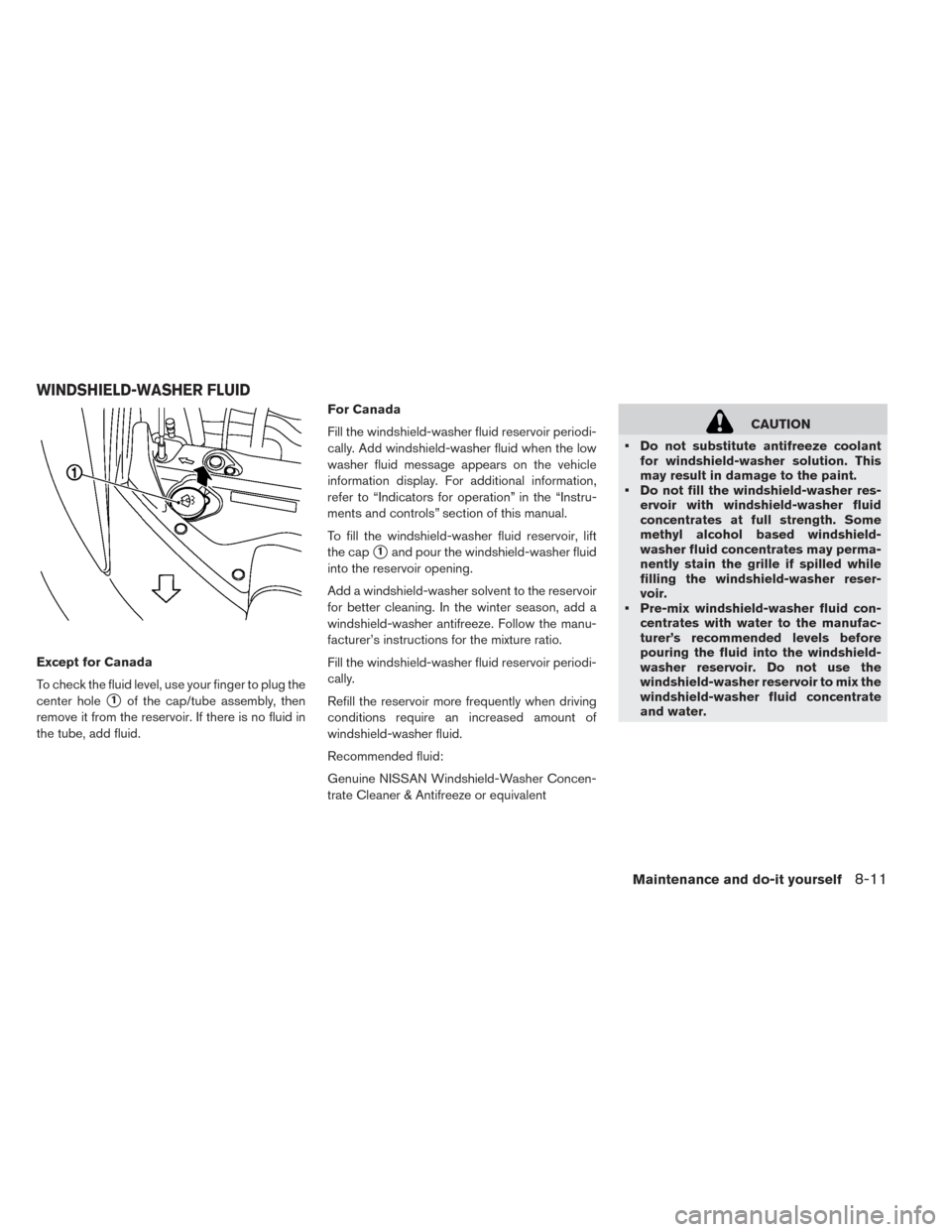

Except for Canada
To check the fluid level, use your finger to plug the
center hole
1of the cap/tube assembly, then
remove it from the reservoir. If there is no fluid in
the tube, add fluid. For Canada
Fill the windshield-washer fluid reservoir periodi-
cally. Add windshield-washer fluid when the low
washer fluid message appears on the vehicle
information display. For additional information,
refer to “Indicators for operation” in the “Instru-
ments and controls” section of this manual.
To fill the windshield-washer fluid reservoir, lift
the cap
1and pour the windshield-washer fluid
into the reservoir opening.
Add a windshield-washer solvent to the reservoir
for better cleaning. In the winter season, add a
windshield-washer antifreeze. Follow the manu-
facturer’s instructions for the mixture ratio.
Fill the windshield-washer fluid reservoir periodi-
cally.
Refill the reservoir more frequently when driving
conditions require an increased amount of
windshield-washer fluid.
Recommended fluid:
Genuine NISSAN Windshield-Washer Concen-
trate Cleaner & Antifreeze or equivalent
CAUTION
• Do not substitute antifreeze coolant for windshield-washer solution. This
may result in damage to the paint.
• Do not fill the windshield-washer res- ervoir with windshield-washer fluid
concentrates at full strength. Some
methyl alcohol based windshield-
washer fluid concentrates may perma-
nently stain the grille if spilled while
filling the windshield-washer reser-
voir.
• Pre-mix windshield-washer fluid con- centrates with water to the manufac-
turer’s recommended levels before
pouring the fluid into the windshield-
washer reservoir. Do not use the
windshield-washer reservoir to mix the
windshield-washer fluid concentrate
and water.
WINDSHIELD-WASHER FLUID
Maintenance and do-it yourself8-11

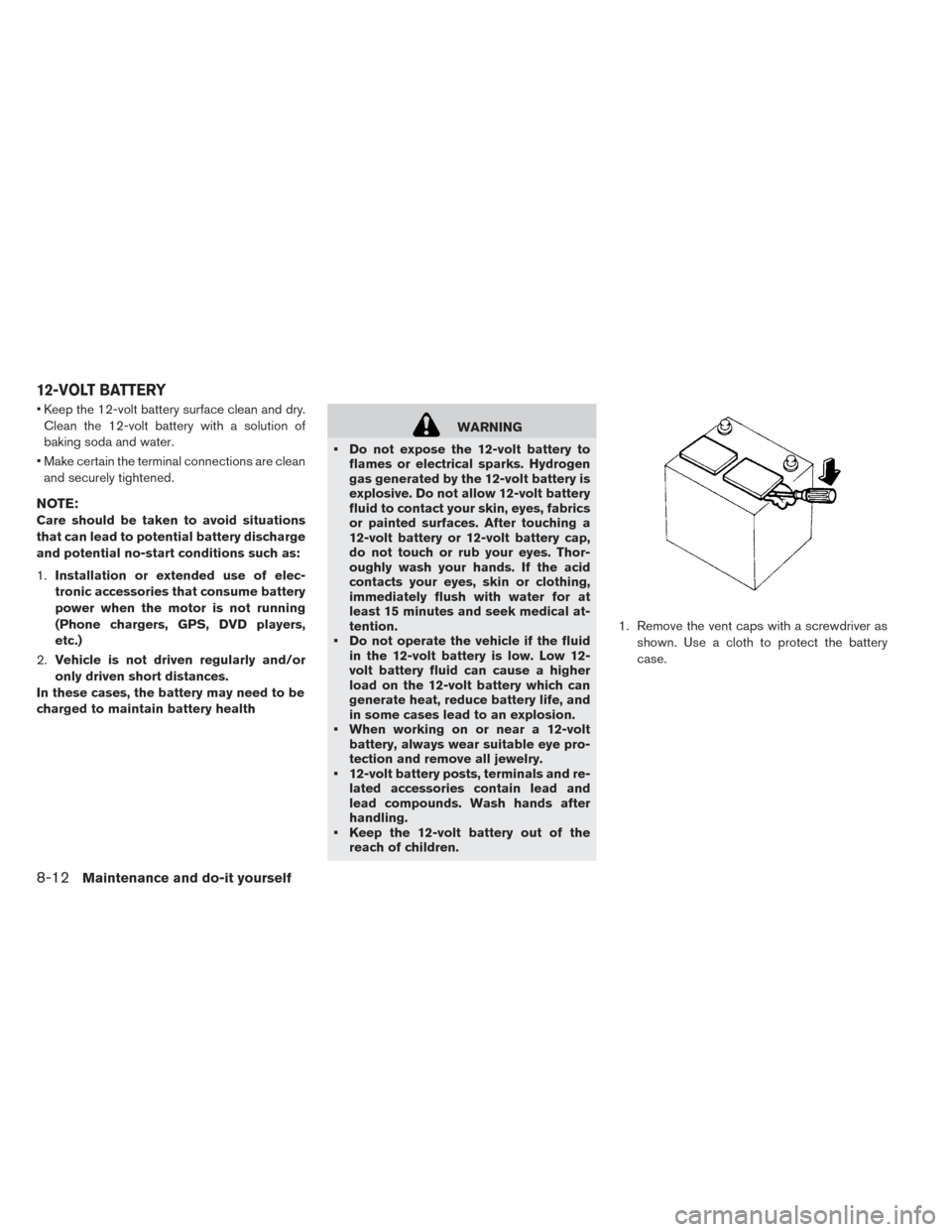

• Keep the 12-volt battery surface clean and dry.Clean the 12-volt battery with a solution of
baking soda and water.
• Make certain the terminal connections are clean and securely tightened.
NOTE:
Care should be taken to avoid situations
that can lead to potential battery discharge
and potential no-start conditions such as:
1. Installation or extended use of elec-
tronic accessories that consume battery
power when the motor is not running
(Phone chargers, GPS, DVD players,
etc.)
2. Vehicle is not driven regularly and/or
only driven short distances.
In these cases, the battery may need to be
charged to maintain battery health
WARNING
• Do not expose the 12-volt battery to flames or electrical sparks. Hydrogen
gas generated by the 12-volt battery is
explosive. Do not allow 12-volt battery
fluid to contact your skin, eyes, fabrics
or painted surfaces. After touching a
12-volt battery or 12-volt battery cap,
do not touch or rub your eyes. Thor-
oughly wash your hands. If the acid
contacts your eyes, skin or clothing,
immediately flush with water for at
least 15 minutes and seek medical at-
tention.
• Do not operate the vehicle if the fluid in the 12-volt battery is low. Low 12-
volt battery fluid can cause a higher
load on the 12-volt battery which can
generate heat, reduce battery life, and
in some cases lead to an explosion.
• When working on or near a 12-volt battery, always wear suitable eye pro-
tection and remove all jewelry.
• 12-volt battery posts, terminals and re- lated accessories contain lead and
lead compounds. Wash hands after
handling.
• Keep the 12-volt battery out of the reach of children. 1. Remove the vent caps with a screwdriver as
shown. Use a cloth to protect the battery
case.
12-VOLT BATTERY
8-12Maintenance and do-it yourself

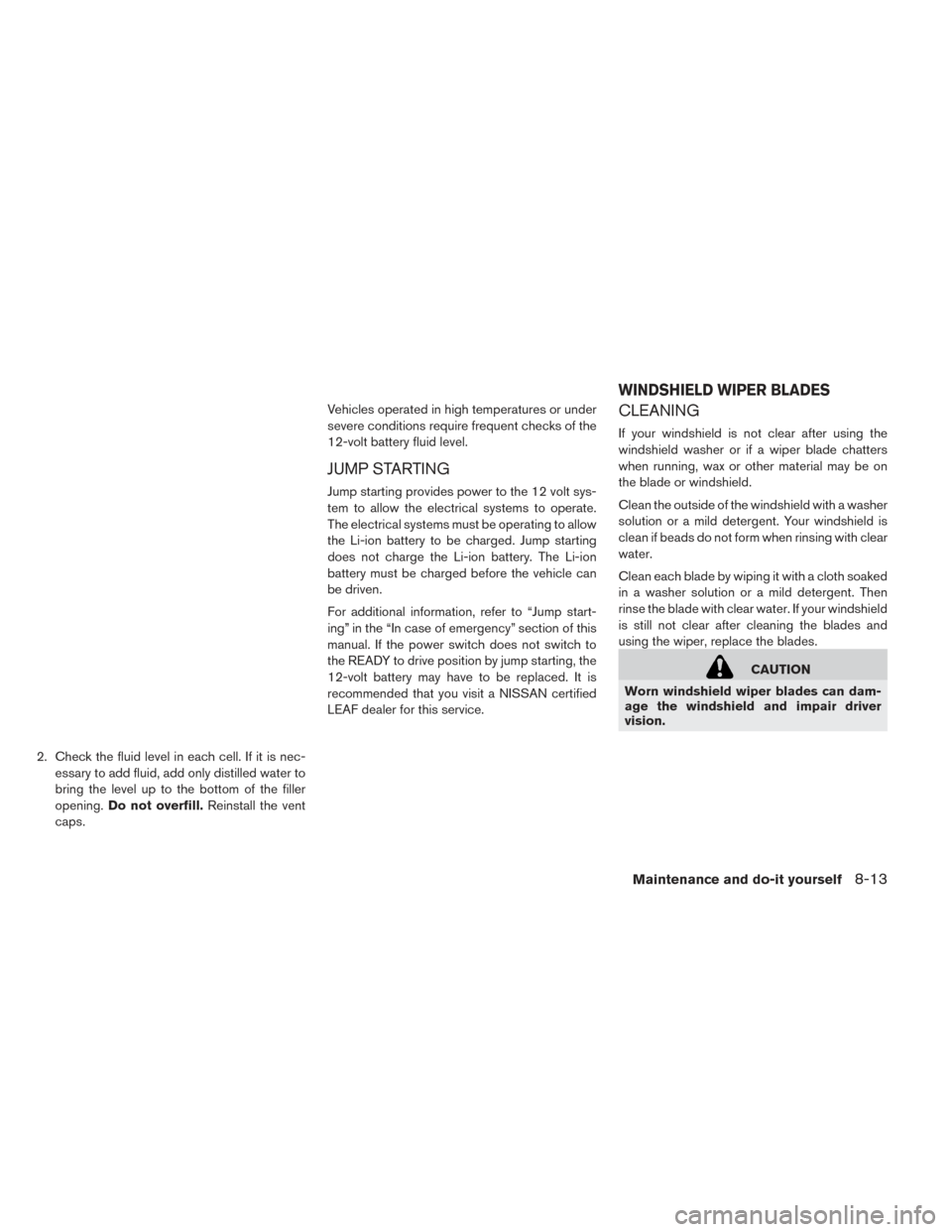

2. Check the fluid level in each cell. If it is nec-essary to add fluid, add only distilled water to
bring the level up to the bottom of the filler
opening. Do not overfill. Reinstall the vent
caps. Vehicles operated in high temperatures or under
severe conditions require frequent checks of the
12-volt battery fluid level.
JUMP STARTING
Jump starting provides power to the 12 volt sys-
tem to allow the electrical systems to operate.
The electrical systems must be operating to allow
the Li-ion battery to be charged. Jump starting
does not charge the Li-ion battery. The Li-ion
battery must be charged before the vehicle can
be driven.
For additional information, refer to “Jump start-
ing” in the “In case of emergency” section of this
manual. If the power switch does not switch to
the READY to drive position by jump starting, the
12-volt battery may have to be replaced. It is
recommended that you visit a NISSAN certified
LEAF dealer for this service.
CLEANING
If your windshield is not clear after using the
windshield washer or if a wiper blade chatters
when running, wax or other material may be on
the blade or windshield.
Clean the outside of the windshield with a washer
solution or a mild detergent. Your windshield is
clean if beads do not form when rinsing with clear
water.
Clean each blade by wiping it with a cloth soaked
in a washer solution or a mild detergent. Then
rinse the blade with clear water. If your windshield
is still not clear after cleaning the blades and
using the wiper, replace the blades.
CAUTION
Worn windshield wiper blades can dam-
age the windshield and impair driver
vision.
WINDSHIELD WIPER BLADES
Maintenance and do-it yourself8-13
