Page 51 of 424

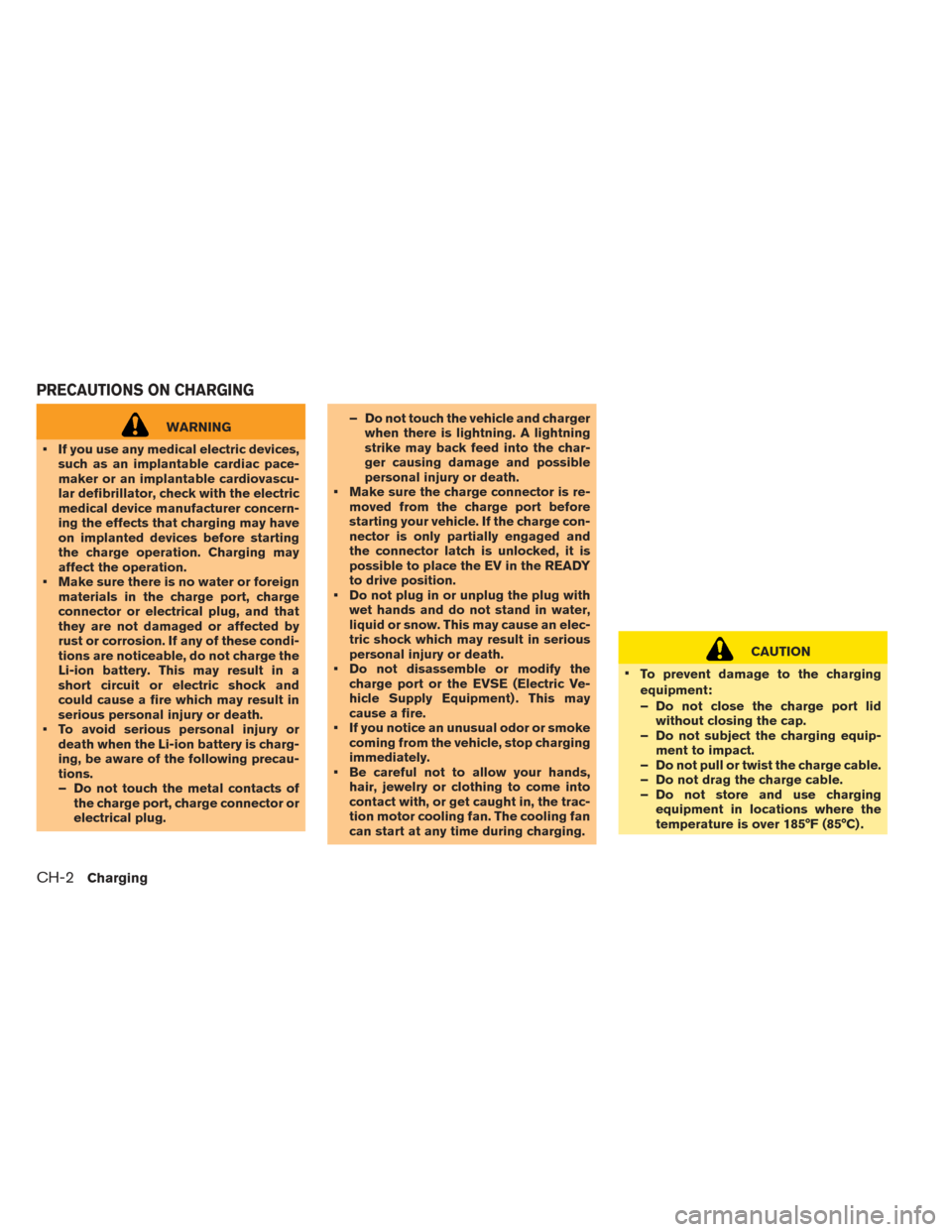

NISSAN LEAF 2017 1.G Workshop Manual WARNING
• If you use any medical electric devices, such as an implantable cardiac pace-
maker or an implantable cardiovascu-
lar defibrillator, check with the electric
medical device manufacturer co

Page 52 of 424

NISSAN LEAF 2017 1.G Workshop Manual – Do not place the charging equip-ment close to a heater or other heat
source.
• Make sure the cap is closed on the charge port when charging is finished.
If the charge port lid is closed when the

Page 53 of 424

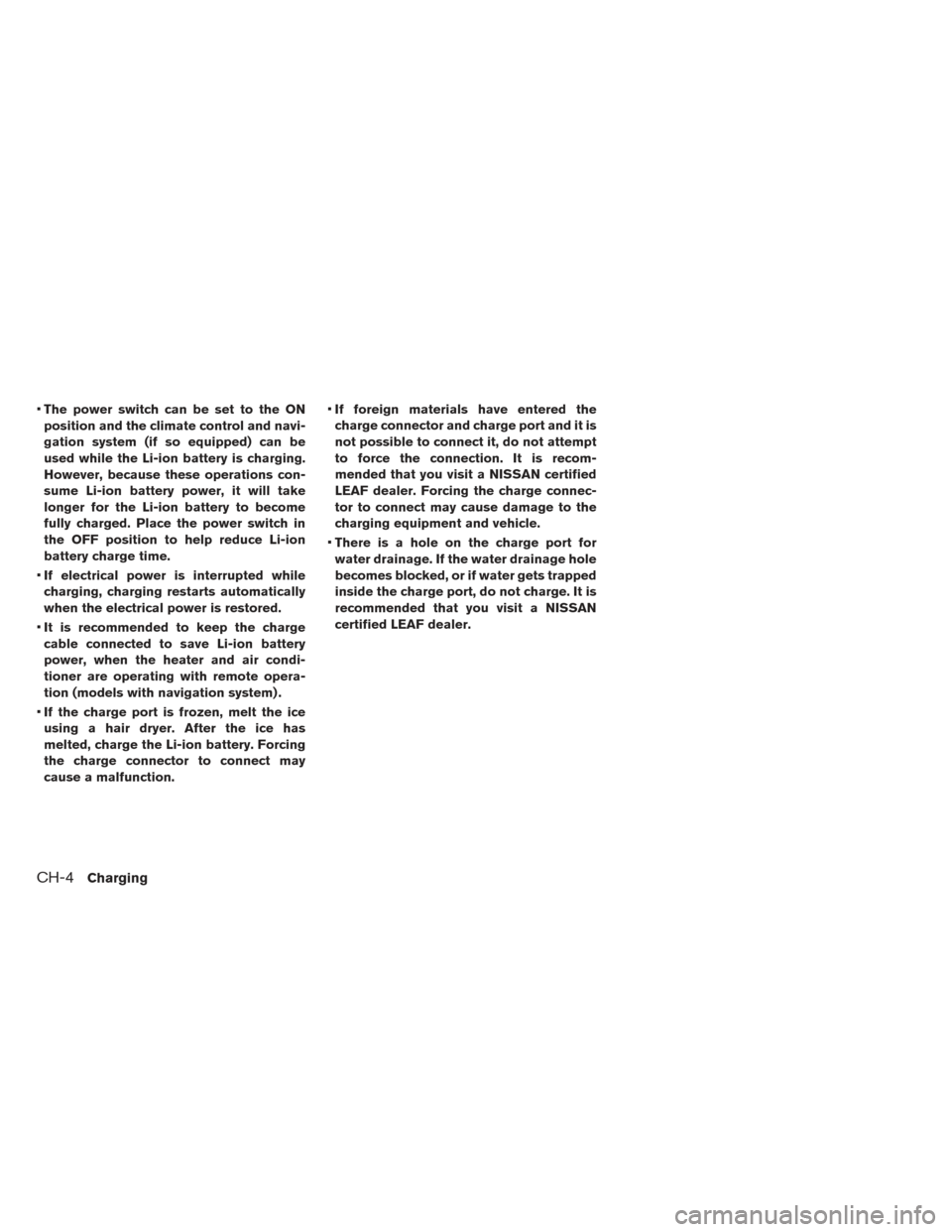

NISSAN LEAF 2017 1.G Workshop Manual •The power switch can be set to the ON
position and the climate control and navi-
gation system (if so equipped) can be
used while the Li-ion battery is charging.
However, because these operations c

Page 54 of 424

NISSAN LEAF 2017 1.G Workshop Manual TYPES OF CHARGE AND HOW TO
CHARGE THE LI-ION BATTERY
ChargingCH-5

Page 55 of 424

NISSAN LEAF 2017 1.G Workshop Manual CH-6Charging

Page 56 of 424

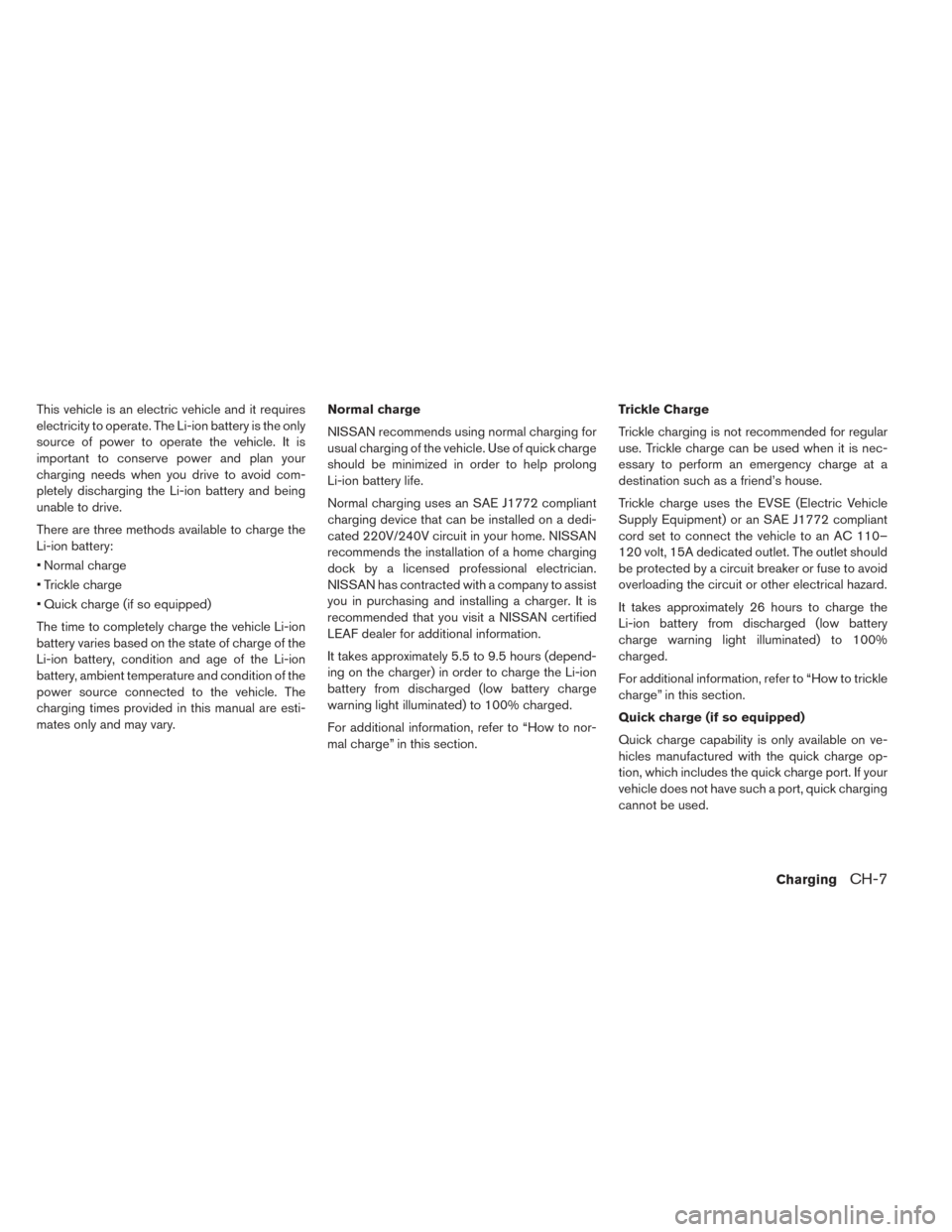

NISSAN LEAF 2017 1.G Workshop Manual This vehicle is an electric vehicle and it requires
electricity to operate. The Li-ion battery is the only
source of power to operate the vehicle. It is
important to conserve power and plan your
charg

Page 57 of 424

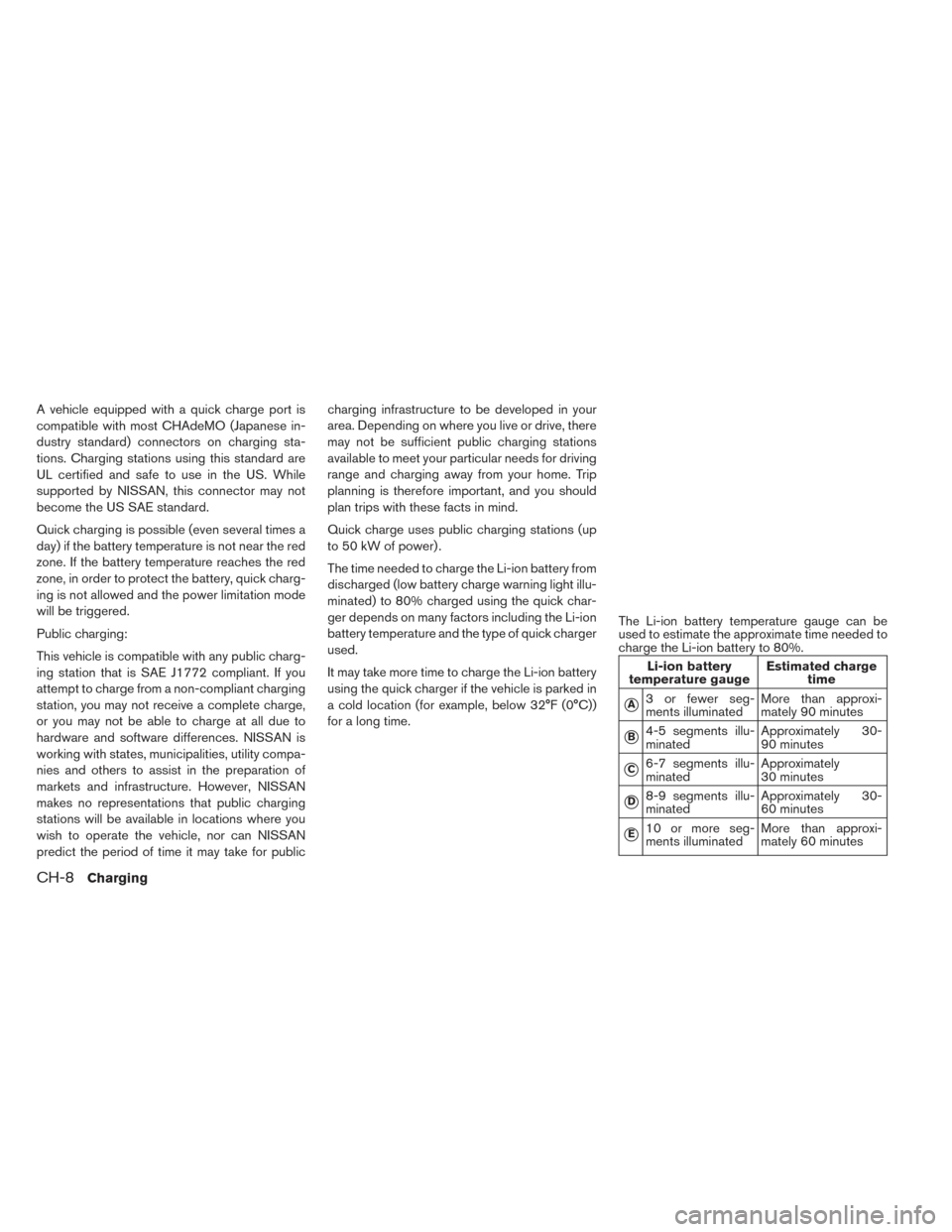

NISSAN LEAF 2017 1.G Workshop Manual A vehicle equipped with a quick charge port is
compatible with most CHAdeMO (Japanese in-
dustry standard) connectors on charging sta-
tions. Charging stations using this standard are
UL certified and

Page 58 of 424

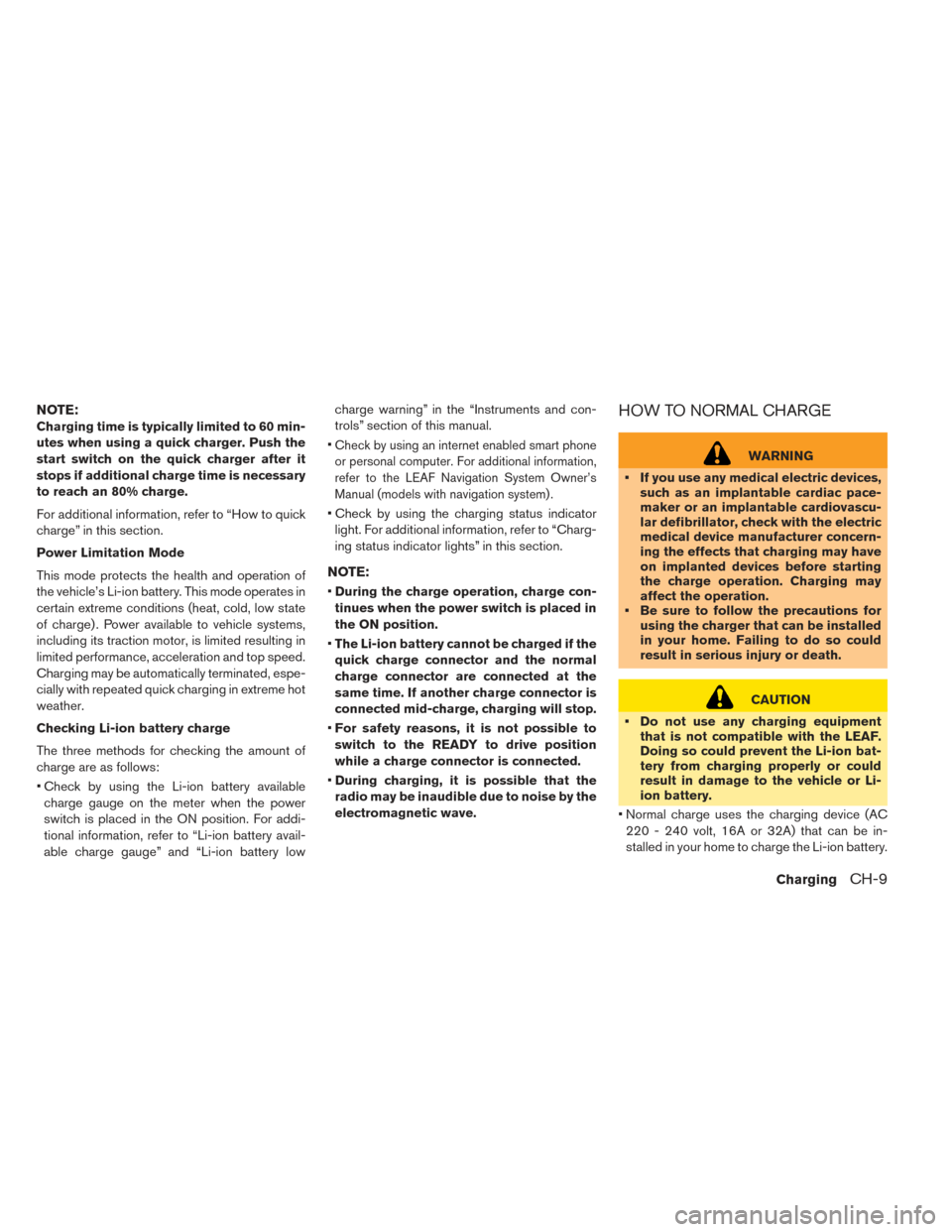

NISSAN LEAF 2017 1.G Workshop Manual NOTE:
Charging time is typically limited to 60 min-
utes when using a quick charger. Push the
start switch on the quick charger after it
stops if additional charge time is necessary
to reach an 80% ch

Page 59 of 424

NISSAN LEAF 2017 1.G Workshop Manual • Immediate charge, charging timer and remotecharge (models with navigation system) can be
performed in the normal charge mode. For ad-
ditional information, refer to “Charging meth-
ods” in thi

Page 60 of 424

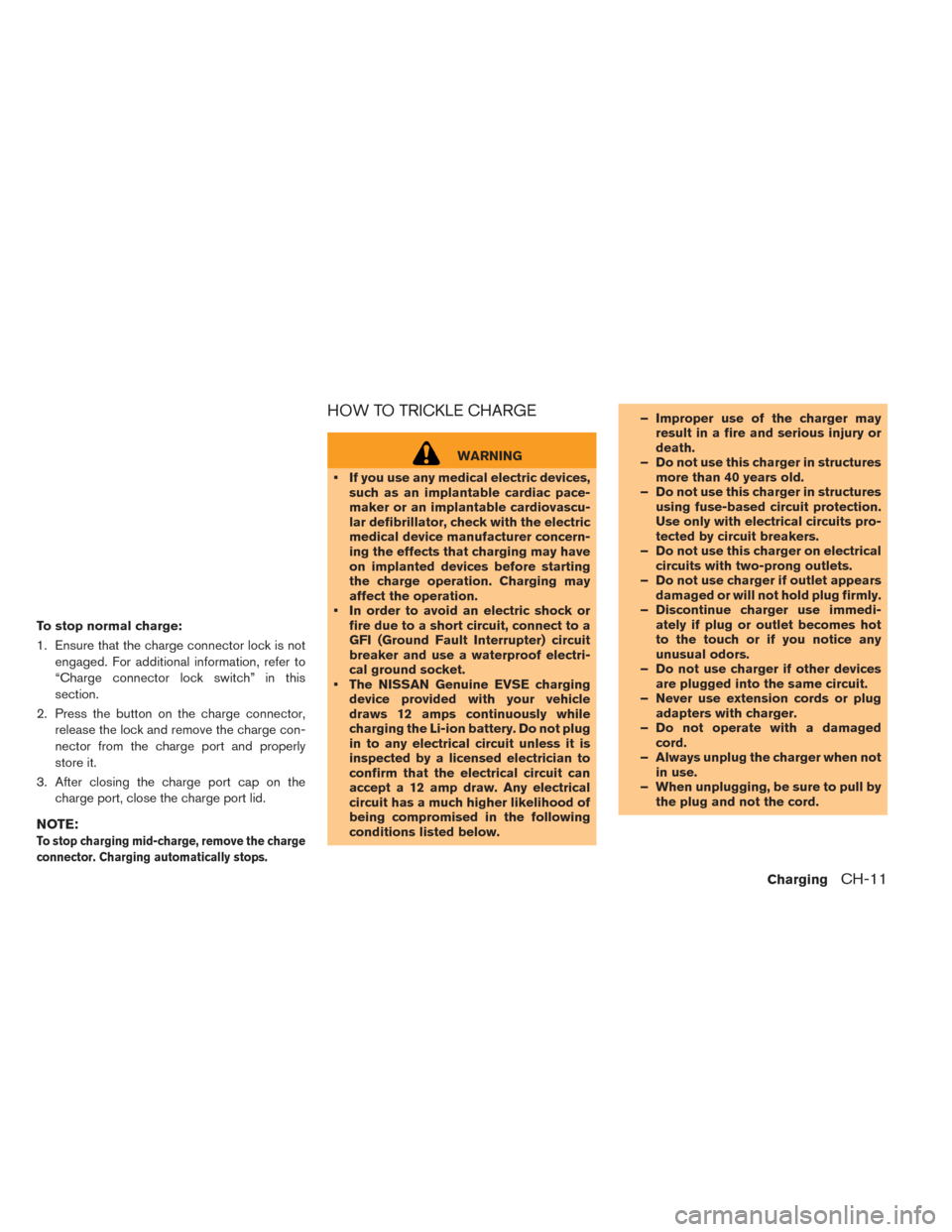

NISSAN LEAF 2017 1.G Workshop Manual To stop normal charge:
1. Ensure that the charge connector lock is notengaged. For additional information, refer to
“Charge connector lock switch” in this
section.
2. Press the button on the charg
