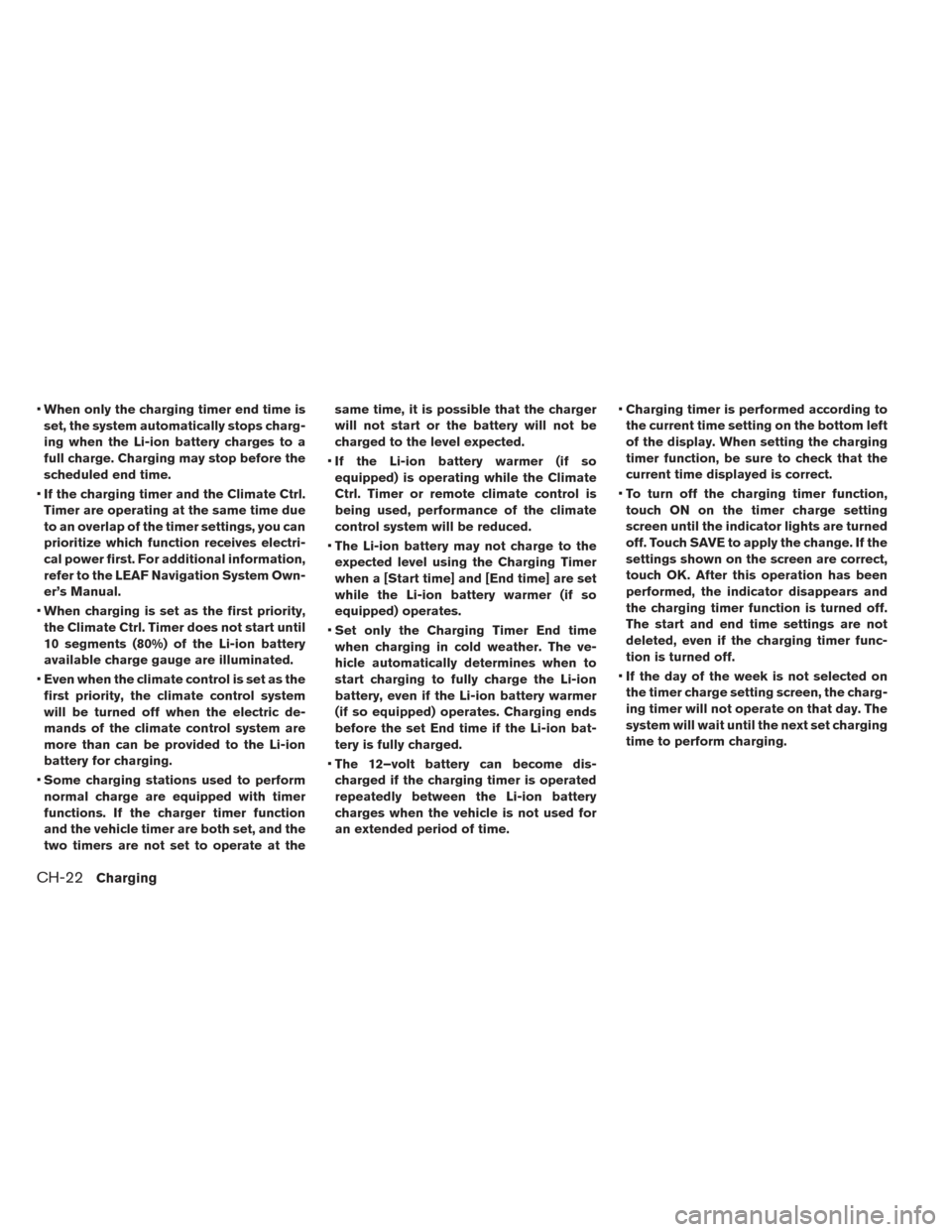

•When only the charging timer end time is
set, the system automatically stops charg-
ing when the Li-ion battery charges to a
full charge. Charging may stop before the
scheduled end time.
• If the charging timer and the Climate Ctrl.
Timer are operating at the same time due
to an overlap of the timer settings, you can
prioritize which function receives electri-
cal power first. For additional information,
refer to the LEAF Navigation System Own-
er’s Manual.
• When charging is set as the first priority,
the Climate Ctrl. Timer does not start until
10 segments (80%) of the Li-ion battery
available charge gauge are illuminated.
• Even when the climate control is set as the
first priority, the climate control system
will be turned off when the electric de-
mands of the climate control system are
more than can be provided to the Li-ion
battery for charging.
• Some charging stations used to perform
normal charge are equipped with timer
functions. If the charger timer function
and the vehicle timer are both set, and the
two timers are not set to operate at the same time, it is possible that the charger
will not start or the battery will not be
charged to the level expected.
• If the Li-ion battery warmer (if so
equipped) is operating while the Climate
Ctrl. Timer or remote climate control is
being used, performance of the climate
control system will be reduced.
• The Li-ion battery may not charge to the
expected level using the Charging Timer
when a [Start time] and [End time] are set
while the Li-ion battery warmer (if so
equipped) operates.
• Set only the Charging Timer End time
when charging in cold weather. The ve-
hicle automatically determines when to
start charging to fully charge the Li-ion
battery, even if the Li-ion battery warmer
(if so equipped) operates. Charging ends
before the set End time if the Li-ion bat-
tery is fully charged.
• The 12–volt battery can become dis-
charged if the charging timer is operated
repeatedly between the Li-ion battery
charges when the vehicle is not used for
an extended period of time. •
Charging timer is performed according to
the current time setting on the bottom left
of the display. When setting the charging
timer function, be sure to check that the
current time displayed is correct.
• To turn off the charging timer function,
touch ON on the timer charge setting
screen until the indicator lights are turned
off. Touch SAVE to apply the change. If the
settings shown on the screen are correct,
touch OK. After this operation has been
performed, the indicator disappears and
the charging timer function is turned off.
The start and end time settings are not
deleted, even if the charging timer func-
tion is turned off.
• If the day of the week is not selected on
the timer charge setting screen, the charg-
ing timer will not operate on that day. The
system will wait until the next set charging
time to perform charging.
CH-22Charging

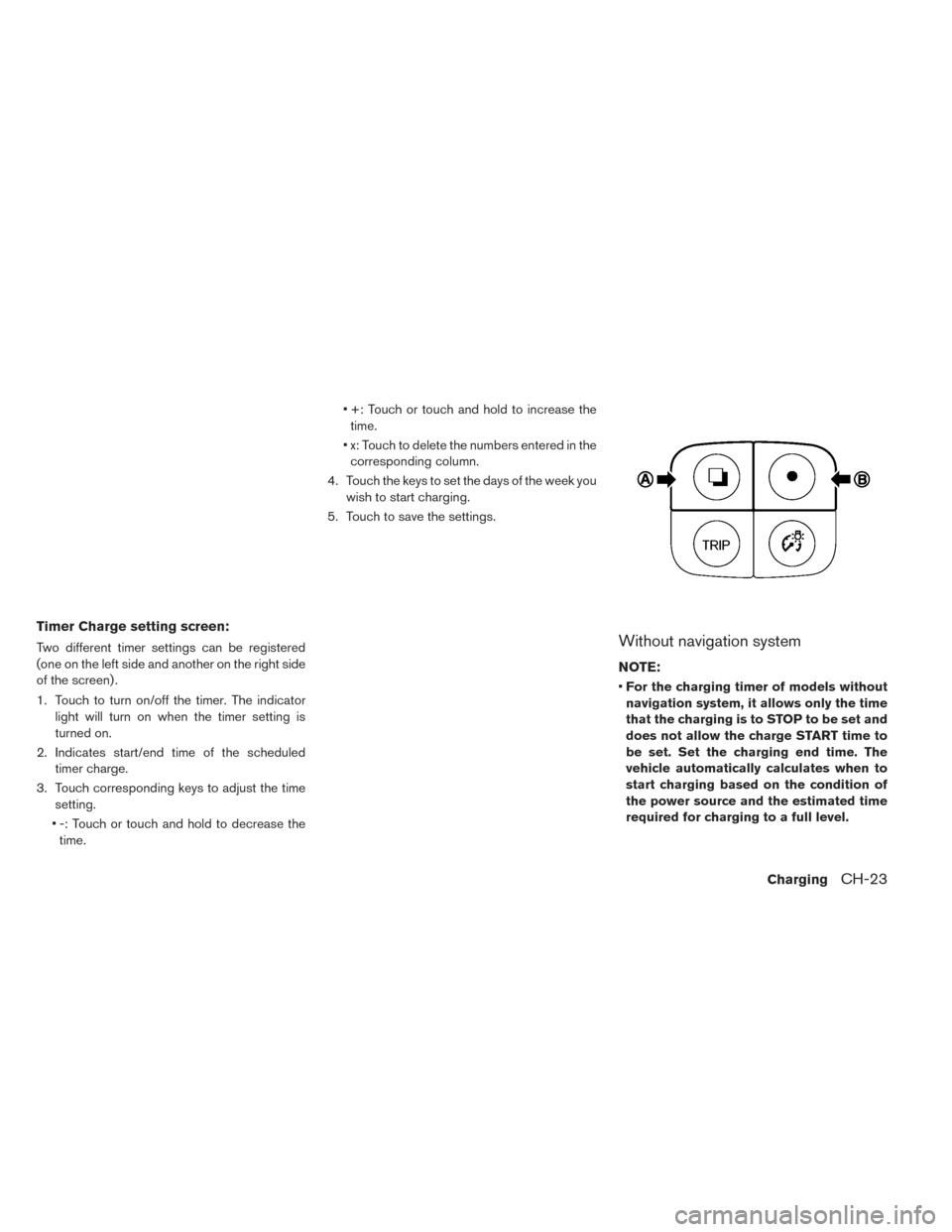

Timer Charge setting screen:
Two different timer settings can be registered
(one on the left side and another on the right side
of the screen) .
1. Touch to turn on/off the timer. The indicatorlight will turn on when the timer setting is
turned on.
2. Indicates start/end time of the scheduled timer charge.
3. Touch corresponding keys to adjust the time setting.
• -: Touch or touch and hold to decrease the time. • +: Touch or touch and hold to increase the
time.
• x: Touch to delete the numbers entered in the corresponding column.
4. Touch the keys to set the days of the week you wish to start charging.
5. Touch to save the settings.Without navigation system
NOTE:
• For the charging timer of models without
navigation system, it allows only the time
that the charging is to STOP to be set and
does not allow the charge START time to
be set. Set the charging end time. The
vehicle automatically calculates when to
start charging based on the condition of
the power source and the estimated time
required for charging to a full level.
ChargingCH-23

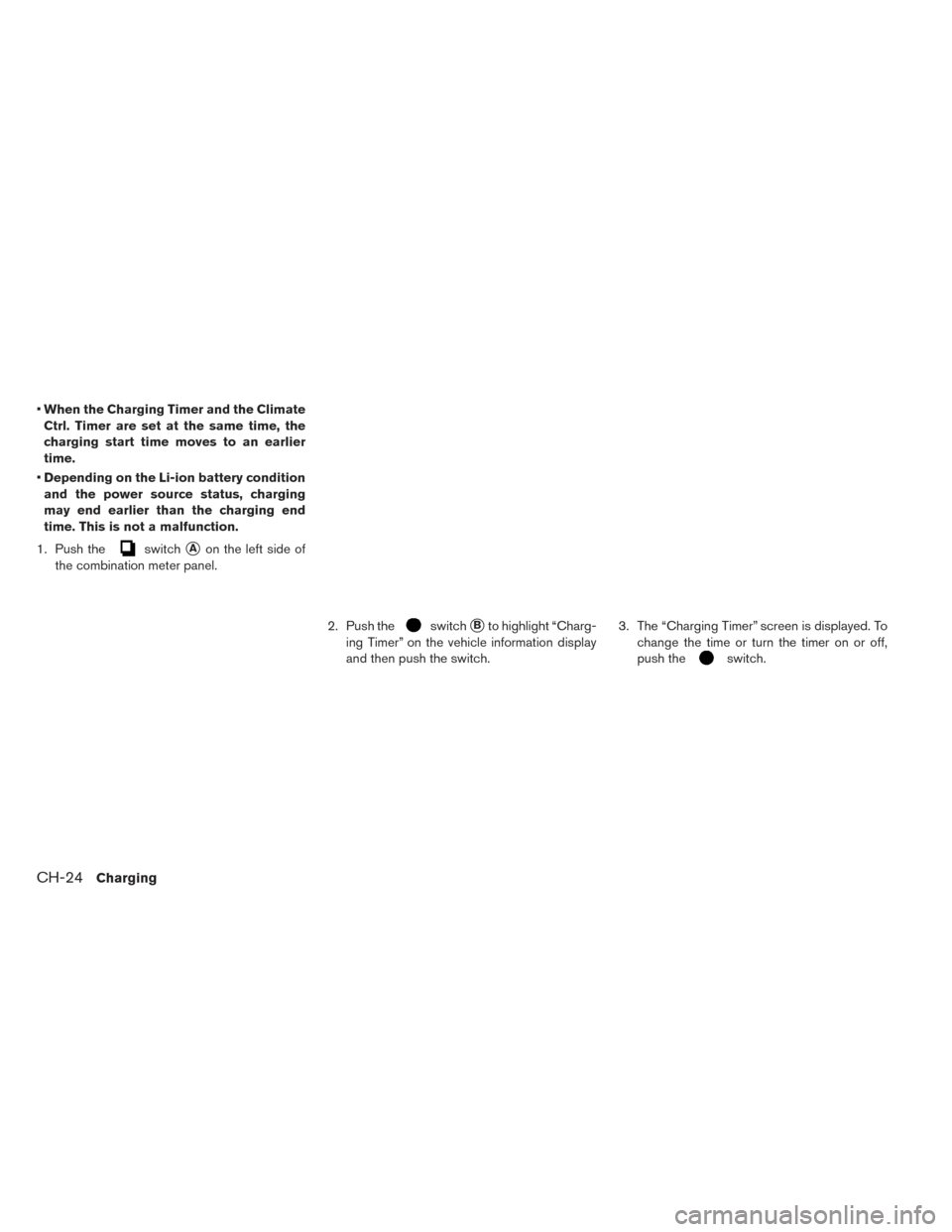

•When the Charging Timer and the Climate
Ctrl. Timer are set at the same time, the
charging start time moves to an earlier
time.
• Depending on the Li-ion battery condition
and the power source status, charging
may end earlier than the charging end
time. This is not a malfunction.
1. Push the
switchAon the left side of
the combination meter panel.
2. Push the
switchBto highlight “Charg-
ing Timer” on the vehicle information display
and then push the switch. 3. The “Charging Timer” screen is displayed. To
change the time or turn the timer on or off,
push the
switch.
CH-24Charging

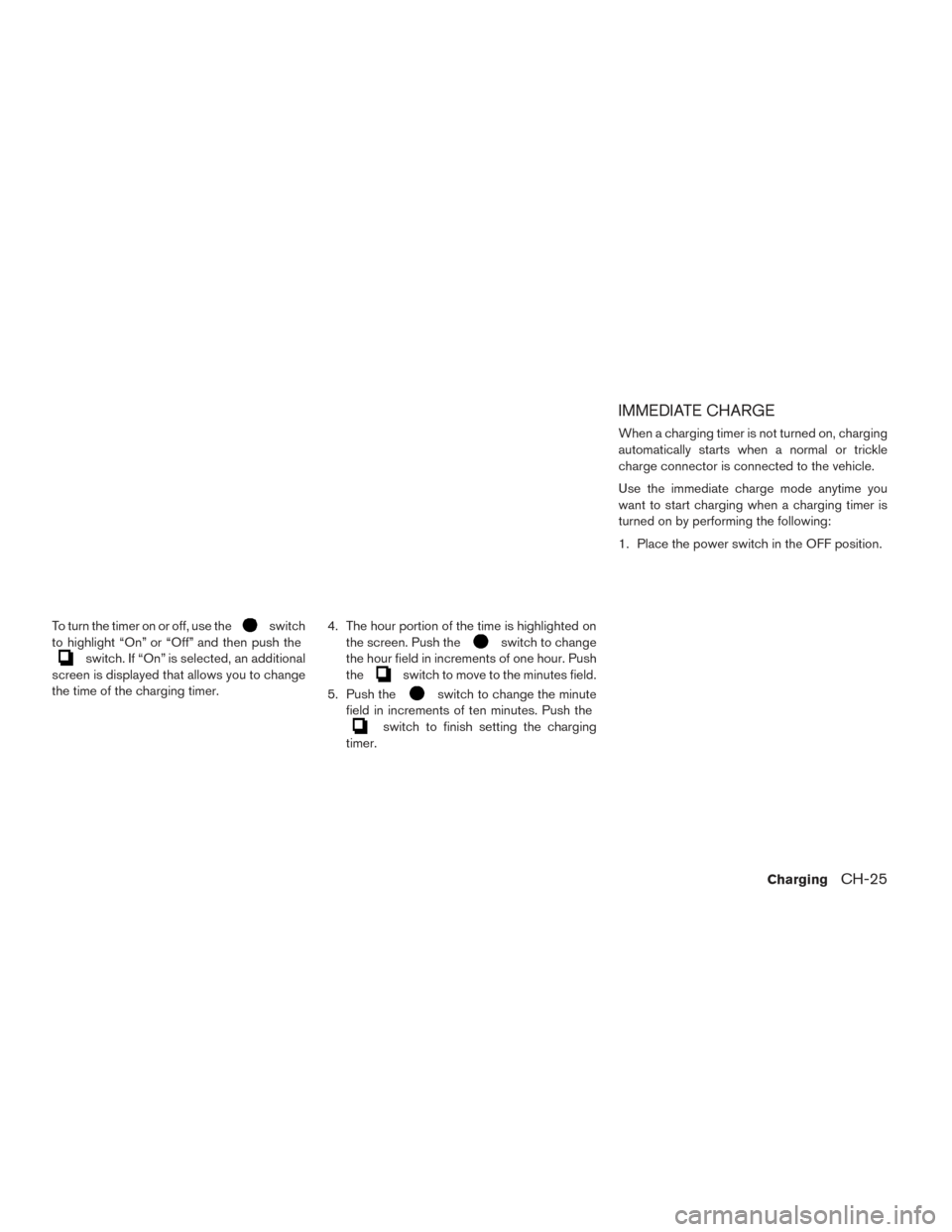

To turn the timer on or off, use theswitch
to highlight “On” or “Off” and then push the
switch. If “On” is selected, an additional
screen is displayed that allows you to change
the time of the charging timer. 4. The hour portion of the time is highlighted on
the screen. Push the
switch to change
the hour field in increments of one hour. Push
the
switch to move to the minutes field.
5. Push the
switch to change the minute
field in increments of ten minutes. Push the
switch to finish setting the charging
timer.
IMMEDIATE CHARGE
When a charging timer is not turned on, charging
automatically starts when a normal or trickle
charge connector is connected to the vehicle.
Use the immediate charge mode anytime you
want to start charging when a charging timer is
turned on by performing the following:
1. Place the power switch in the OFF position.
ChargingCH-25

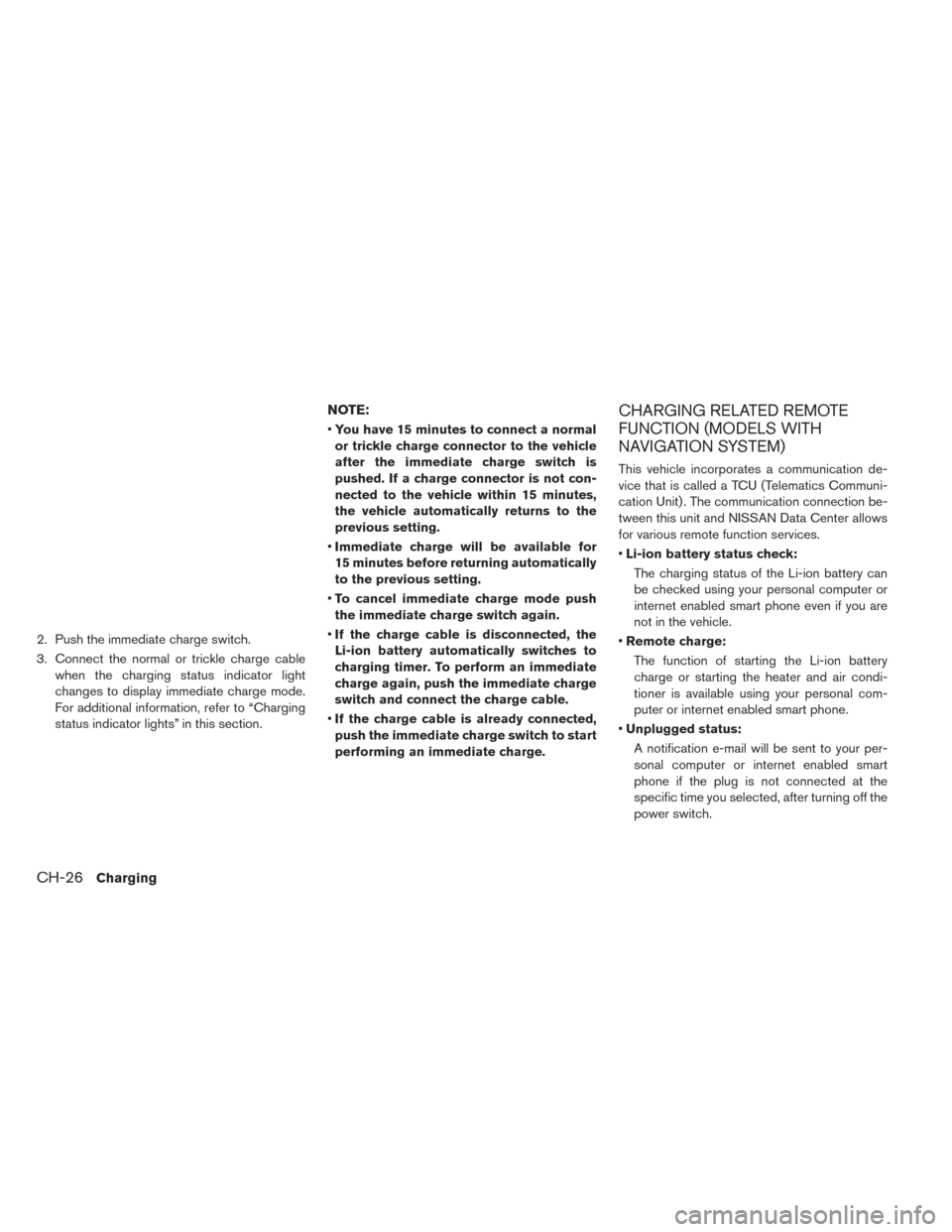

2. Push the immediate charge switch.
3. Connect the normal or trickle charge cablewhen the charging status indicator light
changes to display immediate charge mode.
For additional information, refer to “Charging
status indicator lights” in this section.
NOTE:
•You have 15 minutes to connect a normal
or trickle charge connector to the vehicle
after the immediate charge switch is
pushed. If a charge connector is not con-
nected to the vehicle within 15 minutes,
the vehicle automatically returns to the
previous setting.
• Immediate charge will be available for
15 minutes before returning automatically
to the previous setting.
• To cancel immediate charge mode push
the immediate charge switch again.
• If the charge cable is disconnected, the
Li-ion battery automatically switches to
charging timer. To perform an immediate
charge again, push the immediate charge
switch and connect the charge cable.
• If the charge cable is already connected,
push the immediate charge switch to start
performing an immediate charge.
CHARGING RELATED REMOTE
FUNCTION (MODELS WITH
NAVIGATION SYSTEM)
This vehicle incorporates a communication de-
vice that is called a TCU (Telematics Communi-
cation Unit) . The communication connection be-
tween this unit and NISSAN Data Center allows
for various remote function services.
• Li-ion battery status check:
The charging status of the Li-ion battery can
be checked using your personal computer or
internet enabled smart phone even if you are
not in the vehicle.
• Remote charge:
The function of starting the Li-ion battery
charge or starting the heater and air condi-
tioner is available using your personal com-
puter or internet enabled smart phone.
• Unplugged status:
A notification e-mail will be sent to your per-
sonal computer or internet enabled smart
phone if the plug is not connected at the
specific time you selected, after turning off the
power switch.
CH-26Charging

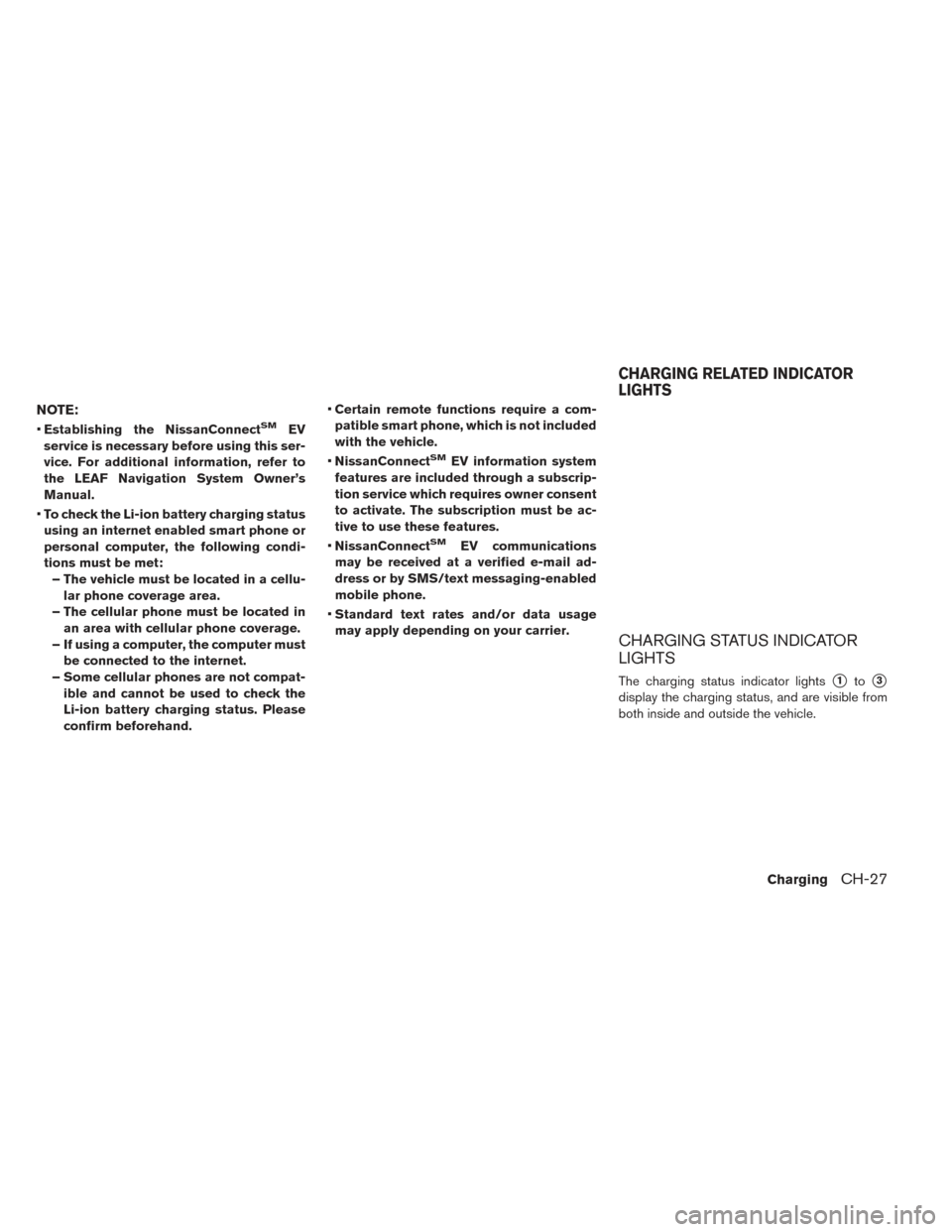

NOTE:
•Establishing the NissanConnectSMEV
service is necessary before using this ser-
vice. For additional information, refer to
the LEAF Navigation System Owner’s
Manual.
• To check the Li-ion battery charging status
using an internet enabled smart phone or
personal computer, the following condi-
tions must be met: – The vehicle must be located in a cellu- lar phone coverage area.
– The cellular phone must be located in an area with cellular phone coverage.
– If using a computer, the computer must be connected to the internet.
– Some cellular phones are not compat- ible and cannot be used to check the
Li-ion battery charging status. Please
confirm beforehand. •
Certain remote functions require a com-
patible smart phone, which is not included
with the vehicle.
• NissanConnect
SMEV information system
features are included through a subscrip-
tion service which requires owner consent
to activate. The subscription must be ac-
tive to use these features.
• NissanConnect
SMEV communications
may be received at a verified e-mail ad-
dress or by SMS/text messaging-enabled
mobile phone.
• Standard text rates and/or data usage
may apply depending on your carrier.
CHARGING STATUS INDICATOR
LIGHTS
The charging status indicator lights1to3
display the charging status, and are visible from
both inside and outside the vehicle.
CHARGING RELATED INDICATOR
LIGHTS
ChargingCH-27

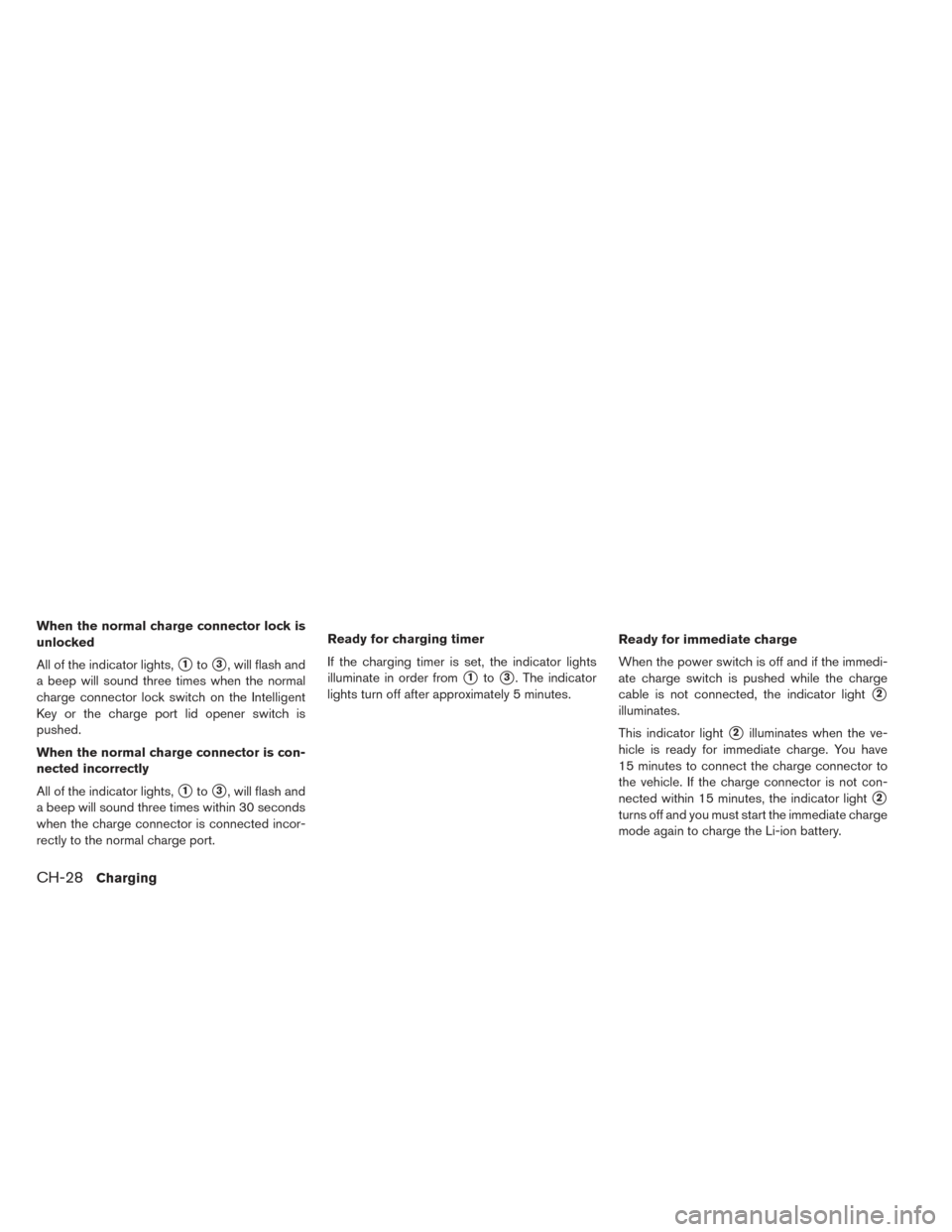

When the normal charge connector lock is
unlocked
All of the indicator lights,
1to3, will flash and
a beep will sound three times when the normal
charge connector lock switch on the Intelligent
Key or the charge port lid opener switch is
pushed.
When the normal charge connector is con-
nected incorrectly
All of the indicator lights,
1to3, will flash and
a beep will sound three times within 30 seconds
when the charge connector is connected incor-
rectly to the normal charge port. Ready for charging timer
If the charging timer is set, the indicator lights
illuminate in order from
1to3. The indicator
lights turn off after approximately 5 minutes. Ready for immediate charge
When the power switch is off and if the immedi-
ate charge switch is pushed while the charge
cable is not connected, the indicator light
2
illuminates.
This indicator light
2illuminates when the ve-
hicle is ready for immediate charge. You have
15 minutes to connect the charge connector to
the vehicle. If the charge connector is not con-
nected within 15 minutes, the indicator light
2
turns off and you must start the immediate charge
mode again to charge the Li-ion battery.
CH-28Charging

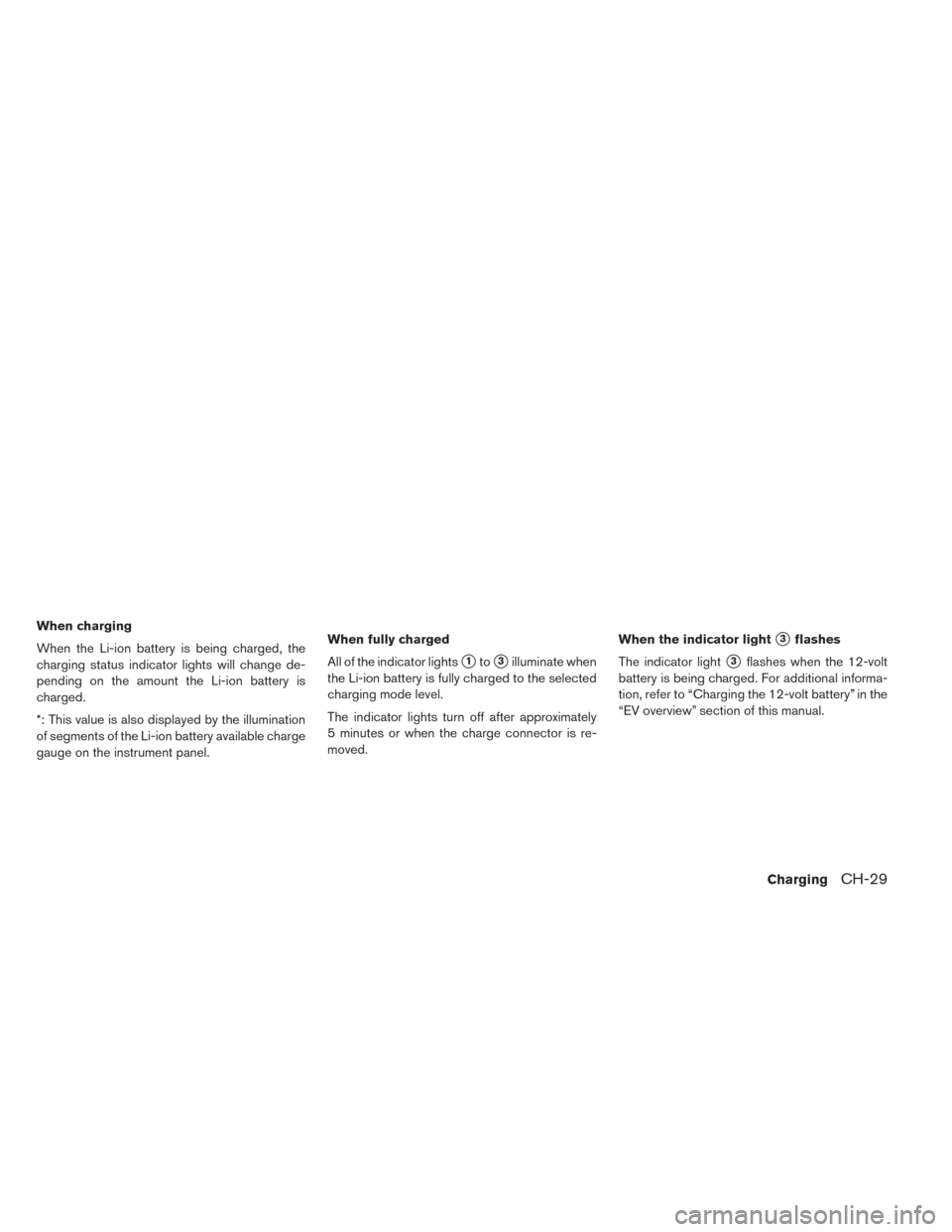

When charging
When the Li-ion battery is being charged, the
charging status indicator lights will change de-
pending on the amount the Li-ion battery is
charged.
*: This value is also displayed by the illumination
of segments of the Li-ion battery available charge
gauge on the instrument panel.When fully charged
All of the indicator lights
1to3illuminate when
the Li-ion battery is fully charged to the selected
charging mode level.
The indicator lights turn off after approximately
5 minutes or when the charge connector is re-
moved. When the indicator light
3flashes
The indicator light
3flashes when the 12-volt
battery is being charged. For additional informa-
tion, refer to “Charging the 12-volt battery” in the
“EV overview” section of this manual.
ChargingCH-29

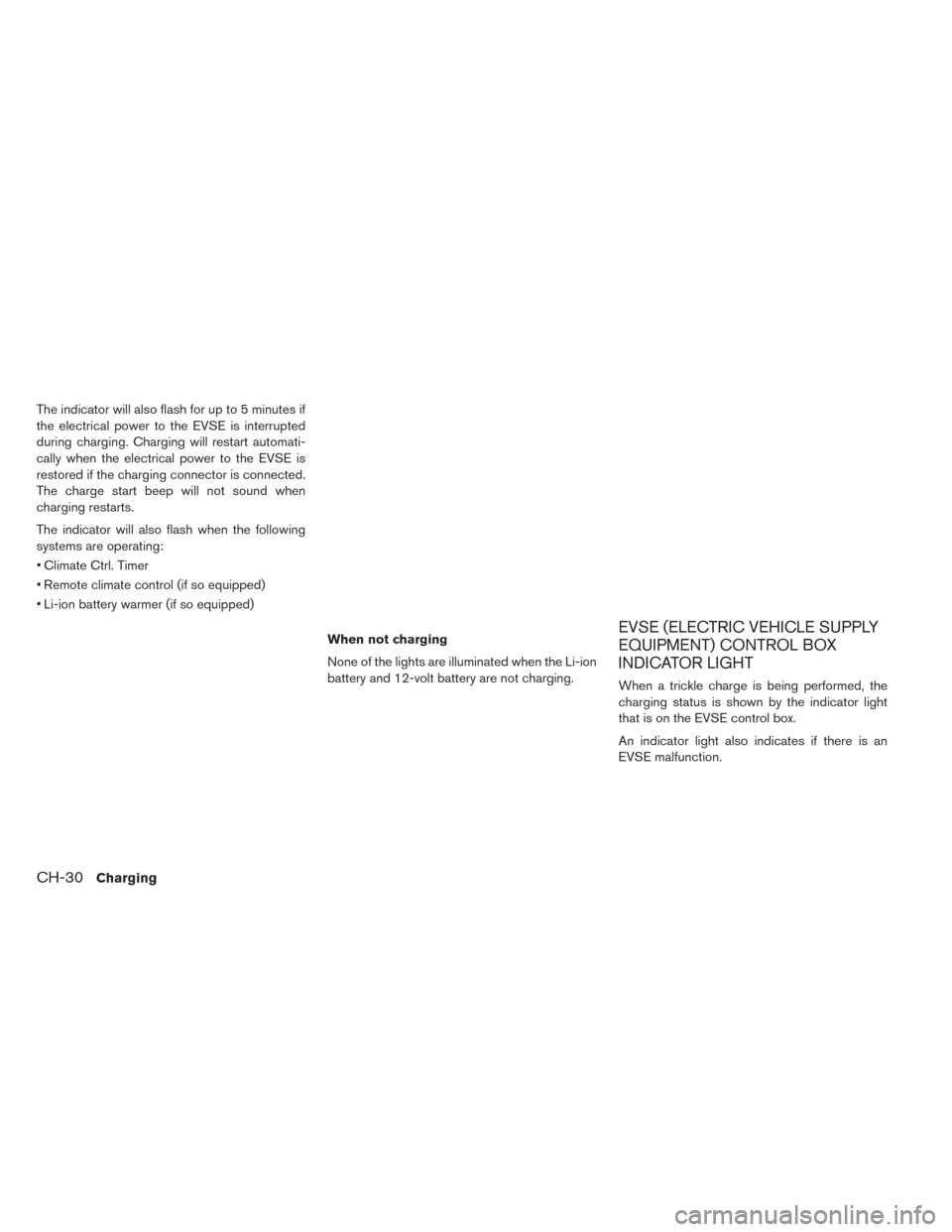

The indicator will also flash for up to 5 minutes if
the electrical power to the EVSE is interrupted
during charging. Charging will restart automati-
cally when the electrical power to the EVSE is
restored if the charging connector is connected.
The charge start beep will not sound when
charging restarts.
The indicator will also flash when the following
systems are operating:
• Climate Ctrl. Timer
• Remote climate control (if so equipped)
• Li-ion battery warmer (if so equipped)When not charging
None of the lights are illuminated when the Li-ion
battery and 12-volt battery are not charging.
EVSE (ELECTRIC VEHICLE SUPPLY
EQUIPMENT) CONTROL BOX
INDICATOR LIGHT
When a trickle charge is being performed, the
charging status is shown by the indicator light
that is on the EVSE control box.
An indicator light also indicates if there is an
EVSE malfunction.
CH-30Charging

READYCHARGE FAULT Status and action to be taken
  Every time the EVSE plug is connected to an outlet, all indicator lights illuminate for 0.5 seconds.
  After initial processing is completed, when the EVSE is not connected to the vehicle, or the EVSE is con-
nected to the vehicle but charging is not being performed.
 While the battery is being charged

 When the ground cable is disconnected
Check the grounding of the outlet being used. If the grounding is normal, it is recommended that you visit a
NISSAN certified LEAF dealer.



 or


When the temperature of the electrical plug is too hot, or the EVSE is unable to detect the temperature of the
electrical plug, check that the electrical plug is connected correctly. If it is connected normally, stop use im-
mediately. It is recommended that you visit a NISSAN certified LEAF dealer.


When an electric leakage occurs or the EVSE malfunctions
Stop use immediately. It is recommended that you visit a NISSAN certified LEAF dealer.
  When the EVSE malfunctions
Stop use immediately. It is recommended that you visit a NISSAN certified LEAF dealer.
  If the EVSE control box indicator light does not illuminate after connecting the plug to the outlet, check the
GFCI and circuit breaker for the outlet. If either the GFCI or breaker has tripped, the circuit may not be suit-
able for use with EVSE. You should have a licensed electrician inspect and repair the electrical circuit. If the
GFCI breaker is not tripped, stop using the EVSE. It is recommended that you visit a NISSAN certified LEAF
dealer.
Meaning Light ON Flashing Light OFF
Symbol

ChargingCH-31
