NISSAN LEAF 2019 Owner´s Manual

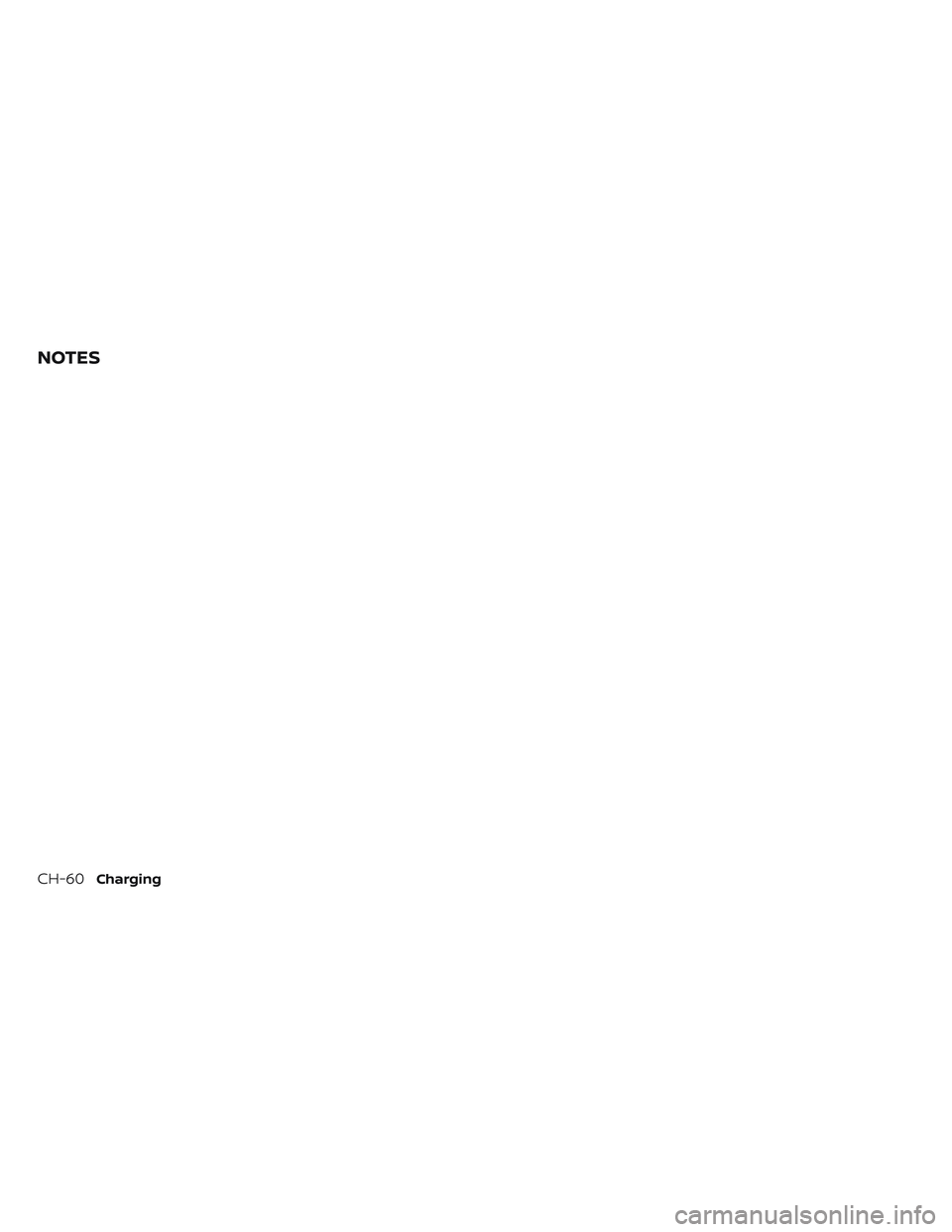

NOTES
CH-60Charging

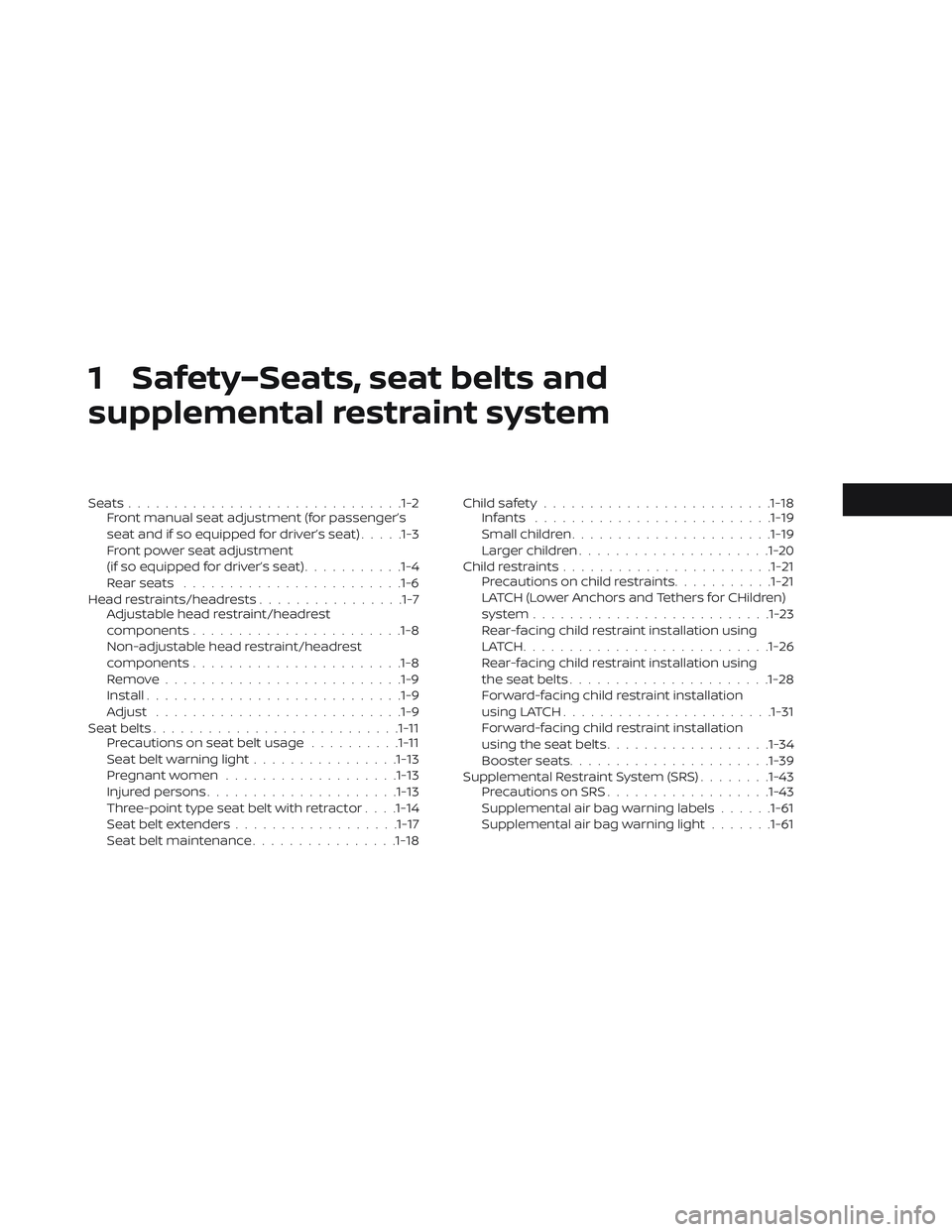

1 Safety–Seats, seat belts and
supplemental restraint system
Seats..............................1-2Front manual seat adjustment (for passenger’s
seat and if so equipped for driver’s seat) .....1-3
Front power seat adjustment
(if so equipped for driver’s seat) ...........1-4
Rearseats ....................... .1-6
Head restraints/headrests ................1-7
Adjustable head restraint/headrest
components .......................1-8
Non-adjustable head restraint/headrest
components .......................1-8
Remove..........................1-9
Install ........................... .1-9
Adjust .......................... .1-9
Seatbelts.......................... .1-11
Precautions on seat belt usage ..........1-11
Seat belt warning light ................1-13
Pregnant women .................. .1-13
Injured persons .................... .1-13
Three-point type seat belt with retractor . . . .1-14
Seat belt extenders ................. .1-17
Seat belt maintenance ................1-18 Child safety
.........................1-18
Infants ......................... .1-19
Small children ......................1-19
Larger children .................... .1-20
Child restraints .......................1-21
Precautions on child restraints ...........1-21
LATCH (Lower Anchors and Tethers for CHildren)
system ......................... .1-23
Rear-facing child restraint installation using
LATCH.......................... .1-26
Rear-facing child restraint installation using
theseatbelts..................... .1-28
Forward-facing child restraint installation
using LATCH .......................1-31
Forward-facing child restraint installation
using the seat belts ................. .1-34
Booster seats ......................1-39
Supplemental Restraint System (SRS) ........1-43
Precautions on SRS ................. .1-43
Supplemental air bag warning labels ......1-61
Supplemental air bag warning light .......1-61

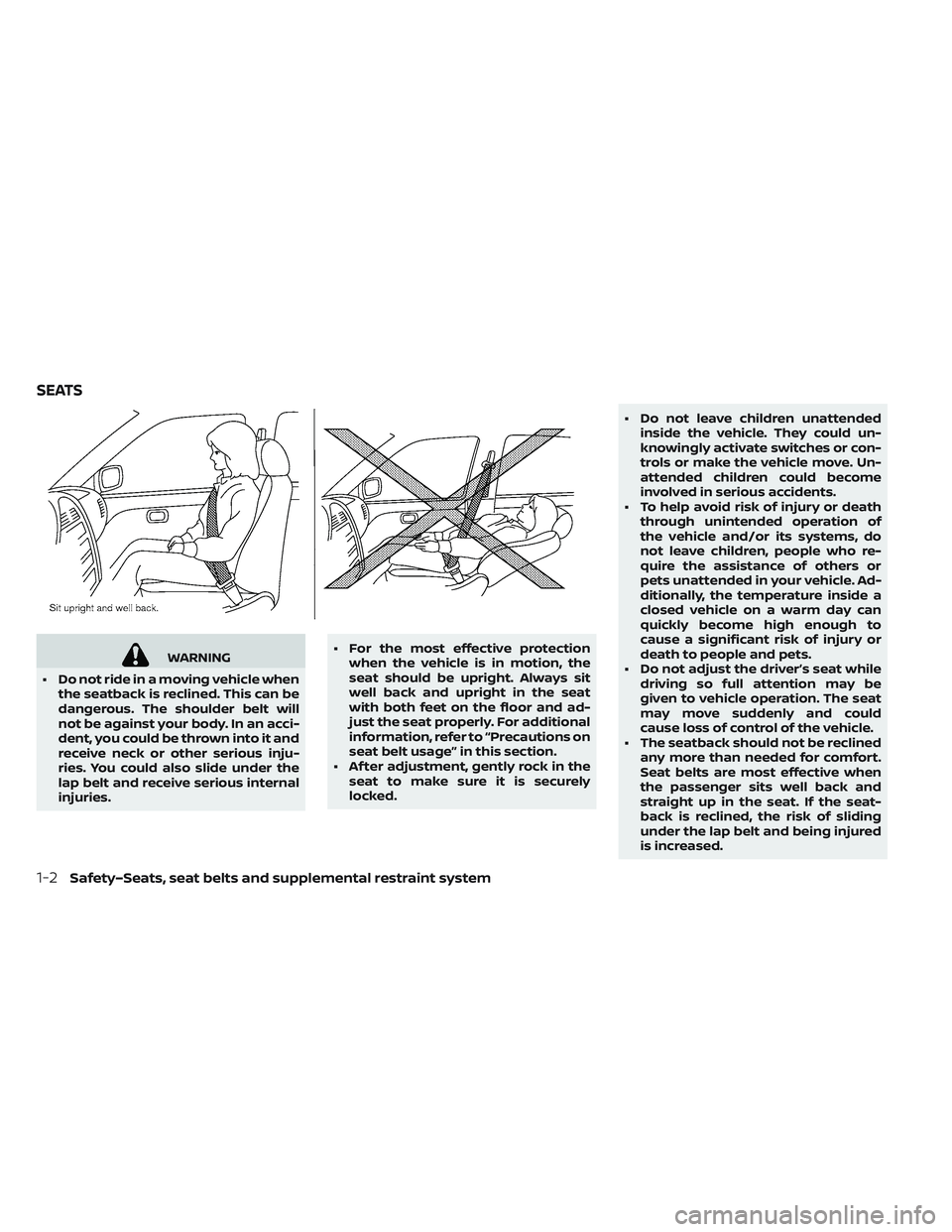

WARNING
• Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will
not be against your body. In an acci-
dent, you could be thrown into it and
receive neck or other serious inju-
ries. You could also slide under the
lap belt and receive serious internal
injuries. • For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back and upright in the seat
with both feet on the floor and ad-
just the seat properly. For additional
information, refer to “Precautions on
seat belt usage” in this section.
• Af ter adjustment, gently rock in the seat to make sure it is securely
locked. • Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols or make the vehicle move. Un-
attended children could become
involved in serious accidents.
• To help avoid risk of injury or death through unintended operation of
the vehicle and/or its systems, do
not leave children, people who re-
quire the assistance of others or
pets unattended in your vehicle. Ad-
ditionally, the temperature inside a
closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
• Do not adjust the driver’s seat while driving so full attention may be
given to vehicle operation. The seat
may move suddenly and could
cause loss of control of the vehicle.
• The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when
the passenger sits well back and
straight up in the seat. If the seat-
back is reclined, the risk of sliding
under the lap belt and being injured
is increased.
SEATS
1-2Safety–Seats, seat belts and supplemental restraint system

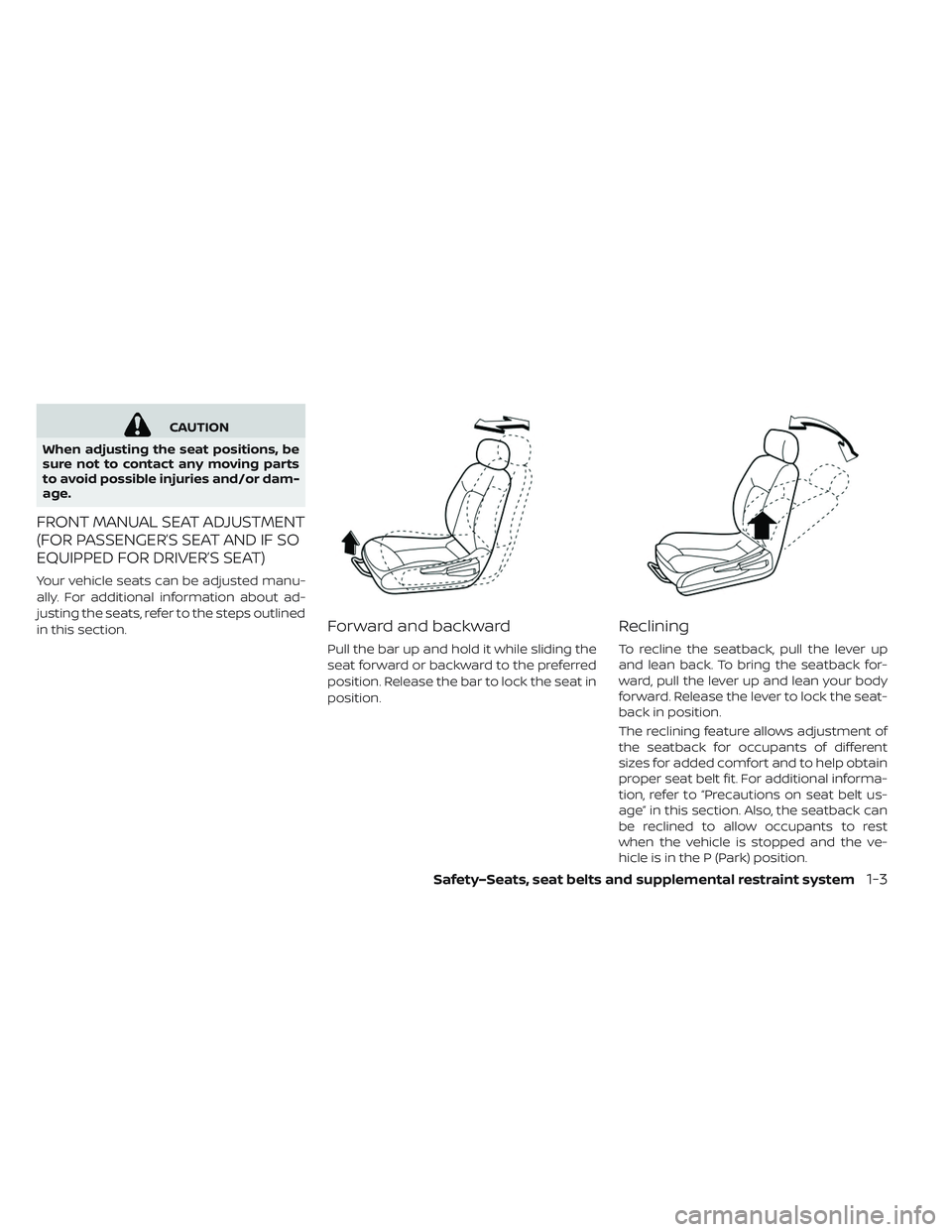

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts
to avoid possible injuries and/or dam-
age.
FRONT MANUAL SEAT ADJUSTMENT
(FOR PASSENGER’S SEAT AND IF SO
EQUIPPED FOR DRIVER’S SEAT)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the bar up and hold it while sliding the
seat forward or backward to the preferred
position. Release the bar to lock the seat in
position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the ve-
hicle is in the P (Park) position.
Safety–Seats, seat belts and supplemental restraint system1-3

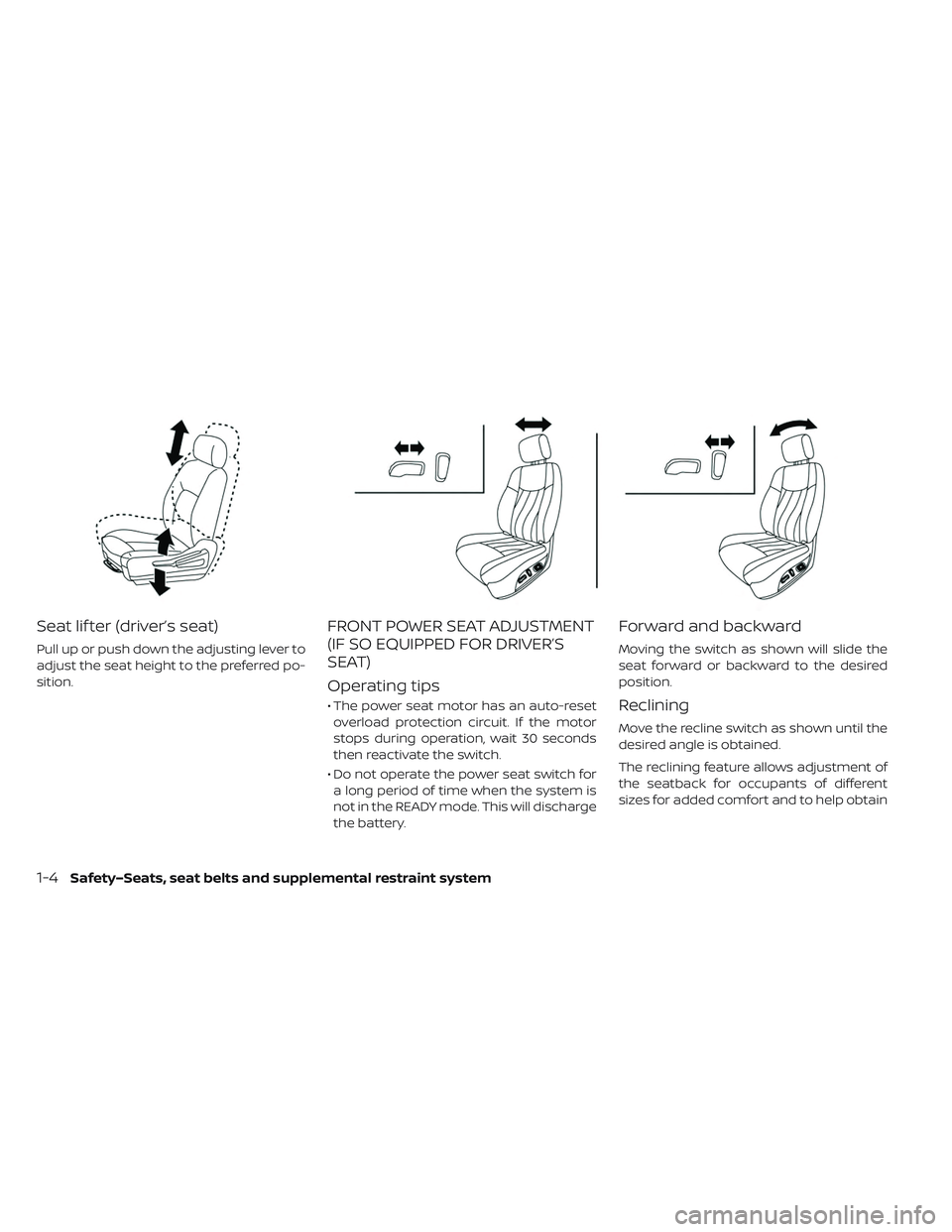

Seat lif ter (driver’s seat)
Pull up or push down the adjusting lever to
adjust the seat height to the preferred po-
sition.
FRONT POWER SEAT ADJUSTMENT
(IF SO EQUIPPED FOR DRIVER’S
SEAT)
Operating tips
• The power seat motor has an auto-resetoverload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
• Do not operate the power seat switch for a long period of time when the system is
not in the READY mode. This will discharge
the battery.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
1-4Safety–Seats, seat belts and supplemental restraint system

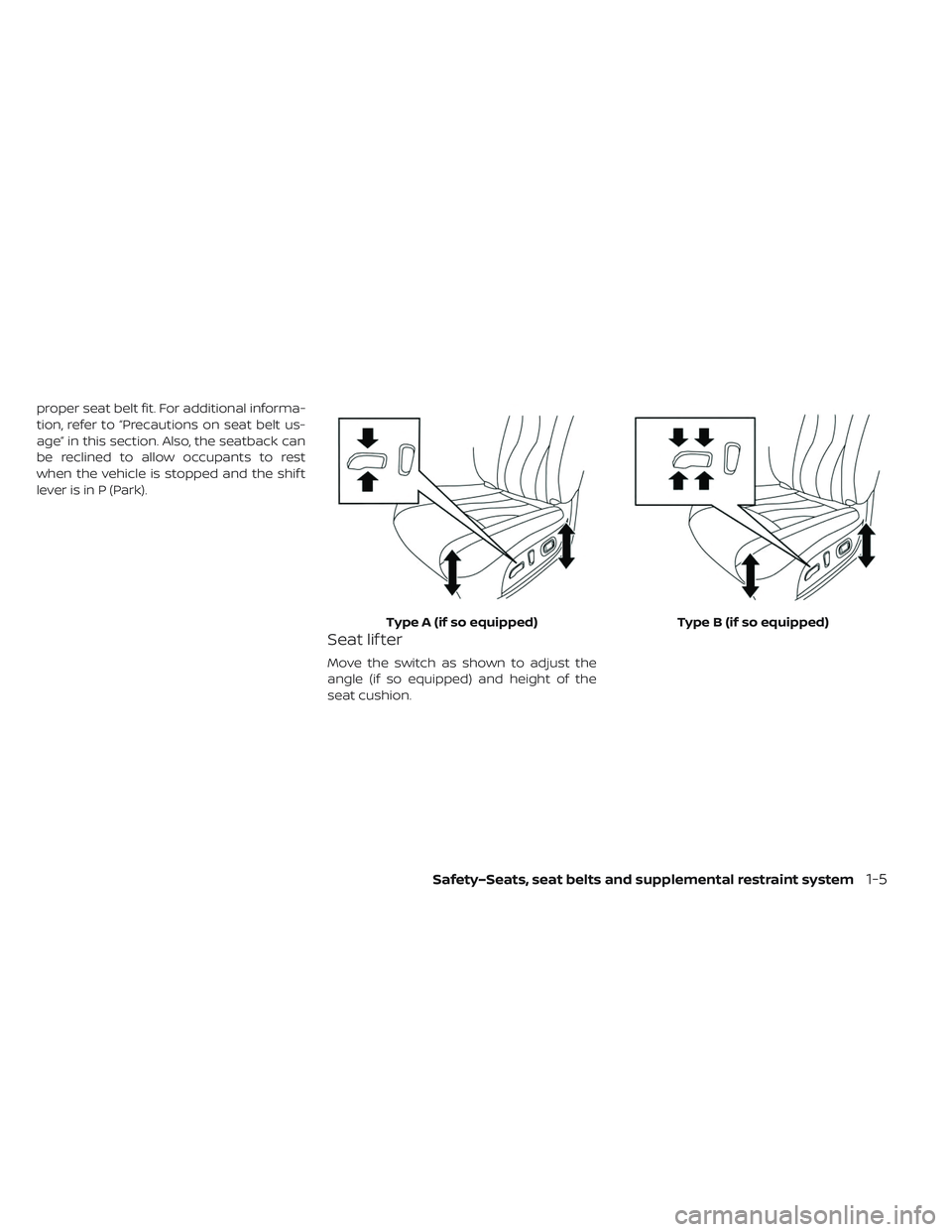

proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park).
Seat lif ter
Move the switch as shown to adjust the
angle (if so equipped) and height of the
seat cushion.Type A (if so equipped)
Type B (if so equipped)
Safety–Seats, seat belts and supplemental restraint system1-5

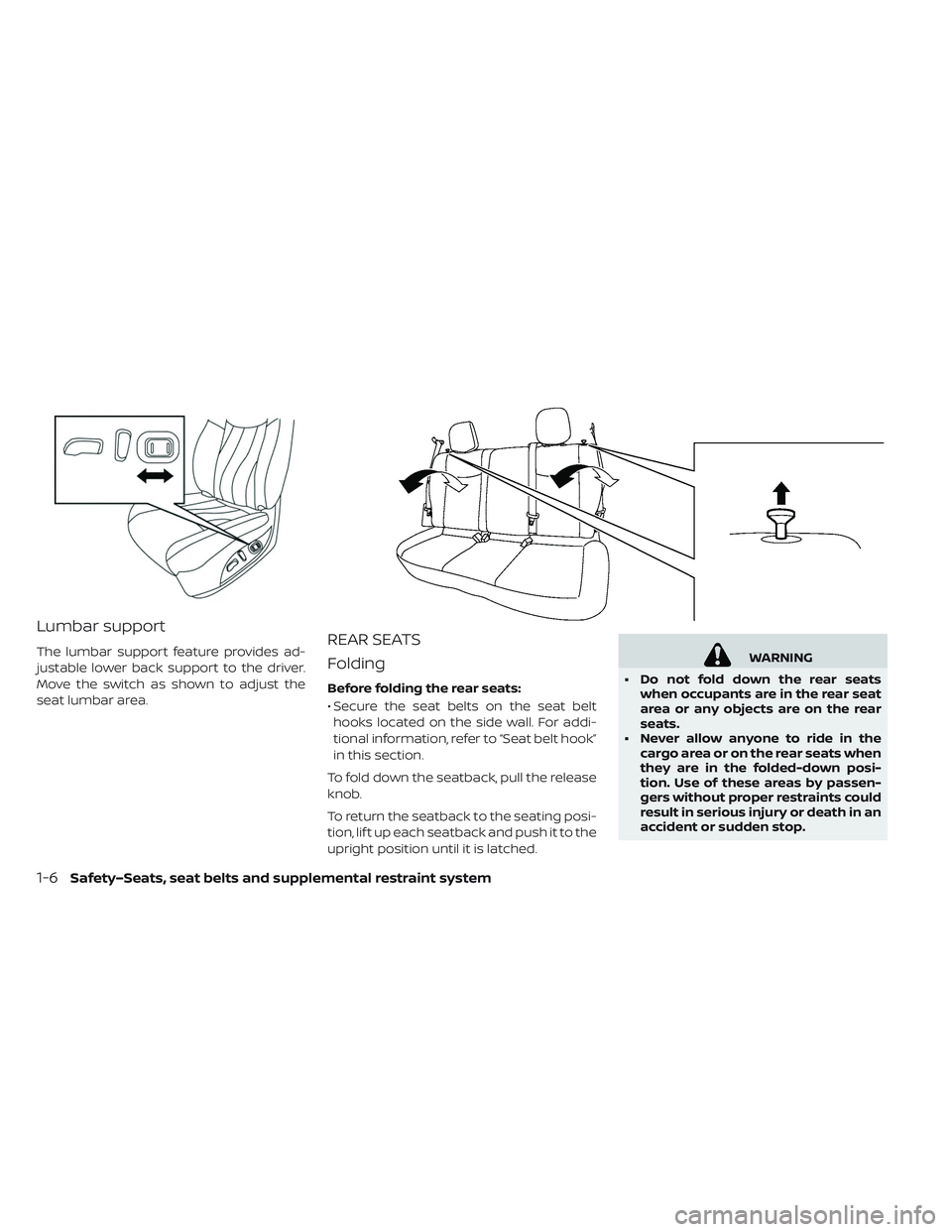

Lumbar support
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the switch as shown to adjust the
seat lumbar area.REAR SEATS
Folding
Before folding the rear seats:
• Secure the seat belts on the seat belthooks located on the side wall. For addi-
tional information, refer to “Seat belt hook”
in this section.
To fold down the seatback, pull the release
knob.
To return the seatback to the seating posi-
tion, lif t up each seatback and push it to the
upright position until it is latched.
WARNING
• Do not fold down the rear seats when occupants are in the rear seat
area or any objects are on the rear
seats.
• Never allow anyone to ride in the cargo area or on the rear seats when
they are in the folded-down posi-
tion. Use of these areas by passen-
gers without proper restraints could
result in serious injury or death in an
accident or sudden stop.
1-6Safety–Seats, seat belts and supplemental restraint system

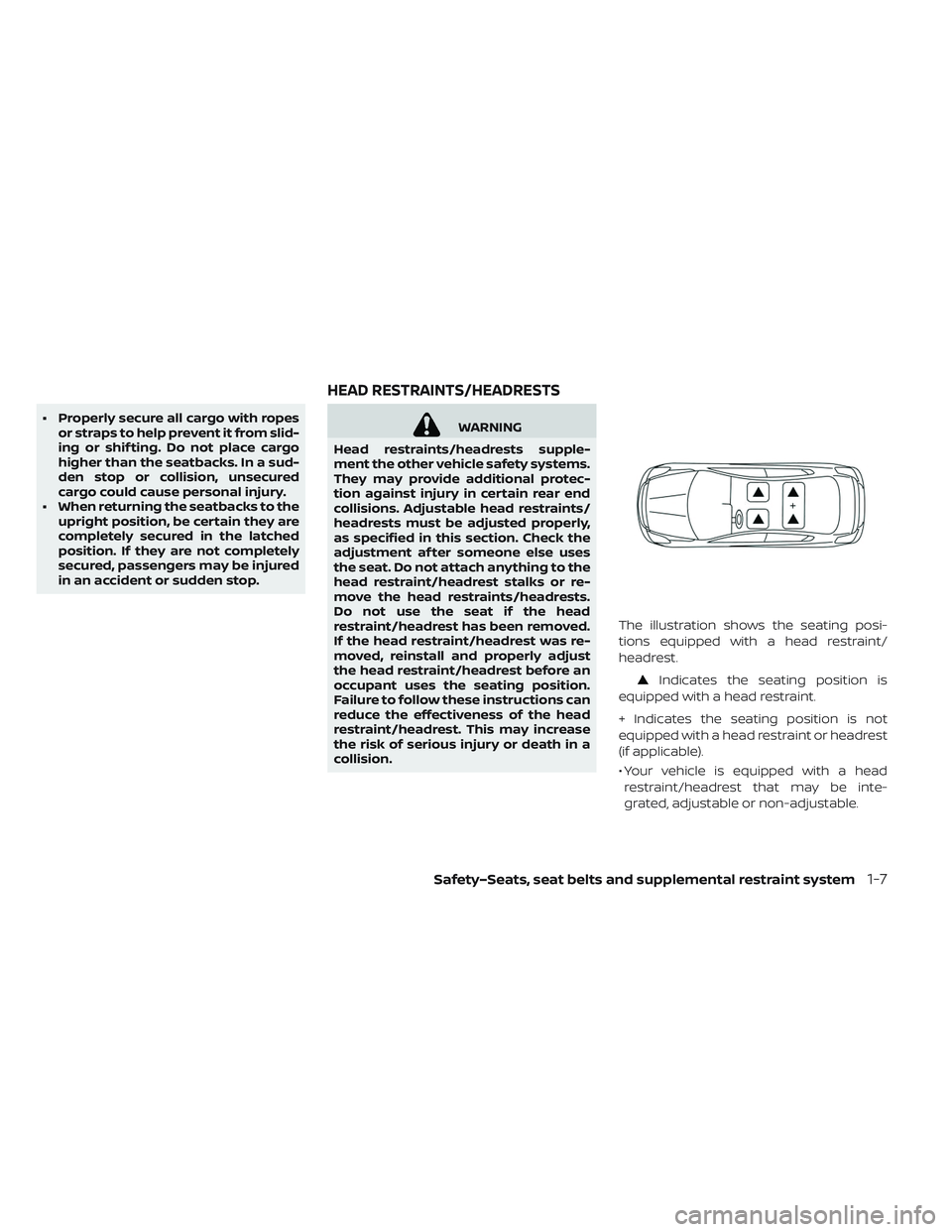

• Properly secure all cargo with ropesor straps to help prevent it from slid-
ing or shif ting. Do not place cargo
higher than the seatbacks. In a sud-
den stop or collision, unsecured
cargo could cause personal injury.
• When returning the seatbacks to the upright position, be certain they are
completely secured in the latched
position. If they are not completely
secured, passengers may be injured
in an accident or sudden stop.WARNING
Head restraints/headrests supple-
ment the other vehicle safety systems.
They may provide additional protec-
tion against injury in certain rear end
collisions. Adjustable head restraints/
headrests must be adjusted properly,
as specified in this section. Check the
adjustment af ter someone else uses
the seat. Do not attach anything to the
head restraint/headrest stalks or re-
move the head restraints/headrests.
Do not use the seat if the head
restraint/headrest has been removed.
If the head restraint/headrest was re-
moved, reinstall and properly adjust
the head restraint/headrest before an
occupant uses the seating position.
Failure to follow these instructions can
reduce the effectiveness of the head
restraint/headrest. This may increase
the risk of serious injury or death in a
collision. The illustration shows the seating posi-
tions equipped with a head restraint/
headrest.
Indicates the seating position is
equipped with a head restraint.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable).
• Your vehicle is equipped with a head restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
HEAD RESTRAINTS/HEADRESTS
Safety–Seats, seat belts and supplemental restraint system1-7

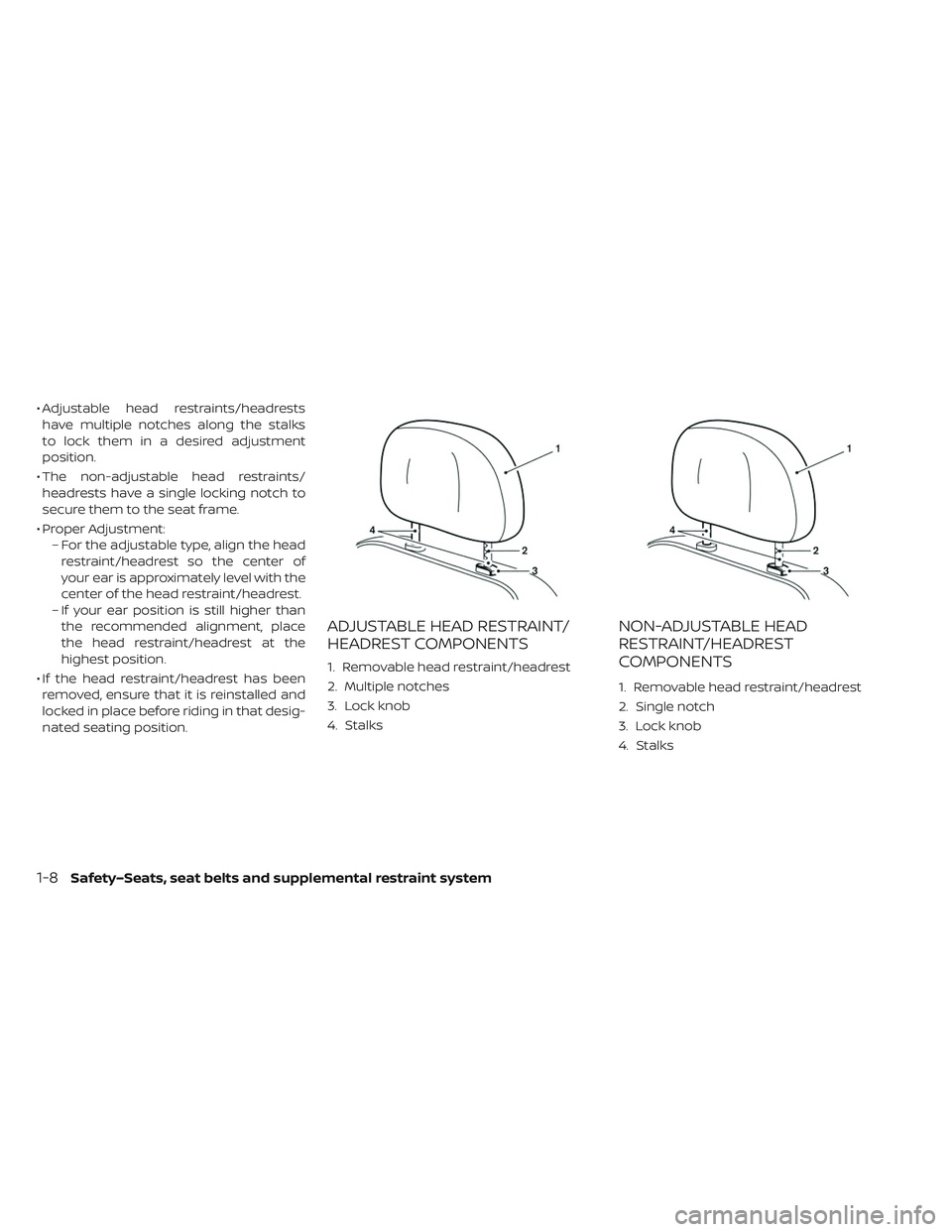

• Adjustable head restraints/headrestshave multiple notches along the stalks
to lock them in a desired adjustment
position.
• The non-adjustable head restraints/ headrests have a single locking notch to
secure them to the seat frame.
• Proper Adjustment: – For the adjustable type, align the headrestraint/headrest so the center of
your ear is approximately level with the
center of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
• If the head restraint/headrest has been removed, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
1-8Safety–Seats, seat belts and supplemental restraint system

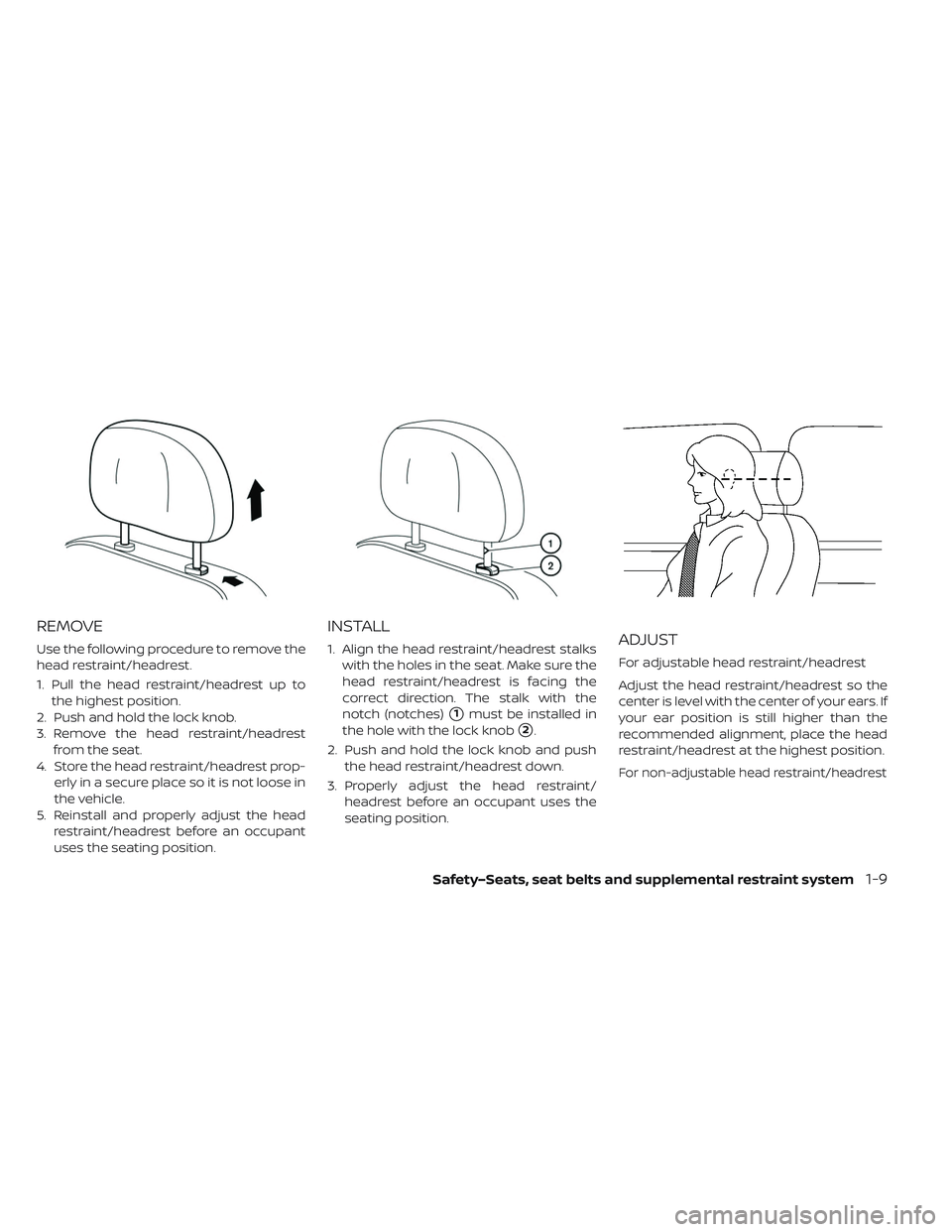

REMOVE
Use the following procedure to remove the
head restraint/headrest.
1. Pull the head restraint/headrest up tothe highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest prop- erly in a secure place so it is not loose in
the vehicle.
5. Reinstall and properly adjust the head restraint/headrest before an occupant
uses the seating position.
INSTALL
1. Align the head restraint/headrest stalkswith the holes in the seat. Make sure the
head restraint/headrest is facing the
correct direction. The stalk with the
notch (notches)
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/ headrest before an occupant uses the
seating position.
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the
center is level with the center of your ears. If
your ear position is still higher than the
recommended alignment, place the head
restraint/headrest at the highest position.
For non-adjustable head restraint/headrest
Safety–Seats, seat belts and supplemental restraint system1-9
