Page 451 of 610

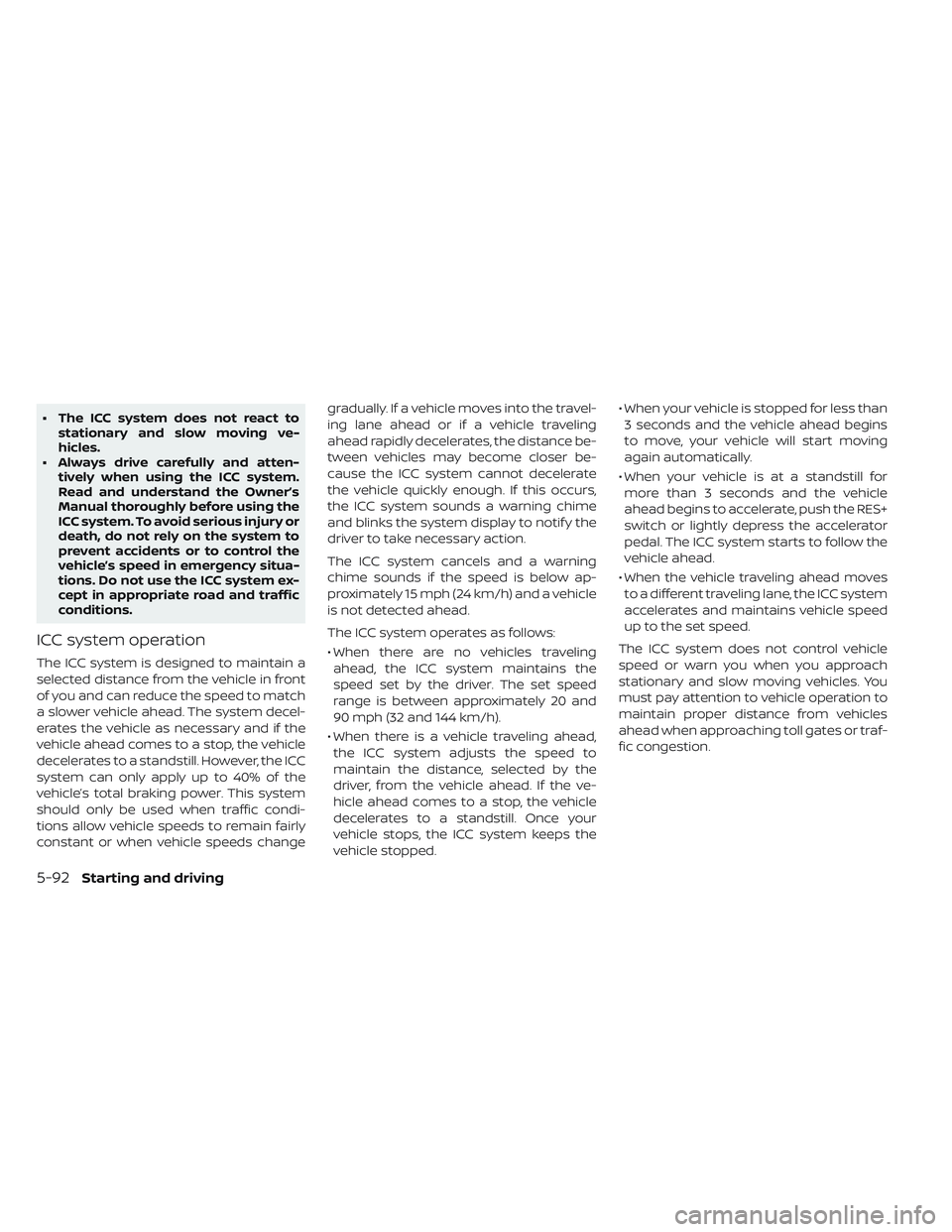

NISSAN LEAF 2019  Owner´s Manual • The ICC system does not react tostationary and slow moving ve-
hicles.
• Always drive carefully and atten- tively when using the ICC system.
Read and understand the Owner’s
Manual thoroughly b

Page 452 of 610

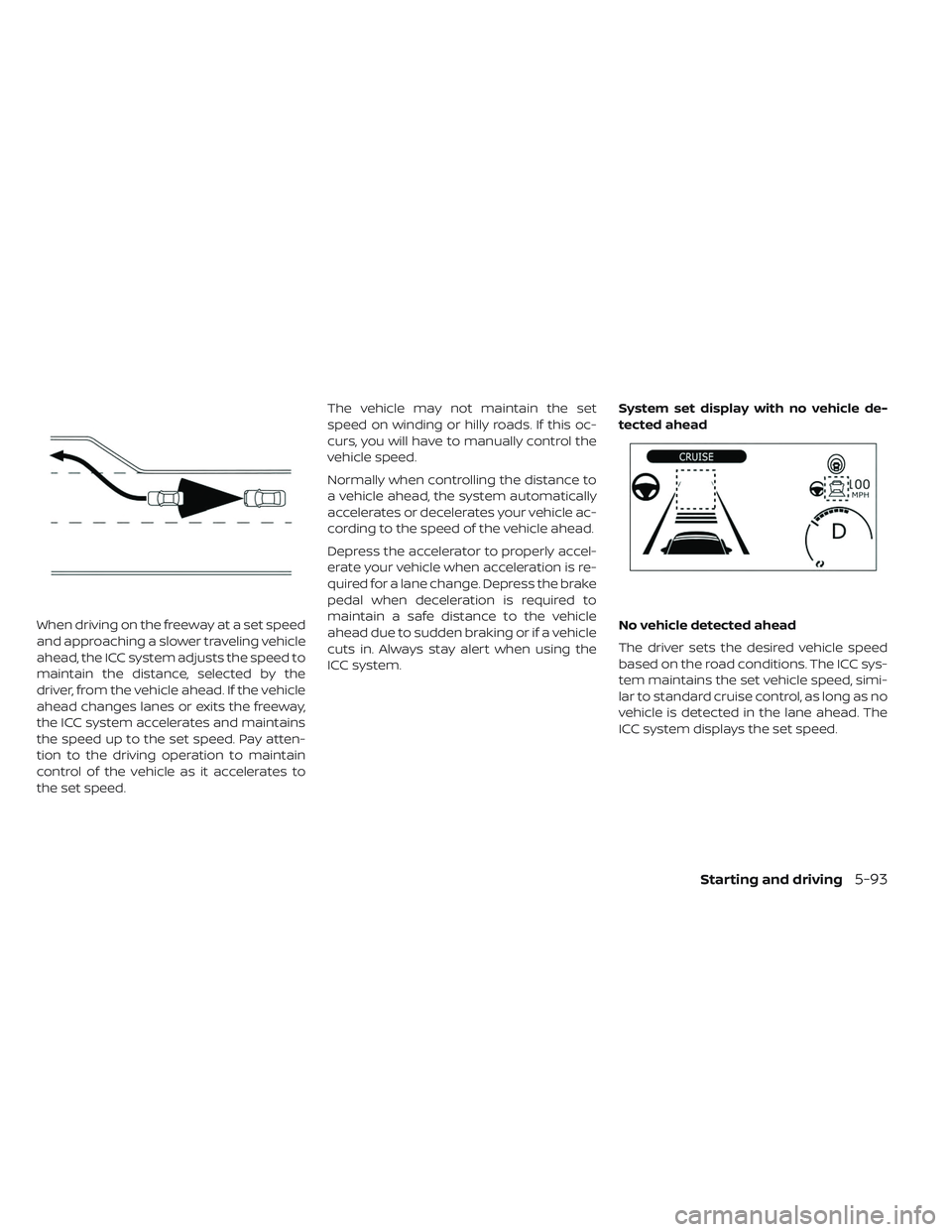

NISSAN LEAF 2019  Owner´s Manual When driving on the freeway at a set speed
and approaching a slower traveling vehicle
ahead, the ICC system adjusts the speed to
maintain the distance, selected by the
driver, from the vehicle ahead.

Page 453 of 610

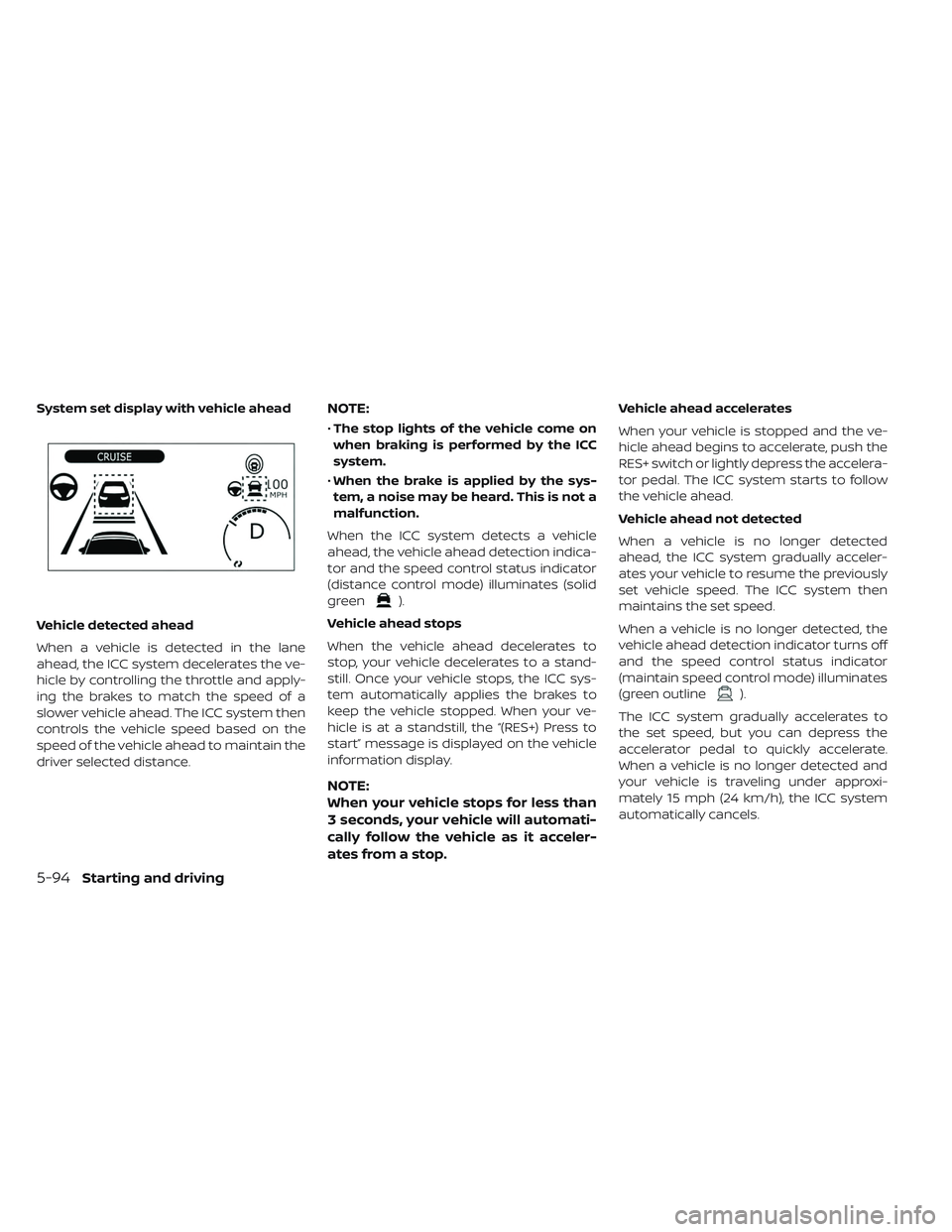

NISSAN LEAF 2019  Owner´s Manual Vehicle detected ahead
When a vehicle is detected in the lane
ahead, the ICC system decelerates the ve-
hicle by controlling the throttle and apply-
ing the brakes to match the speed of a
slower vehic

Page 454 of 610

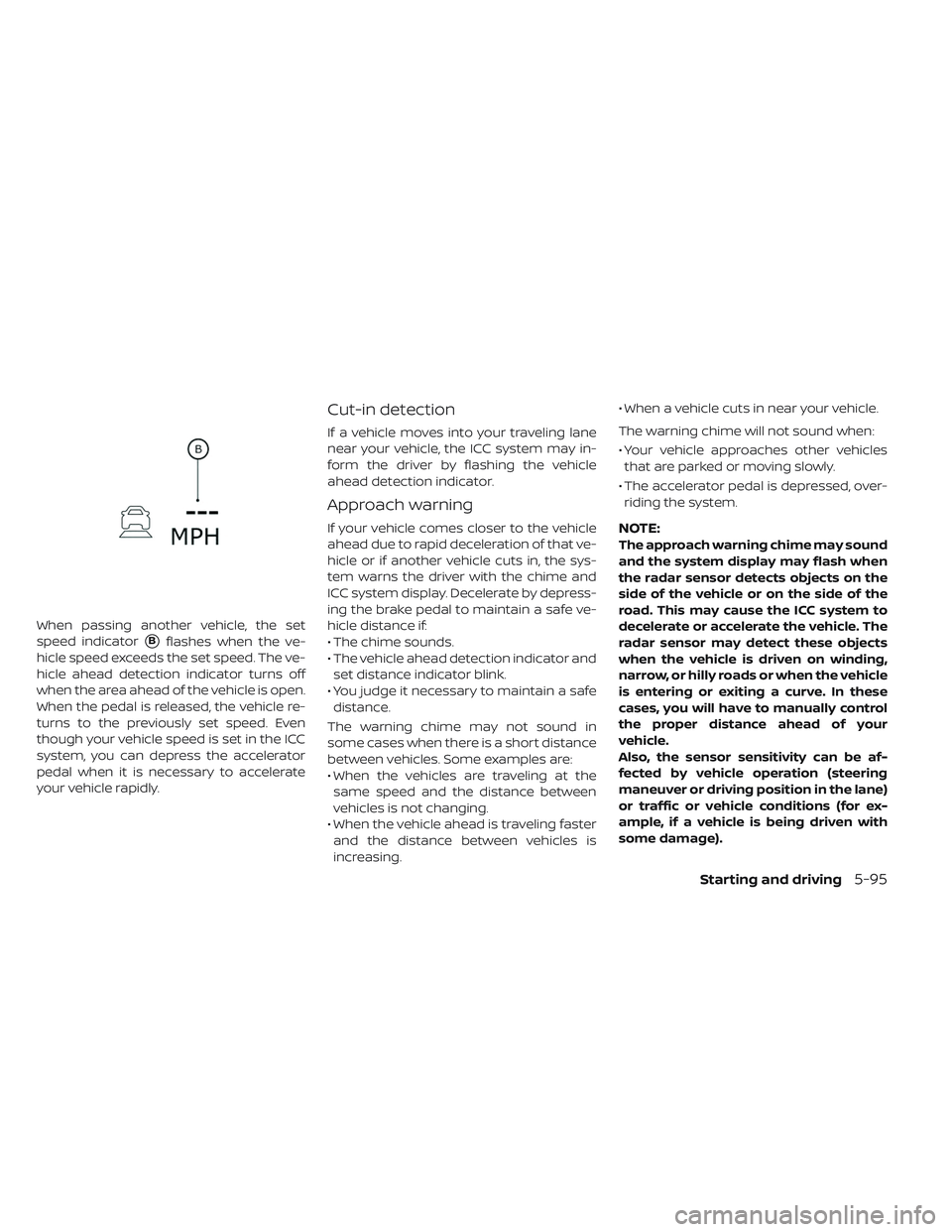

NISSAN LEAF 2019  Owner´s Manual When passing another vehicle, the set
speed indicator
Bflashes when the ve-
hicle speed exceeds the set speed. The ve-
hicle ahead detection indicator turns off
when the area ahead of the vehicle is

Page 455 of 610

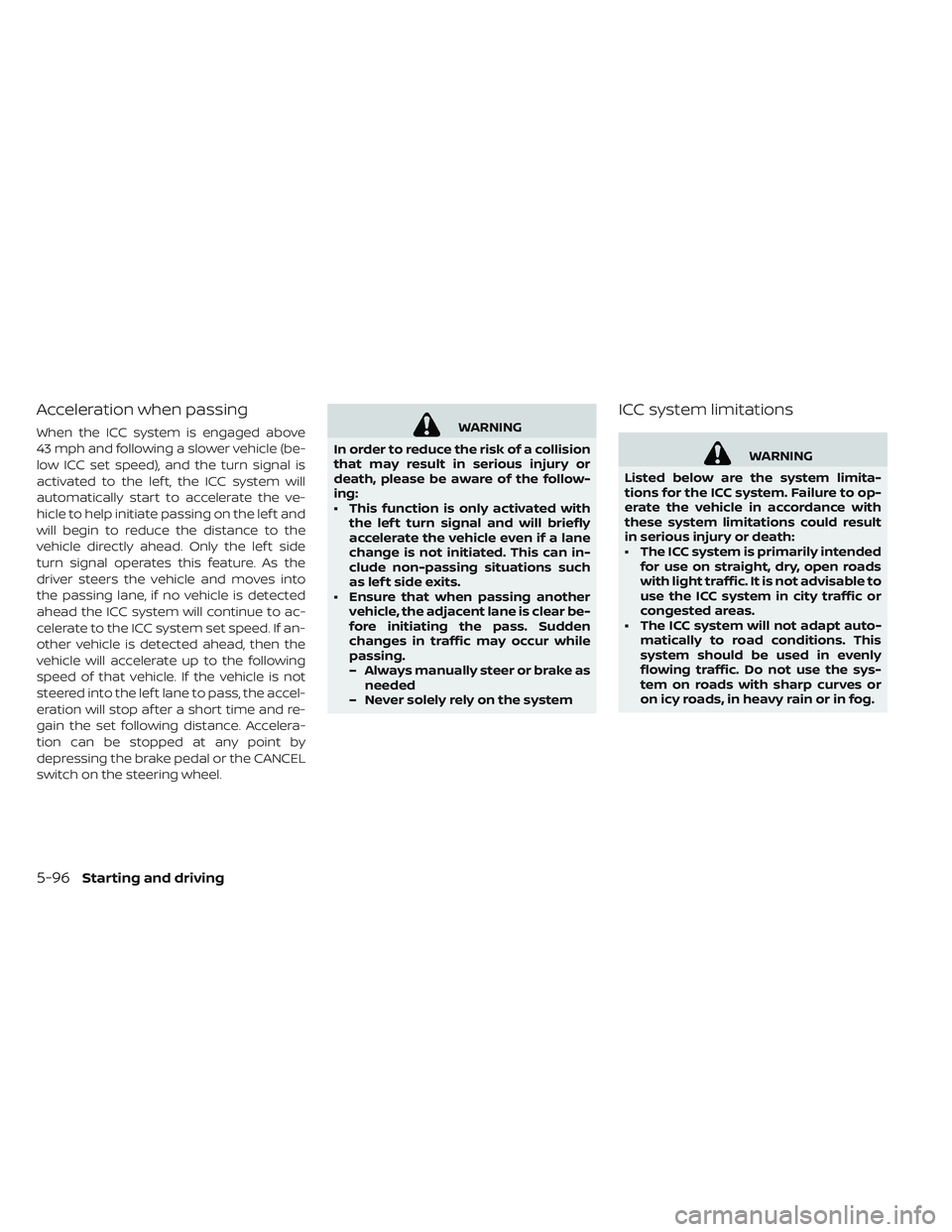

NISSAN LEAF 2019  Owner´s Manual Acceleration when passing
When the ICC system is engaged above
43 mph and following a slower vehicle (be-
low ICC set speed), and the turn signal is
activated to the lef t, the ICC system will
automat

Page 456 of 610

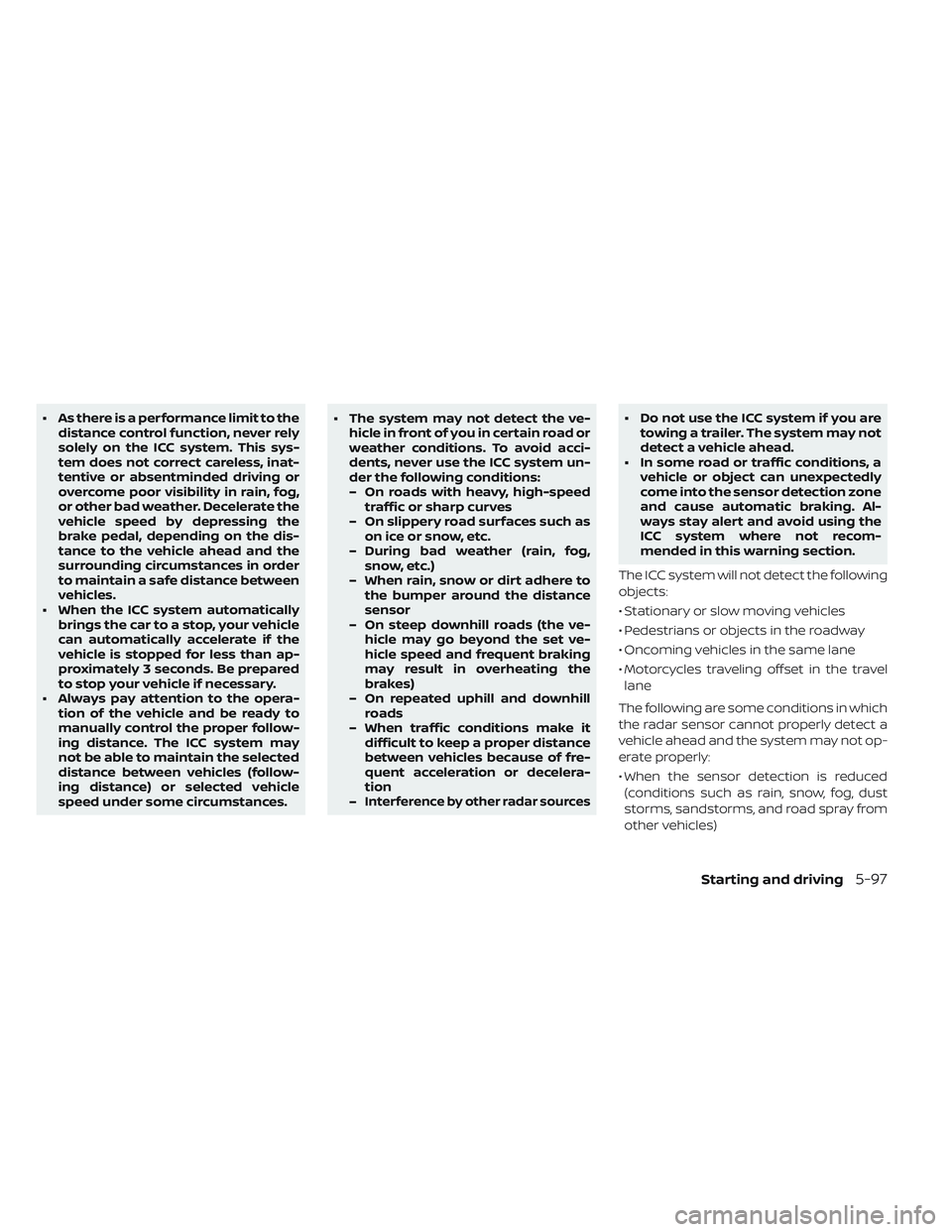

NISSAN LEAF 2019  Owner´s Manual • As there is a performance limit to thedistance control function, never rely
solely on the ICC system. This sys-
tem does not correct careless, inat-
tentive or absentminded driving or
overcome poo

Page 457 of 610

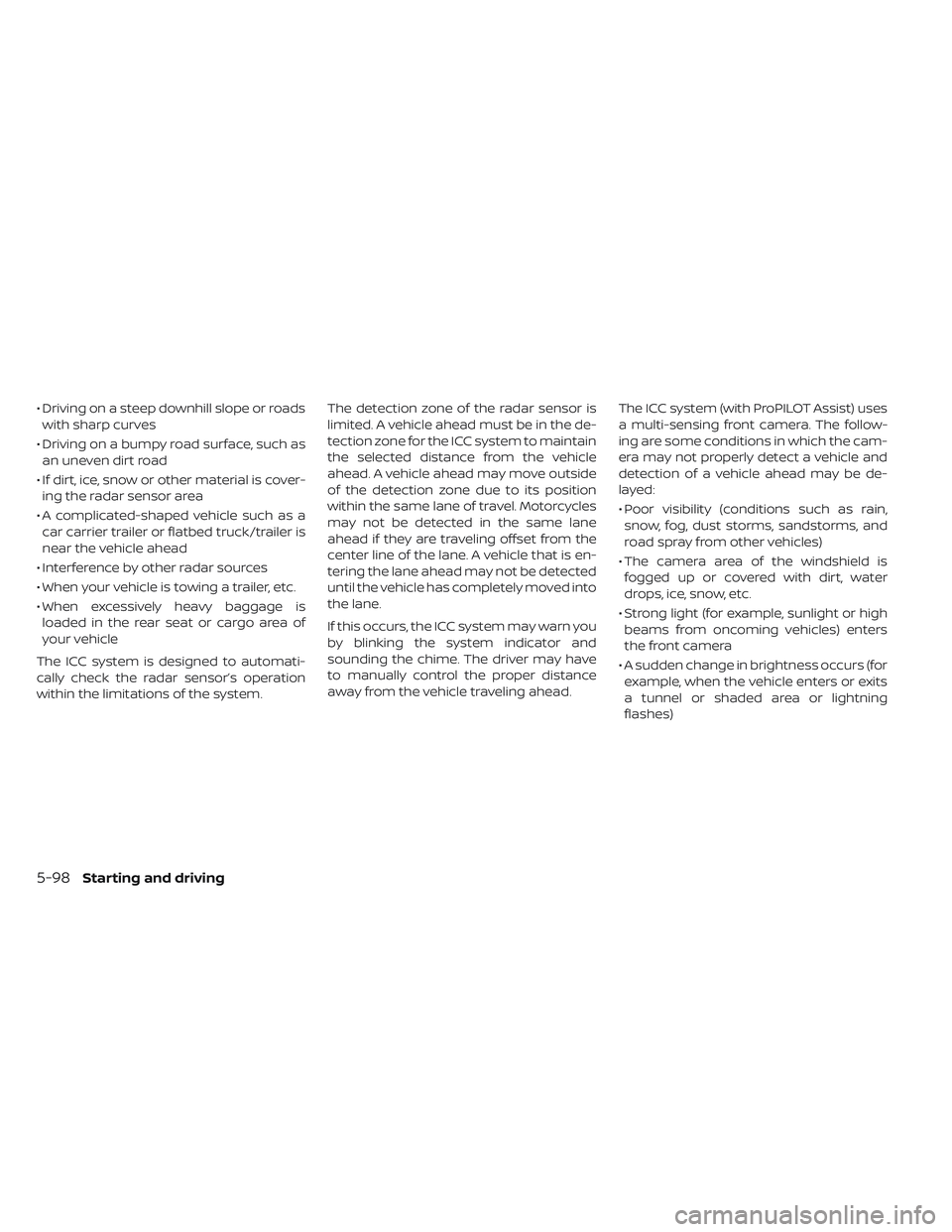

NISSAN LEAF 2019  Owner´s Manual • Driving on a steep downhill slope or roadswith sharp curves
• Driving on a bumpy road surface, such as an uneven dirt road
• If dirt, ice, snow or other material is cover- ing the radar sensor

Page 458 of 610

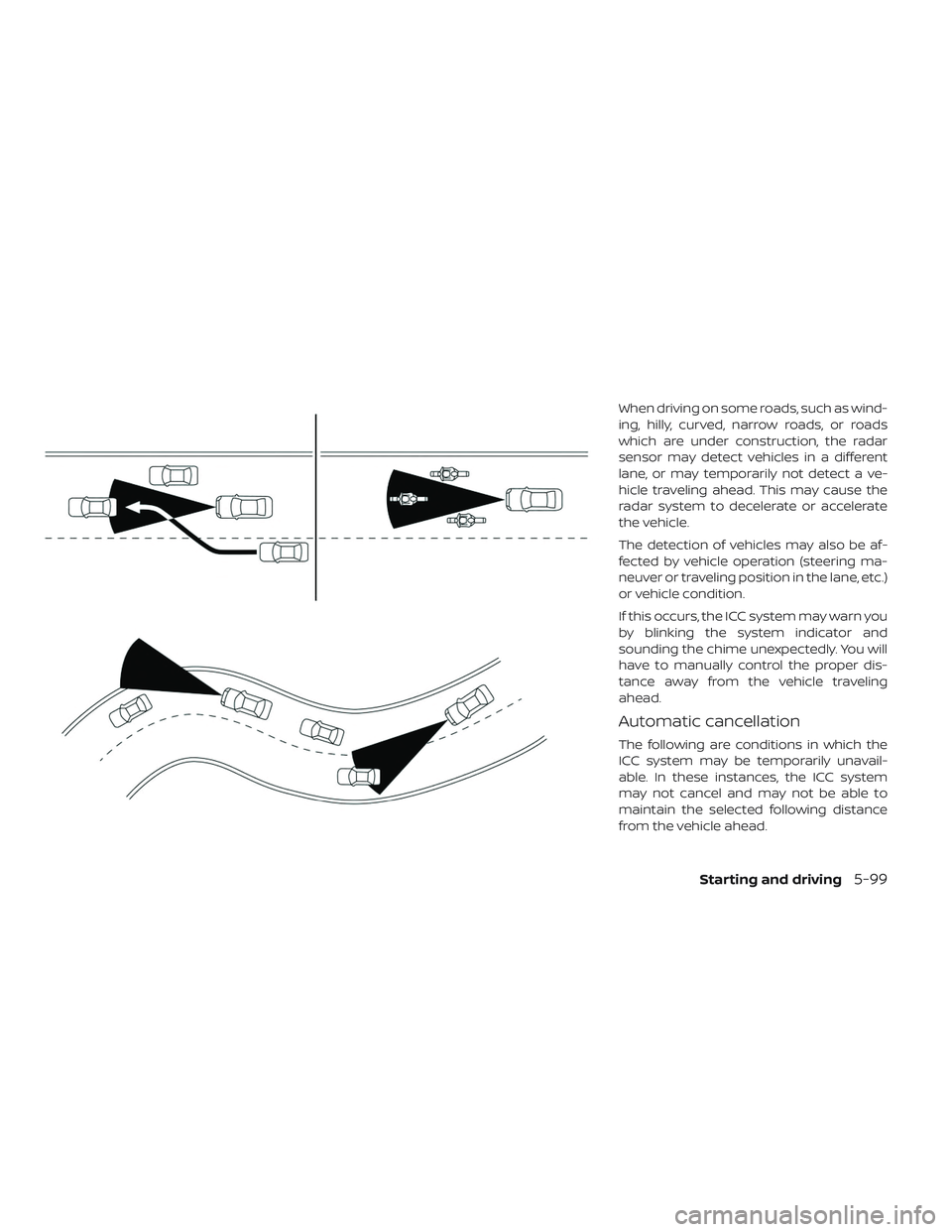

NISSAN LEAF 2019  Owner´s Manual When driving on some roads, such as wind-
ing, hilly, curved, narrow roads, or roads
which are under construction, the radar
sensor may detect vehicles in a different
lane, or may temporarily not dete

Page 459 of 610

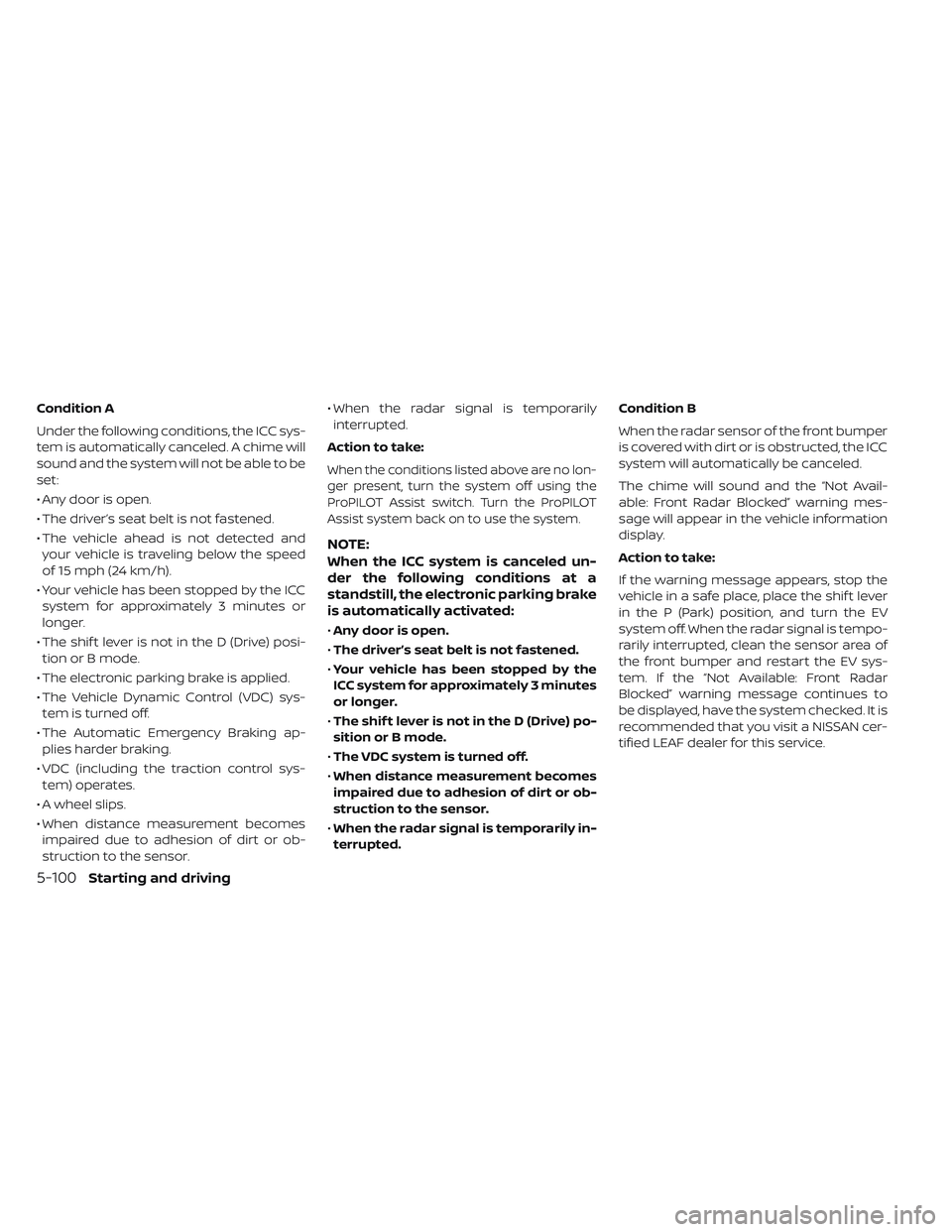

NISSAN LEAF 2019  Owner´s Manual Condition A
Under the following conditions, the ICC sys-
tem is automatically canceled. A chime will
sound and the system will not be able to be
set:
• Any door is open.
• The driver’s seat belt

Page 460 of 610

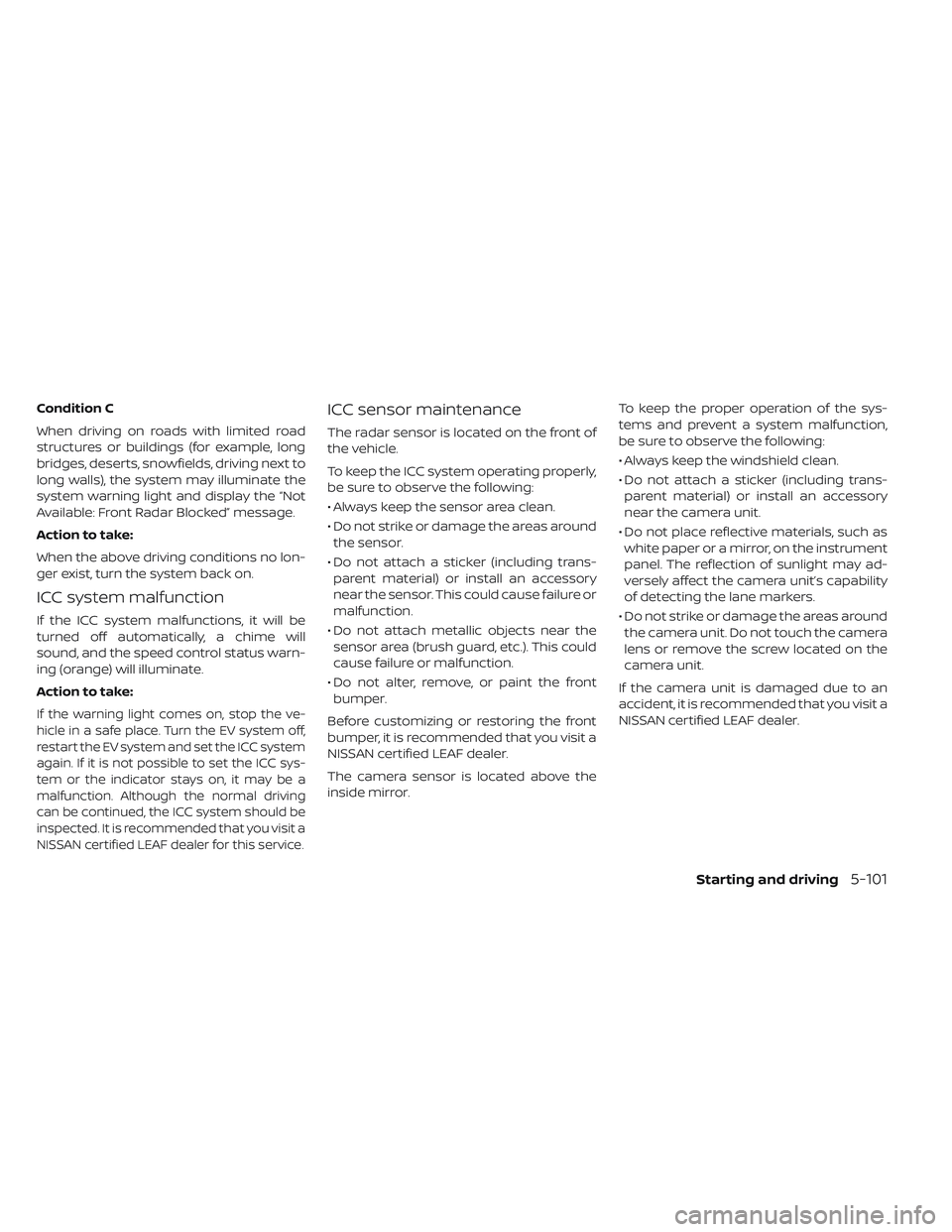

NISSAN LEAF 2019  Owner´s Manual Condition C
When driving on roads with limited road
structures or buildings (for example, long
bridges, deserts, snowfields, driving next to
long walls), the system may illuminate the
system warning l
