SECONDARY TRUNK LID RELEASE
(if so equipped)
To open the trunk lid from the rear seat:1
●Fold down the center arm rest.
●Insert the mechanical key into the trunk com-
partment access lid lock. Fold down the
trunk compartment access lid. For more in-
formation on the mechanical key, see
“NISSAN Intelligent Key™” earlier in this sec-
tion.
●Pull the rear seat trunk release handle.
To close, push the trunk lid down securely.
INTERIOR TRUNK LID RELEASE
WARNING
Closely supervise children when they are
around cars to prevent them from playing
and becoming locked in the trunk where
they could be seriously injured. Keep the
car locked, with the rear seatback and
trunk lid securely latched when not in use,
and prevent children’s access to car keys.
The interior trunk lid release mechanism provides
a means of escape for children and adults in the
event they become locked inside the trunk.To open the trunk from the inside, pull the illumi-
nated release handle until the lock releases and
push up on the trunk lid. The release handle is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle is located inside the trunk compart-
ment on the interior of the trunk lid.
LPD0459WIC1401
3-20Pre-driving checks and adjustments
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


OPENING THE FUEL-FILLER DOOR
The fuel-filler door automatically unlocks when all
doors are unlocked.
1. Unlock the fuel-filler door using one of the
following operations.
●Unlock all doors with the keyfob.
●Unlock all doors with the key.
●Press the power door lock switch to the
unlock position.
2. To open the fuel filler door, push the right
side of the fuel filler door to release.
To lock, close the fuel-filler door securely and
lock the doors.
FUEL-FILLER CAP
The fuel-filler cap is a ratcheting type. Turn the
cap counterclockwise to remove. To tighten, turn
the cap clockwise until ratcheting clicks are
heard.
Put the fuel-filler cap on the cap holder
1while
refueling.
WARNING
●Gasoline is extremely flammable and
highly explosive under certain condi-
tions. You could be burned or seriously
injured if it is misused or mishandled.
Always stop the engine and do not
smoke or allow open flames or sparks
near the vehicle when refueling.
●Do not attempt to top off the fuel tank
after the fuel pump nozzle shuts off
automatically. Continued refueling may
cause fuel overflow, resulting in fuel
spray and possibly a fire.
●Use only an original equipment type
fuel-filler cap as a replacement. It has a
built-in safety valve needed for proper
operation of the fuel system and emis-
sion control system. An incorrect cap
can result in a serious malfunction and
possible injury. It could also cause the
malfunction indicator light to come on.
●Never pour fuel into the throttle body to
attempt to start your vehicle.
WPD0454WIC1402
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-21
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie

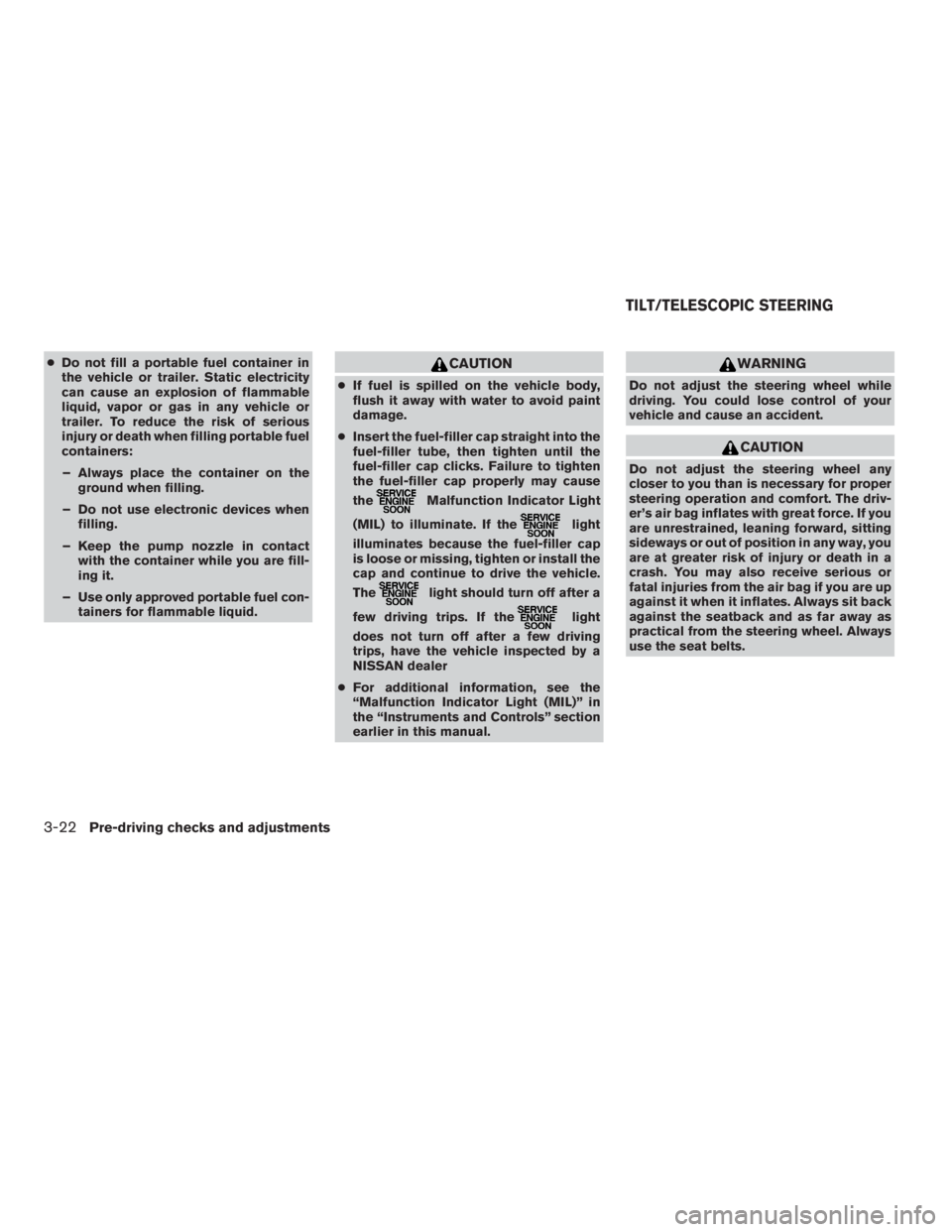

●Do not fill a portable fuel container in
the vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable fuel
containers:
– Always place the container on the
ground when filling.
– Do not use electronic devices when
filling.
– Keep the pump nozzle in contact
with the container while you are fill-
ing it.
– Use only approved portable fuel con-
tainers for flammable liquid.CAUTION
●If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
●Insert the fuel-filler cap straight into the
fuel-filler tube, then tighten until the
fuel-filler cap clicks. Failure to tighten
the fuel-filler cap properly may cause
the
Malfunction Indicator Light
(MIL) to illuminate. If the
light
illuminates because the fuel-filler cap
is loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light
does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer
●For additional information, see the
“Malfunction Indicator Light (MIL)” in
the “Instruments and Controls” section
earlier in this manual.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
CAUTION
Do not adjust the steering wheel any
closer to you than is necessary for proper
steering operation and comfort. The driv-
er’s air bag inflates with great force. If you
are unrestrained, leaning forward, sitting
sideways or out of position in any way, you
are at greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you are up
against it when it inflates. Always sit back
against the seatback and as far away as
practical from the steering wheel. Always
use the seat belts.
TILT/TELESCOPIC STEERING
3-22Pre-driving checks and adjustments
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


AUTOMATIC OPERATION (if so
equipped)
Tilt operation
Push the switch1up or down to adjust the
steering wheel to the desired position.
Entry/Exit function
The automatic drive positioner system will make
the steering wheel move up automatically when
the driver’s door is opened and the ignition
switch is in the LOCK position. This lets the driver
get into and out of the seat more easily. The
steering wheel moves back into position when
the driver’s door is closed and the ignition switch
is pushed.
For more information, see “Automatic drive posi-
tioner” later in this section.
Telescopic operation
Push the switch1forward or backward to ad-
just the steering wheel to the desired position.
MANUAL OPERATION (if so
equipped)
Tilt and telescopic operation
Pull the lock lever1all the way towards you:
●Adjust the steering wheel forward or back-
ward in direction
2to the desired position.
●Adjust the steering wheel up or down in
direction
3to the desired position.
Lock the steering wheel by releasing the lock
lever. Make sure the lock lever has returned to its
original position to lock the steering wheel in
place.
LPD0458LPD0457
Pre-driving checks and adjustments3-23
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
1To block glare from the front, swing down the
main sun visor.
2To block glare from the side, remove the
main sun visor from the center mount and
swing the visor to the side.
3Slide the extension sun visor in or out as
needed.
CAUTION
●Do not store the sun visor before return-
ing the extension to its original
position.
●Do not pull the extension sun visor forc-
edly downward.
WPD0297
SUN VISORS
3-24Pre-driving checks and adjustments
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


VANITY MIRRORS
To access the vanity mirror, pull the sun visor
down and flip open the mirror cover. The vanity
mirror will illuminate when the mirror cover is
open.
AUTOMATIC ANTI-GLARE
REARVIEW MIRROR
The inside mirror is designed so that it automati-
cally dims during night time conditions and ac-
cording to the intensity of the headlights of the
vehicle following you. The automatic anti-glare
feature is activated when the ignition switch is
placed in the ON position.
NOTE:
Do not hang any objects over the sensors
1or apply glass cleaner to the sensors.
Doing so will reduce the sensitivity of the
sensors, resulting in improper operation.
Type A
The indicator light2will illuminate when the
automatic anti-glare feature is operating.
With the ignition switch placed in the ON posi-
tion, press the
button as described:
●To turn off the anti-glare feature, push
the
button. The indicator light will turn
off.
●To turn on the anti-glare feature, push
the
button again. The indicator light
will turn on.
WPD0324
Type A
WPD0446
MIRRORS
Pre-driving checks and adjustments3-25
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


Type B and Type C
The indicator light2will illuminate when the
automatic anti-glare feature is operating.
To turn off the automatic anti-glare feature, press:
●the O button for inside mirrors without
compass.
●the
button for inside mirrors with
compass.
The indicator light will turn off.To turn on the automatic anti-glare feature again,
press:
●the | button for inside mirrors without
compass.
●the
button for inside mirrors with
compass.
The indicator light will turn on.
Some vehicles are also equipped with automatic
anti-glare outside mirrors. For additional informa-
tion, see “Automatic anti-glare outside mirrors”
later in this section.For information on HomeLinkUniversal Trans-
ceiver operation, see the “HomeLinkUniversal
Transceiver” in the “Instrument and controls” sec-
tion of this manual.
For information on the compass display (if so
equipped) , see “Compass display” in the “Instru-
ments and controls” section of this manual.
Type B-Without compass
LPD0469
Type C-With compass
LPD0470
3-26Pre-driving checks and adjustments
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


OUTSIDE MIRRORS
The outside mirror remote control will operate
only when the ignition switch is in the ACC or ON
position.
Move the small switch
1to select the right or left
mirror. Adjust each mirror to the desired position
using the large switch
2.
WARNING
●Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
●Do not adjust the mirrors while driving.
You could lose control of your vehicle
and cause an accident.
Automatic anti-glare outside mirrors (if
so equipped)
The driver’s outside mirror will automatically dim
during nighttime conditions to reduce the glare
from the headlights of trailing vehicles. The auto-
matic anti-glare feature operates only when the
ignition switch is placed in the ON position.
The automatic anti-glare feature will be on when
starting the vehicle. The indicator light on the
automatic anti-glare rearview mirror will illuminate
when the automatic anti-glare feature is on.To turn off the automatic anti-glare feature, press:
●the O button on rearview mirror without
compass (Type B) .
●the
button on rearview mirror with
compass (Type C) .
The indicator light will turn off.
To turn on the automatic anti-glare feature again,
press:
●the | button on rearview mirror without
compass (Type B) .
●the
button on rearview mirror
equipped with compass (Type C) .
The indicator light will turn on.
For information on the automatic anti-glare rear-
view mirror, see “Automatic anti-glare rearview
mirror” earlier in this section.LPD0237
Pre-driving checks and adjustments3-27
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie


Foldable outside mirrors
Pull the outside mirror toward the door to fold it.
Reverse tilt-down feature (if so
equipped)
The reverse tilt-down feature will turn both out-
side mirror surfaces downward to provide better
rear visibility close to the vehicle.
Move the shift selector to R (Reverse) . Both
mirrors will turn downward.The mirror surfaces will return to their original
position when any of the following have occurred:
●The shift selector is moved to any position
other than R (Reverse) .
●The outside mirror control switch is set to the
neutral or center position.
●The ignition switch is placed in the OFF
position.
NOTE:
If the outside mirror control switch is in the
neutral position, neither mirror will turn
downward when the shift selector is moved
to R (Reverse) .
For more information regarding this feature, refer
to “Automatic drive positioner” later in this sec-
tion.
Heated mirrors (if so equipped)
The electric control type outside mirrors (if so
equipped) can be heated to defrost, defog, or
de-ice for improved visibility. Press the rear win-
dow defogger switch to activate the heating
function. Press the switch again to deactivate, or
the heating function will automatically turn off
after approximately 15 minutes.The automatic drive positioner system has two
features:
●Memory storage function
●Entry/exit function
MPA0008
AUTOMATIC DRIVE POSITIONER (if
so equipped)
3-28Pre-driving checks and adjustments
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/21/08—tbrooks


MEMORY STORAGE FUNCTION
Two positions for the driver’s seat, steering col-
umn, and outside mirrors can be stored in the
automatic drive positioner memory. Follow these
procedures to use the memory system.
1. Set the Continuously Variable Transmission
(CVT) shift selector to the P (Park) position.
2. Place the ignition in the ON position.
3. Adjust the driver’s seat, steering column,
and outside mirrors to the desired positions
by manually operating each adjusting
switch. For additional information, see
“Seats” in the “Safety—Seats, seat belts andsupplemental restraint system” section and
“Pedal position adjustment” and “Outside
mirrors” earlier in this section.
During this step, do not place the ignition
switch in any position other than ON.
4. Push the SET switch and, within 5 seconds,
push the memory switch (1 or 2) .
The indicator light for the pushed memory
switch will come on and stay on for approxi-
mately 5 seconds after pushing the switch.
After the indicator light goes off, the se-
lected positions are stored in the selected
memory (1 or 2) .
If a new memory is stored in the same memory
switch, the previous memory will be deleted.
Linking a keyfob to a stored memory
position
Each keyfob can be linked to a stored memory
position (memory switch 1 or 2) with the follow-
ing procedure.
1. Follow the steps for storing a memory posi-
tion.
2. While the indicator light for the memory
switch being set is illuminated for 5 sec-
onds, press the
button on the keyfob.
The indicator light will blink. After the indica-tor light goes off, the keyfob is linked to that
memory setting.
With the ignition switch placed in the OFF posi-
tion, press the
button on the keyfob. The
driver’s seat and outside mirrors will move to the
memorized position.
NOTE:
If a new memory position is saved to the
memory switch, the keyfob automatically
re-links.
Procedure for storing the outside
mirror positions for best visibility when
backing up
An outside mirror position for backing up can be
stored for each memory switch (1 and 2) .
1. Set the parking brake.
2. Place the ignition switch in the ON position.
(Do not start the engine.)
3. Push the memory switch 1 or 2 fully for at
least 1 second to operate the automatic
drive positioner.
4. Place the outside mirror control switch to the
L (left) position.
5. Depress the brake pedal.
WIC1403
Pre-driving checks and adjustments3-29
REVIEW COPY—2009 Maxima(max)
Owners Manual—USA_English(nna)
10/20/08—debbie
