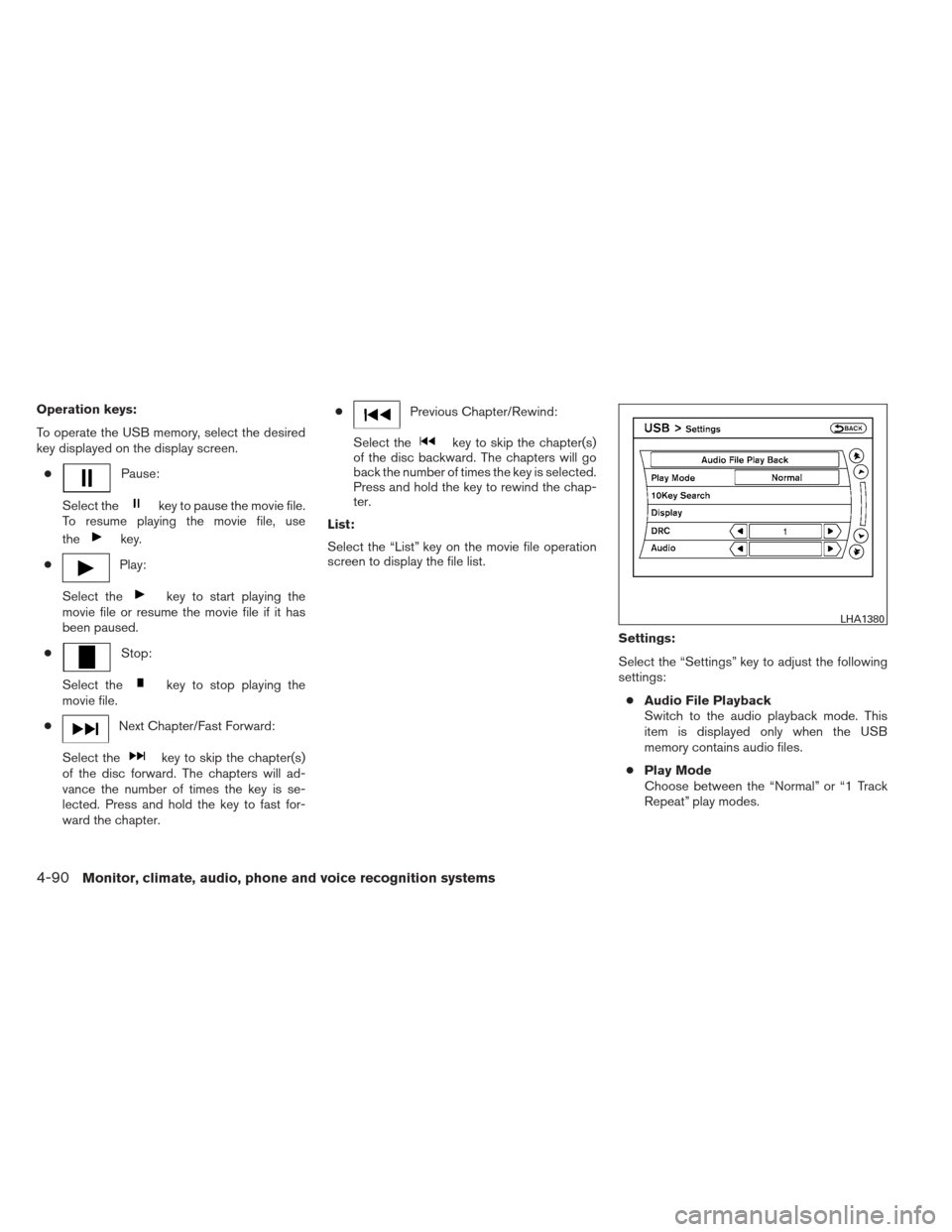

Operation keys:
To operate the USB memory, select the desired
key displayed on the display screen.●
Pause:
Select the
key to pause the movie file.
To resume playing the movie file, use
the
key.
●
Play:
Select the
key to start playing the
movie file or resume the movie file if it has
been paused.
●
Stop:
Select the
key to stop playing the
movie file.
●
Next Chapter/Fast Forward:
Select the
key to skip the chapter(s)
of the disc forward. The chapters will ad-
vance the number of times the key is se-
lected. Press and hold the key to fast for-
ward the chapter. ●
Previous Chapter/Rewind:
Select the
key to skip the chapter(s)
of the disc backward. The chapters will go
back the number of times the key is selected.
Press and hold the key to rewind the chap-
ter.
List:
Select the “List” key on the movie file operation
screen to display the file list.
Settings:
Select the “Settings” key to adjust the following
settings:● Audio File Playback
Switch to the audio playback mode. This
item is displayed only when the USB
memory contains audio files.
● Play Mode
Choose between the “Normal” or “1 Track
Repeat” play modes.
LHA1380
4-90Monitor, climate, audio, phone and voice recognition systems

●10 Key Search
Select the “10 Key Search” key to open the
number entry screen. Input the number you
want to search for and the specified file or
folder will be played.
● Display
Adjust the image quality of the screen.
● DRC
DRC (Dynamic Range Compression) auto-
matically adjusts the soundtrack volume
level to maintain a more even sound to the
speakers.
● Audio
Choose the preferred language of the audio.
● Subtitle
Choose the preferred language of the sub-
titles.
● Display Mode
Choose between the “Normal”, “Wide”,
“Cinema” or “Full” display modes.
iPod* PLAYER OPERATION
WITHOUT NAVIGATION SYSTEM (if
so equipped)
Connecting iPod
To connect an iPod to the vehicle so that the
iPod can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Connect the
iPod-specific end of the cable to the iPod and
the USB end of the cable to the USB jack on the
vehicle
1. If your iPod supports charging via a
USB connection, its battery will be charged while
connected to the vehicle with the ignition switch
in the ACC or ON position. While connected to the vehicle, the iPod
can
only be operated by the vehicle audio controls.
To disconnect the iPod from the vehicle, remove
the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod 5th Generation - version 1.2.1
● iPod Classic - version 1.1
● iPod Touch - version 2.1.0
● iPod Nano - 1st generation version 1.3.1
● iPod Nano - 2nd generation version 1.1.3
● iPod Nano - 3rd generation version 1.0.2
Make sure that your iPod firmware is updated to
the version indicated above.
LHA2030
Monitor, climate, audio, phone and voice recognition systems4-91

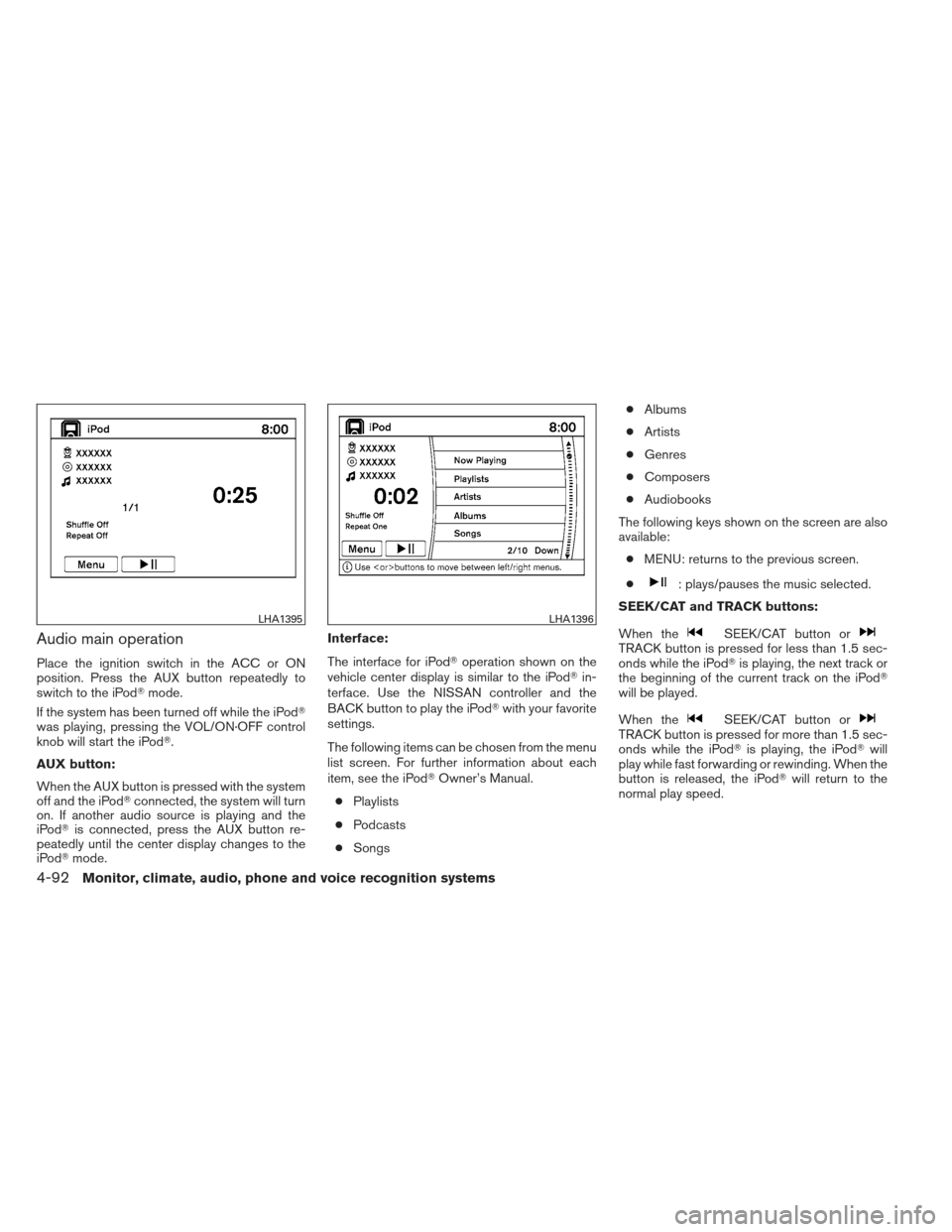

Audio main operation
Place the ignition switch in the ACC or ON
position. Press the AUX button repeatedly to
switch to the iPodmode.
If the system has been turned off while the iPod
was playing, pressing the VOL/ON·OFF control
knob will start the iPod.
AUX button:
When the AUX button is pressed with the system
off and the iPod connected, the system will turn
on. If another audio source is playing and the
iPod is connected, press the AUX button re-
peatedly until the center display changes to the
iPod mode. Interface:
The interface for iPod
operation shown on the
vehicle center display is similar to the iPod in-
terface. Use the NISSAN controller and the
BACK button to play the iPod with your favorite
settings.
The following items can be chosen from the menu
list screen. For further information about each
item, see the iPod Owner’s Manual.
● Playlists
● Podcasts
● Songs ●
Albums
● Artists
● Genres
● Composers
● Audiobooks
The following keys shown on the screen are also
available: ● MENU: returns to the previous screen.
●
: plays/pauses the music selected.
SEEK/CAT and TRACK buttons:
When the
SEEK/CAT button orTRACK button is pressed for less than 1.5 sec-
onds while the iPod is playing, the next track or
the beginning of the current track on the iPod
will be played.
When the
SEEK/CAT button orTRACK button is pressed for more than 1.5 sec-
onds while the iPod is playing, the iPodwill
play while fast forwarding or rewinding. When the
button is released, the iPod will return to the
normal play speed.
LHA1395LHA1396
4-92Monitor, climate, audio, phone and voice recognition systems

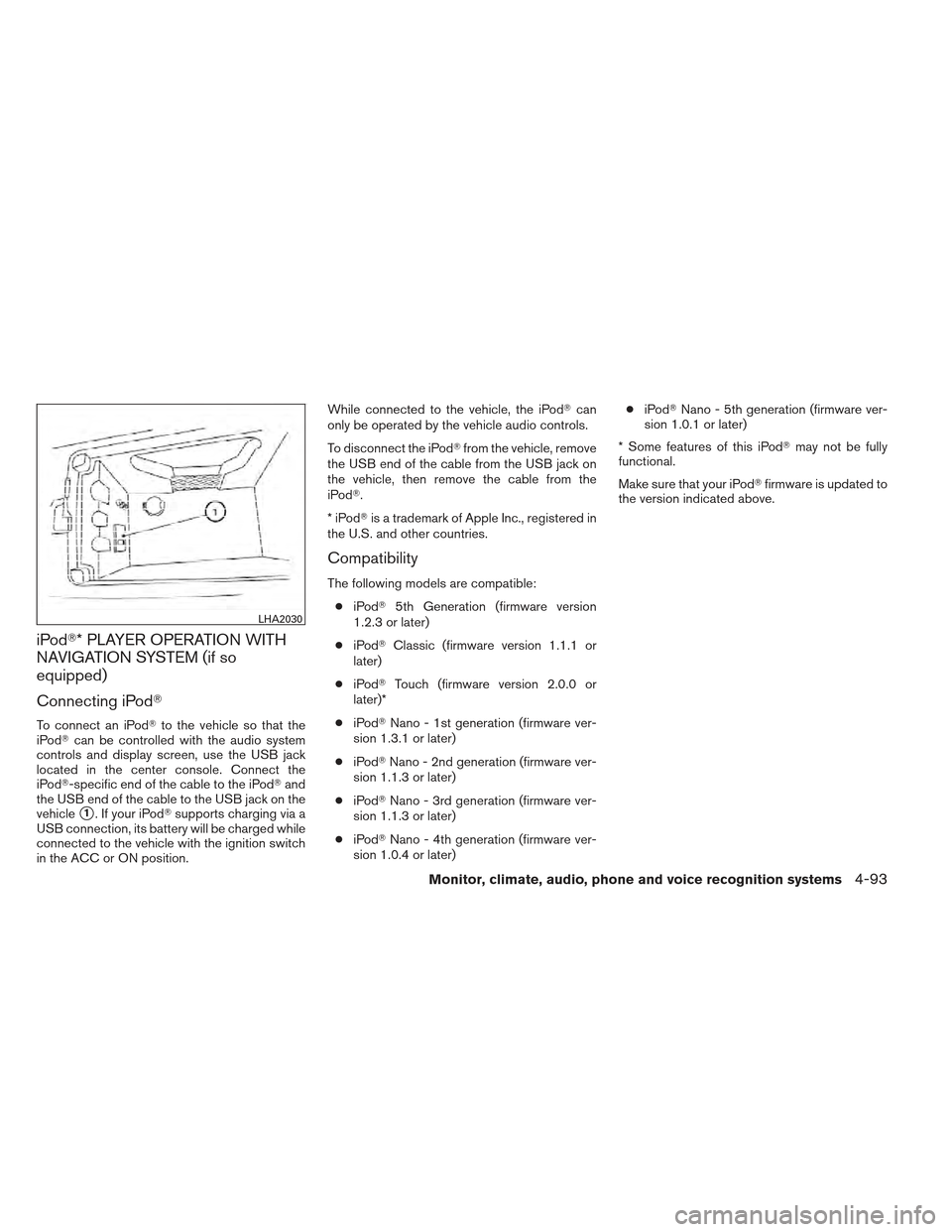

iPod* PLAYER OPERATION WITH
NAVIGATION SYSTEM (if so
equipped)
Connecting iPod
To connect an iPod to the vehicle so that the
iPod can be controlled with the audio system
controls and display screen, use the USB jack
located in the center console. Connect the
iPod-specific end of the cable to the iPod and
the USB end of the cable to the USB jack on the
vehicle
1. If your iPod supports charging via a
USB connection, its battery will be charged while
connected to the vehicle with the ignition switch
in the ACC or ON position. While connected to the vehicle, the iPod
can
only be operated by the vehicle audio controls.
To disconnect the iPod from the vehicle, remove
the USB end of the cable from the USB jack on
the vehicle, then remove the cable from the
iPod.
*iPod is a trademark of Apple Inc., registered in
the U.S. and other countries.
Compatibility
The following models are compatible:
● iPod 5th Generation (firmware version
1.2.3 or later)
● iPod Classic (firmware version 1.1.1 or
later)
● iPod Touch (firmware version 2.0.0 or
later)*
● iPod Nano - 1st generation (firmware ver-
sion 1.3.1 or later)
● iPod Nano - 2nd generation (firmware ver-
sion 1.1.3 or later)
● iPod Nano - 3rd generation (firmware ver-
sion 1.1.3 or later)
● iPod Nano - 4th generation (firmware ver-
sion 1.0.4 or later) ●
iPod Nano - 5th generation (firmware ver-
sion 1.0.1 or later)
* Some features of this iPod may not be fully
functional.
Make sure that your iPod firmware is updated to
the version indicated above.
LHA2030
Monitor, climate, audio, phone and voice recognition systems4-93

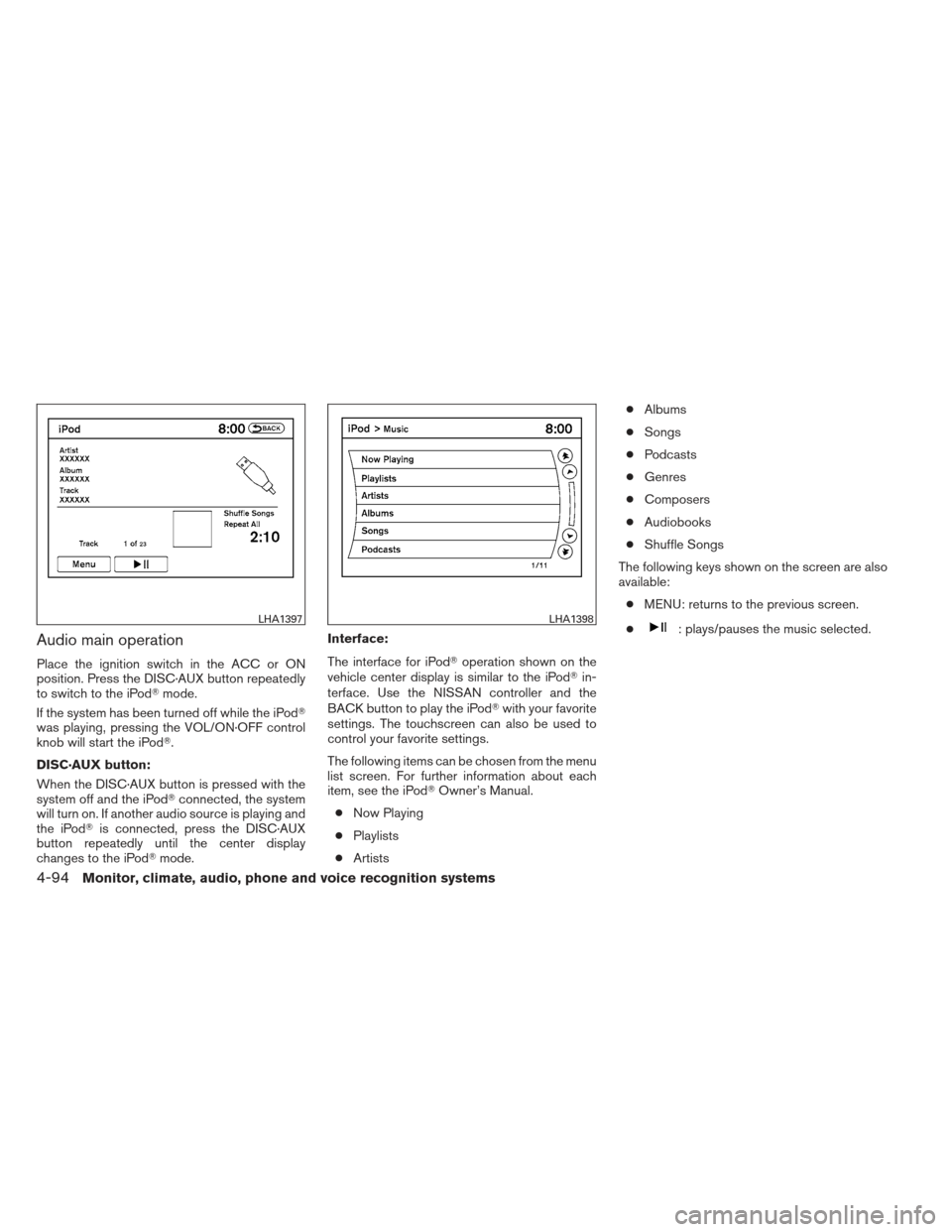

Audio main operation
Place the ignition switch in the ACC or ON
position. Press the DISC·AUX button repeatedly
to switch to the iPodmode.
If the system has been turned off while the iPod
was playing, pressing the VOL/ON·OFF control
knob will start the iPod.
DISC·AUX button:
When the DISC·AUX button is pressed with the
system off and the iPod connected, the system
will turn on. If another audio source is playing and
the iPod is connected, press the DISC·AUX
button repeatedly until the center display
changes to the iPod mode. Interface:
The interface for iPod
operation shown on the
vehicle center display is similar to the iPod in-
terface. Use the NISSAN controller and the
BACK button to play the iPod with your favorite
settings. The touchscreen can also be used to
control your favorite settings.
The following items can be chosen from the menu
list screen. For further information about each
item, see the iPod Owner’s Manual.
● Now Playing
● Playlists
● Artists ●
Albums
● Songs
● Podcasts
● Genres
● Composers
● Audiobooks
● Shuffle Songs
The following keys shown on the screen are also
available: ● MENU: returns to the previous screen.
●
: plays/pauses the music selected.LHA1397LHA1398
4-94Monitor, climate, audio, phone and voice recognition systems

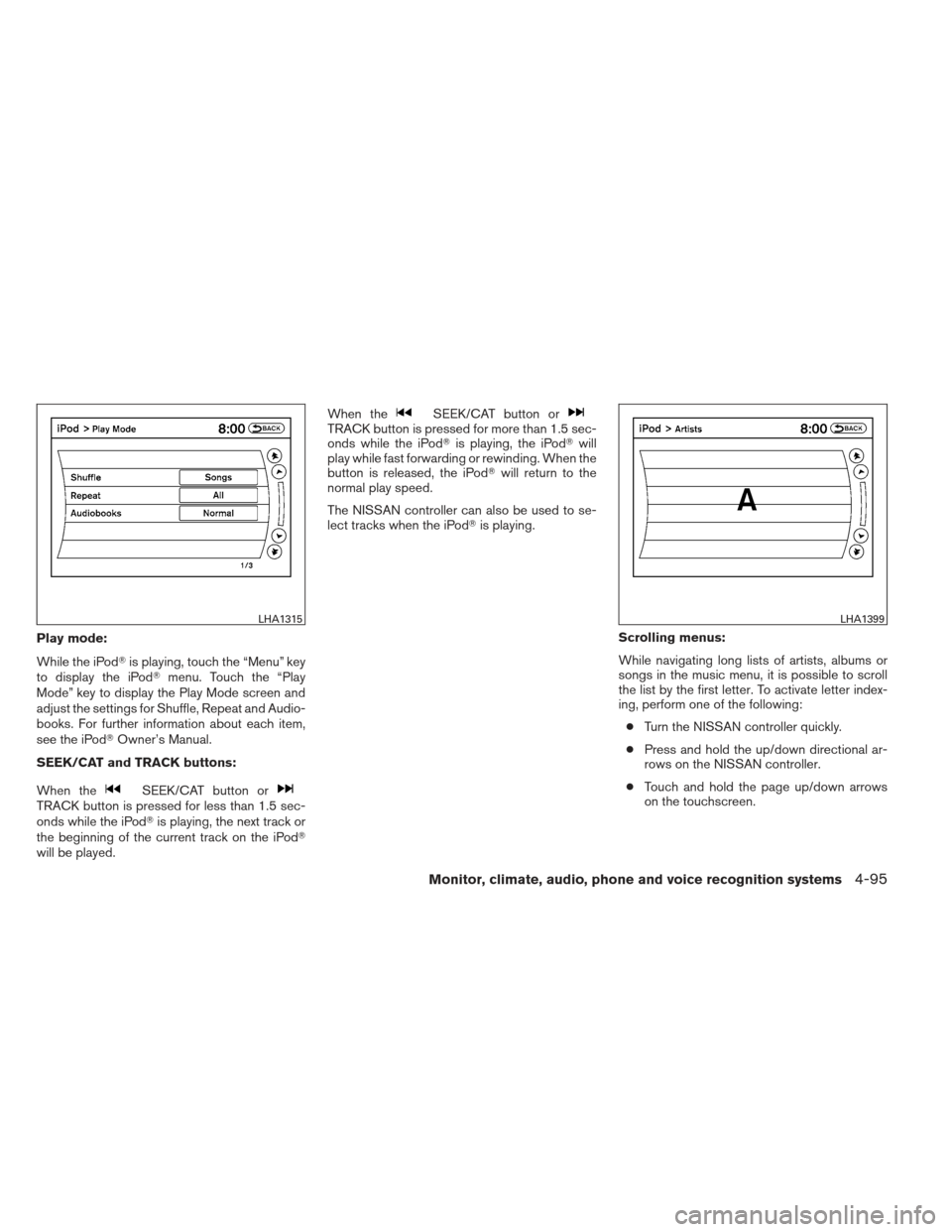

Play mode:
While the iPodis playing, touch the “Menu” key
to display the iPod menu. Touch the “Play
Mode” key to display the Play Mode screen and
adjust the settings for Shuffle, Repeat and Audio-
books. For further information about each item,
see the iPod Owner’s Manual.
SEEK/CAT and TRACK buttons:
When the
SEEK/CAT button orTRACK button is pressed for less than 1.5 sec-
onds while the iPod is playing, the next track or
the beginning of the current track on the iPod
will be played. When the
SEEK/CAT button orTRACK button is pressed for more than 1.5 sec-
onds while the iPod
is playing, the iPodwill
play while fast forwarding or rewinding. When the
button is released, the iPod will return to the
normal play speed.
The NISSAN controller can also be used to se-
lect tracks when the iPod is playing.
Scrolling menus:
While navigating long lists of artists, albums or
songs in the music menu, it is possible to scroll
the list by the first letter. To activate letter index-
ing, perform one of the following:● Turn the NISSAN controller quickly.
● Press and hold the up/down directional ar-
rows on the NISSAN controller.
● Touch and hold the page up/down arrows
on the touchscreen.
LHA1315LHA1399
Monitor, climate, audio, phone and voice recognition systems4-95

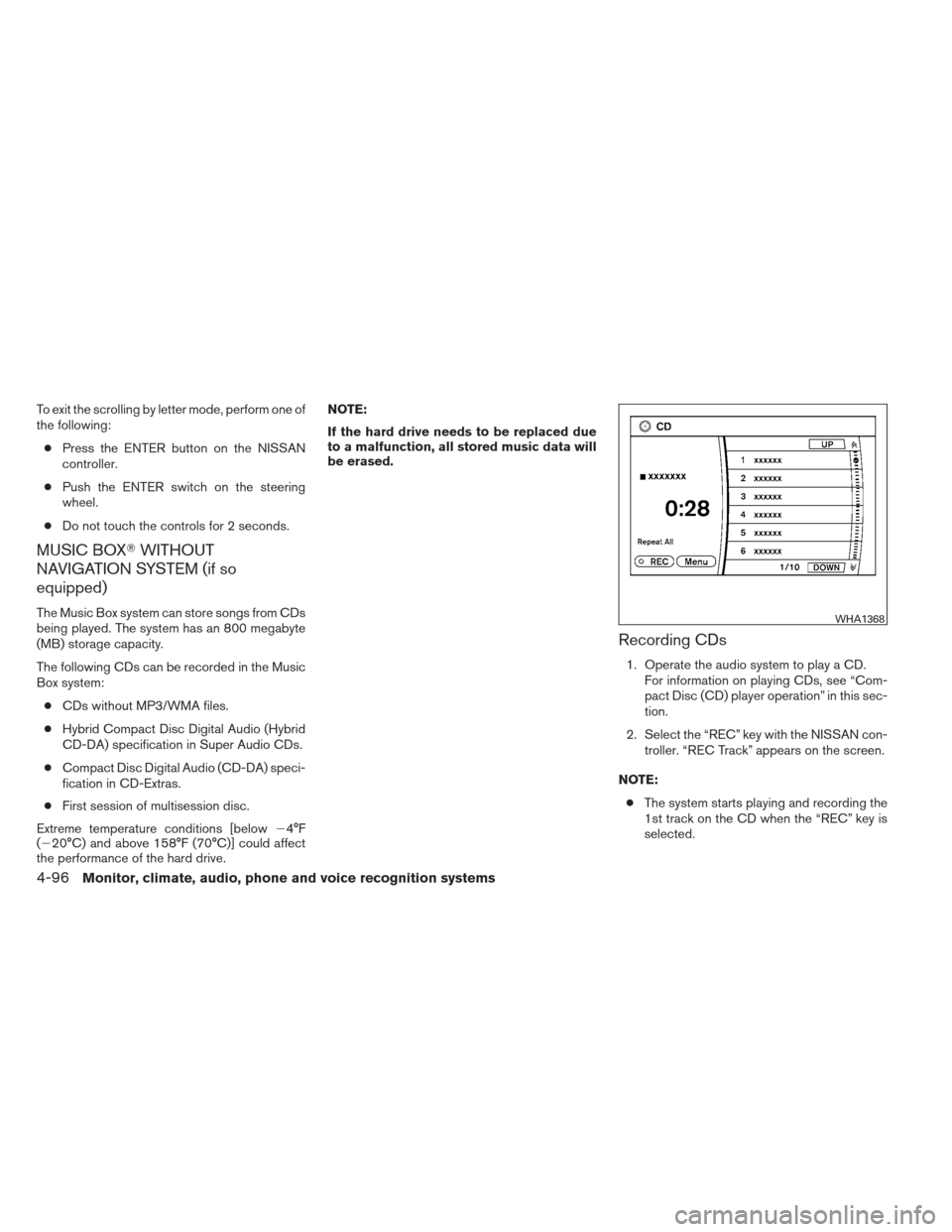

To exit the scrolling by letter mode, perform one of
the following:● Press the ENTER button on the NISSAN
controller.
● Push the ENTER switch on the steering
wheel.
● Do not touch the controls for 2 seconds.
MUSIC BOX WITHOUT
NAVIGATION SYSTEM (if so
equipped)
The Music Box system can store songs from CDs
being played. The system has an 800 megabyte
(MB) storage capacity.
The following CDs can be recorded in the Music
Box system:
● CDs without MP3/WMA files.
● Hybrid Compact Disc Digital Audio (Hybrid
CD-DA) specification in Super Audio CDs.
● Compact Disc Digital Audio (CD-DA) speci-
fication in CD-Extras.
● First session of multisession disc.
Extreme temperature conditions [below 4°F
(20°C) and above 158°F (70°C)] could affect
the performance of the hard drive. NOTE:
If the hard drive needs to be replaced due
to a malfunction, all stored music data will
be erased.
Recording CDs
1. Operate the audio system to play a CD.
For information on playing CDs, see “Com-
pact Disc (CD) player operation” in this sec-
tion.
2. Select the “REC” key with the NISSAN con- troller. “REC Track” appears on the screen.
NOTE: ● The system starts playing and recording the
1st track on the CD when the “REC” key is
selected.
WHA1368
4-96Monitor, climate, audio, phone and voice recognition systems

●The recording process can be stopped at
any time. All tracks that were played before
the CD was stopped are stored.
● Individual tracks can be deleted from the
Music Box after the CD is recorded.
If the title information of the track being recorded
is stored either in the hard drive or in the CD, the
title is automatically displayed on the screen. For
title acquisition from the hard-disk drive, music
recognition technology and related data are pro-
vided by Gracenote.
If a track is not recorded successfully due to
skipping sounds, the
symbol is displayed
behind the track number. The Music Box audio system cannot perform
recording under the following conditions:
● There is not enough space in the Music Box.
● The number of albums reaches the maximum
of 99.
● The number of tracks reaches the maximum
of 2,000.
Automatic recording:
If the “Automatic Recording” function is turned to
ON, recording starts when a CD is inserted and
any previous CD “converting” is finished. For
more information, see “Music Box settings” in this
section.
Stopping recording:
To stop the recording, select the “Stop REC” key
on the screen. If the CD is ejected, the audio
system is turned off or the ignition switch is
placed in the OFF position, the recording also
stops.
Playing recorded songs
Select the Music Box audio system by using one
of the following methods: ● Press the SOURCE select switch on the
steering wheel.
For information, see “Steering wheel switch
for audio control” in this section.
● Press the DISC button repeatedly until the
center display changes to the Music Box
mode.
WHA0956WHA1369
Monitor, climate, audio, phone and voice recognition systems4-97

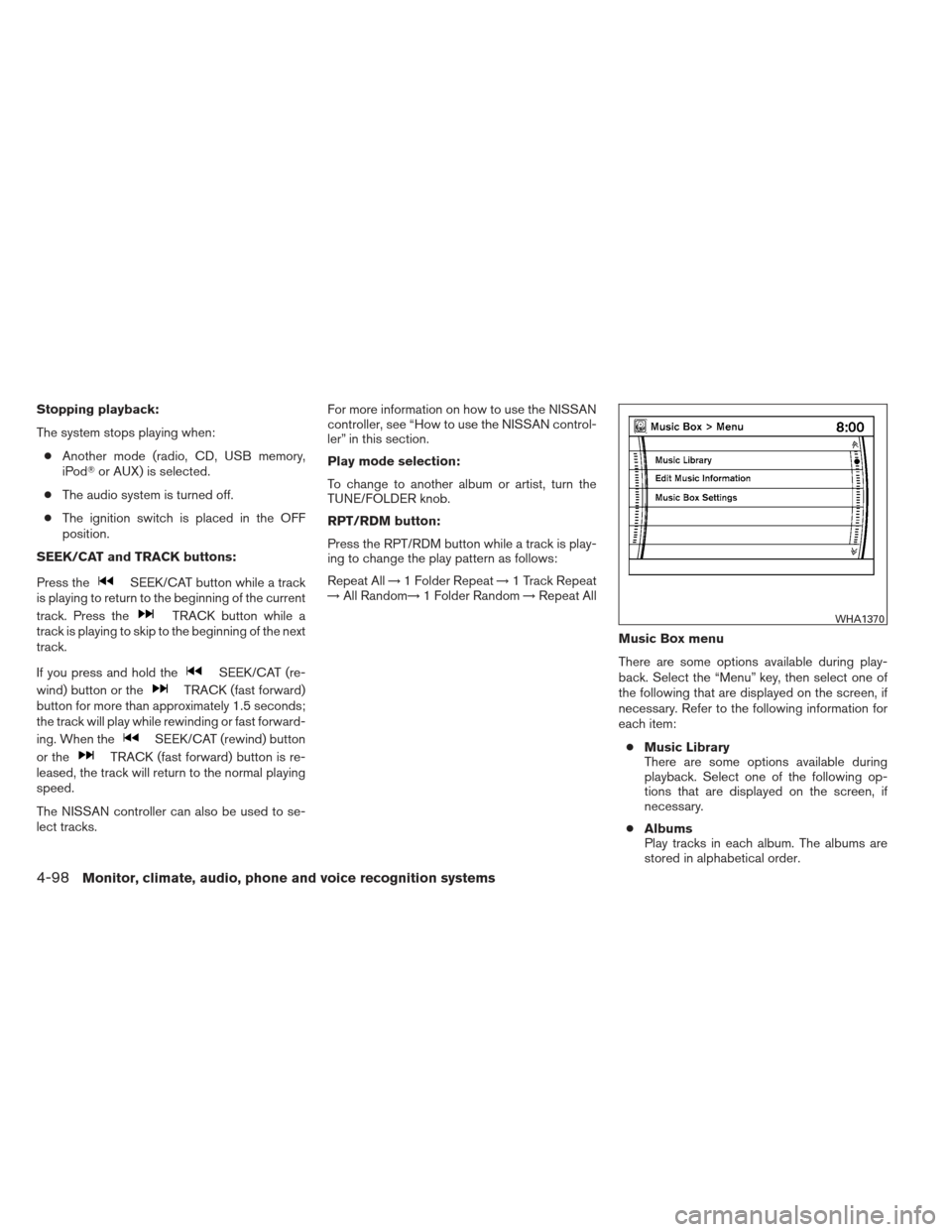

Stopping playback:
The system stops playing when:● Another mode (radio, CD, USB memory,
iPod or AUX) is selected.
● The audio system is turned off.
● The ignition switch is placed in the OFF
position.
SEEK/CAT and TRACK buttons:
Press the
SEEK/CAT button while a track
is playing to return to the beginning of the current
track. Press the
TRACK button while a
track is playing to skip to the beginning of the next
track.
If you press and hold the
SEEK/CAT (re-
wind) button or the
TRACK (fast forward)
button for more than approximately 1.5 seconds;
the track will play while rewinding or fast forward-
ing. When the
SEEK/CAT (rewind) button
or the
TRACK (fast forward) button is re-
leased, the track will return to the normal playing
speed.
The NISSAN controller can also be used to se-
lect tracks. For more information on how to use the NISSAN
controller, see “How to use the NISSAN control-
ler” in this section.
Play mode selection:
To change to another album or artist, turn the
TUNE/FOLDER knob.
RPT/RDM button:
Press the RPT/RDM button while a track is play-
ing to change the play pattern as follows:
Repeat All
→1 Folder Repeat →1 Track Repeat
→ All Random→ 1 Folder Random →Repeat All
Music Box menu
There are some options available during play-
back. Select the “Menu” key, then select one of
the following that are displayed on the screen, if
necessary. Refer to the following information for
each item:● Music Library
There are some options available during
playback. Select one of the following op-
tions that are displayed on the screen, if
necessary.
● Albums
Play tracks in each album. The albums are
stored in alphabetical order.
WHA1370
4-98Monitor, climate, audio, phone and voice recognition systems

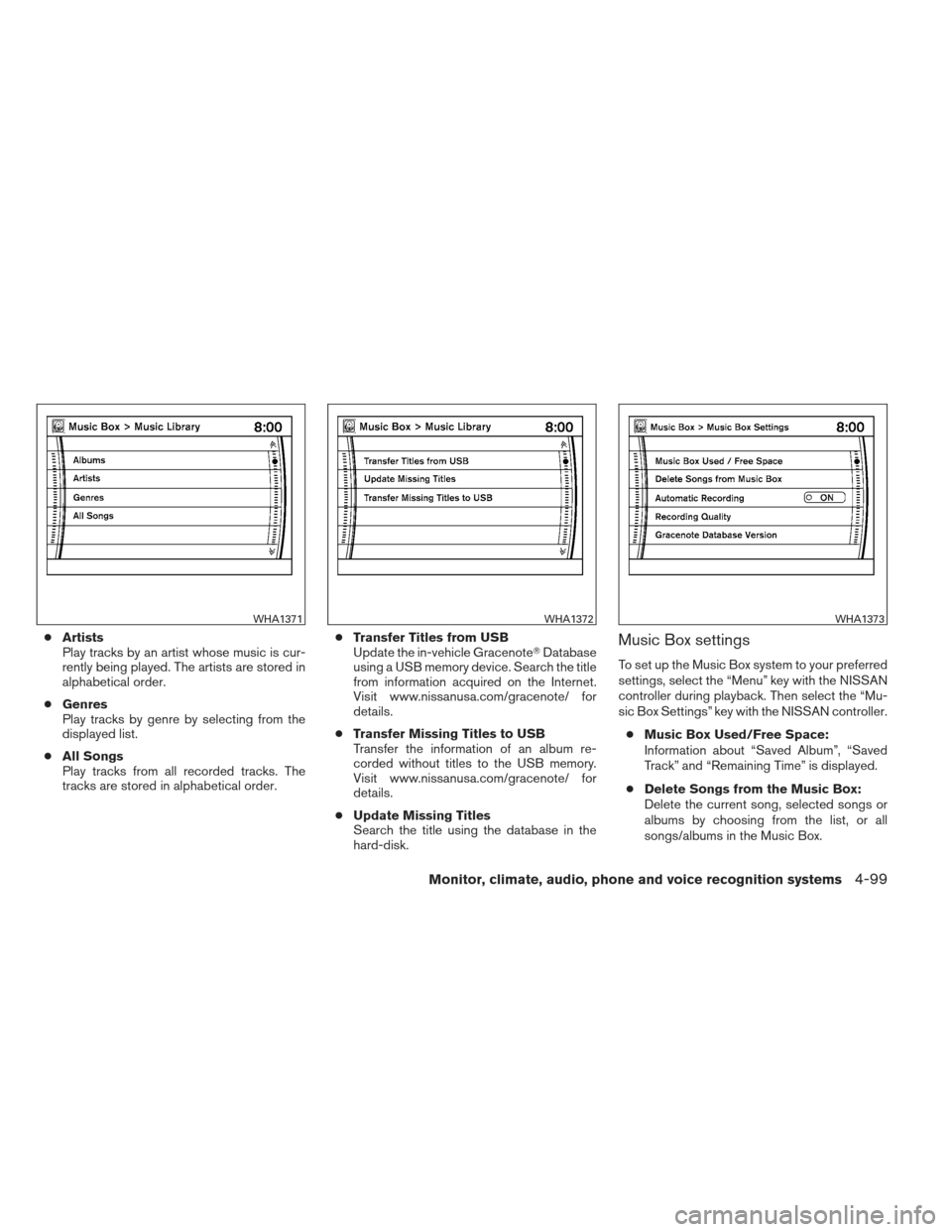

●Artists
Play tracks by an artist whose music is cur-
rently being played. The artists are stored in
alphabetical order.
● Genres
Play tracks by genre by selecting from the
displayed list.
● All Songs
Play tracks from all recorded tracks. The
tracks are stored in alphabetical order. ●
Transfer Titles from USB
Update the in-vehicle Gracenote Database
using a USB memory device. Search the title
from information acquired on the Internet.
Visit www.nissanusa.com/gracenote/ for
details.
● Transfer Missing Titles to USB
Transfer the information of an album re-
corded without titles to the USB memory.
Visit www.nissanusa.com/gracenote/ for
details.
● Update Missing Titles
Search the title using the database in the
hard-disk.Music Box settings
To set up the Music Box system to your preferred
settings, select the “Menu” key with the NISSAN
controller during playback. Then select the “Mu-
sic Box Settings” key with the NISSAN controller.
● Music Box Used/Free Space:
Information about “Saved Album”, “Saved
Track” and “Remaining Time” is displayed.
● Delete Songs from the Music Box:
Delete the current song, selected songs or
albums by choosing from the list, or all
songs/albums in the Music Box.
WHA1371WHA1372WHA1373
Monitor, climate, audio, phone and voice recognition systems4-99
