7-16Viewing technical information
NIN0033The message includes the weather icon and text
describing the event.
INFO:
. The pop-up messages and announcements
can be set to on or off.
“Weather information settings”
(page 7-16)
. If multiple warning/watch events are de-
tected, they will be displayed in order
starting with the one having the shortest
linear distance from the vehicle.
Weather information settingsGUID-4AF860D8-29F6-44C2-A69B-67744C8748BDThe settings can be confirmed and changed for
the urgent weather information related functions.
NIN00531. Push .
2. Highlight [Navigation] and push .
3. Highlight [Weather Info Settings] and push .
4. Highlight the preferred setting and push . The indicator for the setting
illuminates.
Available setting items: . Display an Alert for Weather Warnings:
Displays a message screen automatically
when the system detects urgent warning
information.
. Display an Alert for Weather Watches:
Displays a message screen automatically
when the system detects urgent watch
information.
. Voice Announcements:
Provides urgent information announcements
for warnings and watches around the current location.
Types of warnings/watchesGUID-D5907240-E2BF-4242-A4FF-F6EA93E6BF0C
Category Warnings/Watches
Tornado Tornado Watch, Tornado
Hurricane Inland Hurricane Wind, Hurri- cane Force Wind, Hurricane,
Typhoon
Storm Severe Thunderstorm Watch, Severe Thunderstorm, Storm,
Tropical Storm, Inland Tropical
Storm, Dust Storm
Flood Flood Watch, Flash Flood,
Coastal Flood, Lakeshore
Flood, High Surf, Flood
Winter Winter Watch, Heavy Snow, Heavy Sleet, Lake Effect Snow,
Freeze, Heavy Freezing Spray,
Blizzard, Ice Storm, Winter
Storm
Wind Wind Watch, High Wind, Wind
Chill, Gale
Extremes Excessive Heat
Other Red Flag, Tsunami, Avalanche,
Special Marine, Earthquake,
Law Enforcement, Hazardous
Materials, Nuclear Power Plant,
Radiological Hazard, Civil Dan-
ger, Fire, Shelter in Place,
Volcano, Other Watches,
Other Warnings

Black plate (156,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
7-18Viewing technical information
.If you need to clean it, do so with a soft
cloth by wiping from the centre out-
ward.
. Do not use a DVD Laser Lens Cleaners
as they may cause the DVD player to
malfunction.
GUID-AAB50C73-546F-49B0-96AC-C40ABA6A0150The navigation system unit identification number
and the current map version can be located.
NIN0011BASIC OPERATIONGUID-366CF82A-B200-440E-8FC0-55CC493589641. Push .
2. Highlight [Map Update] and push
.
3. The unit Identification (Unit ID) number is displayed.
4. Push to return to the previous
screen. Push

Black plate (157,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-B1670433-8AF2-4A94-BAA8-F27CCA70834EThis displays GPS information, such as the
positioning status, latitude/longitude, altitude
and satellite locations.
NIN0035BASIC OPERATIONGUID-88761EB1-1B68-4E6E-B9E3-92424D72898B1. Push.
2. Highlight [Others] and push .
3. Highlight [GPS Position] and push
.
4. Push to return to the previous
screen. Push

Black plate (159,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
8 Other settings
Settings screen...
........................................................................\
. 8-2
Basic operation ...
.................................................................... 8-2
Display settings ...
........................................................................\
. 8-3
Basic operation ...
.................................................................... 8-3
Display adjustment ...
.............................................................. 8-3
Basic operation ...
.................................................................... 8-3
Setting color theme ...
............................................................ 8-5
Navigation setting ...
..................................................................... 8-6
Basic operation ...
.................................................................... 8-6
Speed limit indication on map ...
......................................... 8-6 Other navigation settings
...
................................................ 8-7
Delete stored items ...
....................................................... 8-10
Reset all navigation settings to default ...
.................... 8-10
Volume adjustment ...
................................................................ 8-11
Basic operation ...
.............................................................. 8-11
Clock settings ...
........................................................................\
8-12
Basic operation ...
.............................................................. 8-12
Language and unit settings ...
................................................ 8-13
Language settings ...
......................................................... 8-13
Unit settings ...
.................................................................... 8-14

Black plate (160,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
8-2Other settings
GUID-6C304C6D-8E4E-46F1-A8AC-ED4AC968621EThe navigation system can be customized to
make it easier for you to use.
BASIC OPERATIONGUID-99F3AE8C-0AFC-4B27-8A61-549AFD35A036
NSE00011. Push.
2. Highlight the preferred setting item and
push .
Available setting itemsGUID-788F0E55-36DC-4D36-9419-8D162954A5FB.[Navigation]:
Adjust various settings of the navigation
system.
“Navigation setting” (page 8-6)
. [Audio]:
Refer to the vehicle Owner’s Manual.
. [Phone]:
Refer to the vehicle Owner’s Manual.
. [Bluetooth]:
Set Bluetooth
®Audio and Phone.
Refer to the vehicle Owner’s Manual. .
[Volume and Beeps]:
“Volume adjustment” (page 8-11)
. [Rear Display] (if so equipped):
Refer to the vehicle Owner’s Manual.
. [Display]:
“Display settings” (page 8-3)
. [Clock]:
“Clock settings” (page 8-12)
. [Others]:
— [Comfort]:
This item is displayed when the ignition
switch is in the ON position.
Refer to the vehicle Owner’s Manual.
— [Language and Units]:
“Language and unit settings”
(page 8-13)
— [Voice Recognition]:
“System feedback announcement
modes” (page 9-20)
— [Camera] (if so equipped): Refer to the vehicle Owner’s Manual.
— [Sonar] (if so equipped): Adjust the parking sensor detection
sensitivity, etc.
Refer to the vehicle Owner’s Manual. — [Image Viewer]:
Refer to the vehicle Owner’s Manual.
INFO:
The displayed items vary depending on the
equipped options.
SETTINGS SCREEN

Black plate (161,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
GUID-7D273F21-ED6C-4E0D-B5A7-E4066024064CThis menu turns on and off the display, adjust
the image quality of the navigation screen and
change the color of the menu screen.
BASIC OPERATIONGUID-74E5038C-FBE2-4D2A-B026-15A856464E92
NSE00021. Push.
2. Highlight [Display] and push .
3. Highlight the preferred adjustment item and push .
INFO:
If a rear display is equipped, it is possible to
select [Display] after pushing ,
highlighting [Others] and then pushing
.
Available setting itemsGUID-251BA01F-D040-494C-BB8A-F74573EBDA12
NSE0003. [Display Adjustment]
Turn on and off the display and adjust the
image quality of the navigation screen.
. [Color Theme]
Set the color of the menu screen.
DISPLAY ADJUSTMENTGUID-932CDCAF-6D9D-4E57-B5FB-9DBA74A7BE4BThis menu turns on and off the display and
adjusts the image quality of the navigation
screen.
BASIC OPERATIONGUID-B3B17901-EBCD-4DB1-8046-0125EF1990FB
NSE00031. Highlight [Display Adjustment] and push
.
2. Highlight the preferred adjustment item and push .
3. Use the multi-function controller to adjust to the preferred setting.
4. After setting, push or
to apply the setting.
5. Highlight to return to the previous
screen. Push

Black plate (162,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
8-4Other settings
Available setting itemsGUID-25554EE3-E6D5-4576-A1E0-038E385BA752
NSE0004.[Display]:
Turn on or off the screen.
“Display” (page 8-4)
. [Brightness]:
Adjust the screen brightness.
“Brightness” (page 8-4)
. [Contrast]:
Adjust the screen contrast.
“Contrast” (page 8-4)
. [Background Color]:
Set the background color.
“Background color” (page 8-5)
DisplayGUID-85CA5AD9-E89F-4A2D-AA87-37F055DCC19E
NSE0004To turn off the display, push .
The display can also be turned off by pushing
and holding for more than
2 seconds.
NSE0005When any button is pushed with the display off,
the display turns on. The display will automati-
cally turn off when there is no switch operation
for 5 seconds.
To turn on the display, push OFF>.
BrightnessGUID-5493F077-4B2D-4A4A-AAED-8BA90D481C37
NSE0006Adjust the display brightness by rotating the
center dial in the [+] or [−] direction on the multi-
function controller.
Each time [+] or [−] is pushed, the display
brightness changes.
ContrastGUID-6AA7FAC8-FB18-476D-B72F-420D8C1922D3
NSE0007Adjust the display contrast by rotating the center
dial in the [+] or [−] direction on the multi-
function controller.
Each time [+] or [−] is pushed, the display

Black plate (164,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]

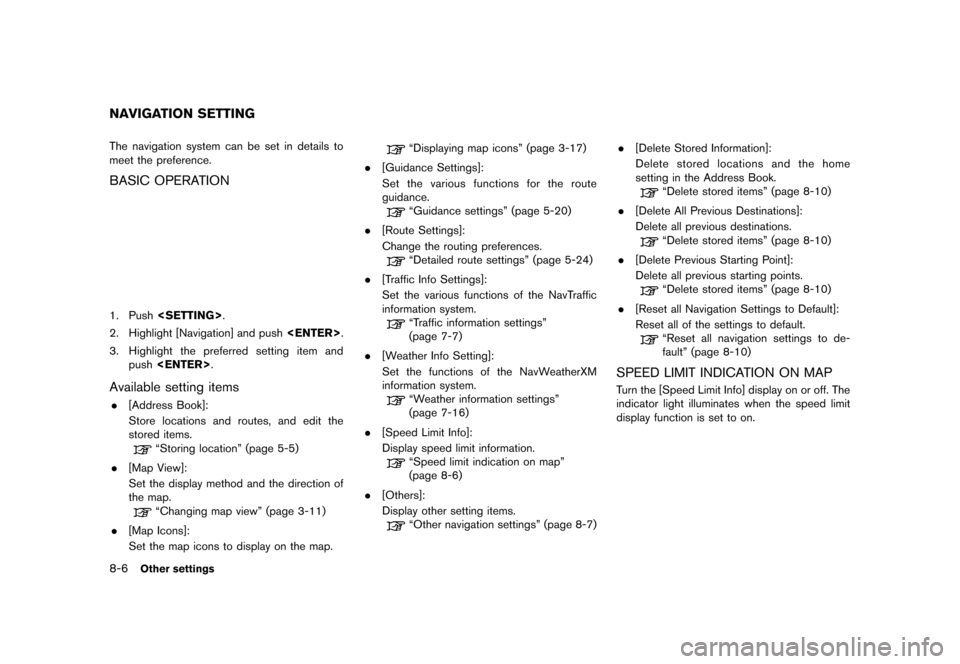

8-6Other settings
GUID-CD28E280-A15F-4358-BAA8-4C4CCB888F54The navigation system can be set in details to
meet the preference.
BASIC OPERATIONGUID-B1EABAAA-65E6-40BA-9A2F-AB5F91885622
NSE00121. Push.
2. Highlight [Navigation] and push .
3. Highlight the preferred setting item and
push .
Available setting itemsGUID-11BEEC28-8C2C-43F7-B6E4-C357E9AE6F7B.[Address Book]:
Store locations and routes, and edit the
stored items.
“Storing location” (page 5-5)
. [Map View]:
Set the display method and the direction of
the map.
“Changing map view” (page 3-11)
. [Map Icons]:
Set the map icons to display on the map.
“Displaying map icons” (page 3-17)
. [Guidance Settings]:
Set the various functions for the route
guidance.
“Guidance settings” (page 5-20)
. [Route Settings]:
Change the routing preferences.
“Detailed route settings” (page 5-24)
. [Traffic Info Settings]:
Set the various functions of the NavTraffic
information system.
“Traffic information settings”
(page 7-7)
. [Weather Info Setting]:
Set the functions of the NavWeatherXM
information system.
“Weather information settings”
(page 7-16)
. [Speed Limit Info]:
Display speed limit information.
“Speed limit indication on map”
(page 8-6)
. [Others]:
Display other setting items.
“Other navigation settings” (page 8-7) .
[Delete Stored Information]:
Delete stored locations and the home
setting in the Address Book.
“Delete stored items” (page 8-10)
. [Delete All Previous Destinations]:
Delete all previous destinations.
“Delete stored items” (page 8-10)
. [Delete Previous Starting Point]:
Delete all previous starting points.
“Delete stored items” (page 8-10)
. [Reset all Navigation Settings to Default]:
Reset all of the settings to default.
“Reset all navigation settings to de-
fault” (page 8-10)
SPEED LIMIT INDICATION ON MAPGUID-8E50C62E-0DF9-4845-8B88-5435189636CCTurn the [Speed Limit Info] display on or off. The
indicator light illuminates when the speed limit
display function is set to on.
NSE0041
NAVIGATION SETTING

Black plate (165,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
1.Highlight [Speed Limit Info] and push
.
NSE00132. Highlight [Speed Limit Indication on Map] to
toggle the function between on and off. The
indicator light illuminates when the speed
limit display function is set to on.
OTHER NAVIGATION SETTINGSGUID-C46B02D0-84E9-4C49-AE03-A00EE82D0B1B
NSE0019
Basic OperationGUID-3BCDC9F0-704B-46C1-B5E7-AA2FC5437F751. Push . 2. Highlight [Navigation] and push
.
3. Highlight [Others] and push .
4. Highlight the preferred setting item and
push .
Available Setting ItemsGUID-4CA79003-96A1-4231-AEF2-3A9FA920C266.[Audio Display on Map]:
Allows the audio information to be displayed
at all times.
“Displaying audio information on map
screen” (page 8-7)
. [Small Step Zoom by Dial]:
Sets the free zoom function on or off. When
this setting is on, it is possible to adjust the
scale in smaller steps than with normal scale
adjustment.
. [Map Scrolling Information]:
Sets the system so that when the map
scrolls the information about the location
aligned at the center of the cross pointer is
displayed.
“Map scrolling information”
(page 3-18)
. [Customize Nearby Places]:
Set the category of frequently visited land-
marks.
“Customizing Nearby Places”
(page 8-8) .
[Keyboard Type]:
Switches the keyboard layout for the char-
acter input screen.
“Settings keyboard layout of character
input screen” (page 8-9)
. [North Up when Zoom Out]:
When this setting is ON, the orientation of
the map is automatically changed to North
Up when the widest map scale is selected.
The orientation is changed to North Up even
when Heading Up is set.
. [Adjust Current Location]:
Corrects the position of the current location.
“Adjusting current vehicle location”
(page 8-9)
Displaying audio information on map
screen
GUID-B129D6D6-BD32-43B2-9EC1-5597D1F27CA6The operating status of audio functions can be
displayed on the map screen.
NSE0019
Other settings8-7

Black plate (166,1)
[ Edit: 2012/ 4/ 11 Model: 08NJ-N ]
8-8Other settings
1. Highlight [Others] and push.
2. Highlight [Audio Display on Map] and push . The indicator illuminates when
the item is set.
3. Push
