If the windows do not close
automatically
If the power window automatic function (closing
only) does not operate properly, perform the fol-
lowing procedure to initialize the power window
system.1. Place the ignition switch in the ON position.
2. Close the door.
3. Open the window more than halfway by operating the power window switch.
4. Pull the power window switch and hold it to close the window, and then hold the switch
for more than 3 seconds after the window is
closed completely.
5. Release the power window switch. Operate the window by automatic function to confirm
the initialization is complete.
6. Perform steps 2 through 5 above for other windows.
If the power window automatic function does not
operate properly after performing the above pro-
cedure, have your vehicle checked by a NISSAN
dealer.
POWER MOONROOF
The moonroof will only operate when the ignition
switch is placed in the ON position. The power
moonroof is operational for a period of time, even
if the ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
Sliding the moonroof
To fully open the moonroof, push the switch to-
ward
1.
To fully close the moonroof, push the switch
toward
2. To open or close the moonroof part way, push the
switch in any direction while the moonroof is
sliding to stop it in the desired position.
Tilting the moonroof
Close the moonroof by pushing the switch to-
ward
2. Release the switch, then push the
switch toward
2again to tilt the moonroof up.
To tilt the moonroof down, push the switch to-
ward
1.
WARNING
● In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
● Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
LIC2644
MOONROOF (if so equipped)
2-54Instruments and controls
Page 132 of 401
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position.
Depending on the environment or driving
conditions, the auto-reverse function may
be activated if an impact or load similar to
something being caught in the moonroof
occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward. When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
Sunshade
Open and close the sunshade by sliding it for-
ward or backward.
If the moonroof does not close
Have a NISSAN dealer check and repair the
moonroof.
POWER MOONROOF
The moonroof will only operate when the ignition
switch is in the ON position. The power moonroof
is operational for a period of time, even if the
ignition switch is placed in the ACC or OFF
position. If the driver’s door or the front passen-
ger’s door is opened during this period of time,
the power to the moonroof is canceled.
LIC3175
DUAL PANEL MOONROOF (if so
equipped)
Instruments and controls2-55
Page 133 of 401

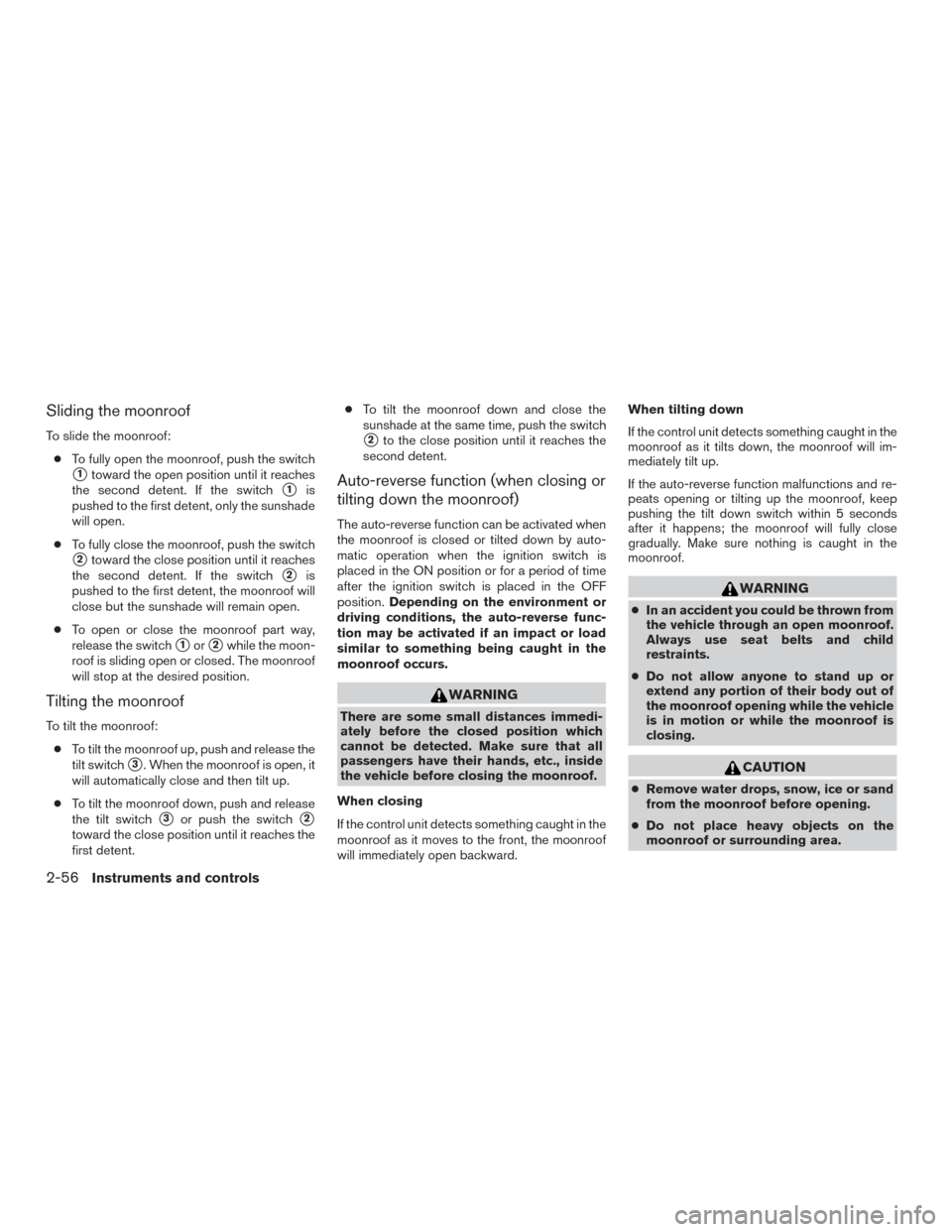

Sliding the moonroof
To slide the moonroof:● To fully open the moonroof, push the switch
1toward the open position until it reaches
the second detent. If the switch
1is
pushed to the first detent, only the sunshade
will open.
● To fully close the moonroof, push the switch
2toward the close position until it reaches
the second detent. If the switch
2is
pushed to the first detent, the moonroof will
close but the sunshade will remain open.
● To open or close the moonroof part way,
release the switch
1or2while the moon-
roof is sliding open or closed. The moonroof
will stop at the desired position.
Tilting the moonroof
To tilt the moonroof:
● To tilt the moonroof up, push and release the
tilt switch
3. When the moonroof is open, it
will automatically close and then tilt up.
● To tilt the moonroof down, push and release
the tilt switch
3or push the switch2
toward the close position until it reaches the
first detent. ●
To tilt the moonroof down and close the
sunshade at the same time, push the switch
2to the close position until it reaches the
second detent.
Auto-reverse function (when closing or
tilting down the moonroof)
The auto-reverse function can be activated when
the moonroof is closed or tilted down by auto-
matic operation when the ignition switch is
placed in the ON position or for a period of time
after the ignition switch is placed in the OFF
position. Depending on the environment or
driving conditions, the auto-reverse func-
tion may be activated if an impact or load
similar to something being caught in the
moonroof occurs.
WARNING
There are some small distances immedi-
ately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., inside
the vehicle before closing the moonroof.
When closing
If the control unit detects something caught in the
moonroof as it moves to the front, the moonroof
will immediately open backward. When tilting down
If the control unit detects something caught in the
moonroof as it tilts down, the moonroof will im-
mediately tilt up.
If the auto-reverse function malfunctions and re-
peats opening or tilting up the moonroof, keep
pushing the tilt down switch within 5 seconds
after it happens; the moonroof will fully close
gradually. Make sure nothing is caught in the
moonroof.
WARNING
●
In an accident you could be thrown from
the vehicle through an open moonroof.
Always use seat belts and child
restraints.
● Do not allow anyone to stand up or
extend any portion of their body out of
the moonroof opening while the vehicle
is in motion or while the moonroof is
closing.
CAUTION
● Remove water drops, snow, ice or sand
from the moonroof before opening.
● Do not place heavy objects on the
moonroof or surrounding area.
2-56Instruments and controls
Page 134 of 401
Sunshade
To open the sunshade:● To fully open the sunshade, push the switch
1toward the open position until it reaches
the first detent.
● To fully open the sunshade and the moon-
roof together, push the switch
1toward the
open position until it reaches the second
detent. To close the sunshade:
● To fully close the sunshade, push the switch
2toward the close position until it reaches
the second detent.
● Pushing the switch
2to the first detent will
close the moonroof only.
If the moonroof does not close
Have a NISSAN dealer check and repair the
moonroof.
The rear sun shade operates when the ignition
switch is in the ACC or ON position.
The rear sun shade switch is located on the front
console.● To raise the sun shade, push the upper side
of the switch
1.
● To lower the sun shade, push the lower side
of the switch
2.
● The switch need not be held down.
LIC2644WIC1443
REAR POWER SUNSHADE (if so
equipped)
Instruments and controls2-57
Page 135 of 401
CAUTION
●Do not place objects (such as newspa-
pers, handkerchiefs, etc.) on the screen
inlet port. Doing so may entangle these
objects in the screen when it is extend-
ing or retracting, causing improper op-
eration or damage to the screen.
● Do not push the sun shade arm with
your hands, etc., as this may deform it.
Improper operation or damage to the
screen may result. ●
Do not hang any object on the arm rail
as this may result in improper operation
or damage the screen.
● Do not forcefully pull the screen. Doing
so may elongate the screen. Improper
operation or damage to the screen may
result.
● To avoid personal injury, keep your
hands, fingers and head away from the
sun shade arm, arm rail and screen inlet
port.
● Do not allow children near the rear sun
shade system. They could be injured.
● Do not pull or push the rear sun shade.
This could cause improper operation or
damage it.
1The interior light can be turned ON regard-
less of door position. The light will go off after
a period of time unless the ignition switch is
placed in the ON position when any door is
opened.
2The interior lights can be set to operate
when the doors are opened. To turn off the
interior lights when a is door open, push the
switch; the interior lights will not illuminate,
regardless of door position.
LIC3231LIC2302
INTERIOR LIGHTS
2-58Instruments and controls
Page 136 of 401
The lights will go off when the ignition switch
is placed in the ON position, or the driver’s
door is closed and locked. The lights will
also go off after a period of time when the
doors are open.
NOTE:
The step lights illuminate when the driver
and passenger doors are opened regard-
less of the interior light switch position.
These lights will turn off automatically after
a period of time while doors are open to
prevent the battery from becoming dis-
charged.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.
CONSOLE LIGHT
The console light will turn on whenever the park-
ing lights or headlights are illuminated.
The console light brightness can be adjusted
with the illumination brightness control in the
vehicle information display.
PERSONAL LIGHTS
To turn the rear personal lights on, push the
switch. To turn them off, push the switch again.
LIC2303LIC1083
Instruments and controls2-59
Page 137 of 401
MAP LIGHTS
To turn the map lights on, push the switches. To
turn them off, push the switches again.
CAUTION
Do not use for extended periods of time
with the engine stopped. This could result
in a discharged battery.The light illuminates when the trunk lid is opened.
When the trunk lid is closed, the light goes off.
For additional information, refer to “Exterior and
interior lights” in the “Maintenance and do-it-
yourself” section of this manual.
The HomeLink® Universal Transceiver provides
a convenient way to consolidate the functions of
up to three individual hand-held transmitters into
one built-in device.
HomeLink® Universal Transceiver:
● Will operate most Radio Frequency devices
such as garage doors, gates, home and of-
fice lighting, entry door locks and security
systems.
● Is powered by your vehicle’s battery. No
separate batteries are required. If the vehi-
cle’s battery is discharged or is discon-
nected, HomeLink® will retain all program-
ming.
When the HomeLink® Universal Trans-
ceiver is programmed, retain the original
transmitter for future programming proce-
dures (Example: new vehicle purchases) .
Upon sale of the vehicle, the programmed
HomeLink® Universal Transceiver buttons
should be erased for security purposes. For
additional information, refer to “Program-
ming HomeLink®” in this section.
LIC2304
TRUNK LIGHT HOMELINK® UNIVERSAL
TRANSCEIVER
2-60Instruments and controls
Page 138 of 401
WARNING
●Do not use the HomeLink® Universal
Transceiver with any garage door
opener that lacks safety stop and re-
verse features as required by federal
safety standards. (These standards be-
came effective for opener models
manufactured after April 1, 1982) . A ga-
rage door opener which cannot detect
an object in the path of a closing garage
door and then automatically stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features in-
creases the risk of serious injury or
death.
● During the programming procedure
your garage door or security gate will
open and close (if the transmitter is
within range) . Make sure that people or
objects are clear of the garage door,
gate, etc. that you are programming.
● Your vehicle’s engine should be turned
off while programming the HomeLink®
Universal Transceiver. Do not breathe
exhaust gases; they contain colorless
and odorless carbon monoxide. Carbon
monoxide is dangerous. It can cause
unconsciousness or death.
PROGRAMMING HOMELINK®
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com.
NOTE:
It is also recommended that a new battery
be placed in the hand-held transmitter of
the device being programmed to
HomeLink® for quicker programming and
accurate transmission of the radio-
frequency. 1. Position the end of your hand-held transmit-
ter 5–14 cm (1–3 inches) away from the
HomeLink® surface, keeping the
HomeLink® indicator light
1in view.
LIC2365
Instruments and controls2-61
Page 139 of 401
2. Using both hands, simultaneously press andhold the desired HomeLink® button and
handheld transmitter button. DO NOT re-
lease until the HomeLink® indicator light
1
flashes slowly and then rapidly. When the
indicator light
1flashes rapidly, both but-
tons may be released. (The rapid flashing
indicates successful programming.)
NOTE:
Some devices may require you to replace
Step 2 with the cycling procedure noted in
the “Programming HomeLink® for gate
openers” section. 3. Press and hold the programmed
HomeLink® button and observe the indica-
tor light.
● If the indicator light
1is
solid/continuous, programming is
complete and your device should acti-
vate when the HomeLink® button is
pressed and released.
● If the indicator light
1blinks rapidly for
two seconds and then turns to a
solid/continuous light, continue
with Steps 4-6 for a rolling code device.
A second person may make the following
steps easier. Use a ladder or other device. Do not stand on your vehicle to perform
the next steps.
4. At the receiver located on the garage door opener motor in the garage, locate the
“learn” or “smart” button (the name and color
of the button may vary by manufacturer but it
is usually located near where the hanging
antenna wire is attached to the unit) . If there
is difficulty locating the button, reference the
garage door opener’s manual.
5. Press and release the “learn” or “smart” but- ton.
6. Return to the vehicle and firmly press and hold the trained HomeLink® button for
2 seconds and release. Repeat the
“press/hold/release” sequence up to three
times to complete the training process.
HomeLink® should now activate your rolling
code equipped device.
7. If you have any questions or are having diffi- culty programming your HomeLink® but-
tons, refer to the HomeLink® web site at:
www.homelink.com.
LIC2365LIC2366
2-62Instruments and controls
Page 140 of 401

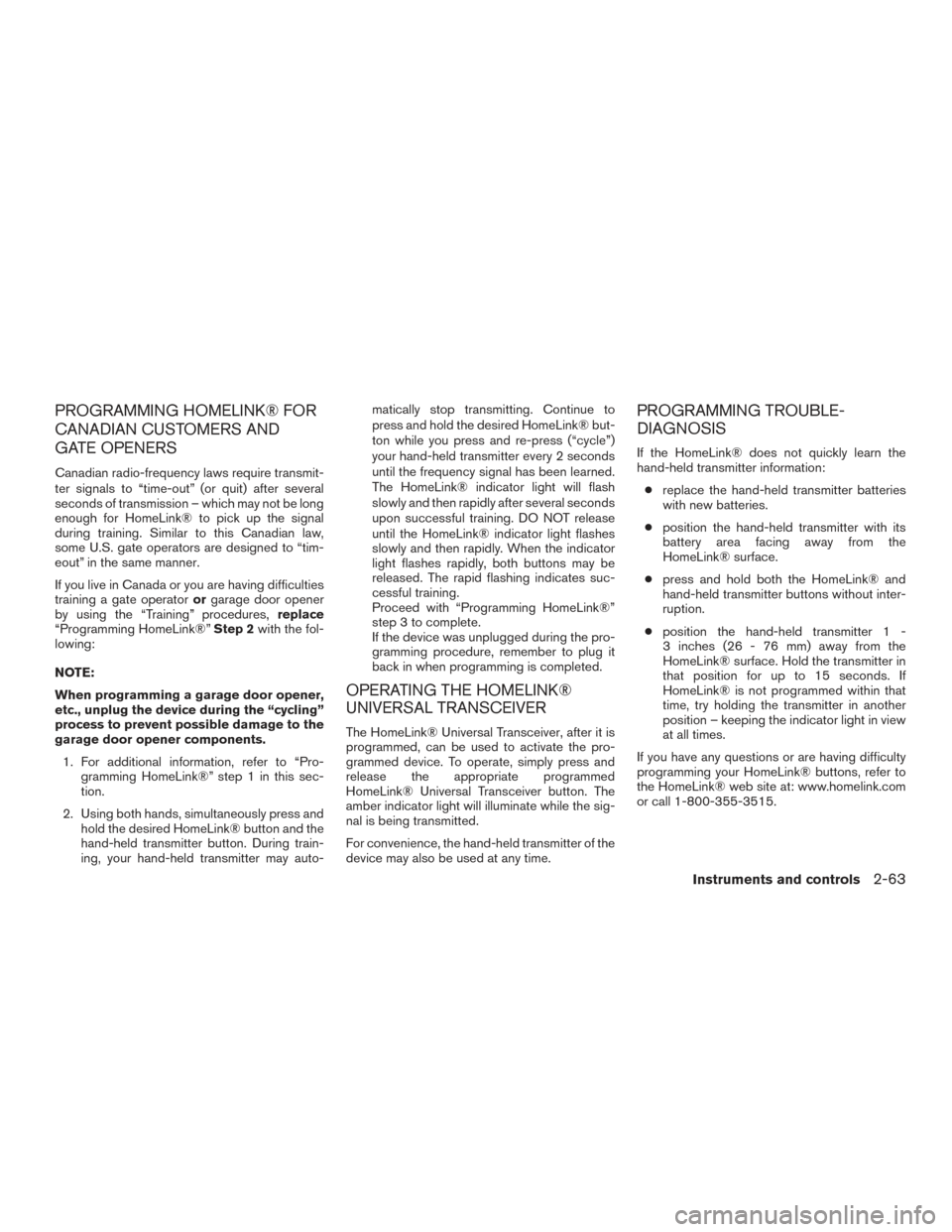

PROGRAMMING HOMELINK® FOR
CANADIAN CUSTOMERS AND
GATE OPENERS
Canadian radio-frequency laws require transmit-
ter signals to “time-out” (or quit) after several
seconds of transmission – which may not be long
enough for HomeLink® to pick up the signal
during training. Similar to this Canadian law,
some U.S. gate operators are designed to “tim-
eout” in the same manner.
If you live in Canada or you are having difficulties
training a gate operatororgarage door opener
by using the “Training” procedures, replace
“Programming HomeLink®” Step 2with the fol-
lowing:
NOTE:
When programming a garage door opener,
etc., unplug the device during the “cycling”
process to prevent possible damage to the
garage door opener components.
1. For additional information, refer to “Pro- gramming HomeLink®” step 1 in this sec-
tion.
2. Using both hands, simultaneously press and hold the desired HomeLink® button and the
hand-held transmitter button. During train-
ing, your hand-held transmitter may auto- matically stop transmitting. Continue to
press and hold the desired HomeLink® but-
ton while you press and re-press (“cycle”)
your hand-held transmitter every 2 seconds
until the frequency signal has been learned.
The HomeLink® indicator light will flash
slowly and then rapidly after several seconds
upon successful training. DO NOT release
until the HomeLink® indicator light flashes
slowly and then rapidly. When the indicator
light flashes rapidly, both buttons may be
released. The rapid flashing indicates suc-
cessful training.
Proceed with “Programming HomeLink®”
step 3 to complete.
If the device was unplugged during the pro-
gramming procedure, remember to plug it
back in when programming is completed.
OPERATING THE HOMELINK®
UNIVERSAL TRANSCEIVER
The HomeLink® Universal Transceiver, after it is
programmed, can be used to activate the pro-
grammed device. To operate, simply press and
release the appropriate programmed
HomeLink® Universal Transceiver button. The
amber indicator light will illuminate while the sig-
nal is being transmitted.
For convenience, the hand-held transmitter of the
device may also be used at any time.
PROGRAMMING TROUBLE-
DIAGNOSIS
If the HomeLink® does not quickly learn the
hand-held transmitter information:
● replace the hand-held transmitter batteries
with new batteries.
● position the hand-held transmitter with its
battery area facing away from the
HomeLink® surface.
● press and hold both the HomeLink® and
hand-held transmitter buttons without inter-
ruption.
● position the hand-held transmitter 1 -
3 inches (26 - 76 mm) away from the
HomeLink® surface. Hold the transmitter in
that position for up to 15 seconds. If
HomeLink® is not programmed within that
time, try holding the transmitter in another
position – keeping the indicator light in view
at all times.
If you have any questions or are having difficulty
programming your HomeLink® buttons, refer to
the HomeLink® web site at: www.homelink.com
or call 1-800-355-3515.
Instruments and controls2-63
