Page 91 of 401

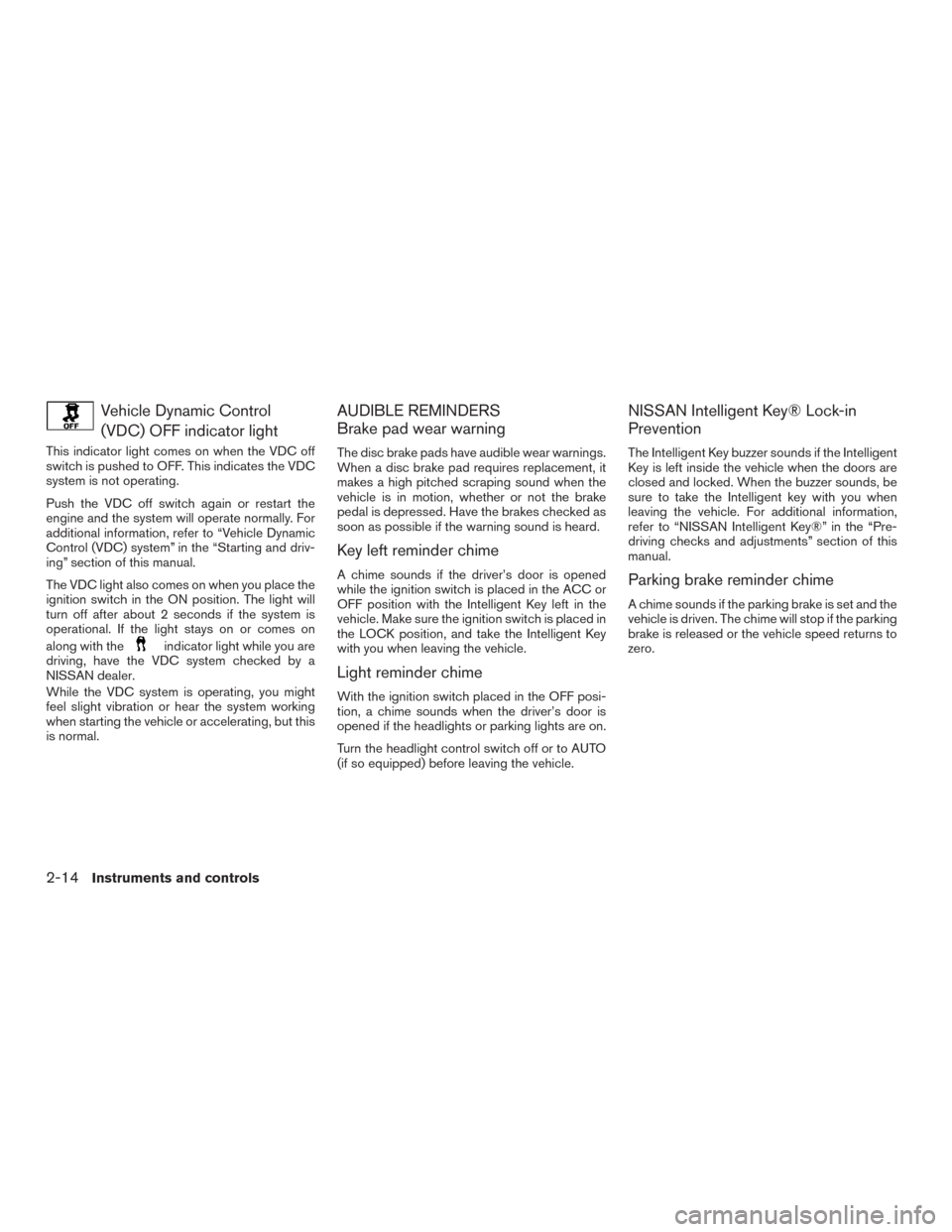

Vehicle Dynamic Control(VDC) OFF indicator light
This indicator light comes on when the VDC off
switch is pushed to OFF. This indicates the VDC
system is not operating.
Push the VDC off switch again or restart the
engine and the system will operate normally. For
additional information, refer to “Vehicle Dynamic
Control (VDC) system” in the “Starting and driv-
ing” section of this manual.
The VDC light also comes on when you place the
ignition switch in the ON position. The light will
turn off after about 2 seconds if the system is
operational. If the light stays on or comes on
along with the
indicator light while you are
driving, have the VDC system checked by a
NISSAN dealer.
While the VDC system is operating, you might
feel slight vibration or hear the system working
when starting the vehicle or accelerating, but this
is normal.
AUDIBLE REMINDERS
Brake pad wear warning
The disc brake pads have audible wear warnings.
When a disc brake pad requires replacement, it
makes a high pitched scraping sound when the
vehicle is in motion, whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Key left reminder chime
A chime sounds if the driver’s door is opened
while the ignition switch is placed in the ACC or
OFF position with the Intelligent Key left in the
vehicle. Make sure the ignition switch is placed in
the LOCK position, and take the Intelligent Key
with you when leaving the vehicle.
Light reminder chime
With the ignition switch placed in the OFF posi-
tion, a chime sounds when the driver’s door is
opened if the headlights or parking lights are on.
Turn the headlight control switch off or to AUTO
(if so equipped) before leaving the vehicle.
NISSAN Intelligent Key® Lock-in
Prevention
The Intelligent Key buzzer sounds if the Intelligent
Key is left inside the vehicle when the doors are
closed and locked. When the buzzer sounds, be
sure to take the Intelligent key with you when
leaving the vehicle. For additional information,
refer to “NISSAN Intelligent Key®” in the “Pre-
driving checks and adjustments” section of this
manual.
Parking brake reminder chime
A chime sounds if the parking brake is set and the
vehicle is driven. The chime will stop if the parking
brake is released or the vehicle speed returns to
zero.
2-14Instruments and controls
Page 92 of 401
The vehicle information display is located to the
left of the speedometer. It displays such items as:● Home
● Audio Information
● Navigation Information
● Drive Computer Information
● Fuel Economy Information
● Driving Aids Information (if so equipped)
● Tire Pressure Information ●
Sport Information (Oil pressure, Gear Oil
Temperature, Digital Speedometer, Horse-
power)
● Indicators and Warnings
● Vehicle and Meter Display Settings
● Cruise Control Status
● Odometer/twin trip odometer
● Gear Position Indicator (P, R, N, D)
● Distance To Empty and Fuel IndicatorHOW TO USE THE VEHICLE
INFORMATION DISPLAY
The vehicle information display can be changed
using the
andbuttons located
on the steering wheel.
1SOURCE - Pressing SOURCE with the ig-
nition ON will display a list of available audio
sources in the vehicle information display.
The audio sources can then be selected with
the
, and OK buttons on the
steering switch for direct access.
2OK - Change or select an item in the vehicle
information display.
LIC3224LIC3177
VEHICLE INFORMATION DISPLAY
Instruments and controls2-15
Page 93 of 401
3— Scroll up or down the vehicle infor-
mation menu items. If the vehicle information
display is not showing a menu with
the
buttons, pressing
orwill change to the previous/next au-
dio preset.
4— go back or forward through
the vehicle information menu items or to
change from one display screen to the next.
The OK,
andbuttons also
control audio and control panel functions in some
conditions. Most screens and menus offer in-
struction prompts of the steering switch buttons
to indicate how to control the vehicle information
display. An orange cursor is shown to indicate
where you are in the available menu items. A
scroll bar with up and down arrows will appear if
there is more than one page of menu items. For
additional information, refer to the separate Navi-
gation System Owner’s Manual.
STARTUP DISPLAY
When the vehicle in placed in the ON or ACC
position the screens that display in the vehicle
information display include:
● Home
● Audio ●
Navigation
● Drive Computer
● Fuel economy
● Driving Aids (if so equipped)
● Tire Pressures
● SPORT
● Warning Review
● Settings
The warnings review title section will show how
many active warnings exist, or 0 in the event that
no warnings are active. For additional informa-
tion, refer to “vehicle information display warn-
ings and indicators” in this section.
To control what items display in the vehicle infor-
mation display, refer to “Main menu selection” in
this section.
DRIVE COMPUTER
The Drive Computer displays driving and average
trip information, and can be accessed from the
startup display on the vehicle information display.
Select the Drive Computer icon, and press the
OK button. To reset the driving and average trip
information, use the
orbutton to
select which item to reset, or select Reset All.
Select YES, and press the OK button to reset
information history.
LIC3261
2-16Instruments and controls
Page 94 of 401
SETTINGS
The setting mode allows you to change the infor-
mation displayed in the vehicle information dis-
play as well as the model for several vehicle
functions:● Driver Assistance
● Customize Display
● Vehicle Settings
● Maintenance
● Clock
● TPMS Settings
● Unit/Language
● Key-Linked Settings
● Factory Reset
Driver Assistance
To change the status, warnings or turn on or off
any of the systems/warnings displayed in the
“Driver Assistance” menu:
Use the
button to select and the OK but-
ton to change a menu item:
● Blind Spot (if so equipped) ON/OFF
● Parking Aids ●
Emergency Brake (if so equipped)
● Driver Attention Alert (if so equipped)
ON/OFF
● Timer Alert
● Low Temperature Alert ON/OFF
● Integrated Dynamics-control Module - Ac-
tive Trace Control ON/OFF (if so equipped)
● Integrated Dynamics-control Module - Ac-
tive Engine Brake ON/OFF (if so equipped)
● Integrated Dynamics-control Module - Ac-
tive Ride Control ON/OFF (if so equipped)
Customize Display
The Customize Display allows the customer to
choose from various meter selections.
The meter settings can be changed using
the
and the OK button.
Main Menu Selection
The items that display can be enabled/disabled
when the ignition switch is placed in the ON
position. To change the items that display.
Use the
button to select and the OK but-
ton to change a menu item:
● Home
● Audio ●
Navigation
● Drive computer
● Fuel Economy
● Driving Aids (if so equipped)
● Tire Pressure
● SPORT
Car Icon Color
The color of the vehicle that displays in the ve-
hicle information display can be changed. The
vehicle icon shown in some warnings and
screens will change to the color selected.
ECO Info Settings
The following information can be
enabled/disabled to display in the vehicle infor-
mation display when the ignition switch is placed
in the ON position.
From the “Customize Display” select “ECO Info
Settings” to display the information when the
ignition switch is placed in the ON position. ● ECO Drive Report – Select ON or OFF to
display the information when the ignition
switch is placed in the OFF position. If the
fuel economy is improved from the recorded
best, the opportunity to update that value is
possible during that time.
Instruments and controls2-17
Page 95 of 401

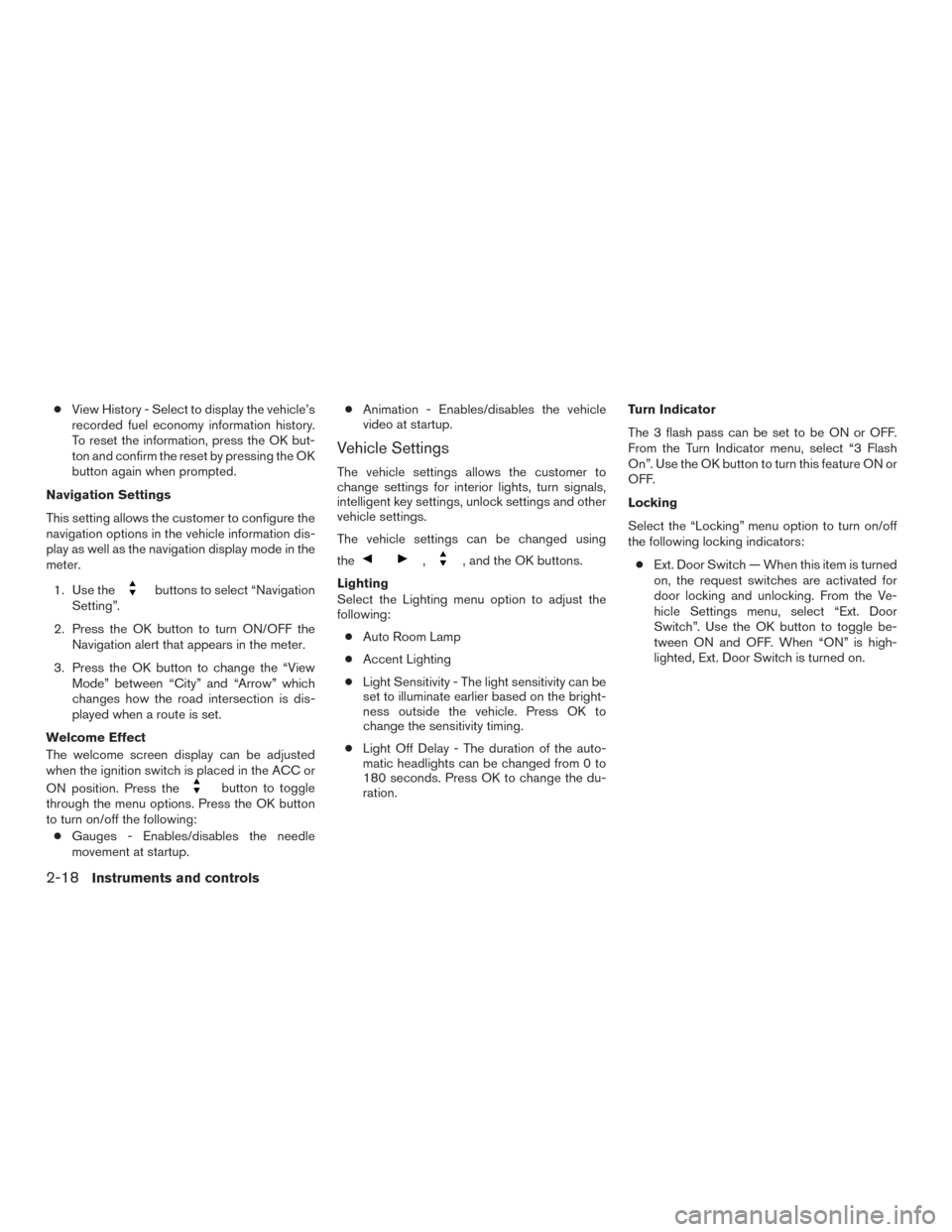

●View History - Select to display the vehicle’s
recorded fuel economy information history.
To reset the information, press the OK but-
ton and confirm the reset by pressing the OK
button again when prompted.
Navigation Settings
This setting allows the customer to configure the
navigation options in the vehicle information dis-
play as well as the navigation display mode in the
meter.
1. Use the
buttons to select “Navigation
Setting”.
2. Press the OK button to turn ON/OFF the Navigation alert that appears in the meter.
3. Press the OK button to change the “View Mode” between “City” and “Arrow” which
changes how the road intersection is dis-
played when a route is set.
Welcome Effect
The welcome screen display can be adjusted
when the ignition switch is placed in the ACC or
ON position. Press the
button to toggle
through the menu options. Press the OK button
to turn on/off the following:
● Gauges - Enables/disables the needle
movement at startup. ●
Animation - Enables/disables the vehicle
video at startup.
Vehicle Settings
The vehicle settings allows the customer to
change settings for interior lights, turn signals,
intelligent key settings, unlock settings and other
vehicle settings.
The vehicle settings can be changed using
the
,, and the OK buttons.
Lighting
Select the Lighting menu option to adjust the
following: ● Auto Room Lamp
● Accent Lighting
● Light Sensitivity - The light sensitivity can be
set to illuminate earlier based on the bright-
ness outside the vehicle. Press OK to
change the sensitivity timing.
● Light Off Delay - The duration of the auto-
matic headlights can be changed from 0 to
180 seconds. Press OK to change the du-
ration. Turn Indicator
The 3 flash pass can be set to be ON or OFF.
From the Turn Indicator menu, select “3 Flash
On”. Use the OK button to turn this feature ON or
OFF.
Locking
Select the “Locking” menu option to turn on/off
the following locking indicators:
● Ext. Door Switch — When this item is turned
on, the request switches are activated for
door locking and unlocking. From the Ve-
hicle Settings menu, select “Ext. Door
Switch”. Use the OK button to toggle be-
tween ON and OFF. When “ON” is high-
lighted, Ext. Door Switch is turned on.
2-18Instruments and controls
Page 96 of 401

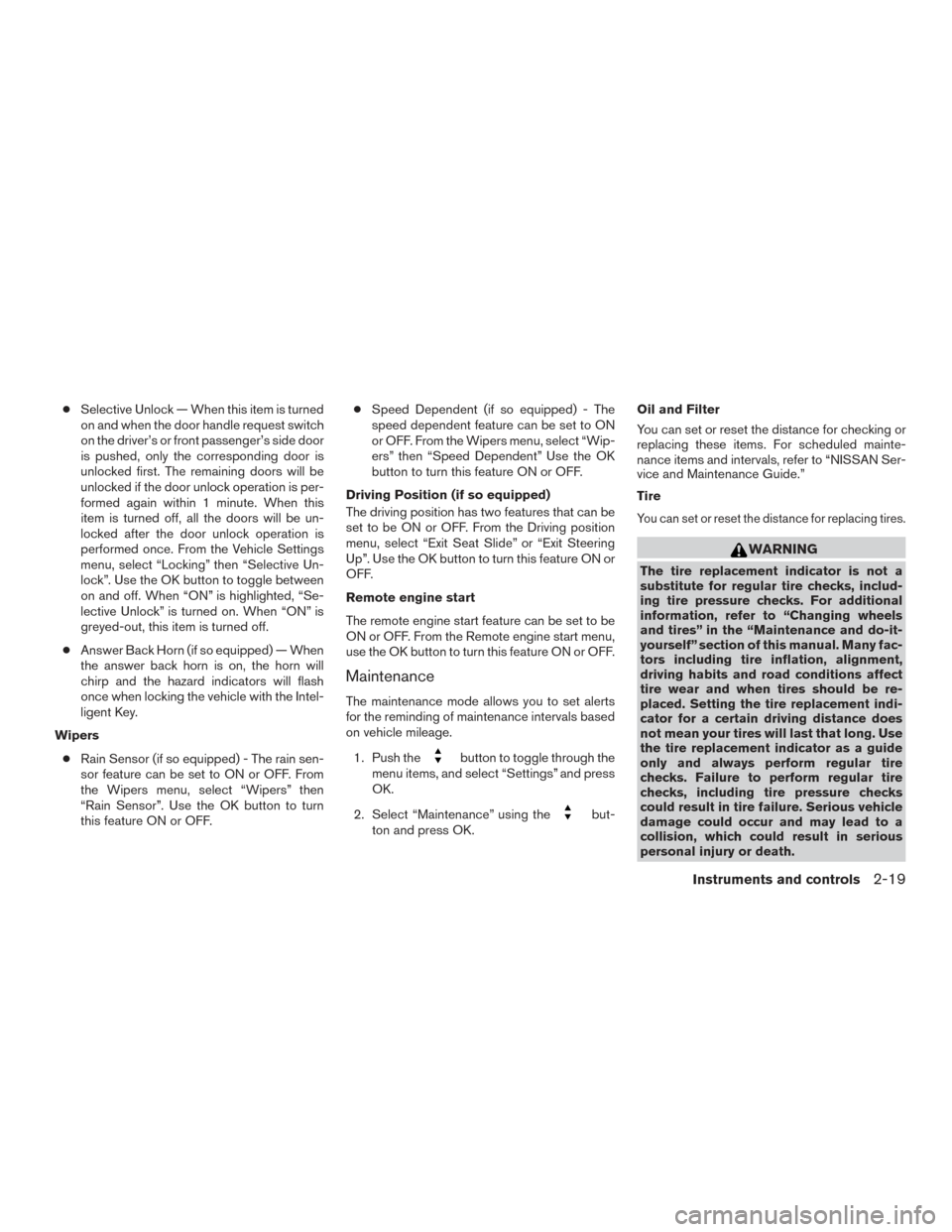

●Selective Unlock — When this item is turned
on and when the door handle request switch
on the driver’s or front passenger’s side door
is pushed, only the corresponding door is
unlocked first. The remaining doors will be
unlocked if the door unlock operation is per-
formed again within 1 minute. When this
item is turned off, all the doors will be un-
locked after the door unlock operation is
performed once. From the Vehicle Settings
menu, select “Locking” then “Selective Un-
lock”. Use the OK button to toggle between
on and off. When “ON” is highlighted, “Se-
lective Unlock” is turned on. When “ON” is
greyed-out, this item is turned off.
● Answer Back Horn (if so equipped) — When
the answer back horn is on, the horn will
chirp and the hazard indicators will flash
once when locking the vehicle with the Intel-
ligent Key.
Wipers ● Rain Sensor (if so equipped) - The rain sen-
sor feature can be set to ON or OFF. From
the Wipers menu, select “Wipers” then
“Rain Sensor”. Use the OK button to turn
this feature ON or OFF. ●
Speed Dependent (if so equipped) - The
speed dependent feature can be set to ON
or OFF. From the Wipers menu, select “Wip-
ers” then “Speed Dependent” Use the OK
button to turn this feature ON or OFF.
Driving Position (if so equipped)
The driving position has two features that can be
set to be ON or OFF. From the Driving position
menu, select “Exit Seat Slide” or “Exit Steering
Up”. Use the OK button to turn this feature ON or
OFF.
Remote engine start
The remote engine start feature can be set to be
ON or OFF. From the Remote engine start menu,
use the OK button to turn this feature ON or OFF.
Maintenance
The maintenance mode allows you to set alerts
for the reminding of maintenance intervals based
on vehicle mileage.
1. Push the
button to toggle through the
menu items, and select “Settings” and press
OK.
2. Select “Maintenance” using the
but-
ton and press OK. Oil and Filter
You can set or reset the distance for checking or
replacing these items. For scheduled mainte-
nance items and intervals, refer to “NISSAN Ser-
vice and Maintenance Guide.”
Tire
You can set or reset the distance for replacing tires.
WARNING
The tire replacement indicator is not a
substitute for regular tire checks, includ-
ing tire pressure checks. For additional
information, refer to “Changing wheels
and tires” in the “Maintenance and do-it-
yourself” section of this manual. Many fac-
tors including tire inflation, alignment,
driving habits and road conditions affect
tire wear and when tires should be re-
placed. Setting the tire replacement indi-
cator for a certain driving distance does
not mean your tires will last that long. Use
the tire replacement indicator as a guide
only and always perform regular tire
checks. Failure to perform regular tire
checks, including tire pressure checks
could result in tire failure. Serious vehicle
damage could occur and may lead to a
collision, which could result in serious
personal injury or death.
Instruments and controls2-19
Page 97 of 401
Other
Other maintenance items can include such
things as air filter or tire rotation. The distance for
checking or replacing the items can be set or
reset.
Clock
For additional information, refer to the separate
Navigation Owner’s Manual.
TPMS Settings
The unit for tire pressure that displays in the
vehicle information display can be changed to:● psi
● kPa
● bar
● kgf/cm
2
Use thebuttons and the OK button to
select and change the unit.
Unit/Language
Select “Unit/Language” to adjust vehicle units
and language on the vehicle information display.
The vehicle information display language can
also be changed by operating the navigation unit
(if so equipped) . For additional information, refer to the separate Navigation Owner’s Manual. Use
the
buttons to choose from the following
menu options:
● Mileage/Fuel
● Tire Pressure Unit
● Temperature
● Language
Mileage/Fuel
The unit for the mileage that displays in the ve-
hicle information display can be changed to: ● miles, MPG
● km, km/l
● km, l/100km
Use the
buttons and the OK button to
select and change the unit.
Tire Pressures
The unit for tire pressure that displays in the
vehicle information display can be changed to:
● psi
● kPa
● bar
● kgf/cm
2
Use thebuttons and the OK button to
select and change the unit.
Temperature
The temperature that displays in the vehicle infor-
mation display can be changed from:
● °F (Fahrenheit)
● °C (Celsius)
Use the OK button to toggle choices.
Language
The language of the vehicle information display
can be changed to: ● English
● Français
● Español
Use the
buttons and the OK button to
select and change the language of the vehicle
information display.
2-20Instruments and controls
Page 98 of 401

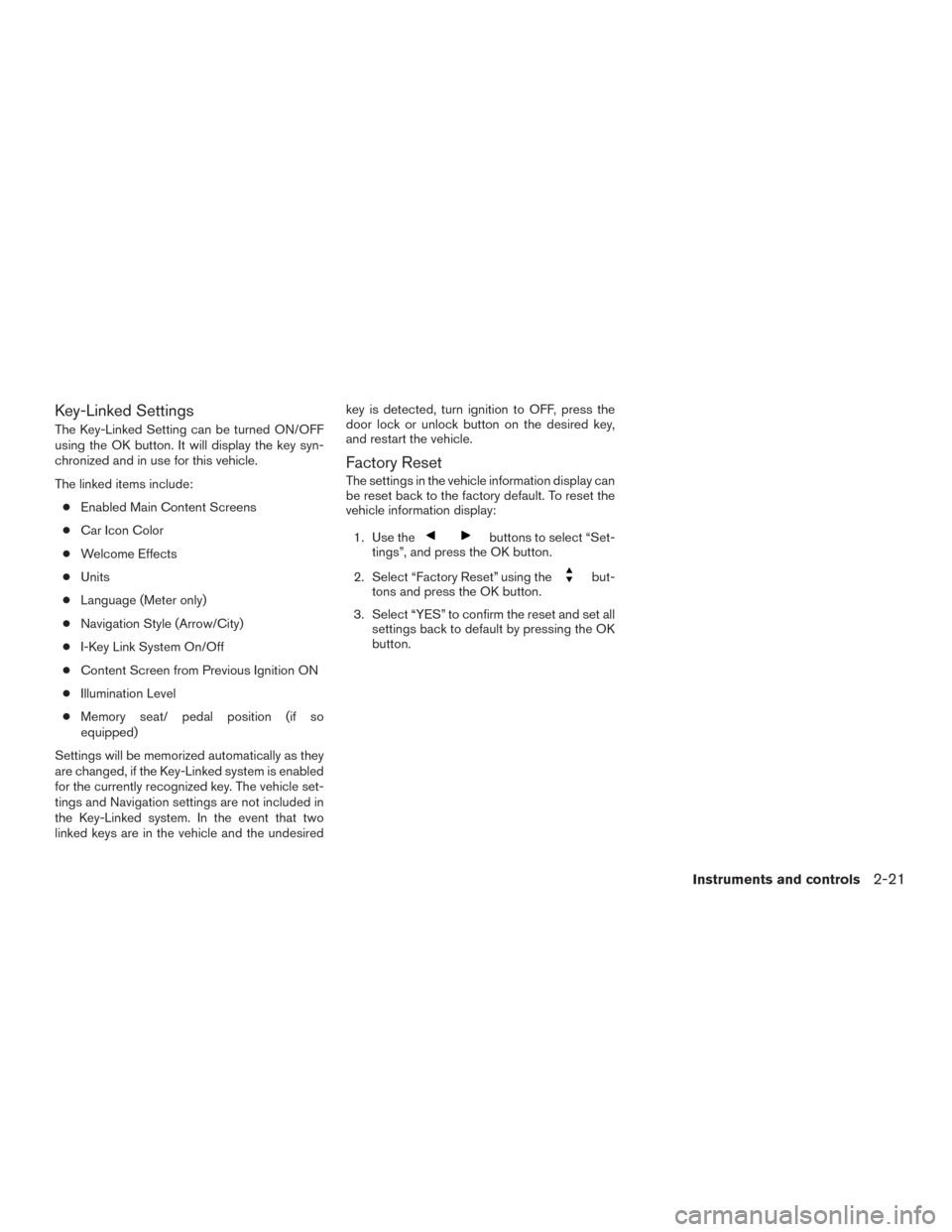

Key-Linked Settings
The Key-Linked Setting can be turned ON/OFF
using the OK button. It will display the key syn-
chronized and in use for this vehicle.
The linked items include:● Enabled Main Content Screens
● Car Icon Color
● Welcome Effects
● Units
● Language (Meter only)
● Navigation Style (Arrow/City)
● I-Key Link System On/Off
● Content Screen from Previous Ignition ON
● Illumination Level
● Memory seat/ pedal position (if so
equipped)
Settings will be memorized automatically as they
are changed, if the Key-Linked system is enabled
for the currently recognized key. The vehicle set-
tings and Navigation settings are not included in
the Key-Linked system. In the event that two
linked keys are in the vehicle and the undesired key is detected, turn ignition to OFF, press the
door lock or unlock button on the desired key,
and restart the vehicle.
Factory Reset
The settings in the vehicle information display can
be reset back to the factory default. To reset the
vehicle information display:
1. Use the
buttons to select “Set-
tings”, and press the OK button.
2. Select “Factory Reset” using the
but-
tons and press the OK button.
3. Select “YES” to confirm the reset and set all settings back to default by pressing the OK
button.
Instruments and controls2-21
Page 99 of 401
LIC3244
2-22Instruments and controls
Page 100 of 401
VEHICLE INFORMATION DISPLAY
WARNINGS AND INDICATORS
1. Engine start operation
2. No Key Detected
3. Shift to Park
4. Key Battery Low
5. Engine start operation for Intelligent Key sys-tem (if I-Key battery level is low)
6. Key ID Incorrect
7. Parking Sensor Error: See Owner’s Manual
8. Release Parking Brake
9. Low Fuel
10. Low Washer Fluid
11. Door/Trunk Open
12. I-Key System Error: See Owner’s Manual
13. Loose Fuel Cap
14. Headlight System Error: See Owner’s Manual
15. Tire Pressure Low – Add Air
16. Sensor
17. Park Sensor 18. Driver Attention Alert Malfunction (if so
equipped)
19. Alarm - Time for a break? (if so equipped)
20. Driver Attention Alert - Take a Break? (if so equipped)
21. Illumination Brightness Control
22. Shipping Mode On Push Storage Fuse (if so equipped)
23. Power will turn off to save the battery
24. Power turned off to save the battery
25. Reminder: Turn OFF headlights
26. Chassis Control System Error: See Owner’s Manual (if so equipped)
27. Oil and Filter
28. Tire
29. Other
30. Cruise indicators
31. Transmission Shift Position Indicator
32. CVT Error: See Owner’s Manual
33. BSW/RCTA system malfunction: See Own- er’s Manual (if so equipped)
34. FEB/PFCW system malfunction: See Own- er’s Manual (if so equipped) 35. Intelligent Cruise Control (ICC) system ON
indicator (if so equipped)
36. SPORT
37. Outside Temperature Display
38. Low Outside Temperature Alert
Engine start operation
This indicator appears when the shift lever is in
the P (Park) position.
This indicator means that the engine will start by
pushing the ignition switch with the brake pedal
depressed. You can start the engine from any
position of the ignition switch.
No Key Detected
This warning appears when the Intelligent Key is
left outside the vehicle with the ignition switch in
the ON position. Make sure the Intelligent Key is
inside the vehicle.
For additional information, refer to “NISSAN In-
telligent Key®” in the “Pre-driving checks and
adjustments” section of this manual.
Shift to Park
This warning illuminates when the ignition switch
is in the ACC or OFF position and the shift lever
Instruments and controls2-23
