Page 401 of 476

NISSAN MAXIMA 2021  Owner´s Manual 1. Map light
2. Personal light
3. Step light
4. Door mirror turn signal light (if soequipped)
5. Headlight assembly
6. Fog light (if so equipped)
7. High-mounted stop light (if so
equipped)
8. License

Page 402 of 476

NISSAN MAXIMA 2021  Owner´s Manual If you have a flat tire, see “Flat tire”
(P. 6-3).
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
WARNING
Radio waves could adversely af-
fect electric medical equipment.
Those who use a pac

Page 403 of 476

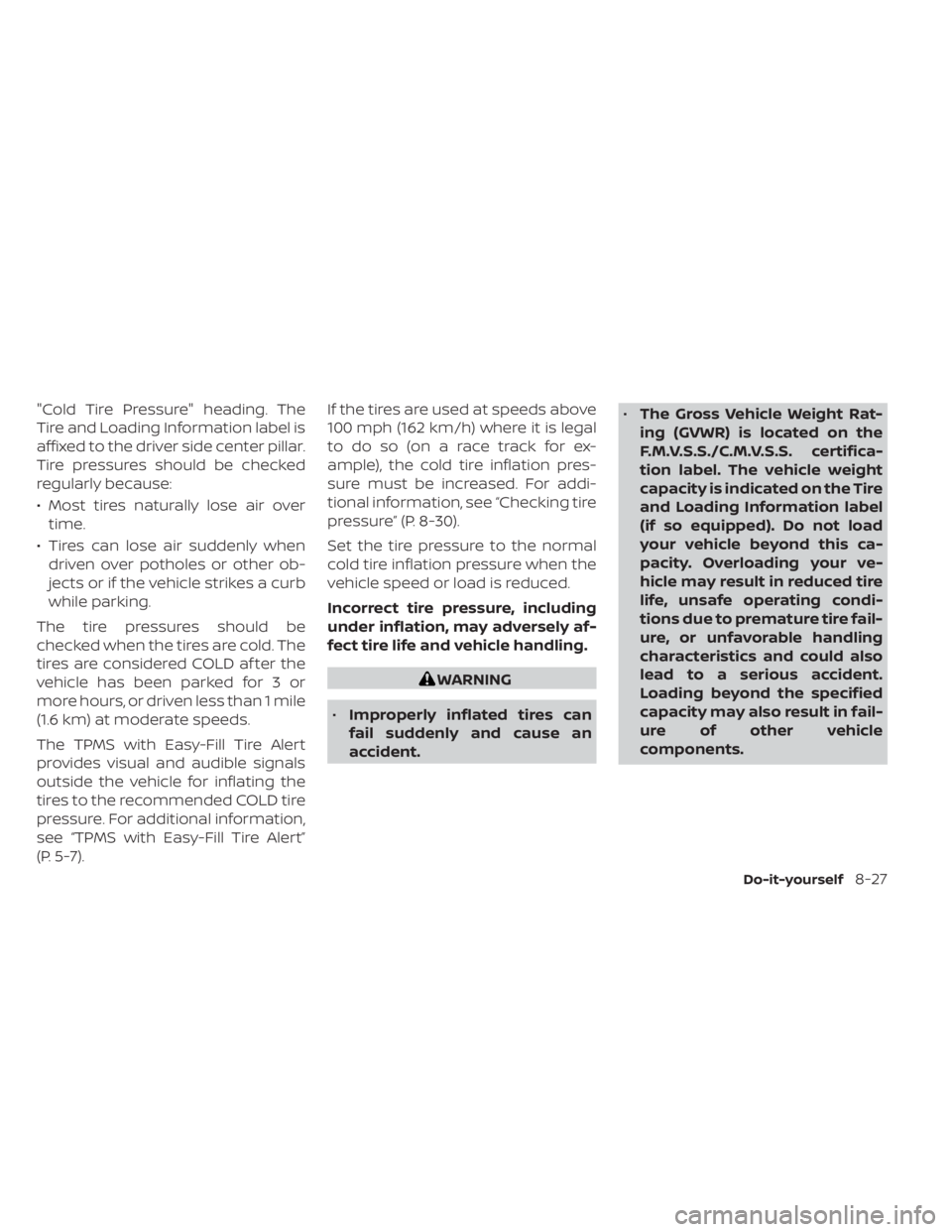

NISSAN MAXIMA 2021  Owner´s Manual "Cold Tire Pressure" heading. The
Tire and Loading Information label is
affixed to the driver side center pillar.
Tire pressures should be checked
regularly because:
• Most tires naturally l

Page 404 of 476

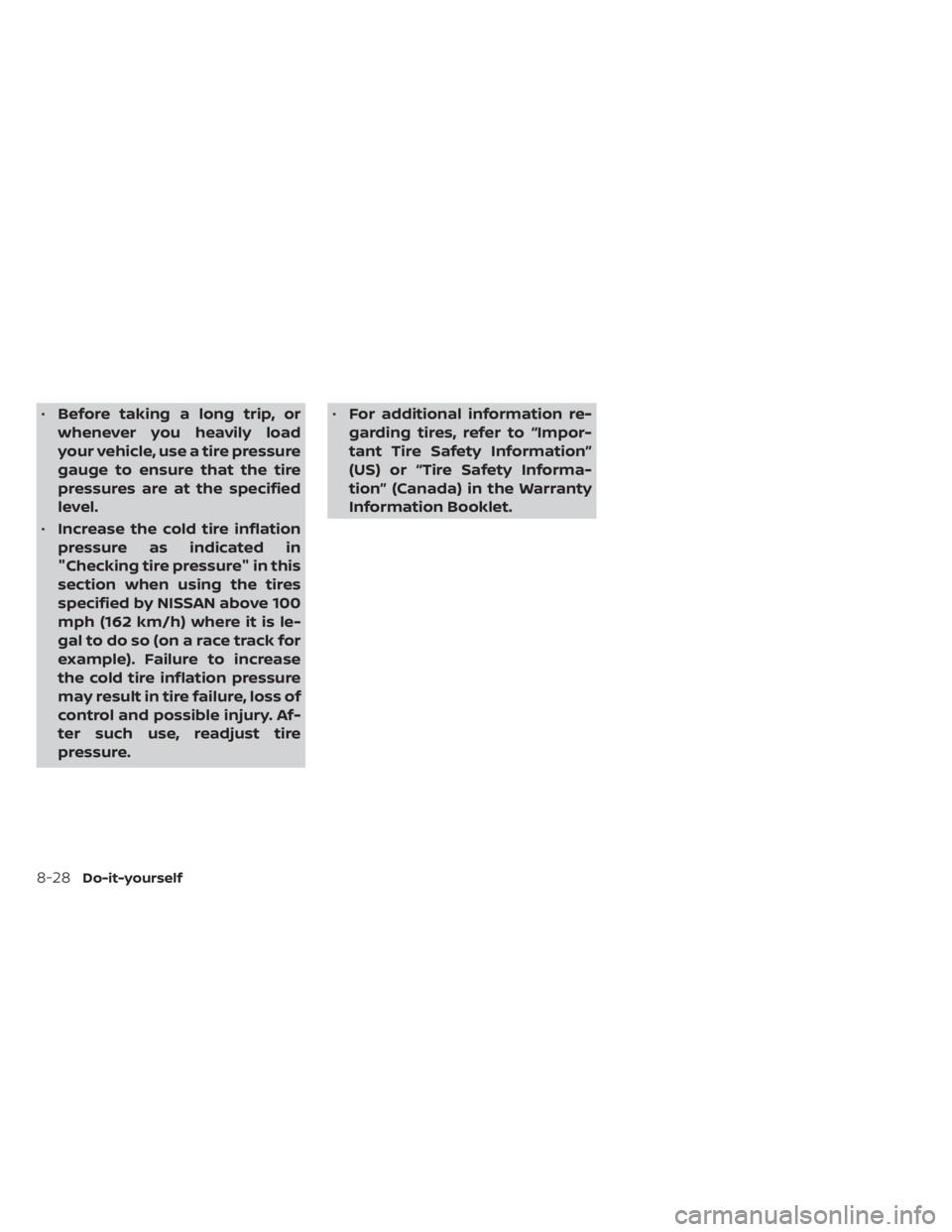

NISSAN MAXIMA 2021  Owner´s Manual •Before taking a long trip, or
whenever you heavily load
your vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
• Increase the cold tire inflation
pr

Page 405 of 476

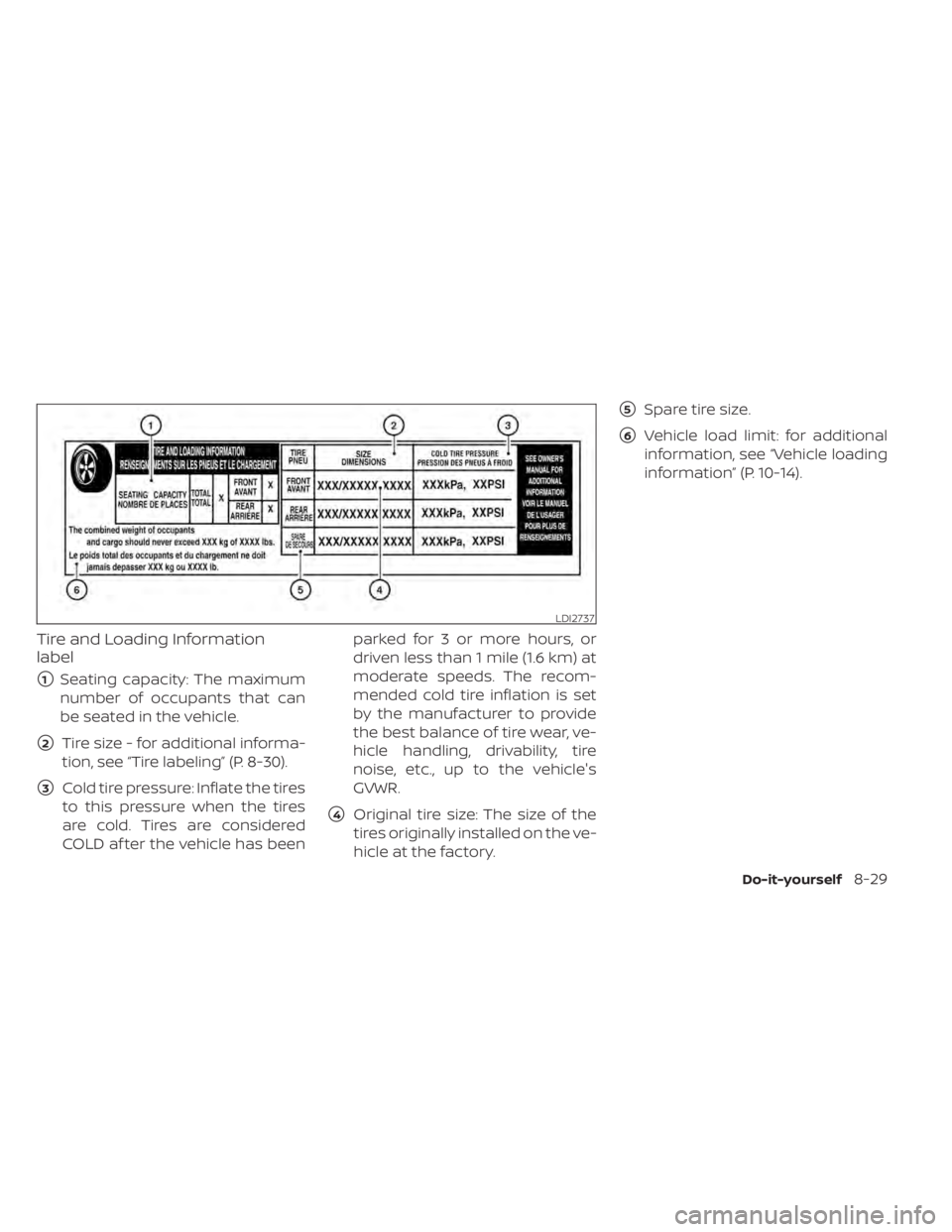

NISSAN MAXIMA 2021  Owner´s Manual Tire and Loading Information
label
1Seating capacity: The maximum
number of occupants that can
be seated in the vehicle.
2Tire size - for additional informa-
tion, see “Tire labeling” (P. 8-30).

Page 406 of 476

NISSAN MAXIMA 2021  Owner´s Manual Checking tire pressure
1. Remove the valve stem cap fromthe tire.
2.
Press the pressure gauge squarely
onto the valve stem. Do not press
too hard or force the valve stem
sideways, or air will escape.

Page 407 of 476

NISSAN MAXIMA 2021  Owner´s Manual O1Tire size (example: P215/65R15
95H)
1. P: The “P” indicates the tire is de- signed for passenger vehicles (not
all tires have this information).
2. Three-digit number (215): This number gives th

Page 408 of 476

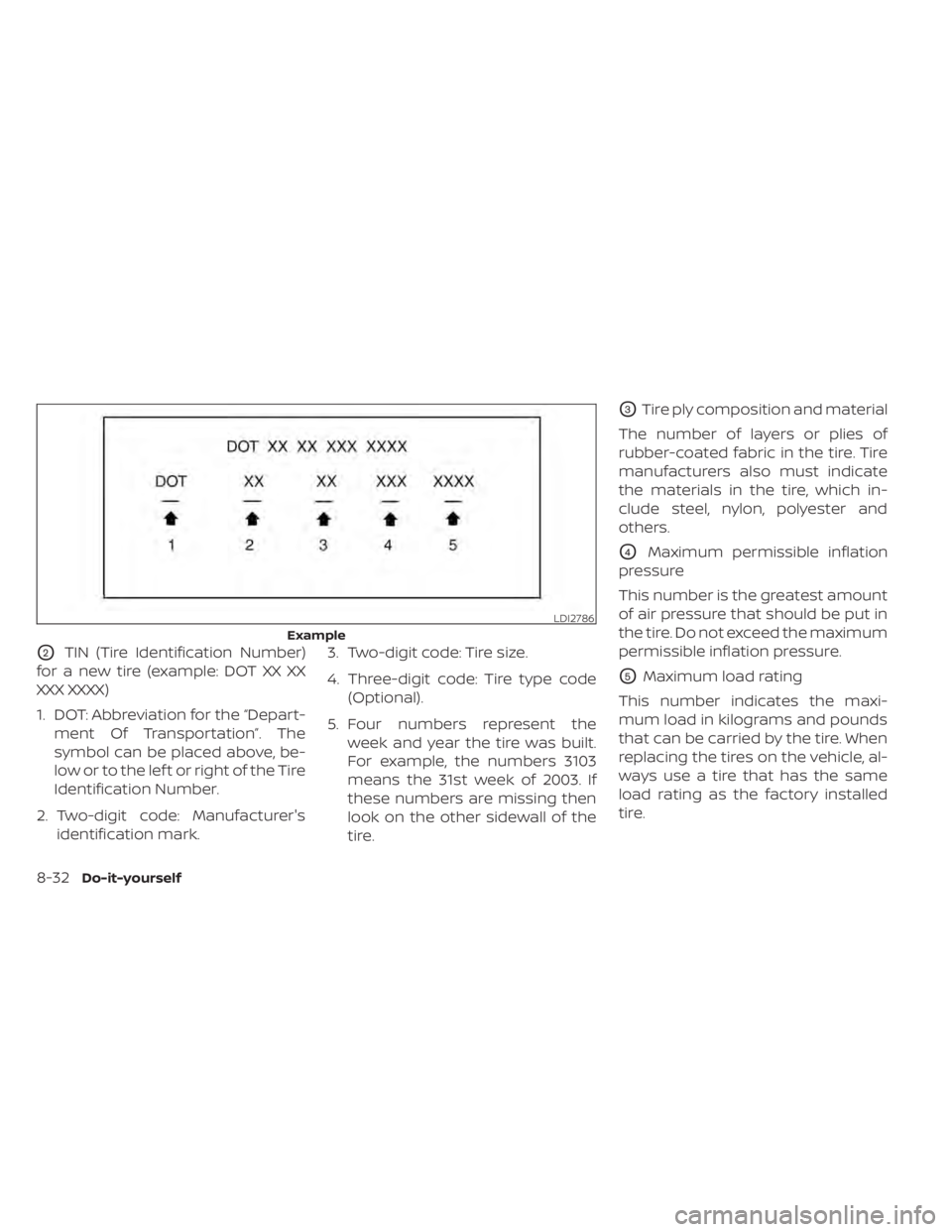

NISSAN MAXIMA 2021  Owner´s Manual O2TIN (Tire Identification Number)
for a new tire (example: DOT XX XX
XXX XXXX)
1. DOT: Abbreviation for the “Depart- ment Of Transportation”. The
symbol can be placed above, be-
low or to the lef

Page 409 of 476

NISSAN MAXIMA 2021  Owner´s Manual O6Term of “tubeless” or “tube type”
Indicates whether the tire requires
an inner tube (“tube type”) or not
(“tubeless”).
O7The word “radial”
The word “radial” is shown if the t

Page 410 of 476

NISSAN MAXIMA 2021  Owner´s Manual Summer tires
NISSAN specifies summer tires on some
models to provide superior performance
on dry roads. Summer tire performance is
substantially reduced in snow and ice.
Summer tires do not have the t
