Page 317 of 428
FREEING A FROZEN DOOR LOCK
To prevent a door lock from freezing, apply
de-icer through the key hole. If the lock
becomes frozen, heat the key before in-
serting it into the key hole or use the re-
mote keyless entry function on the Intelli-
gent Key.
ANTIFREEZE
In the winter when it is anticipated that the
temperature will drop below 32°F (0°C),
check the antifreeze to assure proper win-
ter protection. For additional information,
refer to “Engine cooling system” in the “Do-
it-yourself ” section of this manual.
BATTERY
If the battery is not fully charged during
extremely cold weather conditions, the
battery fluid may freeze and damage the
battery. To maintain maximum efficiency,
the battery should be checked regularly.
For additional information, refer to “Battery”
in the “Do-it-yourself ” section of this
manual.
DRAINING OF COOLANT WATER
If the vehicle is to be lef t outside without
anti-freeze, drain the cooling system, in-
cluding the engine block. Refill before oper-
ating the vehicle. For additional informa-
tion, refer to “Changing engine coolant” in
the “Do-it-yourself ” section of this manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry
pavement. However, the performance
of these tires will be substantially re-
duced in snowy and icy conditions. If
you operate your vehicle on snowy or
icy roads, NISSAN recommends the use
of MUD & SNOW or ALL SEASON TIRES
on all four wheels. It is recommended
that you visit a NISSAN dealer for the tire
type, size, speed rating and availability
information.
2. For additional traction on icy roads, studded tires may be used. However,
some U.S. states and Canadian prov-
inces prohibit their use. Check local,
state and provincial laws before install-
ing studded tires. Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow
tires.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items
be carried in the vehicle during winter:
∙ A scraper and stiff-bristled brush to re- move ice and snow from the windows
and wiper blades.
∙ A sturdy, flat board to be placed under the jack to give it firm support.
∙ A shovel to dig the vehicle out of snow- drif ts.
∙ Extra washer fluid to refill the windshield-washer fluid reservoir.
DRIVING ON SNOW OR ICE

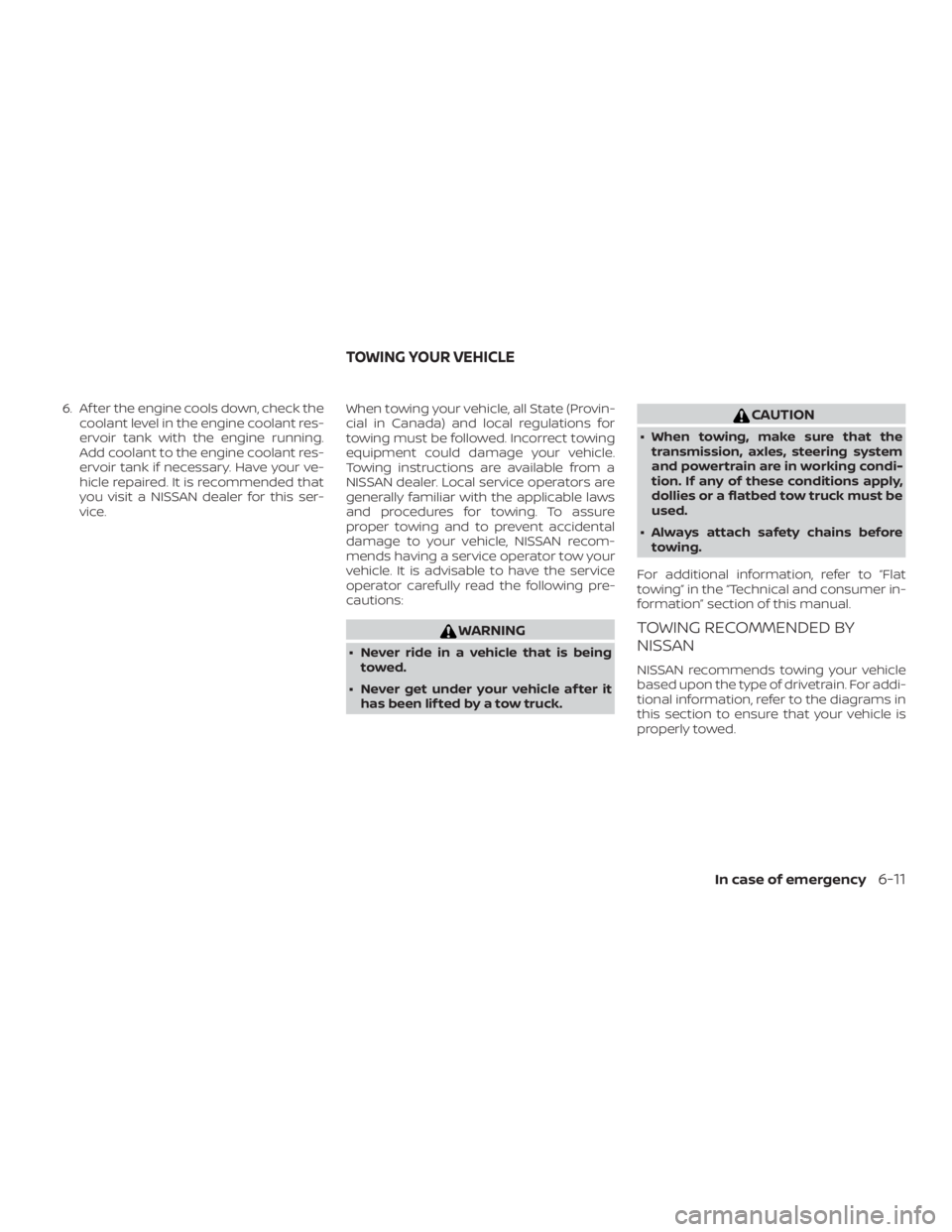

Page 331 of 428
6. Af ter the engine cools down, check thecoolant level in the engine coolant res-
ervoir tank with the engine running.
Add coolant to the engine coolant res-
ervoir tank if necessary. Have your ve-
hicle repaired. It is recommended that
you visit a NISSAN dealer for this ser-
vice. When towing your vehicle, all State (Provin-
cial in Canada) and local regulations for
towing must be followed. Incorrect towing
equipment could damage your vehicle.
Towing instructions are available from a
NISSAN dealer. Local service operators are
generally familiar with the applicable laws
and procedures for towing. To assure
proper towing and to prevent accidental
damage to your vehicle, NISSAN recom-
mends having a service operator tow your
vehicle. It is advisable to have the service
operator carefully read the following pre-
cautions:

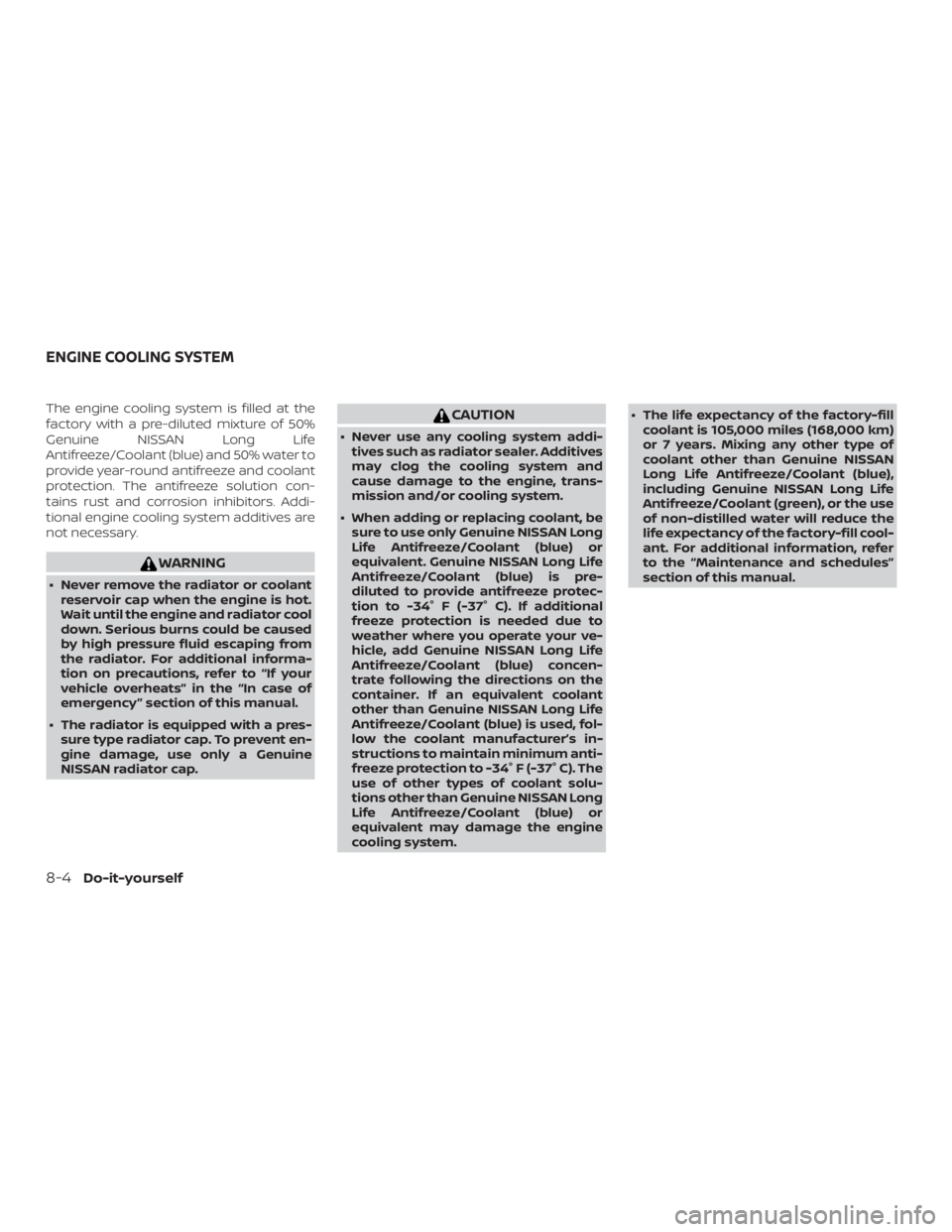

Page 346 of 428
The engine cooling system is filled at the
factory with a pre-diluted mixture of 50%
Genuine NISSAN Long Life
Antifreeze/Coolant (blue) and 50% water to
provide year-round antifreeze and coolant
protection. The antifreeze solution con-
tains rust and corrosion inhibitors. Addi-
tional engine cooling system additives are
not necessary.
Page 347 of 428
CHECKING ENGINE COOLANT
LEVEL
Check the coolant levelin the reservoir
when the engine is cold. If the coolant
level is below the MIN level
B, add coolant
to the MAX level
A. If the reservoir is empty,
check the coolant level in the radiator
when the engine is cold. If there is insuffi-
cient coolant in the radiator, fill the radiator
with coolant up to the filler opening and
also add it to the reservoir up to the MAX
level
A. This vehicle contains Genuine NISSAN Long
Life Antifreeze/Coolant (blue). The life ex-
pectancy of the factory-fill coolant is
105,000 miles (168,000 km) or 7 years. Mixing
any other type of coolant or the use of
non-distilled water will reduce the life ex-
pectancy of the factory-fill coolant. For ad-
ditional information, refer to the “Mainte-
nance and schedules” section of this
manual.
If the cooling system frequently requires
coolant, it is recommended that you visit
a NISSAN dealer for this service.
For additional information on the location
of the engine coolant reservoir, refer to “En-
gine compartment check locations” in this
section.
CHANGING ENGINE COOLANT
A NISSAN dealer can change the engine
coolant. The service procedure can be
found in the NISSAN Service Manual.
Improper servicing can result in reduced
heater performance and engine over-
heating.
Page 418 of 428
Climatecontrolseatswitch.........2-50
C.M.V.S.S. certification label.........10-11
Coldweatherdriving.............5-93
Console box ..................2-58
Console light ..................2-67
Continuously Variable Transmission
(CVT) .......................5-16
Continuously Variable Transmission (CVT)
fluid......................8-9
Driving with Continuously Variable
Transmission (CVT) ............5-16
Transmission shif t selector lock
release....................5-20
Control panel and vehicle information
displayinteraction...............2-32
Controls Heater and air conditioner controls . .4-29
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Checking engine coolant level ......8-5
Engine coolant temperature gauge . .2-6
Corrosionprotection..............7-8
Cruisecontrol..................5-41
Cupholders ..................2-59
D
Daytime Running Light System .......2-47
Defroster switch Rear window and outside mirror
defrosterswitch..............2-45
Dimensions and weights ...........10-9
Dimmer switch for instrument panel . . .2-48 Display......................2-17
Door locks
..................3-4,3-5
Drivebelt ....................8-14
Drive Mode Selector ..............5-23
Drive positioner,
Automatic..........3-30,3-31,3-32,3-33
Drive Sport Mode Selector ..........5-22
Driving Cold weather driving ...........5-93
Driving with Continuously Variable
Transmission (CVT) ............5-16
Precautions when starting and
driving.....................5-4
Drivingthevehicle...............5-16
E
E-CALL (SOS) SWITCH .............2-54
Economy - fuel .................5-80
Emergency engine shutoff .......5-13,6-2
Emission control information label . . . .10-11
Emission control system warranty . . . .10-18
Engine Before starting the engine ........5-14
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine coolant level ......8-5
Checking engine oil level .........8-6
Engine compartment check
locations...................8-3
Engine coolant temperature gauge . .2-6
Engine cooling system ..........8-4 Engine oil
...................8-6
Engine oil and oil filter
recommendation ..........10-2,10-6
Engine oil pressure warning light . . . .2-10
Engine oil viscosity .............10-6
Engine serial number ...........10-11
Engine specifications ...........10-8
Starting the engine ............5-14
Engine Block Heater .............5-94
Engine coolant temperature gauge ....2-6
EventDatarecorders ............10-19
Exhaust gas (Carbon monoxide) .......5-4
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch ..........2-55
Eyeglasscase.................2-58
F
Flashers
(Seehazardwarningflasherswitch)....6-2
Flattire......................6-3
Floormatpositioningaid...........7-6
Fluid Brakefluid..................8-10
Capacities and recommended
fuel/lubricants...............10-2
Continuously Variable Transmission (CVT)
f
luid......................8-9
Engine coolant ...............8-4
Engine oil ...................8-6
Powersteeringfluid............8-10
Windshield-washer fluid .........8-11
F.M.V.S.S. certification label ..........10-11
11-2
Page 419 of 428
Foglightswitch................2-49
Foldingrearseat.................1-5
Front air bag system
(See supplemental restraint system) . . .1-49
Front and rear sonar system........5-89
Front-door pocket ..............2-56
Front power seat adjustment .........1-3
Frontseats................... .1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
Fuel economy ...............5-80
Fuel-filler cap ................3-23
Fuel-filler lid .................3-23
Fuel gauge ..................2-7
Fueloctanerating.............10-5
Fuel recommendation .......10-2,10-3
Loose fuel cap warning .........2-32
Fuelefficientdrivingtips...........5-79
Fuel-filler door .................3-23
Fuel gauge ....................2-7
Fuses .......................8-18
Fusiblelinks...................8-19
G
Garage door opener, HomeLink® Universal
Transceiver . . .2-68, 2-69, 2-70, 2-71, 2-71, 2-72
Gascap.....................3-23
Gauge Engine coolant temperature gauge . .2-6
Fuel gauge ..................2-7
Odometer ..................2-5
Speedometer ..............2-4,2-5
Tachometer .................2-6 Trip odometer
.............2-4,2-5
General maintenance .............9-2
Glovebox....................2-57
Gloveboxlock.................2-57
H
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-45
Headlightcontrolswitch...........2-45
Headlights ...................8-22
Headrestraints................. .1-7
Heatedseats..................2-51
Heated seat switches .............2-51
Heated steering wheel switch .......2-52
Heater Heater and air conditioner (automatic)
(if so equipped) ..............4-28
Heater and air conditioner controls . .4-29
Heater operation .............4-30
Heater and air conditioner (automatic) . .4-28
HomeLink® Universal
Transceiver . . .2-68, 2-69, 2-70, 2-71, 2-71, 2-72
Hood ...................... .3-21
Horn.......................2-50
I
Ignition Switch Push-button ignition switch .......5-10
Immobilizer system ...........2-41,5-14
Important vehicle information label . . . .10-11
In-cabinmicrofilter..............8-16
Increasing fuel economy ..........5-80Indicator
NISSAN Intelligent Key® battery discharge
indicator...................5-13
Indicator lights and audible reminders
(See warning/indicator lights and audible
reminders) .................2-8,2-14
Informationdisplay..............2-17
Inside automatic anti-glare mirror .....3-28
Instrument brightness control .......2-48
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-48
Integrated Dynamics-control Module. . .5-88
Intelligent Around View Monitor .......4-11
Intelligent Cruise Control (ICC) .......5-43
Intelligent Drive Alertness (I-DA) ......5-75
Intelligent Engine Brake (I-EB) ........5-88
Intelligent Forward Collision Warning
(I-FCW)......................5-65
Intelligent
Key system
Key operating range ............3-8
Key operation ................3-9
Mechanical key ...............3-3
Remote keyless entry operation ....3-13
Troubleshooting guide ..........3-16
Warning signals ..............3-16
Intelligent Trace Control (I-TC) ........5-88
Interiorlight...................2-66
Interiortrunklidrelease...........3-22
ISOFIX child restraints .............1-24
J
Jumpstarting...............6-8,8-14
11-3
Page 422 of 428
Seatbeltwarninglight.........1-14, 2-13
SeatsAdjustment ..................1-2
Armrests .................. .1-7
Automatic drive
positioner ........3-30,3-31,3-32,3-33
Frontseats..................1-2
Heatedseats................2-51
Rearseat...................1-5
Security indicator light ............2-15
Security system (NISSAN Vehicle Immobilizer
System), engine start ..........2-41,5-14
Security systems Vehicle security system .........2-39
Self-adjustingbrakes.............8-17
Service manual order form .........10-20
Servicing air conditioner ...........4-32
Shif ting Continuously Variable Transmission
(CVT) .....................5-17
Shoulder belt height adjustment ......1-18
Spark plug replacement ...........8-15
Spark plugs ...................8-15
Specifications .................10-8
Speedometer ................2-4,2-5
Speedometer and odometer ........2-4
Spotlights(Seemaplight)..........2-67
SRS warning label ...............1-60
Stability control ................5-85
Standard maintenance ............9-8
Starting Before starting the engine ........5-14
Jumpstarting.............6-8,8-14
Precautions when starting and
driving .....................5-4
Push starting ................6-10 Starting the engine
............5-14
Starting the engine ..............5-14
Steering Powersteeringfluid............8-10
Powersteeringsystem .........5-82
Steering wheel .................3-25
Stoplight....................8-24
Storage.....................2-56
Storagetray...................2-57
Sunglasses case ................2-58
Sunglasses holder ..............2-58
Sunroof .....................2-63
Sunvisors....................3-27
Supplemental air bag warning
light.................... .1-60, 2-13
Supplemental front impact air bag
system ..................... .1-49
Supplemental restraint system Information and warning labels . . . .1-60
Precautions on supplemental restraint
system ................... .1-43
Supplemental restraint system
(Supplemental air bag system) .......1-43
Switch Autolightswitch..............2-46
Automatic power window switch . . .2-62
Foglightswitch..............2-49
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-45
Headlightcontrolswitch.........2-45
Instrument brightness control .....2-48
Power door lock switch ..........3-5
Rear window and outside mirror
defrosterswitch..............2-45
Turn signal switch .............2-48 T
Tachometer ...................2-6
Temperature gauge Engine coolant temperature gauge . .2-6
Thef t (NISSAN Vehicle Immobilizer System),
engine start ................
2-41,5-14
Three-waycatalyst...............5-4
Tire Flattire....................6-3
Spare tire ................6-4,8-37
Tire and Loading Information label . .10-12
Tire chains .................8-34
Tire pressure ................8-26
Tirerotation ................8-34
Types of tires ................8-33
Uniform tire quality grading .......10-17
Wheels and tires ..............8-26
Wheel/tire size ...............10-9
Tire pressure Low tire pressure warning light .....2-10
Tire Pressure Monitoring System (TPMS) . .5-5
Towing 4-wheel drive models ...........6-12
Flattowing.................10-16
Trailertowing...............10-16
Towingatrailer................10-16
Towingyourvehicle..............6-11
Transceiver HomeLink® Universal
Transceiver .......2-68,2-69,2-70,2 -71,
2-71, 2-72
Transmission Continuously Variable Transmission (CVT)
fluid......................8-9
11-6
