NISSAN MICRA 2018 Owner´s Manual

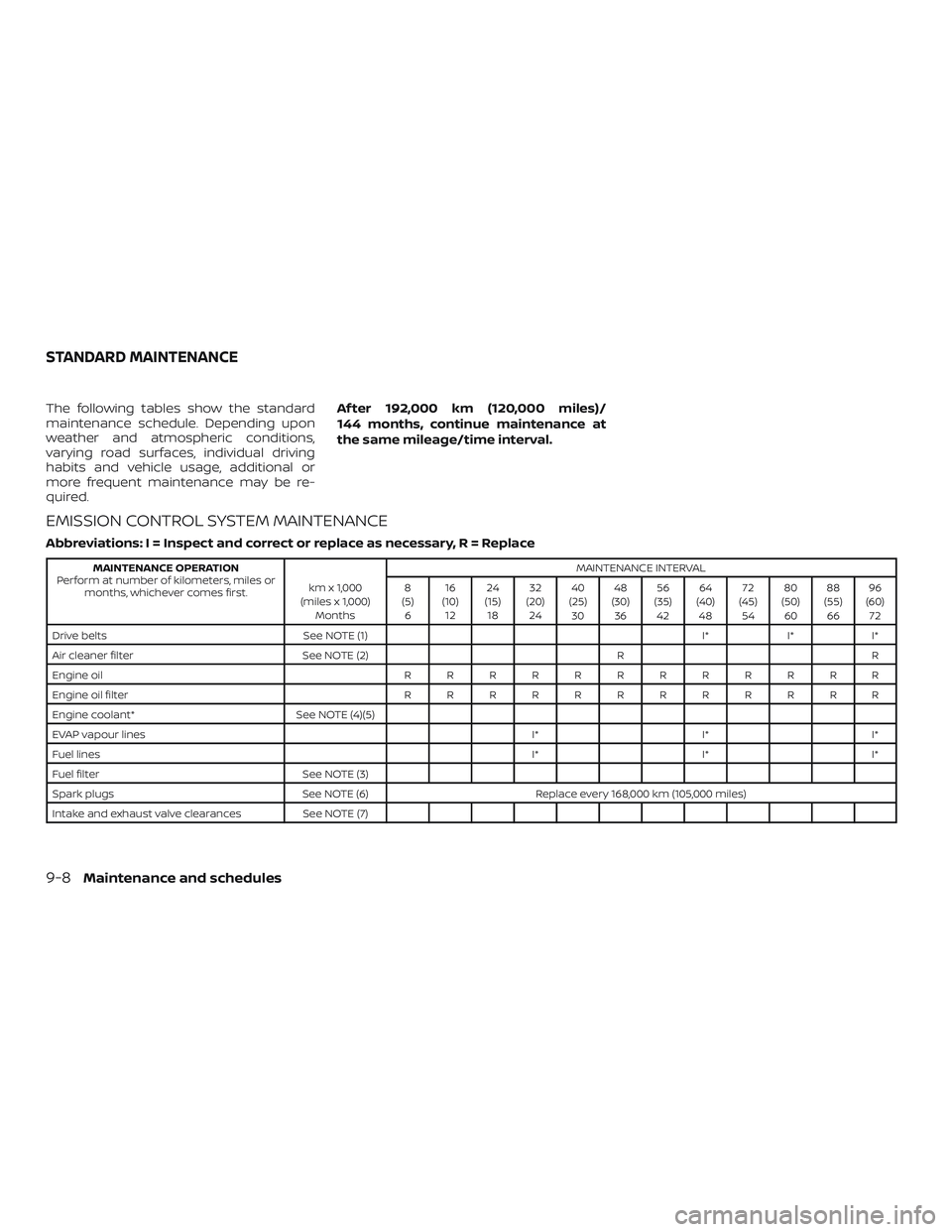

The following tables show the standard
maintenance schedule. Depending upon
weather and atmospheric conditions,
varying road surfaces, individual driving
habits and vehicle usage, additional or
more frequent maintenance may be re-
quired.Af ter 192,000 km (120,000 miles)/
144 months, continue maintenance at
the same mileage/time interval.
EMISSION CONTROL SYSTEM MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace
MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
8
(5) 6 16
(10) 12 24
(15) 18 32
(20) 24 40
(25) 30 48
(30) 36 56
(35) 42 64
(40) 48 72
(45) 54 80
(50) 60 88
(55) 66 96
(60) 72
Drive belts See NOTE (1) I*I*I*
Air cleaner filter See NOTE (2) RR
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Engine coolant* See NOTE (4)(5)
EVAP vapour lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Spark plugs See NOTE (6)Replace every 168,000 km (105,000 miles)
Intake and exhaust valve clearances See NOTE (7)
STANDARD MAINTENANCE
9-8Maintenance and schedules

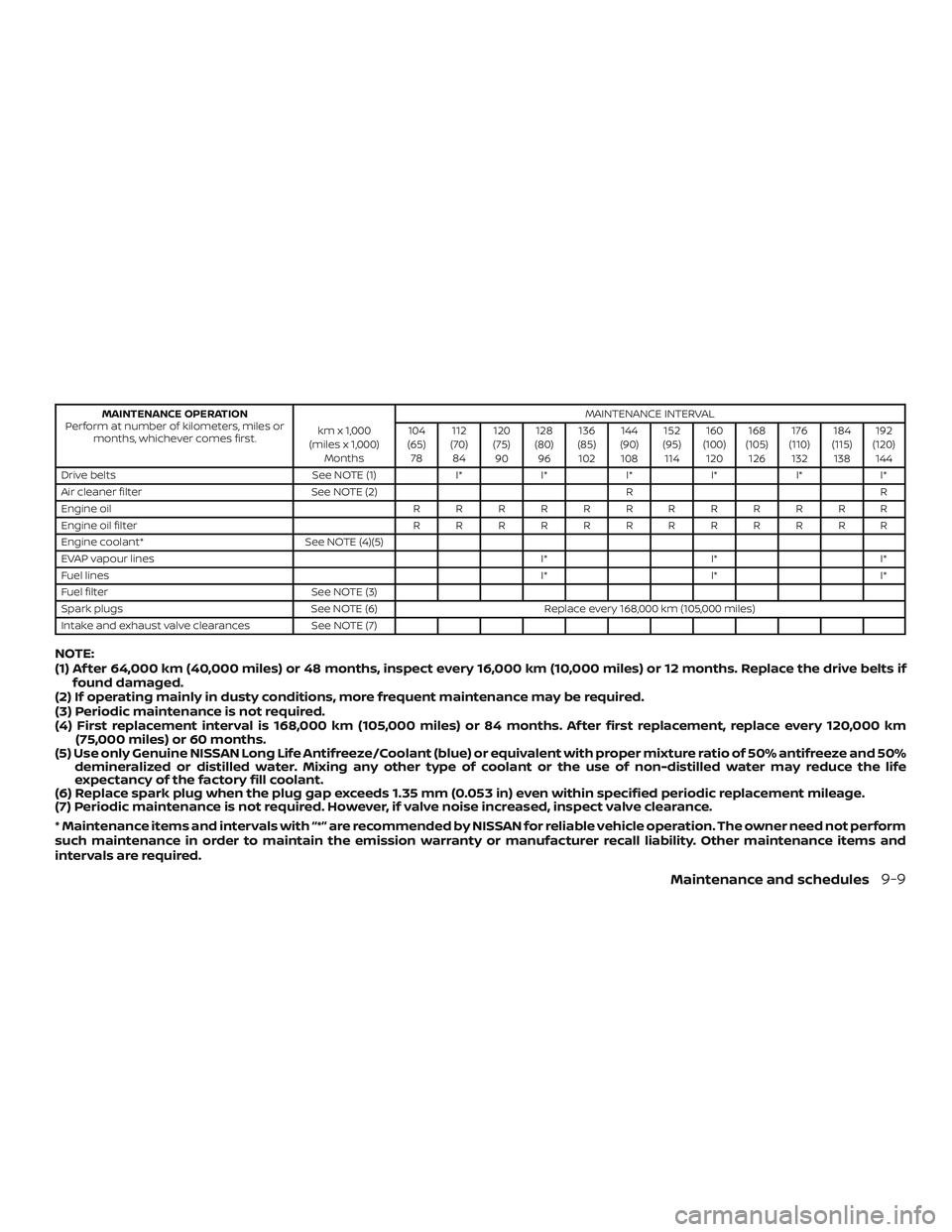

MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
104
(65) 78 112
(70) 84 120
(75) 90 128
(80) 96 136
(85) 102 144
(90) 108 152
(95) 114 160
(100) 120 168
(105) 126 176
(110) 132 184
(115) 138 192
(120) 144
Drive belts See NOTE (1)I*I*I*I*I*I*
Air cleaner filter See NOTE (2) RR
Engine oil RRRRRRRRRRRR
Engine oil filter RRRRRRRRRRRR
Engine coolant* See NOTE (4)(5)
EVAP vapour lines I*I*I*
Fuel lines I*I*I*
Fuel filter See NOTE (3)
Spark plugs See NOTE (6)Replace every 168,000 km (105,000 miles)
Intake and exhaust valve clearances See NOTE (7)
NOTE:
(1) Af ter 64,000 km (40,000 miles) or 48 months, inspect every 16,000 km (10,000 miles) or 12 months. Replace the drive belts if
found damaged.
(2) If operating mainly in dusty conditions, more frequent maintenance may be required.
(3) Periodic maintenance is not required.
(4) First replacement interval is 168,000 km (105,000 miles) or 84 months. Af ter first replacement, replace every 120,000 km (75,000 miles) or 60 months.
(5) Use only Genuine NISSAN Long Life Antifreeze/Coolant (blue) or equivalent with proper mixture ratio of 50% antifreeze and 50% demineralized or distilled water. Mixing any other type of coolant or the use of non-distilled water may reduce the life
expectancy of the factory fill coolant.
(6) Replace spark plug when the plug gap exceeds 1.35 mm (0.053 in) even within specified periodic replacement mileage.
(7) Periodic maintenance is not required. However, if valve noise increased, inspect valve clearance.
* Maintenance items and intervals with “*” are recommended by NISSAN for reliable vehicle operation. The owner need not perform
such maintenance in order to maintain the emission warranty or manufacturer recall liability. Other maintenance items and
intervals are required.
Maintenance and schedules9-9

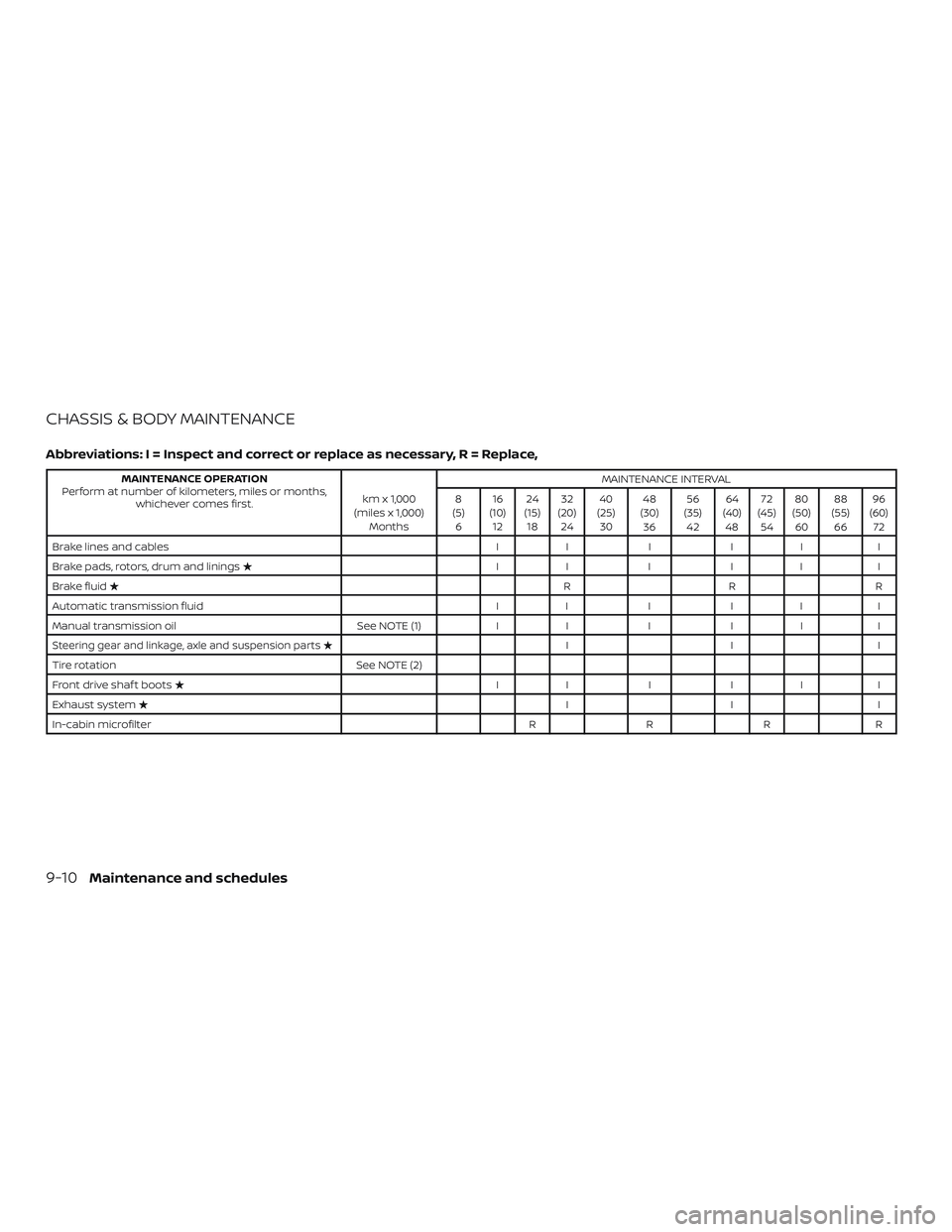

CHASSIS & BODY MAINTENANCE
Abbreviations: I = Inspect and correct or replace as necessary, R = Replace,
MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
8
(5) 6 16
(10) 12 24
(15) 18 32
(20) 24 40
(25) 30 48
(30) 36 56
(35) 42 64
(40) 48 72
(45) 54 80
(50) 60 88
(55) 66 96
(60) 72
Brake lines and cables II III I
Brake pads, rotors, drum and linings  II I II I
Brake fluid  RRR
Automatic transmission fluid II III I
Manual transmission oil See NOTE (1)II I II I
Steering gear and linkage, axle and suspension parts III
Tire rotation See NOTE (2)
Front drive shaf t boots  II I II I
Exhaust system  III
In-cabin microfilter RRRR
9-10Maintenance and schedules

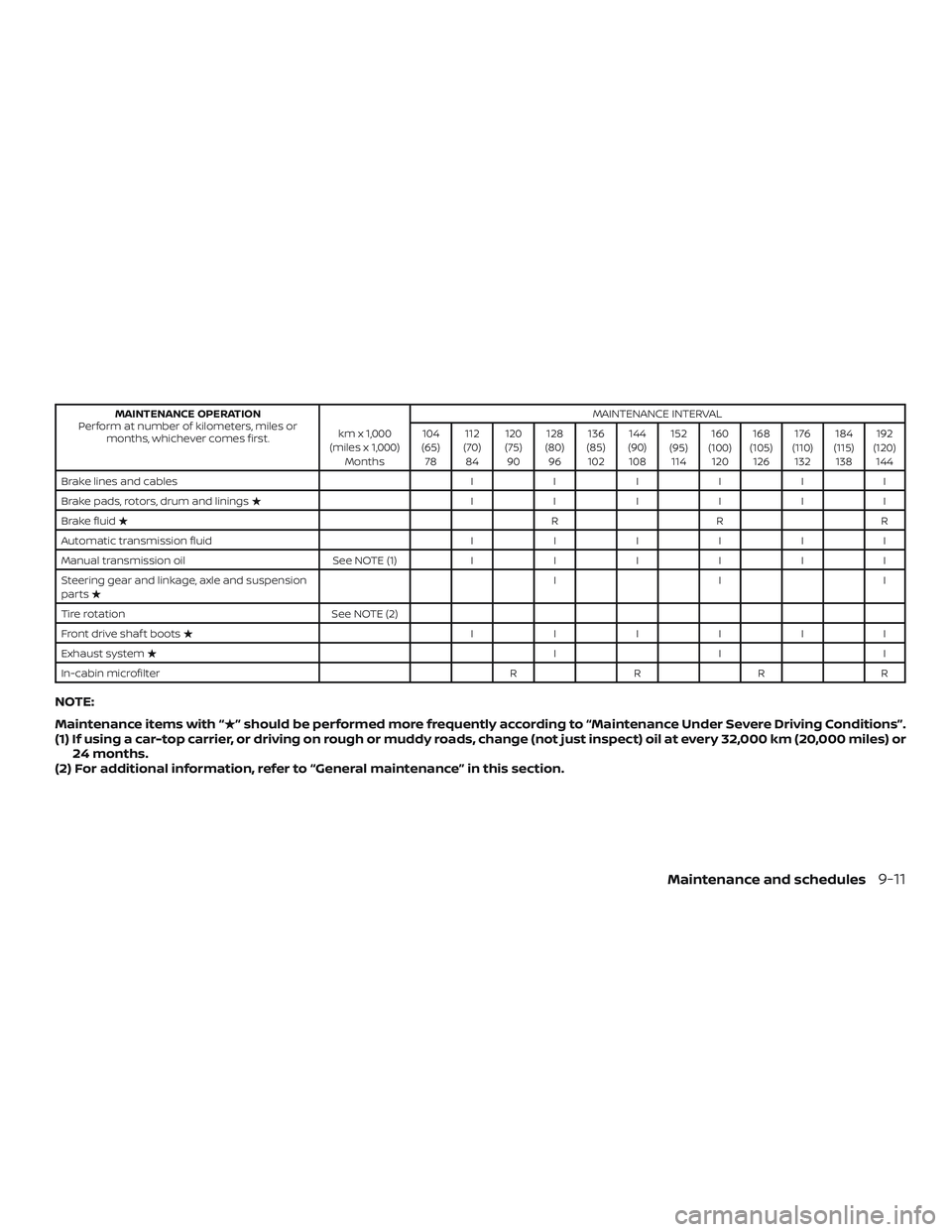

MAINTENANCE OPERATION
Perform at number of kilometers, miles or months, whichever comes first. km x 1,000
(miles x 1,000) Months MAINTENANCE INTERVAL
104
(65) 78 112
(70) 84 120
(75) 90 128
(80) 96 136
(85) 102 144
(90) 108 152
(95) 114 160
(100) 120 168
(105) 126 176
(110) 132 184
(115) 138 192
(120) 144
B ra ke li n es an d ca b le s IIIIII
Brake pads, rotors, drum and linings  IIIIII
Brake fluid  RRR
Automatic transmission fluid IIIIII
Manual transmission oil See NOTE (1)IIIIII
Steering gear and linkage, axle and suspension
parts  III
Tire rotation See NOTE (2)
Front drive shaf t boots  IIIIII
Exhaust system  III
In-cabin microfilter RRRR
NOTE:
Maintenance items with “” should be performed more frequently according to “Maintenance Under Severe Driving Conditions”.
(1) If using a car-top carrier, or driving on rough or muddy roads, change (not just inspect) oil at every 32,000 km (20,000 miles) or
24 months.
(2) For additional information, refer to “General maintenance” in this section.
Maintenance and schedules9-11

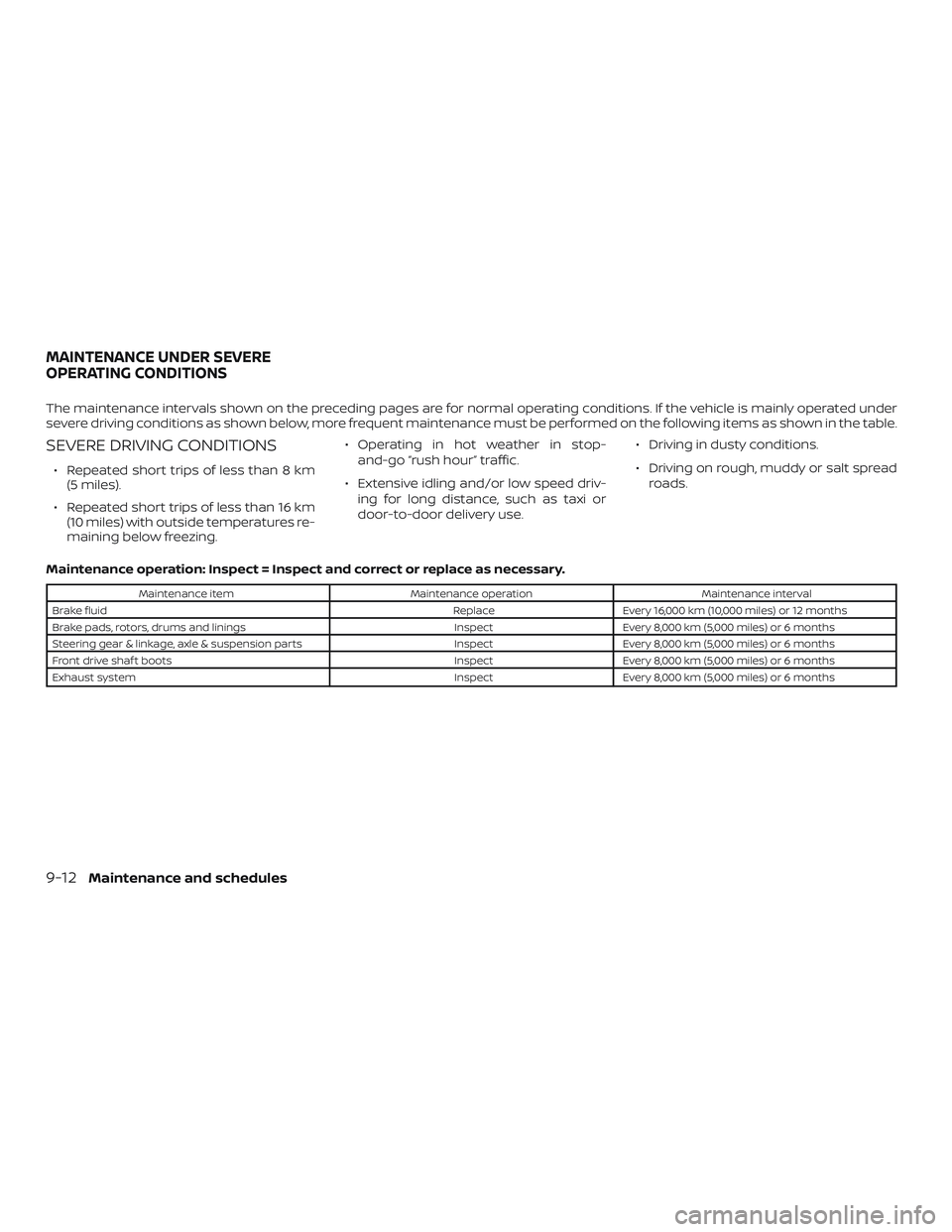

The maintenance intervals shown on the preceding pages are for normal operating conditions. If the vehicle is mainly operated under
severe driving conditions as shown below, more frequent maintenance must be performed on the following items as shown in the table.
SEVERE DRIVING CONDITIONS
∙ Repeated short trips of less than 8 km(5 miles).
∙ Repeated short trips of less than 16 km (10 miles) with outside temperatures re-
maining below freezing. ∙ Operating in hot weather in stop-
and-go “rush hour” traffic.
∙ Extensive idling and/or low speed driv- ing for long distance, such as taxi or
door-to-door delivery use. ∙ Driving in dusty conditions.
∙ Driving on rough, muddy or salt spread
roads.
Maintenance operation: Inspect = Inspect and correct or replace as necessary.
Maintenance item Maintenance operation Maintenance interval
Brake fluid ReplaceEvery 16,000 km (10,000 miles) or 12 months
Brake pads, rotors, drums and linings InspectEvery 8,000 km (5,000 miles) or 6 months
Steering gear & linkage, axle & suspension parts InspectEvery 8,000 km (5,000 miles) or 6 months
Front drive shaf t boots InspectEvery 8,000 km (5,000 miles) or 6 months
Exhaust system InspectEvery 8,000 km (5,000 miles) or 6 months
MAINTENANCE UNDER SEVERE
OPERATING CONDITIONS
9-12Maintenance and schedules

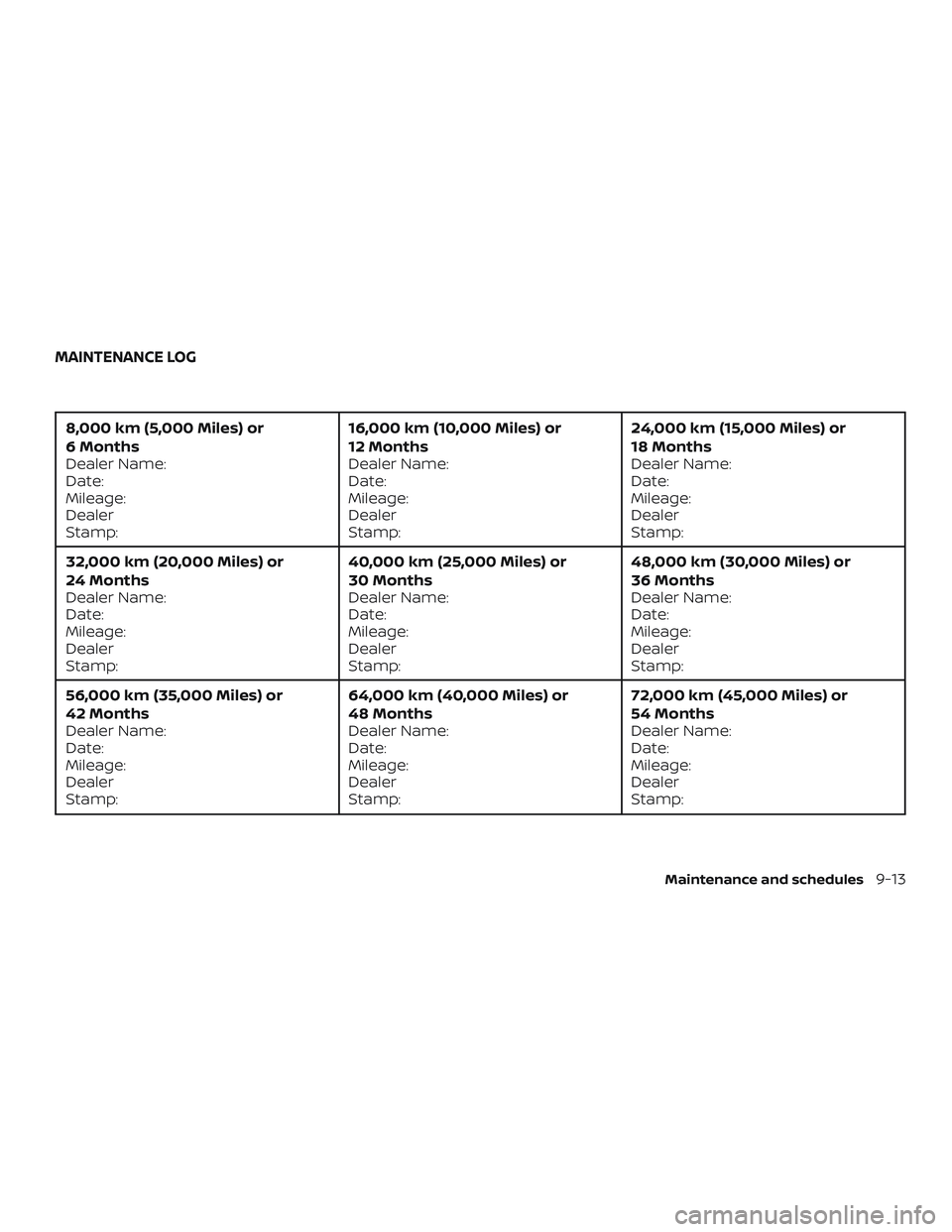

8,000 km (5,000 Miles) or
6 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:16,000 km (10,000 Miles) or
12 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:24,000 km (15,000 Miles) or
18 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
32,000 km (20,000 Miles) or
24 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 40,000 km (25,000 Miles) or
30 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:48,000 km (30,000 Miles) or
36 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
56,000 km (35,000 Miles) or
42 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 64,000 km (40,000 Miles) or
48 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:72,000 km (45,000 Miles) or
54 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
MAINTENANCE LOG
Maintenance and schedules9-13

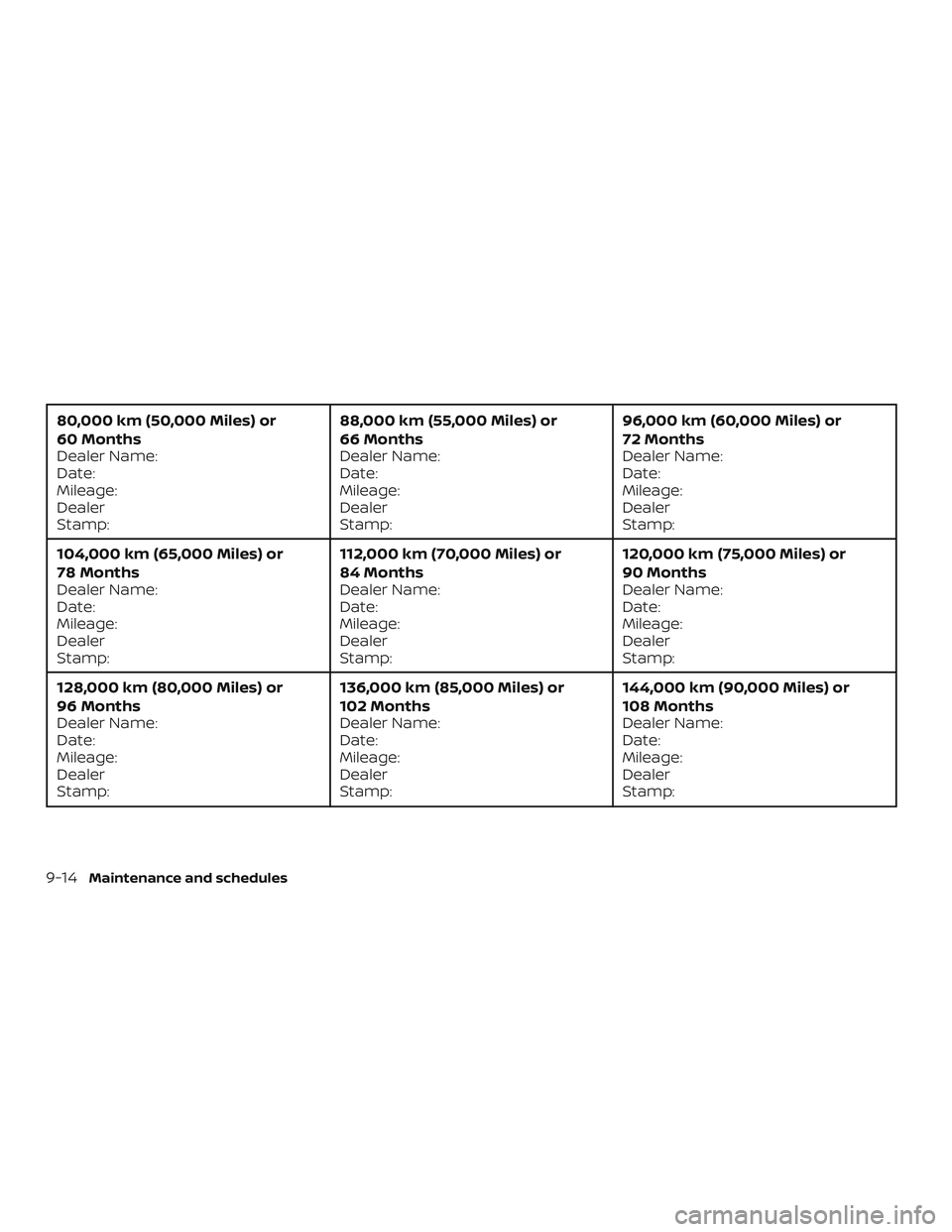

80,000 km (50,000 Miles) or
60 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:88,000 km (55,000 Miles) or
66 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:96,000 km (60,000 Miles) or
72 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
104,000 km (65,000 Miles) or
78 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 112,000 km (70,000 Miles) or
84 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:120,000 km (75,000 Miles) or
90 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
128,000 km (80,000 Miles) or
96 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 136,000 km (85,000 Miles) or
102 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:144,000 km (90,000 Miles) or
108 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
9-14
Maintenance and schedules

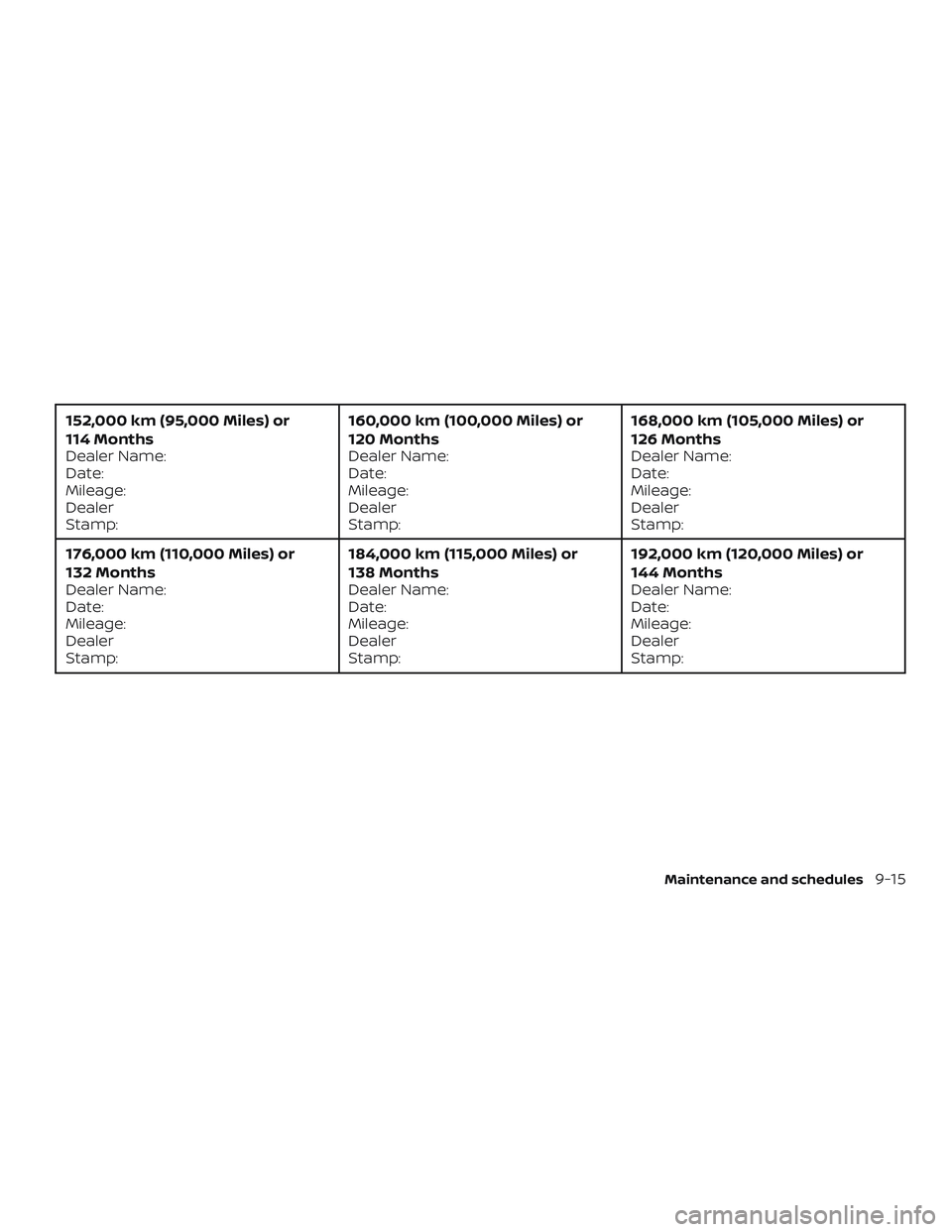

152,000 km (95,000 Miles) or
114 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:160,000 km (100,000 Miles) or
120 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:168,000 km (105,000 Miles) or
126 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
176,000 km (110,000 Miles) or
132 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp: 184,000 km (115,000 Miles) or
138 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:192,000 km (120,000 Miles) or
144 Months
Dealer Name:
Date:
Mileage:
Dealer
Stamp:
Maintenance and schedules9-15

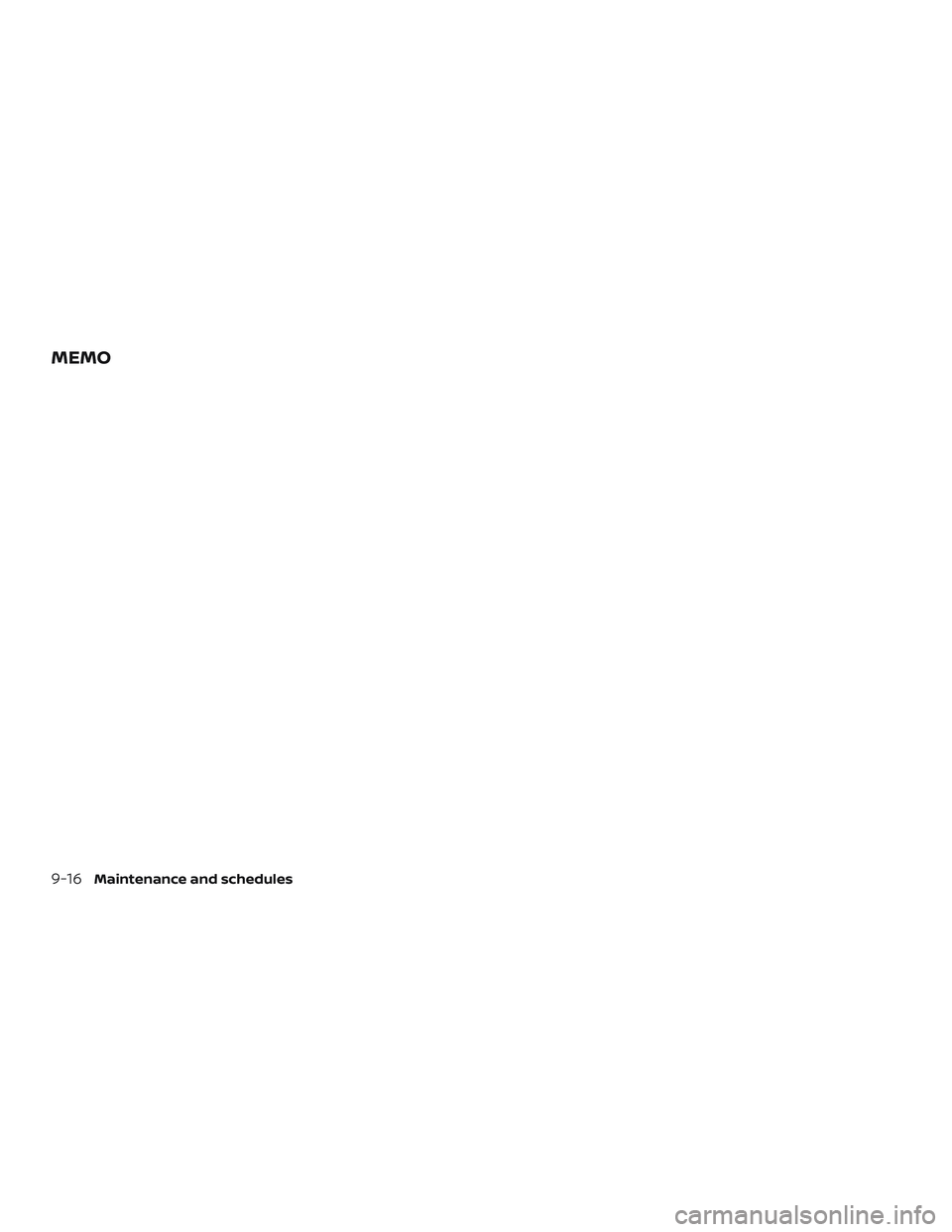

MEMO
9-16Maintenance and schedules

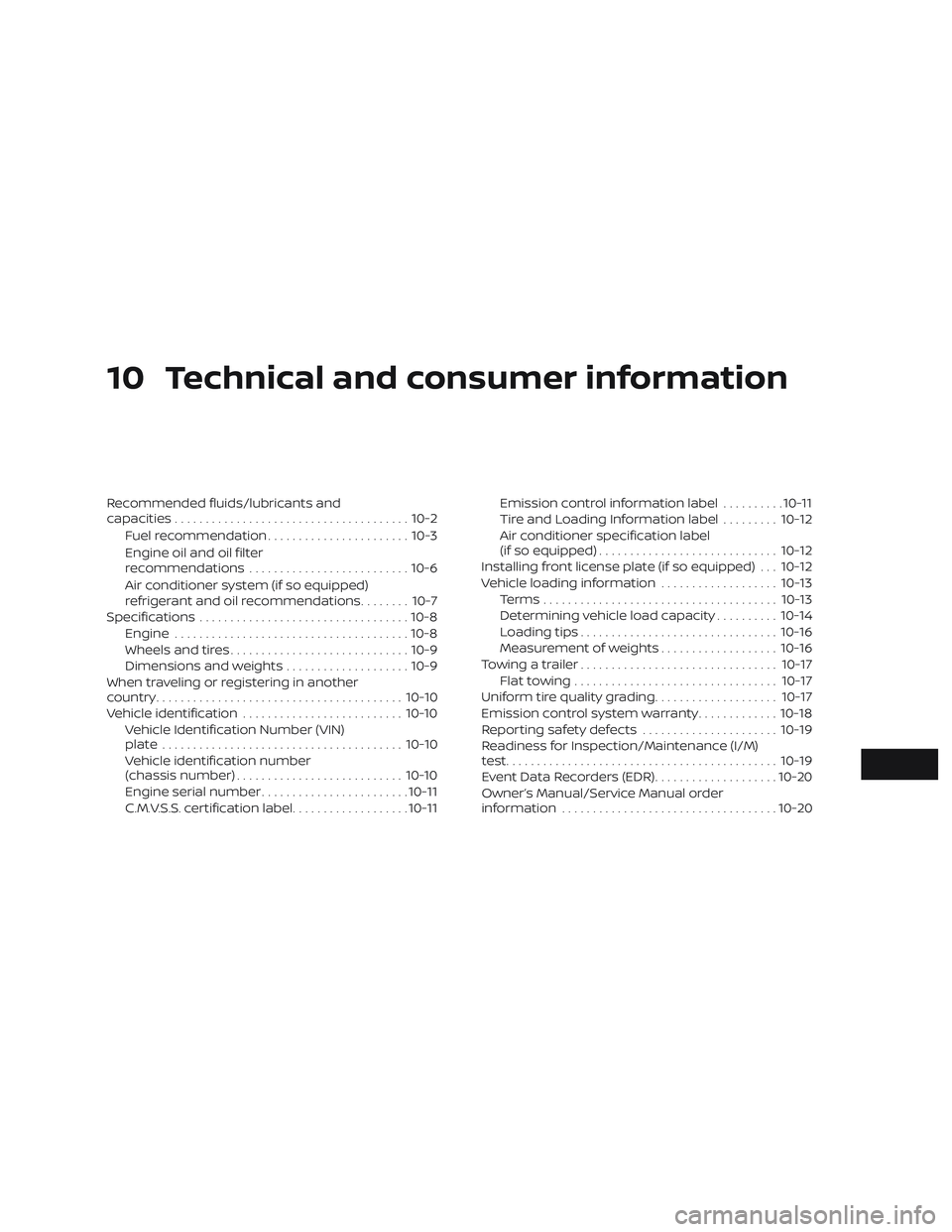

10 Technical and consumer information
Recommended fluids/lubricants and
capacities...................................... 10-2
Fuel recommendation ....................... 10-3
Engine oil and oil filter
recommendations .......................... 10-6
Air conditioner system (if so equipped)
refrigerant and oil recommendations ........10-7
Specifications .................................. 10-8
Engine ...................................... 10-8
Wheels and tires ............................. 10-9
Dimensions and weights ....................10-9
When traveling or registering in another
country ........................................ 10-10
Vehicle identification .......................... 10-10
Vehicle Identification Number (VIN)
plate ....................................... 10-10
Vehicle identification number
(chassis number) ........................... 10-10
Engine serial number ........................ 10-11
C.M.V.S.S. certification label ...................10-11Emission control information label
..........10-11
Tire and Loading Information label .........10-12
Air conditioner specification label
(if so equipped) ............................. 10-12
Installing front license plate (if so equipped) . . . 10-12
Vehicle loading information ...................10-13
Terms ...................................... 10-13
Determining vehicle load capacity ..........10-14
Loading tips ................................ 10-16
Measurement of weights ...................10-16
Towing a trailer ................................ 10-17
Flat towing ................................. 10-17
Uniform tire quality grading ....................10-17
Emission control system warranty .............10-18
Reporting safety defects ......................10-19
Readiness for Inspection/Maintenance (I/M)
test ............................................ 10-19
Event Data Recorders (EDR) ....................10-20
Owner’s Manual/Service Manual order
information ................................... 10-20
