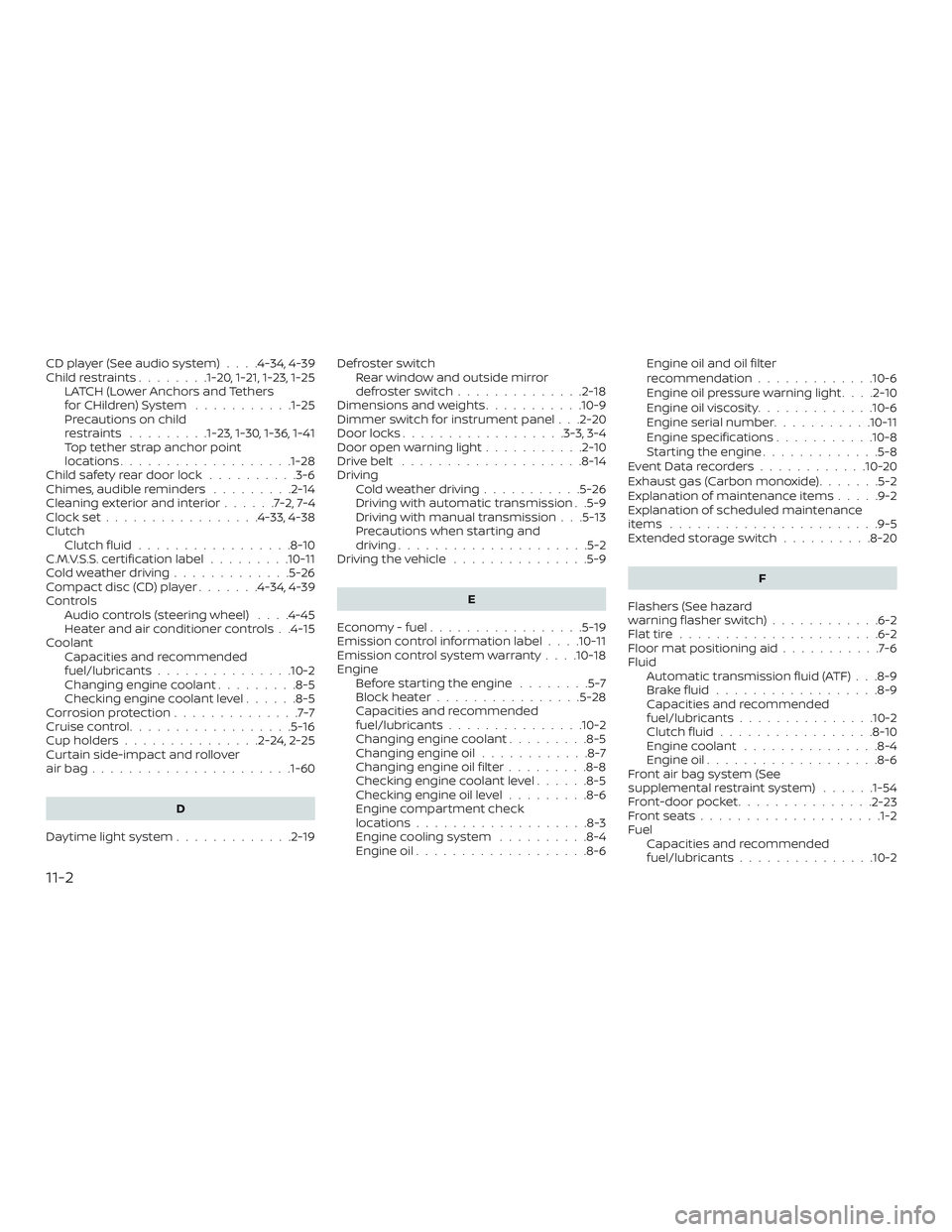

CD player (See audio system)....4-34,4-39
Childrestraints........1-20, 1-21, 1-23, 1-25 LATCH (Lower Anchors and Tethers
forCHildren)System ...........1-25
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Top tether strap anchor point
locations.................. .1-28
Child safety rear door lock ..........3-6
Chimes, audible reminders .........2-14
Cleaningexteriorandinterior......7-2,7-4
Clockset.................4-33,4-38
Clutch Clutchfluid.................8-10
C.M.V.S.S. certification label .........10-11
Coldweatherdriving.............5-26
Compact disc (CD) player .......4-34,4-39
Controls Audio controls (steering wheel) ....4-45
Heater and air conditioner controls . .4-15
Coolant Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Checking engine coolant level ......8-5
Corrosionprotection..............7-7
Cruisecontrol..................5-16
Cupholders...............2-24,2-25
Curtain side-impact and rollover
airbag......................1-60
D
Daytime light system .............2-19 Defroster switch
Rear window and outside mirror
defrosterswitch..............2-18
Dimensions and weights ...........10-9
Dimmer switch for instrument panel . . .2-20
Door locks ..................3-3,3-4
Door open warning light ...........2-10
Drivebelt ....................8-14
Driving Cold weather driving ...........5-26
Driving with automatic transmission . .5-9
Driving with manual transmission . . .5-13
Precautions when starting and
driving.....................5-2
Drivingthevehicle ...............5-9
E
Economy - fuel .................5-19
Emission control information label . . . .10-11
Emission control system warranty . . . .10-18
Engine Before starting the engine ........5-7
Blockheater................5-28
Capacities and recommended
fuel/lubricants...............10-2
Changing engine coolant .........8-5
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine coolant level ......8-5
Checking engine oil level .........8-6
Engine compartment check
locations...................8-3
Engine cooling system ..........8-4
Engine oil ...................8-6 Engine oil and oil filter
recommendation
.............10-6
Engine oil pressure warning light . . . .2-10
Engine oil viscosity .............10-6
Engine serial number ...........10-11
Engine specifications ...........10-8
Starting the engine .............5-8
EventDatarecorders............10-20
Exhaust gas (Carbon monoxide) .......5-2
Explanation of maintenance items .....9-2
Explanation of scheduled maintenance
items .......................9-5
Extended storage switch ..........8-20
F
Flashers (See hazard
warningflasherswitch)............6-2
Flattire......................6-2
Floormatpositioningaid...........7-6
Fluid Automatic transmission fluid (ATF) . . .8-9
Brakefluid..................8-9
Capacities and recommended
fuel/lubricants...............10-2
Clutchfluid.................8-10
Engine coolant ...............8-4
Engine oil ...................8-6
Front air bag system (See
supplemental restraint system) ......1-54
Front-door pocket ...............
2
-23
Frontseats....................1-2
Fuel Capacities and recommended
fuel/lubricants...............10-2
11-2
Page 322 of 330

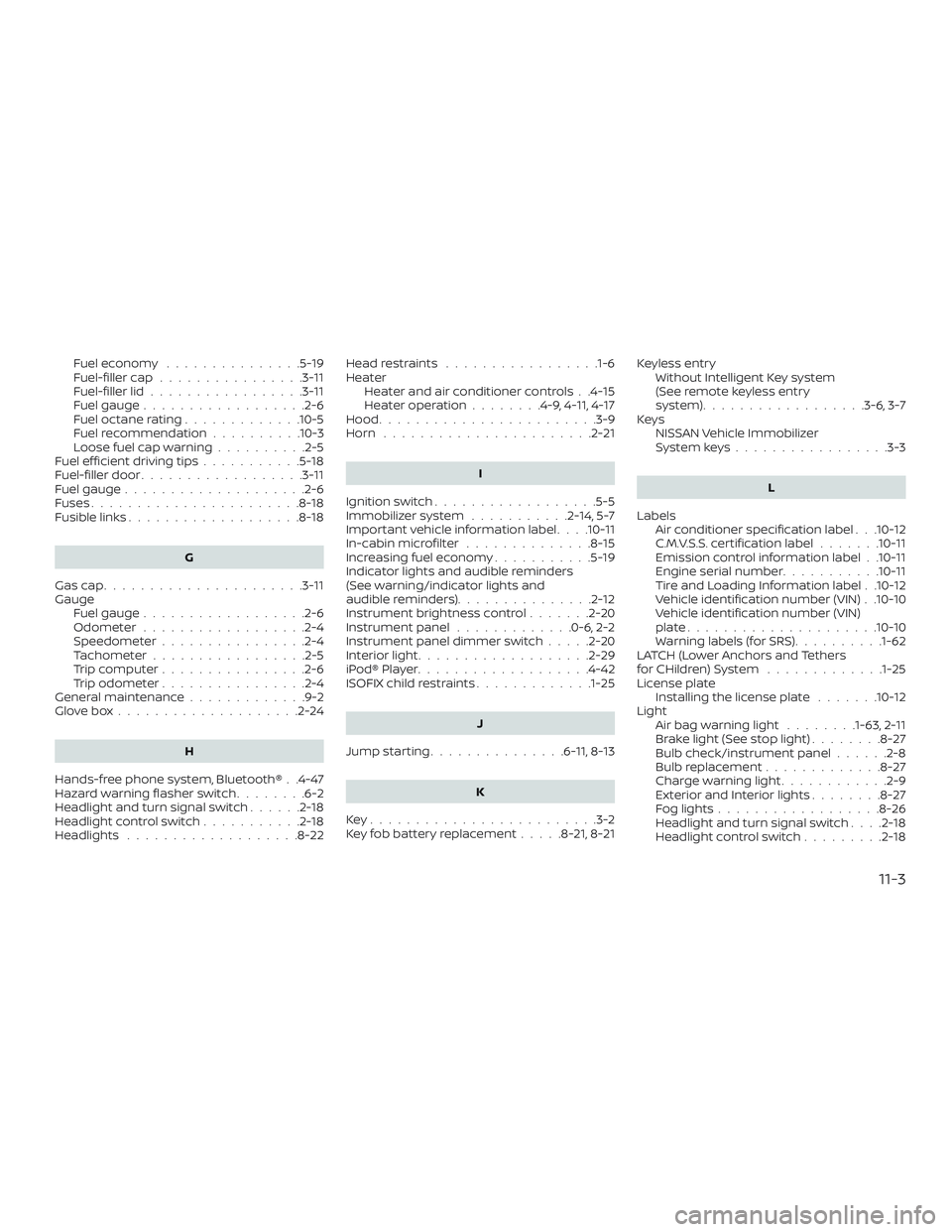

Fuel economy...............5-19
Fuel-filler cap ................3-11
Fuel-filler lid .................3-11
Fuel gauge ..................2-6
Fueloctanerating.............10-5
Fuel recommendation ..........10-3
Loose fuel cap warning ..........2-5
Fuelefficientdrivingtips...........5-18
Fuel-filler door ..................3-11
Fuel gauge ....................2-6
Fuses .......................8-18
Fusiblelinks...................8-18
G
Gascap......................3-11
Gauge Fuel gauge ..................2-6
Odometer ..................2-4
Speedometer ................2-4
Tachometer .................2-5
Trip computer ................2-6
Trip odometer ................2-4
General maintenance .............9-2
Glovebox....................2-24
H
Hands-free phone system, Bluetooth® . .4-47
Hazard warning flasher switch ........6-2
Headlight and turn signal switch ......2-18
Headlightcontrolswitch...........2-18
Headlights ...................8-22 Headrestraints .................1-6
Heater
Heater and air conditioner controls . .4-15
Heater operation ........4-9,4-11, 4-17
Hood ........................3-9
Horn .......................2-21
I
Ignition switch ..................5-5
Immobilizer system ...........2-14,5-7
Important vehicle information label . . . .10-11
In-cabinmicrofilter ..............8-15
Increasing fuel economy ...........5-19
Indicator lights and audible reminders
(See warning/indicator lights and
audible reminders) ...............2-12
Instrument brightness control .......2-20
Instrument panel .............0-6,2-2
Instrument panel dimmer switch .....2-20
Interiorlight...................2-29
iPod®Player...................4-42
ISOFIX child restraints .............1-25
J
Jumpstarting...............6 -11, 8-13
K
Key.........................3-2
Key fob battery replacement .....8-21,8-21Keyless entry
Without Intelligent Key system
(See remote keyless entry
system)..................3-6, 3-7
Keys NISSAN Vehicle Immobilizer
Systemkeys.................3-3
L
Labels Air conditioner specification label . . .10-12
C.M.V.S.S. certification label .......10-11
Emission control information label . .10-11
Engine serial number ...........10-11
Tire and Loading Information label . .10-12
Vehicle identification number (VIN) . .10-10
Vehicle identification number (VIN)
plate.....................10-10
Warning labels (for SRS) ..........1-62
LATCH (Lower Anchors and Tethers
forCHildren)System .............1-25
License plate Installing the license plate .......10-12
Light Airbagwarninglight ........1-63, 2-11
B
rakelight(Seestoplight)........8-27
Bulb check/instrument panel ......2-8
Bulb replacement .............8-27
Charge warning light ............2-9
ExteriorandInteriorlights........8-27
Foglights..................8-26
Headlight and turn signal switch ....2-18
Headlightcontrolswitch.........2-18
11-3
Page 323 of 330

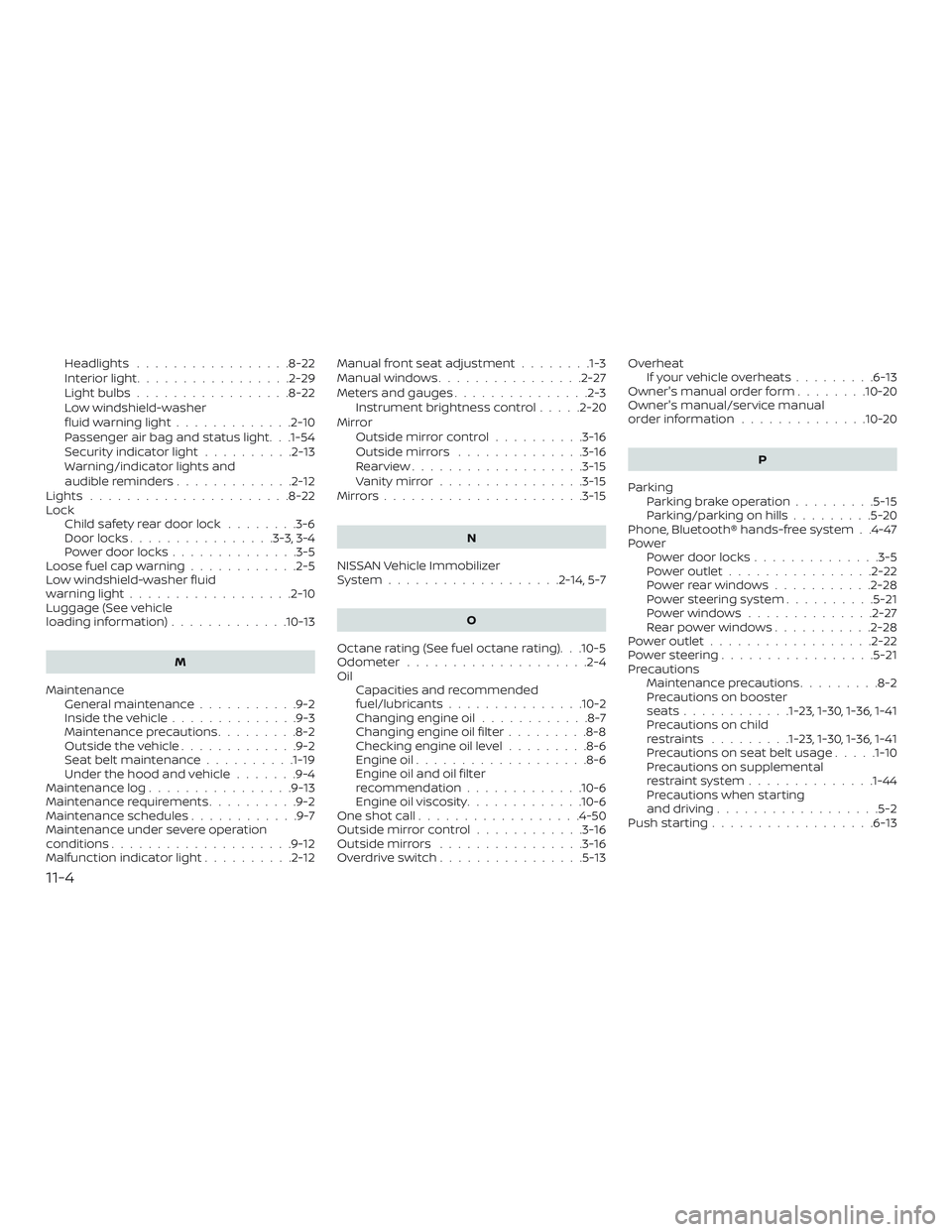

Headlights .................8-22
Interiorlight.................2-29
Lightbulbs.................8-22
Low windshield-washer
fluidwarninglight.............2-10
Passenger air bag and status light. . .1-54
Security indicator light..........2-13
Warning/indicator lights and
audible reminders .............2-12
Lights ......................8-22
Lock Child safety rear door lock ........3-6
Door locks ................3-3,3-4
Power door locks ..............3-5
Loose fuel cap warning ............2-5
Low windshield-washer fluid
warninglight..................2-10
Luggage (See vehicle
loading information) .............10-13
M
Maintenance General maintenance ...........9-2
Insidethevehicle..............9-3
Maintenance precautions .........8-2
Outsidethevehicle.............9-2
Seat belt maintenance ..........1-19
Under the hood and vehicle .......9-4
Maintenance log ................9-13
Maintenance requirements ..........9-2
Maintenance schedules ............9-7
Maintenance under severe operation
conditions....................9-12
Malfunctionindicatorlight..........2-12 Manual front seat adjustment
........1-3
Manual windows ................2-27
Meters and gauges ...............2-3
Instrument brightness control .....2-20
Mirror Outsidemirrorcontrol..........3-16
Outsidemirrors ..............3-16
Rearview...................3-15
Vanitymirror................3-15
Mirrors......................3-15
N
NISSAN Vehicle Immobilizer
System...................2-14,5-7
O
Octane rating (See fuel octane rating). . .10-5
Odometer ....................2-4
Oil Capacities and recommended
fuel/lubricants...............10-2
Changing engine oil ............8-7
Changing engine oil filter .........8-8
Checking engine oil level .........8-6
Engine oil ...................8-6
Engine oil and oil filter
recommendation .............10-6
Engine oil viscosity .............10-6
One shot call ..................4-50
Outsidemirrorcontrol............3-16
Outsidemirrors ................3-16
Overdriveswitch................5-13 Overheat
Ifyourvehicleoverheats.........6-13
Owner's manual order form ........10-20
Owner's manual/service manual
orderinformation..............10-20
P
Parking Parking brake operation .........5-15
Parking/parkingonhills.........5-20
Phone, Bluetooth® hands-free system . .4-47
Power Power door locks ..............3-5
Poweroutlet................2-22
Powerrearwindows...........2-28
Power steering system ..........5-21
Powerwindows..............2-27
Rearpowerwindows...........2-28
Poweroutlet..................2-22
Powersteering................ .5-21
Precautions Maintenance precautions .........8-2
Precautions on booster
seats............1-23, 1-30, 1-36, 1-41
Precautions on child
restraints .........1-23, 1-30, 1-36, 1-41
Precautionsonseatbeltusage.....1-10
Precautions on supplemental
r e
straintsystem..............1-44
Precautions when starting
anddriving..................5-2
Push starting ..................6-13
11-4
Page 324 of 330

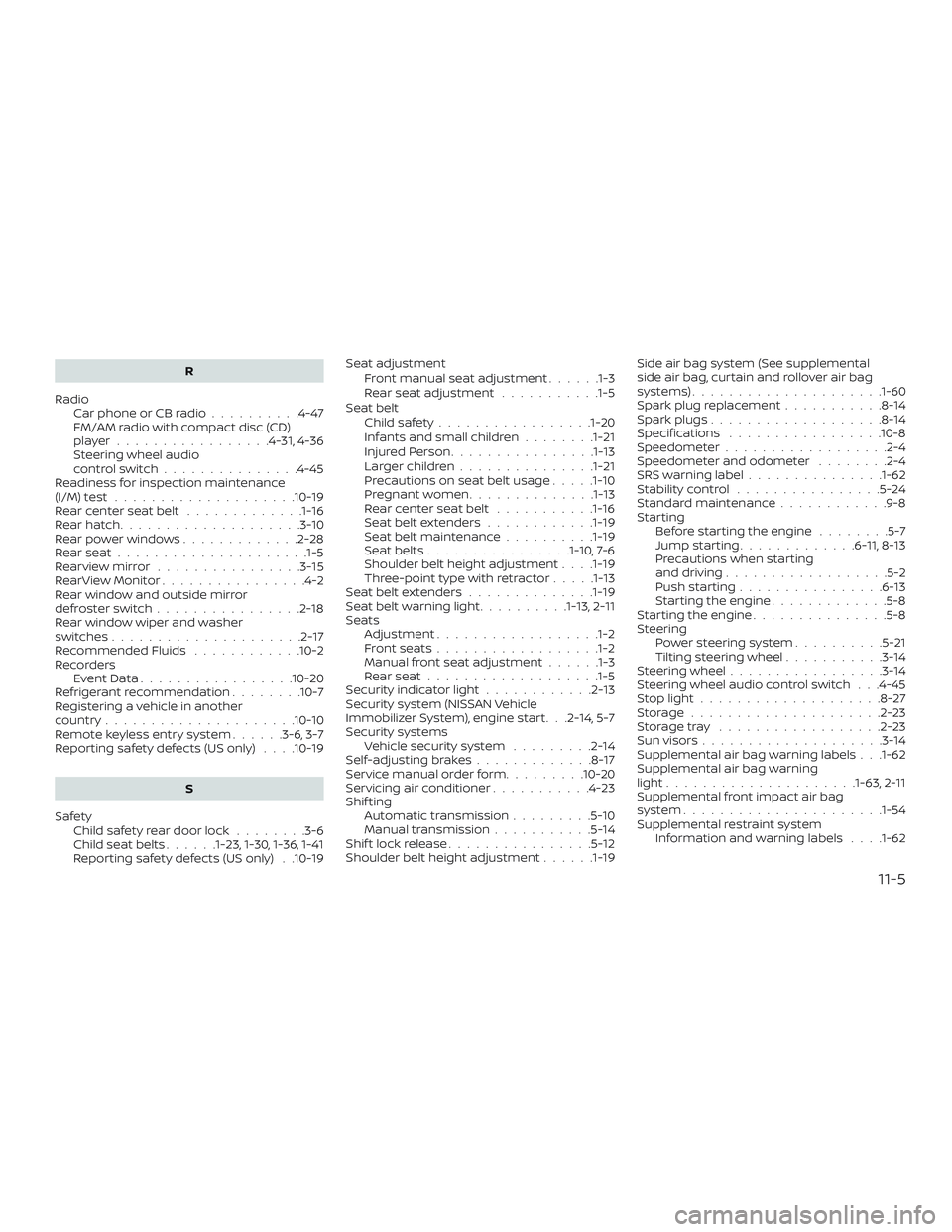

R
Radio Car phone or CB radio ..........4-47
FM/AM radio with compact disc (CD)
player.................4-31,4-36
Steering wheel audio
controlswitch...............4-45
Readiness for inspection maintenance
(I/M)test....................10-19
Rearcenterseatbelt .............1-16
Rearhatch....................3-10
Rearpowerwindows.............2-28
Rearseat.....................1-5
Rearviewmirror ................3-15
RearViewMonitor................4-2
Rear window and outside mirror
defrosterswitch................2-18
Rear window wiper and washer
switches .....................2-17
Recommended Fluids ............10-2
Recorders EventData.................10-20
Refrigerant recommendation ........10-7
Registering a vehicle in another
country .....................10-10
Remote keyless entry system ......3-6,3-7
Reporting safety defects (US only) . . . .10-19
S
Safety Child safety rear door lock ........3-6
Childseatbelts......1-23, 1-30, 1-36, 1-41
Reporting safety defects (US only) . .10-19 Seat adjustment
Front manual seat adjustment ......1-3
Rear seat adjustment ...........1-5
Seat belt Childsafety.................1-20
Infants and small children ........1-21
InjuredPerson............... .1-13
Largerchildren.............. .1-21
Precautions on seat belt usage .....1-10
Pregnant women ..............1-13
Rearcenterseatbelt ...........1-16
Seat belt extenders ............1-19
Seat belt maintenance ..........1-19
Seatbelts................1-10, 7-6
Shoulder belt height adjustment . . . .1-19
Three-pointtypewithretractor.....1-13
Seat belt extenders ..............1-19
Seatbeltwarninglight..........1-13, 2-11
Seats Adjustment ..................1-2
Frontseats..................1-2
Manual front seat adjustment ......1-3
Rearseat...................1-5
Security indicator light ............2-13
Security system (NISSAN Vehicle
Immobilizer System), engine start . . .2-14, 5-7
Security systems Vehicle security system .........2-14
Self-adjustingbrakes.............8-17
Service manual order form .........10-20
Servicing air conditioner ...........4-23
Shif ting Automatic transmission .........5-10
Manual transmission ...........5-14
Shiftlockrelease................5-12
Shoulder belt height adjustment ......1-19Side air bag system (See supplemental
side air bag, curtain and rollover air bag
s
y
stems).....................1-60
Spark plug replacement ...........8-14
Spark plugs ...................8-14
Specifications .................10-8
Speedometer ..................2-4
Speedometer and odometer ........2-4
SRS warning label ...............1-62
Stability control ................5-24
Standard maintenance ............9-8
Starting Before starting the engine ........5-7
Jumpstarting.............6 -11, 8-13
Precautions when starting
anddriving..................5-2
Push starting ................6-13
Starting the engine .............5-8
Starting the engine ...............5-8
Steering Power steering system ..........5-21
Tilting steering wheel ...........3-14
Steering wheel .................3-14
Steering wheel audio control switch . . .4-45
Stoplight....................8-27
Storage.....................2-23
Storagetray ..................2-23
Sunvisors....................3-14
Supplemental air bag warning labels . . .1-62
Supplemental air bag warning
light.................... .1-63, 2-11
Supplemental front impact air bag
system......................1-54
Supplemental restraint system Information and warning labels . . . .1-62
11-5
Page 325 of 330
Precautions on supplemental
restraint system..............1-44
Supplemental restraint system
(Supplemental air bag system) .......1-44
Switch Automatic power window switch . . .2-29
Hazard warning flasher switch ......6-2
Headlight and turn signal switch ....2-18
Headlightcontrolswitch.........2-18
Ignition switch ................5-5
Instrument brightness control .....2-20
Overdriveswitch..............5-13
Power door lock switch ..........3-5
Rear window and outside mirror
defrosterswitch..............2-18
Rear window wiper and washer
switches ...................2-17
Turn signal switch .............2-20
T
Tachometer ...................2-5
Thef t (NISSAN Vehicle Immobilizer
System), engine start ..........2-14,5-7
Three-waycatalyst...............5-2
Tilting steering wheel .............3-14
Tire Flattire....................6-2
Spare tire ................6-3,8-41
Tire and Loading Information
label .....................10-12
Tire chains .................8-38
Tire pressure .............8-32,8-32
Tirerotation ................8-39
Types of tires ................8-37 Uniform tire quality grading
.......10-17
Wheels and tires ...........8-32,10-9
Wheel/tire size ...............10-9
Towing 2-wheel drive models ........6-15,6-16
Flattowing.................10-17
Trailertowing ...............10-17
Towingatrailer................10-17
Towingyourvehicle..............6-14
Transmission Automatic transmission fluid (ATF) . . .8-9
Driving with automatic transmission . .5-9
Driving with manual transmission . . .5-13
Shiftleverlockrelease..........5-12
Travel (See registering a vehicle
in another country) ..............10-10
Trip computer ..................2-6
Trip odometer ..................2-4
Turn signal switch ...............2-20
U
Uniform tire quality grading .........10-17
USBinterface..................4-40 Audio file operation ............4-41
V
Vanitymirror..................3-15
Vehicle dimensions and weights ......10-9
Vehicle Dynamic Control (VDC) OFF
switch......................2-22
Vehicle dynamic control (VDC) system . .5-24
Vehicle Dynamic Control (VDC) system . .5-24 Vehicle identification
.............10-10
Vehicle identification number (VIN) . . . .10-10
Vehicle identification number (VIN)
(Chassis number) ...............10-10
Vehicle identification number (VIN)
plate.......................10-10
Vehicle immobilizer system ......2-14,5-7
Vehicle loading information .....10-13,10-14
Vehiclerecovery................6-16
Vehicle security system ...........2-14
Vehicle security system (NISSAN Vehicle
Immobilizer System), engine start . . .2-14, 5-7
Ventilators ....................4-8
Visors.......................3-14
Voice Prompt Interrupt ............4-50
W
Warning Airbagwarninglight ........1-63, 2-11
Anti-lock brake warning light .......2-9
Battery charge warning light .......2-9
Brakewarninglight.............2-9
Door open warning light .........2-10
Engine oil pressure warning light . . . .2-10
Hazard warning flasher switch ......6-2
L o
osefuelcapwarning..........2-5
Low windshield-washer fluid
warninglight............... .2-10
Passenger air bag and status light. . .1-54
Seatbeltwarninglight........1-13, 2-11
Supplemental air bag warning
light.................. .1-63, 2-11
Vehicle security system .........2-14
11-6
Page 326 of 330
Warning/indicator lights and audible
reminders..................2-12
Warning labels (for SRS) ..........1-62
Warning/indicator lights and audible
reminders ....................2-12
Audible reminders .............2-12
Indicatorlights...............2-12
Warninglights ...............2-12
Warninglights .................2-12
Warning lights, indicator lights and
audible reminders ...............2-8
Washer switch Rear window wiper and
washer switches ..............2-17
Weights (See dimensions
andweights)..................10-9
Wheels and tires .............8-32,10-9
Wheel/tire size .................10-9
When traveling or registering in
another country ...............10-10
Windows.....................2-27 Locking passengers' windows .....2-28
Manual windows ..............2-27
Powerrearwindows...........2-28
Powerwindows..............2-27
Rearpowerwindows...........2-28
Windshield-washer fluid ...........8-10
Windshield wiper blades ...........8-16
Wiper Rear window wiper and
washer switches ..............2-17
Wiper blades ................8-16
Wiper and washer switch ..........2-16
11-7
Page 327 of 330
MEMO
Page 328 of 330
FUEL RECOMMENDATION:
Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock In-
dex) number (Research octane number 91).
CAUTION
∙ Only vehicles with the E-85 filler doorlabel can operate on E-85. Fuel system
or other damage can occur if E-85 is
used in vehicles that are not designed
to run on E-85.
∙ Using a fuel other than that specified could adversely affect the emission
control system, and may also affect
the warranty coverage.
∙ Under no circumstances should a leaded gasoline be used, because this
will damage the three-way catalyst.
∙ Do not use a fuel containing more than 15% ethanol in your vehicle. Your
vehicle is not designed to run on a fuel
containing more than 15% ethanol.
Using a fuel containing more than 15%
ethanol in a vehicle not specifically
designed for a fuel containing more
than 15% ethanol can adversely affect
the emission control devices and sys-
tems of the vehicle. Damage caused by such fuel is not covered by the
NISSAN New Vehicle Limited Warranty.
∙ Do not use fuel that contains the oc- tane booster methylcyclopentadienyl
manganese tricarbonyl (MMT). Using
fuel containing MMT may adversely
affect vehicle performance and ve-
hicle emissions. Not all fuel dispens-
ers are labeled to indicate MMT con-
tent, so you may have to consult your
gasoline retailer for more details.
Note that Federal and California laws
prohibit the use of MMT in reformu-
lated gasoline.
∙ U.S. government regulations require ethanol dispensing pumps to be iden-
tified by a small, square, orange and
black label with the common abbre-
viation or the appropriate percentage
for that region.
For additional information, refer to “Recom-
mended fluids/lubricants and capacities”
in the “Technical and consumer informa-
tion” section of this manual.
ENGINE OIL RECOMMENDATION:
• Genuine “Nissan Motor Oil 0W-20 SN”.
• If the above motor is not available, use an
equivalent motor oil that matches the
above grade and viscosity. For additional
information, refer to “Engine oil and oil filter
recommendations” in the “Technical and
consumer information” section of this
manual.
COLD TIRE PRESSURE:
For additional information, refer to “Tire and
Loading Information label” in the “Technical
and consumer information” section of this
manual.
The label is typically located on the driver
side center pillar or on the driver’s door. For
additional information, refer to “Wheels and
tires” in the “Do-it-yourself ” section of this
manual.
GAS STATION INFORMATION
Page 329 of 330
RECOMMENDED NEW VEHICLE
BREAK-IN PROCEDURE:
During the first 2,000 km (1,200 mi) of ve-
hicle use, follow the recommendations
outlined in the “Break-in schedule” informa-
tion found in the “Starting and driving” sec-
tion of this manual. Follow these recom-
mendations for the future reliability and
economy of your new vehicle. Failure to
follow these recommendations may result
in vehicle damage or shortened engine life.
Page 330 of 330
K13-D'18
Printing : January 2018
Publication No.: 0C11U0
Printed in U.S.A. OM18EM 0K13U0
