NISSAN MICRA 2023 Owners Manual

WARNING
The rear hatch must be closed securely
before driving. An open rear hatch could
allow dangerous exhaust gases to be
drawn inside the vehicle. For additional
information, refer to “Exhaust gas (car-
bon monoxide)” in the “Starting and
driving” section of this manual.
OPENING THE REAR HATCH
To open the rear hatch, unlock it with one of
the following operations, then pull on the
handle.∙ Push the power door lock switch to the unlock position.
∙ Unlock all doors using the key
A(if so
equipped).
∙ Press the
button on the key fob
once. For additional information, refer
to “Remote keyless entry system” in this
section.
CLOSING THE REAR HATCH
To close the rear hatch, push the rear hatch
down until it securely locks.
LPD2759LPD2760
REAR HATCH (Hatchback)
3-10Pre-driving checks and adjustments

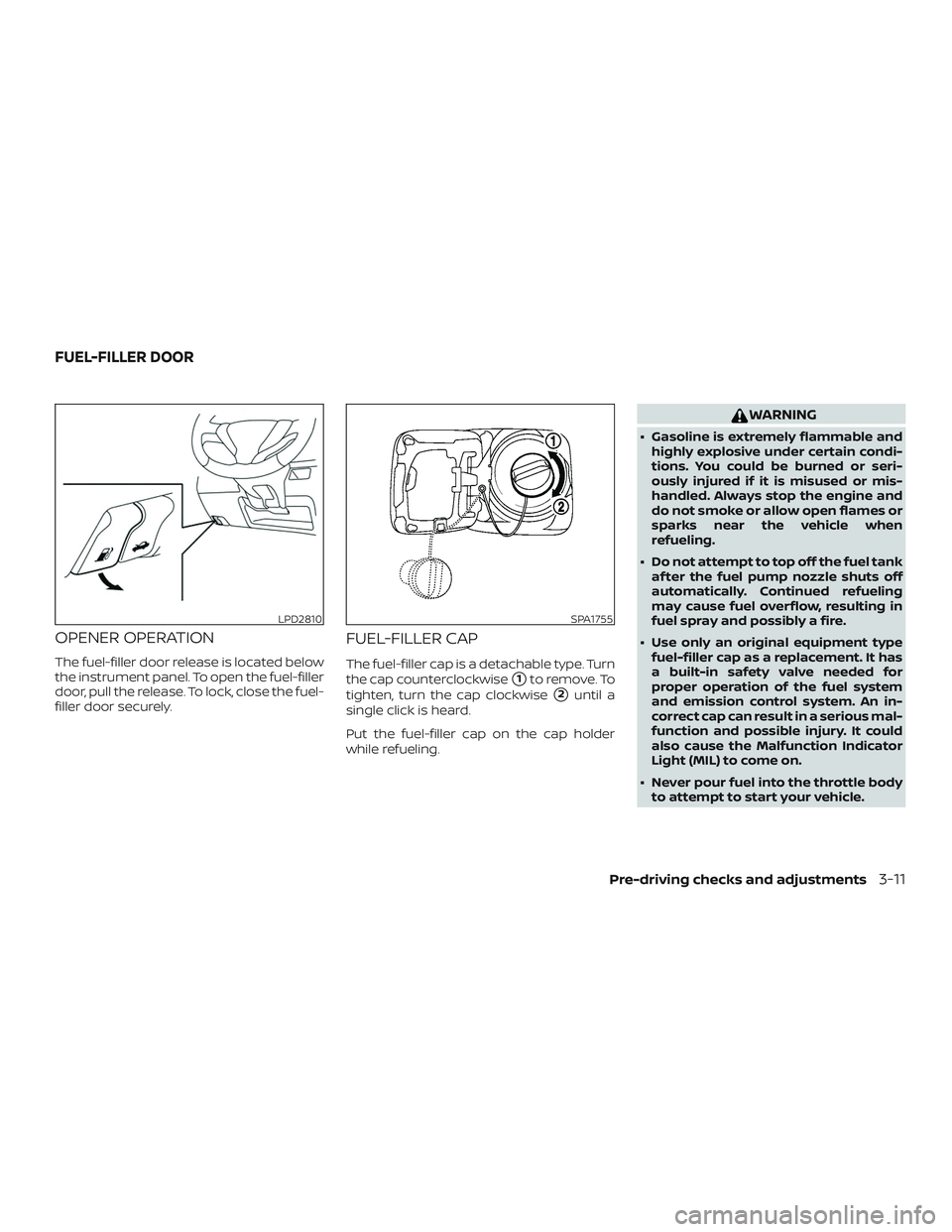

OPENER OPERATION
The fuel-filler door release is located below
the instrument panel. To open the fuel-filler
door, pull the release. To lock, close the fuel-
filler door securely.
FUEL-FILLER CAP
The fuel-filler cap is a detachable type. Turn
the cap counterclockwise
1to remove. To
tighten, turn the cap clockwise
2until a
single click is heard.
Put the fuel-filler cap on the cap holder
while refueling.
WARNING
∙ Gasoline is extremely flammable and highly explosive under certain condi-
tions. You could be burned or seri-
ously injured if it is misused or mis-
handled. Always stop the engine and
do not smoke or allow open flames or
sparks near the vehicle when
refueling.
∙ Do not attempt to top off the fuel tank af ter the fuel pump nozzle shuts off
automatically. Continued refueling
may cause fuel overflow, resulting in
fuel spray and possibly a fire.
∙ Use only an original equipment type fuel-filler cap as a replacement. It has
a built-in safety valve needed for
proper operation of the fuel system
and emission control system. An in-
correct cap can result in a serious mal-
function and possible injury. It could
also cause the Malfunction Indicator
Light (MIL) to come on.
∙ Never pour fuel into the throttle body to attempt to start your vehicle.
LPD2810SPA1755
FUEL-FILLER DOOR
Pre-driving checks and adjustments3-11

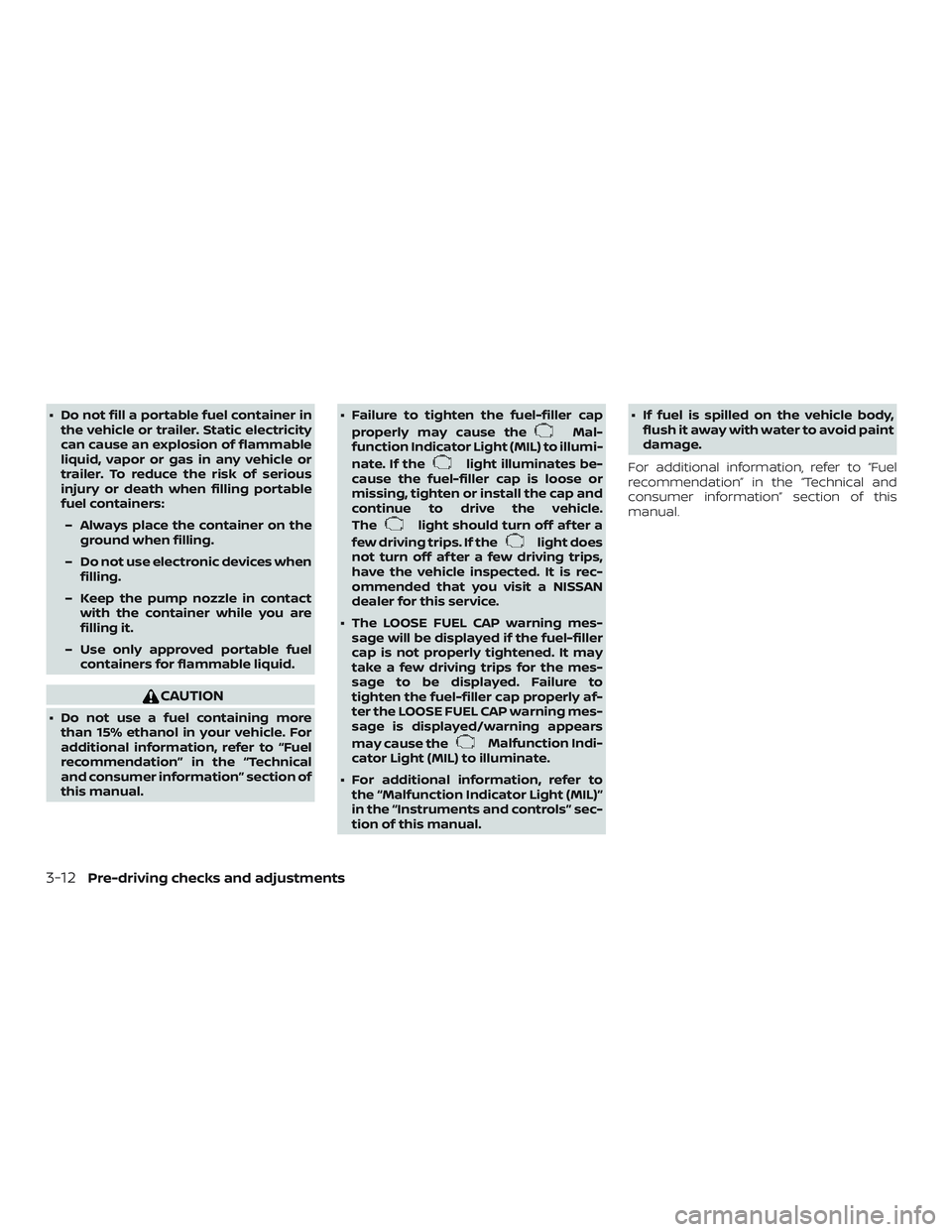

∙ Do not fill a portable fuel container inthe vehicle or trailer. Static electricity
can cause an explosion of flammable
liquid, vapor or gas in any vehicle or
trailer. To reduce the risk of serious
injury or death when filling portable
fuel containers:
– Always place the container on the ground when filling.
– Do not use electronic devices when filling.
– Keep the pump nozzle in contact with the container while you are
filling it.
– Use only approved portable fuel containers for flammable liquid.
CAUTION
∙ Do not use a fuel containing morethan 15% ethanol in your vehicle. For
additional information, refer to “Fuel
recommendation” in the “Technical
and consumer information” section of
this manual. ∙ Failure to tighten the fuel-filler cap
properly may cause the
Mal-
function Indicator Light (MIL) to illumi-
nate. If the
light illuminates be-
cause the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle.
The
light should turn off af ter a
few driving trips. If the
light does
not turn off af ter a few driving trips,
have the vehicle inspected. It is rec-
ommended that you visit a NISSAN
dealer for this service.
∙ The LOOSE FUEL CAP warning mes- sage will be displayed if the fuel-filler
cap is not properly tightened. It may
take a few driving trips for the mes-
sage to be displayed. Failure to
tighten the fuel-filler cap properly af-
ter the LOOSE FUEL CAP warning mes-
sage is displayed/warning appears
may cause the
Malfunction Indi-
cator Light (MIL) to illuminate.
∙ For additional information, refer to the “Malfunction Indicator Light (MIL)”
in the “Instruments and controls” sec-
tion of this manual. ∙ If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.
For additional information, refer to “Fuel
recommendation” in the “Technical and
consumer information” section of this
manual.
3-12Pre-driving checks and adjustments

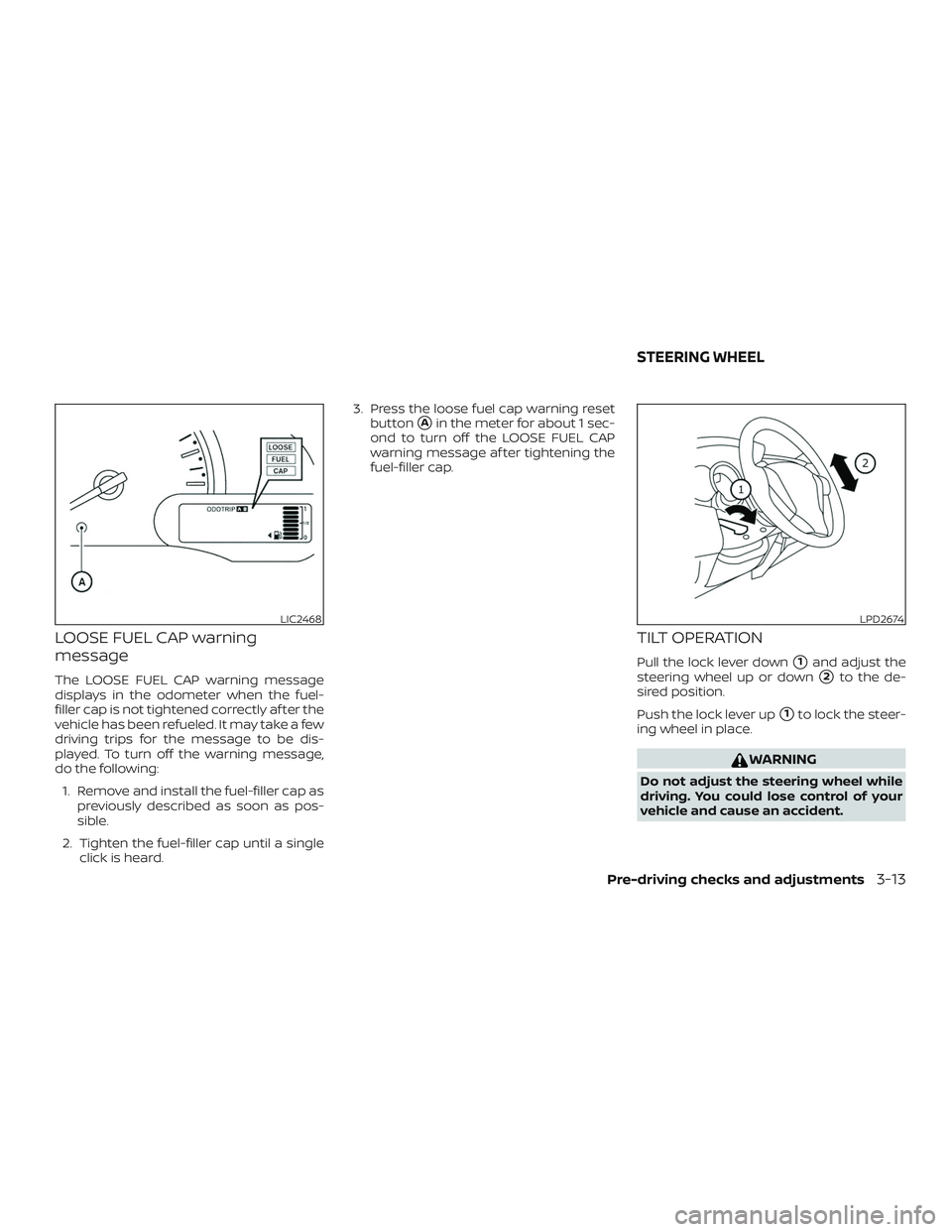

LOOSE FUEL CAP warning
message
The LOOSE FUEL CAP warning message
displays in the odometer when the fuel-
filler cap is not tightened correctly af ter the
vehicle has been refueled. It may take a few
driving trips for the message to be dis-
played. To turn off the warning message,
do the following:1. Remove and install the fuel-filler cap as previously described as soon as pos-
sible.
2. Tighten the fuel-filler cap until a single click is heard. 3. Press the loose fuel cap warning reset
button
Ain the meter for about 1 sec-
ond to turn off the LOOSE FUEL CAP
warning message af ter tightening the
fuel-filler cap.
TILT OPERATION
Pull the lock lever down1and adjust the
steering wheel up or down
2to the de-
sired position.
Push the lock lever up
1to lock the steer-
ing wheel in place.
WARNING
Do not adjust the steering wheel while
driving. You could lose control of your
vehicle and cause an accident.
LIC2468LPD2674
STEERING WHEEL
Pre-driving checks and adjustments3-13

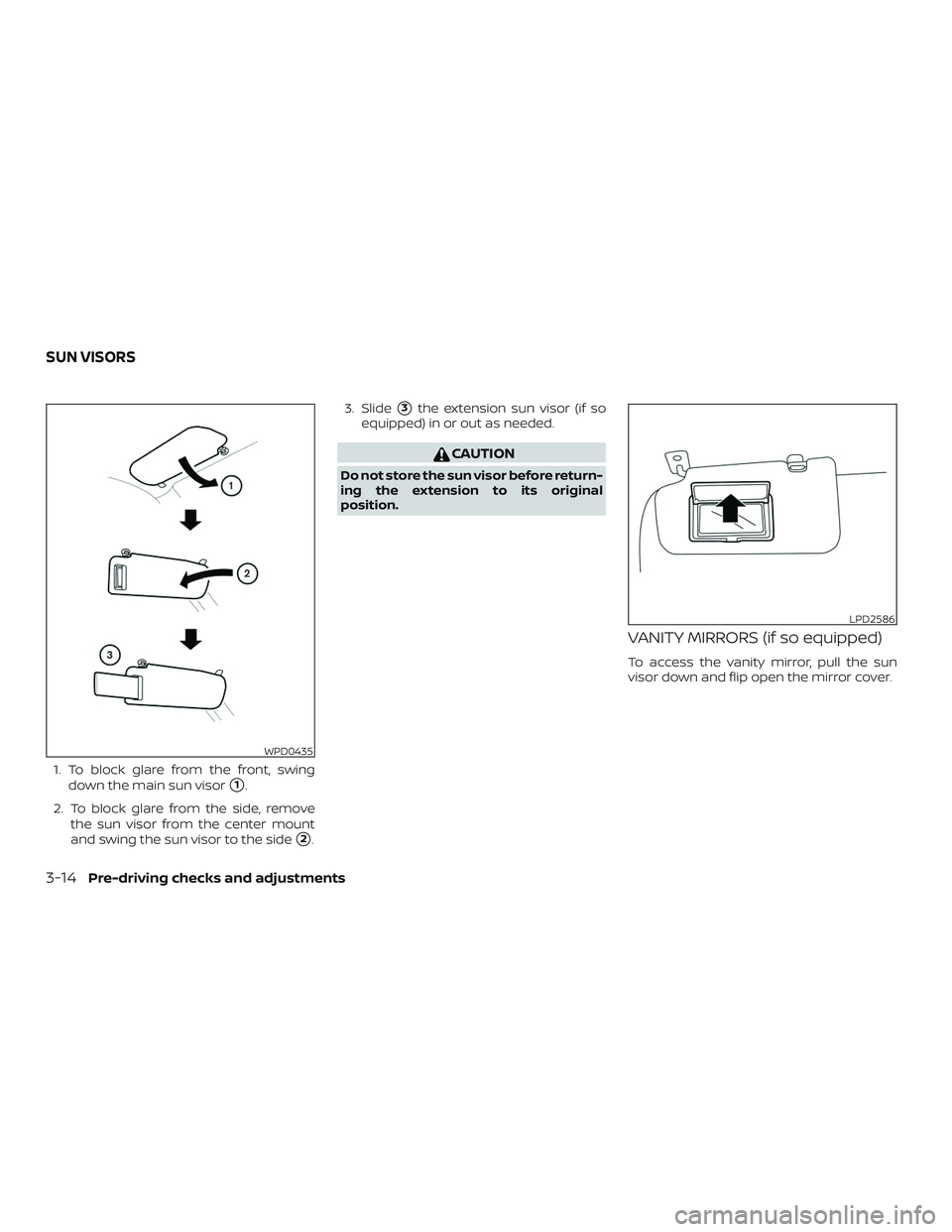

1. To block glare from the front, swingdown the main sun visor
1.
2. To block glare from the side, remove the sun visor from the center mount
and swing the sun visor to the side
2. 3. Slide
3the extension sun visor (if so
equipped) in or out as needed.
CAUTION
Do not store the sun visor before return-
ing the extension to its original
position.
VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
WPD0435
LPD2586
SUN VISORS
3-14Pre-driving checks and adjustments

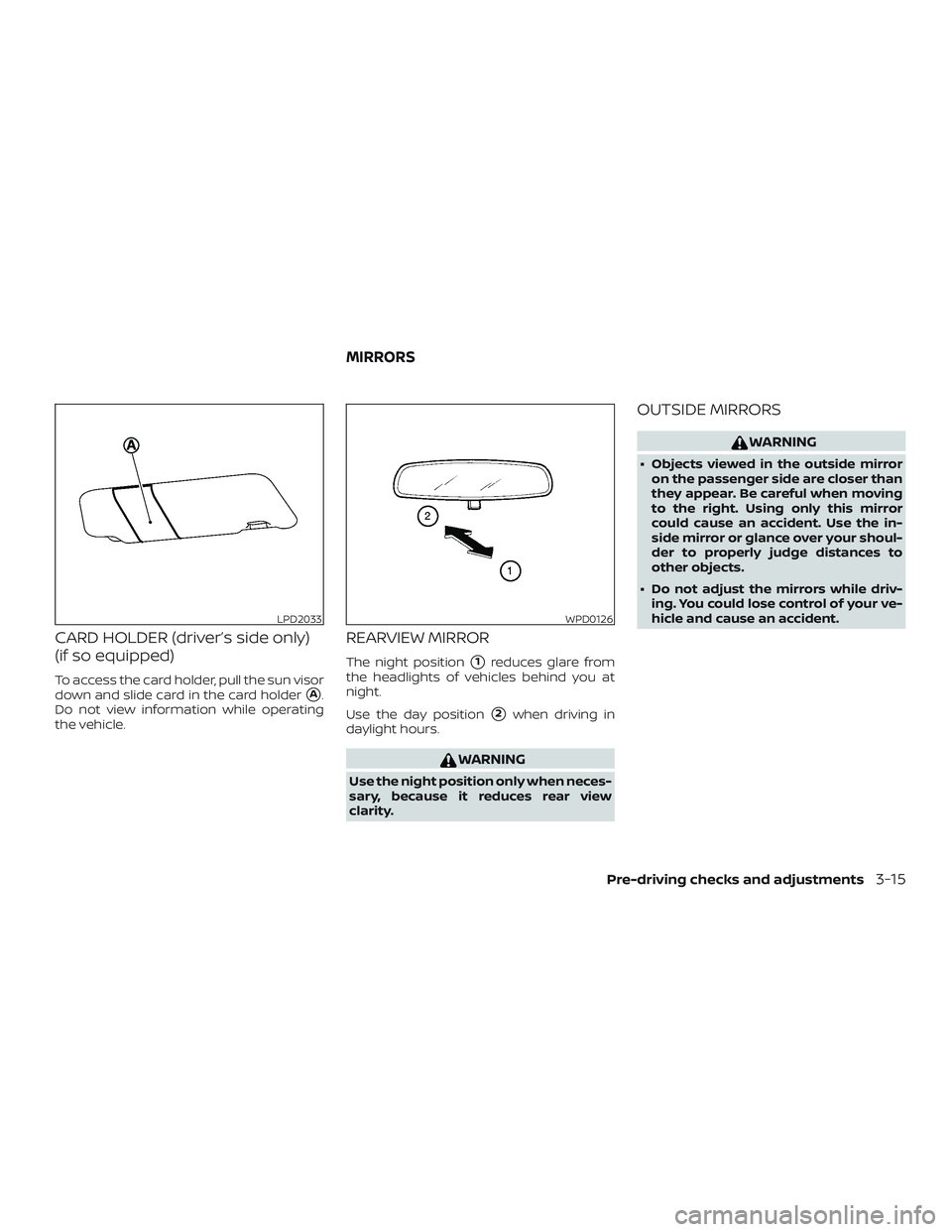

CARD HOLDER (driver’s side only)
(if so equipped)
To access the card holder, pull the sun visor
down and slide card in the card holder
A.
Do not view information while operating
the vehicle.
REARVIEW MIRROR
The night position1reduces glare from
the headlights of vehicles behind you at
night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
OUTSIDE MIRRORS
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
LPD2033WPD0126
MIRRORS
Pre-driving checks and adjustments3-15

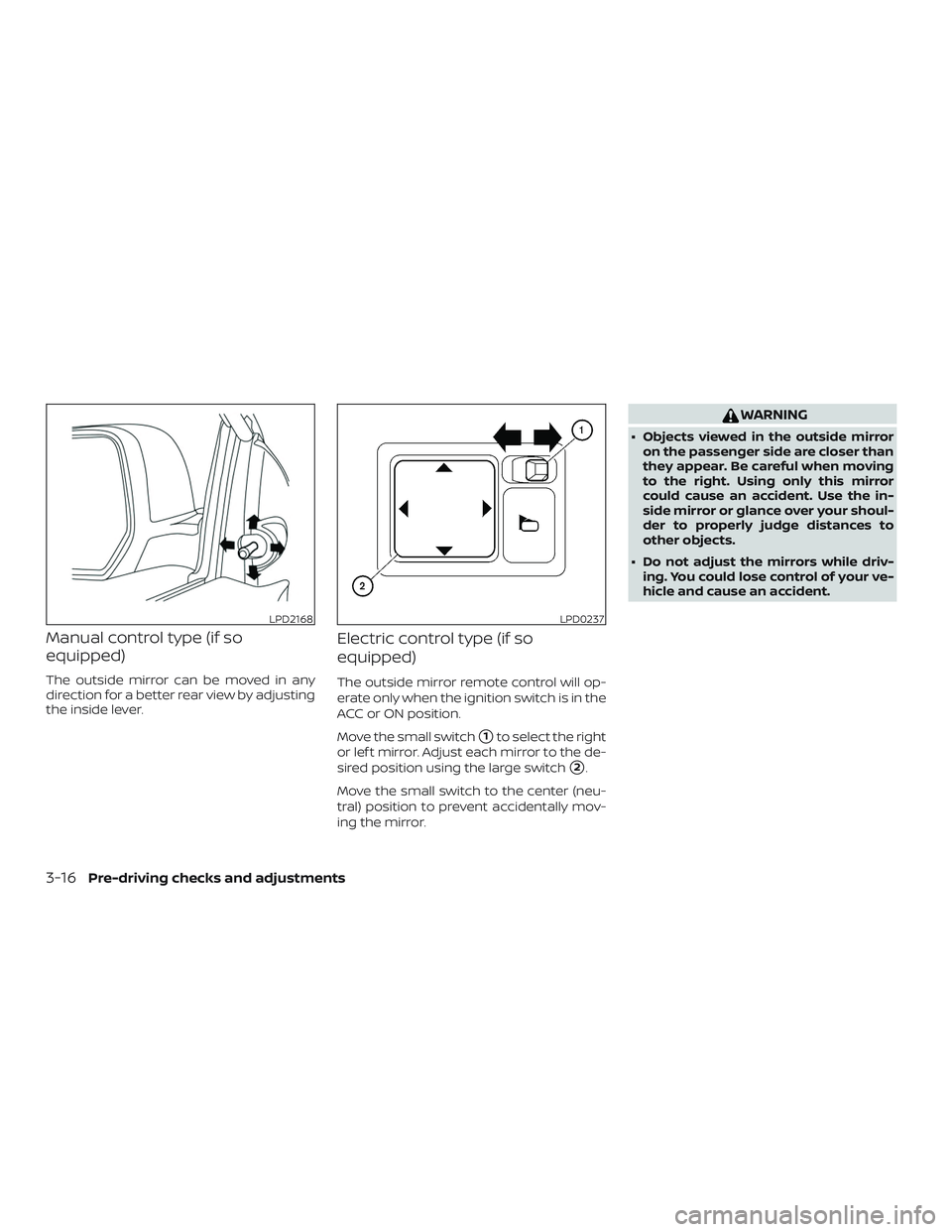

Manual control type (if so
equipped)
The outside mirror can be moved in any
direction for a better rear view by adjusting
the inside lever.
Electric control type (if so
equipped)
The outside mirror remote control will op-
erate only when the ignition switch is in the
ACC or ON position.
Move the small switch
1to select the right
or lef t mirror. Adjust each mirror to the de-
sired position using the large switch
2.
Move the small switch to the center (neu-
tral) position to prevent accidentally mov-
ing the mirror.
WARNING
∙ Objects viewed in the outside mirror on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
LPD2168LPD0237
3-16Pre-driving checks and adjustments

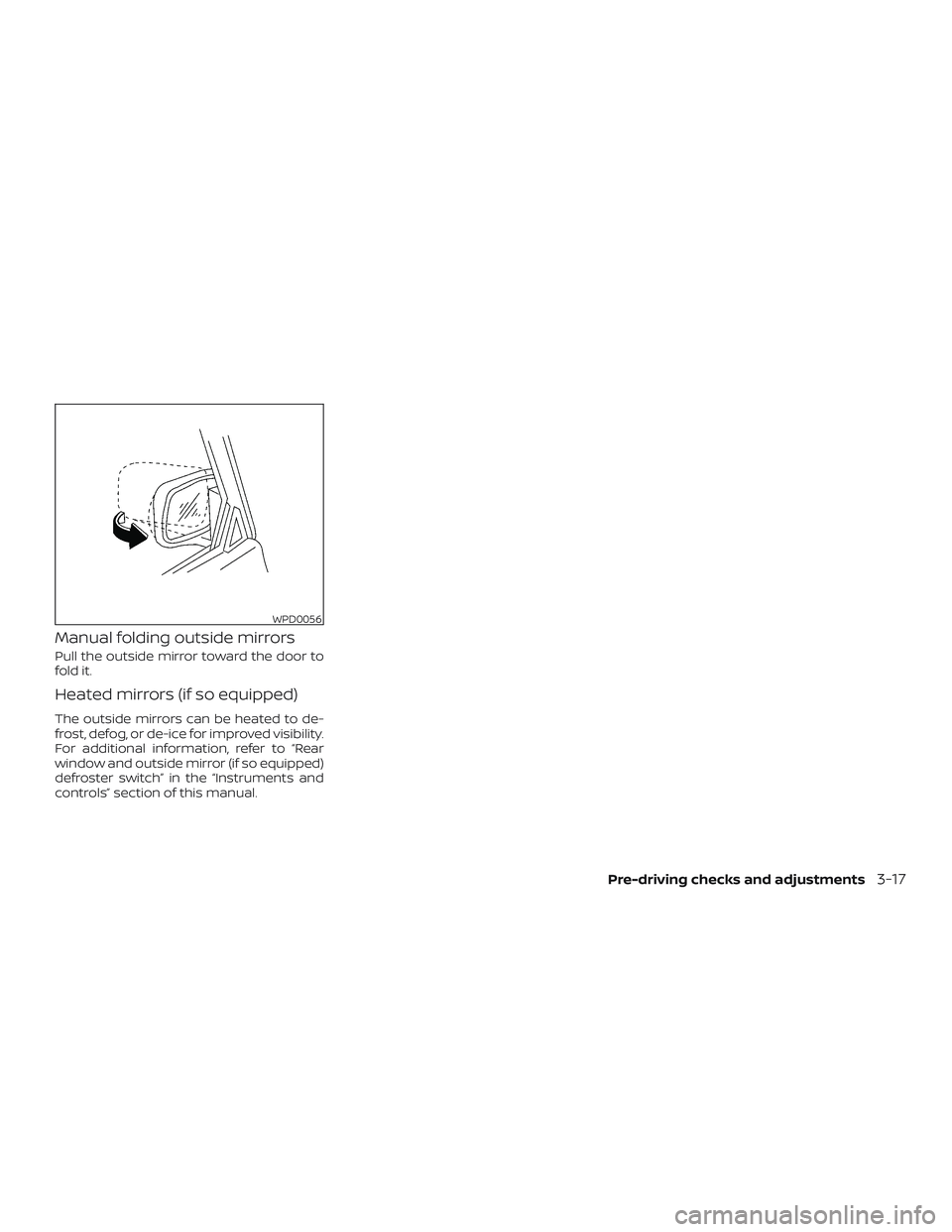

Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
Heated mirrors (if so equipped)
The outside mirrors can be heated to de-
frost, defog, or de-ice for improved visibility.
For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.
WPD0056
Pre-driving checks and adjustments3-17

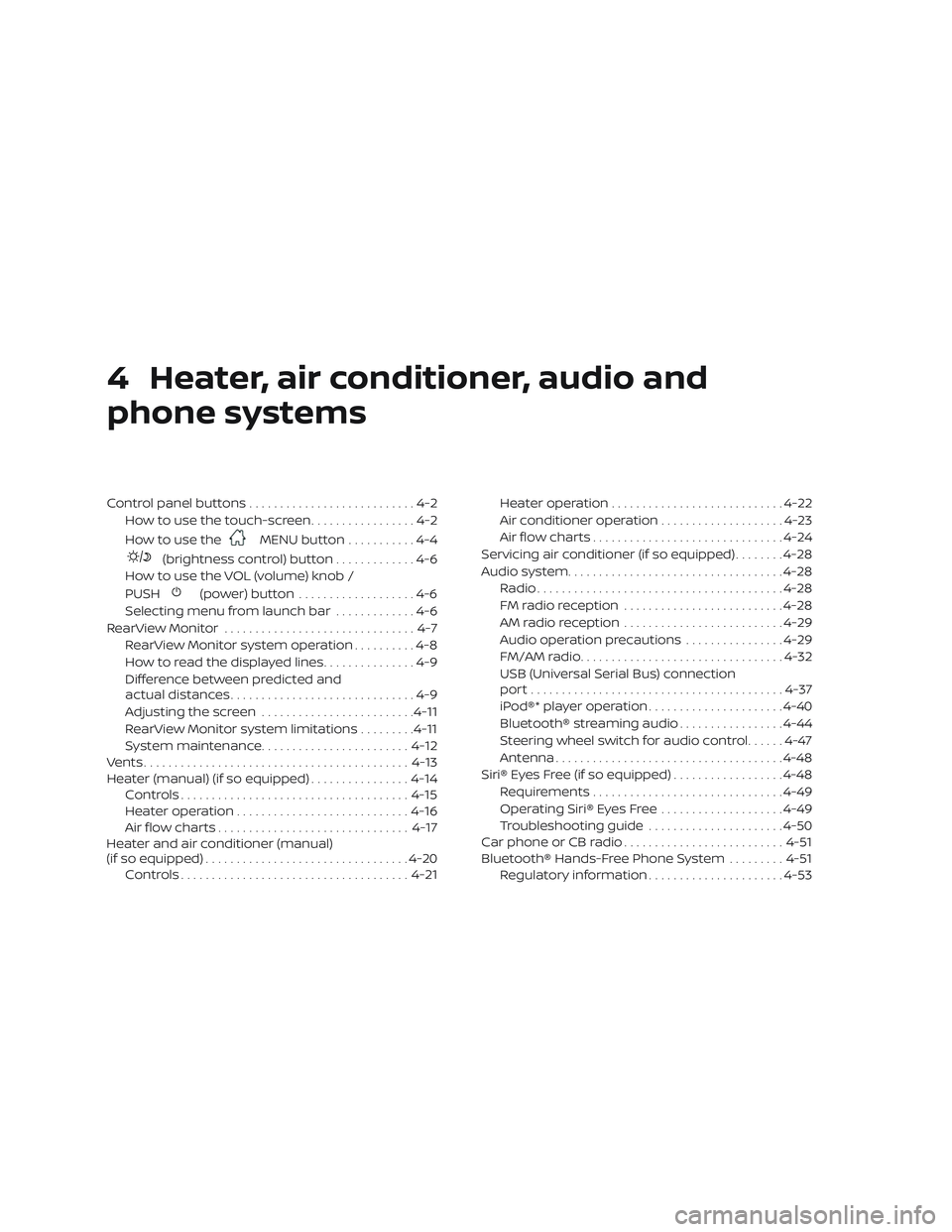

4 Heater, air conditioner, audio and
phone systems
Control panel buttons...........................4-2
How to use the touch-screen .................4-2
How to use the
MENU button ...........4-4
(brightness control) button .............4-6
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-6
Selecting menu from launch bar .............4-6
RearView Monitor ...............................4-7
RearView Monitor system operation ..........4-8
How to read the displayed lines ...............4-9
Difference between predicted and
actual distances ..............................4-9
Adjusting the screen ......................... 4-11
RearView Monitor system limitations .........4-11
System maintenance ........................ 4-12
Vents ........................................... 4-13
Heater (manual) (if so equipped) ................4-14
Controls ..................................... 4-15
Heater operation ............................ 4-16
Air flow charts ............................... 4-17
Heater and air conditioner (manual)
(if so equipped) ................................. 4-20
Controls ..................................... 4-21Heater operation
............................ 4-22
Air conditioner operation ....................4-23
Air flow charts ............................... 4-24
Servicing air conditioner (if so equipped) ........4-28
Audio system ................................... 4-28
Radio ........................................ 4-28
FM radio reception .......................... 4-28
AM radio reception .......................... 4-29
Audio operation precautions ................4-29
FM/AM radio ................................. 4-32
USB (Universal Serial Bus) connection
port......................................... 4-37
iPod®* player operation ......................4-40
Bluetooth® streaming audio .................4-44
Steering wheel switch for audio control ......4-47
Antenna ..................................... 4-48
Siri® Eyes Free (if so equipped) ..................4-48
Requirements ............................... 4-49
Operating Siri® Eyes Free ....................4-49
Troubleshooting guide ......................4-50
Car phone or CB radio .......................... 4-51
Bluetooth®

Hands-Free Phone System .........4-51
Regulatory information ......................4-53

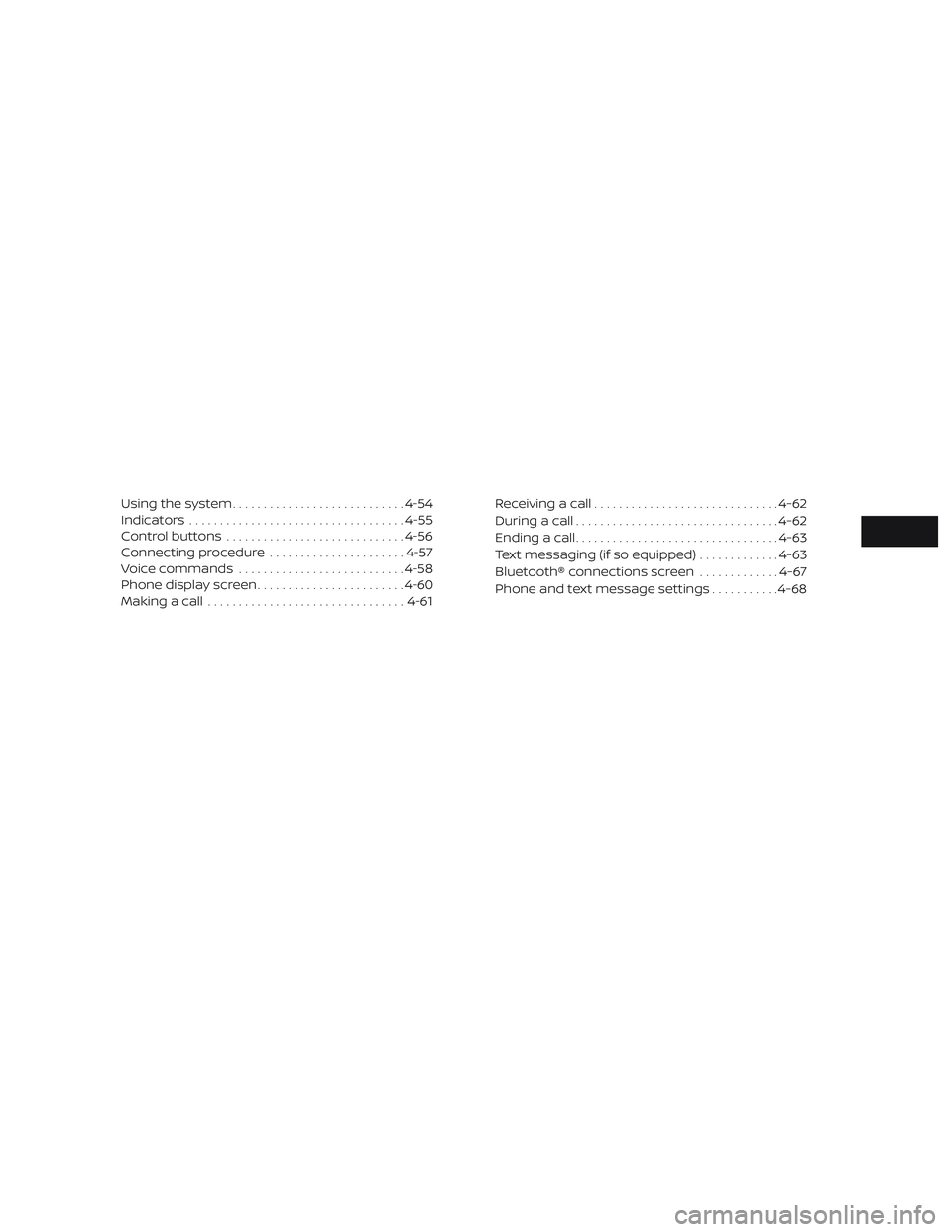

Using the system............................ 4-54
Indicators ................................... 4-55
Control buttons ............................. 4-56
Connecting procedure ......................4-57
Voice commands ........................... 4-58
Phone display screen ........................ 4-60
Making a call ................................ 4-61Receiving a call
.............................. 4-62
During a call ................................. 4-62
Ending a call ................................. 4-63
Text messaging (if so equipped) .............4-63
Bluetooth® connections screen .............4-67
Phone and text message settings ...........4-68
