NISSAN MURANO 2003 1.G Owner's Guide

you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.

For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly.
Fastening the seat belts1. Adjust the seat.
2. Slowly pull the seat belt out of the retractor
and insert the tongue into the buckle until it
snaps. For additional information regarding
the rear center seat belt, see “Rear center
seat belt” later in this section.
The retractor is designed to lock during a
sudden stop or on impact. A slow pulling
motion will permit the belt to move, and
allow you some freedom of movement in
the seat.3. Position the lap belt portionlow and snug
on the hipsas shown.
4. Pull the shoulder belt portion toward the
retractor to take up extra slack.
The front passenger and rear seat belts have a
cinching mechanism for child restraint installa-
tion. It is referred to as the automatic locking
mode.
When the cinching mechanism is activated the
seat belt cannot be withdrawn again until the
seat belt tongue is detached from the buckle and
fully retracted. For additional information, see
“Child restraints” later in this section.
SSS0020
SSS0102
SSS0061
1-26
Seats, restraints and supplemental air bag systems


03.1.28/Z50-D/V5.0


The automatic locking mode should be
used only for child restraint installation.
During normal seat belt use by a passen-
ger, the locking mode should not be acti-
vated. If it is activated it may cause uncom-
fortable seat belt tension.

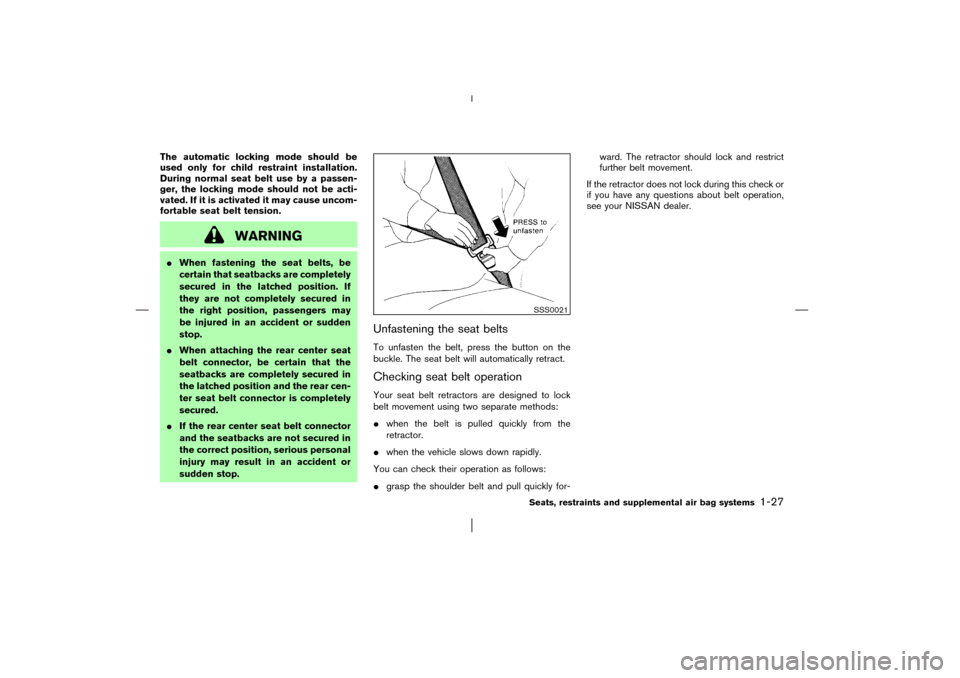

WARNING

When fastening the seat belts, be
certain that seatbacks are completely
secured in the latched position. If
they are not completely secured in
the right position, passengers may
be injured in an accident or sudden
stop.

When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.

If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
Unfastening the seat beltsTo unfasten the belt, press the button on the
buckle. The seat belt will automatically retract.Checking seat belt operationYour seat belt retractors are designed to lock
belt movement using two separate methods:

when the belt is pulled quickly from the
retractor.

when the vehicle slows down rapidly.
You can check their operation as follows:

grasp the shoulder belt and pull quickly for-ward. The retractor should lock and restrict
further belt movement.
If the retractor does not lock during this check or
if you have any questions about belt operation,
see your NISSAN dealer.
SSS0021Seats, restraints and supplemental air bag systems
1-27


03.1.28/Z50-D/V5.0


Shoulder belt height adjustment
(Except for rear center seat)The shoulder belt anchor height should be ad-
justed to the position best suited for you. (See
“Precautions on seat belt usage” earlier in this
section.) To lower, pull the release button, and
then move the shoulder belt anchor to the
desired position, so that the belt passes over the
shoulder. Release the adjustment button to lock
the shoulder belt anchor into position.
To raise, move the adjuster up to the desired
position without pushing the button.

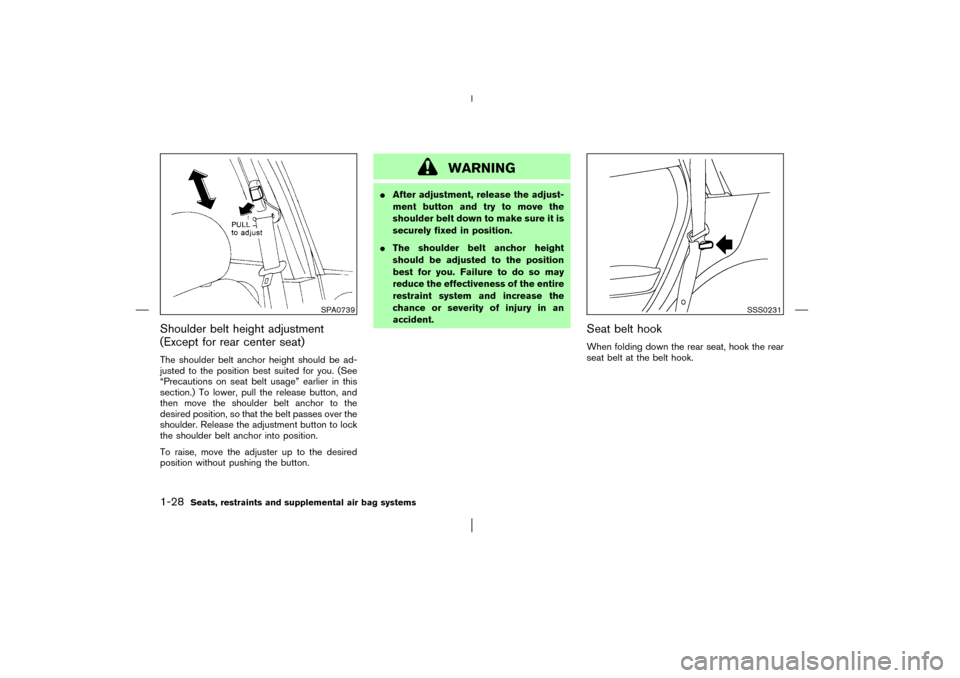

WARNING

After adjustment, release the adjust-
ment button and try to move the
shoulder belt down to make sure it is
securely fixed in position.

The shoulder belt anchor height
should be adjusted to the position
best for you. Failure to do so may
reduce the effectiveness of the entire
restraint system and increase the
chance or severity of injury in an
accident.
Seat belt hookWhen folding down the rear seat, hook the rear
seat belt at the belt hook.
SPA0739
SSS0231
1-28
Seats, restraints and supplemental air bag systems


03.1.28/Z50-D/V5.0


REAR CENTER SEAT BELTThe rear center seat belt has a connector tongue1
and a seat belt tongue
2. Both the con-
nector tongue and the seat belt tongue must be
securely latched for proper seat belt operation.

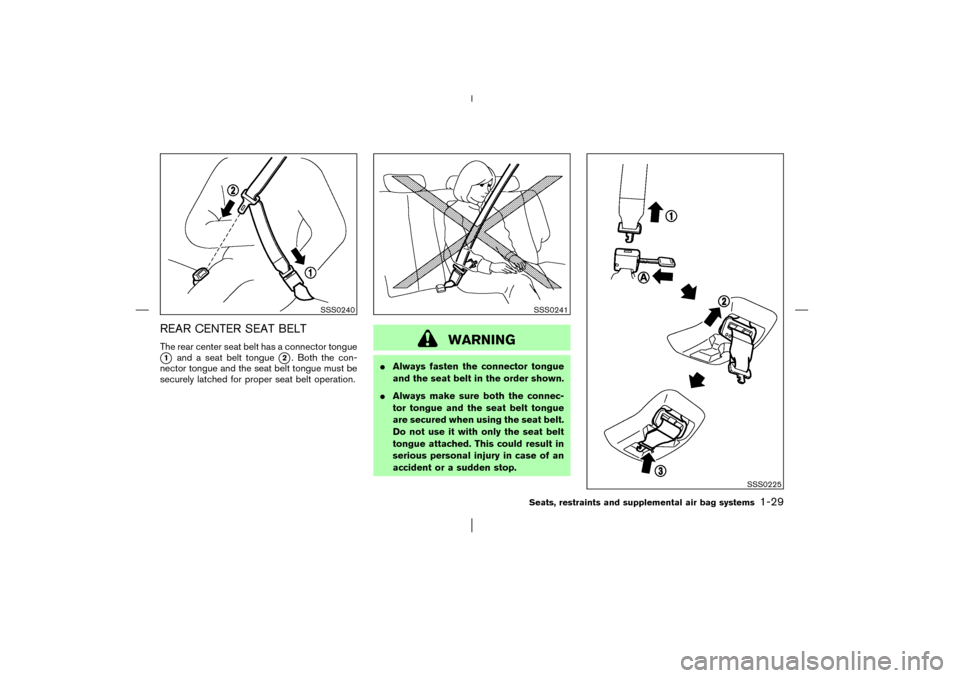

WARNING

Always fasten the connector tongue
and the seat belt in the order shown.

Always make sure both the connec-
tor tongue and the seat belt tongue
are secured when using the seat belt.
Do not use it with only the seat belt
tongue attached. This could result in
serious personal injury in case of an
accident or a sudden stop.
SSS0240
SSS0241
SSS0225
Seats, restraints and supplemental air bag systems
1-29


03.1.28/Z50-D/V5.0


Stowing rear center seat beltWhen folding down the rear seat, the rear center
seat belt can be retracted into a stowed position
as follows:
1. Release the connector tongue
1
by insert-
ing a suitable tool such as key into the
connector buckle
A.
2. Secure the seat belt tongue into the retractor
base first
2.
3. Then secure the connector tongue into the
retractor base3.

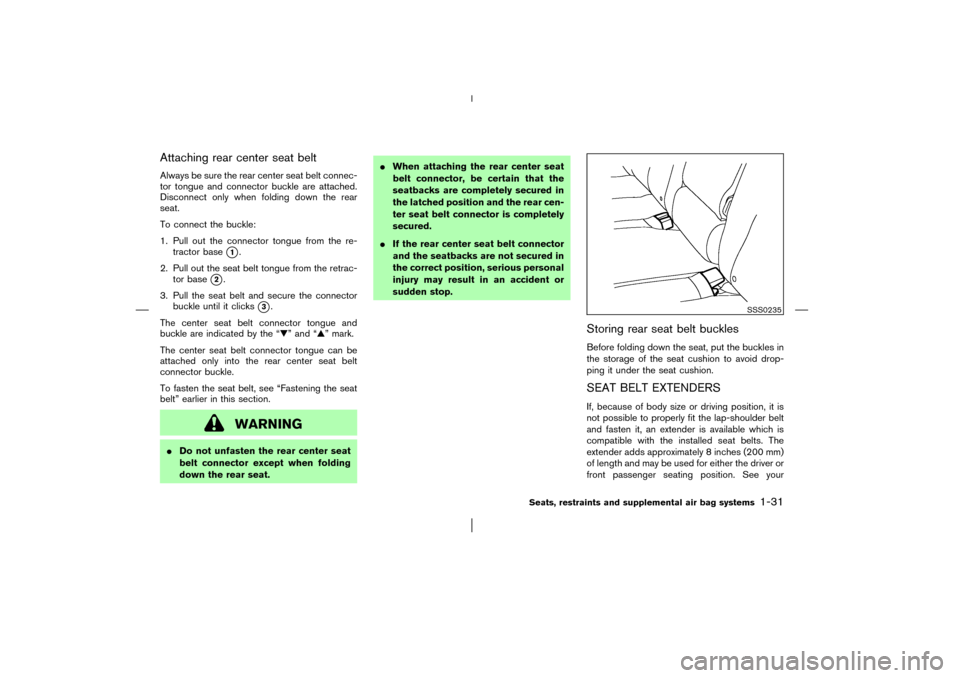

WARNING

Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.

When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.

If the rear center seat belt connectorand the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
SSS0232
1-30
Seats, restraints and supplemental air bag systems


03.1.28/Z50-D/V5.0


Attaching rear center seat beltAlways be sure the rear center seat belt connec-
tor tongue and connector buckle are attached.
Disconnect only when folding down the rear
seat.
To connect the buckle:
1. Pull out the connector tongue from the re-
tractor base
1.
2. Pull out the seat belt tongue from the retrac-
tor base
2.
3. Pull the seat belt and secure the connector
buckle until it clicks
3.
The center seat belt connector tongue and
buckle are indicated by the “” and “” mark.
The center seat belt connector tongue can be
attached only into the rear center seat belt
connector buckle.
To fasten the seat belt, see “Fastening the seat
belt” earlier in this section.

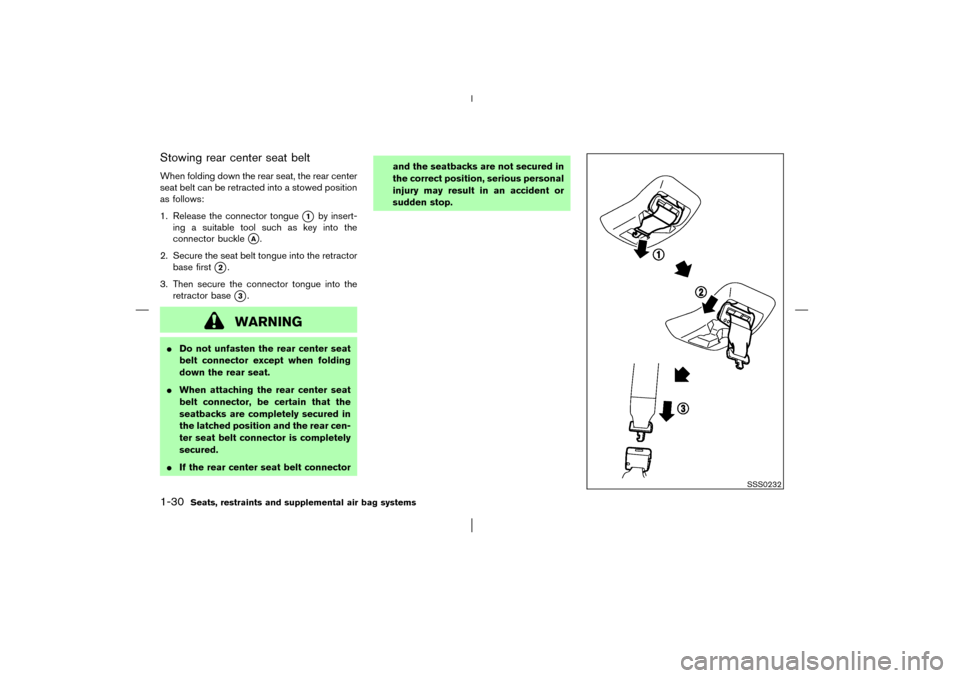

WARNING

Do not unfasten the rear center seat
belt connector except when folding
down the rear seat.
When attaching the rear center seat
belt connector, be certain that the
seatbacks are completely secured in
the latched position and the rear cen-
ter seat belt connector is completely
secured.

If the rear center seat belt connector
and the seatbacks are not secured in
the correct position, serious personal
injury may result in an accident or
sudden stop.
Storing rear seat belt bucklesBefore folding down the seat, put the buckles in
the storage of the seat cushion to avoid drop-
ping it under the seat cushion.SEAT BELT EXTENDERSIf, because of body size or driving position, it is
not possible to properly fit the lap-shoulder belt
and fasten it, an extender is available which is
compatible with the installed seat belts. The
extender adds approximately 8 inches (200 mm)
of length and may be used for either the driver or
front passenger seating position. See your
SSS0235
Seats, restraints and supplemental air bag systems
1-31


03.1.28/Z50-D/V5.0


NISSAN dealer for assistance if the extender is
required.

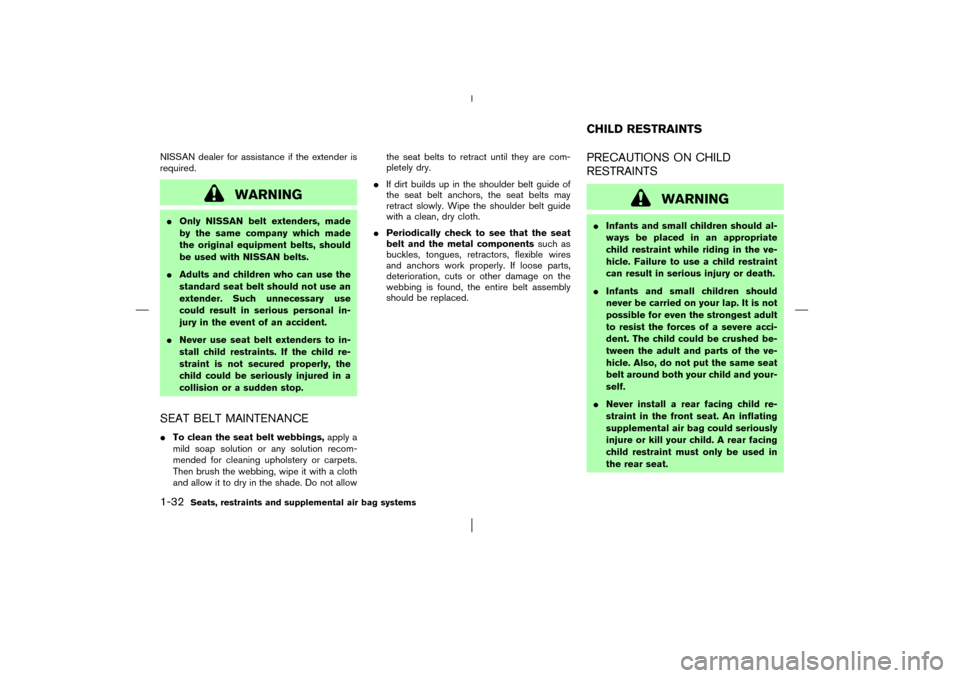

WARNING

Only NISSAN belt extenders, made
by the same company which made
the original equipment belts, should
be used with NISSAN belts.

Adults and children who can use the
standard seat belt should not use an
extender. Such unnecessary use
could result in serious personal in-
jury in the event of an accident.

Never use seat belt extenders to in-
stall child restraints. If the child re-
straint is not secured properly, the
child could be seriously injured in a
collision or a sudden stop.SEAT BELT MAINTENANCE
To clean the seat belt webbings,apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then brush the webbing, wipe it with a cloth
and allow it to dry in the shade. Do not allowthe seat belts to retract until they are com-
pletely dry.

If dirt builds up in the shoulder belt guide of
the seat belt anchors, the seat belts may
retract slowly. Wipe the shoulder belt guide
with a clean, dry cloth.

Periodically check to see that the seat
belt and the metal componentssuch as
buckles, tongues, retractors, flexible wires
and anchors work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire belt assembly
should be replaced.
PRECAUTIONS ON CHILD
RESTRAINTS
WARNING

Infants and small children should al-
ways be placed in an appropriate
child restraint while riding in the ve-
hicle. Failure to use a child restraint
can result in serious injury or death.

Infants and small children should
never be carried on your lap. It is not
possible for even the strongest adult
to resist the forces of a severe acci-
dent. The child could be crushed be-
tween the adult and parts of the ve-
hicle. Also, do not put the same seat
belt around both your child and your-
self.

Never install a rear facing child re-
straint in the front seat. An inflating
supplemental air bag could seriously
injure or kill your child. A rear facing
child restraint must only be used in
the rear seat.CHILD RESTRAINTS
1-32
Seats, restraints and supplemental air bag systems


03.1.28/Z50-D/V5.0

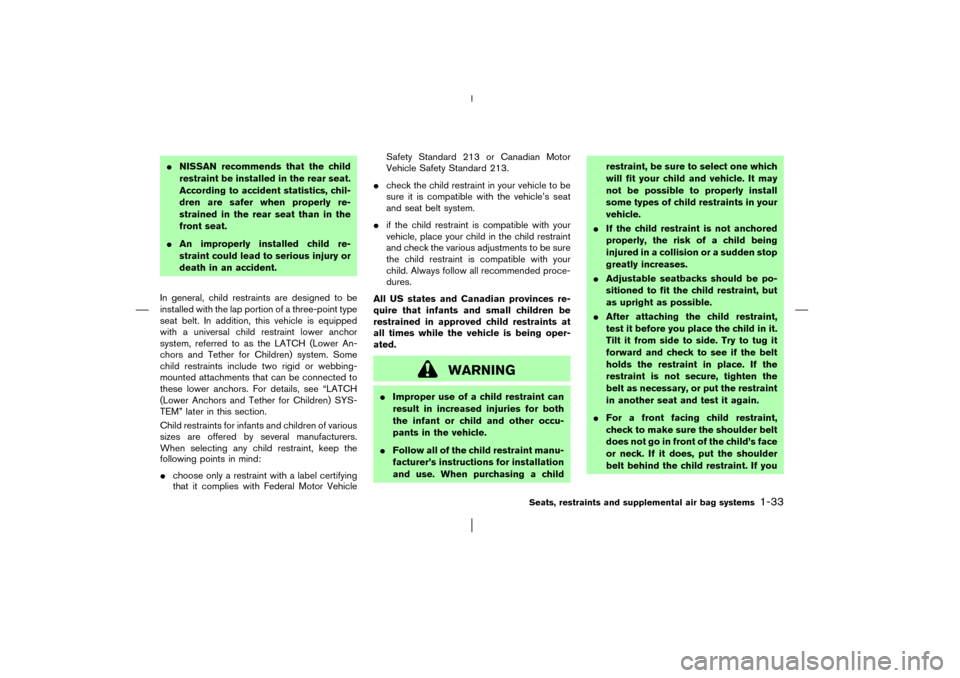

NISSAN recommends that the child
restraint be installed in the rear seat.
According to accident statistics, chil-
dren are safer when properly re-
strained in the rear seat than in the
front seat.

An improperly installed child re-
straint could lead to serious injury or
death in an accident.
In general, child restraints are designed to be
installed with the lap portion of a three-point type
seat belt. In addition, this vehicle is equipped
with a universal child restraint lower anchor
system, referred to as the LATCH (Lower An-
chors and Tether for Children) system. Some
child restraints include two rigid or webbing-
mounted attachments that can be connected to
these lower anchors. For details, see “LATCH
(Lower Anchors and Tether for Children) SYS-
TEM” later in this section.
Child restraints for infants and children of various
sizes are offered by several manufacturers.
When selecting any child restraint, keep the
following points in mind:

choose only a restraint with a label certifying
that it complies with Federal Motor VehicleSafety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.

check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.

if the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be sure
the child restraint is compatible with your
child. Always follow all recommended proce-
dures.
All US states and Canadian provinces re-
quire that infants and small children be
restrained in approved child restraints at
all times while the vehicle is being oper-
ated.
WARNING

Improper use of a child restraint can
result in increased injuries for both
the infant or child and other occu-
pants in the vehicle.

Follow all of the child restraint manu-
facturer’s instructions for installation
and use. When purchasing a childrestraint, be sure to select one which
will fit your child and vehicle. It may
not be possible to properly install
some types of child restraints in your
vehicle.

If the child restraint is not anchored
properly, the risk of a child being
injured in a collision or a sudden stop
greatly increases.

Adjustable seatbacks should be po-
sitioned to fit the child restraint, but
as upright as possible.

After attaching the child restraint,
test it before you place the child in it.
Tilt it from side to side. Try to tug it
forward and check to see if the belt
holds the restraint in place. If the
restraint is not secure, tighten the
belt as necessary, or put the restraint
in another seat and test it again.

For a front facing child restraint,
check to make sure the shoulder belt
does not go in front of the child’s face
or neck. If it does, put the shoulder
belt behind the child restraint. If you
Seats, restraints and supplemental air bag systems
1-33


03.1.28/Z50-D/V5.0

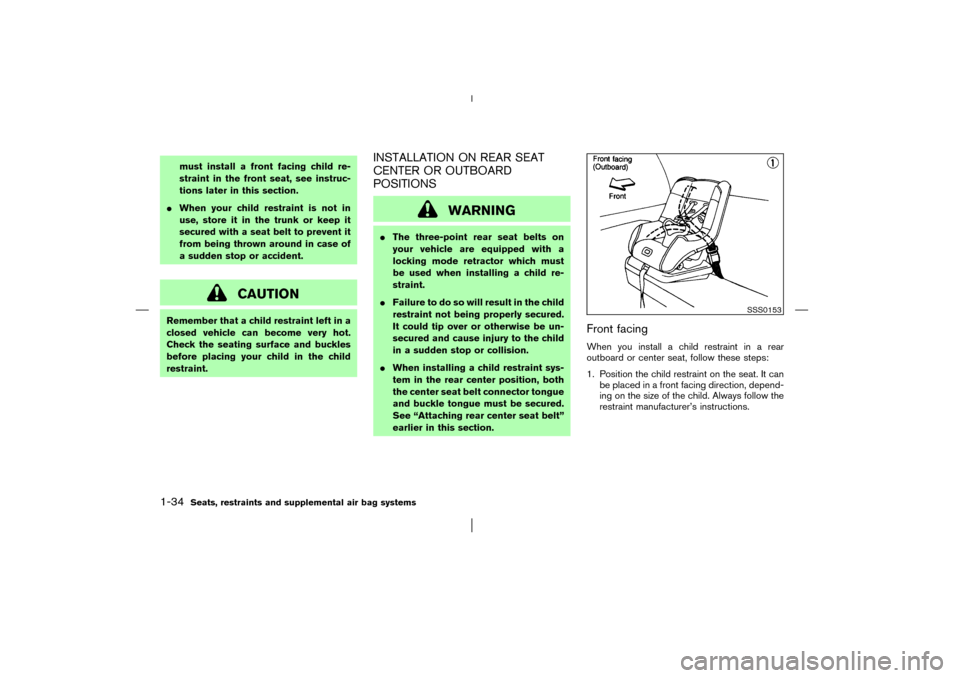

must install a front facing child re-
straint in the front seat, see instruc-
tions later in this section.

When your child restraint is not in
use, store it in the trunk or keep it
secured with a seat belt to prevent it
from being thrown around in case of
a sudden stop or accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
INSTALLATION ON REAR SEAT
CENTER OR OUTBOARD
POSITIONS
WARNING

The three-point rear seat belts on
your vehicle are equipped with a
locking mode retractor which must
be used when installing a child re-
straint.

Failure to do so will result in the child
restraint not being properly secured.
It could tip over or otherwise be un-
secured and cause injury to the child
in a sudden stop or collision.

When installing a child restraint sys-
tem in the rear center position, both
the center seat belt connector tongue
and buckle tongue must be secured.
See “Attaching rear center seat belt”
earlier in this section.
Front facingWhen you install a child restraint in a rear
outboard or center seat, follow these steps:
1. Position the child restraint on the seat. It can
be placed in a front facing direction, depend-
ing on the size of the child. Always follow the
restraint manufacturer’s instructions.
SSS0153
1-34
Seats, restraints and supplemental air bag systems


03.1.28/Z50-D/V5.0


2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.
SSS0239
SSS0043
SSS0107
Seats, restraints and supplemental air bag systems
1-35


03.1.28/Z50-D/V5.0
