AWD (All wheel drive) warning
light (AWD models)
The
warning light comes on when the key
switch is turned to ON. It turns off soon after the
engine is started.
If the AWD system malfunctions or the revolu-
tion, or radius of the front and the rear wheel
differs, the warning light will either remain illumi-
nated or blink. See “Using all wheel drive
(AWD)” in the “5. Starting and driving” section.
CAUTION
If the warning light comes on while
driving, AWD mode will change to
2WD mode. Reduce the vehicle speed
and have your vehicle checked by a
NISSAN dealer as soon as possible.
Do not drive on dry hard surface
roads in the LOCK mode.
If the AWD warning light blinks on
when you are driving:
•blinks rapidly (about twice a sec-
ond):
Pull off the road in a safe area, andidle the engine. The driving mode
will change to 2WD to prevent the
AWD system from malfunctioning.
If the warning light turns off, you
can drive again.
•blinks slowly (about once every 2
seconds):
Pull off the road in a safe area, and
idle the engine. Check that all tire
sizes are the same, tire pressure is
correct and tires are not worn.
If the warning light is still on after the
above operation, have your vehicle
checked by a NISSAN dealer as soon as
possible.
or
Brake warning light
This light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
When the ignition key is in the ON position, the
light comes on when the parking brake is ap-
plied.Low brake fluid warning light:
The light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid as
necessary. See “Brake fluid” in the “8. Main-
tenance and do-it-yourself” section.
WARNING
Your brake system may not be work-
ing properly if the warning light is on.
Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.
Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
greater pedal travel.
2-10
Instruments and controls
03.1.28/Z50-D/V5.0
Page 62 of 265
If the brake fluid level is below the
MINmark on the brake fluid reser-
voir, do not drive until the brake sys-
tem has been checked at a NISSAN
dealer.
2. If the brake fluid level is correct, have the
warning system checked by a NISSAN
dealer. Avoid high speed driving and abrupt
braking.
If both the brake warning light and the anti-
lock brake warning light come on simulta-
neously, it may indicate the anti-lock brake
system is not functioning properly. See “Anti-
lock brake warning light” earlier in this sec-
tion.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, see
your NISSAN dealer immediately.
CAUTION
Do not continue driving if the belt is
loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition key is ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.
The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the oil pres-
sure warning light on could cause seri-ous damage to the engine almost imme-
diately. Turn off the engine as soon as it
is safe to do so.
Low fuel warning light
This light comes on when the fuel in the tank is
getting low. Refuel as soon as it is convenient,
preferably before the fuel gauge reaches E.
There will be a small reserve of fuel re-
maining in the tank when the fuel gauge
needle reaches E.
Low washer fluid warning light
This light comes on when the washer tank fluid is
at a low level. Add washer fluid as necessary.
See “Window washer fluid” in the “8. Mainte-
nance and do-it-yourself” section.
Seat belt warning light and
chime
The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
key is turned to ON, and will remain illuminated
until the driver’s seat belt is fastened. At the
same time, the chime will sound for about 6
seconds unless the driver’s seat belt is securely
fastened.
Instruments and controls
2-11
03.1.28/Z50-D/V5.0
Page 63 of 265
See “Seat belts” in the “1. Seats, restraints and
supplemental air bag systems” section for pre-
cautions on seat belt usage.
Supplemental air bag warning
light
After turning the ignition key to the ON position,
the supplemental air bag warning light will illu-
minate. The supplemental air bag warning light
will turn off after about 7 seconds if the system is
operational.
If any of the following conditions occur, the
supplemental front air bag, supplemental side air
bag and curtain side-impact air bag systems,
and pre-tensioner seat belt needs servicing and
your vehicle must be taken to your nearest
NISSAN dealer.
The supplemental air bag warning light re-
mains on after approximately 7 seconds.
The supplemental air bag warning light
flashes intermittently.
The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint System and/or the pre-tensioner seat
belt may not function properly. For additional
information, see “Supplemental restraint system”in the “1. Seats, restraints and supplemental air
bag systems” section.

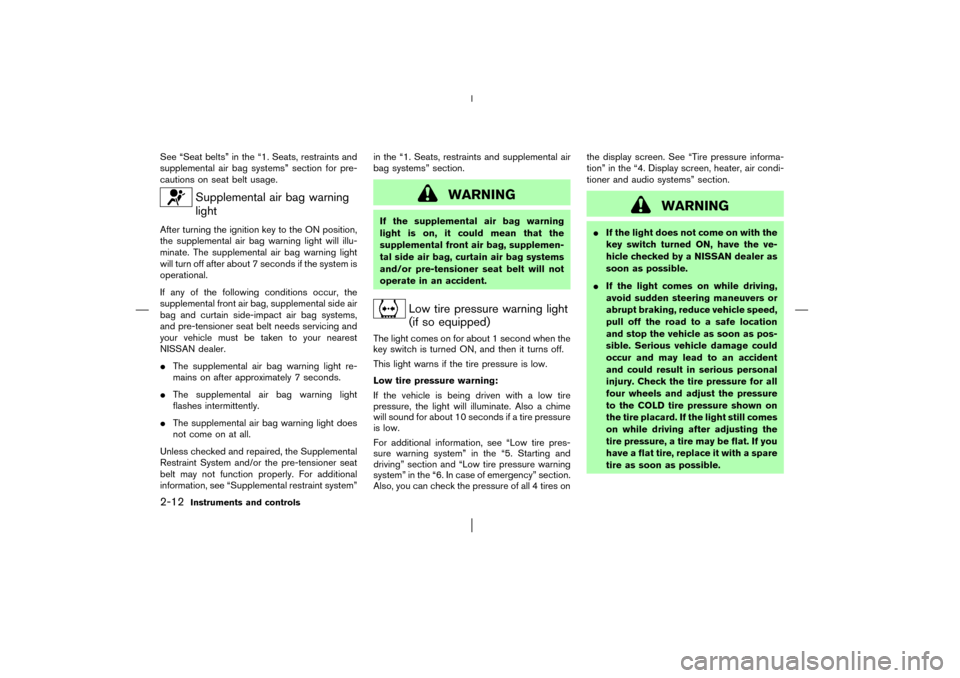

WARNING
If the supplemental air bag warning
light is on, it could mean that the
supplemental front air bag, supplemen-
tal side air bag, curtain air bag systems
and/or pre-tensioner seat belt will not
operate in an accident.
Low tire pressure warning light
(if so equipped)
The light comes on for about 1 second when the
key switch is turned ON, and then it turns off.
This light warns if the tire pressure is low.
Low tire pressure warning:
If the vehicle is being driven with a low tire
pressure, the light will illuminate. Also a chime
will sound for about 10 seconds if a tire pressure
is low.
For additional information, see “Low tire pres-
sure warning system” in the “5. Starting and
driving” section and “Low tire pressure warning
system” in the “6. In case of emergency” section.
Also, you can check the pressure of all 4 tires onthe display screen. See “Tire pressure informa-
tion” in the “4. Display screen, heater, air condi-
tioner and audio systems” section.
WARNING
If the light does not come on with the
key switch turned ON, have the ve-
hicle checked by a NISSAN dealer as
soon as possible.
If the light comes on while driving,
avoid sudden steering maneuvers or
abrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four wheels and adjust the pressure
to the COLD tire pressure shown on
the tire placard. If the light still comes
on while driving after adjusting the
tire pressure, a tire may be flat. If you
have a flat tire, replace it with a spare
tire as soon as possible.
2-12
Instruments and controls
03.1.28/Z50-D/V5.0
Page 64 of 265
When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated and not
be monitored by the low tire pressure
warning system. Contact your
NISSAN dealer as soon as possible
for tire replacement and/or system
resetting.
CAUTION
The low tire pressure warning is not a
substitute for the regular tire pres-
sure check. Be sure to check the tire
pressure regularly.
If the vehicle is being driven at
speeds of less than 20 MPH (32
km/h), the low tire pressure warning
system may not operate correctly.
Be sure to install the specified size of
tires to the four wheels correctly.
INDICATOR LIGHTS
Cruise main switch indicator
light
The light comes on when the cruise control main
switch is pushed. The light goes out when the
main switch is pushed again. When the cruise
main switch indicator light comes on, the cruise
control system is operational.
Cruise set indicator light
The light comes on while the vehicle speed is
controlled by the cruise control system. If the
light blinks while the engine is running, it may
indicate the cruise control system is not func-
tioning properly. Have the system checked by
your NISSAN dealer.
CVT (Continuously variable
transmission) indicator light
When the ignition switch is turned ON, the light
comes on for 2 seconds.
AWD (All wheel drive) LOCK
indicator light (AWD models)
This light comes on when the ignition switch is
turned to ON, and turns off within 1 second.
When selecting LOCK mode while the engine is
running, this light will illuminate. See “Using allwheel drive (AWD)” in the “5. Starting and
driving” section.
High beam indicator light
(Blue)
This light comes on when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction indicator lamp
(MIL)
If the malfunction indicator lamp comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
CVT malfunction.
The malfunction indicator lamp may also come
on steady if the fuel filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel filler cap is installed and closed
tightly, and that the vehicle has at least three
gallons of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
Operation
The malfunction indicator lamp will come on in
one of two ways:
Instruments and controls
2-13
03.1.28/Z50-D/V5.0
Page 65 of 265
Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
key to OFF and check the fuel filler cap. If the
fuel filler cap is loose or missing, tighten or
install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have the
vehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.
Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reduced
fuel economy, and possible damage to
the emission control system.
Security indicator light
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position. This function
indicates the security systems equipped on the
vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.The light will blink on for a few seconds after the
VDC system stops limiting wheel spin.
The slip indicator light also comes on when you
turn the ignition key to ON. The light will turn off
after about 2 seconds if the system is opera-
tional. If the light does not come on or go off,
have the traction control system checked by your
NISSAN dealer.
Turn signal/hazard indicator
lights
The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle dynamic control (VDC)
off indicator light (if so
equipped)
After turning the ignition key to the ON position,
the light will illuminate. The light will turn off in
about 2 seconds if the vehicle dynamic control
(VDC) system is operational.
The light comes on when the vehicle dynamic
control (VDC) off switch is pushed to OFF. This
indicates the vehicle dynamic control system
and traction control system are not operating.
When the vehicle dynamic control off indicator
light and slip indicator light come on with the
vehicle dynamic control system turned on, this
light alerts the driver to the fact that the vehicle
2-14
Instruments and controls
03.1.28/Z50-D/V5.0
Page 66 of 265
dynamic control system’s fail-safe mode is op-
erating, that is the system may not be functioning
properly. Have the system checked by your
NISSAN dealer. If an abnormality occurs in the
system, the vehicle dynamic control system
function will be canceled but the vehicle is still
driveable. For additional information, see “Ve-
hicle dynamic control (VDC) system” in the “5.
Starting and driving” section of this manual.AUDIBLE REMINDERS
Key reminder chimeThe chime will sound if the driver’s side door is
opened while the key is left in the ignition switch
(ignition switch is turned to OFF or ACC).
Remove the key and take it with you when
leaving the vehicle.Light reminder chimeThe chime will sound when the driver’s door is
opened with the headlight switch on unless the
ignition key is in the ON position.
Make sure to turn the light switch off when you
leave the vehicle.Seat belt warning chimeThe chime will sound for about 6 seconds unless
the drivers seat belt is securely fastened.
Brake pad wear warningThe disc brake pads have audible wear warn-
ings. When a brake pad requires replacement, it
will make a high pitched scraping sound when
the vehicle is in motion whether or not the brake
pedal is depressed. Have the brakes checked as
soon as possible if the warning sound is heard.
Your vehicle has two types of security systems,
as follows:
Vehicle Security System
Nissan Vehicle Immobilizer System
The security condition will be shown by the
security indicator light in the meter panel.
VEHICLE SECURITY SYSTEMThe vehicle security system provides visual and
audio alarm signals if parts of the vehicle are
disturbed.
SIC2133
SECURITY SYSTEMS
Instruments and controls
2-15
03.1.28/Z50-D/V5.0
Page 67 of 265
How to activate the vehicle security
system1. Close all windows.
The system can be activated even if the
windows are open.
2. Remove the key from the ignition switch.
3. Close and lock all doors and hood.
Lock all doors by pressing the LOCK button
on the keyfobor using the key. When using
the keyfob, the hazard indicators flash twice
to indicate all doors are locked.
4. Confirm that the SECURITY indicator light inthe meter comes on. The SECURITY indica-
tor light glows for about 30 seconds and then
blinks. The system is now activated. If, during
this 30 second time period, the door is
unlocked by the key or the keyfob, or the
ignition key is turned to ACC or ON, the
system will not activate.
Even when the driver and/or passengers
are in the vehicle, the system will acti-
vate with all doors and hood locked and
ignition key off. Turn the ignition key to
ACC to turn the system off.
Vehicle security system operationThe security system will give the following alarm:
The headlights blink and the horn sounds
intermittently.
The alarm automatically turns off after ap-
proximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again. The alarm can be shut off by unlocking
a door with the key, or by pressing the
UNLOCK button on the keyfob.
The alarm is activated by:
Opening the door without using the key or
keyfob.
Opening the back door without using the
keyfob.Opening the hood.
How to stop alarmThe alarm will stop only by unlocking a door with
the key, or by pressing the UNLOCK button on
keyfob. The alarm will not stop if the ignition
switch is turned to ACC or ON.
If the system does not operate as de-
scribed above, have it checked by your
NISSAN dealer.NISSAN VEHICLE IMMOBILIZER
SYSTEMThe Nissan Vehicle Immobilizer System will not
allow the engine to start without the use of the
registered Nissan Vehicle Immobilizer System
key.
If the engine fails to start using the registered
Nissan Vehicle Immobilizer System key, it may be
due to interference caused by another Nissan
Vehicle Immobilizer System key, an automated
toll road device or automated payment device on
the key ring. Restart the engine using the follow-
ing procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
SIC2045
2-16
Instruments and controls
03.1.28/Z50-D/V5.0
Page 68 of 265
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered Nissan Vehicle
Immobilizer System key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
Nissan Vehicle Immobilizer System key on a
separate key ring to avoid interference from
other devices.
Statement related to section 15 of FCC
rules for Nissan Vehicle Immobilizer Sys-
tem (CONT ASSY-BCM, ANT ASSY-
IMMOBILIZER)
This device complies with part 15 of the
FCC Rules and RSS-210 of Industry
Canada. Operation is subject to the follow-
ing two conditions;
(1) This device may not cause harmful in-
terference, and (2) this device must accept
any interference received, including inter-
ference that may cause undesired opera-
tion of the device.
CHANGES OR MODIFICATIONS NOT EX-
PRESSLY APPROVED BY THE MANUFAC-
TURE FOR COMPLIANCE COULD VOID
THE USER’S AUTHORITY TO OPERATE
THE EQUIPMENT.
Security indicator lightThis light blinks whenever the registered Nissan
Vehicle Immobilizer System key is removed or
turned to OFF, ACC or LOCK position. This
function indicates the security systems
equipped on the vehicle are operational.
If Nissan Vehicle Immobilizer System is malfunc-
tioning, this light will remain on while the regis-
tered Nissan Vehicle Immobilizer System Key is
in the ON position.
If the light still remains on and/or the
engine will not start, see your NISSAN
dealer for Nissan Vehicle Immobilizer Sys-tem service as soon as possible. Please
bring all Nissan Vehicle Immobilizer Sys-
tem keys that you have when visiting your
NISSAN dealer for service.
SIC2045
Instruments and controls
2-17
03.1.28/Z50-D/V5.0
Page 69 of 265
The windshield wiper and washer operates
when the ignition key is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent — intermittent operation can be
adjusted by turning the knob toward
A
(Slower) or
B(Faster). Also, the intermittent
operation speed varies in accordance with
the vehicle speed. (For example, when the
vehicle speed is high, the intermittent opera-
tion speed will be faster.)
2Low — continuous low speed operation
3High — continuous high speed operationPush the lever up
4
to have one sweep
operation of the wiper.
Pull the lever toward you5
to operate the
washer. Then the wiper will also operate several
times.
WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION
The following could damage the washer
system:
Do not operate the washer continu-
ously for more than 30 seconds.
Do not operate the washer if the
reservoir tank is empty.The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent — intermittent operation (not ad-
justable)
2Low — continuous low speed operation
Push the switch forward
3
to operate the
washer. Then the wiper will also operate several
times.
SIC1958
SIC1959
WINDSHIELD WIPER AND
WASHER SWITCHREAR WINDOW WIPER AND
WASHER SWITCH2-18
Instruments and controls
03.1.28/Z50-D/V5.0
Page 70 of 265

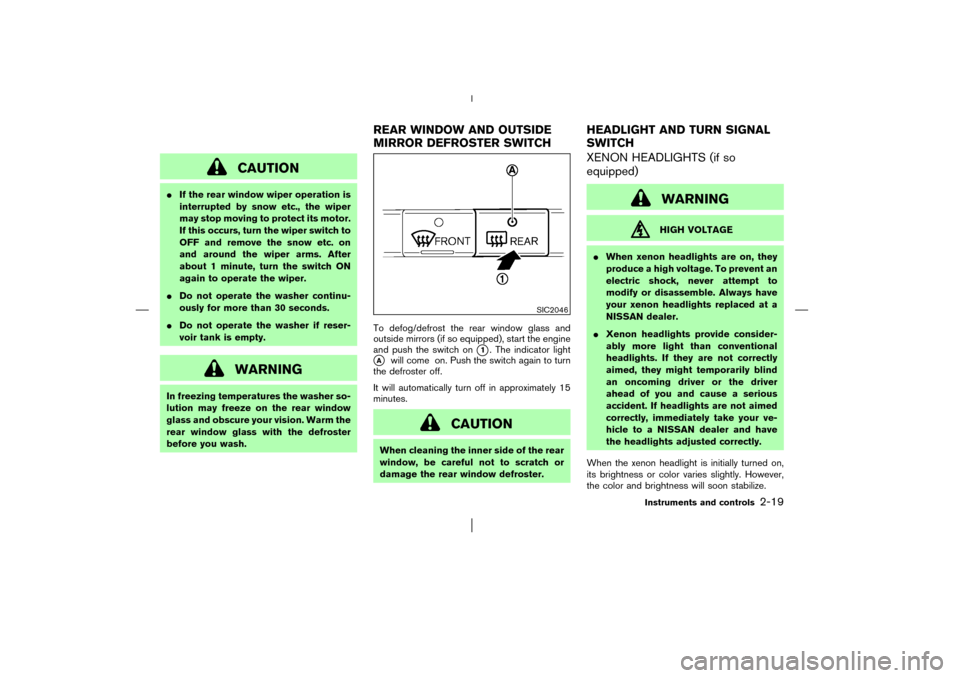

CAUTION
If the rear window wiper operation is
interrupted by snow etc., the wiper
may stop moving to protect its motor.
If this occurs, turn the wiper switch to
OFF and remove the snow etc. on
and around the wiper arms. After
about 1 minute, turn the switch ON
again to operate the wiper.
Do not operate the washer continu-
ously for more than 30 seconds.
Do not operate the washer if reser-
voir tank is empty.
WARNING
In freezing temperatures the washer so-
lution may freeze on the rear window
glass and obscure your vision. Warm the
rear window glass with the defroster
before you wash.To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch on
1. The indicator light
A
will come on. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
XENON HEADLIGHTS (if so
equipped)
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to
modify or disassemble. Always have
your xenon headlights replaced at a
NISSAN dealer.
Xenon headlights provide consider-
ably more light than conventional
headlights. If they are not correctly
aimed, they might temporarily blind
an oncoming driver or the driver
ahead of you and cause a serious
accident. If headlights are not aimed
correctly, immediately take your ve-
hicle to a NISSAN dealer and have
the headlights adjusted correctly.
When the xenon headlight is initially turned on,
its brightness or color varies slightly. However,
the color and brightness will soon stabilize.
SIC2046
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCHHEADLIGHT AND TURN SIGNAL
SWITCH
Instruments and controls
2-19
03.1.28/Z50-D/V5.0
