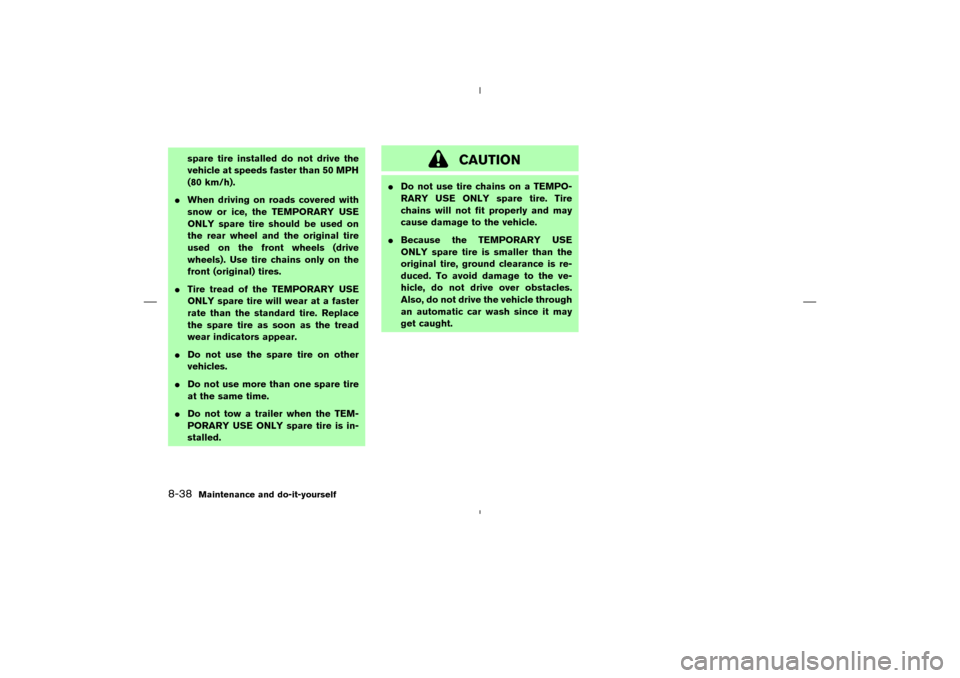

NISSAN MURANO 2005 1.G Owners Manual

spare tire installed do not drive the
vehicle at speeds faster than 50 MPH
(80 km/h).

When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the rear wheel and the original tire
used on the front wheels (drive
wheels). Use tire chains only on the
front (original) tires.

Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the standard tire. Replace
the spare tire as soon as the tread
wear indicators appear.

Do not use the spare tire on other
vehicles.

Do not use more than one spare tire
at the same time.

Do not tow a trailer when the TEM-
PORARY USE ONLY spare tire is in-
stalled.
CAUTION

Do not use tire chains on a TEMPO-
RARY USE ONLY spare tire. Tire
chains will not fit properly and may
cause damage to the vehicle.

Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is re-
duced. To avoid damage to the ve-
hicle, do not drive over obstacles.
Also, do not drive the vehicle through
an automatic car wash since it may
get caught.
8-38
Maintenance and do-it-yourself


04.8.3/Z50-D/V5.0


MEMO
Maintenance and do-it-yourself
8-39


04.8.3/Z50-D/V5.0


MEMO8-40
Maintenance and do-it-yourself


04.8.3/Z50-D/V5.0


9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-3
Engine oil and oil filter recommendation.................... 9-5
Recommended SAE viscosity number ....................... 9-6
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-6
Specifications.......................................................................... 9-8
Engine ................................................................................. 9-8
Wheels and tires .............................................................. 9-9
Dimensions and weights ................................................ 9-9
When traveling or registering your vehicle in another
country.................................................................................... 9-10
Vehicle identification ........................................................... 9-10
Vehicle identification number (VIN) plate ................ 9-10
Vehicle identification number (Chassis number) ... 9-10
Engine serial number .................................................... 9-11
F.M.V.S.S. certification label ....................................... 9-11
Emission control information label ............................ 9-11
Tire and loading information label ............................. 9-12
Air conditioner specification label ............................. 9-12Installing front license plate .............................................. 9-13
Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-15
Loading tips .................................................................... 9-16
Payload weight capacity .............................................. 9-16
Measurement of weights ............................................. 9-16
Towing a trailer .................................................................... 9-17
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-19
Towing safety.................................................................. 9-20
Uniform tire quality grading............................................... 9-23
Emission control system warranty ................................... 9-24
Reporting safety defects (US only) ................................ 9-24
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-24
Event data recorders ......................................................... 9-25
Owner’s Manual/Service Manual order information ... 9-26
In the event of a collision ............................................ 9-26


04.8.3/Z50-D/V5.0


The following are approximate capacities. The actual refill capacities may be a little different. When refilling, follow the procedure
instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended
specifications US
measureImp
measureLiter
Fuel 21-5/8 gal 18 gal 82 Unleaded gasoline with an octane rating of at least 87 AKI (RON 91)*1
Engine oil*6
Drain and refill
With oil filter change 4-1/4 qt 3-1/2 qt 4.0
API Certification Mark*2, *3

API grade SG/SH, Energy ConservingI&IIorAPIgradeSJorSL,Energy Conserving*2, *3

ILSAC grade GF-I, GF-II & GF-III*2, *3 Without oil filter change 3-7/8 qt 3-1/4 qt 3.7
Cooling system
With reservoir 10-1/8 qt 8-1/2 qt 9.6
Genuine NISSAN Long Life Antifreeze/Coolant or equivalent
Reservoir 7/8 qt 3/5 qt 0.8
Differential gear oil — — — API GL-5, Viscosity SAE 80W-90*4
CVT fluid — — — Genuine NISSAN CVT Fluid NS-2*5
Transfer oil — — — API GL-5, Viscosity SAE 80W-90
Power steering fluid (PSF)
Refill to the proper oil level according to the instructions in
the “8. Maintenance and do-it-yourself” section.Genuine NISSAN PSF or equivalent*7
Brake fluidGenuine NISSAN Super Heavy Duty Brake Fluid*8 or equivalent DOT 3 (US FMVSS No. 116)
Multi-purpose grease — — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant — — — HFC-134a (R-134a)*9
Air conditioning system lubricants — — —NISSAN A/C System Oil
Type S or exact equivalent
Windshield washer fluidGenuine NISSAN Windshield Washer Concentrate Cleaner & Antifreeze Fluid or equivalent
*1: For additional information, see later in this paragraph for fuel recommendation.
*2: For additional information, see later in this paragraph for engine oil and oil filter recommendation.
*3: For additional information, see later in this paragraph for recommended SAE viscosity number.
*4: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*5:Use only Genuine NISSAN CVT Fluid NS-2. Using transmission fluid other than Genuine NISSAN CVT Fluid NS-2 will damage the CVT transmission,
which is not covered by the Nissan new vehicle limited warranty.
*6: For additional information, see “Engine oil” in the “8. Maintenance and do-it-yourself” section for changing engine oil.
*7: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*8: Available in mainland U.S.A. through a NISSAN dealer.
*9: For additional information, see “Vehicle identification” in this section for air conditioner specification label.
CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information


04.8.3/Z50-D/V5.0


FUEL RECOMMENDATIONUse unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
For improved vehicle performance,
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of
at least 91 AKI number (Research octane
number 96).

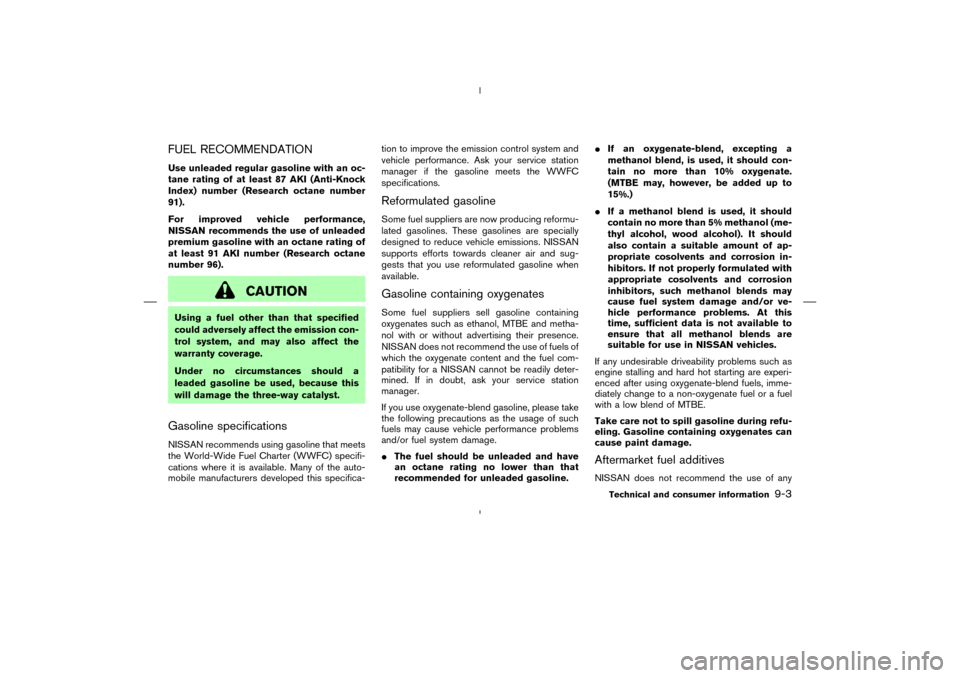

CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol system, and may also affect the
warranty coverage.
Under no circumstances should a
leaded gasoline be used, because this
will damage the three-way catalyst.Gasoline specificationsNISSAN recommends using gasoline that meets
the World-Wide Fuel Charter (WWFC) specifi-
cations where it is available. Many of the auto-
mobile manufacturers developed this specifica-tion to improve the emission control system and
vehicle performance. Ask your service station
manager if the gasoline meets the WWFC
specifications.
Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and sug-
gests that you use reformulated gasoline when
available.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
NISSAN does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for a NISSAN cannot be readily deter-
mined. If in doubt, ask your service station
manager.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.

The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
If an oxygenate-blend, excepting a
methanol blend, is used, it should con-
tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)

If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in NISSAN vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
Aftermarket fuel additivesNISSAN does not recommend the use of any
Technical and consumer information
9-3


04.8.3/Z50-D/V5.0


aftermarket fuel additives (for example, fuel in-
jector cleaner, octane booster, intake valve de-
posit removers, etc.) which are sold commer-
cially. Many of these additives intended for gum,
varnish or deposit removal may contain active
solvent or similar ingredients that can be harmful
to the fuel system and engine.Octane rating tipsUsing unleaded gasoline with an octane
rating lower than recommended can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have your dealer correct the condi-
tion. Failure to correct the condition is
misuse of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer or other competent service fa-
cility.
However, now and then you may noticelight spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time under heavy
engine load.9-4
Technical and consumer information


04.8.3/Z50-D/V5.0


ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. NISSAN recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Only those engine oils with the American Petro-
leum Institute (API) certification mark on the frontof the container should be used. This type of oil
supersedes the existing API SG, SH, or SJ and
Energy ConservingI&IIcategories.
If you cannot find engine oil with the API certifi-
cation mark, use an API grade SG/SH, Energy
ConservingI&IIorAPIgrade SJ or SL, Energy
conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API certification mark
cannot be found. An ILSAC grade GF-I, GF-II or
GF-III oil can also be used.
NISSAN recommends mineral based oils. These
oils must however, meet the API quality and SAEviscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The recom-
mended SAE viscosity number chart shows the
recommended oil viscosities for the expected
ambient temperatures. Choosing an oil viscosity
other than that recommended could cause seri-
ous engine damage.Selecting the correct oil filterYour new vehicle is equipped with a high-quality
genuine NISSAN oil filter. When replacing, use
the genuine oil filter or its equivalent for the
reason described in change intervals.
STI0367
Technical and consumer information
9-5


04.8.3/Z50-D/V5.0


Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new NISSAN vehicle warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more fre-
quent oil and filter changes.

repeated short distance driving at cold out-
side temperatures,

driving in dusty conditions,

extensive idling,

towing a trailer,

stop and go “rush hour” traffic,

aggressive driving.
RECOMMENDED SAE VISCOSITY
NUMBERSAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30,
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).
AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioning system in this NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
NISSAN A/C System Oil Type S or the
exact equivalents.
CAUTION
The use of any other refrigerant or lubri-
cant will cause severe damage to the air
conditioning system and will require the
replacement of all air conditioner sys-
tem components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
ing system service. A NISSAN dealer has the
trained technicians and equipment needed to
recover and recycle your air conditioning system
refrigerant.
TI1028-C
9-6
Technical and consumer information


04.8.3/Z50-D/V5.0


Contact a NISSAN dealer when servicing your
air conditioning system.
Technical and consumer information
9-7


04.8.3/Z50-D/V5.0
