LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)This vehicle is equipped with the low tire pres-
sure warning system. It monitors tire pressure of
all tires except the spare. When the tire pressure
warning light is lit, one or more of your tires is
significantly underinflated. If equipped, the sys-
tem also displays pressure of all tires (except the
spare tire) on the display screen by sending a
signal from a sensor that is installed in each
wheel. If the vehicle is being driven with low tire
pressure (lower than 27 psi, 190 kPa), the low
tire pressure warning system will activate and
warn you of it by the low tire pressure warning
light. This system will activate only when the
vehicle is driven at speeds above 20 MPH (32
km/h). For more details, please refer to
“Warning/indicator lights and audible remind-
ers” in the “2. Instruments and controls” section,
“Tire pressure information” in the “4. Display
screen, heater, air conditioner and audio sys-
tems” section and “Low tire pressure warning
system” in the “5. Starting and driving” section.
WARNING
If the light comes on while driving,
avoid sudden steering maneuvers orabrupt braking, reduce vehicle speed,
pull off the road to a safe location
and stop the vehicle as soon as pos-
sible. Serious vehicle damage could
occur and may lead to an accident
and could result in serious personal
injury. Check the tire pressure for all
four tires. Adjust the tire pressure to
the recommended COLD tire pres-
sure shown on the Tire and Loading
Information label to turn the low tire
pressure warning light OFF. If the
light still comes on while driving after
adjusting the tire pressure, a tire may
be flat. If you have a flat tire, replace
it with a spare tire as soon as pos-
sible.
When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated or moni-
tored by the low tire pressure warn-
ing system. Contact a NISSAN dealer
as soon as possible for tire replace-
ment and/or system resetting.Do not inject any tire liquid or aerosol
tire sealant into the tires, as this may
cause a malfunction of the tire pres-
sure sensors.
CHANGING A FLAT TIREIf you have a flat tire, follow the instructions
below.Stopping the vehicle1. Safely move the vehicle off the road away
from traffic.
2. Turn on the hazard warning flashers.
3. Park on a level surface and apply the parking
brake. Shift the shift lever into P (Park) posi-
tion.
4. Turn off the engine.
5. Raise the hood to warn other traffic, and to
signal professional road assistance person-
nel that you need assistance.
6. Have all passengers get out of the vehicle
and stand in a safe place, away from traffic
and clear of the vehicle.
FLAT TIRE6-2
In case of emergency
04.8.3/Z50-D/V5.0
Page 224 of 321

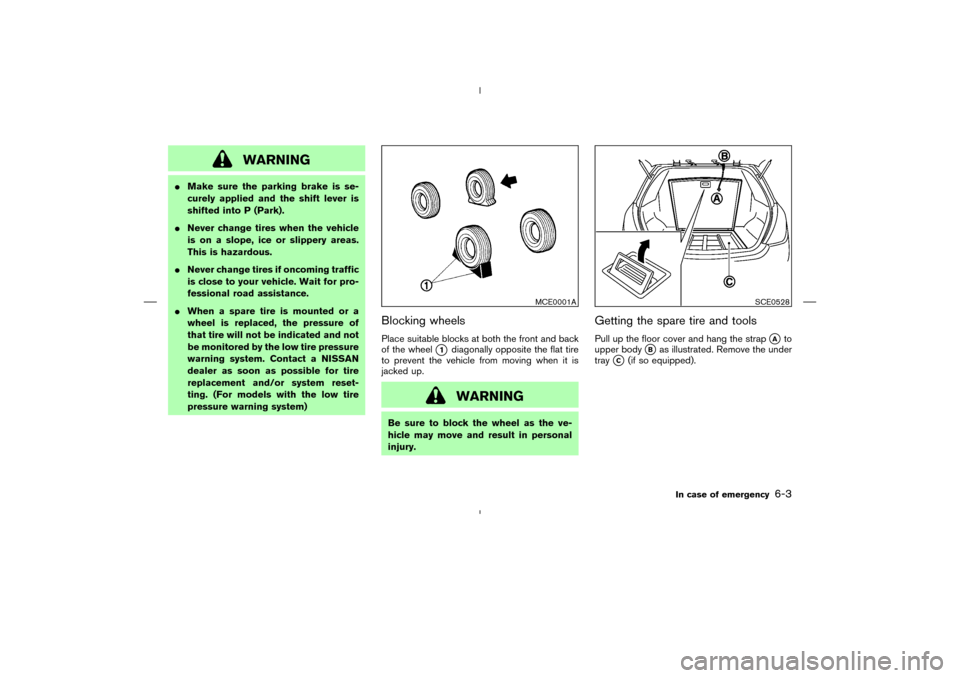

WARNING
Make sure the parking brake is se-
curely applied and the shift lever is
shifted into P (Park).
Never change tires when the vehicle
is on a slope, ice or slippery areas.
This is hazardous.
Never change tires if oncoming traffic
is close to your vehicle. Wait for pro-
fessional road assistance.
When a spare tire is mounted or a
wheel is replaced, the pressure of
that tire will not be indicated and not
be monitored by the low tire pressure
warning system. Contact a NISSAN
dealer as soon as possible for tire
replacement and/or system reset-
ting. (For models with the low tire
pressure warning system)
Blocking wheelsPlace suitable blocks at both the front and back
of the wheel
1
diagonally opposite the flat tire
to prevent the vehicle from moving when it is
jacked up.WARNING
Be sure to block the wheel as the ve-
hicle may move and result in personal
injury.
Getting the spare tire and toolsPull up the floor cover and hang the strap
A
to
upper body
B
as illustrated. Remove the under
tray
C
(if so equipped).
MCE0001A
SCE0528
In case of emergency
6-3
04.8.3/Z50-D/V5.0
Page 239 of 321
In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
In the following cases, please wash your vehicle
as soon as possible to protect the paint surface.
After a rainfall to prevent possible damage
from acid rain
After driving on coastal roads
When contaminants such as soot, bird drop-
pings, tree sap, metal particles or bugs get on
the paint surface
When dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.WASHINGThoroughly rinse surface dirt off the vehicle with
a wet sponge and plenty of clean water. Clean
the vehicle thoroughly using a mild soap such as
NISSAN Car Wash, or a general purpose dish-
washing liquid mixed with clean, lukewarm
(never hot) water.
CAUTION
Do not use strong household soap,
strong chemical detergents, gasoline
or solvents.
Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
water-spotted.
Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle again with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Make sure that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.
WAXINGRegular waxing protects the paint surface and
helps retain new vehicle appearance. After wax-
ing, polishing is recommended to remove
built-up residue and to avoid a weathered ap-
pearance.
If you wish to wax your vehicle, only use a wax
specified for use over clear coats, such as
Nissan Liquid or Spray Wax. A NISSAN dealer
can assist you in choosing the proper product.
Wax your vehicle only after a thorough wash-
ing. Follow the instructions supplied with the
wax.
Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
If the surface does not polish easily, use a
road tar remover and wax again.
Machine compounding or aggressive pol-
ishing on a base coat/clear coat paint
finish may dull the finish or leave swirl
marks.
CLEANING EXTERIOR7-2
Appearance and care
04.8.3/Z50-D/V5.0
