NISSAN MURANO 2011 Owner´s Manual

Black plate (279,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

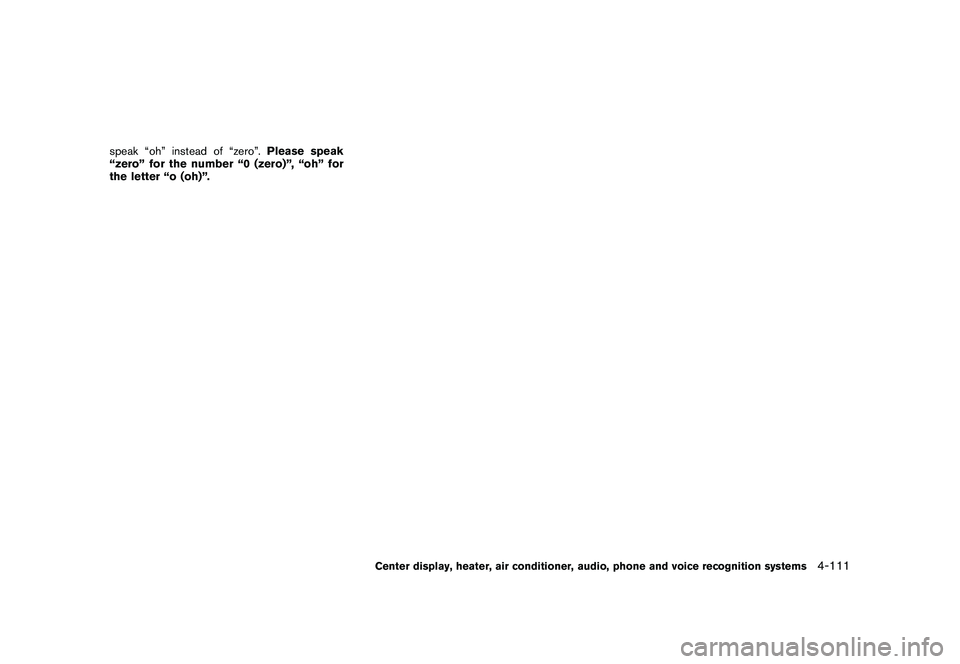

speak “oh” instead of “zero”.Please speak
“zero” for the number “0 (zero)”, “oh” for
the letter “o (oh)”.
Center display, heater, air conditioner, audio, phone and voice recognition systems
4-111

Black plate (280,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

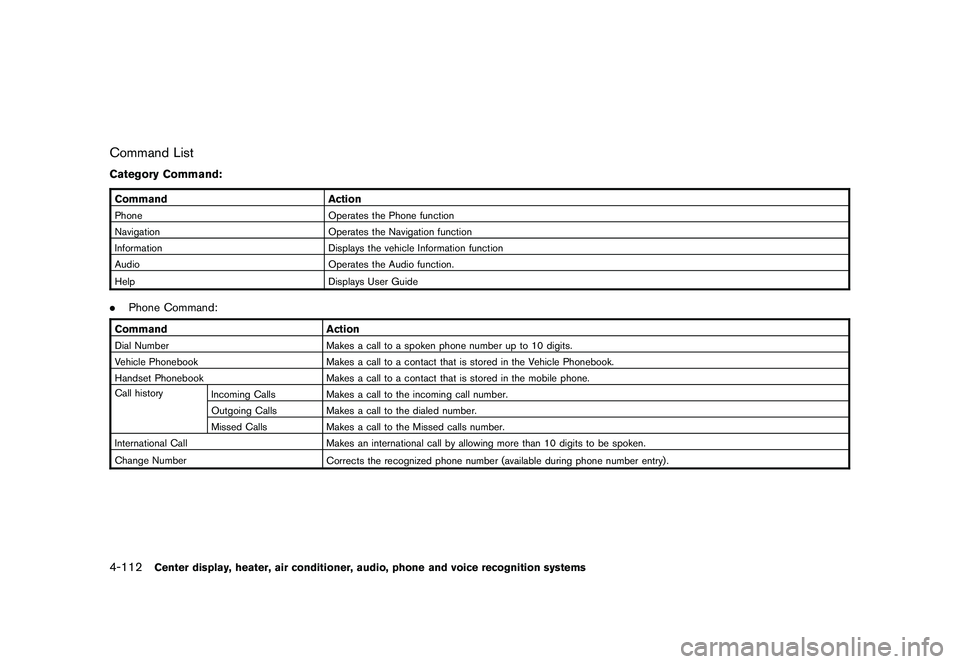

Command ListCategory Command:CommandActionPhone Operates the Phone function
Navigation Operates the Navigation function
Information Displays the vehicle Information function
Audio Operates the Audio function.
Help Displays User Guide.Phone Command:Command ActionDial Number Makes a call to a spoken phone number up to 10 digits.
Vehicle Phonebook Makes a call to a contact that is stored in the Vehicle Phonebook.
Handset Phonebook Makes a call to a contact that is stored in the mobile phone.
Call history Incoming Calls Makes a call to the incoming call number.
Outgoing Calls Makes a call to the dialed number.
Missed Calls Makes a call to the Missed calls number.
International Call Makes an international call by allowing more than 10 digits to be spoken.
Change Number Corrects the recognized phone number (available during phone number entry) .4-112
Center display, heater, air conditioner, audio, phone and voice recognition systems

Black plate (281,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

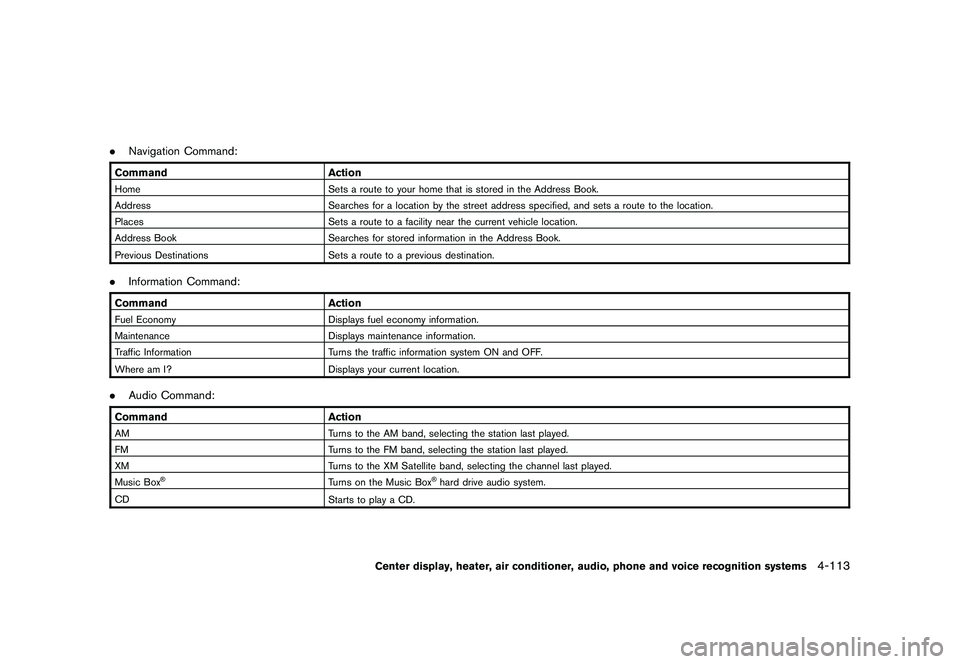

.Navigation Command:Command ActionHome Sets a route to your home that is stored in the Address Book.
Address Searches for a location by the street address specified, and sets a route to the location.
Places Sets a route to a facility near the current vehicle location.
Address Book Searches for stored information in the Address Book.
Previous Destinations Sets a route to a previous destination..Information Command:Command ActionFuel Economy Displays fuel economy information.
Maintenance Displays maintenance information.
Traffic Information Turns the traffic information system ON and OFF.
Where am I? Displays your current location..Audio Command:Command ActionAM Turns to the AM band, selecting the station last played.
FM Turns to the FM band, selecting the station last played.
XM Turns to the XM Satellite band, selecting the channel last played.
Music Box
®
Turns on the Music Box
®hard drive audio system.
CD Starts to play a CD.
Center display, heater, air conditioner, audio, phone and voice recognition systems
4-113

Black plate (282,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

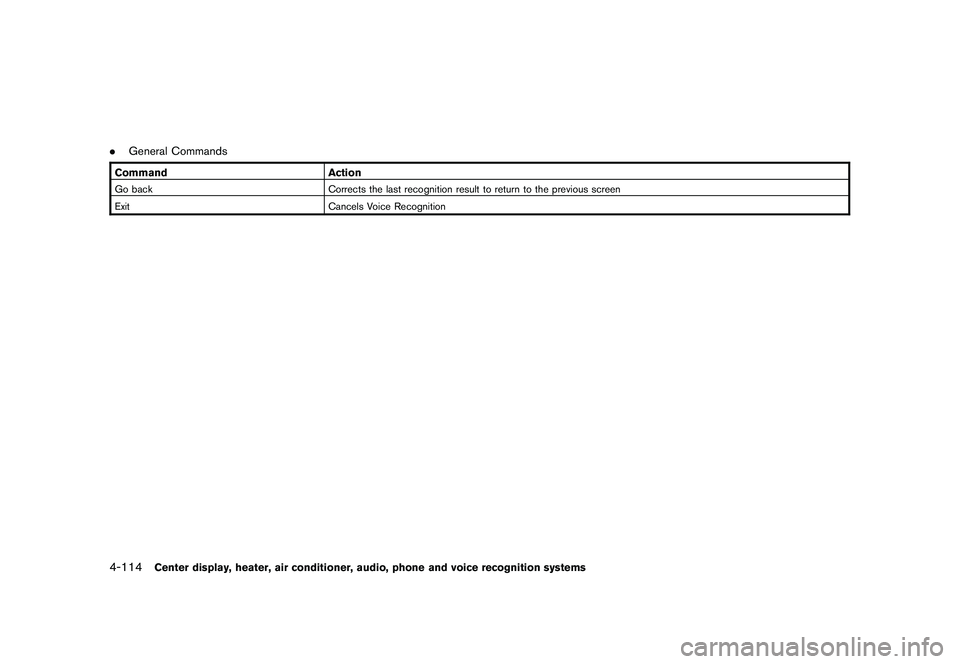

.General CommandsCommand ActionGo back Corrects the last recognition result to return to the previous screen
Exit Cancels Voice Recognition4-114
Center display, heater, air conditioner, audio, phone and voice recognition systems

Black plate (283,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

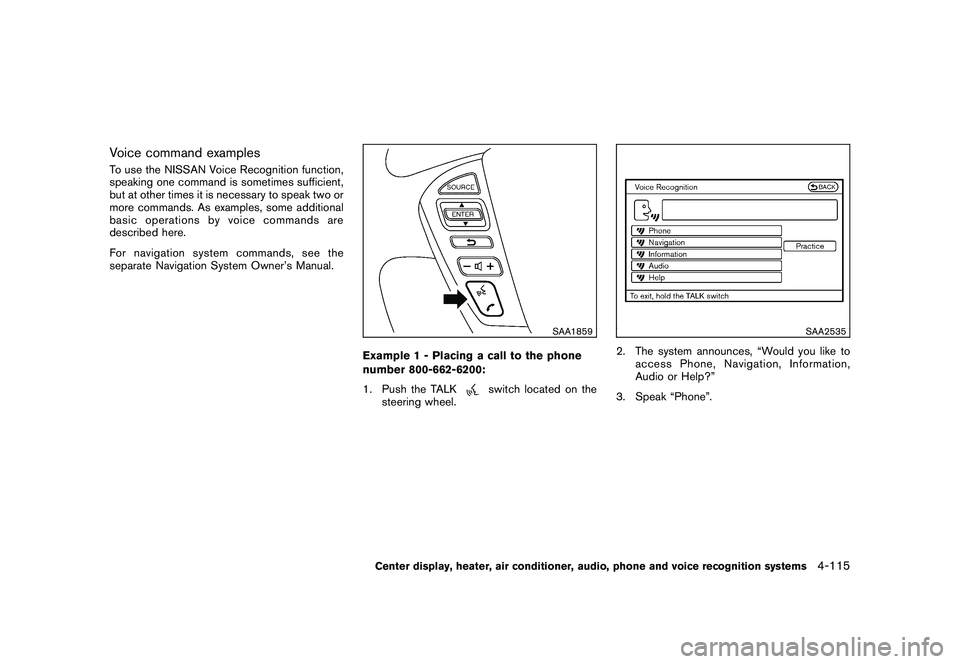

Voice command examplesTo use the NISSAN Voice Recognition function,
speaking one command is sometimes sufficient,
but at other times it is necessary to speak two or
more commands. As examples, some additional
basic operations by voice commands are
described here.
For navigation system commands, see the
separate Navigation System Owner’s Manual.
SAA1859
Example 1 - Placing a call to the phone
number 800-662-6200:
1. Push the TALK
switch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to access Phone, Navigation, Information,
Audio or Help?”
3. Speak “Phone”.
Center display, heater, air conditioner, audio, phone and voice recognition systems
4-115

Black plate (284,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

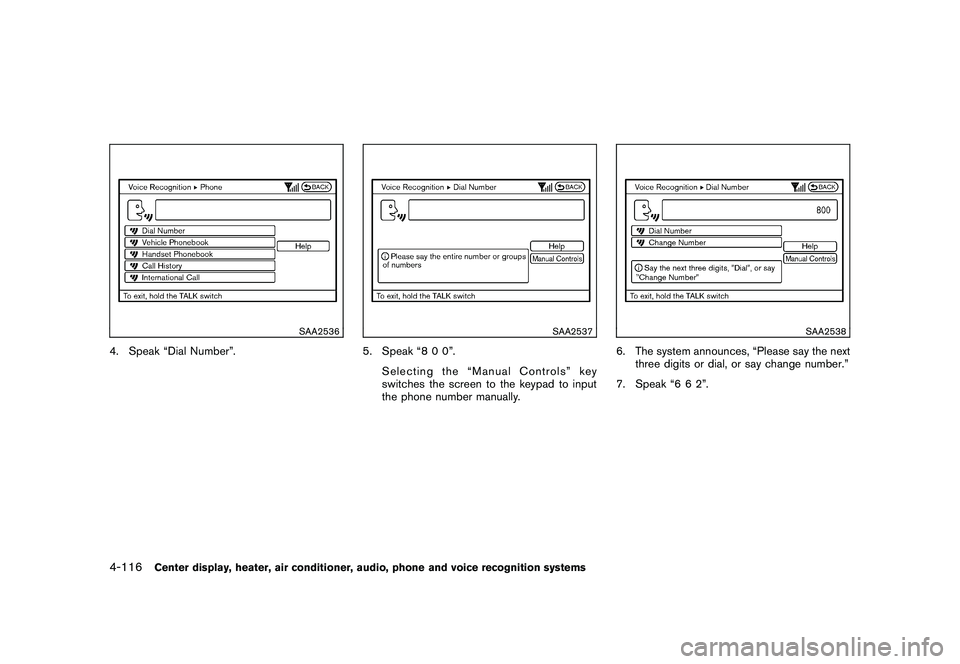

SAA2536
4. Speak “Dial Number”.
SAA2537
5. Speak “8 0 0”.Selecting the “Manual Controls” key
switches the screen to the keypad to input
the phone number manually.
SAA2538
6. The system announces, “Please say the nextthree digits or dial, or say change number.”
7. Speak “6 6 2”.
4-116
Center display, heater, air conditioner, audio, phone and voice recognition systems

Black plate (285,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

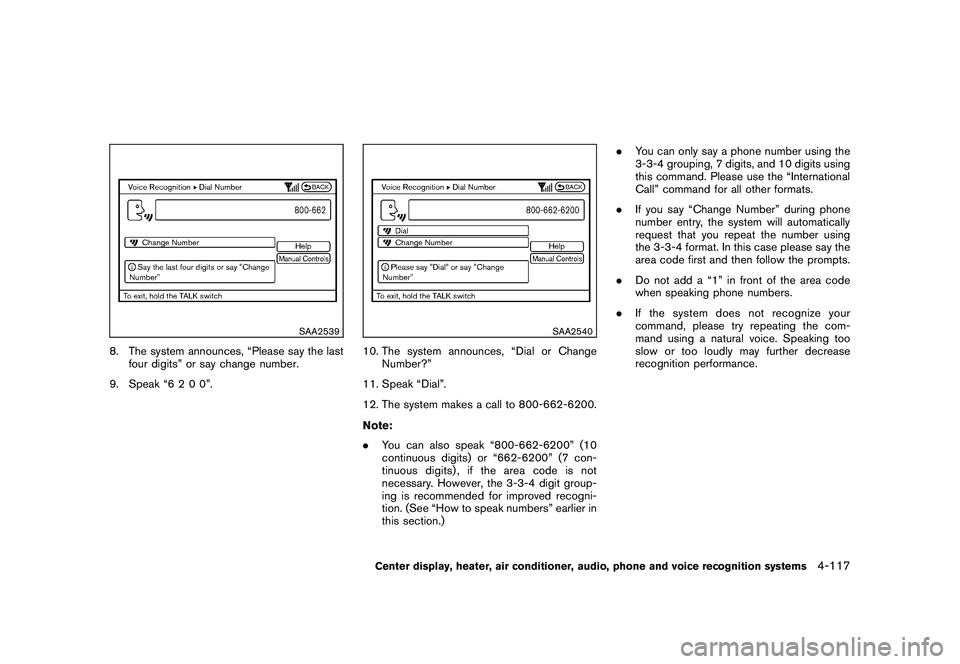

SAA2539
8. The system announces, “Please say the lastfour digits” or say change number.
9. Speak “6 2 0 0”.
SAA2540
10. The system announces, “Dial or Change Number?”
11. Speak “Dial”.
12. The system makes a call to 800-662-6200.
Note:
. You can also speak “800-662-6200” (10
continuous digits) or “662-6200” (7 con-
tinuous digits) , if the area code is not
necessary. However, the 3-3-4 digit group-
ing is recommended for improved recogni-
tion. (See “How to speak numbers” earlier in
this section.) .
You can only say a phone number using the
3-3-4 grouping, 7 digits, and 10 digits using
this command. Please use the “International
Call” command for all other formats.
. If you say “Change Number” during phone
number entry, the system will automatically
request that you repeat the number using
the 3-3-4 format. In this case please say the
area code first and then follow the prompts.
. Do not add a “1” in front of the area code
when speaking phone numbers.
. If the system does not recognize your
command, please try repeating the com-
mand using a natural voice. Speaking too
slow or too loudly may further decrease
recognition performance.Center display, heater, air conditioner, audio, phone and voice recognition systems
4-117

Black plate (286,1)
Model "Z51-D" EDITED: 2010/ 7/ 23
SAA1859

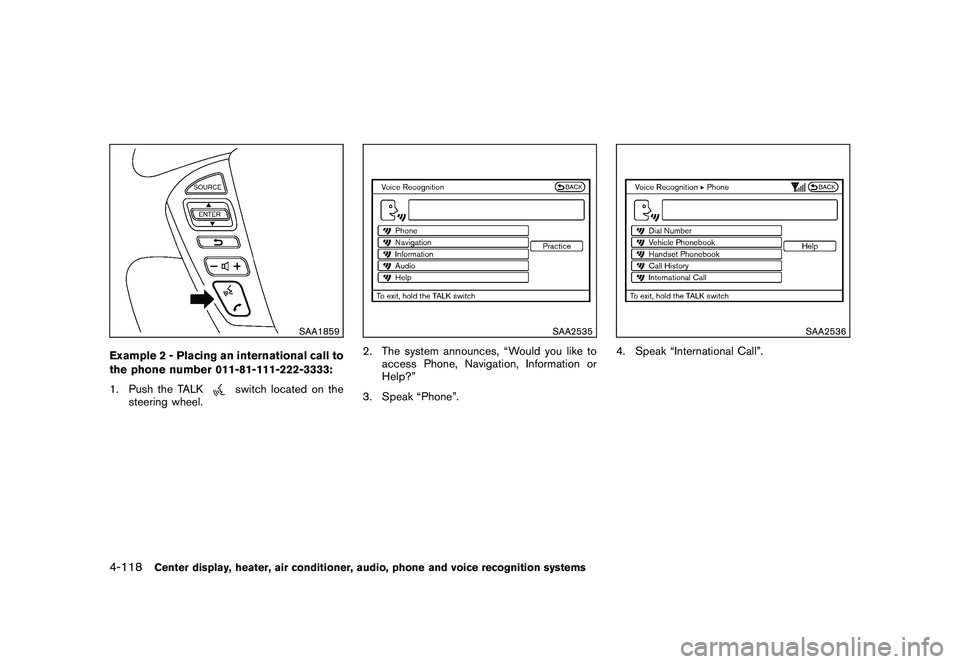

Example 2 - Placing an international call to
the phone number 011-81-111-222-3333:
1. Push the TALK
switch located on the
steering wheel.
SAA2535
2. The system announces, “Would you like to access Phone, Navigation, Information or
Help?”
3. Speak “Phone”.
SAA2536
4. Speak “International Call”.
4-118
Center display, heater, air conditioner, audio, phone and voice recognition systems

Black plate (287,1)
Model "Z51-D" EDITED: 2010/ 7/ 23

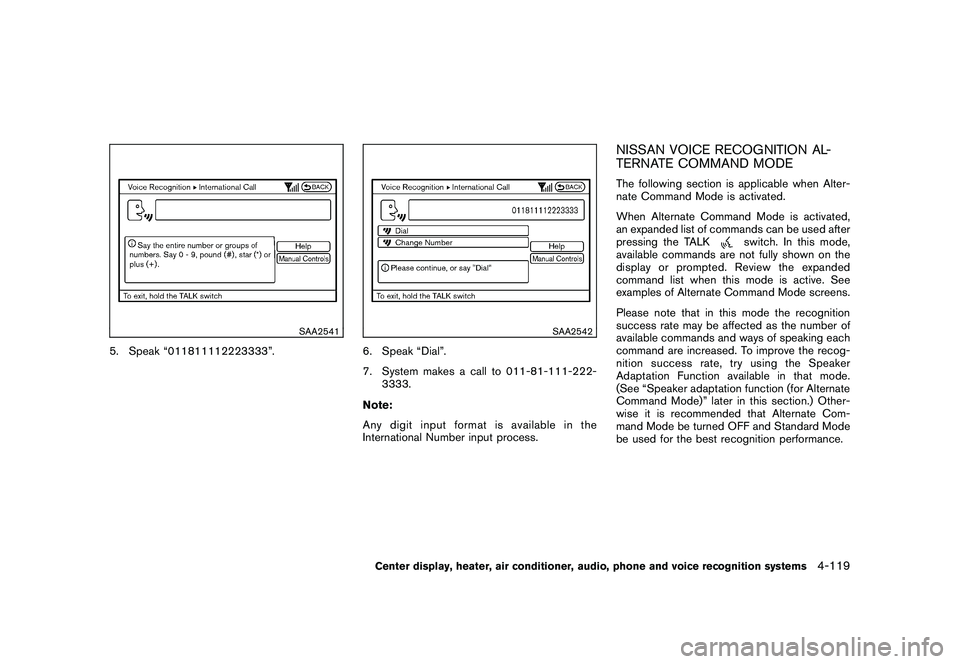

SAA2541
5. Speak “011811112223333”.
SAA2542
6. Speak “Dial”.
7. System makes a call to 011-81-111-222-3333.
Note:
Any digit input format is available in the
International Number input process.
NISSAN VOICE RECOGNITION AL-
TERNATE COMMAND MODEThe following section is applicable when Alter-
nate Command Mode is activated.
When Alternate Command Mode is activated,
an expanded list of commands can be used after
pressing the TALK
switch. In this mode,
available commands are not fully shown on the
display or prompted. Review the expanded
command list when this mode is active. See
examples of Alternate Command Mode screens.
Please note that in this mode the recognition
success rate may be affected as the number of
available commands and ways of speaking each
command are increased. To improve the recog-
nition success rate, try using the Speaker
Adaptation Function available in that mode.
(See “Speaker adaptation function (for Alternate
Command Mode)” later in this section.) Other-
wise it is recommended that Alternate Com-
mand Mode be turned OFF and Standard Mode
be used for the best recognition performance.
Center display, heater, air conditioner, audio, phone and voice recognition systems
4-119

Black plate (288,1)
Model "Z51-D" EDITED: 2010/ 7/ 23
SAA2529

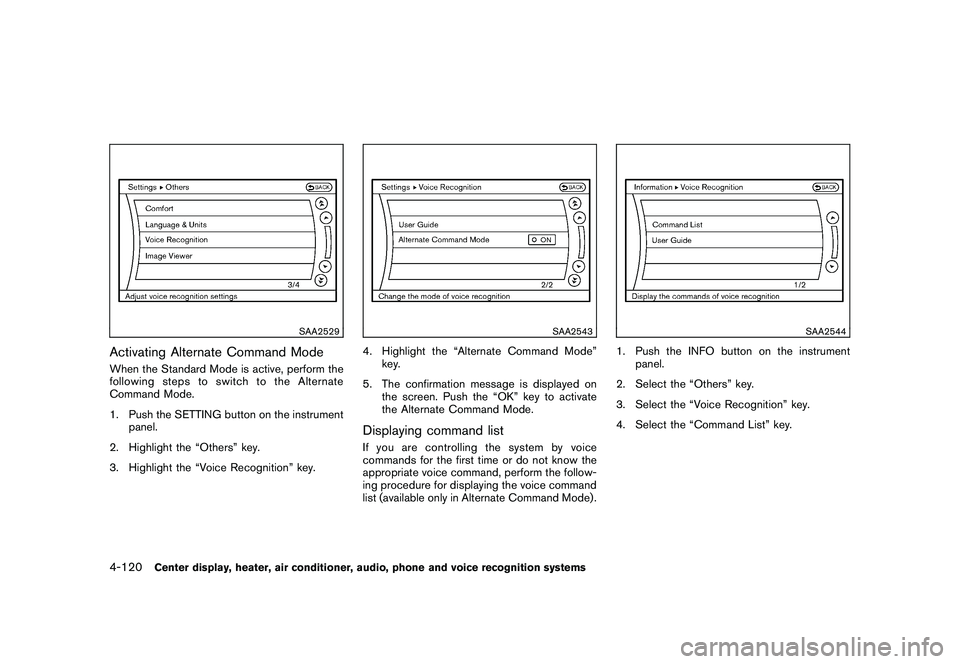

Activating Alternate Command ModeWhen the Standard Mode is active, perform the
following steps to switch to the Alternate
Command Mode.
1. Push the SETTING button on the instrumentpanel.
2. Highlight the “Others” key.
3. Highlight the “Voice Recognition” key.
SAA2543
4. Highlight the “Alternate Command Mode” key.
5. The confirmation message is displayed on the screen. Push the “OK” key to activate
the Alternate Command Mode.Displaying command listIf you are controlling the system by voice
commands for the first time or do not know the
appropriate voice command, perform the follow-
ing procedure for displaying the voice command
list (available only in Alternate Command Mode) .
SAA2544
1. Push the INFO button on the instrumentpanel.
2. Select the “Others” key.
3. Select the “Voice Recognition” key.
4. Select the “Command List” key.
4-120
