2-4
Getting started

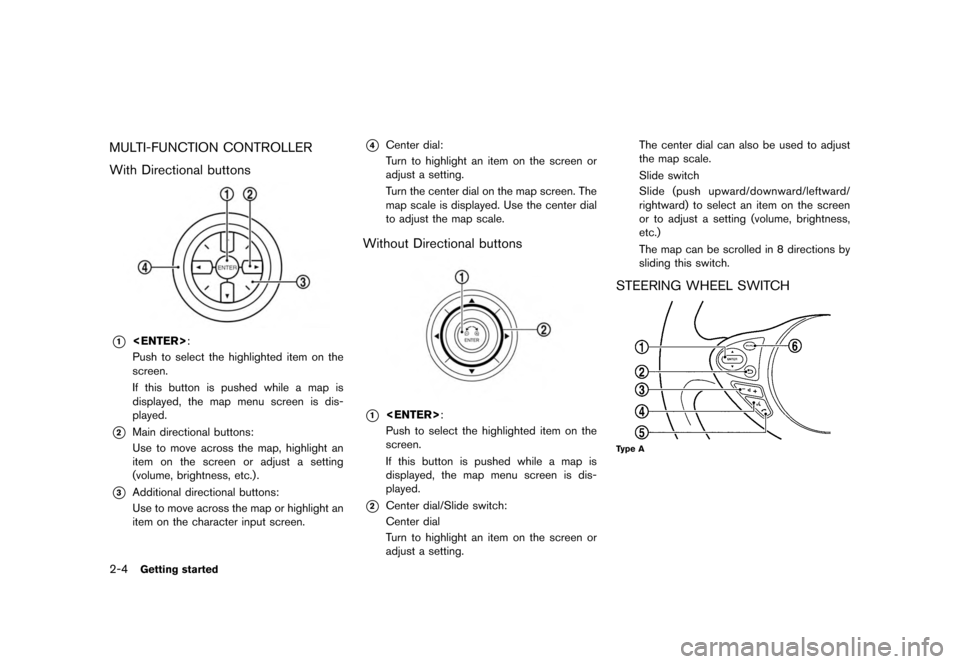

MULTI-FUNCTION CONTROLLER
With Directional buttons*1
:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2
Main directional buttons:
Use to move across the map, highlight an
item on the screen or adjust a setting
(volume, brightness, etc.) .
*3
Additional directional buttons:
Use to move across the map or highlight an
item on the character input screen.
*4
Center dial:
Turn to highlight an item on the screen or
adjust a setting.
Turn the center dial on the map screen. The
map scale is displayed. Use the center dial
to adjust the map scale.
Without Directional buttons*1
:
Push to select the highlighted item on the
screen.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
*2
Center dial/Slide switch:
Center dial
Turn to highlight an item on the screen or
adjust a setting. The center dial can also be used to adjust
the map scale.
Slide switch
Slide (push upward/downward/leftward/
rightward) to select an item on the screen
or to adjust a setting (volume, brightness,
etc.)
The map can be scrolled in 8 directions by
sliding this switch.
STEERING WHEEL SWITCHType A

Black plate (13,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Type B*1
:
Tilt to highlight an item on the screen or
adjust a setting. Push to select the high-
lighted item.
If this button is pushed while a map is
displayed, the map menu screen is dis-
played.
“Map menu screen” (page 2-16)
Push and hold while a map or status screen
is shown to display the Start Menu.“Start menu” (page 2-11)
If this button is tilted up while the audio
function is activated and the map or status
screen is displayed, the audio system can
be operated.
*2
<
> :
Push this button during a setting operation
to return to the previous screen. In a
settings screen, this button can also be
used to apply the setting.
*3
<+
> :
Use to adjust the volume. These buttons
have the same function as that of the
volume control knob. Refer to the vehicle
Owner’s Manual.
*4
> :
Push to start the voice recognition mode. If
the voice recognition mode is already
activated, pushing this button cancels the
voice guidance and you can speak a voice
command immediately.
*5
<
> :
Push to display the phone mode screen.
Refer to the vehicle Owner’s Manual.
*6
:
Use to switch the audio mode (source) .
Refer to the vehicle Owner’s Manual. The navigation system starts when the ignition
switch is placed in the ACC or ON position.
NOTE:
Do not keep the navigation system on with
the engine stopped. Doing so may dis-
charge the vehicle battery. When you use
the navigation system, always keep the
engine running.
Getting started
2-5
STARTING THE SYSTEM

Black plate (14,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-6
Getting started
By pushing at anytime, you can
display a split screen with audio information that
is always at the top. Each time is
pushed, the bottom part of the screen changes
between air conditioner, fuel economy or navi-
gation directions.
INFO:
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears.*1
Turning direction at the next intersection
*2
Name of the next street
*3
Distance to the next intersection
*4
Distance remaining to the destination
*5
Remaining time to the destination
When a route to the destination is not set and
the audio system is off, a screen similar to the
one above appears.
NAVIGATION SYSTEM STATUS
SCREEN

Black plate (15,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
To ensure safe driving, some functions cannot
be operated or have limited operation when the
vehicle driving speed is above 5 MPH (8 km/h) .
The on-screen text and keys for these restricted
functions will be "grayed-out" or muted and
cannot be selected while driving. In some cases,
a screen message will appear indicating a
restricted function.
Restricted functions while driving include: . Character (letter and number) input screen
during destination entry (street address,
phone number, freeway entrance/exit, inter-
section, city center)
. Places search by name and city name
. Scrolling and viewing of certain navigation
lists
. Adding/editing address book entries
. Adding/editing home location
. Storing current position, information, desti-
nations
These functions will become available again
when the vehicle speed is reduced to 5 MPH (8
km/h) .
Destination functions available while driving
include:
Getting started
2-7
FUNCTIONS DISABLED WHILE
DRIVING

Black plate (16,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-8
Getting started
. Home
. Address Book
. Previous Destinations
. Nearby places
. Address book
. My places
. Map input

Black plate (17,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]

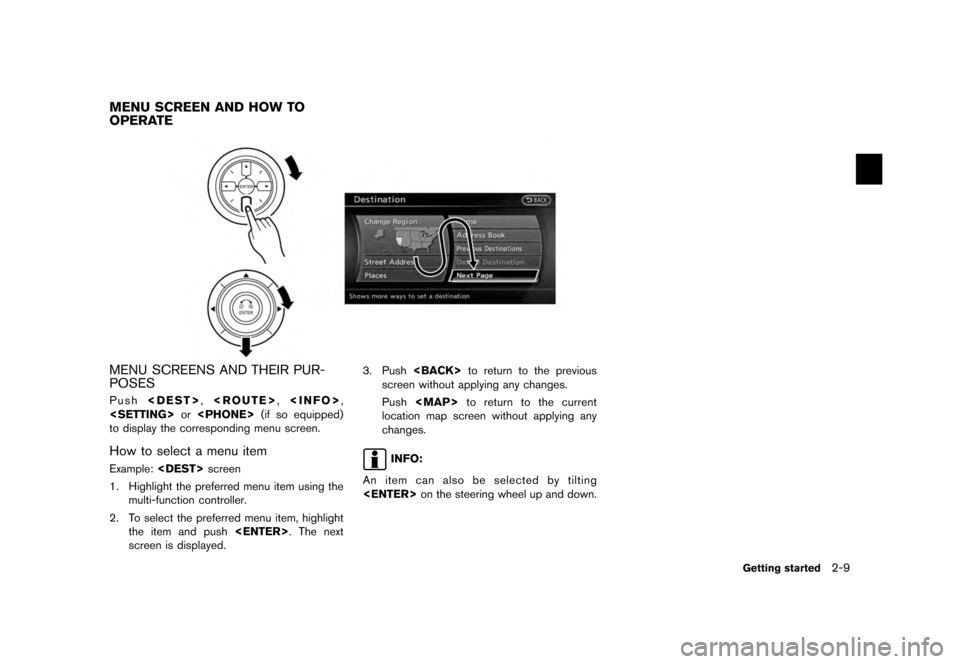

MENU SCREENS AND THEIR PUR-
POSESPush , , ,
or (if so equipped)
to display the corresponding menu screen.How to select a menu itemExample: screen
1. Highlight the preferred menu item using the multi-function controller.
2. To select the preferred menu item, highlight the item and push . The next
screen is displayed. 3. Push
to return to the previous
screen without applying any changes.
Push

Black plate (18,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-10
Getting started
USING CONTROLS TO ADJUST VALUES, LEVELS, ETC.With directional buttons

Black plate (19,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
Without directional buttonsThere are five main methods to control the
navigation system: the center dial, the main
directional buttons, the slide switch, the touch
panel and the switches on the steering wheel.
Use these controls to adjust the volume of the
phone and voice guidance, the display bright-
ness, etc.How to adjust1. Highlight the preferred setting item and push . The color of the corre-
sponding adjustment item changes. 2. Adjust the value or level of the indicator bar
using the multi-function controller.
3. Push or to apply the
setting.
INFO:
. The volume of phone and voice guidance,
the display brightness, etc. can be adjusted
by tilting on the steering wheel
up and down. .
These same adjustments can also be
performed using the touch panel operation.
“Adjusting volume and others”
(page 2-13)
START MENUThe start menu can be displayed using the
steering wheel switch.1. Push and hold on the steering
wheel.
2. Highlight the preferred item and push .
INFO:
on the steering wheel switch can be
used to display the start menu only when the
map or status screen is displayed.
Getting started
2-11

Black plate (20,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
2-12
Getting started

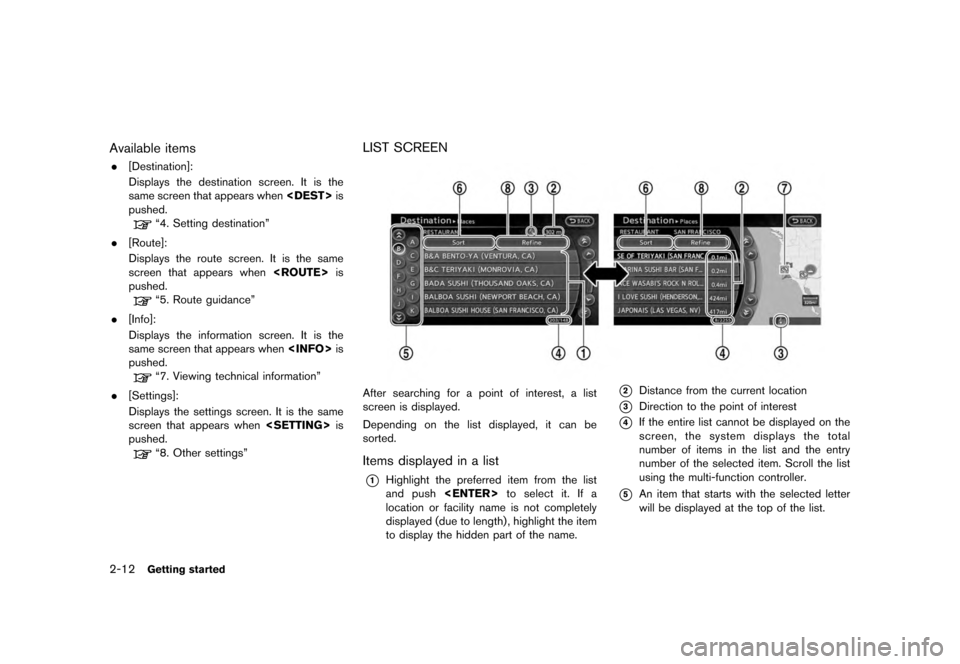

Available items. [Destination]:
Displays the destination screen. It is the
same screen that appears when is
pushed.
“4. Setting destination”
. [Route]:
Displays the route screen. It is the same
screen that appears when is
pushed.“5. Route guidance”
. [Info]:
Displays the information screen. It is the
same screen that appears when is
pushed.“7. Viewing technical information”
. [Settings]:
Displays the settings screen. It is the same
screen that appears when is
pushed.“8. Other settings”
LIST SCREENAfter searching for a point of interest, a list
screen is displayed.
Depending on the list displayed, it can be
sorted.Items displayed in a list*1
Highlight the preferred item from the list
and push to select it. If a
location or facility name is not completely
displayed (due to length) , highlight the item
to display the hidden part of the name.
*2
Distance from the current location
*3
Direction to the point of interest
*4
If the entire list cannot be displayed on the
screen, the system displays the total
number of items in the list and the entry
number of the selected item. Scroll the list
using the multi-function controller.
*5
An item that starts with the selected letter
will be displayed at the top of the list.

Black plate (21,1)
[ Edit: 2011/ 6/ 13 Model: 08NJ-N ]
*6
Highlight and push to sort the
list in the original order.
*7
When the list is sorted by the shortest
distance, the selected location can be
confirmed in the preview on the right side
of the screen.
*8
Highlight and push to modify
search conditions. With this system, the same operations as those
for the multi-function controller are possible
using the touch panel operation.
This manual describes the operations using the
multi-function controller.
For the operations that differ from those of the
multi-function controller and for useful methods
for using the touch panel operation, refer to each
section.

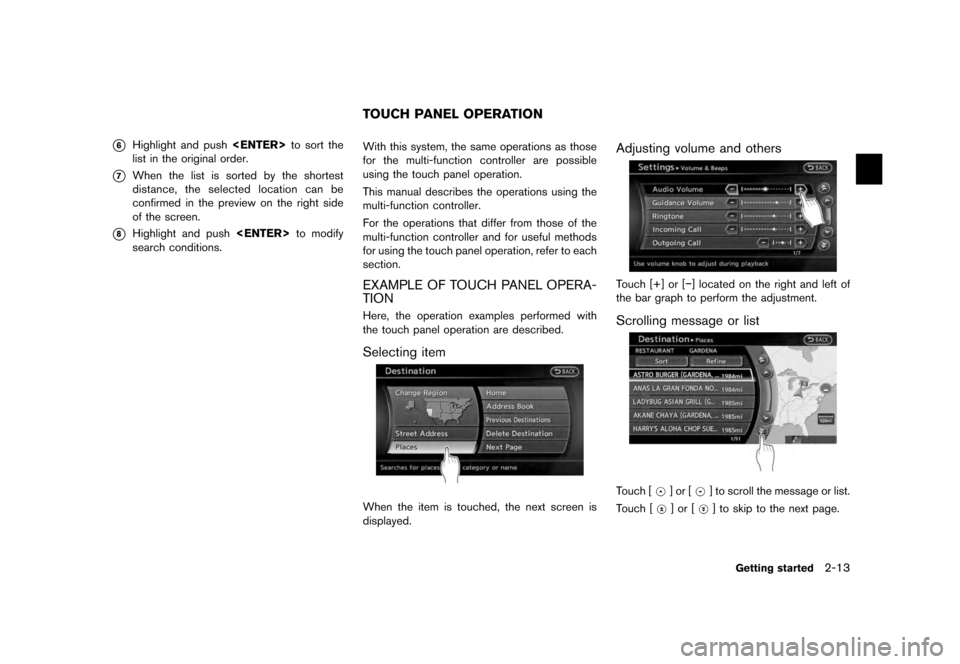

EXAMPLE OF TOUCH PANEL OPERA-
TIONHere, the operation examples performed with
the touch panel operation are described.Selecting itemWhen the item is touched, the next screen is
displayed.
Adjusting volume and othersTouch [+] or [
] located on the right and left of
the bar graph to perform the adjustment.Scrolling message or listTouch [
]or[
] to scroll the message or list.
Touch [
]or[
] to skip to the next page.
Getting started
2-13
TOUCH PANEL OPERATION
