0-10Illustrated table of contents
GUID-32B6101A-1F0F-4AD4-AF3B-40C2CE7B8097
JVO0067X

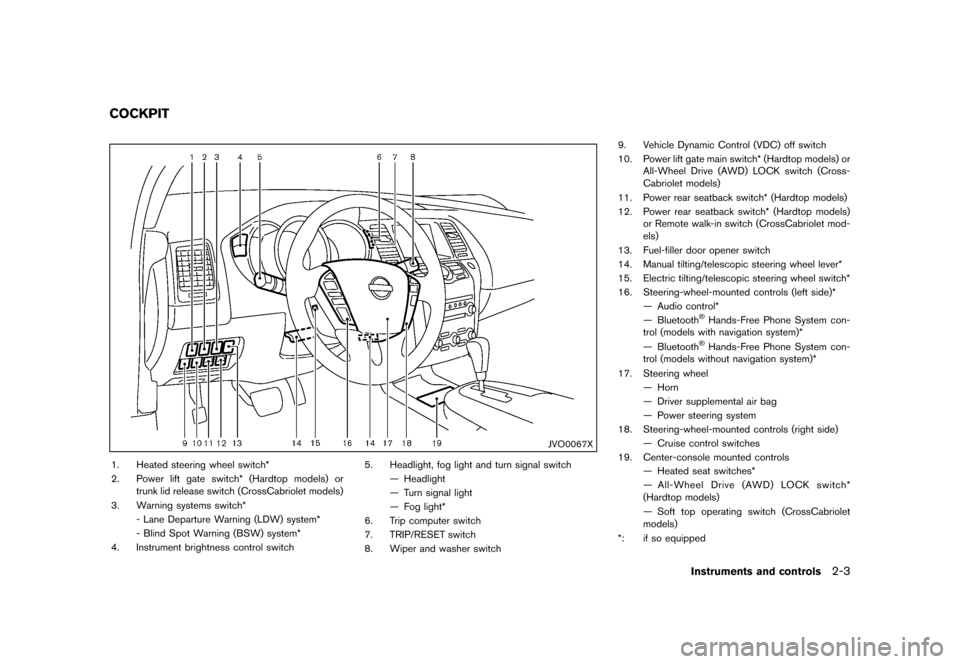

1. Heated steering wheel switch* (P.2-41)
2. Power lift gate switch* (Hardtop models)(P.3-20) or trunk lid release switch (Cross-
Cabriolet models) (P.3-25)
3. Warning systems switch* (P.2-43) — Lane Departure Warning (LDW) system*
(P.5-20) — Blind Spot Warning (BSW) system* (P.5-20)
4. Instrument brightness control switch (P.2-40)
5. Headlight, fog light and turn signal switch — Headlight (P.2-37)
— Turn signal light (P.2-40)
— Fog light* (P.2-41)
6. Trip computer switch (P.2-25) 7. TRIP/RESET switch (P.2-6)
8. Wiper and washer switch (P.2-32)
9. Vehicle Dynamic Control (VDC) off switch (P.
2-44, P.5-39)
10. Power lift gate main switch* (Hardtop models) (P.3-20) or All-Wheel Drive (AWD) LOCK
switch (CrossCabriolet models) (P.5-33)
11. Power rear seatback switch* (Hardtop models) (P.1-9)
12. Power rear seatback switch* (Hardtop models) (P.1-9) or Remote walk-in switch (CrossCabrio-
let models) (P.1-7)
13. Fuel-filler door opener switch (P.3-44)
14. Manual tilting/telescopic steering wheel lever* (P.3-47)
15. Electric tilting/telescopic steering wheel switch* (P.3-47)
16. Steering-wheel-mounted controls (left side)* — Audio control* (P.4-87)
— Bluetooth
®Hands-Free Phone System con-
trol (models with navigation system)* (P.4-89)
— Bluetooth
®Hands-Free Phone System con-
trol (models without navigation system)*
(P.4-100)
17. Steering wheel — Horn (P.2-41)
— Driver supplemental air bag (P.1-45)
— Power steering system (P.5-37)
18. Steering-wheel-mounted controls (right side) — Cruise control switches (P.5-30)
19. Center-console mounted controls
COCKPIT
Condition:
Page 20 of 507
Black plate (18,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
0-12Illustrated table of contents
GUID-D2FB24F0-4B17-402D-8429-41D9E163851B
SSI0839

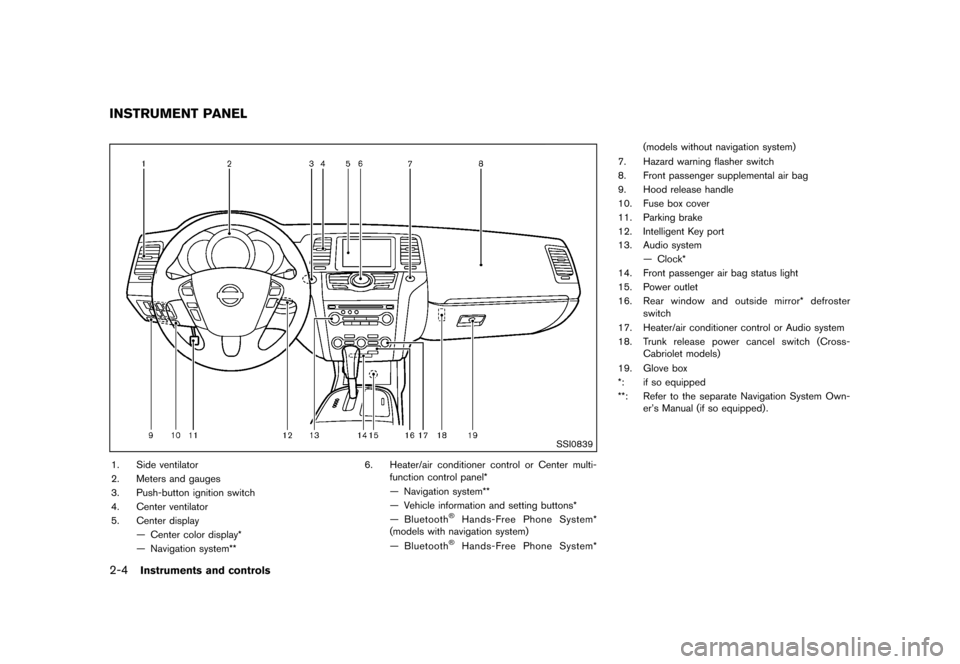

1. Side ventilator (P.4-40)
2. Meters and gauges (P.2-5)
3. Push-button ignition switch (P.5-11)
4. Center ventilator (P.4-40)
5. Center display— Center color display* (P.4-3)
— Navigation system** 6. Heater/air conditioner control (P.4-41) or Center
multi-function control panel* (P.4-3)
— Navigation system**
— Vehicle information and setting buttons*
(P.4-9)
— Bluetooth
®Hands-Free Phone System
(models with navigation system)* (P.4-89) — Bluetooth
®Hands-Free Phone System
(models without navigation system)* (P.4-100)
7. Hazard warning flasher switch (P.6-2)
8. Front passenger supplemental air bag (P.1-45)
9. Hood release handle (P.3-20)
10. Fuse box cover (P.8-21)
11. Parking brake (P.5-19)
12. Intelligent Key port (P.5-14)
13. Audio system (P.4-46) — Clock* (P.2-44)
14. Front passenger air bag status light (P.1-53)
15. Power outlet (P.2-45)
16. Rear window and outside mirror* defroster
switch (P.2-36)
17. Heater/air conditioner control (P.4-41) or Audio system (P.4-46)
18. Trunk release power cancel switch (Cross-
Cabriolet models) (P.3-26)
19. Glove box (P.2-49)
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
INSTRUMENT PANEL
Condition:
Page 89 of 507
Black plate (87,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
GUID-06B56D4D-A0AA-4178-A121-A31F959AC846
JVO0067X
1. Heated steering wheel switch*
2. Power lift gate switch* (Hardtop models) ortrunk lid release switch (CrossCabriolet models)
3. Warning systems switch* - Lane Departure Warning (LDW) system*
- Blind Spot Warning (BSW) system*
4. Instrument brightness control switch 5. Headlight, fog light and turn signal switch
— Headlight
— Turn signal light
— Fog light*
6. Trip computer switch
7. TRIP/RESET switch
8. Wiper and washer switch 9. Vehicle Dynamic Control (VDC) off switch
10. Power lift gate main switch* (Hardtop models) or
All-Wheel Drive (AWD) LOCK switch (Cross-
Cabriolet models)
11. Power rear seatback switch* (Hardtop models)
12. Power rear seatback switch* (Hardtop models) or Remote walk-in switch (CrossCabriolet mod-
els)
13. Fuel-filler door opener switch
14. Manual tilting/telescopic steering wheel lever*
15. Electric tilting/telescopic steering wheel switch*
16. Steering-wheel-mounted controls (left side)* — Audio control*
— Bluetooth
®Hands-Free Phone System con-
trol (models with navigation system)*
— Bluetooth
®Hands-Free Phone System con-
trol (models without navigation system)*
17. Steering wheel — Horn
— Driver supplemental air bag
— Power steering system
18. Steering-wheel-mounted controls (right side) — Cruise control switches
19. Center-console mounted controls — Heated seat switches*
— All-Wheel Drive (AWD) LOCK switch*
(Hardtop models)
— Soft top operating switch (CrossCabriolet
models)
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:
Page 90 of 507
Black plate (88,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-4Instruments and controls
GUID-73174318-E521-4B16-8B9D-A3A74ECB1262
SSI0839
1. Side ventilator
2. Meters and gauges
3. Push-button ignition switch
4. Center ventilator
5. Center display— Center color display*
— Navigation system** 6. Heater/air conditioner control or Center multi-
function control panel*
— Navigation system**
— Vehicle information and setting buttons*
— Bluetooth
®Hands-Free Phone System*
(models with navigation system)
— Bluetooth
®Hands-Free Phone System* (models without navigation system)
7. Hazard warning flasher switch
8. Front passenger supplemental air bag
9. Hood release handle
10. Fuse box cover
11. Parking brake
12. Intelligent Key port
13. Audio system — Clock*
14. Front passenger air bag status light
15. Power outlet
16. Rear window and outside mirror* defroster
switch
17. Heater/air conditioner control or Audio system
18. Trunk release power cancel switch (Cross-
Cabriolet models)
19. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual (if so equipped) .
INSTRUMENT PANEL
Condition:
Page 102 of 507
Black plate (100,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-16Instruments and controls
Master warning lightGUID-6AB3A8A0-B446-4089-A66C-618A6659F580When the ignition switch is in the ON position,
the master warning light illuminates if any of the
following are displayed on the dot matrix liquid
crystal display:
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning (Hardtop mod-
els)
. Door/trunk open warning (CrossCabriolet
models)
. Loose fuel cap warning
. Check tire pressure warning
. Extended storage fuse warning
See “Dot matrix liquid crystal display” later in this
section.
Seat belt warning lightGUID-956FC59D-0351-472F-8CD0-3356E0A21318The light and chime remind you to fasten seat
belts. The light illuminates whenever the ignition
switch is pushed to the ON position, and will
remain illuminated until the driver’s seat belt is
fastened.
The seat belt warning light for the front
passenger will illuminate if the seat belt is not
fastened when the front passenger’s seat is occupied. For approximately 5 seconds after the
ignition switch is in the ON position, the system
does not activate the warning light for the front
passenger.
See “Seat belts” in the “1. Safety — Seats, seat
belts and supplemental restraint system” section
for precautions on seat belt usage.
Supplemental air bag warning lightGUID-C47663FA-9971-432A-840C-6232303C8EC4After pushing the ignition switch to the ON
position, the supplemental air bag warning light
will illuminate. The supplemental air bag warning
light will turn off after about 7 seconds if the
SRS air bag systems are operational.
If any of the following conditions occur, the air
bags and/or pretensioner systems need servi-
cing and your vehicle must be taken to your
nearest NISSAN dealer.
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Unless checked and repaired, the Supplemental
Restraint Systems (air bag systems) and/or the
pretensioners may not function properly.
For additional information, see “Supplemental
restraint system” in the “1. Safety — Seats, seat belts and supplemental restraint system” sec-
tion.
WARNING
If the supplemental air bag warning
light is on, it could mean that the air
bags and/or pretensioner systems will
not operate in an accident. To help
avoid injury to yourself or others, have
your vehicle checked by a NISSAN
dealer as soon as possible.
Vehicle dynamic control (VDC)
warning light
GUID-9CD9709D-A6B8-4177-B503-4BF50BC0F688The light will blink when the Vehicle Dynamic
Control (VDC) system or the traction control
system is operating, thus alerting the driver that
the vehicle is nearing its traction limits. The road
surface may be slippery.
If the VDC warning light comes on and stays on
while the VDC system is on, this light alerts the
driver to the fact that the VDC system’s fail-safe
mode is operating, for example the VDC system
may not be functioning properly. Have the
system checked by a NISSAN dealer. If a
malfunction occurs in the system, the VDC
system function will be canceled but the vehicle
Condition:
Page 105 of 507
Black plate (103,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
Overdrive off indicator lightGUID-A88B5A9D-E1E7-4ADD-B5C6-FE6EBACFA9C0The overdrive off indicator light illuminates when
the overdrive off mode is selected.
For additional information, see “Continuously
Variable Transmission (CVT)” in the “5. Starting
and driving” section of this manual.
Soft top indicator light (Cross-
Cabriolet models)
GUID-387DFA5A-917F-4E6B-8A1D-1A0AD860A8FAThis light illuminates when the soft top is being
operated or it is stopped before reaching a full
open/close state. When the top is fully opened
or closed, the light will turn off.
The light blinks while the soft top is not fully
opened or closed under the following condi-
tions:
. When the vehicle is driven.
. When the selector lever is in the R (Reverse)
position.
Be sure to fully open or close the soft top when
driving the vehicle.
The soft top can be moved with the soft top
operating switch only under all of the following
conditions:
. When the vehicle is stopped.
. When the ignition switch is ON.
. When the trunk is closed. .
When the luggage cover is pulled out and
hooked so that the roof storage area is
separated from the trunk.
. When the selector lever is in a position other
than the R (Reverse) position.
CAUTION
Operate the soft top with the engine
running to prevent a discharged battery.
When the soft top is operating, if any of the
above conditions are discontinued or any of the
following conditions are met, the top will stop
operating.
. When the selector lever is in the R (Reverse)
position.
. When the vehicle moves at a speed of 3
MPH (5 km/h) or more.
. When the battery voltage is extremely low.
. When the temperature of the soft top
system becomes extremely high.
Release the operating switch, and push it again
under the above conditions until the top is fully
opened or closed. The soft top indicator light will
turn off when the top operation is completely
finished.
If the soft top indicator light illuminates with the ignition switch ON, it may indicate the electric
soft top control unit is not functioning properly.
Have your vehicle checked by a NISSAN dealer
as soon as possible.
For more details about the electric soft top
operation, see “Soft top (CrossCabriolet mod-
els)” in the “3. Pre-driving checks and adjust-
ments” section.Turn signal/hazard indicator lightsGUID-F77394DF-EFC3-4B65-ACF6-5E0E91264160The light flashes when the turn signal switch
lever or hazard switch is turned on.
Vehicle Dynamic Control (VDC) off
indicator light
GUID-CE6E8B94-E3C1-4EDD-B5CC-1AA8B731382AThe light comes on when the Vehicle Dynamic
Control (VDC) off switch is pushed to OFF. This
indicates that the VDC system is not operating.
For additional information, see “Vehicle Dynamic
Control (VDC) system” in the “5. Starting and
driving” section of this manual.
Instruments and controls2-19
Condition:
Page 115 of 507
Black plate (113,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
SIC3993
Warning checkGUID-FF3DCF80-E792-4B60-B3EB-0786D9710BD7To see if there are any of the following warnings
and corresponding details, select this menu.
.No key warning
. Low fuel warning
. Low washer fluid warning
. Parking brake release warning
. Door/lift gate open warning (Hardtop mod-
els)
. Door/trunk open warning (CrossCabriolet
models)
. Loose fuel cap warning .
Check tire pressure warning
SKIP:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407Push theswitch*Ato exit the warning
check display.
Push the
switch*Bto select DETAIL
menus.
DETAIL:
GUID-D73A39BF-43C8-459F-9C24-47B7F579C407This item is available only when a warning is
displayed.
Select this menu to see the details of warnings.
GUID-5B8EE3AC-B3AC-45D4-BF38-6AC7583B2D4C
SIC2133
Your vehicle has two types of security systems,
as follows:
. Vehicle security system (if so equipped)
. NISSAN Vehicle Immobilizer System
The security condition will be shown by the
security indicator light.
Instruments and controls2-29
SECURITY SYSTEMS
Condition:
Page 116 of 507
Black plate (114,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
2-30Instruments and controls
VEHICLE SECURITY SYSTEM (if so
equipped)
GUID-3A2129E5-3F98-44E7-8D33-56C1DC801E7AThe vehicle security system provides visual and
audio alarm signals if someone opens the doors
or lift gate/trunk when the system is armed. It is
not, however, a motion detection type system
that activates when a vehicle is moved or when a
vibration occurs.
The system helps deter vehicle theft but cannot
prevent it, nor can it prevent the theft of interior
or exterior vehicle components in all situations.
Always secure your vehicle even if parking for a
brief period. Never leave your keys in the vehicle,
and always lock it when unattended. Be aware
of your surroundings, and park in secure, well-lit
areas whenever possible.
Many devices offering additional protection,
such as component locks, identification markers,
and tracking systems, are available at auto
supply stores and specialty shops. Your
NISSAN dealer may also offer such equipment.
Check with your insurance company to see if
you may be eligible for discounts for various
theft protection features.
SIC1699A
How to arm the vehicle security systemGUID-E45D0EB0-DDEE-43F9-BCF5-4FFD6F801B101. Close all windows.The system can be armed even if the
windows are open.
2. Push the ignition switch to the OFF position.
3. Carry the Intelligent Key.
4. Close all doors and lift gate/trunk. Lock all door. The doors can be locked with:
.the lock buttonon the Intelligent Key.any request switch.the power door lock switch.the key — master or mechanical 5. Confirm that the security indicator light
*A
comes on. The security indicator light stays
on for about 30 seconds. The vehicle
security system is now pre-armed. After
about 30 seconds the vehicle security
system automatically shifts into the armed
phase. The security light begins to flash
once every approximately 3 seconds. If,
during this 30-second pre-arm time period,
the door is unlocked, or the ignition switch is
pushed to ACC or ON, the system will not
arm.
Even when the driver and/or passengers
are in the vehicle, the system will activate
with all doors and lift gate/trunk locked
with the ignition switch in the LOCK
position. When pushing the ignition switch
to the ACC or ON position, the system will
be released.
Vehicle security system activationGUID-D932FA41-7646-4669-AA61-035AB796F12CThe vehicle security system will give the follow-
ing alarm:
. The headlights blink and the horn sounds
intermittently.
. The alarm automatically turns off after
approximately 1 minute. However, the alarm
reactivates if the vehicle is tampered with
again.
Condition:
Page 155 of 507
Black plate (153,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
3 Pre-driving checks and adjustments
Keys...
........................................................................\
...................... 3-3
Intelligent Key system ...
......................................................... 3-3
Mechanical key ...
.................................................................... 3-4
Valet hand-off ...
....................................................................... 3-5
Doors ...
........................................................................\
.................... 3-5
Locking with mechanical key ...
............................................ 3-5
Opening and closing windows with the
mechanical key ...
..................................................................... 3-6
Locking with inside lock knob ...
.......................................... 3-6
Locking with power door lock switch ...
............................ 3-7
Automatic door locks ...
......................................................... 3-7
Child safety rear door lock (Hardtop models) ...
............. 3-8
Intelligent Key system ...
.............................................................. 3-8
Intelligent Key operating range ...
..................................... 3-10
Door locks/unlocks precaution ...
..................................... 3-10
Intelligent Key operation ...
................................................. 3-11
Battery saver system ...
....................................................... 3-14
Warning signals ...
................................................................ 3-14
Troubleshooting guide ...
..................................................... 3-15
Remote keyless entry system ...
............................................. 3-16
How to use remote keyless entry system ...
.................. 3-17
Hood ...
........................................................................\
.................. 3-20
Lift gate (Hardtop models) ...
.................................................. 3-20
Operating manual lift gate ...
............................................. 3-21
Operating power lift gate (if so equipped) ...
............... 3-21 Auto closure
...
.................................................................... 3-24
Lift gate release ...
.............................................................. 3-25
Trunk lid (CrossCabriolet models) ...
.................................... 3-25
Trunk lid release switch ...
................................................ 3-25
Trunk open request switch ...
.......................................... 3-26
Trunk button ...
.................................................................... 3-26
Opening with key ...
........................................................... 3-26
Trunk release power cancel switch ...
........................... 3-26
Interior trunk lid release ...
................................................ 3-27
Soft top (CrossCabriolet models) ...
.................................... 3-28
Before operating the top ...
.............................................. 3-28
When operating the top ...
............................................... 3-32
Luggage cover ...
................................................................ 3-33
Soft top indicator light ...
.................................................. 3-33
Automatic window lowering ...
........................................ 3-34
Opening the top ...
............................................................. 3-34
Closing the top ...
............................................................... 3-35
Opening the top using the intelligent key ...
............... 3-35
Troubleshooting guide ...
.................................................. 3-37
If the top does not open or close electrically ...
......... 3-38
Care of the soft top and the vehicle body ...
.............. 3-43
Fuel-filler door ...
........................................................................\
3-44
Opening fuel-filler door ...
................................................ 3-44
Fuel-filler cap ...
.................................................................. 3-44
Condition:
Page 159 of 507
Black plate (157,1)
[ Edit: 2012/ 7/ 31 Model: Z51-D ]
CAUTION
Always carry the mechanical key in-
stalled in the key.
VALET HAND-OFFGUID-EFC63B4C-0F15-4531-AA8B-ACA78CB96860When you have to leave a key with a valet, give
them the Intelligent Key itself after removing the
mechanical key to protect your belongings.
To prevent the glove box or the trunk (Cross-
Cabriolet models) from being opened during
valet hand-off, follow the procedures below.
1. Push the trunk release power cancel switchto the OFF side (CrossCabriolet models) .
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key.
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag.
Insert the mechanical key into the Intelligent
Key when you retrieve your vehicle.
See glove box and “Storage” in the “2. Instru-
ments and controls” section and “Trunk lid
(CrossCabriolet models)” later in this section.
GUID-A6EDA02E-9855-47C0-A2E8-46DEBDFFD06C
WARNING
. Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
SPA2432
LOCKING WITH MECHANICAL KEYGUID-E8E0764D-7E38-467C-AB80-1609CF8DDD47The power door lock system allows you to lock
or unlock all doors simultaneously using the
mechanical key.
Hardtop modelsGUID-0BFF314E-455C-4A8A-9BCF-B9DF3F2390B1.Turning the driver’s door key cylinder to the
front of the vehicle
*1will lock all doors.
. Turning the driver’s door key cylinder once
to the rear of the vehicle
*2will unlock the
driver’s door. After returning the key to the
neutral position
*3, turning it to the rear
again within 5 seconds will unlock all doors.
Pre-driving checks and adjustments3-5
DOORS
Condition:
