Page 21 of 49

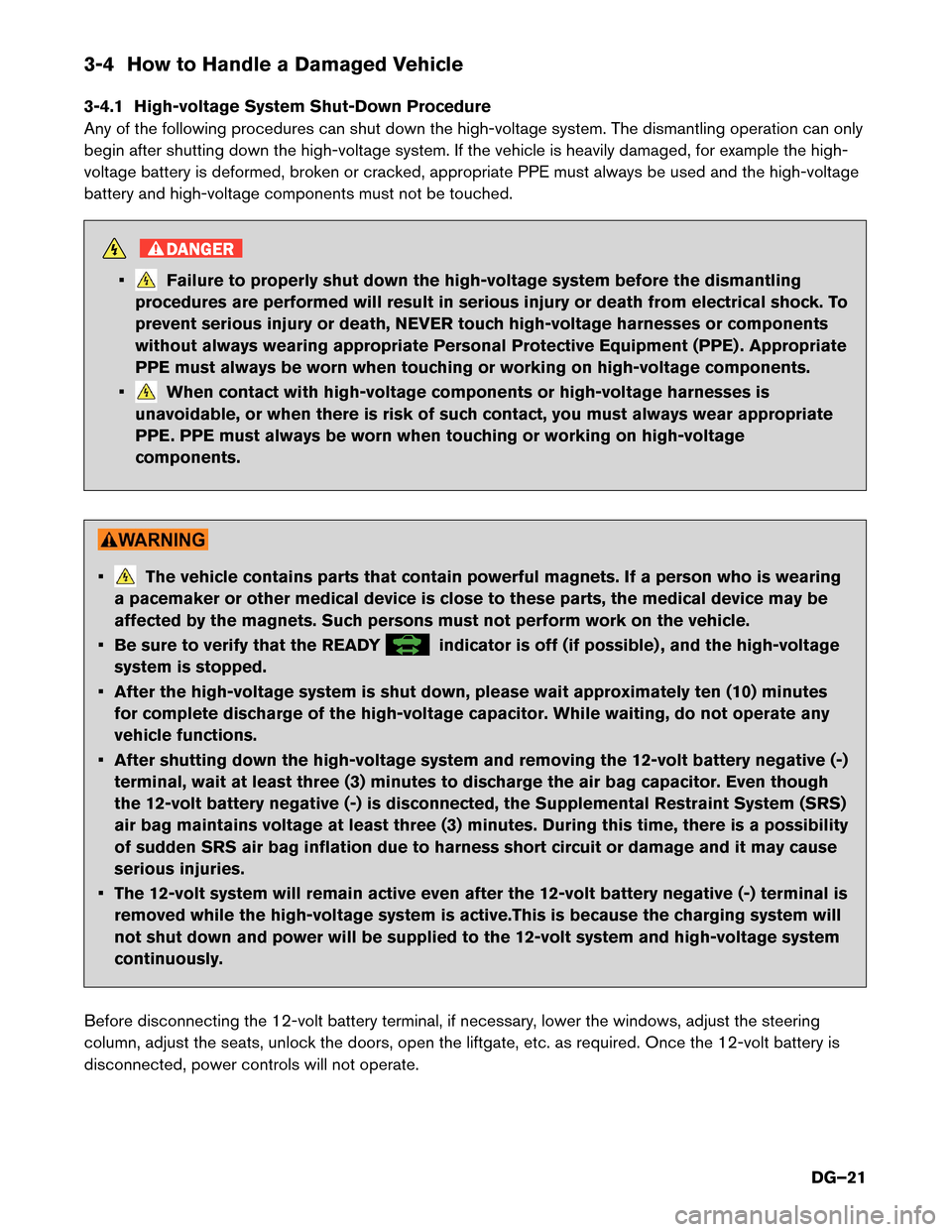

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 3-4 How to Handle a Damaged Vehicle
3-4.1
High-voltage System Shut-Down Procedure
Any of the following procedures can shut down the high-voltage system. The dismantling operation can only
begin after

Page 22 of 49

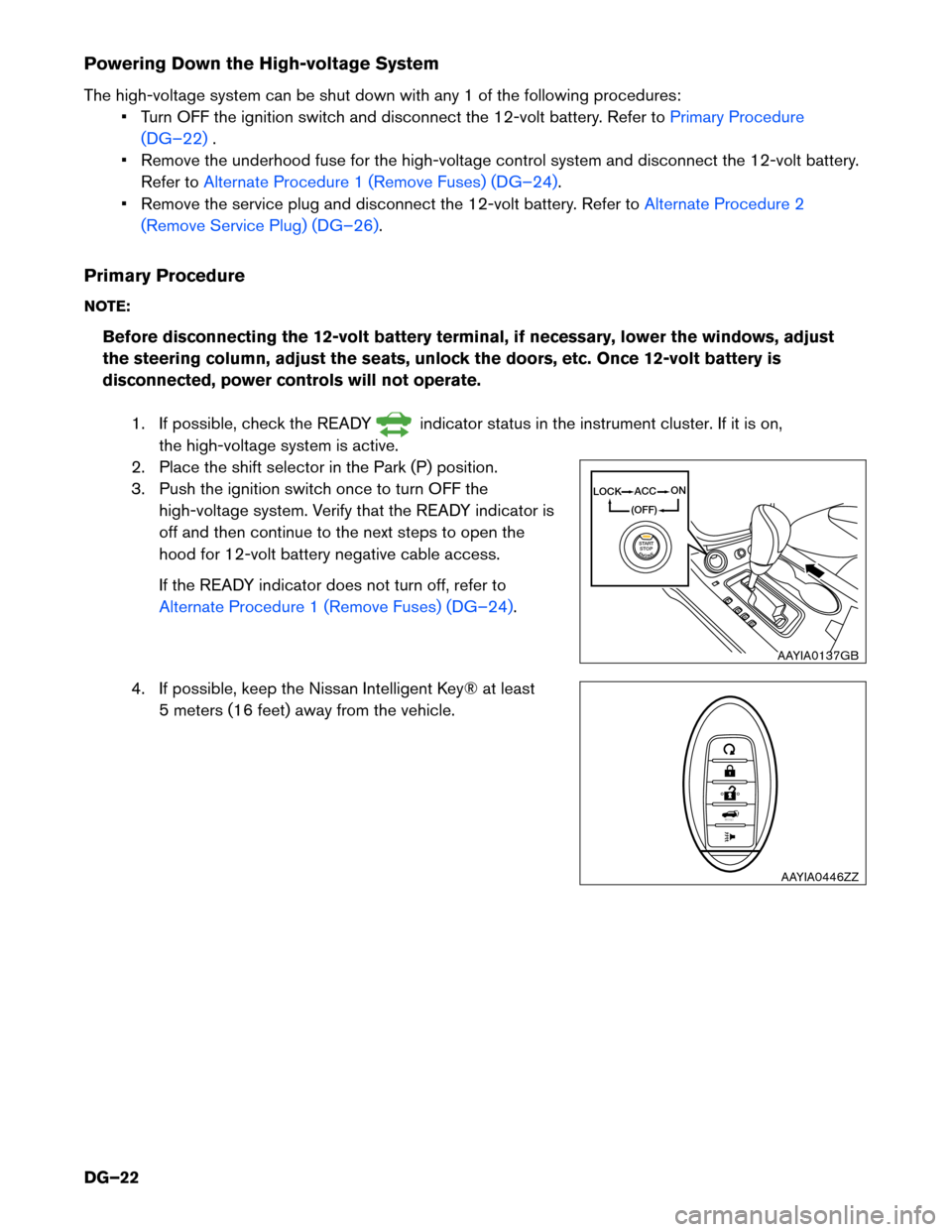

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide Powering Down the High-voltage System
The
high-voltage system can be shut down with any 1 of the following procedures:• Turn OFF the ignition switch and disconnect the 12-volt battery. Refer to Prim

Page 23 of 49

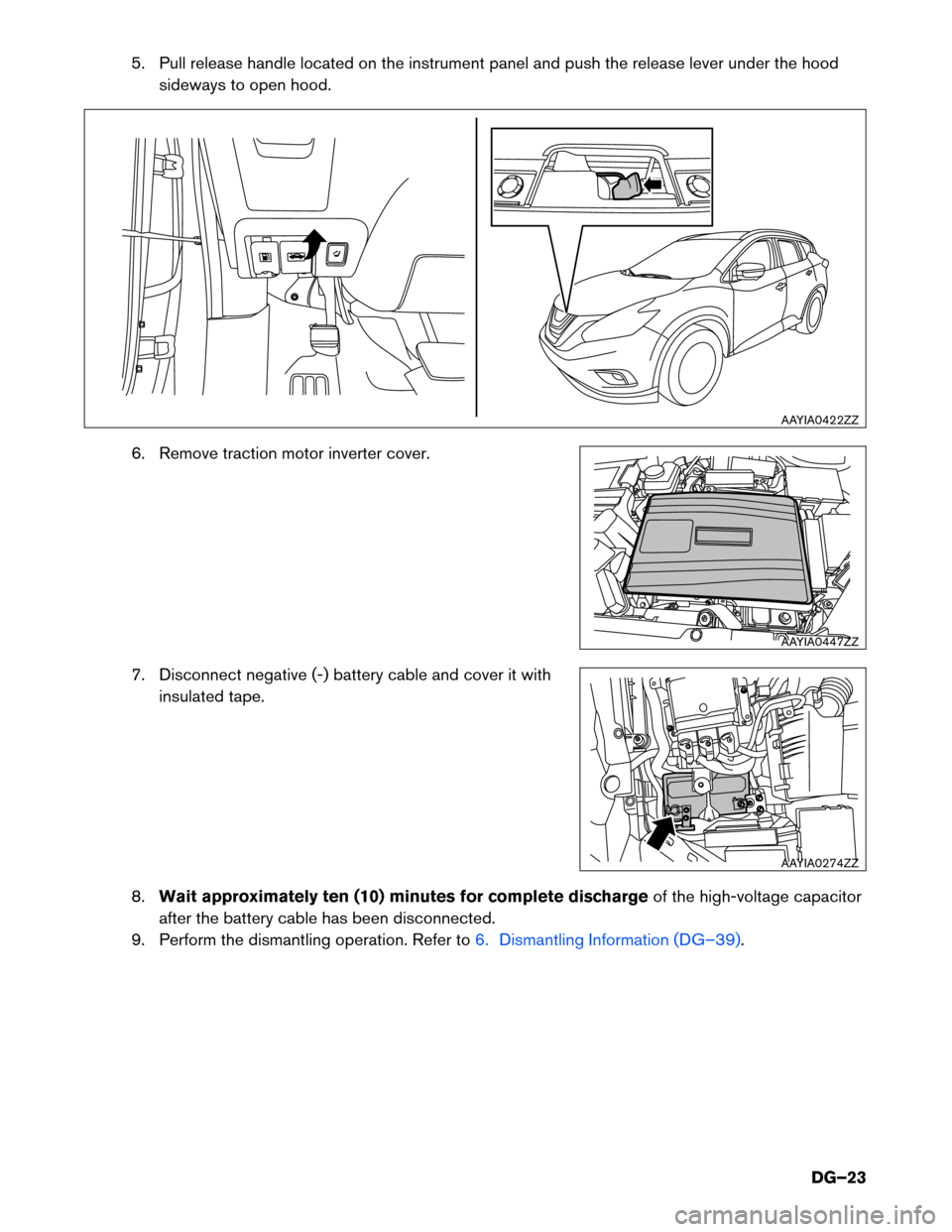

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 5. Pull release handle located on the instrument panel and push the release lever under the hood
sideways to open hood.
6. Remove traction motor inverter cover.
7. Disconnect negative (-) battery cabl

Page 24 of 49

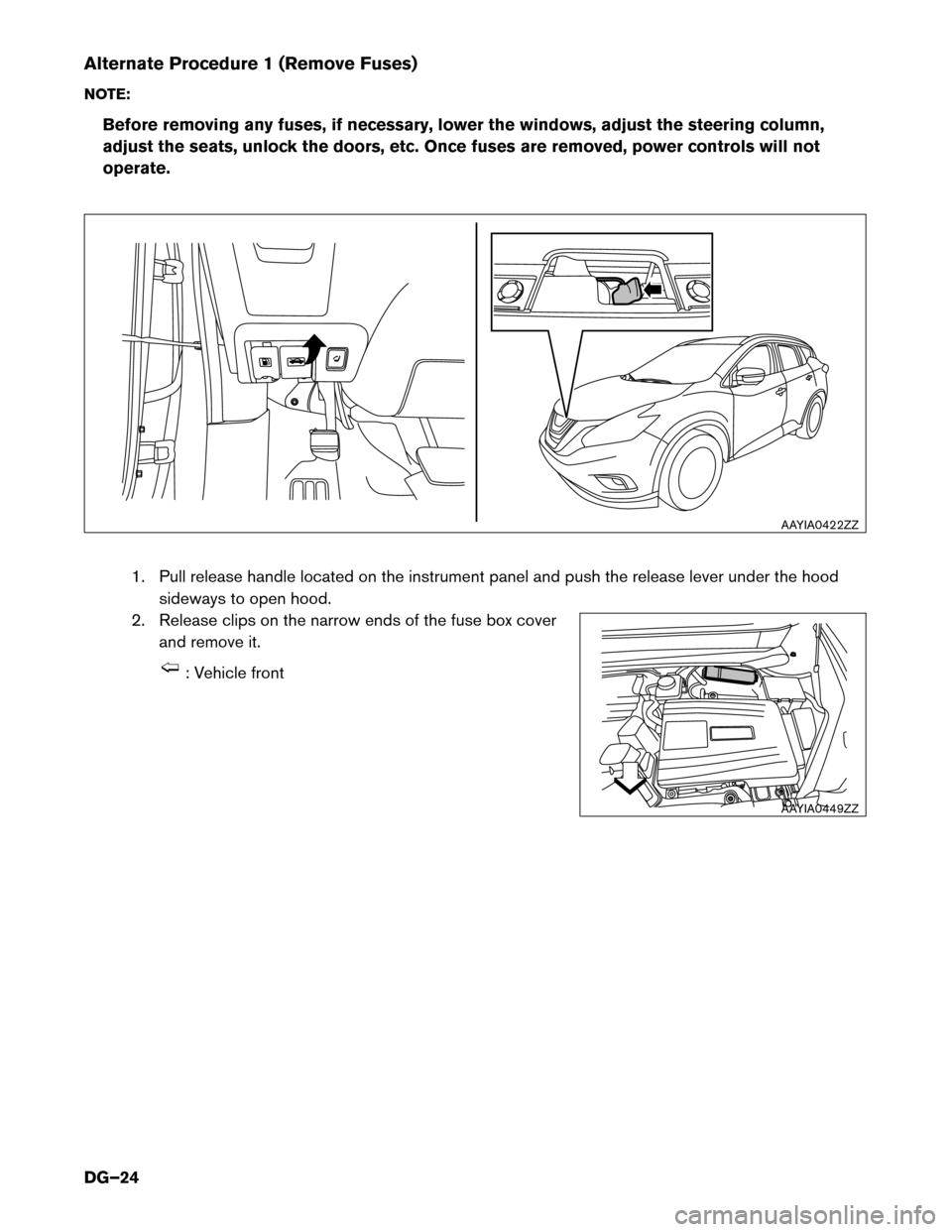

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide Alternate Procedure 1 (Remove Fuses)
NO
TE:
Before removing any fuses, if necessary, lower the windows, adjust the steering column,
adjust the seats, unlock the doors, etc. Once fuses are removed, pow

Page 25 of 49

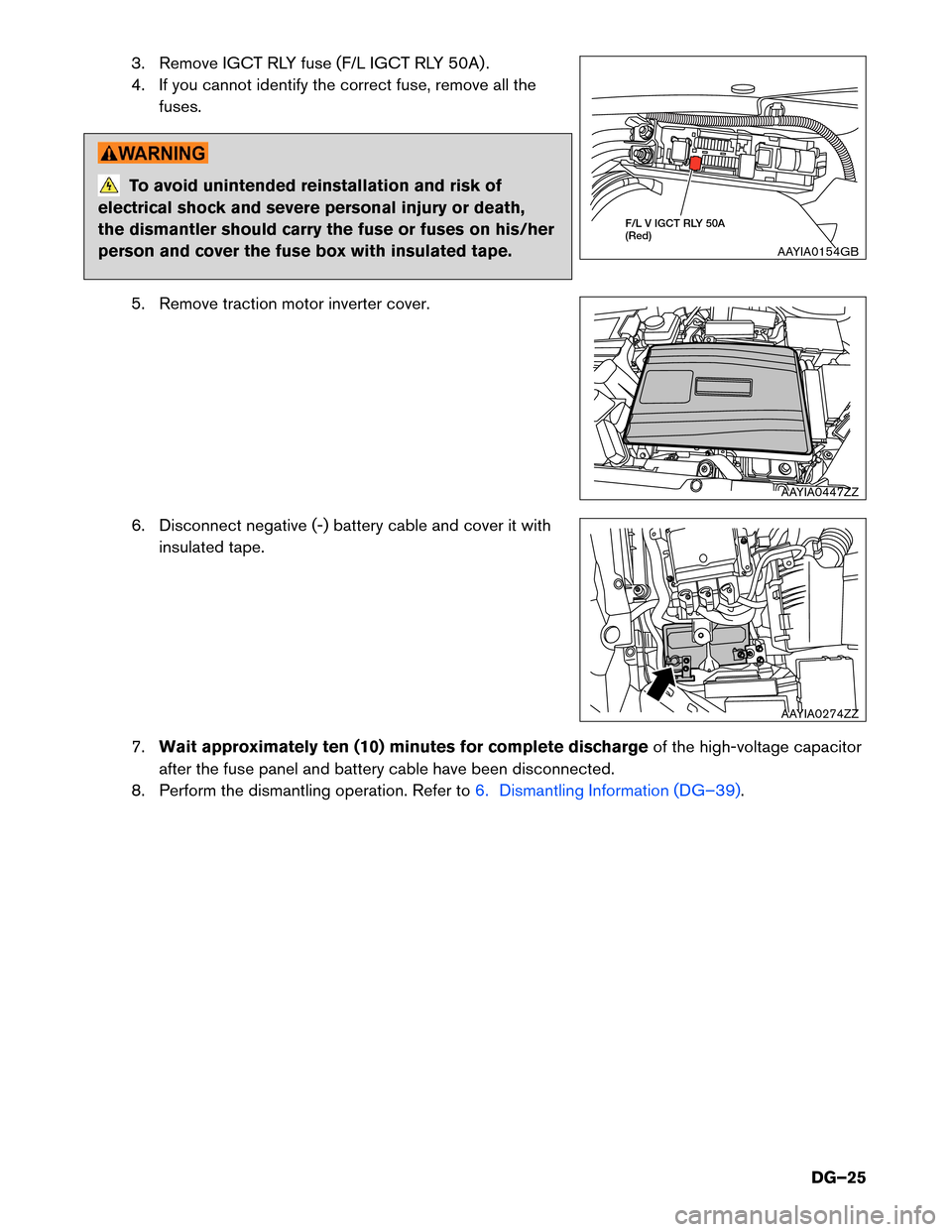

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 3. Remove IGCT RLY fuse (F/L IGCT RLY 50A) .
4.
If you cannot identify the correct fuse, remove all the
fuses. To avoid unintended reinstallation and risk of
electrical
 shock and severe personal inju

Page 26 of 49

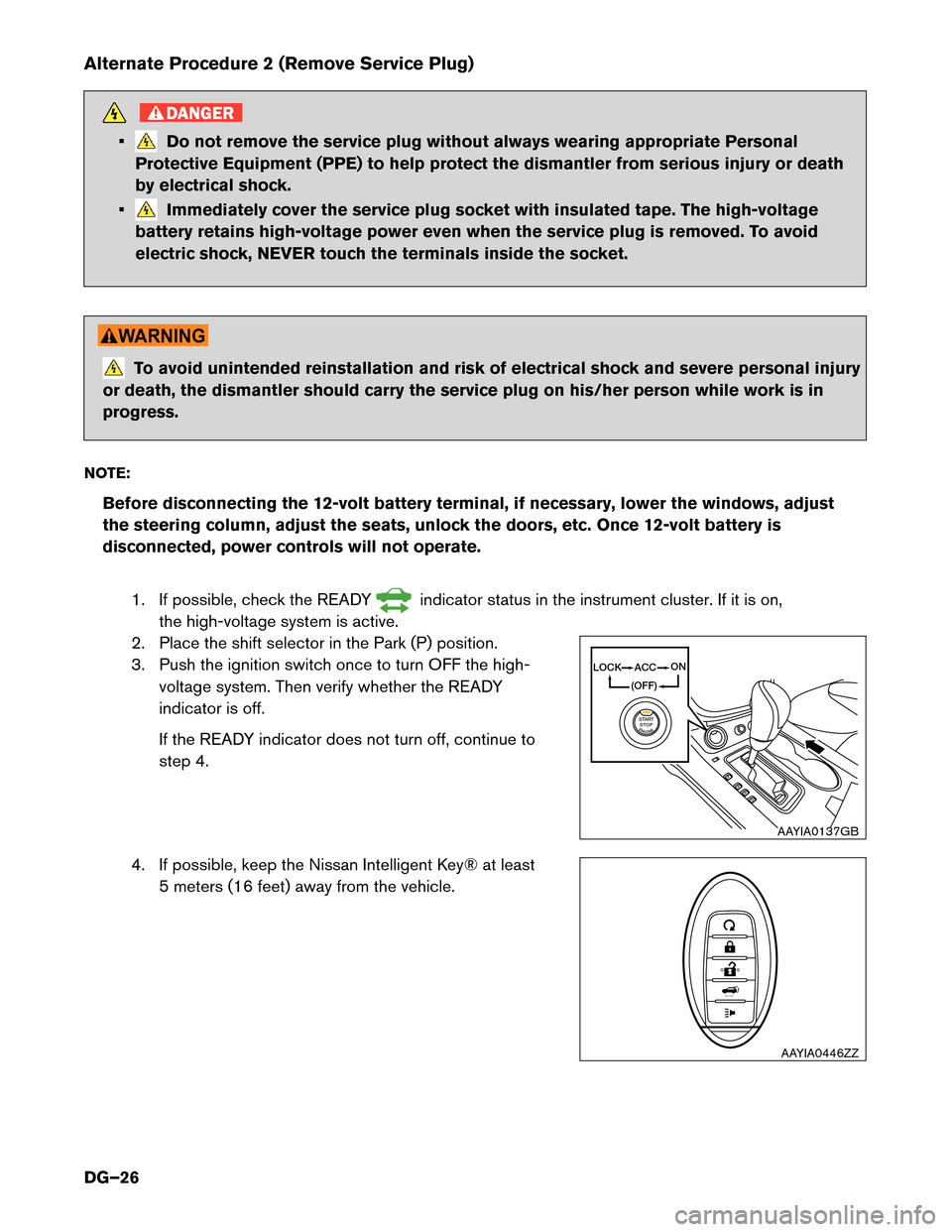

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide Alternate Procedure 2 (Remove Service Plug)
DANGER
• Do not remove the service plug without always wearing appropriate Personal
Protective Equipment (PPE) to help protect the dismantler from serious

Page 27 of 49

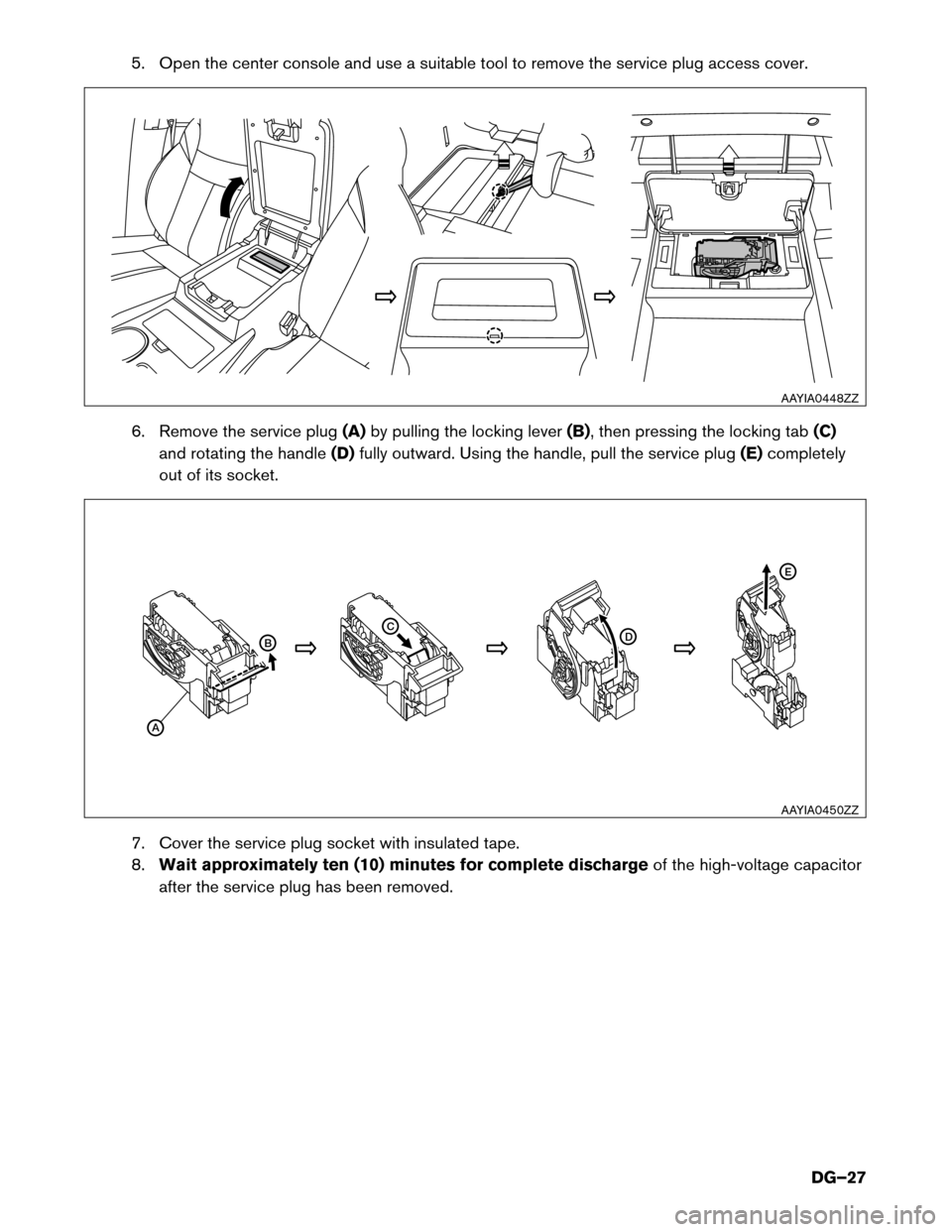

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 5. Open the center console and use a suitable tool to remove the service plug access cover.
6.
Remove the service plug (A)by pulling the locking lever (B), then pressing the locking tab (C)
and rotati

Page 28 of 49

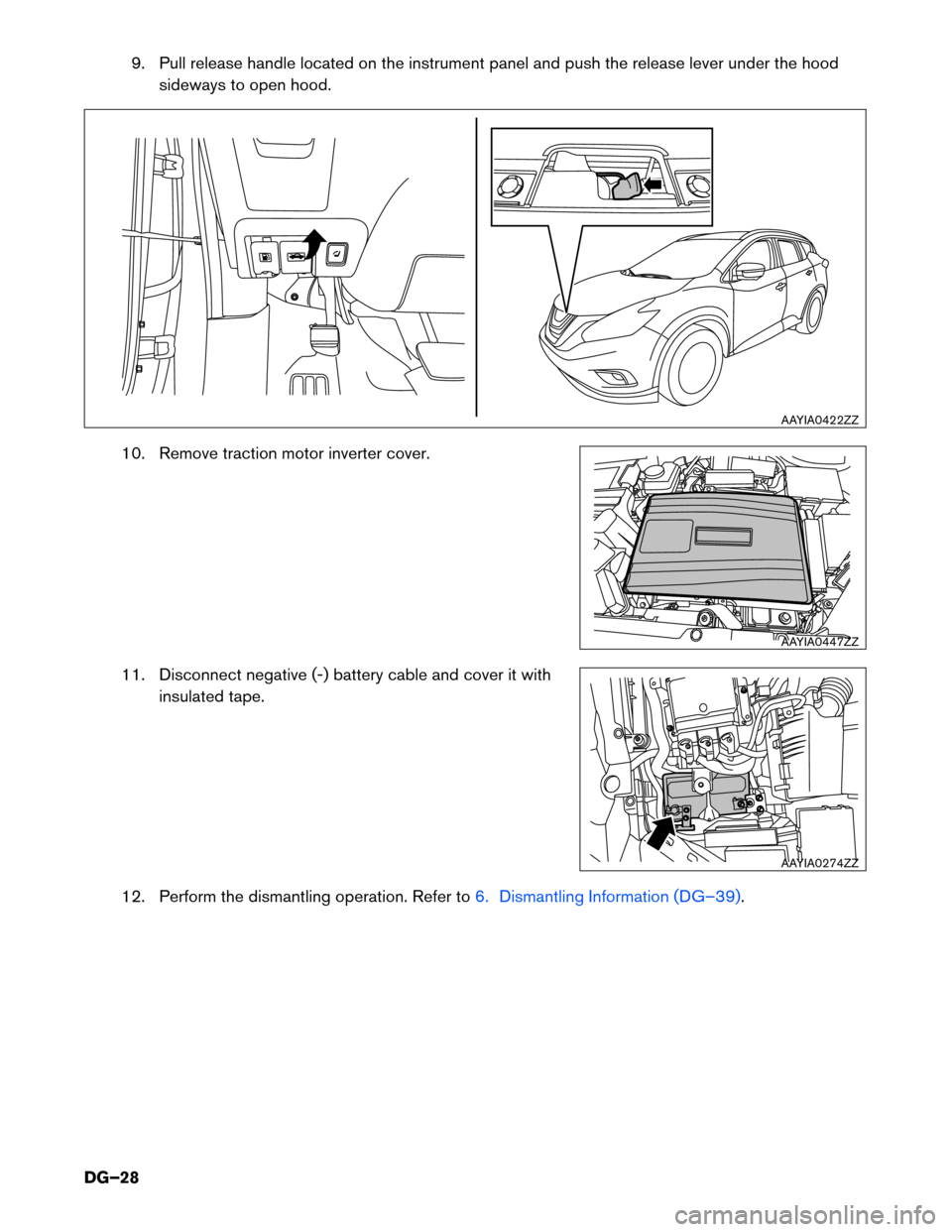

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 9. Pull release handle located on the instrument panel and push the release lever under the hood
sideways to open hood.
10. Remove traction motor inverter cover.
11. Disconnect negative (-) battery ca

Page 29 of 49

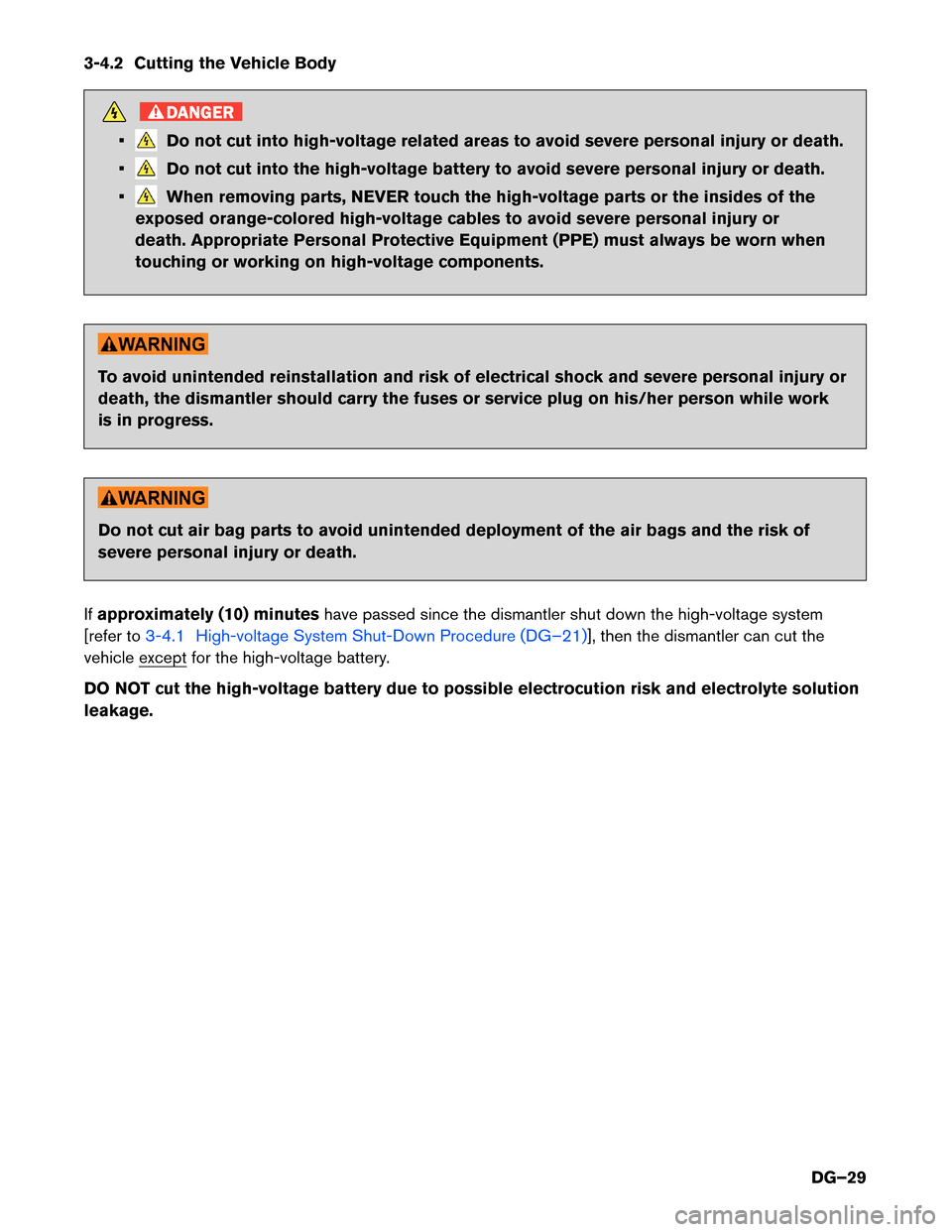

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide 3-4.2 Cutting the Vehicle Body
DANGER
• Do not cut into high-voltage related areas to avoid severe personal injury or death.
• Do not cut into the high-voltage battery to avoid severe personal inj

Page 30 of 49

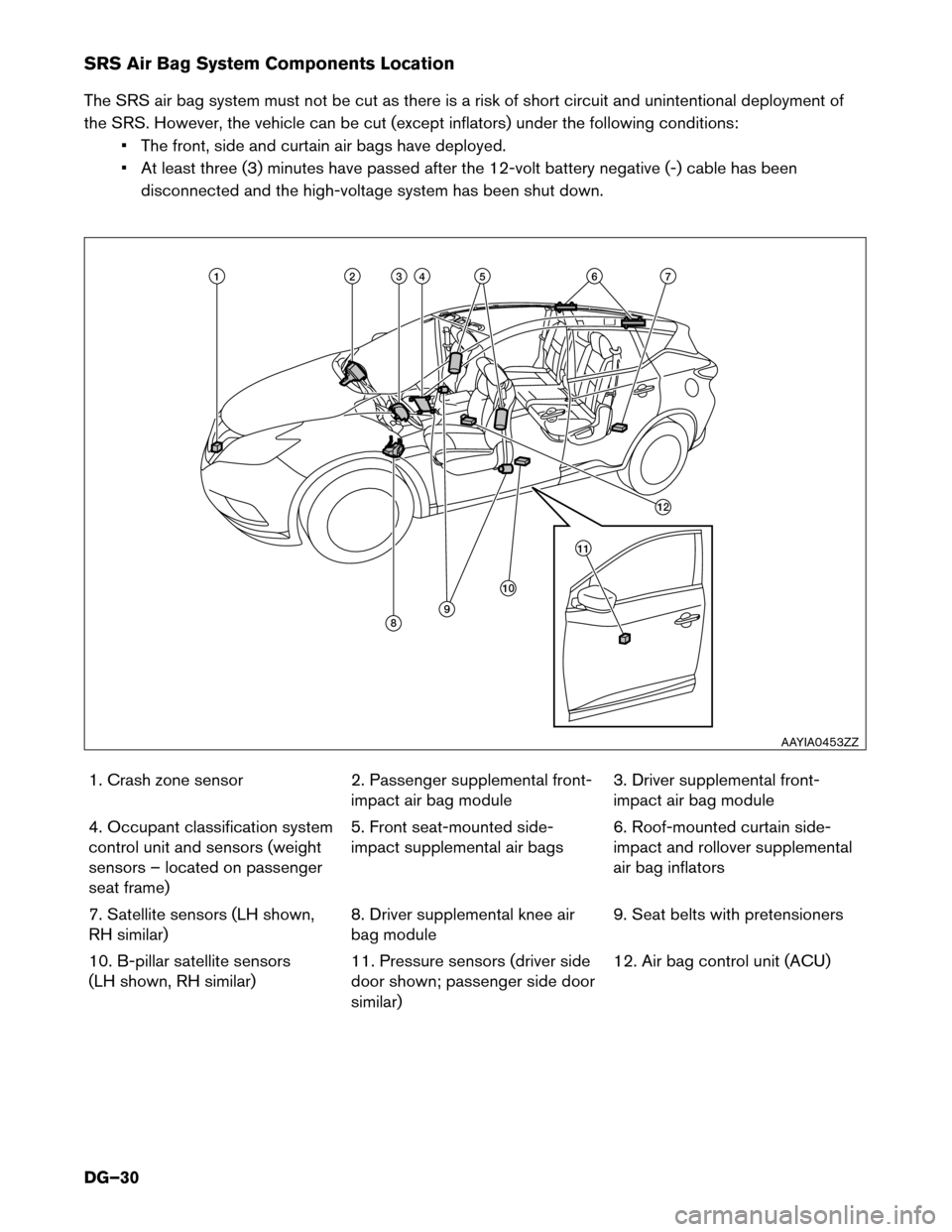

NISSAN MURANO HYBRID 2016 3.G Dismantling Guide SRS Air Bag System Components Location
The
SRS air bag system must not be cut as there is a risk of short circuit and unintentional deployment of
the SRS. However, the vehicle can be cut (except infla
