NISSAN NV PASSENGER VAN 2016 Owner's Guide

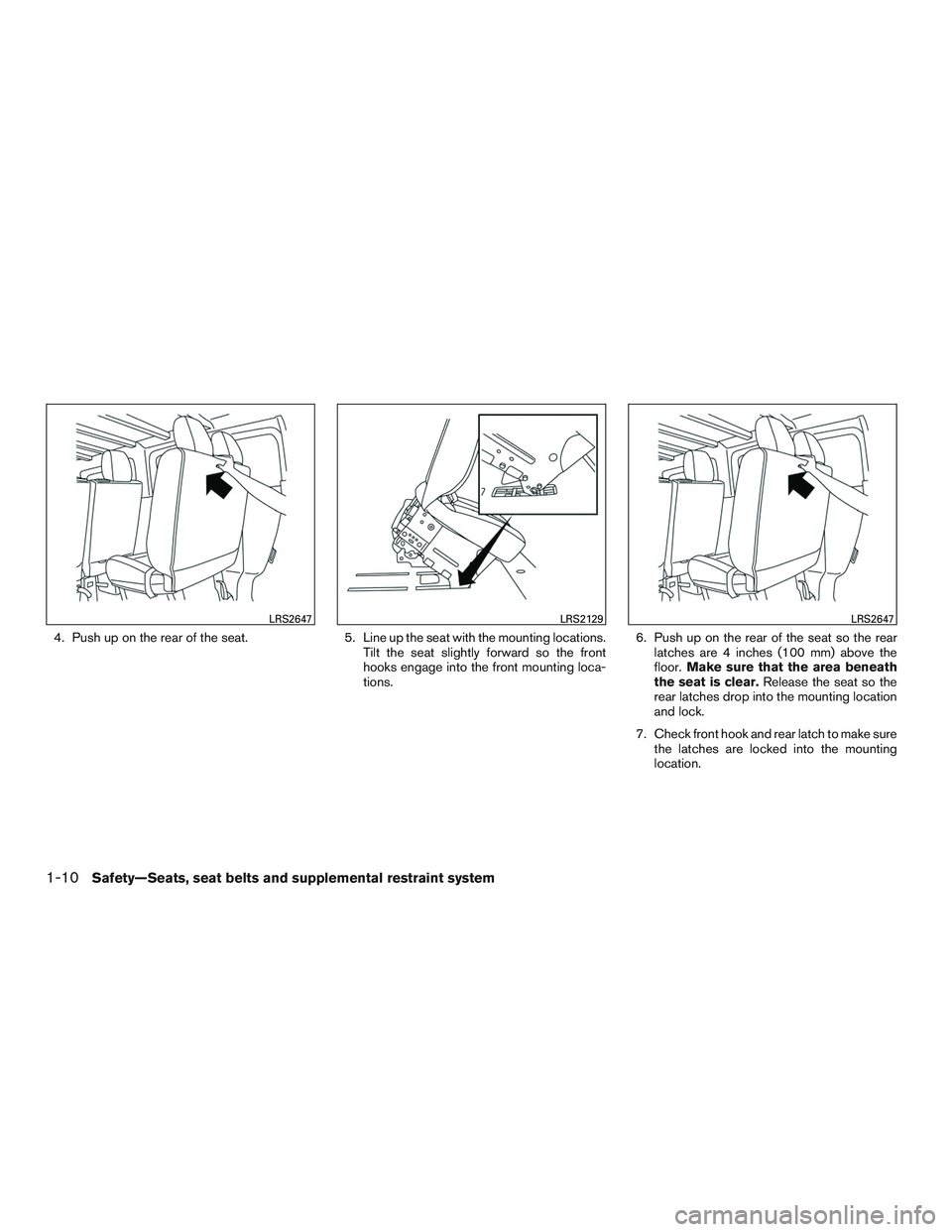

4. Push up on the rear of the seat.5. Line up the seat with the mounting locations.
Tilt the seat slightly forward so the front
hooks engage into the front mounting loca-
tions. 6. Push up on the rear of the seat so the rear
latches are 4 inches (100 mm) above the
floor. Make sure that the area beneath
the seat is clear. Release the seat so the
rear latches drop into the mounting location
and lock.
7. Check front hook and rear latch to make sure the latches are locked into the mounting
location.
LRS2647LRS2129LRS2647
1-10Safety—Seats, seat belts and supplemental restraint system

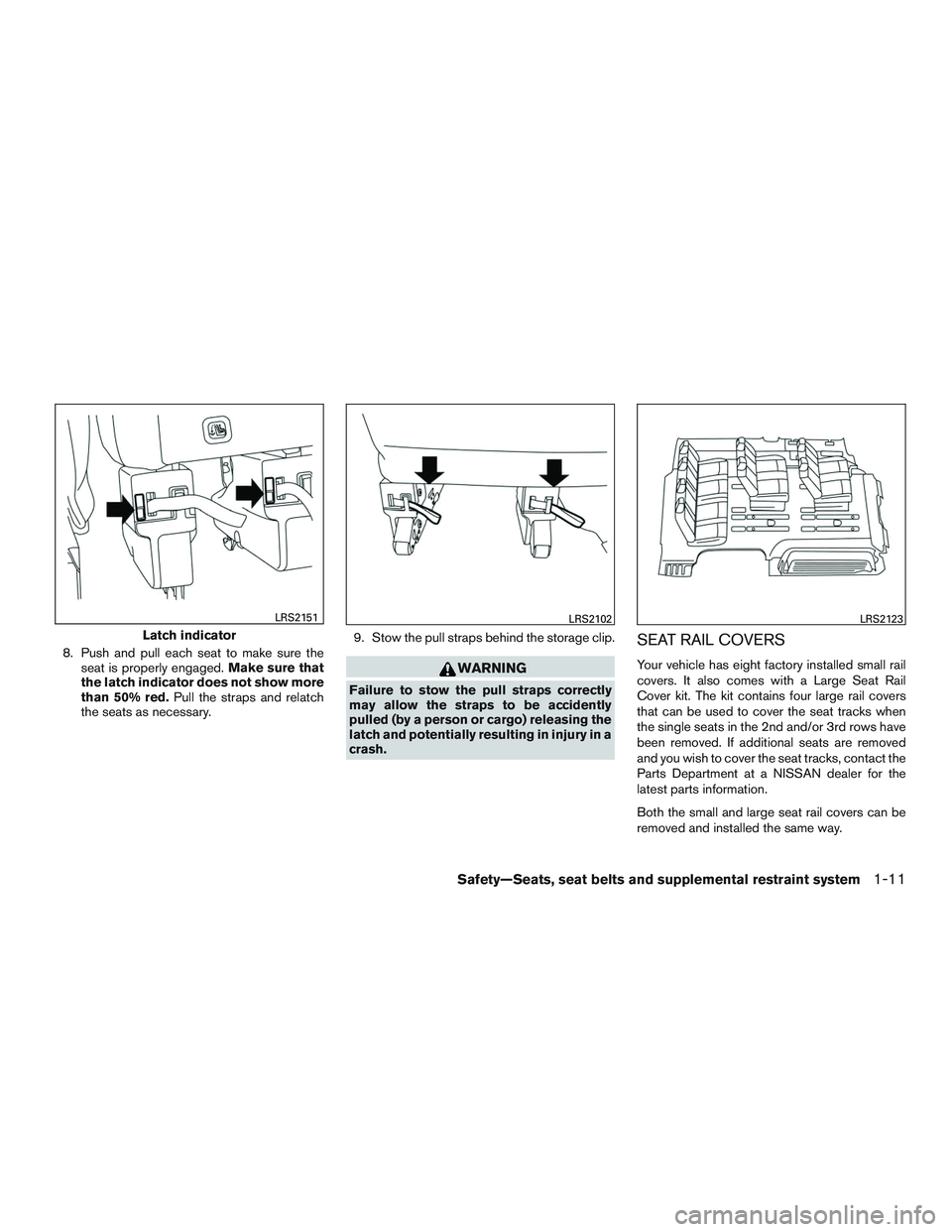

8. Push and pull each seat to make sure theseat is properly engaged. Make sure that
the latch indicator does not show more
than 50% red. Pull the straps and relatch
the seats as necessary. 9. Stow the pull straps behind the storage clip.
WARNING
Failure to stow the pull straps correctly
may allow the straps to be accidently
pulled (by a person or cargo) releasing the
latch and potentially resulting in injury in a
crash.
SEAT RAIL COVERS
Your vehicle has eight factory installed small rail
covers. It also comes with a Large Seat Rail
Cover kit. The kit contains four large rail covers
that can be used to cover the seat tracks when
the single seats in the 2nd and/or 3rd rows have
been removed. If additional seats are removed
and you wish to cover the seat tracks, contact the
Parts Department at a NISSAN dealer for the
latest parts information.
Both the small and large seat rail covers can be
removed and installed the same way.
Latch indicator
LRS2151LRS2102LRS2123
Safety—Seats, seat belts and supplemental restraint system1-11

WARNING
Properly stow the rail covers when not in
use. They should be securely stored to
prevent them from causing injury to pas-
sengers or damage to the vehicle in case
of sudden braking or an accident.

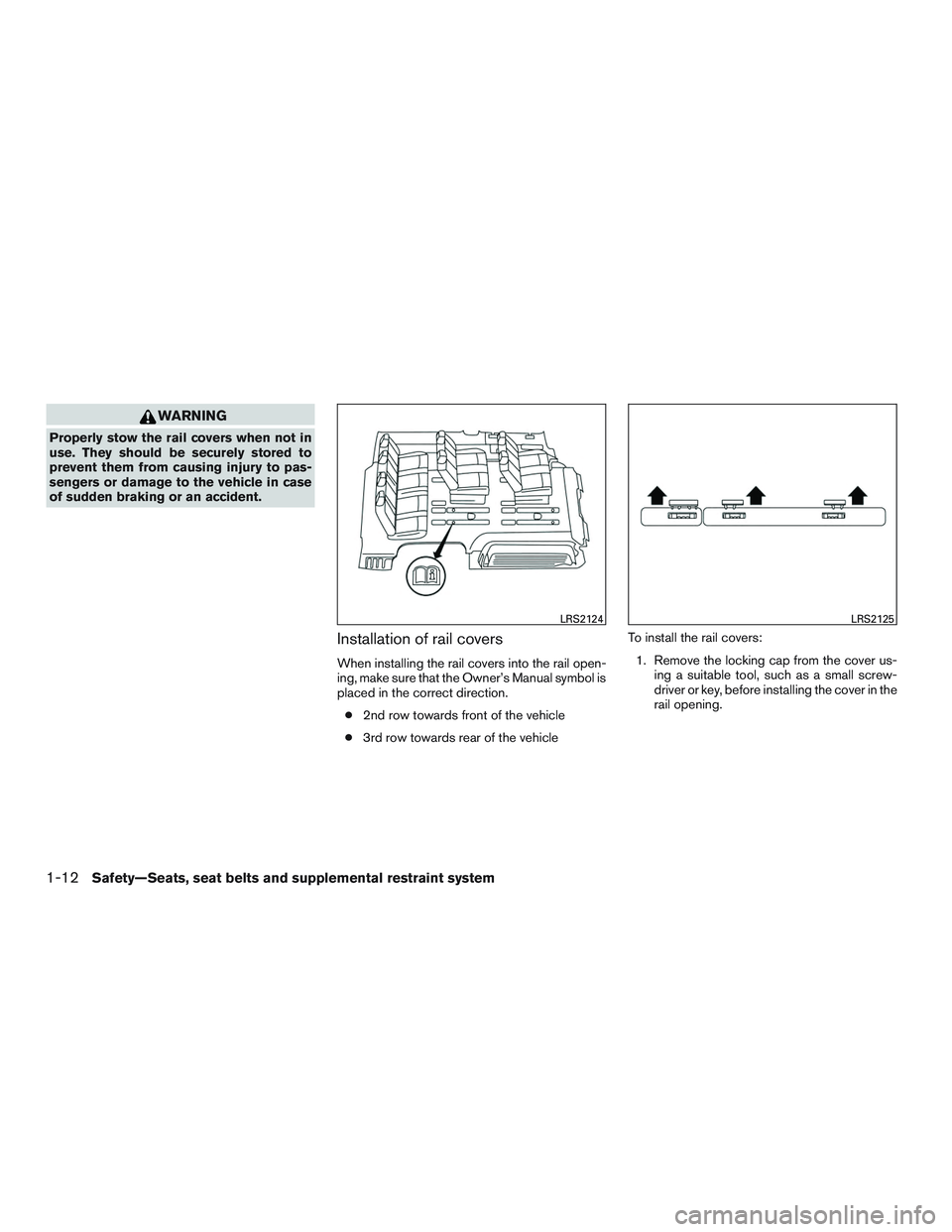

Installation of rail covers
When installing the rail covers into the rail open-
ing, make sure that the Owner’s Manual symbol is
placed in the correct direction.● 2nd row towards front of the vehicle
● 3rd row towards rear of the vehicle To install the rail covers:
1. Remove the locking cap from the cover us- ing a suitable tool, such as a small screw-
driver or key, before installing the cover in the
rail opening.
LRS2124LRS2125
1-12Safety—Seats, seat belts and supplemental restraint system

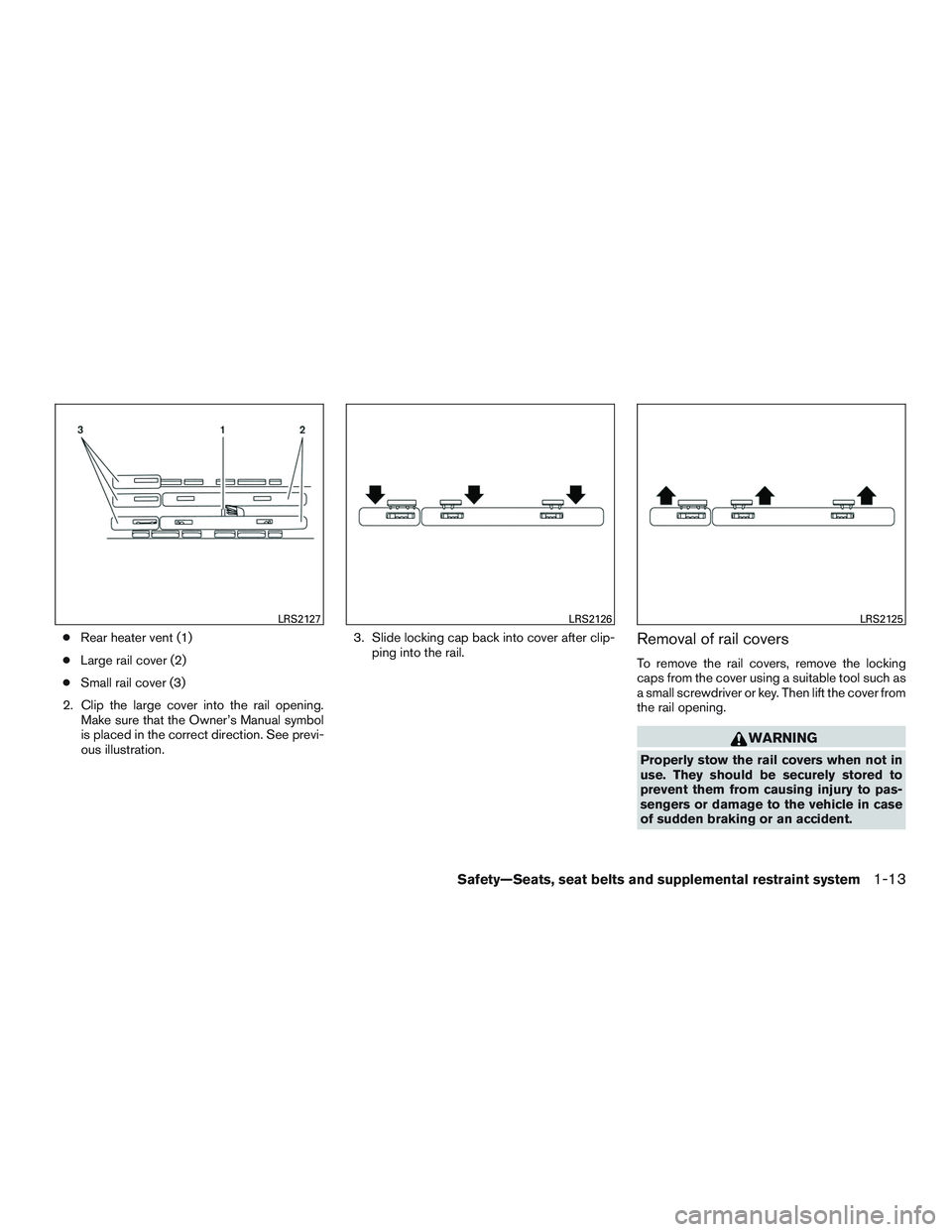

●Rear heater vent (1)
● Large rail cover (2)
● Small rail cover (3)
2. Clip the large cover into the rail opening. Make sure that the Owner’s Manual symbol
is placed in the correct direction. See previ-
ous illustration. 3. Slide locking cap back into cover after clip-
ping into the rail.Removal of rail covers
To remove the rail covers, remove the locking
caps from the cover using a suitable tool such as
a small screwdriver or key. Then lift the cover from
the rail opening.
WARNING
Properly stow the rail covers when not in
use. They should be securely stored to
prevent them from causing injury to pas-
sengers or damage to the vehicle in case
of sudden braking or an accident.
LRS2127LRS2126LRS2125
Safety—Seats, seat belts and supplemental restraint system1-13

SEAT CONFIGURATIONS
The seating system allows great flexibility by al-
lowing the 2nd, 3rd and 4th row seats to be
rearranged in multiple configurations. Proper us-
age is important to your safety. There are a total of
six independent seats in the rear rows and all of
them can be removed and rearranged. The illus-
tration above shows which seats are common
and interchangeable.The 2nd and 3rd row seats have two fore/aft
mounting locations. The rows are identical and
can be interchanged for convenience. The pas-
senger side seats can be moved to the rear
position independently of the driver’s side seats.
Seats can be interchanged with seats of the
same letter
LRS2113
2nd and 3rd row passenger side seatsmoved to rear positions
LRS2115
2nd and 3rd row seats moved to the rearpositions and 4th row removed
LRS2116
1-14Safety—Seats, seat belts and supplemental restraint system

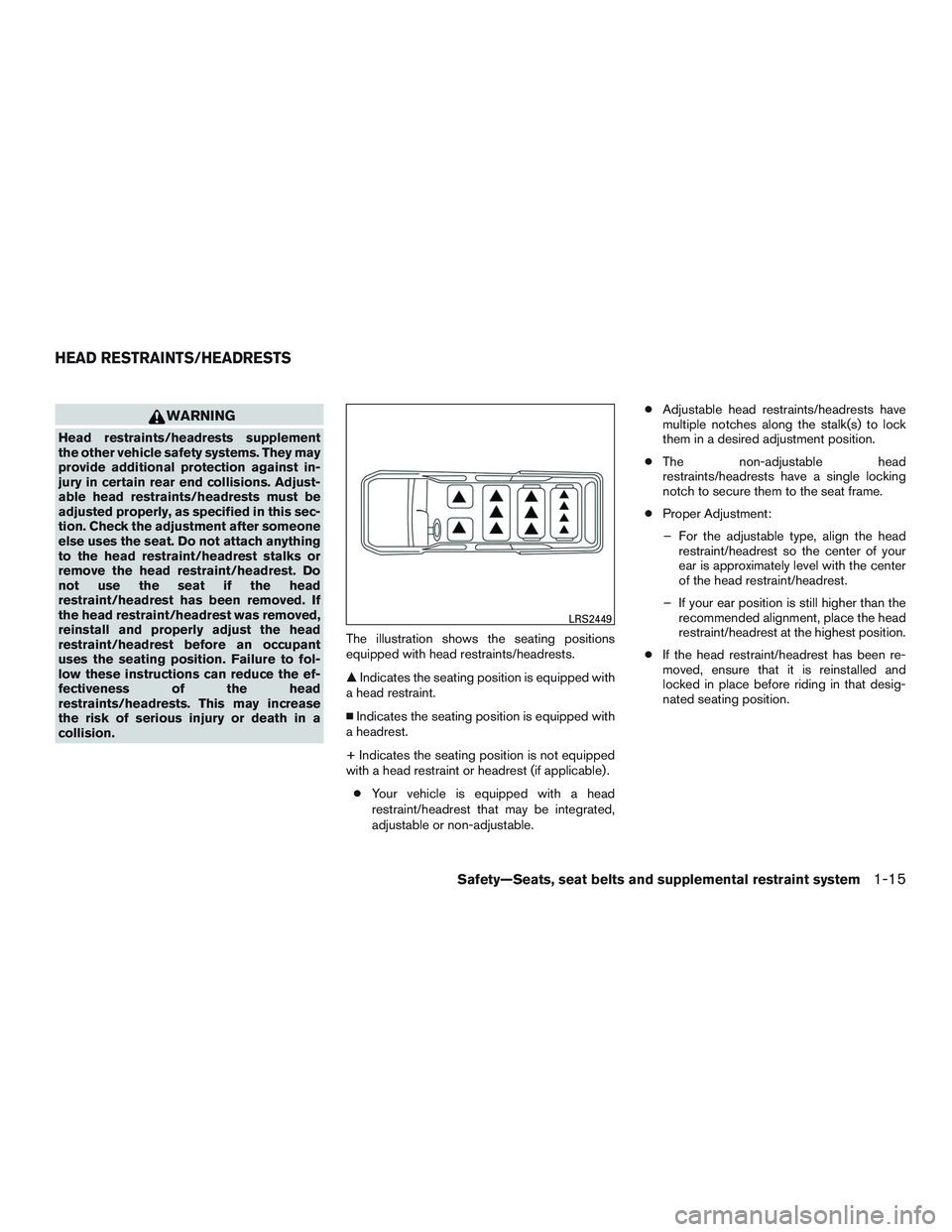

WARNING
Head restraints/headrests supplement
the other vehicle safety systems. They may
provide additional protection against in-
jury in certain rear end collisions. Adjust-
able head restraints/headrests must be
adjusted properly, as specified in this sec-
tion. Check the adjustment after someone
else uses the seat. Do not attach anything
to the head restraint/headrest stalks or
remove the head restraint/headrest. Do
not use the seat if the head
restraint/headrest has been removed. If
the head restraint/headrest was removed,
reinstall and properly adjust the head
restraint/headrest before an occupant
uses the seating position. Failure to fol-
low these instructions can reduce the ef-
fectiveness of the head
restraints/headrests. This may increase
the risk of serious injury or death in a
collision.The illustration shows the seating positions
equipped with head restraints/headrests.

Indicates the seating position is equipped with
a head restraint.
 Indicates the seating position is equipped with
a headrest.
+ Indicates the seating position is not equipped
with a head restraint or headrest (if applicable) .
● Your vehicle is equipped with a head
restraint/headrest that may be integrated,
adjustable or non-adjustable. ●
Adjustable head restraints/headrests have
multiple notches along the stalk(s) to lock
them in a desired adjustment position.
● The non-adjustable head
restraints/headrests have a single locking
notch to secure them to the seat frame.
● Proper Adjustment:
– For the adjustable type, align the head restraint/headrest so the center of your
ear is approximately level with the center
of the head restraint/headrest.
– If your ear position is still higher than the recommended alignment, place the head
restraint/headrest at the highest position.
● If the head restraint/headrest has been re-
moved, ensure that it is reinstalled and
locked in place before riding in that desig-
nated seating position.
LRS2449
HEAD RESTRAINTS/HEADRESTS
Safety—Seats, seat belts and supplemental restraint system1-15

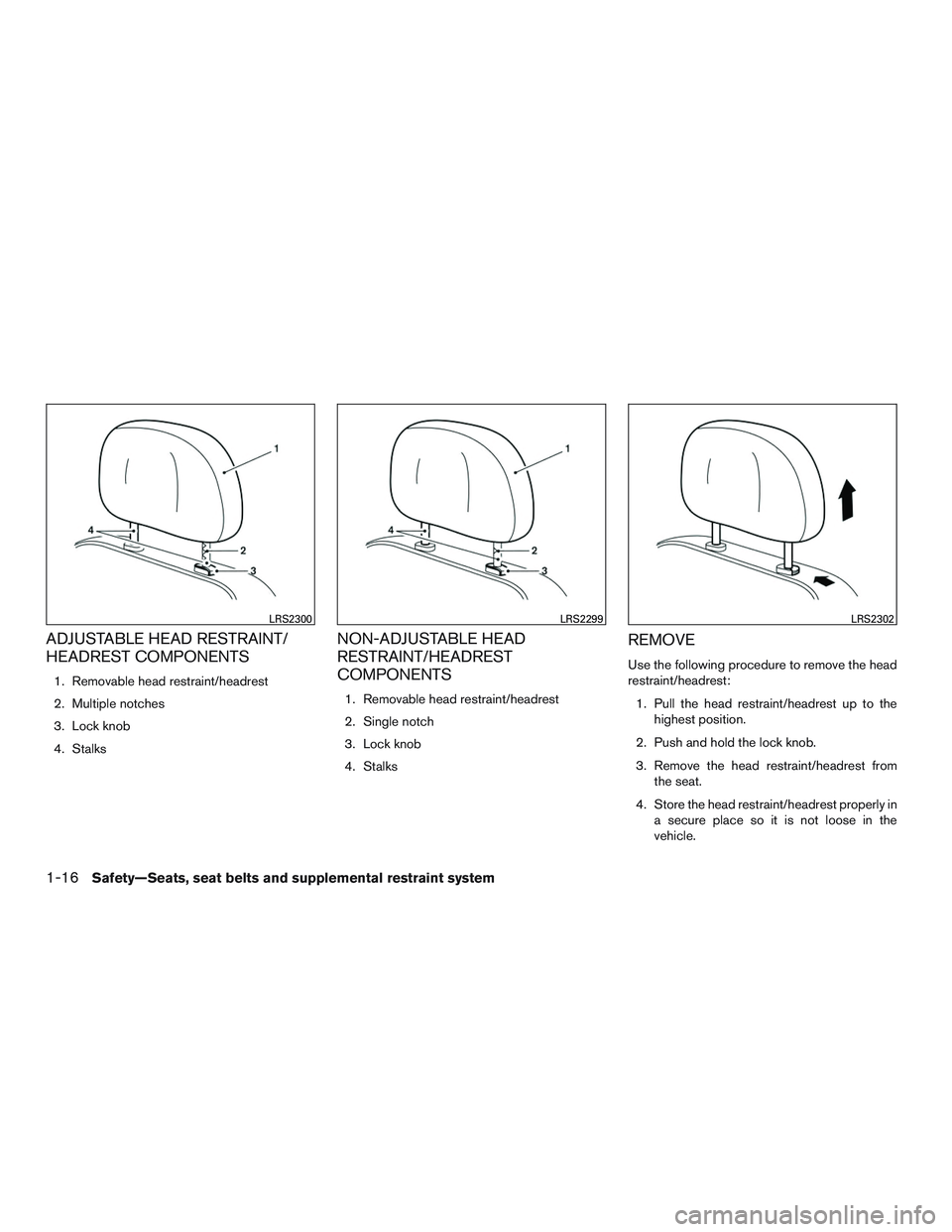

ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
NON-ADJUSTABLE HEAD
RESTRAINT/HEADREST
COMPONENTS
1. Removable head restraint/headrest
2. Single notch
3. Lock knob
4. Stalks
REMOVE
Use the following procedure to remove the head
restraint/headrest:1. Pull the head restraint/headrest up to the highest position.
2. Push and hold the lock knob.
3. Remove the head restraint/headrest from the seat.
4. Store the head restraint/headrest properly in a secure place so it is not loose in the
vehicle.
LRS2300LRS2299LRS2302
1-16Safety—Seats, seat belts and supplemental restraint system

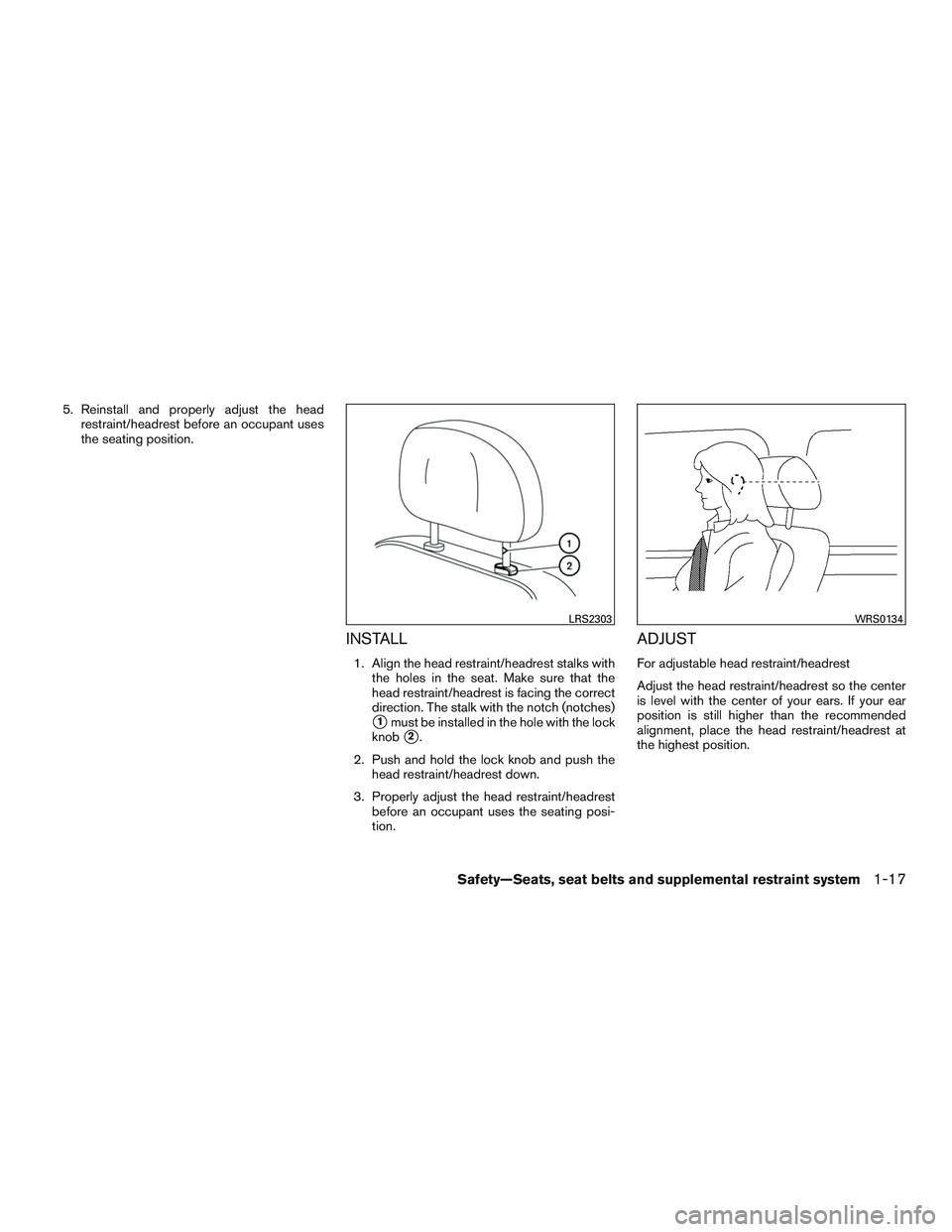

5. Reinstall and properly adjust the headrestraint/headrest before an occupant uses
the seating position.
INSTALL
1. Align the head restraint/headrest stalks withthe holes in the seat. Make sure that the
head restraint/headrest is facing the correct
direction. The stalk with the notch (notches)
1must be installed in the hole with the lock
knob
2.
2. Push and hold the lock knob and push the head restraint/headrest down.
3. Properly adjust the head restraint/headrest before an occupant uses the seating posi-
tion.
ADJUST
For adjustable head restraint/headrest
Adjust the head restraint/headrest so the center
is level with the center of your ears. If your ear
position is still higher than the recommended
alignment, place the head restraint/headrest at
the highest position.
LRS2303WRS0134
Safety—Seats, seat belts and supplemental restraint system1-17

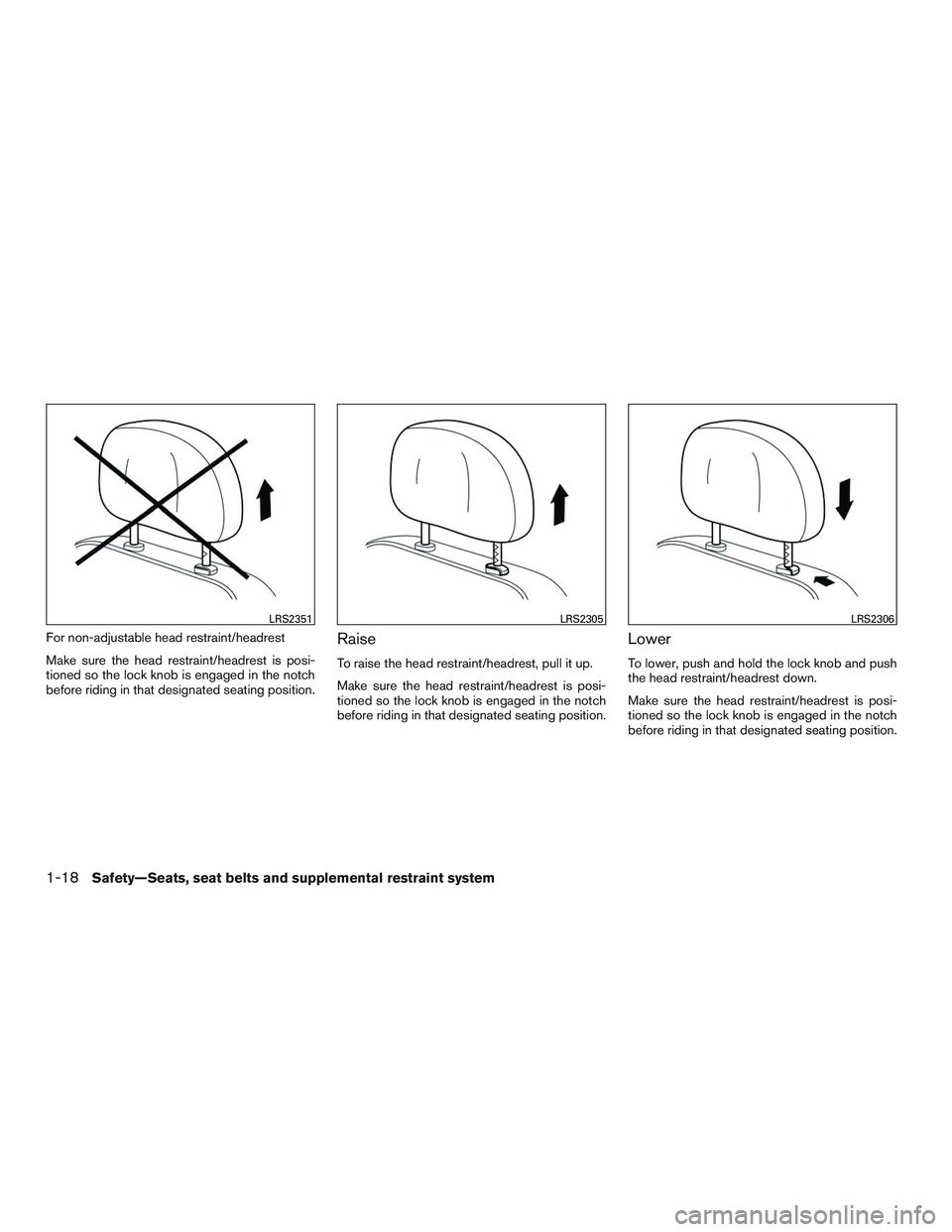

For non-adjustable head restraint/headrest
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.Raise
To raise the head restraint/headrest, pull it up.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
Lower
To lower, push and hold the lock knob and push
the head restraint/headrest down.
Make sure the head restraint/headrest is posi-
tioned so the lock knob is engaged in the notch
before riding in that designated seating position.
LRS2351LRS2305LRS2306
1-18Safety—Seats, seat belts and supplemental restraint system

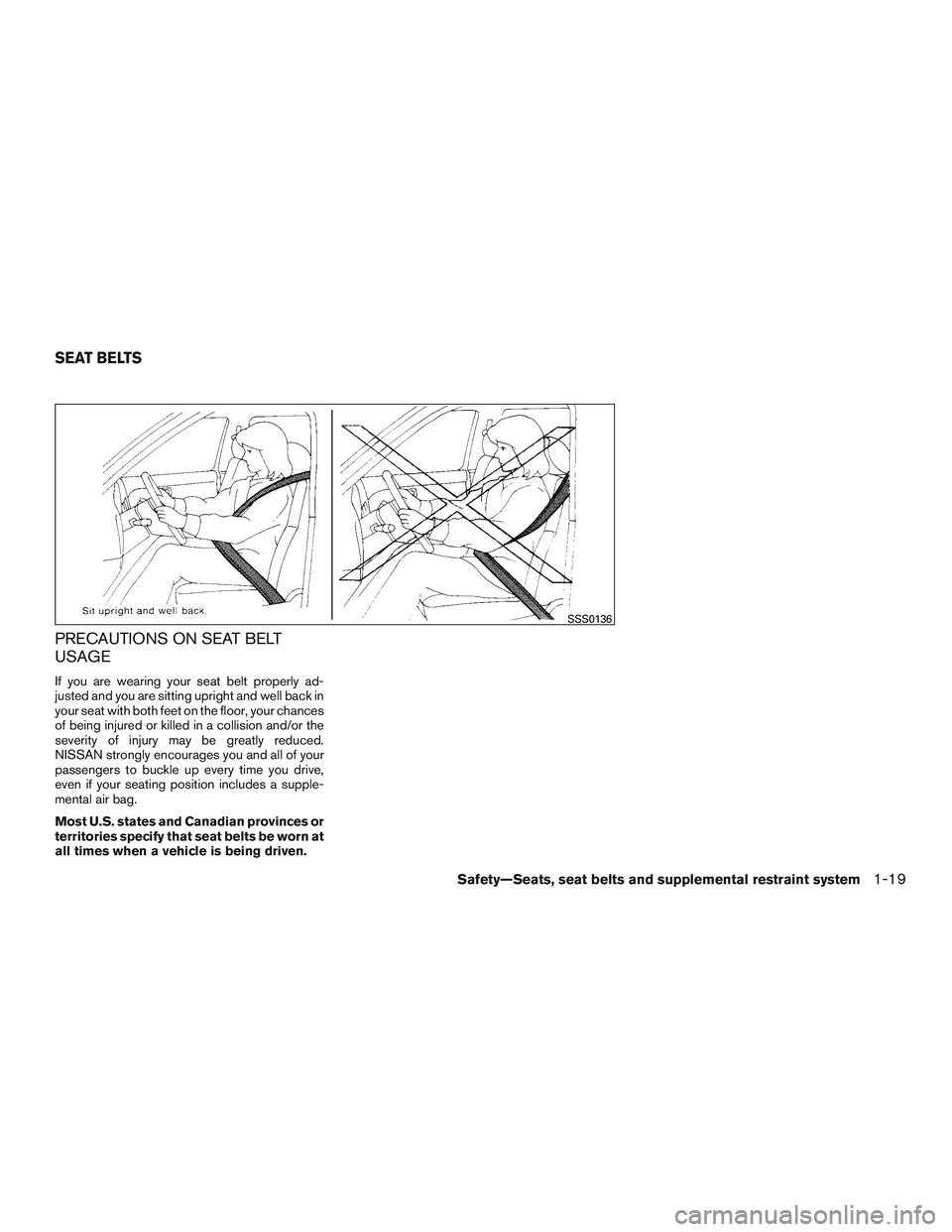

PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed and you are sitting upright and well back in
your seat with both feet on the floor, your chances
of being injured or killed in a collision and/or the
severity of injury may be greatly reduced.
NISSAN strongly encourages you and all of your
passengers to buckle up every time you drive,
even if your seating position includes a supple-
mental air bag.
Most U.S. states and Canadian provinces or
territories specify that seat belts be worn at
all times when a vehicle is being driven.
SSS0136
SEAT BELTS
Safety—Seats, seat belts and supplemental restraint system1-19
