NISSAN NV PASSENGER VAN 2016 Owner's Manual

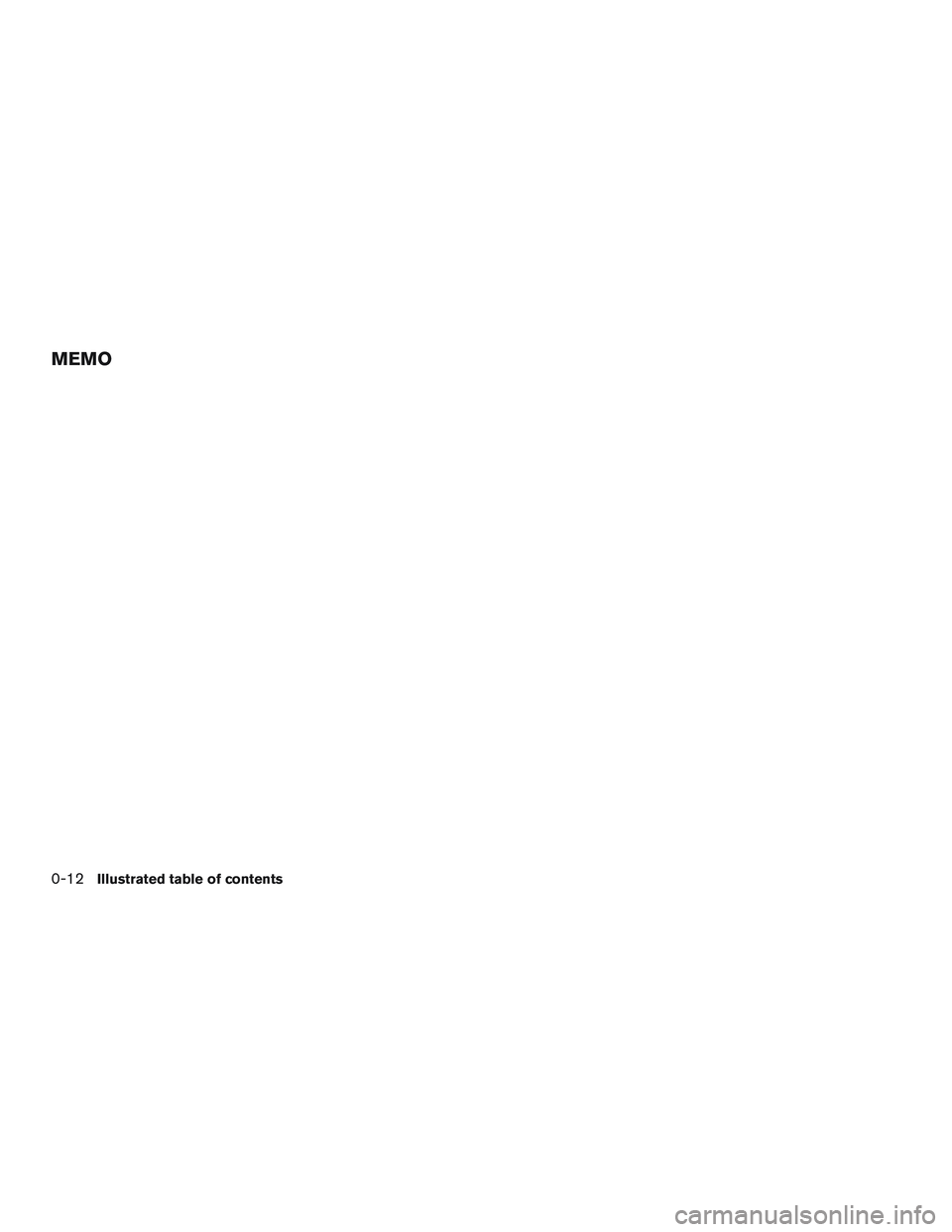

MEMO
0-12Illustrated table of contents

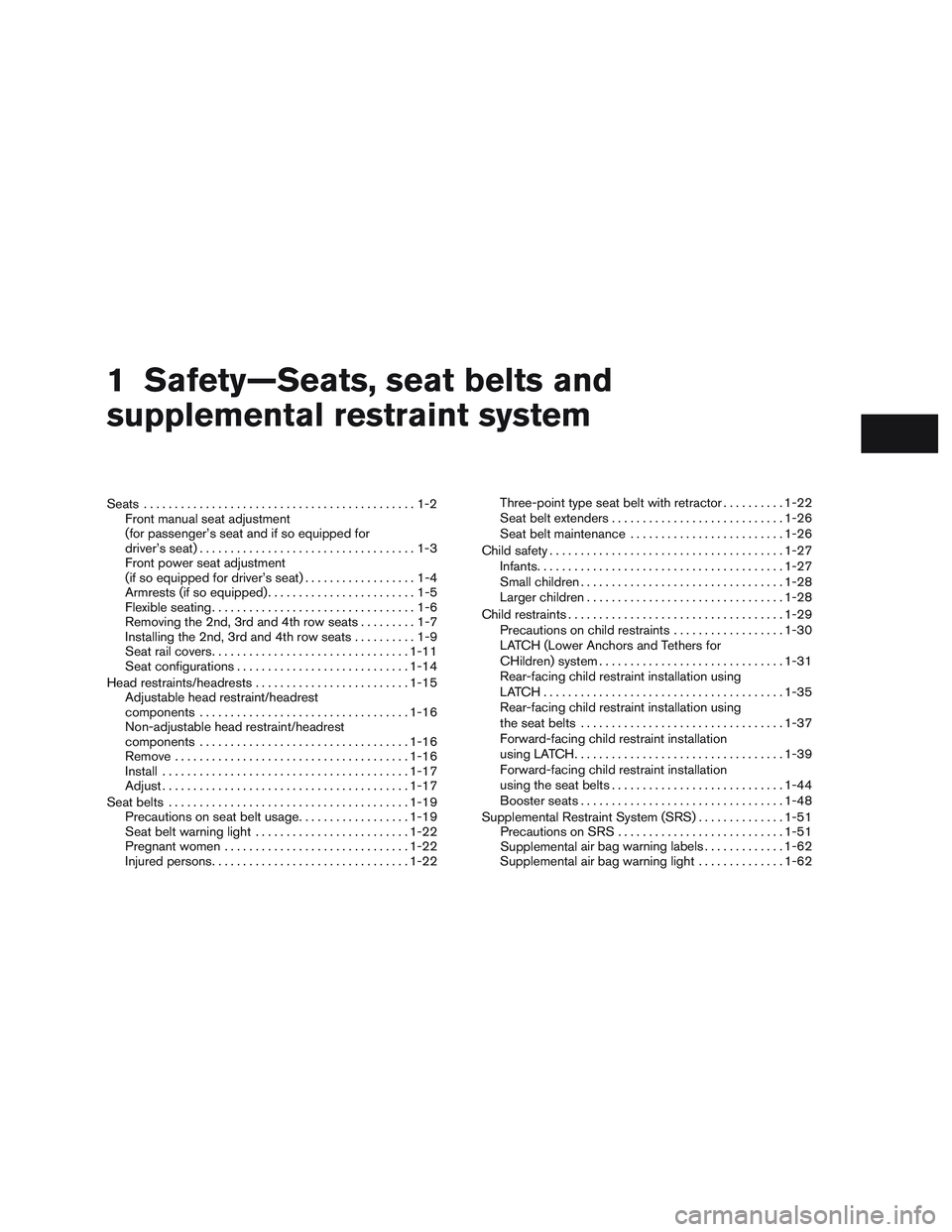

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(for passenger’s seat and if so equipped for
driver’s seat) ...................................1-3
Front power seat adjustment
(if so equipped for driver’s seat) ..................1-4
Armrests (if so equipped) ........................1-5
Flexible seating .................................1-6
Removing the 2nd, 3rd and 4th row seats .........1-7
Installing the 2nd, 3rd and 4th row seats ..........1-9
Seat rail covers ................................ 1-11
Seat configurations ............................ 1-14
Head restraints/headrests ......................... 1-15
Adjustable head restraint/headrest
components .................................. 1-16
Non-adjustable head restraint/headrest
components .................................. 1-16
Remove ...................................... 1-16
Install ........................................ 1-17
Adjust ........................................ 1-17
Seat belts ....................................... 1-19
Precautions on seat belt usage ..................1-19
Seat belt warning light ......................... 1-22
Pregnant women .............................. 1-22
Injured persons ................................ 1-22Three-point type seat belt with retractor
..........1-22
Seat belt extenders ............................ 1-26
Seat belt maintenance ......................... 1-26
Child safety ...................................... 1-27
Infants ........................................ 1-27
Small children ................................. 1-28
Larger children ................................ 1-28
Child restraints ................................... 1-29
Precautions on child restraints ..................1-30
LATCH (Lower Anchors and Tethers for
CHildren) system .............................. 1-31
Rear-facing child restraint installation using
LATCH....................................... 1-35
Rear-facing child restraint installation using
the seat belts ................................. 1-37
Forward-facing child restraint installation
using LATCH .................................. 1-39
Forward-facing child restraint installation
using the seat belts ............................ 1-44
Booster seats ................................. 1-48
Supplemental Restraint System (SRS) ..............1-51
Precautions on SRS ........................... 1-51
Supplemental

air bag warning labels .............1-62
Supplemental air bag warning light ..............1-62

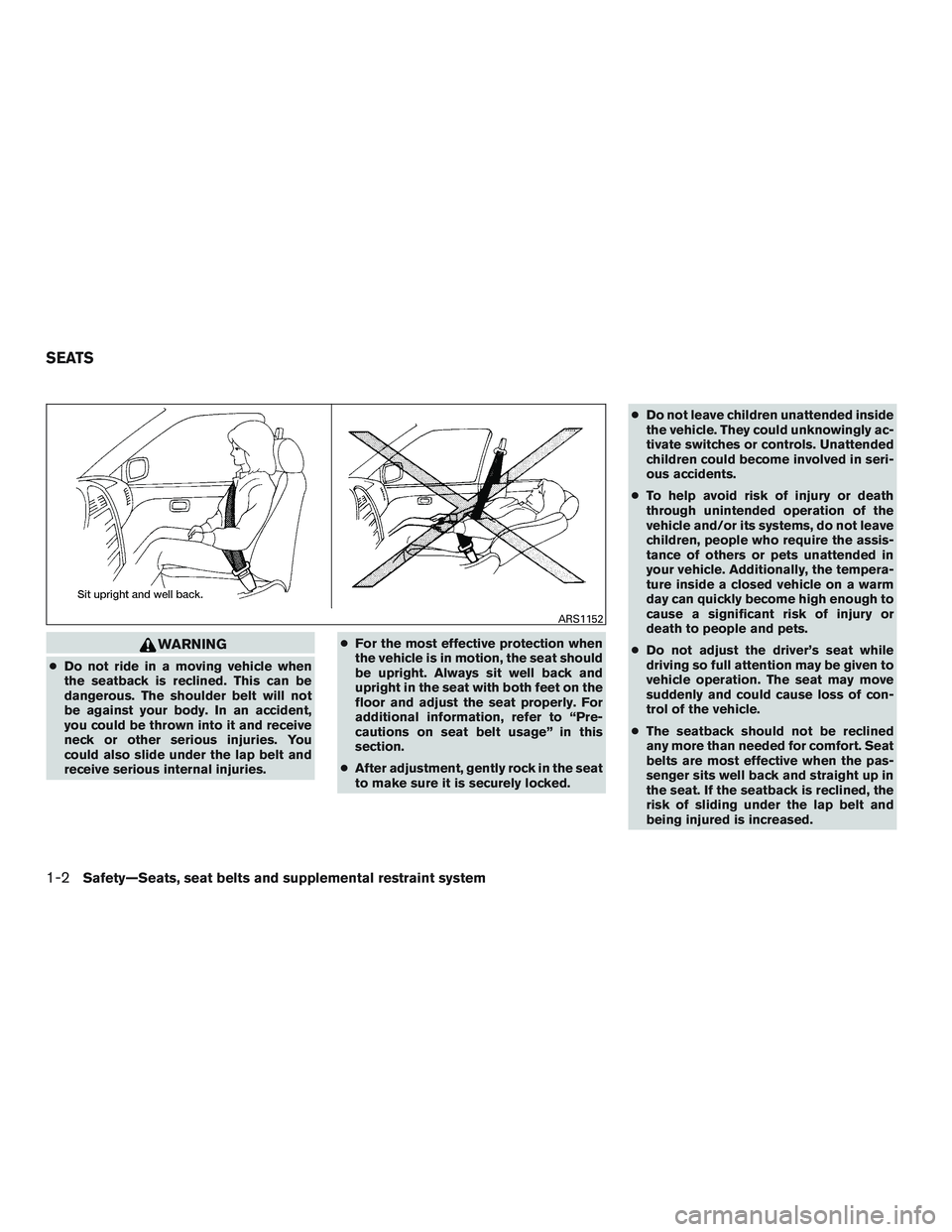

WARNING
●Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. ●
For the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back and
upright in the seat with both feet on the
floor and adjust the seat properly. For
additional information, refer to “Pre-
cautions on seat belt usage” in this
section.
● After adjustment, gently rock in the seat
to make sure it is securely locked. ●
Do not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.
● To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not leave
children, people who require the assis-
tance of others or pets unattended in
your vehicle. Additionally, the tempera-
ture inside a closed vehicle on a warm
day can quickly become high enough to
cause a significant risk of injury or
death to people and pets.
● Do not adjust the driver’s seat while
driving so full attention may be given to
vehicle operation. The seat may move
suddenly and could cause loss of con-
trol of the vehicle.
● The seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

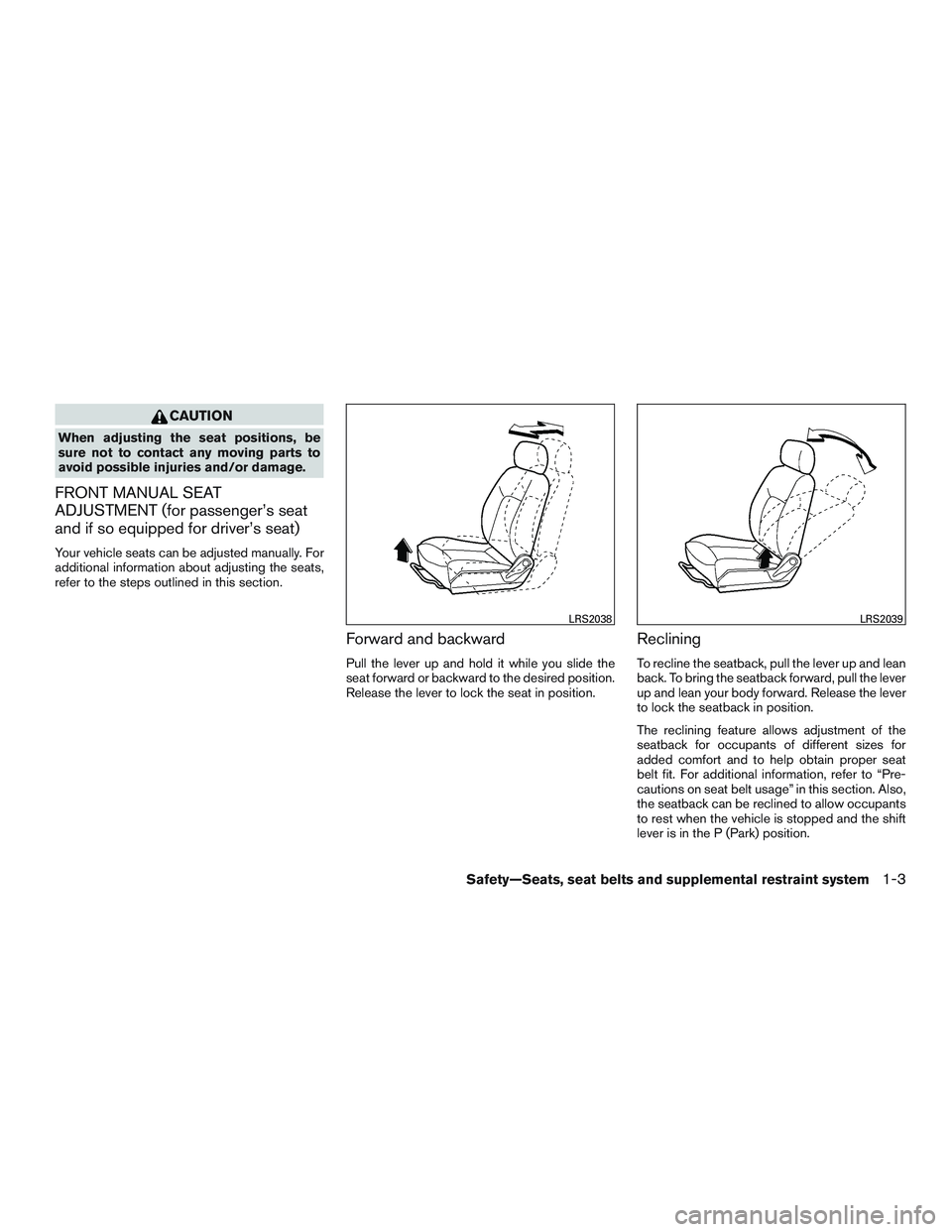

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (for passenger’s seat
and if so equipped for driver’s seat)
Your vehicle seats can be adjusted manually. For
additional information about adjusting the seats,
refer to the steps outlined in this section.
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in the P (Park) position.
LRS2038LRS2039
Safety—Seats, seat belts and supplemental restraint system1-3

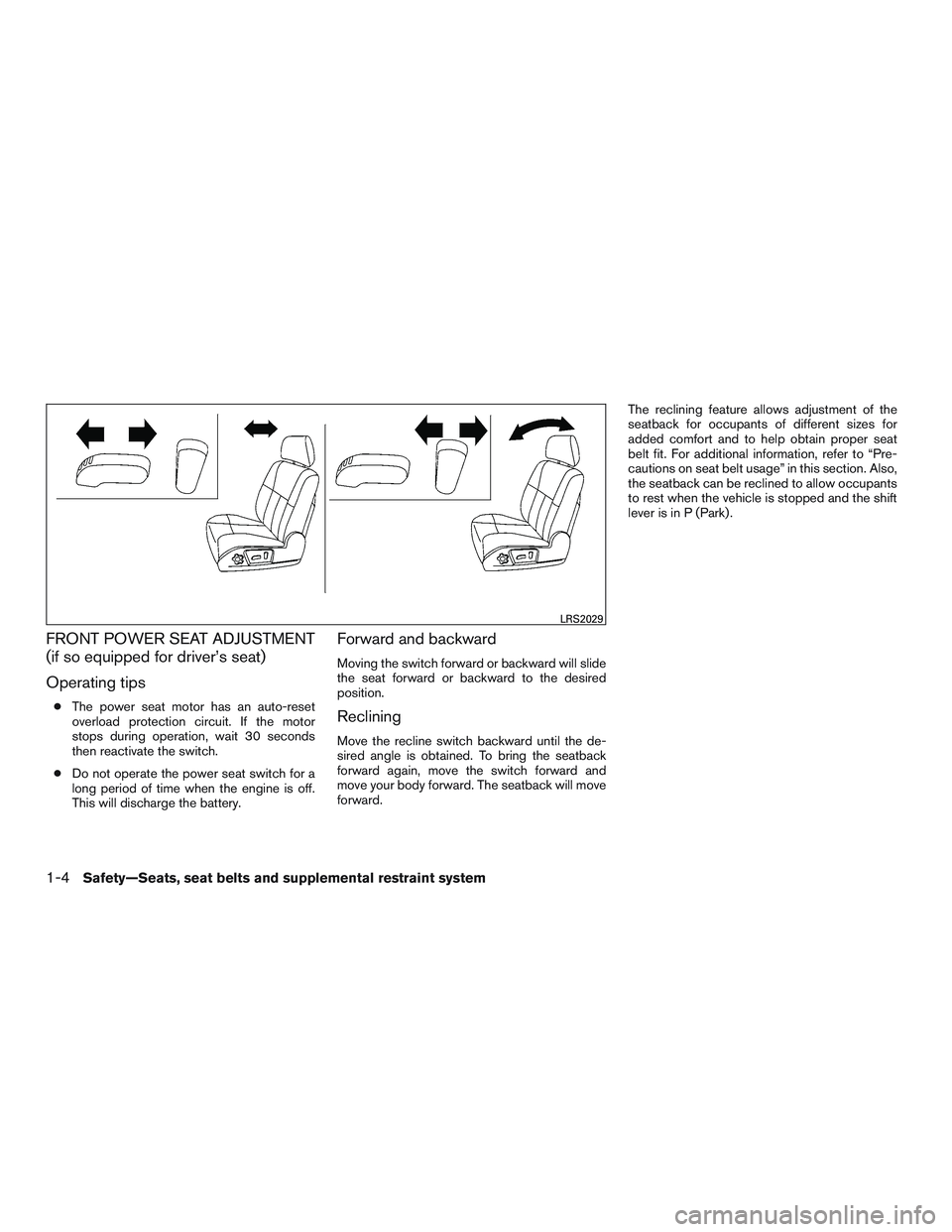

FRONT POWER SEAT ADJUSTMENT
(if so equipped for driver’s seat)
Operating tips
●The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds
then reactivate the switch.
● Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
Forward and backward
Moving the switch forward or backward will slide
the seat forward or backward to the desired
position.
Reclining
Move the recline switch backward until the de-
sired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward. The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. For additional information, refer to “Pre-
cautions on seat belt usage” in this section. Also,
the seatback can be reclined to allow occupants
to rest when the vehicle is stopped and the shift
lever is in P (Park) .
LRS2029
1-4Safety—Seats, seat belts and supplemental restraint system

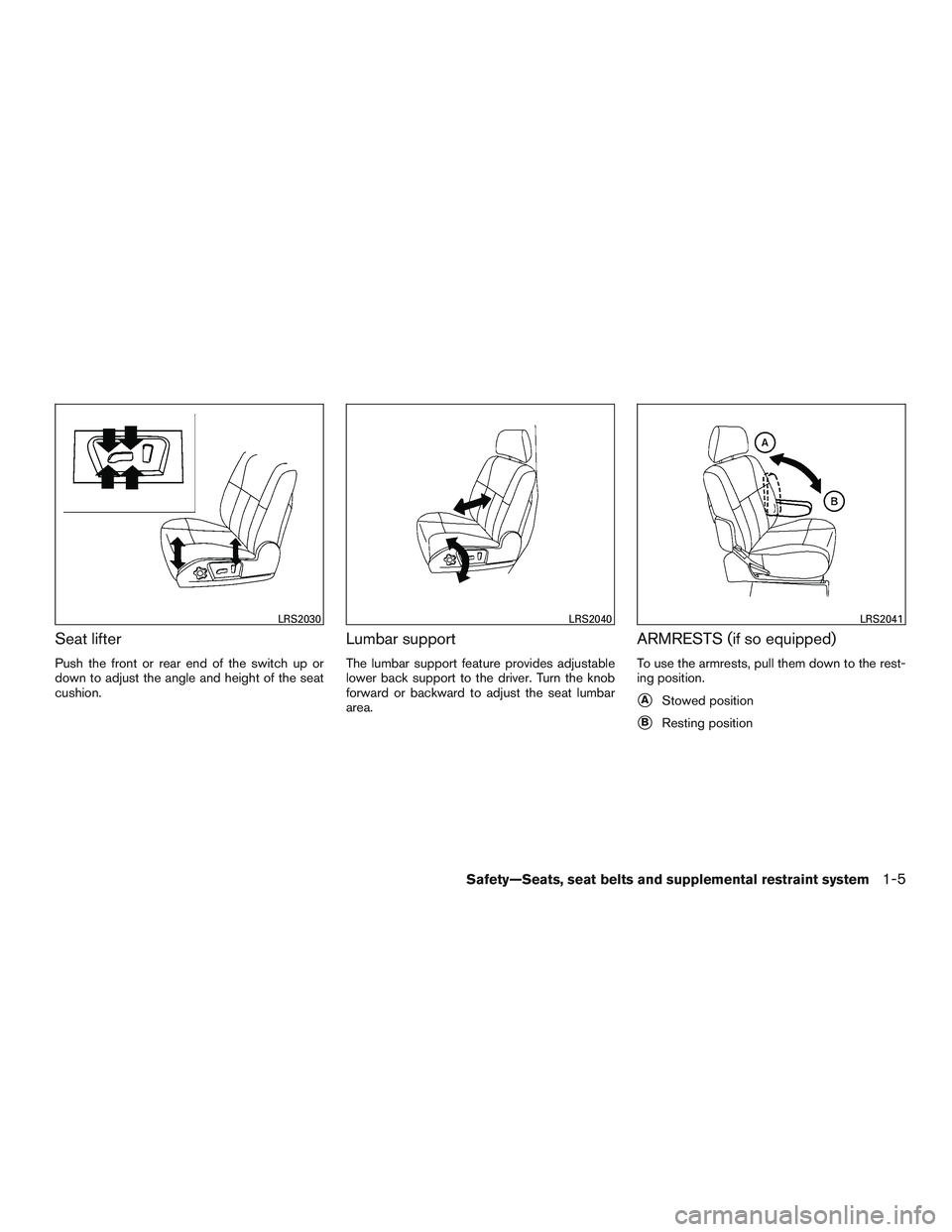

Seat lifter
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
Lumbar support
The lumbar support feature provides adjustable
lower back support to the driver. Turn the knob
forward or backward to adjust the seat lumbar
area.
ARMRESTS (if so equipped)
To use the armrests, pull them down to the rest-
ing position.
AStowed position
BResting position
LRS2030LRS2040LRS2041
Safety—Seats, seat belts and supplemental restraint system1-5

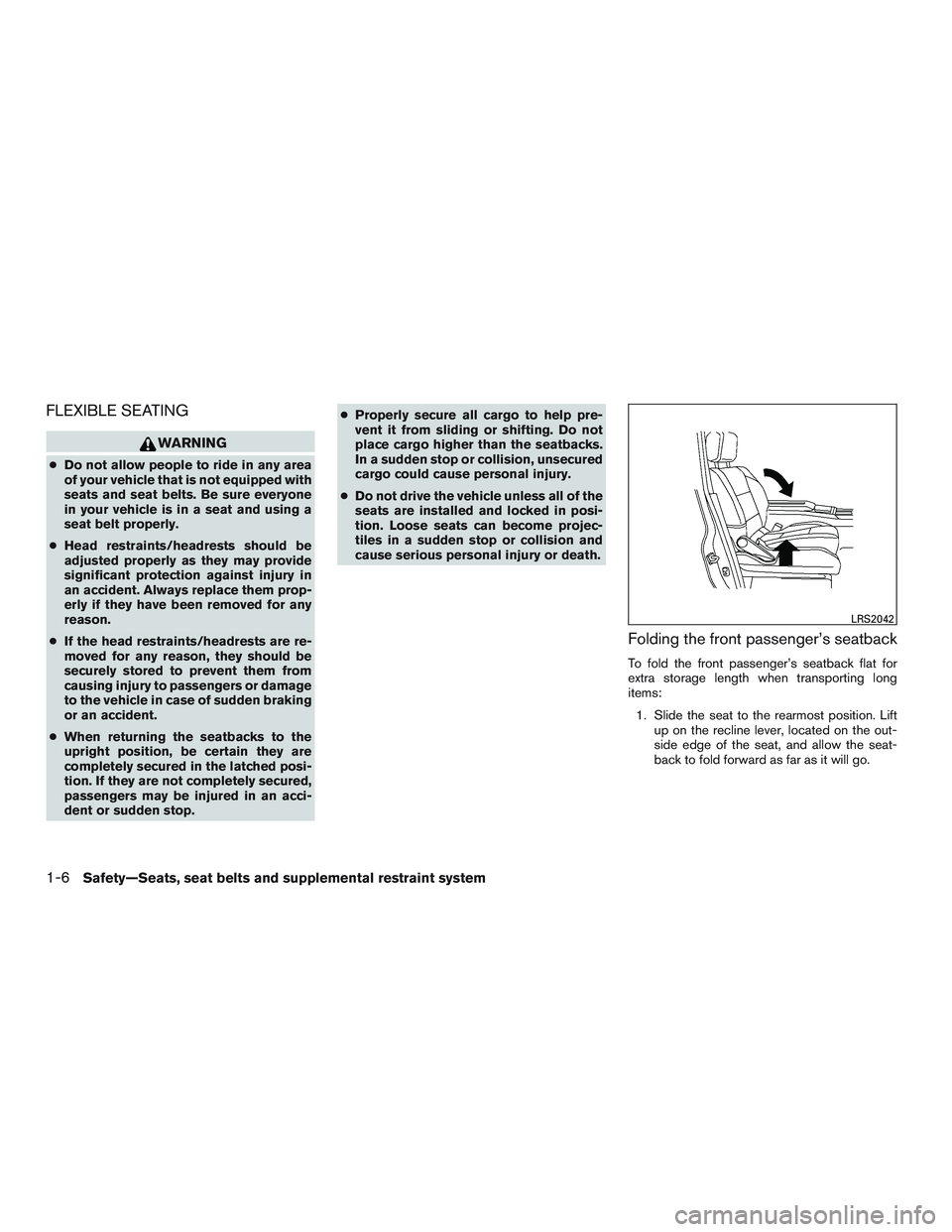

FLEXIBLE SEATING
WARNING
●Do not allow people to ride in any area
of your vehicle that is not equipped with
seats and seat belts. Be sure everyone
in your vehicle is in a seat and using a
seat belt properly.
● Head restraints/headrests should be
adjusted properly as they may provide
significant protection against injury in
an accident. Always replace them prop-
erly if they have been removed for any
reason.
● If the head restraints/headrests are re-
moved for any reason, they should be
securely stored to prevent them from
causing injury to passengers or damage
to the vehicle in case of sudden braking
or an accident.
● When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched posi-
tion. If they are not completely secured,
passengers may be injured in an acci-
dent or sudden stop. ●
Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seatbacks.
In a sudden stop or collision, unsecured
cargo could cause personal injury.
● Do not drive the vehicle unless all of the
seats are installed and locked in posi-
tion. Loose seats can become projec-
tiles in a sudden stop or collision and
cause serious personal injury or death.
Folding the front passenger’s seatback
To fold the front passenger’s seatback flat for
extra storage length when transporting long
items:
1. Slide the seat to the rearmost position. Lift up on the recline lever, located on the out-
side edge of the seat, and allow the seat-
back to fold forward as far as it will go.
LRS2042
1-6Safety—Seats, seat belts and supplemental restraint system

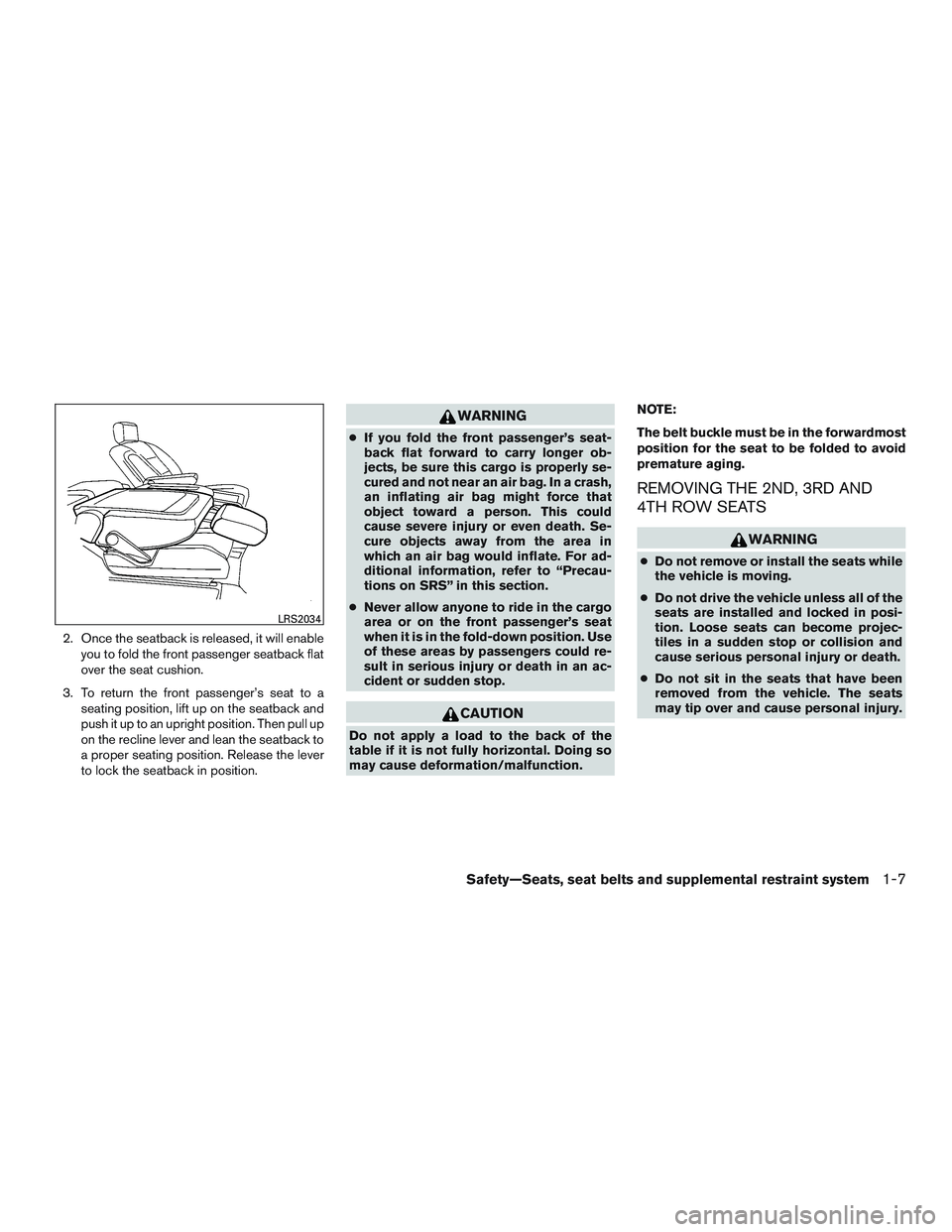

2. Once the seatback is released, it will enableyou to fold the front passenger seatback flat
over the seat cushion.
3. To return the front passenger’s seat to a seating position, lift up on the seatback and
push it up to an upright position. Then pull up
on the recline lever and lean the seatback to
a proper seating position. Release the lever
to lock the seatback in position.
WARNING
●If you fold the front passenger’s seat-
back flat forward to carry longer ob-
jects, be sure this cargo is properly se-
cured and not near an air bag. In a crash,
an inflating air bag might force that
object toward a person. This could
cause severe injury or even death. Se-
cure objects away from the area in
which an air bag would inflate. For ad-
ditional information, refer to “Precau-
tions on SRS” in this section.
● Never allow anyone to ride in the cargo
area or on the front passenger’s seat
when it is in the fold-down position. Use
of these areas by passengers could re-
sult in serious injury or death in an ac-
cident or sudden stop.
CAUTION
Do not apply a load to the back of the
table if it is not fully horizontal. Doing so
may cause deformation/malfunction. NOTE:
The belt buckle must be in the forwardmost
position for the seat to be folded to avoid
premature aging.
REMOVING THE 2ND, 3RD AND
4TH ROW SEATS
WARNING
●
Do not remove or install the seats while
the vehicle is moving.
● Do not drive the vehicle unless all of the
seats are installed and locked in posi-
tion. Loose seats can become projec-
tiles in a sudden stop or collision and
cause serious personal injury or death.
● Do not sit in the seats that have been
removed from the vehicle. The seats
may tip over and cause personal injury.
LRS2034
Safety—Seats, seat belts and supplemental restraint system1-7

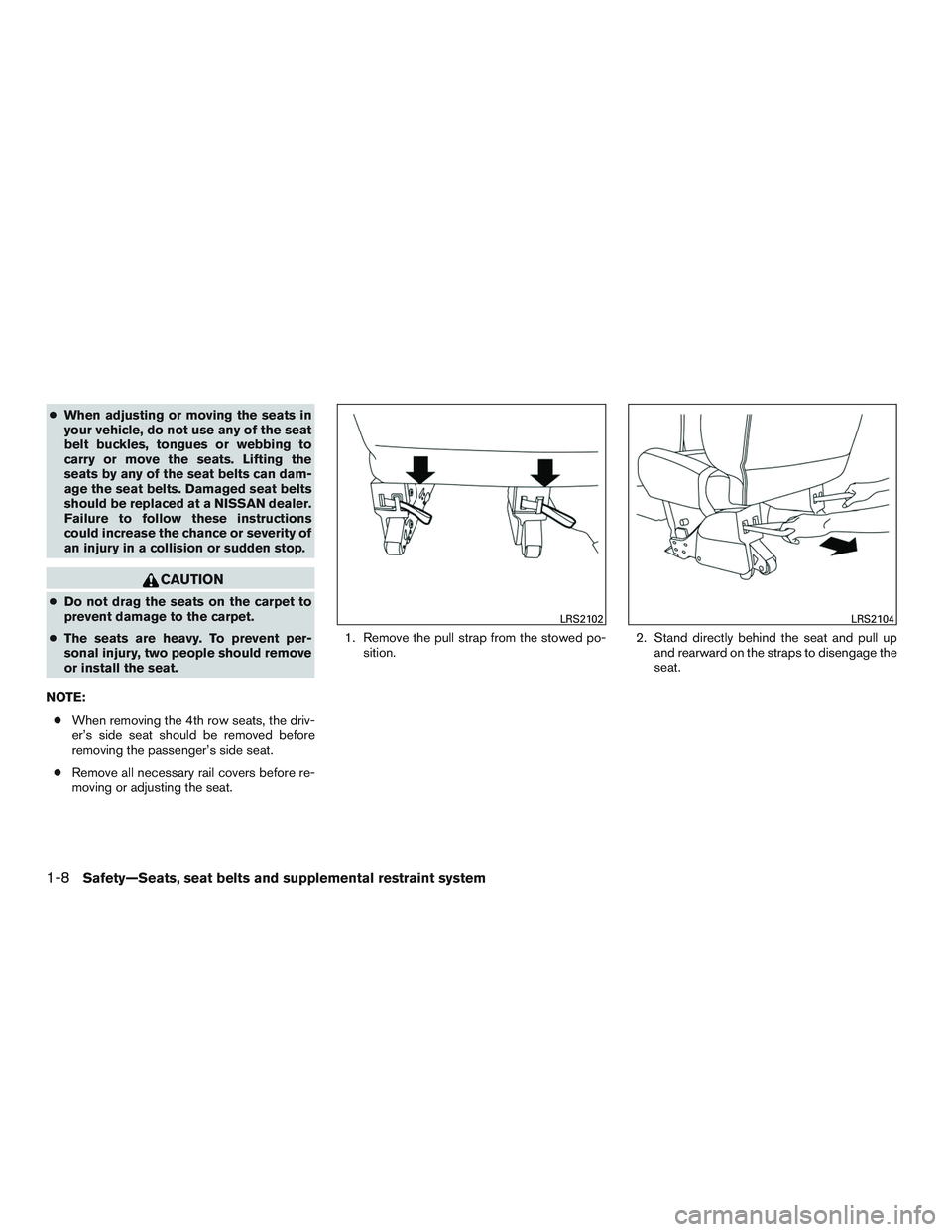

●When adjusting or moving the seats in
your vehicle, do not use any of the seat
belt buckles, tongues or webbing to
carry or move the seats. Lifting the
seats by any of the seat belts can dam-
age the seat belts. Damaged seat belts
should be replaced at a NISSAN dealer.
Failure to follow these instructions
could increase the chance or severity of
an injury in a collision or sudden stop.
CAUTION
● Do not drag the seats on the carpet to
prevent damage to the carpet.
● The seats are heavy. To prevent per-
sonal injury, two people should remove
or install the seat.
NOTE: ● When removing the 4th row seats, the driv-
er’s side seat should be removed before
removing the passenger’s side seat.
● Remove all necessary rail covers before re-
moving or adjusting the seat. 1. Remove the pull strap from the stowed po-
sition. 2. Stand directly behind the seat and pull up
and rearward on the straps to disengage the
seat.
LRS2102LRS2104
1-8Safety—Seats, seat belts and supplemental restraint system

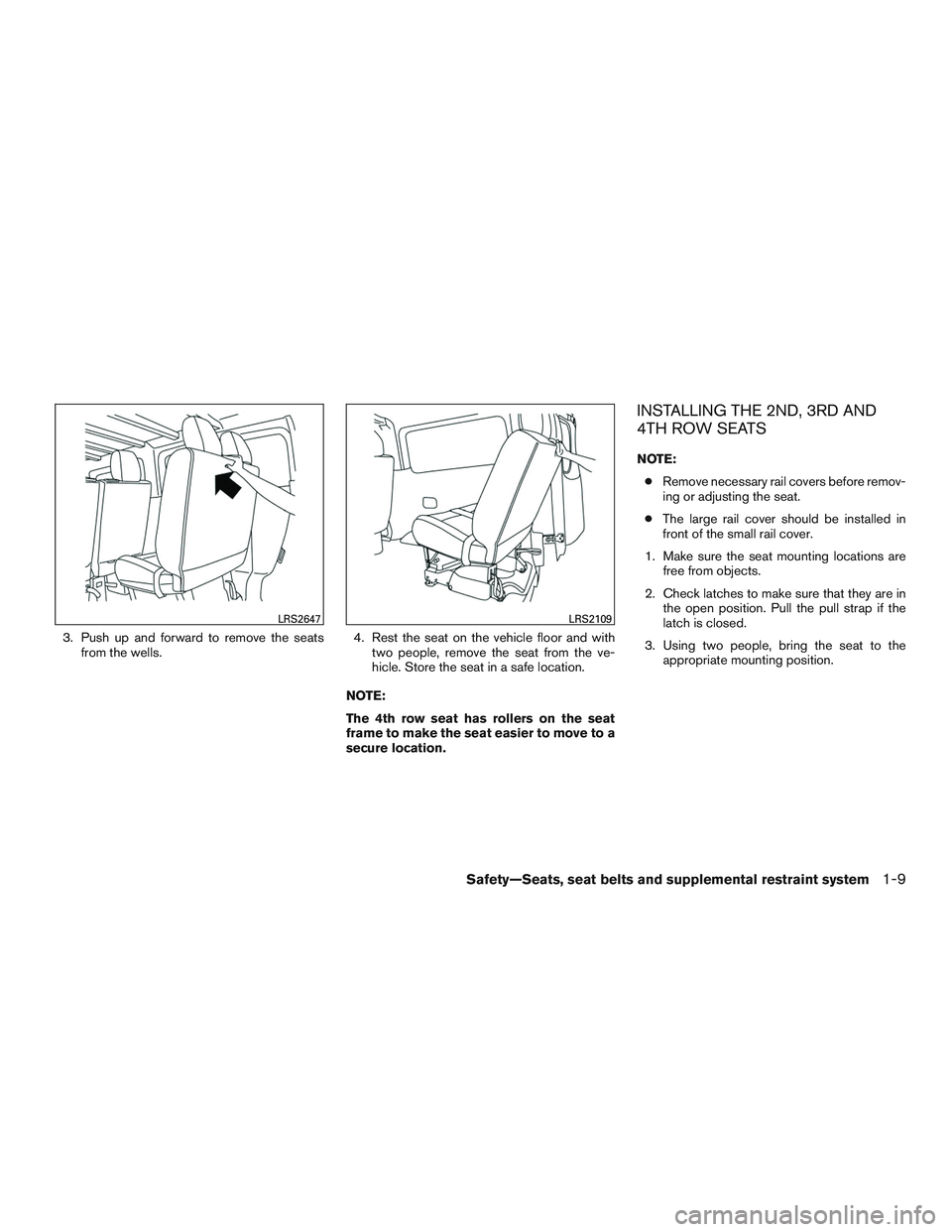

3. Push up and forward to remove the seatsfrom the wells. 4. Rest the seat on the vehicle floor and with
two people, remove the seat from the ve-
hicle. Store the seat in a safe location.
NOTE:
The 4th row seat has rollers on the seat
frame to make the seat easier to move to a
secure location.
INSTALLING THE 2ND, 3RD AND
4TH ROW SEATS
NOTE: ● Remove necessary rail covers before remov-
ing or adjusting the seat.
● The large rail cover should be installed in
front of the small rail cover.
1. Make sure the seat mounting locations are free from objects.
2. Check latches to make sure that they are in the open position. Pull the pull strap if the
latch is closed.
3. Using two people, bring the seat to the appropriate mounting position.
LRS2647LRS2109
Safety—Seats, seat belts and supplemental restraint system1-9
