NISSAN NV PASSENGER VAN 2018 Owners Manual

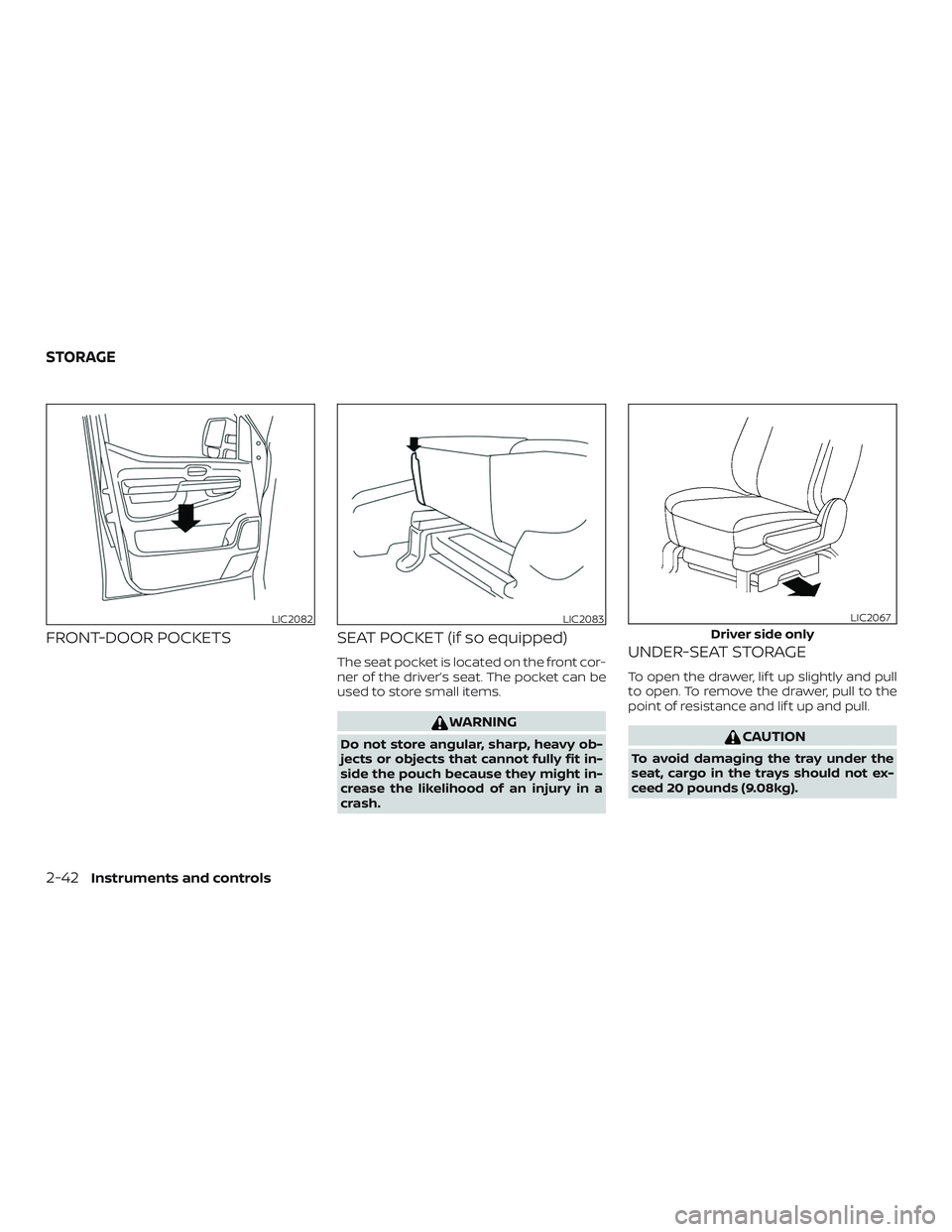

FRONT-DOOR POCKETSSEAT POCKET (if so equipped)
The seat pocket is located on the front cor-
ner of the driver’s seat. The pocket can be
used to store small items.
WARNING
Do not store angular, sharp, heavy ob-
jects or objects that cannot fully fit in-
side the pouch because they might in-
crease the likelihood of an injury in a
crash.
UNDER-SEAT STORAGE
To open the drawer, lif t up slightly and pull
to open. To remove the drawer, pull to the
point of resistance and lif t up and pull.
CAUTION
To avoid damaging the tray under the
seat, cargo in the trays should not ex-
ceed 20 pounds (9.08kg).
LIC2082LIC2083
Driver side only
LIC2067
STORAGE
2-42Instruments and controls

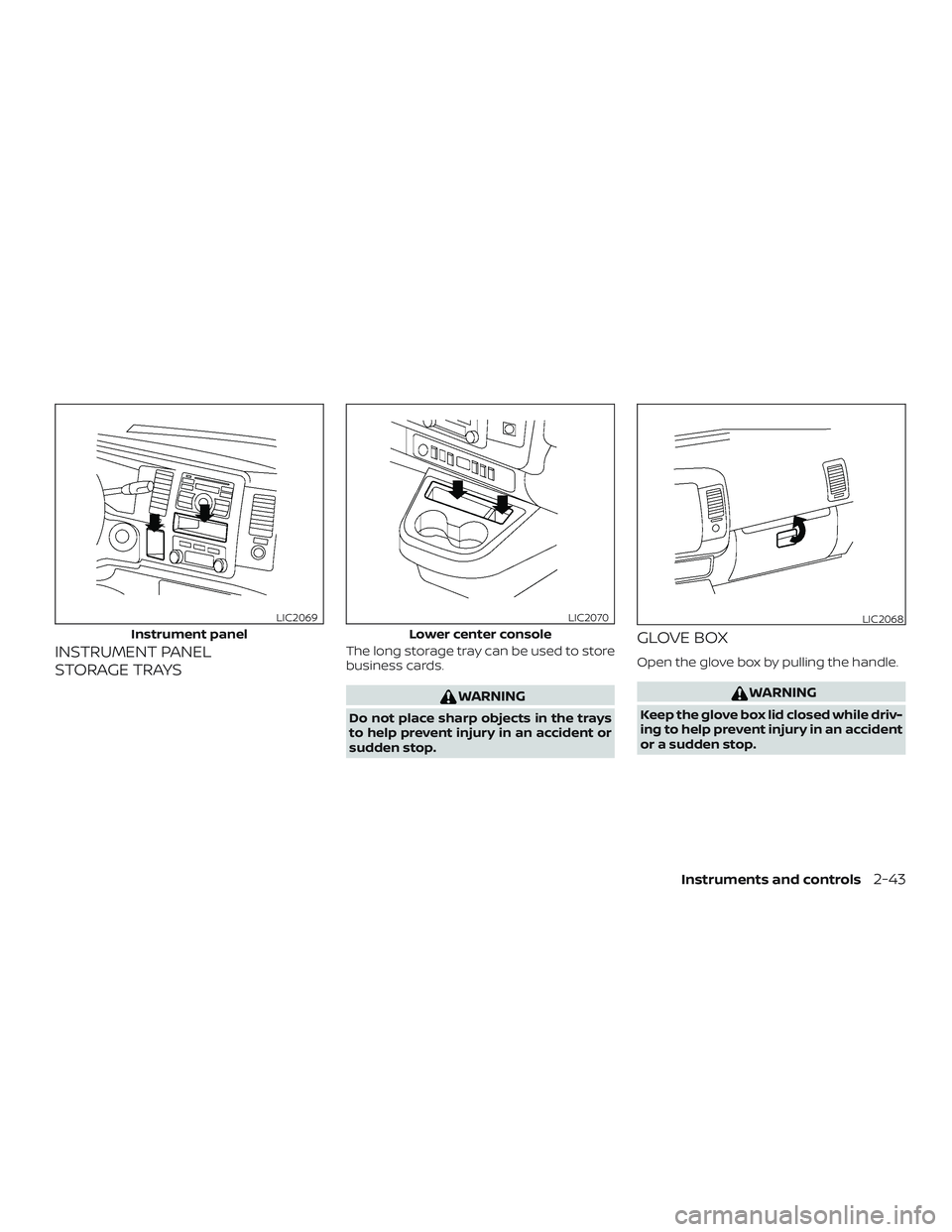

INSTRUMENT PANEL
STORAGE TRAYSThe long storage tray can be used to store
business cards.
WARNING
Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep the glove box lid closed while driv-
ing to help prevent injury in an accident
or a sudden stop.
Instrument panel
LIC2069
Lower center console
LIC2070LIC2068
Instruments and controls2-43

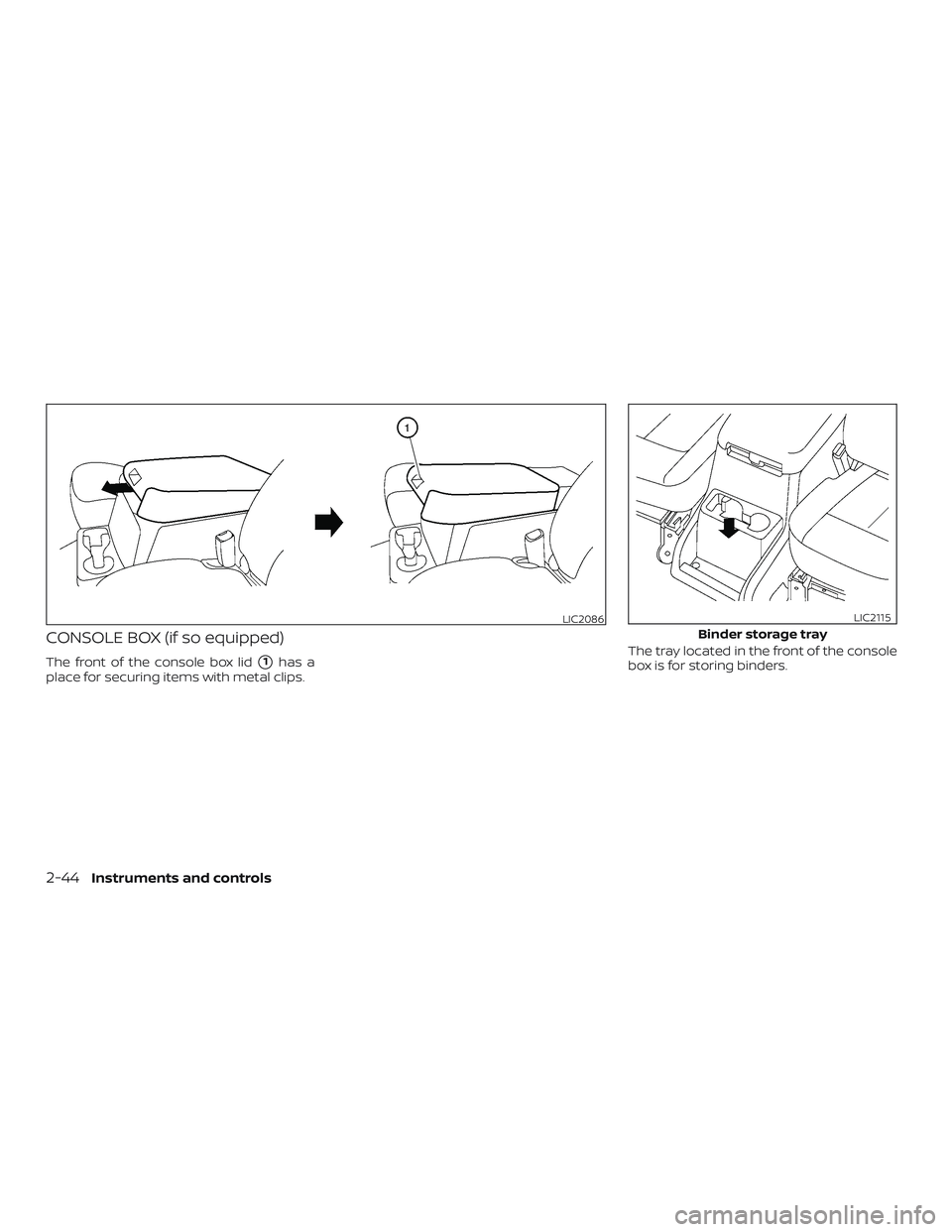

CONSOLE BOX (if so equipped)
The front of the console box lid1has a
place for securing items with metal clips. The tray located in the front of the console
box is for storing binders.
LIC2086
Binder storage tray
LIC2115
2-44Instruments and controls

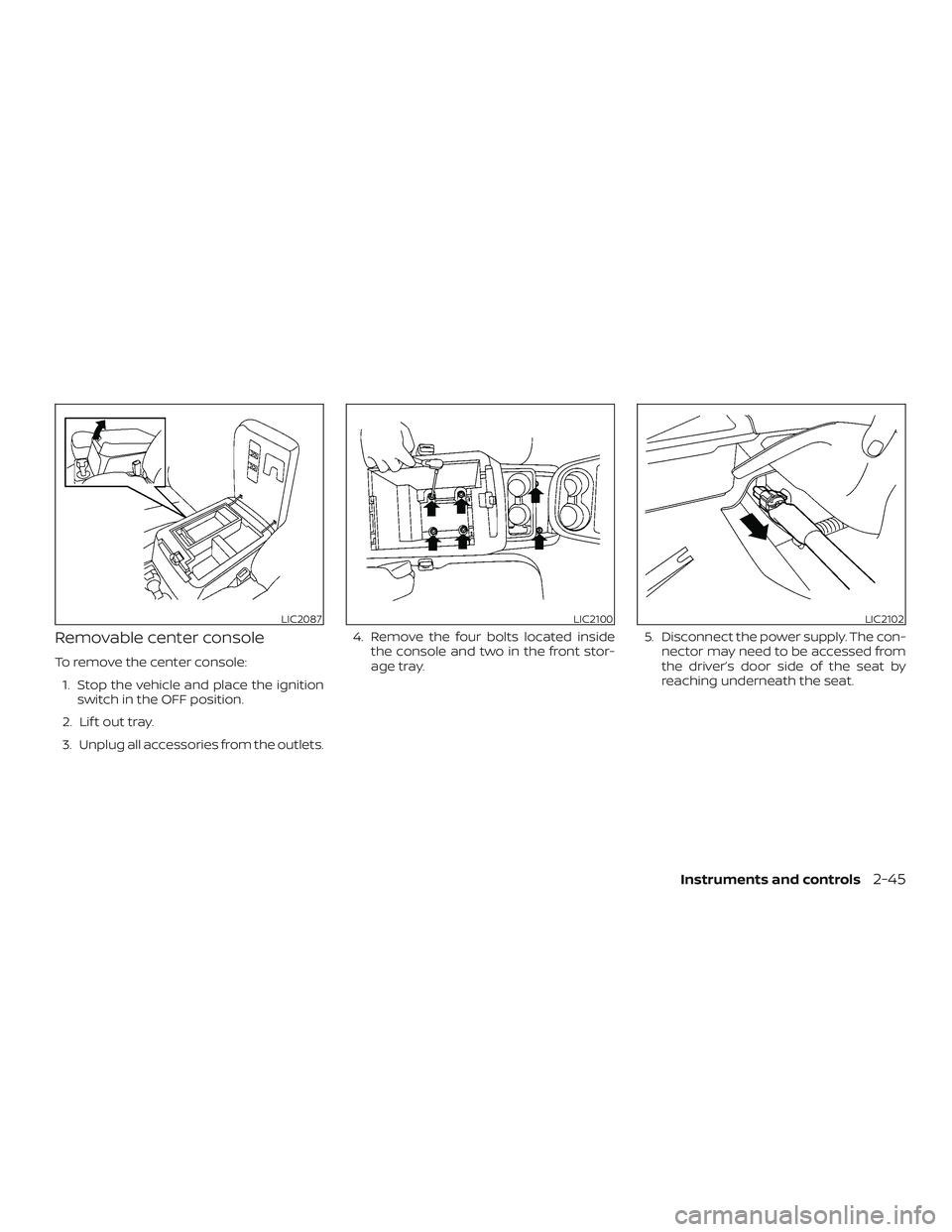

Removable center console
To remove the center console:1. Stop the vehicle and place the ignition switch in the OFF position.
2. Lif t out tray.
3. Unplug all accessories from the outlets. 4. Remove the four bolts located inside
the console and two in the front stor-
age tray. 5. Disconnect the power supply. The con-
nector may need to be accessed from
the driver’s door side of the seat by
reaching underneath the seat.
LIC2087LIC2100LIC2102
Instruments and controls2-45

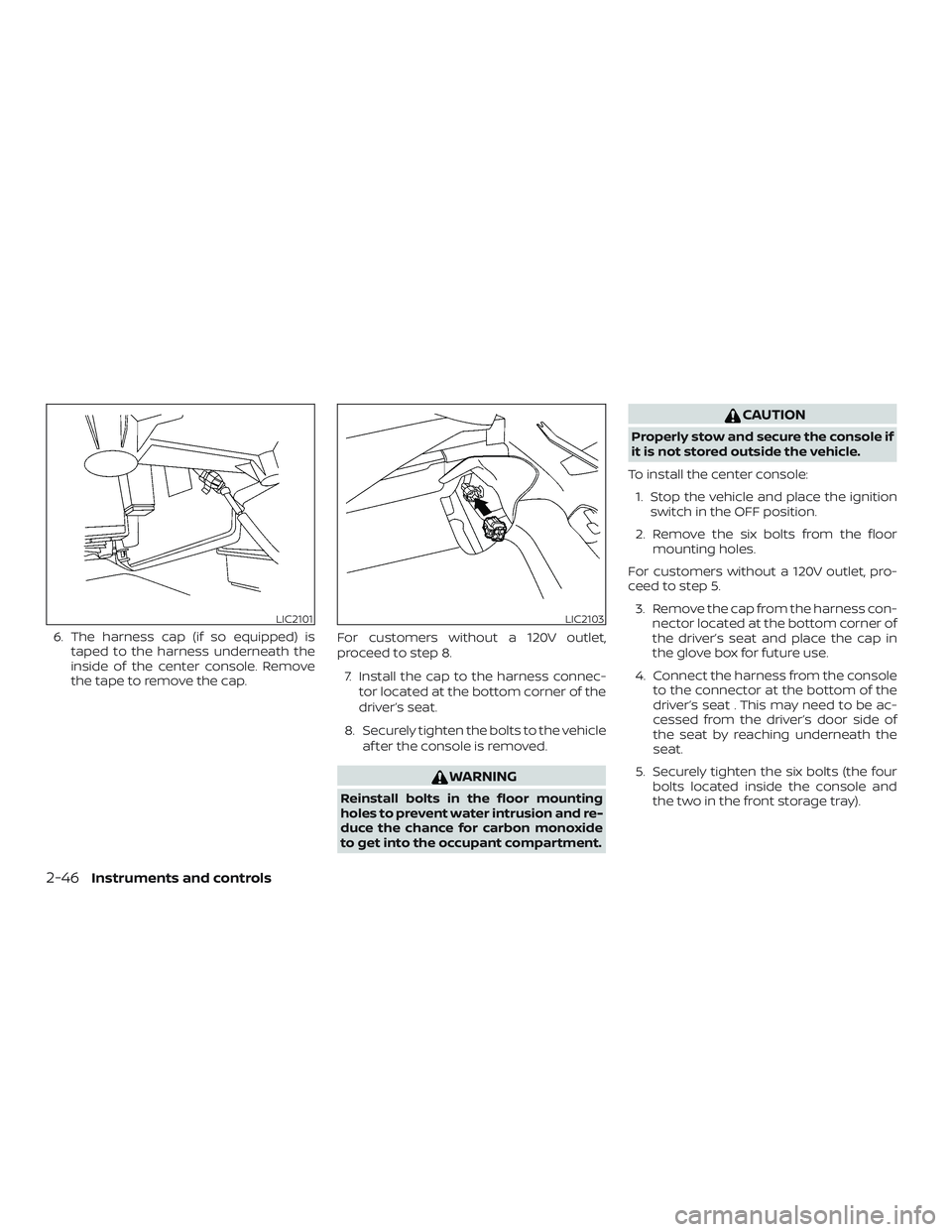

6. The harness cap (if so equipped) istaped to the harness underneath the
inside of the center console. Remove
the tape to remove the cap. For customers without a 120V outlet,
proceed to step 8.
7. Install the cap to the harness connec- tor located at the bottom corner of the
driver’s seat.
8. Securely tighten the bolts to the vehicle af ter the console is removed.
WARNING
Reinstall bolts in the floor mounting
holes to prevent water intrusion and re-
duce the chance for carbon monoxide
to get into the occupant compartment.
CAUTION
Properly stow and secure the console if
it is not stored outside the vehicle.
To install the center console: 1. Stop the vehicle and place the ignition switch in the OFF position.
2. Remove the six bolts from the floor mounting holes.
For customers without a 120V outlet, pro-
ceed to step 5. 3. Remove the cap from the harness con- nector located at the bottom corner of
the driver’s seat and place the cap in
the glove box for future use.
4. Connect the harness from the console to the connector at the bottom of the
driver’s seat . This may need to be ac-
cessed from the driver’s door side of
the seat by reaching underneath the
seat.
5. Securely tighten the six bolts (the four bolts located inside the console and
the two in the front storage tray).
LIC2101LIC2103
2-46Instruments and controls

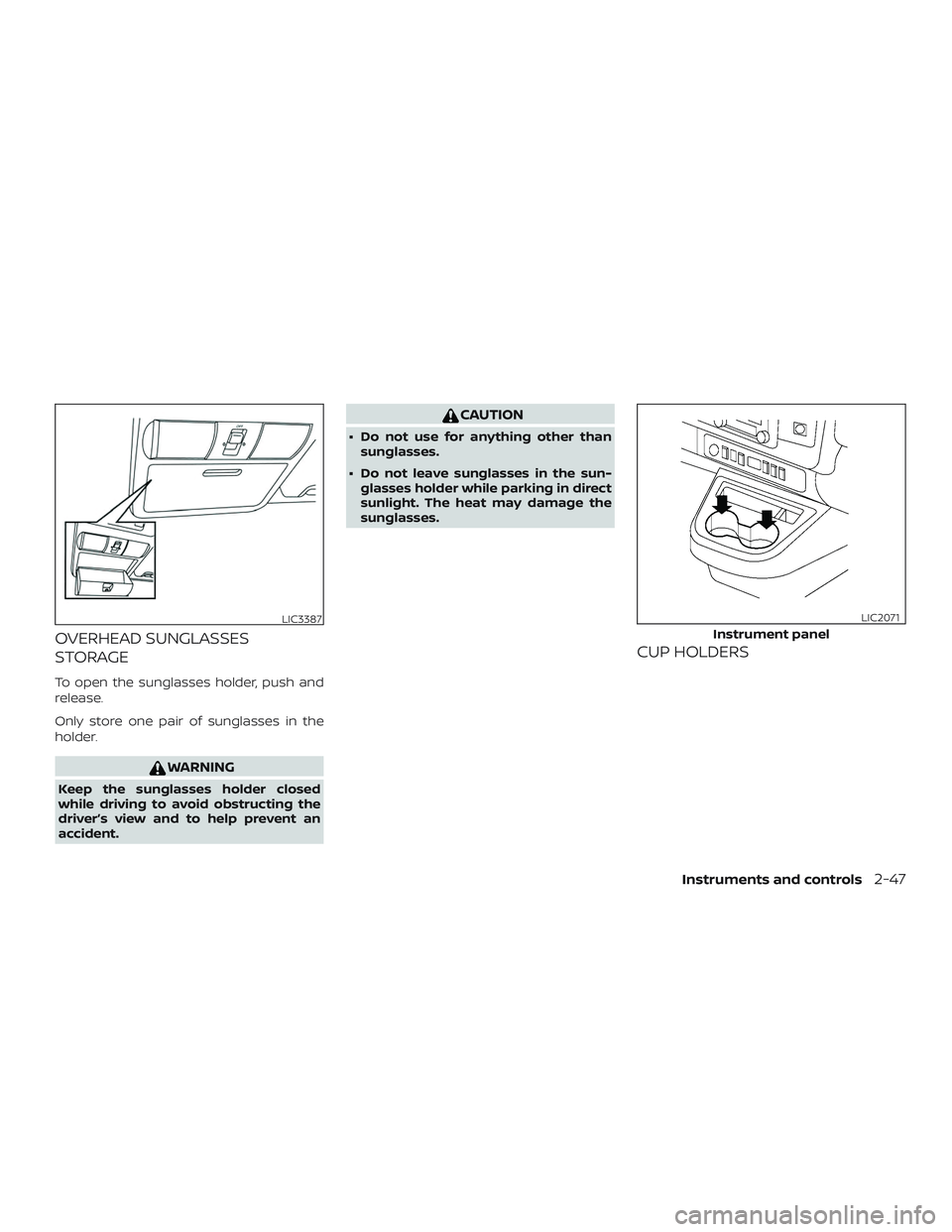

OVERHEAD SUNGLASSES
STORAGE
To open the sunglasses holder, push and
release.
Only store one pair of sunglasses in the
holder.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver’s view and to help prevent an
accident.
CAUTION
∙ Do not use for anything other thansunglasses.
∙ Do not leave sunglasses in the sun- glasses holder while parking in direct
sunlight. The heat may damage the
sunglasses.

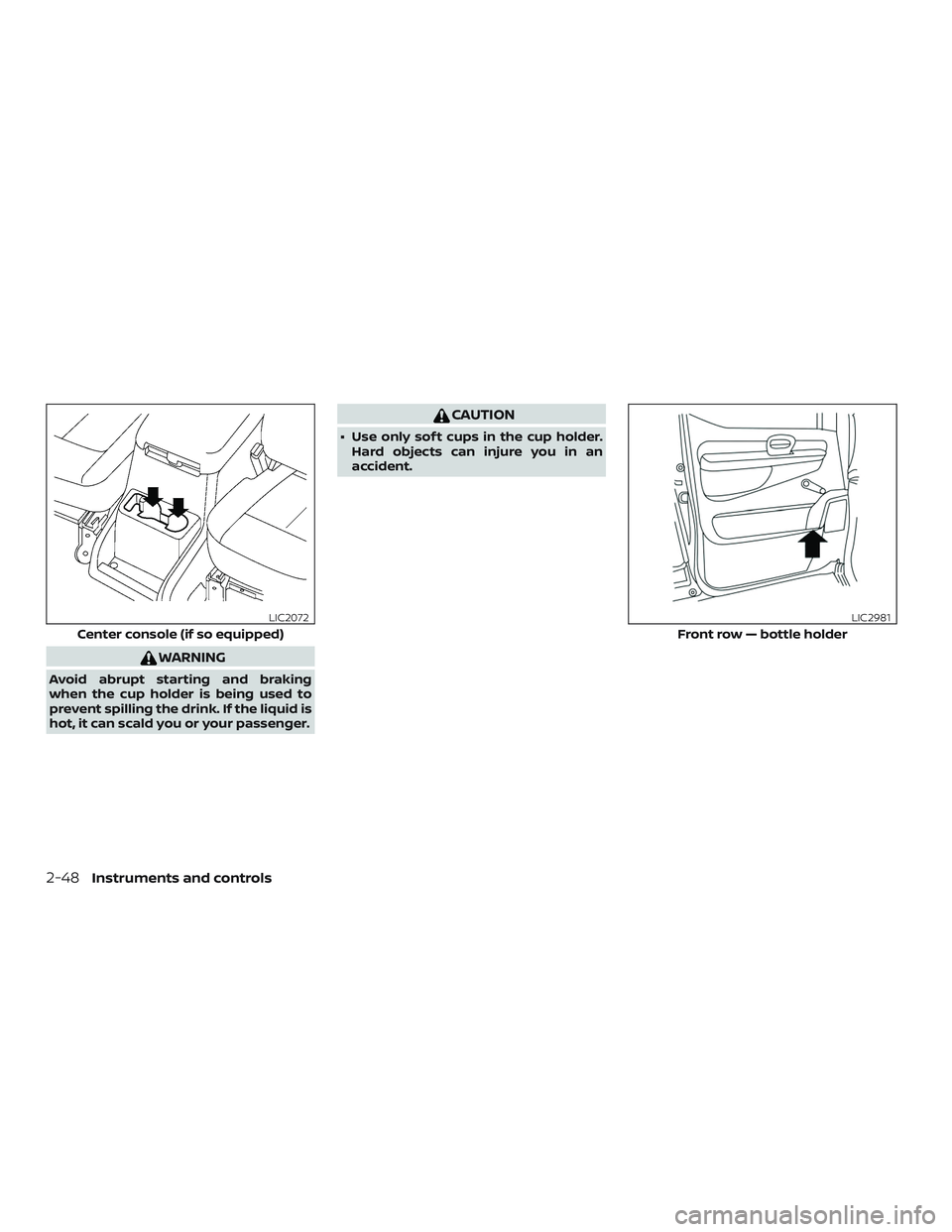

CUP HOLDERS
LIC3387
Instrument panel
LIC2071
Instruments and controls2-47

WARNING
Avoid abrupt starting and braking
when the cup holder is being used to
prevent spilling the drink. If the liquid is
hot, it can scald you or your passenger.
CAUTION
∙ Use only sof t cups in the cup holder.Hard objects can injure you in an
accident.
Center console (if so equipped)
LIC2072
Front row — bottle holder
LIC2981
2-48Instruments and controls

CAUTION
∙ Do not use the bottle holder for anyother objects that could be thrown
about in the vehicle and possibly in-
jure people during sudden braking or
an accident.
∙ Do not use the bottle holder for open liquid containers.

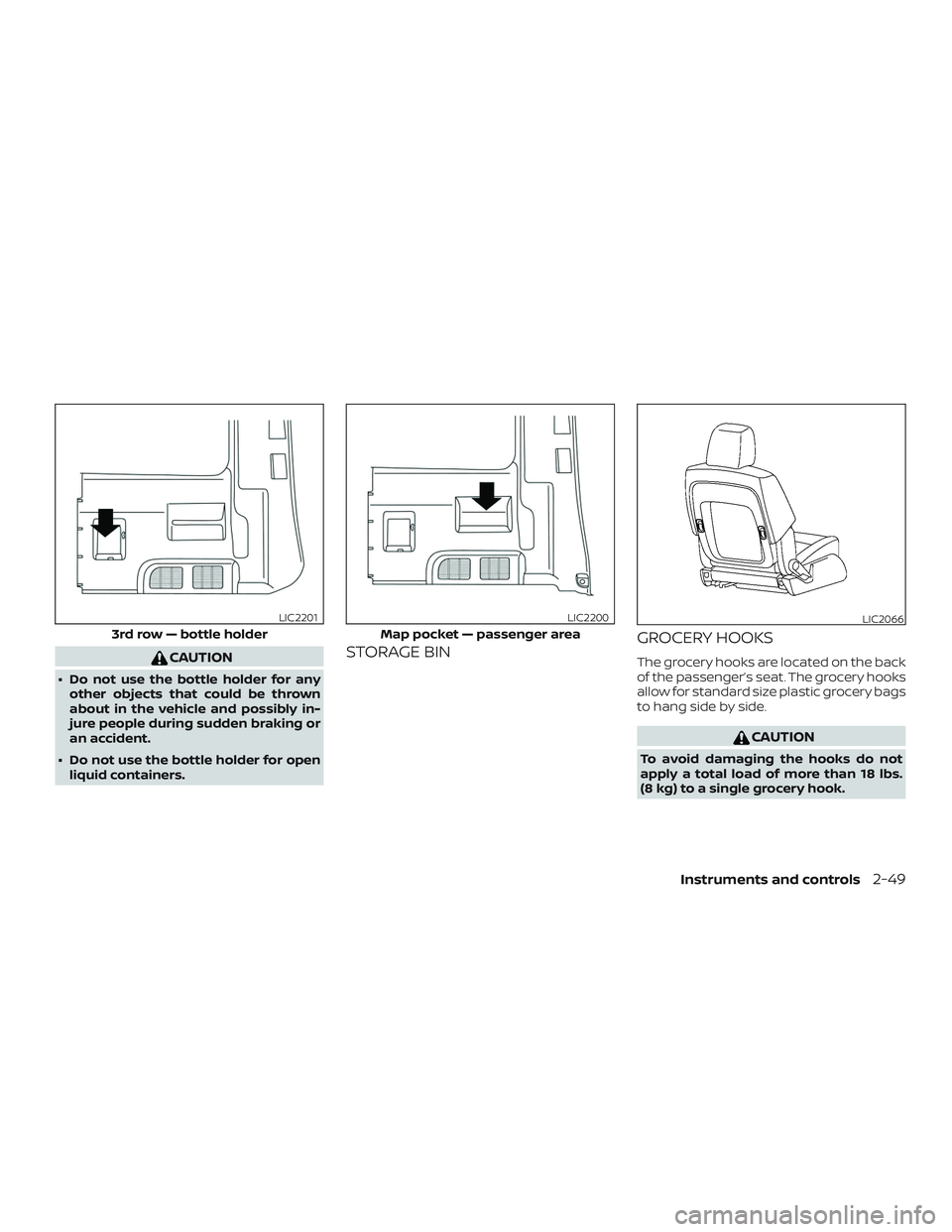

STORAGE BIN GROCERY HOOKSThe grocery hooks are located on the back
of the passenger’s seat. The grocery hooks
allow for standard size plastic grocery bags
to hang side by side.
CAUTION
To avoid damaging the hooks do not
apply a total load of more than 18 lbs.
(8 kg) to a single grocery hook.
3rd row — bottle holder
LIC2201
Map pocket — passenger area
LIC2200LIC2066
Instruments and controls2-49

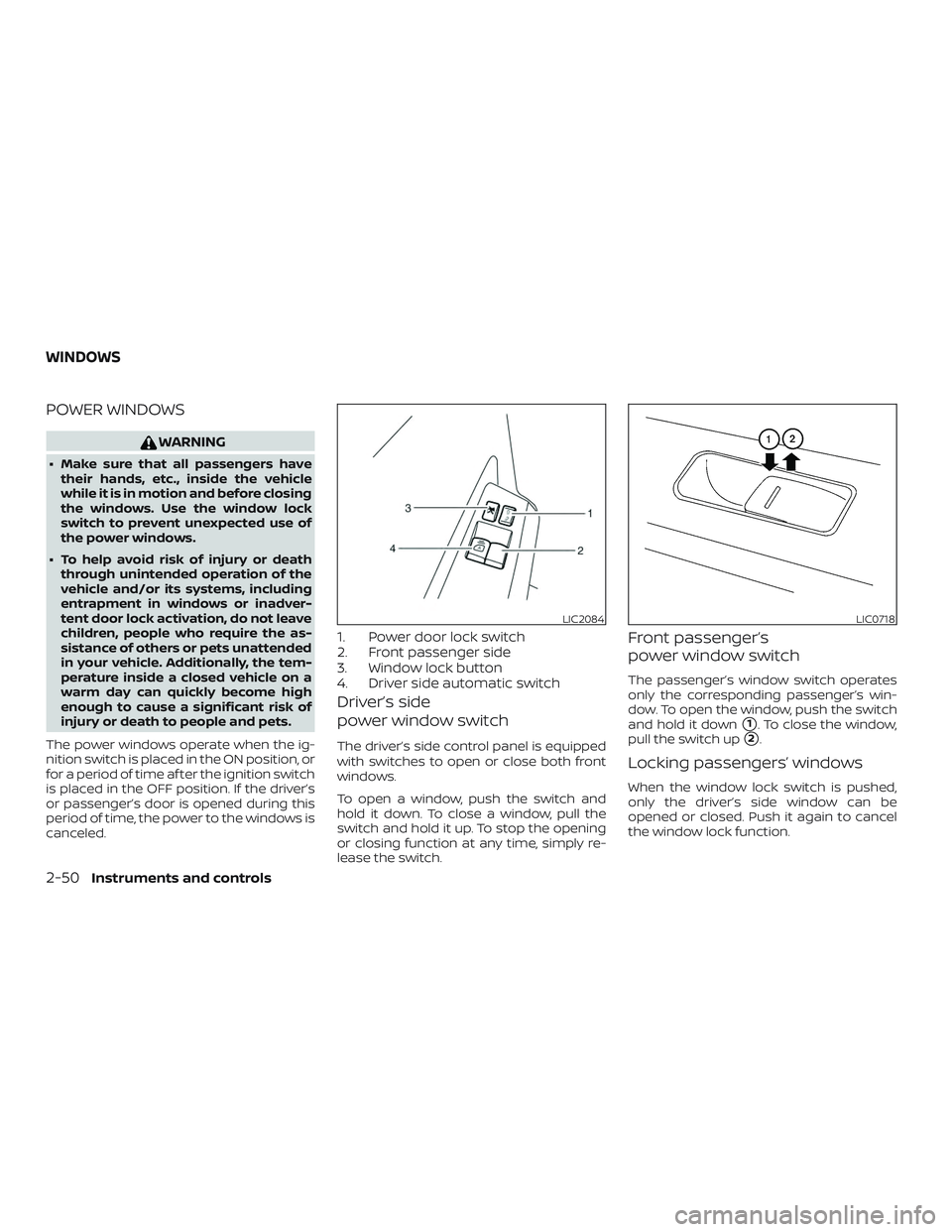

POWER WINDOWS
WARNING
∙ Make sure that all passengers havetheir hands, etc., inside the vehicle
while it is in motion and before closing
the windows. Use the window lock
switch to prevent unexpected use of
the power windows.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, including
entrapment in windows or inadver-
tent door lock activation, do not leave
children, people who require the as-
sistance of others or pets unattended
in your vehicle. Additionally, the tem-
perature inside a closed vehicle on a
warm day can quickly become high
enough to cause a significant risk of
injury or death to people and pets.
The power windows operate when the ig-
nition switch is placed in the ON position, or
for a period of time af ter the ignition switch
is placed in the OFF position. If the driver’s
or passenger’s door is opened during this
period of time, the power to the windows is
canceled.
1. Power door lock switch
2. Front passenger side
3. Window lock button
4. Driver side automatic switch
Driver’s side
power window switch
The driver’s side control panel is equipped
with switches to open or close both front
windows.
To open a window, push the switch and
hold it down. To close a window, pull the
switch and hold it up. To stop the opening
or closing function at any time, simply re-
lease the switch.
Front passenger’s
power window switch
The passenger’s window switch operates
only the corresponding passenger’s win-
dow. To open the window, push the switch
and hold it down
1. To close the window,
pull the switch up
2.
Locking passengers’ windows
When the window lock switch is pushed,
only the driver’s side window can be
opened or closed. Push it again to cancel
the window lock function.
LIC2084LIC0718
WINDOWS
2-50Instruments and controls

Automatic operation
To fully open a window equipped with au-
tomatic operation, push the window
switch down to the second detent and re-
lease it; it need not be held. The window
automatically opens all the way. To stop
the window, lif t the switch up while the win-
dow is opening.
MANUAL VENT WINDOWS
To open a manual vent window, pull each of
the latch handles up until released.
To lock the window in the open position,
push the latch handles down until locked in
place.
To close a manual vent window, pull the
latch handles up and to the inside of the
vehicle, then push the latches down until
they lock.The interior lights have a three-position
switch and operate regardless of ignition
switch position.
When the switch is in the ON position
1,
the interior lights illuminate, regardless of
door position. The lights will go off af ter a
period of time unless the ignition switch is
in the ON position.
LIC0410LIC2104LIC0792
INTERIOR LIGHTS
Instruments and controls2-51
