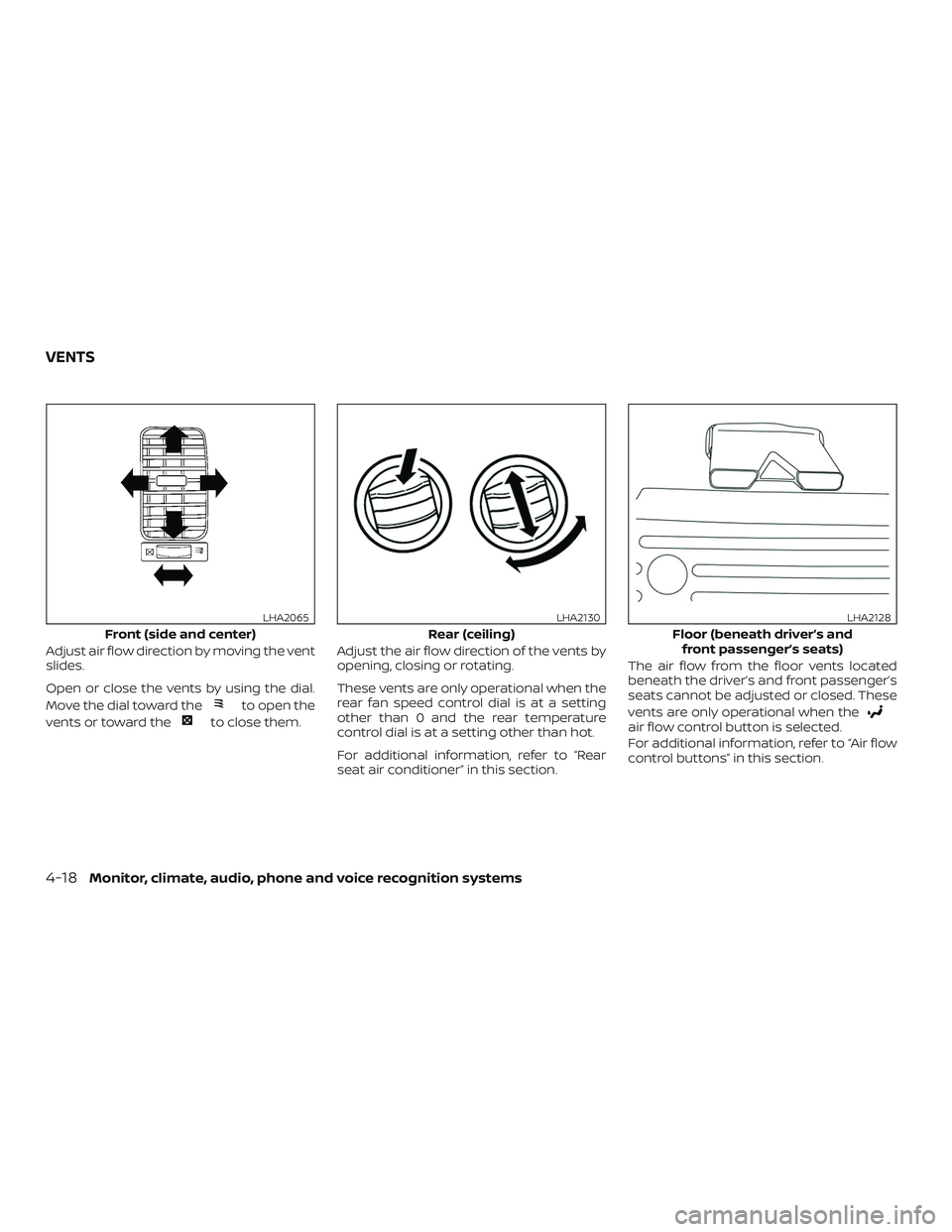

Adjust air flow direction by moving the vent
slides.
Open or close the vents by using the dial.
Move the dial toward the
to open the
vents or toward the
to close them. Adjust the air flow direction of the vents by
opening, closing or rotating.
These vents are only operational when the
rear fan speed control dial is at a setting
other than 0 and the rear temperature
control dial is at a setting other than hot.
For additional information, refer to “Rear
seat air conditioner” in this section. The air flow from the floor vents located
beneath the driver’s and front passenger’s
seats cannot be adjusted or closed. These
vents are only operational when theair flow control button is selected.
For additional information, refer to “Air flow
control buttons” in this section.
Front (side and center)
LHA2065
Rear (ceiling)
LHA2130
Floor (beneath driver’s and
front passenger’s seats)
LHA2128
VENTS
4-18Monitor, climate, audio, phone and voice recognition systems

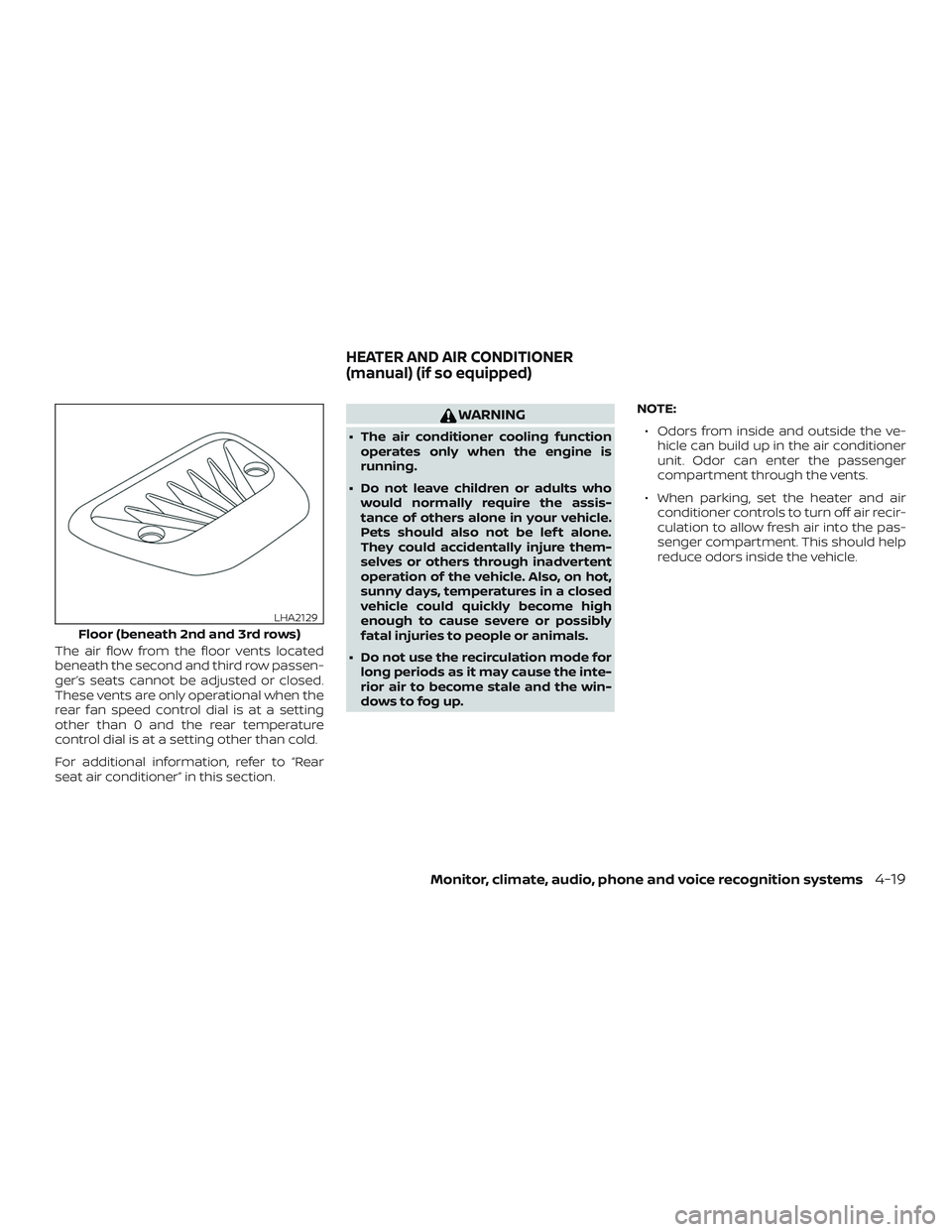

The air flow from the floor vents located
beneath the second and third row passen-
ger’s seats cannot be adjusted or closed.
These vents are only operational when the
rear fan speed control dial is at a setting
other than 0 and the rear temperature
control dial is at a setting other than cold.
For additional information, refer to “Rear
seat air conditioner” in this section.
WARNING
∙ The air conditioner cooling functionoperates only when the engine is
running.
∙ Do not leave children or adults who would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be lef t alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.
∙ Do not use the recirculation mode for long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up. NOTE:
∙ Odors from inside and outside the ve- hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.
∙ When parking, set the heater and air conditioner controls to turn off air recir-
culation to allow fresh air into the pas-
senger compartment. This should help
reduce odors inside the vehicle.
Floor (beneath 2nd and 3rd rows)
LHA2129
HEATER AND AIR CONDITIONER
(manual) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-19

Type A (if so equipped)
LHA2037
4-20Monitor, climate, audio, phone and voice recognition systems

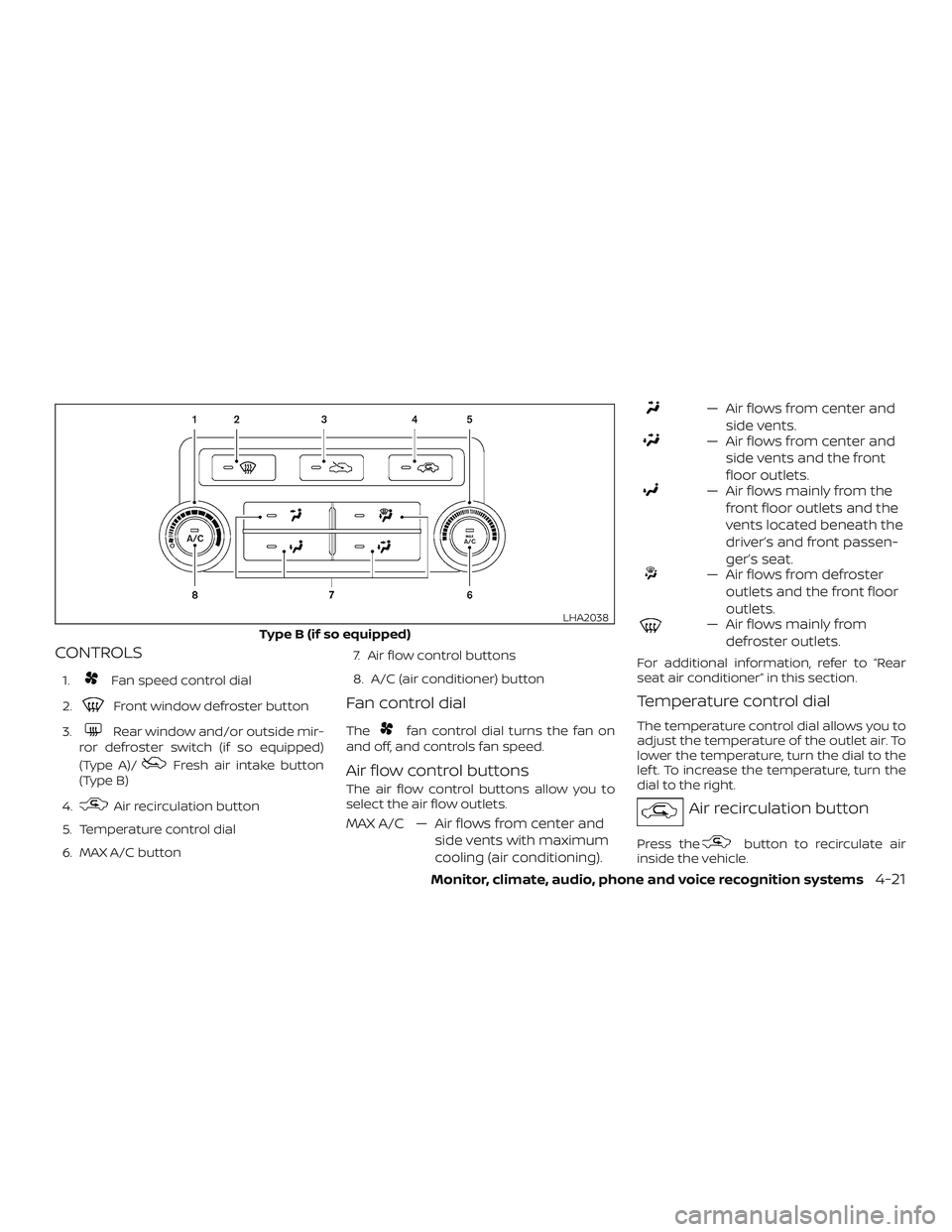

CONTROLS
1.Fan speed control dial
2.
Front window defroster button
3.
Rear window and/or outside mir-
ror defroster switch (if so equipped)
(Type A)/
Fresh air intake button
(Type B)
4.
Air recirculation button
5. Temperature control dial
6. MAX A/C button 7. Air flow control buttons
8. A/C (air conditioner) button
Fan control dial
Thefan control dial turns the fan on
and off, and controls fan speed.
Air flow control buttons
The air flow control buttons allow you to
select the air flow outlets.
MAX A/C — Air flows from center and
side vents with maximum
cooling (air conditioning).
— Air flows from center andside vents.
— Air flows from center andside vents and the front
floor outlets.
— Air flows mainly from thefront floor outlets and the
vents located beneath the
driver’s and front passen-
ger’s seat.
— Air flows from defrosteroutlets and the front floor
outlets.
— Air flows mainly fromdefroster outlets.
For additional information, refer to “Rear
seat air conditioner” in this section.
Temperature control dial
The temperature control dial allows you to
adjust the temperature of the outlet air. To
lower the temperature, turn the dial to the
lef t. To increase the temperature, turn the
dial to the right.
Air recirculation button
Press thebutton to recirculate air
inside the vehicle.
Type B (if so equipped)
LHA2038
Monitor, climate, audio, phone and voice recognition systems4-21

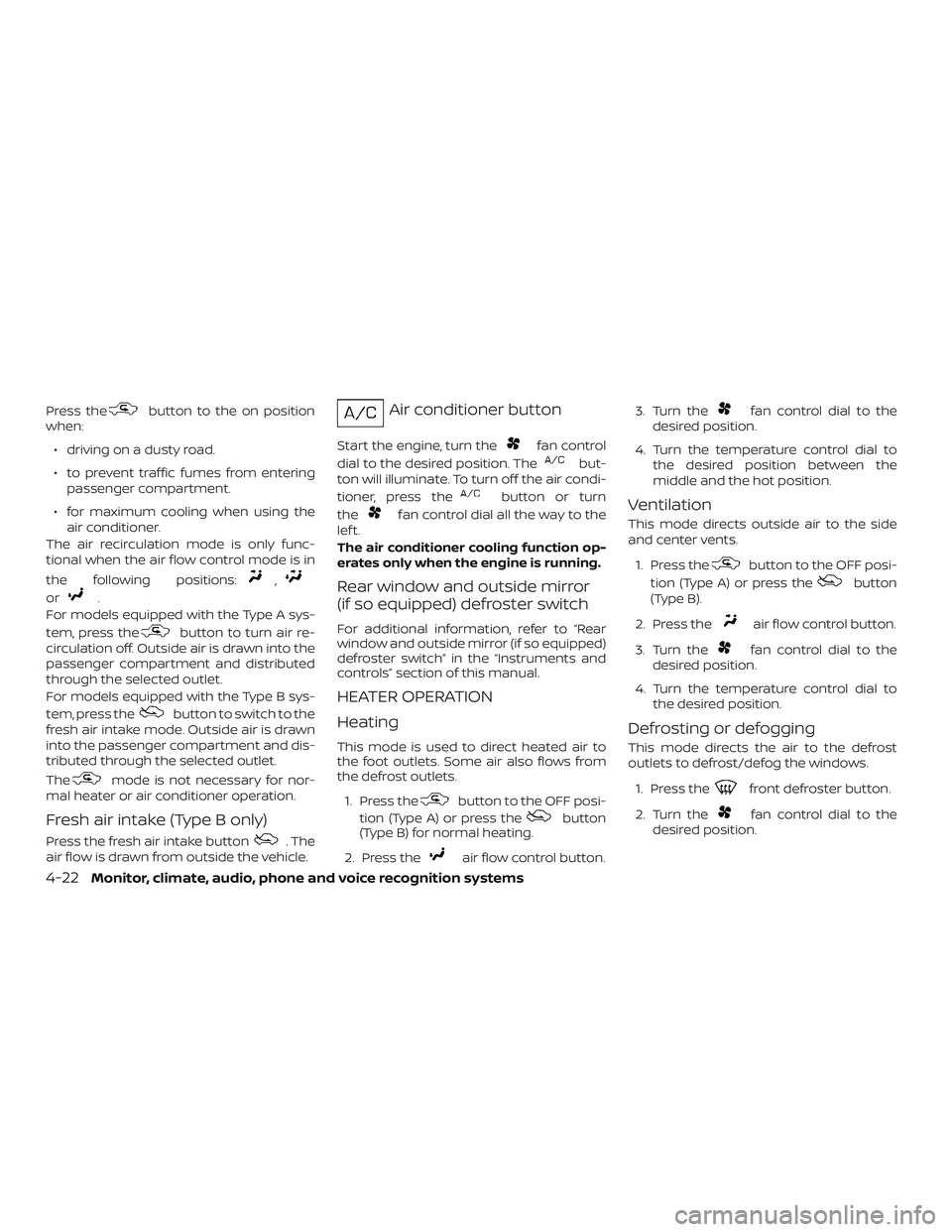

Press thebutton to the on position
when:
∙ driving on a dusty road.
∙ to prevent traffic fumes from entering passenger compartment.
∙ for maximum cooling when using the air conditioner.
The air recirculation mode is only func-
tional when the air flow control mode is in
the following positions:
,
or.
For models equipped with the Type A sys-
tem, press the
button to turn air re-
circulation off. Outside air is drawn into the
passenger compartment and distributed
through the selected outlet.
For models equipped with the Type B sys-
tem, press the
button to switch to the
fresh air intake mode. Outside air is drawn
into the passenger compartment and dis-
tributed through the selected outlet.
The
mode is not necessary for nor-
mal heater or air conditioner operation.
Fresh air intake (Type B only)
Press the fresh air intake button. The
air flow is drawn from outside the vehicle.
Air conditioner button
Start the engine, turn thefan control
dial to the desired position. The
but-
ton will illuminate. To turn off the air condi-
tioner, press the
button or turn
the
fan control dial all the way to the
lef t.
The air conditioner cooling function op-
erates only when the engine is running.
Rear window and outside mirror
(if so equipped) defroster switch
For additional information, refer to “Rear
window and outside mirror (if so equipped)
defroster switch” in the “Instruments and
controls” section of this manual.

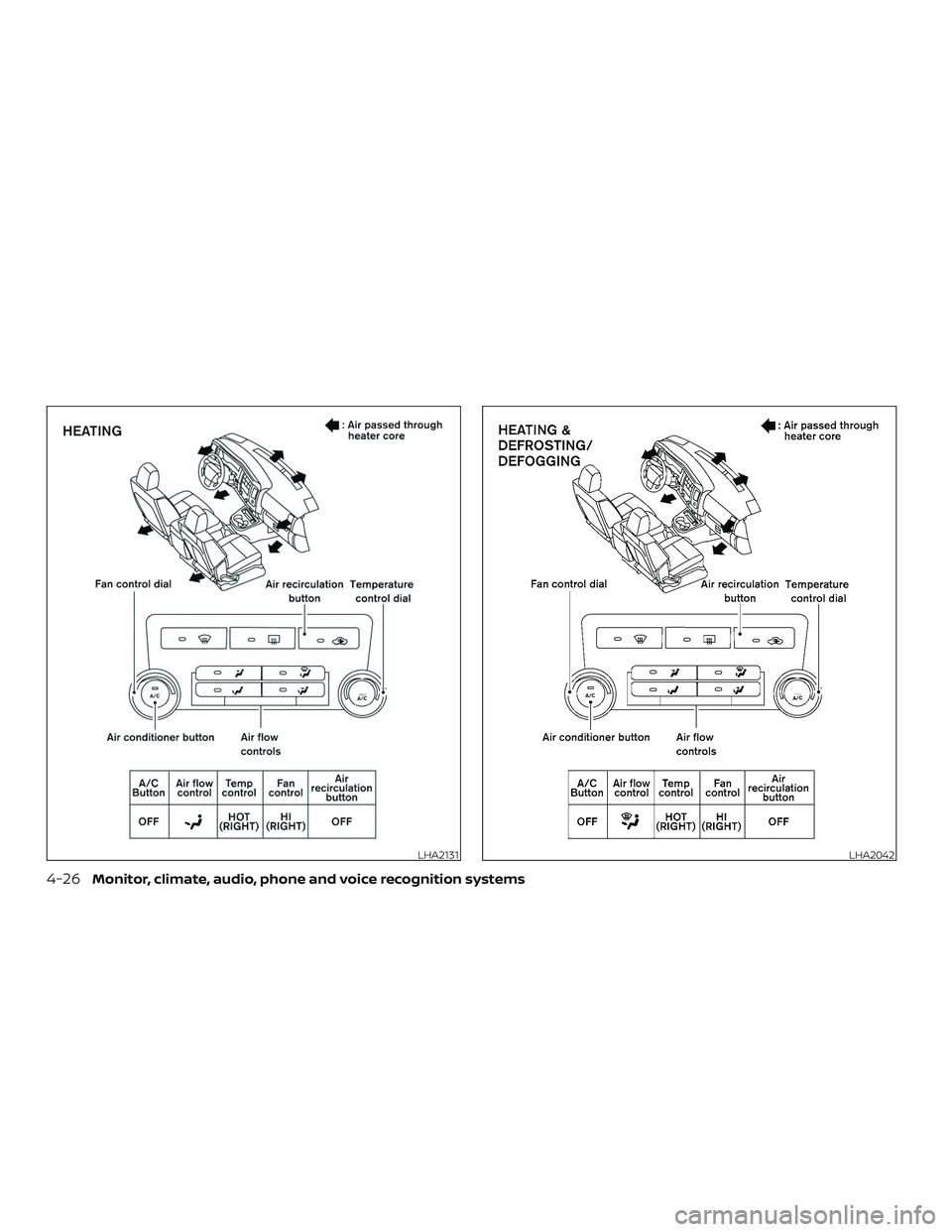

HEATER OPERATION
Heating
This mode is used to direct heated air to
the foot outlets. Some air also flows from
the defrost outlets.
1. Press the
button to the OFF posi-
tion (Type A) or press the
button
(Type B) for normal heating.
2. Press the
air flow control button. 3. Turn the
fan control dial to the
desired position.
4. Turn the temperature control dial to the desired position between the
middle and the hot position.
Ventilation
This mode directs outside air to the side
and center vents.
1. Press the
button to the OFF posi-
tion (Type A) or press the
button
(Type B).
2. Press the
air flow control button.
3. Turn the
fan control dial to the
desired position.
4. Turn the temperature control dial to the desired position.

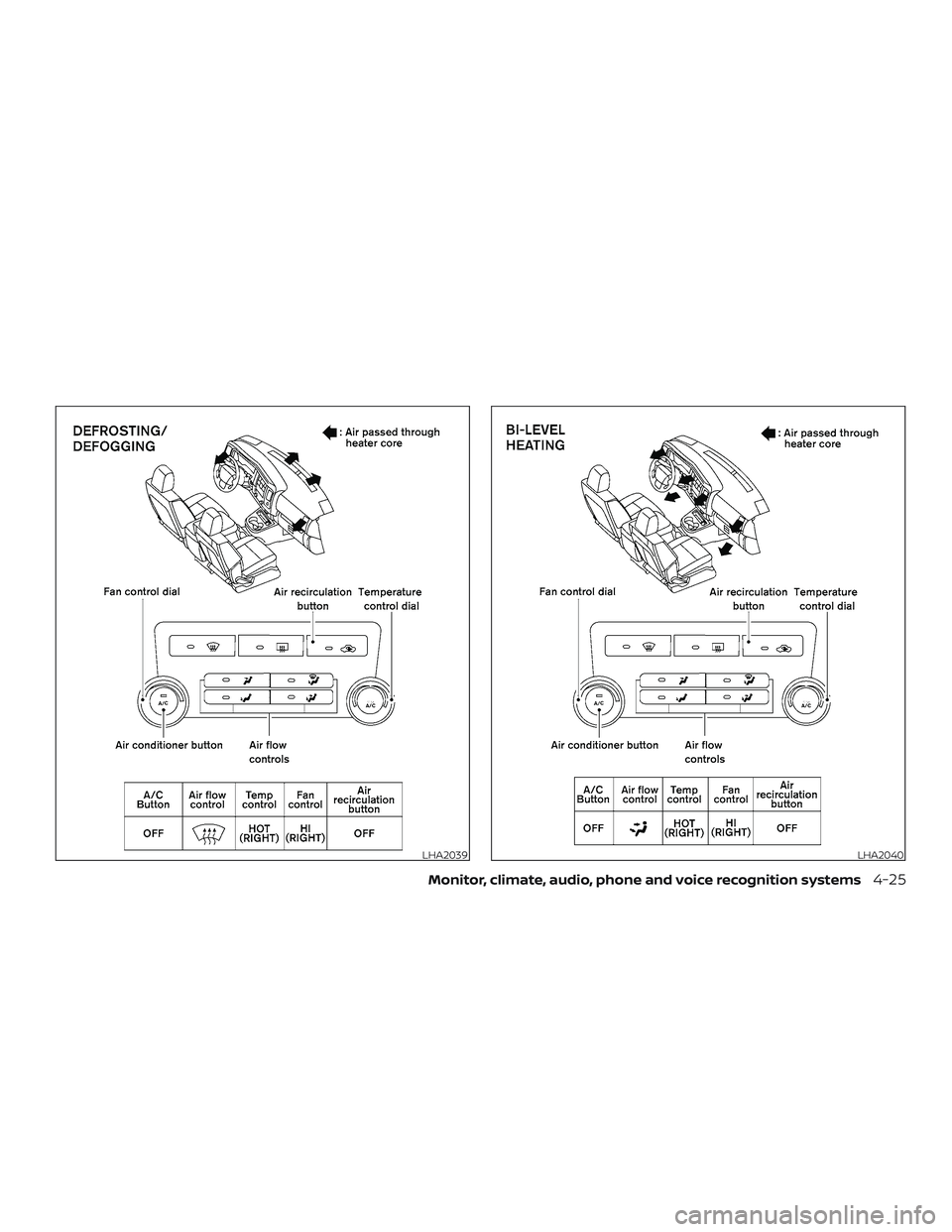

Defrosting or defogging
This mode directs the air to the defrost
outlets to defrost/defog the windows.
1. Press the
front defroster button.
2. Turn the
fan control dial to the
desired position.
4-22Monitor, climate, audio, phone and voice recognition systems

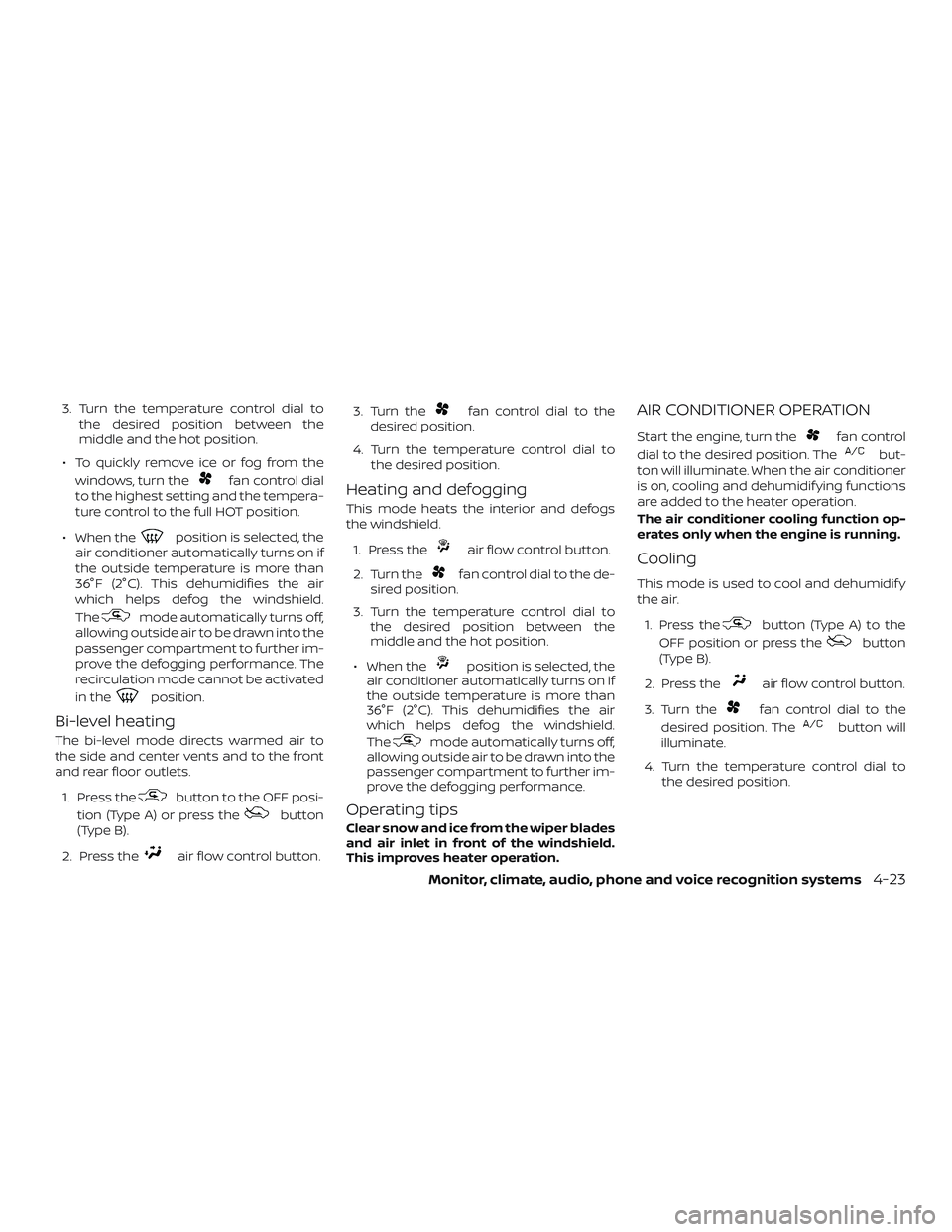

3. Turn the temperature control dial tothe desired position between the
middle and the hot position.
∙ To quickly remove ice or fog from the windows, turn the
fan control dial
to the highest setting and the tempera-
ture control to the full HOT position.
∙ When the
position is selected, the
air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The
mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance. The
recirculation mode cannot be activated
in the
position.
Bi-level heating
The bi-level mode directs warmed air to
the side and center vents and to the front
and rear floor outlets.
1. Press the
button to the OFF posi-
tion (Type A) or press the
button
(Type B).
2. Press the
air flow control button. 3. Turn the
fan control dial to the
desired position.
4. Turn the temperature control dial to the desired position.
Heating and defogging
This mode heats the interior and defogs
the windshield.
1. Press the
air flow control button.
2. Turn the
fan control dial to the de-
sired position.
3. Turn the temperature control dial to the desired position between the
middle and the hot position.
∙ When the
position is selected, the
air conditioner automatically turns on if
the outside temperature is more than
36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The
mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.
Operating tips
Clear snow and ice from the wiper blades
and air inlet in front of the windshield.
This improves heater operation.
AIR CONDITIONER OPERATION
Start the engine, turn thefan control
dial to the desired position. The
but-
ton will illuminate. When the air conditioner
is on, cooling and dehumidif ying functions
are added to the heater operation.
The air conditioner cooling function op-
erates only when the engine is running.
Cooling
This mode is used to cool and dehumidif y
the air.
1. Press the
button (Type A) to the
OFF position or press the
button
(Type B).
2. Press the
air flow control button.
3. Turn the
fan control dial to the
desired position. The
button will
illuminate.
4. Turn the temperature control dial to the desired position.
Monitor, climate, audio, phone and voice recognition systems4-23

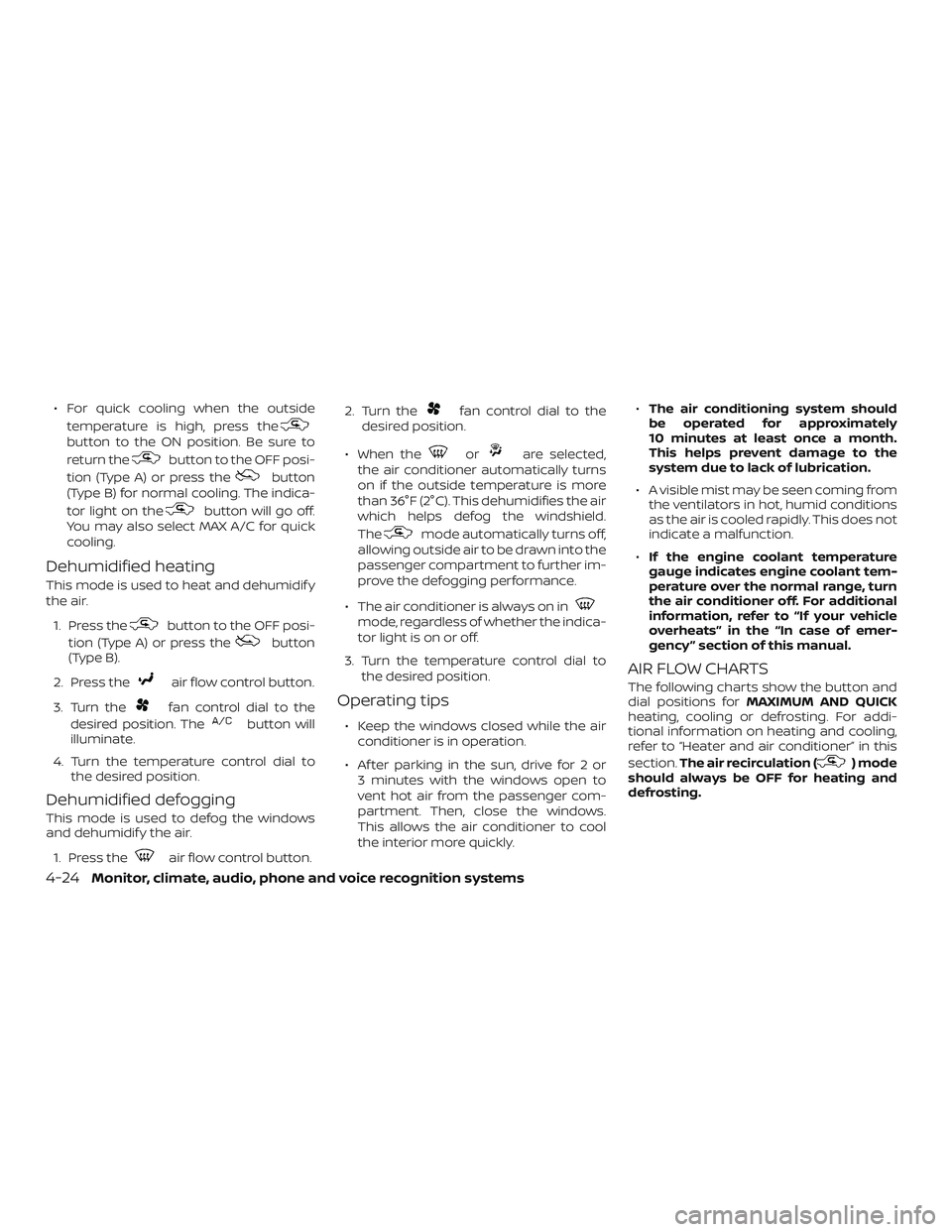

∙ For quick cooling when the outsidetemperature is high, press the
button to the ON position. Be sure to
return the
button to the OFF posi-
tion (Type A) or press the
button
(Type B) for normal cooling. The indica-
tor light on the
button will go off.
You may also select MAX A/C for quick
cooling.
Dehumidified heating
This mode is used to heat and dehumidif y
the air.
1. Press the
button to the OFF posi-
tion (Type A) or press the
button
(Type B).
2. Press the
air flow control button.
3. Turn the
fan control dial to the
desired position. The
button will
illuminate.
4. Turn the temperature control dial to the desired position.
Dehumidified defogging
This mode is used to defog the windows
and dehumidif y the air.
1. Press the
air flow control button. 2. Turn the
fan control dial to the
desired position.
∙ When the
orare selected,
the air conditioner automatically turns
on if the outside temperature is more
than 36°F (2°C). This dehumidifies the air
which helps defog the windshield.
The
mode automatically turns off,
allowing outside air to be drawn into the
passenger compartment to further im-
prove the defogging performance.
∙ The air conditioner is always on in
mode, regardless of whether the indica-
tor light is on or off.
3. Turn the temperature control dial to the desired position.
Operating tips
∙ Keep the windows closed while the airconditioner is in operation.
∙ Af ter parking in the sun, drive for 2 or 3 minutes with the windows open to
vent hot air from the passenger com-
partment. Then, close the windows.
This allows the air conditioner to cool
the interior more quickly. ∙
The air conditioning system should
be operated for approximately
10 minutes at least once a month.
This helps prevent damage to the
system due to lack of lubrication.
∙ A visible mist may be seen coming from the ventilators in hot, humid conditions
as the air is cooled rapidly. This does not
indicate a malfunction.
∙ If the engine coolant temperature
gauge indicates engine coolant tem-
perature over the normal range, turn
the air conditioner off. For additional
information, refer to “If your vehicle
overheats” in the “In case of emer-
gency ” section of this manual.

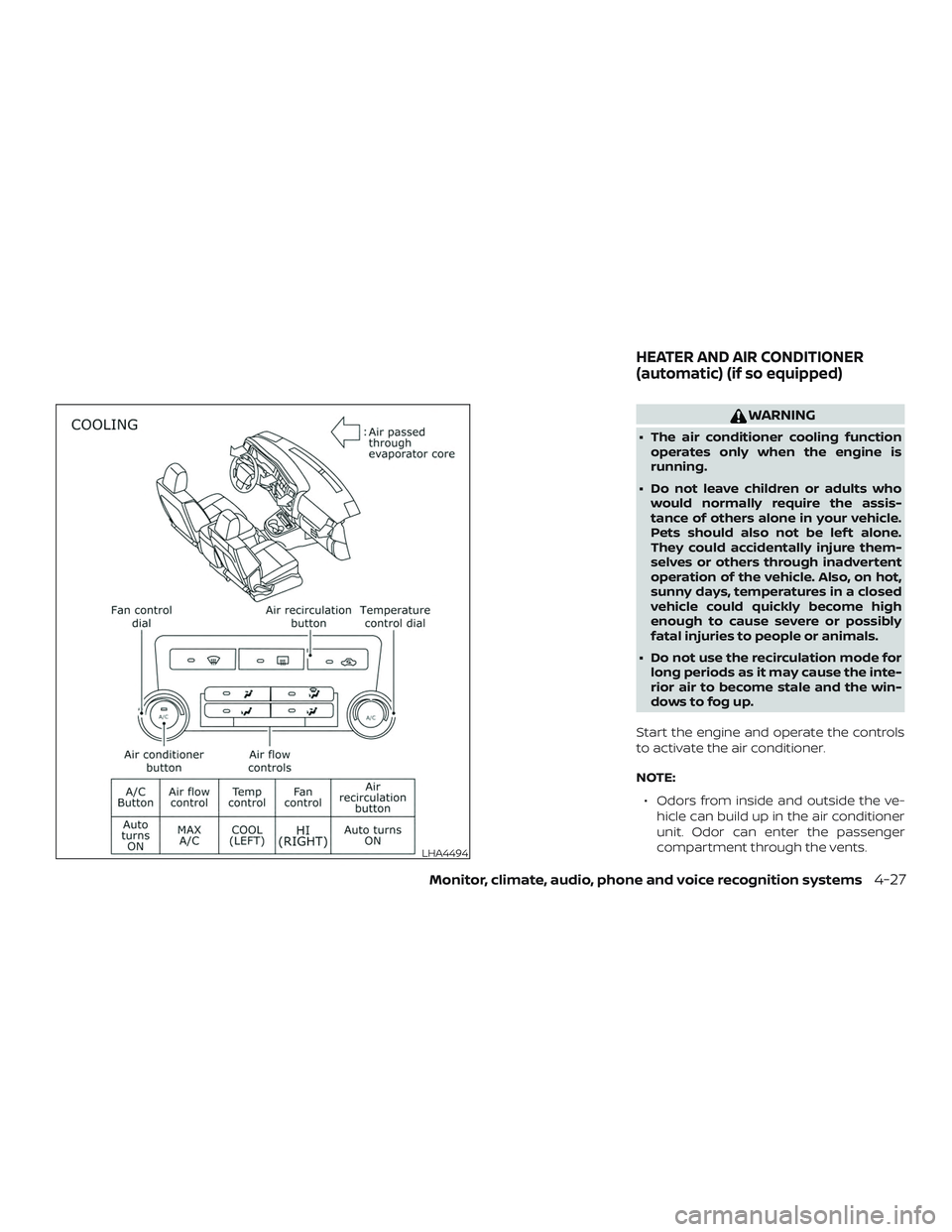

AIR FLOW CHARTS
The following charts show the button and
dial positions for MAXIMUM AND QUICK
heating, cooling or defrosting. For addi-
tional information on heating and cooling,
refer to “Heater and air conditioner” in this
section. The air recirculation (
) mode
should always be OFF for heating and
defrosting.
4-24Monitor, climate, audio, phone and voice recognition systems

LHA2039LHA2040
Monitor, climate, audio, phone and voice recognition systems4-25

LHA2131LHA2042
4-26Monitor, climate, audio, phone and voice recognition systems

WARNING
∙ The air conditioner cooling functionoperates only when the engine is
running.
∙ Do not leave children or adults who would normally require the assis-
tance of others alone in your vehicle.
Pets should also not be lef t alone.
They could accidentally injure them-
selves or others through inadvertent
operation of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.
∙ Do not use the recirculation mode for long periods as it may cause the inte-
rior air to become stale and the win-
dows to fog up.
Start the engine and operate the controls
to activate the air conditioner.
NOTE: ∙ Odors from inside and outside the ve- hicle can build up in the air conditioner
unit. Odor can enter the passenger
compartment through the vents.
LHA4494
HEATER AND AIR CONDITIONER
(automatic) (if so equipped)
Monitor, climate, audio, phone and voice recognition systems4-27
