NISSAN NV200 2019 Owners Manual

WDI0224
WDI0529

LDI2178

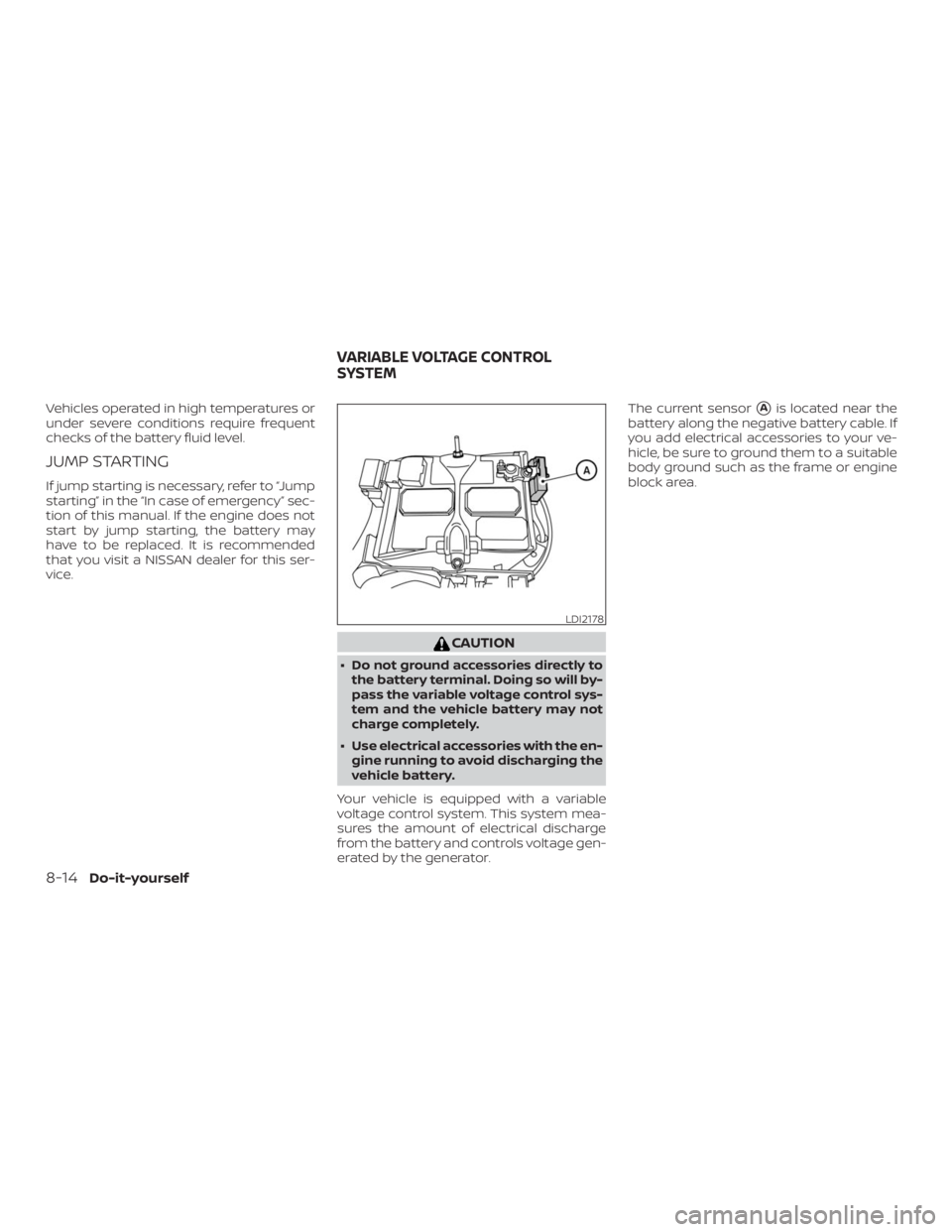

VARIABLE VOLTAGE CONTROL
SYSTEM

SDI1895
DRIVE BELTSPARK PLUGS
Do-it-yourself8-15

CAUTION
Be sure to use the correct socket to re-
move the spark plugs. An incorrect
socket can damage the spark plugs.
If replacement is required, it is recom-
mended that you visit a NISSAN dealer for
this service.

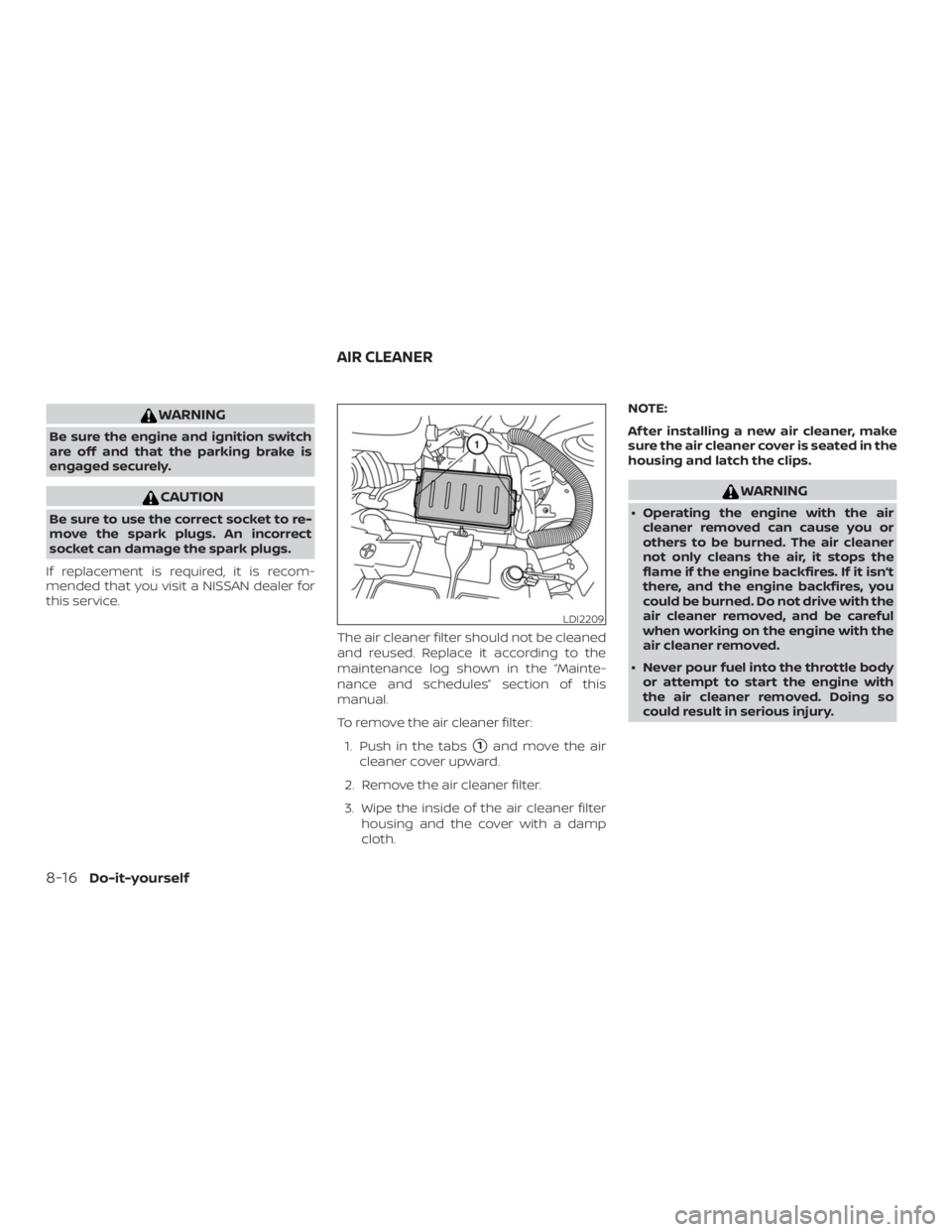

The air cleaner filter should not be cleaned
and reused. Replace it according to the
maintenance log shown in the “Mainte-
nance and schedules” section of this
manual.
To remove the air cleaner filter:
1. Push in the tabs
1and move the air
cleaner cover upward.
2. Remove the air cleaner filter.
3. Wipe the inside of the air cleaner filter
housing and the cover with a damp
cloth.NOTE:
Af ter installing a new air cleaner, make
sure the air cleaner cover is seated in the
housing and latch the clips.
WARNING
∙ Operating the engine with the air
cleaner removed can cause you or
others to be burned. The air cleaner
not only cleans the air, it stops the
flame if the engine backfires. If it isn’t
there, and the engine backfires, you
could be burned. Do not drive with the
air cleaner removed, and be careful
when working on the engine with the
air cleaner removed.
∙ Never pour fuel into the throttle body
or attempt to start the engine with
the air cleaner removed. Doing so
could result in serious injury.

Do-it-yourself8-17

LDI2187
BRAKES

LDI2384LDI3188

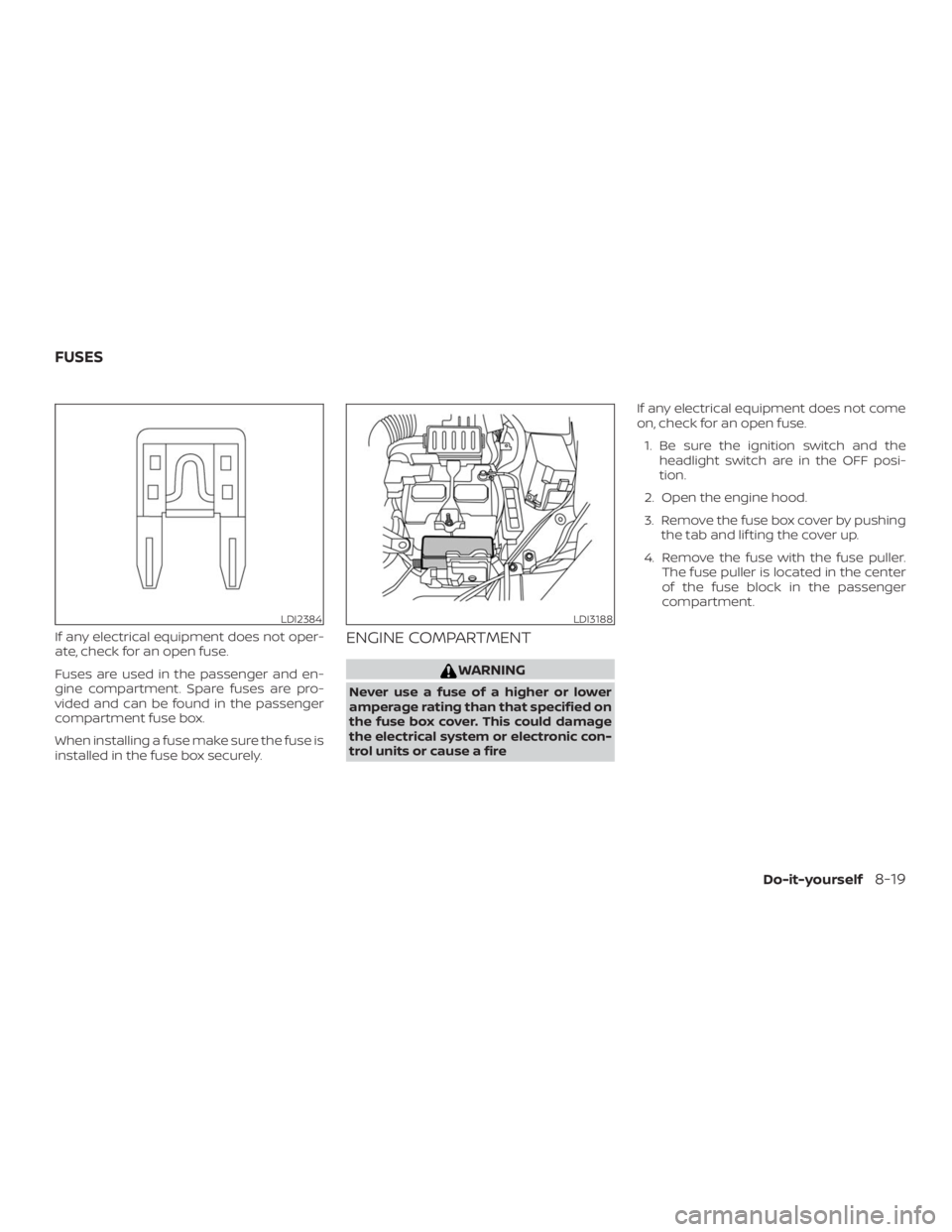

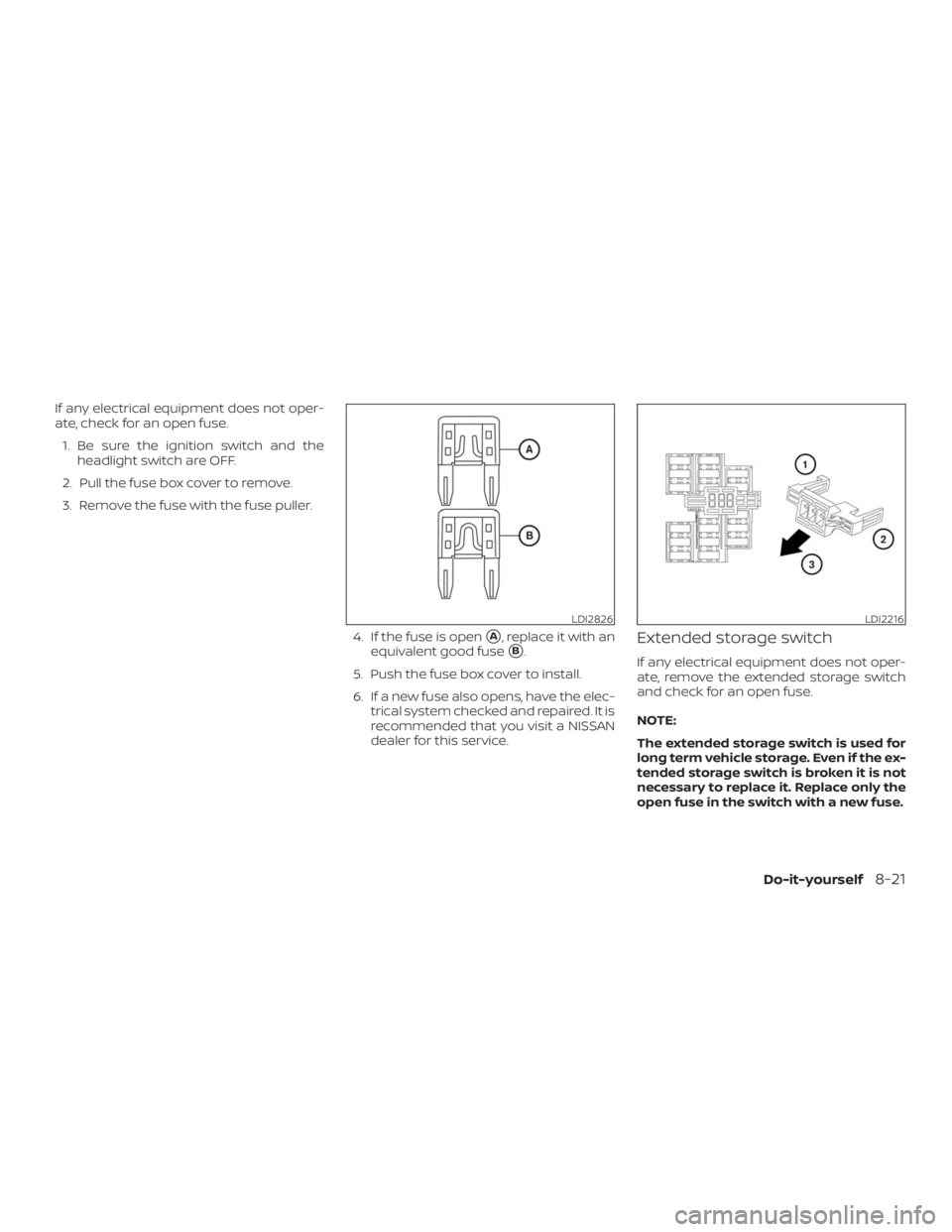

FUSES
Do-it-yourself8-19

LDI2718LDI2828

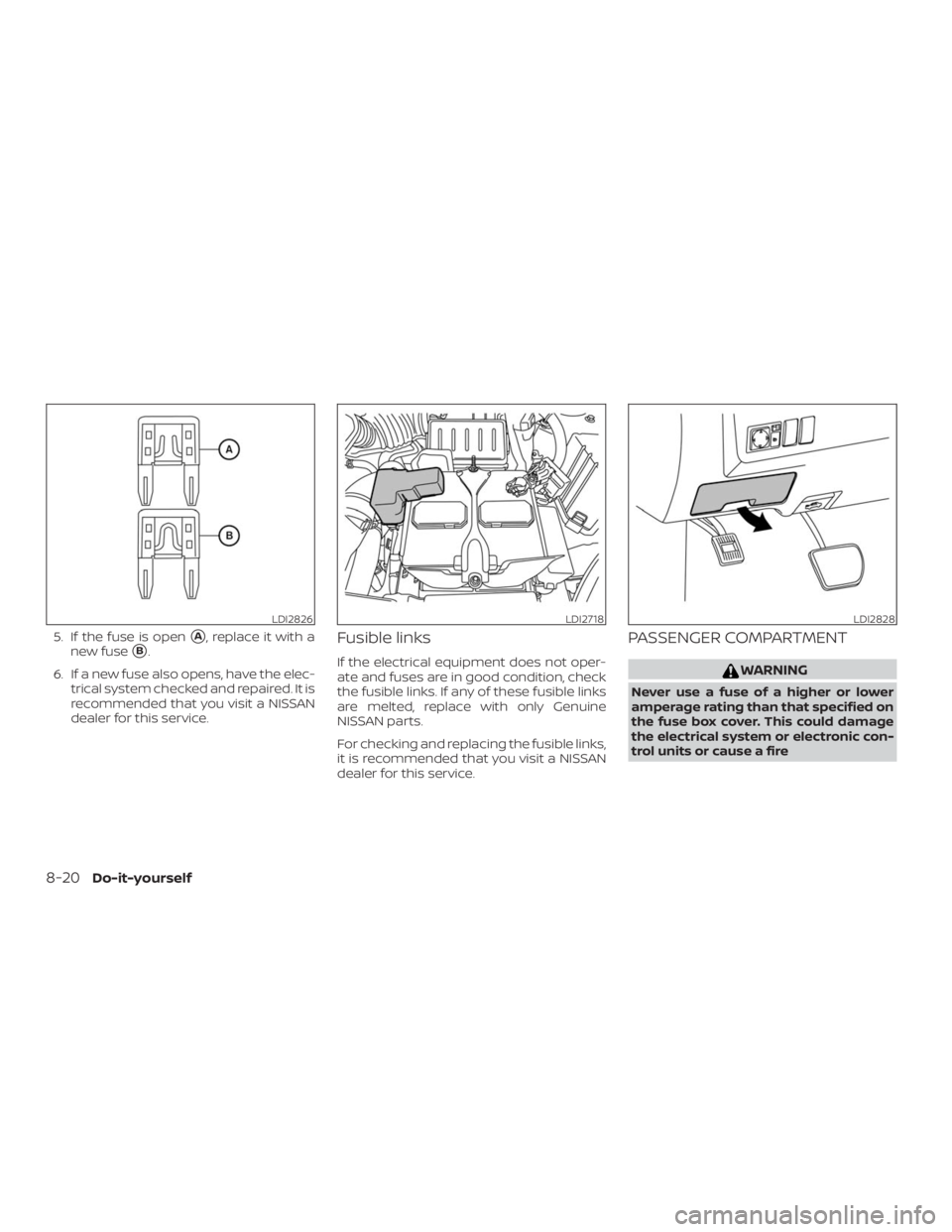

8-20Do-it-yourself

LDI2216

LDI2219

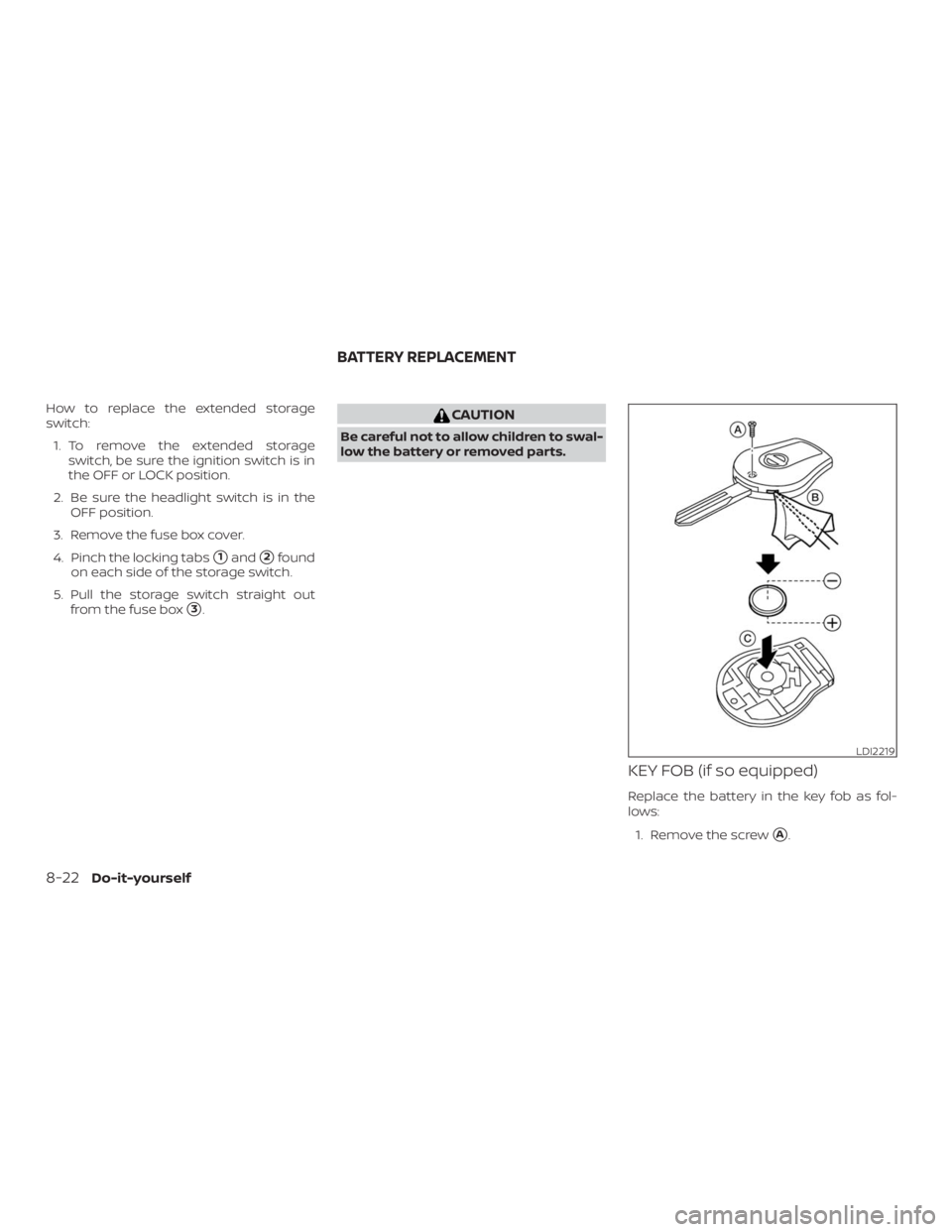

BATTERY REPLACEMENT
