NISSAN PATHFINDER 2003 R50 / 2.G Owners Manual
Manufacturer: NISSAN, Model Year: 2003, Model line: PATHFINDER, Model: NISSAN PATHFINDER 2003 R50 / 2.GPages: 299, PDF Size: 2.56 MB
Page 131 of 299
SAA0154A
SAA0155A
4-6
Heater, air conditioner and audio systems
03.1.28/R50-D/V5
Page 132 of 299
SAA0156A
SAA0157A
Heater, air conditioner and audio systems
4-7
03.1.28/R50-D/V5
Page 133 of 299
Start the engine and operate the controls to
activate the air conditioner.

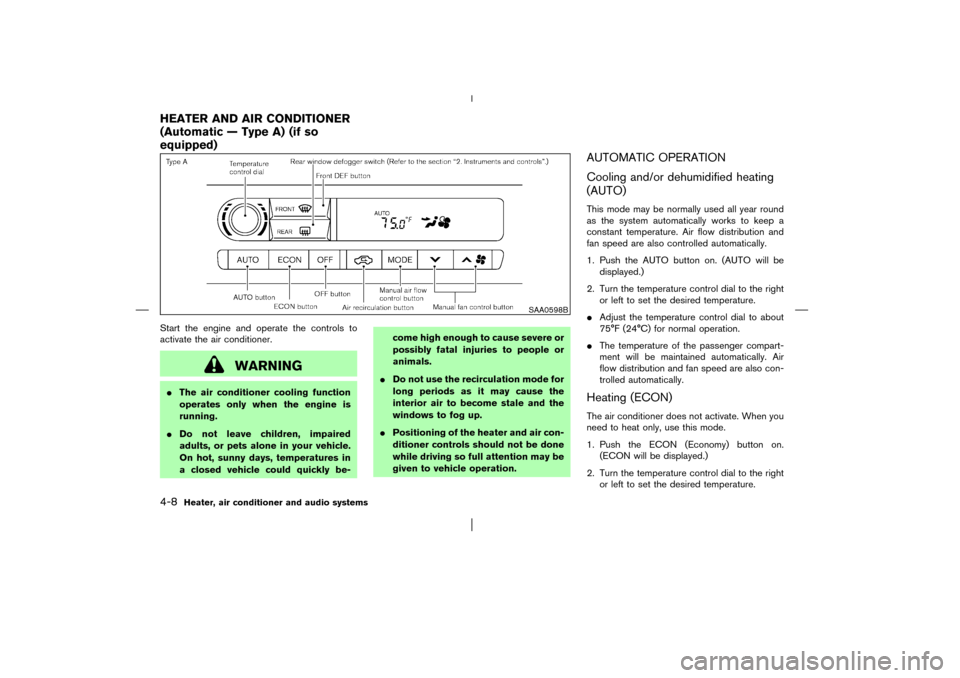

WARNING
The air conditioner cooling function
operates only when the engine is
running.
Do not leave children, impaired
adults, or pets alone in your vehicle.
On hot, sunny days, temperatures in
a closed vehicle could quickly be-come high enough to cause severe or
possibly fatal injuries to people or
animals.
Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.
Positioning of the heater and air con-
ditioner controls should not be done
while driving so full attention may be
given to vehicle operation.
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be normally used all year round
as the system automatically works to keep a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will be
displayed.)
2. Turn the temperature control dial to the right
or left to set the desired temperature.
Adjust the temperature control dial to about
75°F (24°C) for normal operation.
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.Heating (ECON)The air conditioner does not activate. When you
need to heat only, use this mode.
1. Push the ECON (Economy) button on.
(ECON will be displayed.)
2. Turn the temperature control dial to the right
or left to set the desired temperature.
SAA0598B
HEATER AND AIR CONDITIONER
(Automatic — Type A) (if so
equipped)4-8
Heater, air conditioner and audio systems
03.1.28/R50-D/V5
Page 134 of 299
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
Not recommended if windows fog up.Dehumidified defogging1. Push the DEF button
on. (The indicator
light on the button will come on.)
2. Turn the temperature set button to the right or
left to set the desired temperature.
To quickly remove ice or fog from the outside
of the windows, push the manual fan control
button
and set to the maximum position
.
As soon as possible after the windshield is
clean, push the AUTO button to return to the
auto mode.
When the DEF button
is pushed, the air
conditioner will automatically be turned on at
outside temperatures above 23°F (−5°C) to
defog the windshield, and the air recirculation
mode will automatically be turned off.
Outside air is drawn into the passengercompartment to improve the defogging per-
formance.
MANUAL OPERATION
Fan speed controlPush the fan control button
to manually
control the fan speed.
Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light on the switch will come on.
Push it again to make the air inlet controlled
automatically (FRESH, REC/FRE and RECIR-
CULATION). The indicator will go out.
The air recirculation button will not be activated
when the air conditioner is in DEF mode.
Air flow controlPushing the manual air flow control button se-
lects the air outlet to:
: Air flows from center and side ventilators.: Air flows from center and side ventilators
and foot outlets.: Air flows mainly from foot outlets.: Air flow from defroster and foot outlets.
To turn the system offPush the OFF button.Heater, air conditioner and audio systems
4-9
03.1.28/R50-D/V5
Page 135 of 299
Start the engine and operate the controls to
activate the air conditioner.

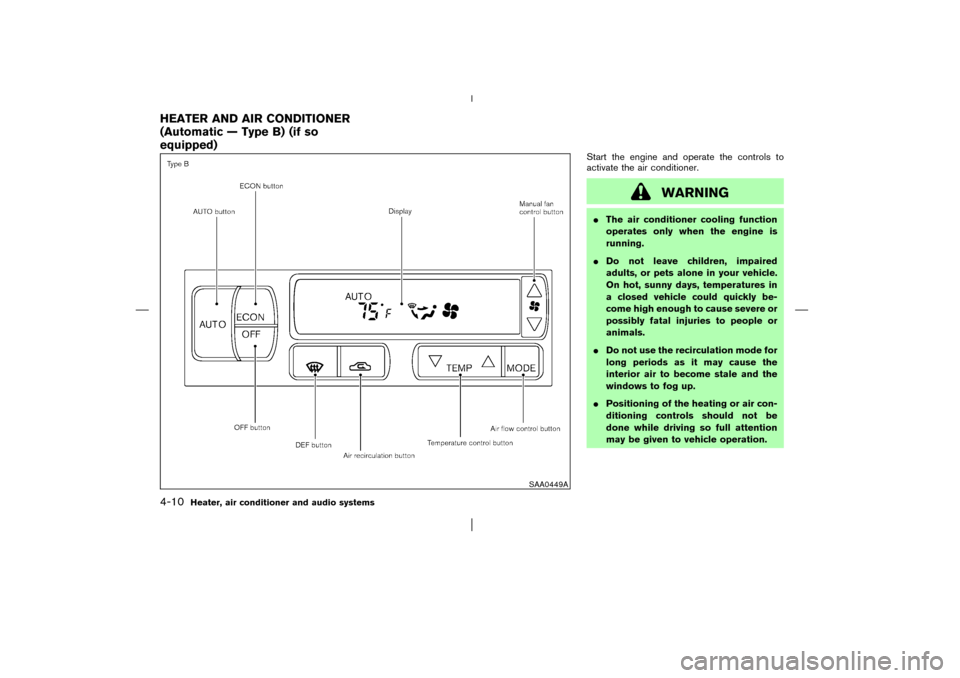

WARNING
The air conditioner cooling function
operates only when the engine is
running.
Do not leave children, impaired
adults, or pets alone in your vehicle.
On hot, sunny days, temperatures in
a closed vehicle could quickly be-
come high enough to cause severe or
possibly fatal injuries to people or
animals.
Do not use the recirculation mode for
long periods as it may cause the
interior air to become stale and the
windows to fog up.
Positioning of the heating or air con-
ditioning controls should not be
done while driving so full attention
may be given to vehicle operation.
SAA0449A
HEATER AND AIR CONDITIONER
(Automatic — Type B) (if so
equipped)4-10
Heater, air conditioner and audio systems
03.1.28/R50-D/V5
Page 136 of 299
AUTOMATIC OPERATION
Cooling and/or dehumidified heating
(AUTO)This mode may be used all year round. The
system works automatically to maintain a
constant temperature. Air flow distribution and
fan speed are also controlled automatically.
1. Push the AUTO button on. (AUTO will appear
on the display.)
2. Push the temperature control button
to set the desired temperature.
For normal operation, adjust the temperature
control button to about 75°F (24°C).
The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Heating (ECON)Use this mode when you need to heat only.
1. Push the ECON (Economy) button on.
(ECON appears on the display.)
2. Push the temperature control button
to set the desired temperature.
The temperature of the passenger compart-ment will be maintained automatically. Air
flow distribution and fan speed are also con-
trolled automatically.
Do not set the temperature lower than the
outside air temperature. Otherwise the sys-
tem may not work properly.
If the windows fog up, do not use the ECON
mode.
Dehumidified defogging1. Push the DEF
switch on. (The indicator
light will come on.)
2. Push the temperature control button
to set the desired temperature.
To remove ice or fog from the outside of the
windows, push the manual fan control button
and set to the maximum position.
As soon as possible after the windshield is
clean, push the AUTO button to return to the
auto mode.
When the DEF
button is pushed, the
air conditioner will automatically be turned on
at outside temperatures above 23°F (−5°C)
(for VQ35DE engine models) or 28°F (−2°C)
(for VG33E engine models) to defog the
windshield. The air recirculation mode will
automatically be turned off.Outside air is drawn into the passenger com-
partment to improve defogging performance.
MANUAL OPERATION
Fan speed controlPush the fan control button
to change the
fan speed manually.
Push the AUTO button to return to automatic
control of the fan speed.
Air recirculationPush the air recirculation button
to recir-
culate interior air inside the vehicle. The indicator
light will come on.
Push it again to make the air inlet controlled
automatically (FRESH, REC/FRE and RECIR-
CULATION). The indicator will go out.
The air recirculation button will not be activated
when the air conditioner is in DEF mode.
Air flow controlPushing the MODE button selects the air outlet
to provide:
: Air flow from center and side ventilators.: Air flow from center and side ventilators
and foot outlets.
Heater, air conditioner and audio systems
4-11
03.1.28/R50-D/V5
Page 137 of 299
: Air flow mainly from foot outlets.: Air flow from defroster and foot outlets.
To turn the system offPush the OFF button.OPERATING TIPSWhen the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for 0 to
126 seconds. This is not a malfunction. After
the coolant temperature warms up, air flow
from the foot outlets will operate normally.
The sensor on the instrument panel helps main-
tain a constant temperature. Do not put anything
on or around this sensor.The air conditioning system in your NISSAN
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant will not harm the earth’s
ozone layer.
However, special charging equipment and lubri-
cant are required when servicing your NISSAN
air conditioner. Using improper refrigerants or
lubricants will cause severe damage to your air
conditioning system. See “Capacities and rec-
ommended fuel/lubricants” in the “9. Technical
and consumer information” section for air con-
ditioning system refrigerant and lubricant recom-
mendation.
Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.
WARNING
The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper equip-
ment.
SAA0158
SERVICING AIR CONDITIONER
4-12
Heater, air conditioner and audio systems
03.1.28/R50-D/V5
Page 138 of 299
Turn the ignition key to ACC or ON and press
the power on switch to turn on the radio. If you
listen to the radio with the engine not running,
the key should be turned to the ACC position.
Radio reception is affected by station signal
strength, distance from radio transmitter, build-
ings, bridges, mountains and other external in-
fluences. Intermittent changes in reception qual-
ity normally are caused by these external
influences.
Using a cellular phone in or near the ve-
hicle may influence radio reception quality.Radio receptionYour radio system is equipped with state-of-the-
art electronic circuits to enhance radio recep-
tion. These circuits are designed to extend re-
ception range, and to enhance the quality of that
reception.
However there are some general characteristics
of FM, AM and satellite radio signals that can
affect radio reception quality in a moving vehicle,
even when the finest equipment is used. These
characteristics are completely normal in a given
reception area, and do not indicate any malfunc-
tion in your radio system.
Remember that a moving vehicle is not the ideal
place to listen to a radio. Because of the move-
ment, reception conditions will constantlychange. Buildings, terrain, signal distance and
interference from other vehicles can work
against ideal reception. Described below are
some of the factors that can affect your radio
reception.
FM RADIO RECEPTIONRange: FM range is normally limited to 25 to 30
miles (40 to 48 km), with monaural (single
channel) FM having slightly more range than
stereo FM. External influences may sometimes
interfere with FM station reception even if the FM
station is within 25 miles (40 km). The strength
of the FM signal is directly related to the distance
between the transmitter and receiver. FM signals
follow a line-of-sight path, exhibiting many of the
same characteristics as light. For example they
will reflect off objects.
Fade and drift: As your vehicle moves away from
SAA0306
AUDIO SYSTEM
Heater, air conditioner and audio systems
4-13
03.1.28/R50-D/V5
Page 139 of 299
a station transmitter, the signals will tend to fade
and/or drift.
Static and flutter: During signal interference from
buildings, large hills or due to antenna position,
usually in conjunction with increased distance
from the station transmitter, static or flutter can
be heard. This can be reduced by adjusting the
treble control counterclockwise to reduce treble
response.
Multipath reception: Because of the reflective
characteristics of FM signals, direct and re-
flected signals reach the receiver at the same
time. The signals may cancel each other, result-
ing in momentary flutter or loss of sound.
The radio has an FM Diversity reception system,
which employs two antennas if so equipped.
One is a rod type antenna; the other is an
antenna printed on the window. This system
automatically switches to the antenna which is
receiving less noise.
For additional information, see “Antenna” later in
this section.AM RADIO RECEPTIONAM signals, because of their low frequency, can
bend around objects and skip along the ground.
In addition, the signals can be bounced off the
ionosphere and bent back to earth. Because of
these characteristics. AM signals are also sub-ject to interference as they travel from transmitter
to receiver.
Fading: Occurs while the vehicle is passing
through freeway underpasses or in areas with
many tall buildings. It can also occur for several
seconds during ionospheric turbulence even in
areas where no obstacles exist.
Static: Caused by thunderstorms, electrical
power lines, electric signs and even traffic lights.
SATELLITE RADIO RECEPTIONWhen the satellite radio is first installed or the
battery has been replaced, the satellite radio
may not work properly. This is not a malfunction.
Wait more than 10 minutes with satellite radio
ON for satellite radio to receive all of the neces-
sary data.
Satellite radio reception capability is not func-
tional, and “NO SAT” will be displayed during
scrolling of modes, unless optional satellite re-
ceiver and antenna were factory installed prior to
purchase (retrofit unavailable), and an XM
or
SIRIUS
TM
satellite radio service subscription is
active.
Satellite radio performance may be affected if
cargo carried on the roof rack blocks the satellite
radio signal.If possible, do not put cargo over the satellite
radio antenna.
AUDIO OPERATION PRECAUTIONS
Cassette playerTo maintain good quality sound,
NISSAN recommends using cassette
tapes of 60 minutes or shorter in length.
Cassette tapes should be removed from
the player when not in use. Store cas-
settes in their protective cases and
away from direct sunlight, heat, dust,
moisture and magnetic sources.
Direct sunlight can cause the cassette to
become deformed. The use of deformed
cassettes may cause the cassette to jam
in the player.
Do not use cassettes with labels which
are peeling and loose. If used, the label
could jam in the player.
If a cassette has loose tape, insert a
pencil through one of the cassette hubs
and rewind the tape firmly around the
hubs. Loose tape may cause tape jam-
ming and wavering sound quality.
Over a period of time, the playback
head, capstan and pinch roller may col-
4-14
Heater, air conditioner and audio systems
03.1.28/R50-D/V5
Page 140 of 299
lect a tape coating residue as the tape is
played. This residue accumulation can
cause weak or wavering sound, and
should be removed periodically with a
head cleaning tape. If the residue is not
removed periodically, the player may
need to be disassembled for cleaning.
Compact Disc (CD) playerDuring cold weather or rainy days, the
player may malfunction due to the hu-
midity. If this occurs, remove the CD and
dehumidify or ventilate the player com-
pletely.
The player may skip while driving on
rough roads.
The CD player sometimes cannot func-
tion when the compartment tempera-
ture is extremely high. Decrease the
temperature before use.
Only use high quality 4.7 inches (12 cm)
round discs that have the “COMPACT
disc DIGITAL AUDIO” logo on the disc or
packaging.
Do not expose the CD to direct sunlight.CDs that are of poor quality, dirty,
scratched, covered with fingerprints, or
that have pin holes may not work prop-
erly.
The following CDs may not work prop-
erly.
•Copy control compact discs (CCCD)
•Recordable compact discs (CD-R)
•Rewritable compact discs (CD-RW)
Do not use the following CDs as they
may cause the CD player to malfunction.
•8 cm (3.1 in) discs with an adapter
•CDs that are not round
•CDs with a paper label
•CDs that are warped, scratched, or
have abnormal edges
SAA0480
Heater, air conditioner and audio systems
4-15
03.1.28/R50-D/V5
