NISSAN PATHFINDER 2003 R50 / 2.G Owners Manual

The cassette tape will be automatically pulled
into the player.
The radio or CD will turn off (if it is on) and the
cassette tape will begin to play.
CAUTION
Do not force the cassette tape into the
tape door. This could cause player dam-
age.
If the system is turned off by pushing the
ON⋅OFF/VOL control knobwith the cassette
tape still in the player, the tape will resume
playing when the system is turned back on.
PLAY:

When the TAPE button is pushed with the
system turned off and a tape loaded, the
system will come on and the tape will play.

When the TAPE button is pushed with either
the radio or compact disc turned on and the
tape loaded, the compact disc or the radio
will automatically be turned off and the tape
will play.

When the TAPE button is pushed while the
tape is being played, the tape side will be
changed.
FF (Fast Forward), REW
(Rewind):
Push the(fast forward) button to fast
forward the tape. To rewind the tape, push the
(rewind) button. Either the FF or REW
symbol illuminates on the right side of the display
window. To stop the FF or REW function, press
the
(fast forward) or
(rewind) again,
or the TAPE button.
APS (Automatic Program
Search) FF, APS REW:
When the(APS FF) button is pushed
while the tape is being played, the next program
will start to play from the beginning. Push the
(APS FF) button several times to skip
through programs. The tape will advance the
number of times the button is pushed (up to nine
programs).
When the
(APS REW) button is pushed
once, the program being played starts over from
the beginning. Push the
(APS REW) but-
ton several times to skip back several selections.
The tape will go back the number of times the
button is pushed. Either the FF or REW symbol
flashes on the right side of the display window
while searching for the selection.
This system searches for the blank intervals
between selections. If there is a blank intervalwithin one program or there is no interval be-
tween programs, the system may not stop in the
desired or expected location.
SCANtuning:
Push the SCAN tuning button while playing
tape, and it stops at the next tape program for 5
seconds. Pushing the button again during this 5
second period will stop SCAN tuning and the
tape program is continued. If the SCAN tuning
button is not pushed within 5 seconds, SCAN
tuning moves to the next tape program.TAPE EJECT:
When this button is pushed with the tape
loaded, the tape will be ejected.
When the tape is ejected while it is being played,
the system will be turned off.
Compact disc (CD) changer
operationTurn the ignition key to the ACC or ON position
and insert the compact disc into the slot with the
label side facing up. The compact disc will be
guided automatically into the slot and start play-
ing.
After loading the disc, the number of tracks on
the disc and the play time will appear on the
display.
If the radio or tape is already operating, it will
4-26
Heater, air conditioner and audio systems


03.1.28/R50-D/V5


automatically turn off and the compact disc will
play.
CAUTION
Do not force the compact disc into the
slot. This could damage the player.
If the system has been turned off while the
compact disc was playing, pushing the
ON⋅OFF/VOL control knobwill start the com-
pact disc.
8 cm diameter compact discs can also be used
without an adapter.
LOAD button:
To insert a CD in the CD changer, push the
LOAD button for less than 1.5 seconds. And
select the loading slot by pushing the CD insert
select button (1 to 6) then insert the CD.
To insert 6 CDs to the CD changer, push the
LOAD button for more than 1.5 seconds.
The inserted slot numbers will illuminate on the
display.PLAY:
When the CD6 button is pushed with the system
off and the compact disc loaded, the system will
turn on and the compact disc will start to play.When the CD6 button is pushed with the com-
pact disc loaded but the tape or the radio
playing, the tape or radio will automatically be
turned off and the compact disc will start to play.
FF (Fast Forward), REW
(Rewind):
When the(fast forward) or
(rewind)
button is pushed while the compact disc is
being played, the compact disc will play while
fast forwarding or rewinding. When the button is
released, the compact disc will return to normal
play speed.
APS (Automatic
Program Search) FF,
APS REW:
When the(APS FF) button is pushed
while the compact disc is being played, the
program next to the present one will start to play
from its beginning. Push several times to skip
through programs. The compact disc will ad-
vance the number of times the button is pushed.
(When the last program on the compact disc is
skipped through, the first program will be
played.) When the
(APS REW) button is
pushed, the program being played returns to its
beginning. Push several times to skip back
through programs. The compact disc will go
back the number of times the button is pushed.CD PLAY button:
To change CD, push the CD play select button
(1 to 6).
SCANtuning:
When the SCAN tuning button is pushed for
less than 1.5 seconds while the CD is being
played, the beginning of all the tracks of CDs will
be played for 10 seconds in sequence.
When the SCAN tuning button is pushed for
more than 1.5 seconds while the CD is being
played, the first program in all the CDs will be
played for 10 seconds.
Pushing the button again during this 10 second
period will stop SCAN tuning.
If the SCAN tuning button is not pushed within
10 seconds, SCAN tuning moves to the next
disc program.REPEAT (RPT):
When the RPT button is pushed while the
compact disc is played, the play pattern can be
changed as follows:
DISPLAY CD TEXT:
To indicate the CD mode text, push the PTY
Heater, air conditioner and audio systems
4-27


03.1.28/R50-D/V5


button during CD playing.
To change the indicated text, push the PTY
button.
The text will change as follows:If the text is more than 11 letters, push the
AUTO.P button to display the remaining text.
CD EJECT:
When the CD EJECT button is pushed with the
compact disc loaded, the compact disc will be
ejected.
To eject the discs selected by the CD select
button, push the EJECT button for less than 1.5
seconds.
To eject all the discs, push the EJECT button for
more than 1.5 seconds.
If the compact disc comes out and is not
removed, it will be pulled back into the slot
to protect it. (without 8 cm diameter com-
pact discs)
CD INindicator:
CD IN indicator appears on the display when the
CD is loaded with the system on.
CD CARE AND CLEANING
Handle a CD by its edges. Never touch the
surface of the disc. Do not bend the disc.

Always place the discs in the storage case
when they are not being used.

To clean a disc, wipe the surface from the
center to the outer edge using a clean, soft
cloth. Do not wipe the disc using a circular
motion.
Do not use a conventional record cleaner or
alcohol intended for industrial use.

A new disc may be rough on its inner and
outer edges. Remove the rough edges using
the side of a pen or pencil as illustrated.1. Mode select switch (if so equipped)
2. Volume control switch (up or down)
3. Memory change seek and APS switch (up)
4. Memory change seek and APS switch
(down)
5. ON-OFF switch or Mode select switch (if so
equipped)
“MODE” select switch (if so
equipped)Push the mode select switch to change the
mode in the sequence of AM, FM1, FM2, (SAT1,
SAA0451
SAA0580
STEERING WHEEL SWITCH FOR
AUDIO CONTROL (if so equipped)
4-28
Heater, air conditioner and audio systems


03.1.28/R50-D/V5


SAT2 if so equipped), CD autochanger and
Tape.Volume control switchesPush the upper or lower side switch to increase
or decrease the volume.
Tuning
Memory change (radio):
Push the tuning switch “
”or“
” for
less than 1.5 seconds to change the radio
frequency/channel.
Seek tuning (radio):
Push the tuning switch “
”or“
” for
more than 1.5 seconds to seek the next or
previous FM/AM radio station or satellite radio
channel.
APS (Automatic Program Search) FF,
APS REW (tape or CD changer):
Push the tuning switch “”or
“
” for less than 1.5 seconds to return to
the beginning of the present program or skip to
the next program. Push several times to skip
back or skip through programs.
This system searches for the blank intervals
between selections. If there is a blank interval
within one program or there is no interval be-tween programs, the system may not stop in the
desired or expected location.
FF REW (tape or CD changer):
Push the tuning switch “
”or“
” for
more than 1.5 seconds to rewind or fast forward
the tape or to change the playing disc up or
down.
To stop the FF or REW function, press the
switch you pushed for more than 1.5 seconds
again.
“ON⋅OFF” switch (if so equipped)With the ignition key turned to the ACC or ON
position, push the “ON⋅OFF” switch to turn the
audio system ON or OFF.
ANTENNA
Manual antennaThe manual antenna on your vehicle remains in
the upper position at all times. The antenna
cannot be shortened, but can be removed.
When you need to remove the antenna, turn the
antenna nut counterclockwise. To install the
antenna rod, turn the antenna nut clockwise.
Tighten the antenna rod to specification using a
suitable tool, such as an open-end wrench. The
antenna rod tightening specification is 3.4 to 3.6
N⋅m (30 to 32 in-lb). Do not use pliers to tighten
the antenna as they can leave marks on the
antenna surface. The antenna rod cannot be
SAA0164
Heater, air conditioner and audio systems
4-29


03.1.28/R50-D/V5


hand tightened to the proper specification.
CAUTION

Always properly tighten the antenna
rod during installation or the antenna
rod may bend or break during vehicle
operation.

To prevent damage, be sure that
manual antenna is removed before
the vehicle enters an automated car
wash.Power antennaThe antenna will automatically extend when the
radio is turned on, and retract when switched off.
If the radio is left on, the antenna will retract and
extend with the ignition key OFF-ON operation.
CAUTION

Before turning the radio on, make
sure that there is no one near the
antenna outlet and there is enough
space for it to extend.
To prevent damage, be sure that
power antenna is fully retracted be-
fore the vehicle enters an automated
car wash.

Dirt and other foreign matter on the
power antenna rod may interrupt its
operation. Clean the rod periodically
with a damp cloth. This type of clean-
ing is especially important during the
winter seasons in areas where road
salt and other chemicals may be
spread on road surfaces and
splashed onto the antenna rod.
Window antennaThe antenna pattern is printed inside the wind-
shield.
CAUTION

Do not place metalized film near the
windshield or attach any metal parts
to it. This may cause poor reception
or noise.
When cleaning the inside of the
windshield, be careful not to scratch
or damage the window antenna.
Lightly wipe along the antenna with a
dampened soft cloth.
4-30
Heater, air conditioner and audio systems


03.1.28/R50-D/V5


When installing a car phone or CB, ham radio in
your NISSAN, be sure to observe the following
cautions, otherwise the new equipment may
adversely affect the Engine control system and
other electronic parts.
WARNING

A cellular telephone should not be
used while driving so full attention
may be given to vehicle operation.
Some jurisdictions prohibit the use
of cellular telephones while driving.

If you must make a call while your
vehicle is in motion, the hands free
cellular phone operational mode (if
so equipped) is highly recommended.
Exercise extreme caution at all times
so full attention may be given to
vehicle operation.

If a conversation in a moving vehicle
requires you to take notes, pull off
the road to a safe location and stop
your vehicle before doing so.
CAUTION

Keep the antenna as far as possible
away from the Engine Control Mod-
ule (ECM).

Keep the antenna wire more than 8 in
(20 cm) away from the Multiport Fuel
Injection harness. Do not route the
antenna wire next to any harness.

Adjust the antenna standing-wave
ratio as recommended by the manu-
facturer.

Connect the ground wire from the CB
radio chassis to the body.

For details, consult an authorized
NISSAN dealer.
CAR PHONE OR CB RADIO
Heater, air conditioner and audio systems
4-31


03.1.28/R50-D/V5


MEMO4-32
Heater, air conditioner and audio systems


03.1.28/R50-D/V5


5 Starting and drivingPrecautions when starting and driving ............................. 5-2
Exhaust gas (Carbon monoxide) .................................. 5-2
Three way catalyst ........................................................... 5-3
Low tire pressure warning system (if so
equipped) ........................................................................... 5-3
On-pavement and offroad driving precautions ......... 5-4
Avoiding collision and rollover ...................................... 5-5
Drinking alcohol/drugs and driving .............................. 5-5
Driving safety precautions.............................................. 5-5
Ignition switch ......................................................................... 5-7
Automatic transmission................................................... 5-7
Manual transmission ........................................................ 5-9
Key positions ..................................................................... 5-9
Nissan vehicle immobilizer system............................... 5-9
Before starting the engine ................................................ 5-10
Starting the engine ............................................................. 5-10
Driving the vehicle ............................................................... 5-11
Automatic transmission ................................................ 5-11
Manual transmission ..................................................... 5-15
Parking brake........................................................................ 5-17
Cruise control (if so equipped)........................................ 5-18
Precautions on cruise control .................................... 5-18
Cruise control operations ............................................ 5-18Break-in schedule ............................................................... 5-20
Increasing fuel economy .................................................... 5-20
Using part time four wheel drive (4WD) ....................... 5-21
Transfer case shifting procedures............................. 5-23
Using all-mode four wheel drive (4WD) ....................... 5-25
Transfer case shifting procedures............................. 5-25
Parking/parking on hills...................................................... 5-32
Power steering ..................................................................... 5-33
Brake system ........................................................................ 5-34
Braking precautions ...................................................... 5-34
Anti-lock brake system (ABS) .................................... 5-34
Vehicle Dynamic Control (VDC) system
(if so equipped).................................................................... 5-36
Cold weather driving .......................................................... 5-37
Freeing a frozen door lock .......................................... 5-37
Anti-freeze ....................................................................... 5-37
Battery .............................................................................. 5-37
Draining of coolant water ............................................ 5-37
Tire equipment................................................................ 5-37
Special winter equipment ............................................ 5-38
Driving on snow or ice ................................................. 5-38
Engine block heater (if so equipped) ....................... 5-39


03.1.28/R50-D/V5

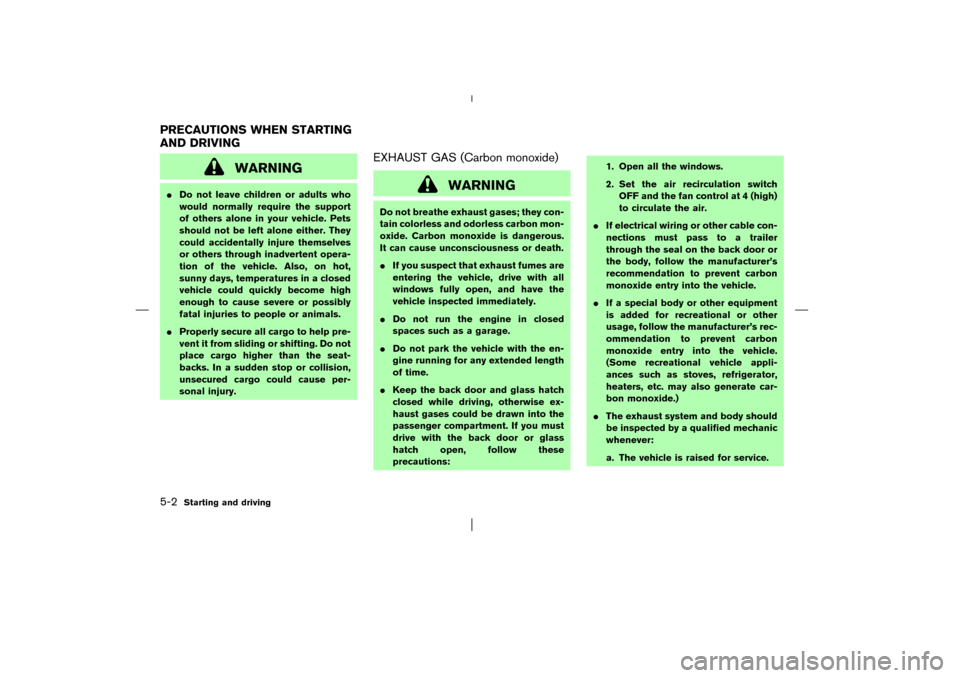

WARNING

Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. They
could accidentally injure themselves
or others through inadvertent opera-
tion of the vehicle. Also, on hot,
sunny days, temperatures in a closed
vehicle could quickly become high
enough to cause severe or possibly
fatal injuries to people or animals.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.
EXHAUST GAS (Carbon monoxide)
WARNING
Do not breathe exhaust gases; they con-
tain colorless and odorless carbon mon-
oxide. Carbon monoxide is dangerous.
It can cause unconsciousness or death.

If you suspect that exhaust fumes are
entering the vehicle, drive with all
windows fully open, and have the
vehicle inspected immediately.

Do not run the engine in closed
spaces such as a garage.

Do not park the vehicle with the en-
gine running for any extended length
of time.

Keep the back door and glass hatch
closed while driving, otherwise ex-
haust gases could be drawn into the
passenger compartment. If you must
drive with the back door or glass
hatch open, follow these
precautions:1. Open all the windows.
2. Set the air recirculation switch
OFF and the fan control at 4 (high)
to circulate the air.

If electrical wiring or other cable con-
nections must pass to a trailer
through the seal on the back door or
the body, follow the manufacturer’s
recommendation to prevent carbon
monoxide entry into the vehicle.

If a special body or other equipment
is added for recreational or other
usage, follow the manufacturer’s rec-
ommendation to prevent carbon
monoxide entry into the vehicle.
(Some recreational vehicle appli-
ances such as stoves, refrigerator,
heaters, etc. may also generate car-
bon monoxide.)

The exhaust system and body should
be inspected by a qualified mechanic
whenever:
a. The vehicle is raised for service.
PRECAUTIONS WHEN STARTING
AND DRIVING5-2
Starting and driving


03.1.28/R50-D/V5


b. You suspect that exhaust fumes
are entering into the passenger
compartment.
c. You notice a change in the sound
of the exhaust system.
d. You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.
THREE WAY CATALYSTThe three way catalyst is an emission control
device, installed in the exhaust system. In the
converter, exhaust gases are burned at high
temperatures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials, such as drygrass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline seriously re-
duce the three way catalyst’s ability
to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by an authorized
NISSAN dealer.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three way catalyst.
Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
LOW TIRE PRESSURE WARNING
SYSTEM (if so equipped)The low tire pressure warning system monitors
tire pressure of all wheels (except the spare tire).
The low tire pressure warning system will acti-
vate only when the vehicle is driven at speeds
above 20 MPH (32 km/h). Also, this system may
not detect a sudden drop in tire pressure (for
example a flat tire by catching something while
driving).
Frequently check the tire pressure and adjust
pressure of each tire properly.LOW PRESSURE warningIf the vehicle is being driven with a flat tire or low
tire pressure (lower than 25 psi, 171 kPa), the
low tire pressure warning light illuminates and
the chime sounds for about 10 seconds.
For additional information regarding the above
warning, see “Warning/indicator lights and au-
Starting and driving
5-3


03.1.28/R50-D/V5
