NISSAN PATHFINDER 2003 R50 / 2.G User Guide

Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
FRONT POWER SEAT
ADJUSTMENT

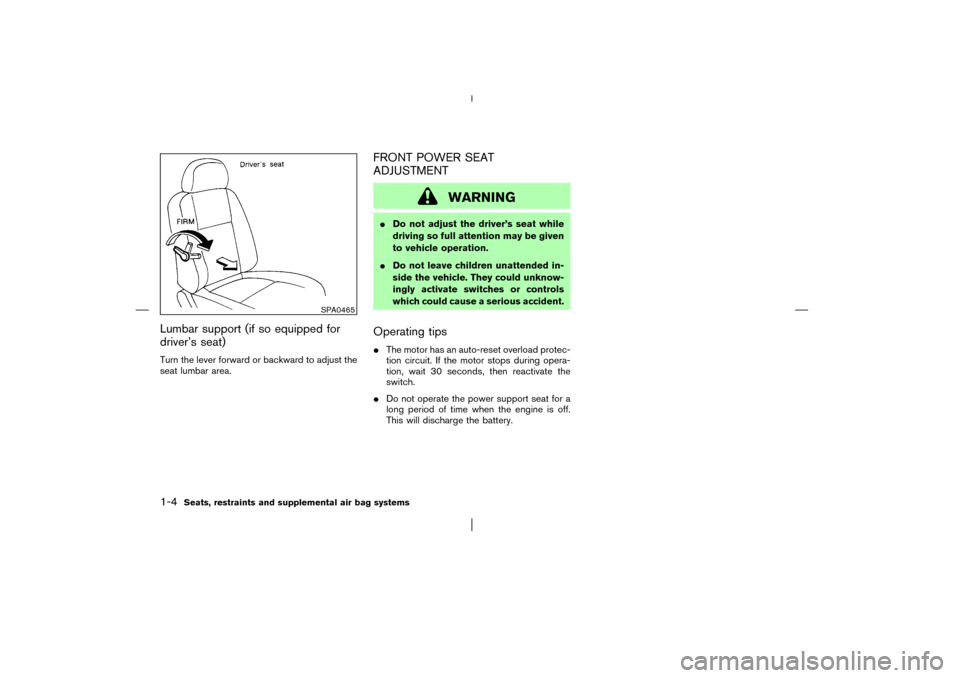

WARNING

Do not adjust the driver’s seat while
driving so full attention may be given
to vehicle operation.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
which could cause a serious accident.Operating tips
The motor has an auto-reset overload protec-
tion circuit. If the motor stops during opera-
tion, wait 30 seconds, then reactivate the
switch.

Do not operate the power support seat for a
long period of time when the engine is off.
This will discharge the battery.
SPA0465
1-4
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


Forward and backwardMoving the switch forward or backward will slide
the seat forward or backward to the desired
position.
RecliningMove the recline switch backward until the
desired angle is obtained. To bring the seatback
forward again, move the switch forward and
move your body forward. The seatback will move
forward.
Seat lifterPush the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
SSS0148
SSS0166
Seats, restraints and supplemental air bag systems
1-5


03.1.28/R50-D/V5


Lumbar support (if so equipped for
driver’s seat)Turn the lever forward or backward to adjust the
seat lumbar area.
REAR SEAT ADJUSTMENTBefore folding down the seat, put the buckle in
its storage area in the seatback to avoid drop-
ping it under the seat cushion.
SPA0465
SPA0189
1-6
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


Folding1. Remove the head restraints.
2. Pull the strap forward and fold the seat
cushion up.
3. Pull the lever and pull the seatback forward to
fold it down.
4. When resetting the seat, be sure to install the
head restraints.

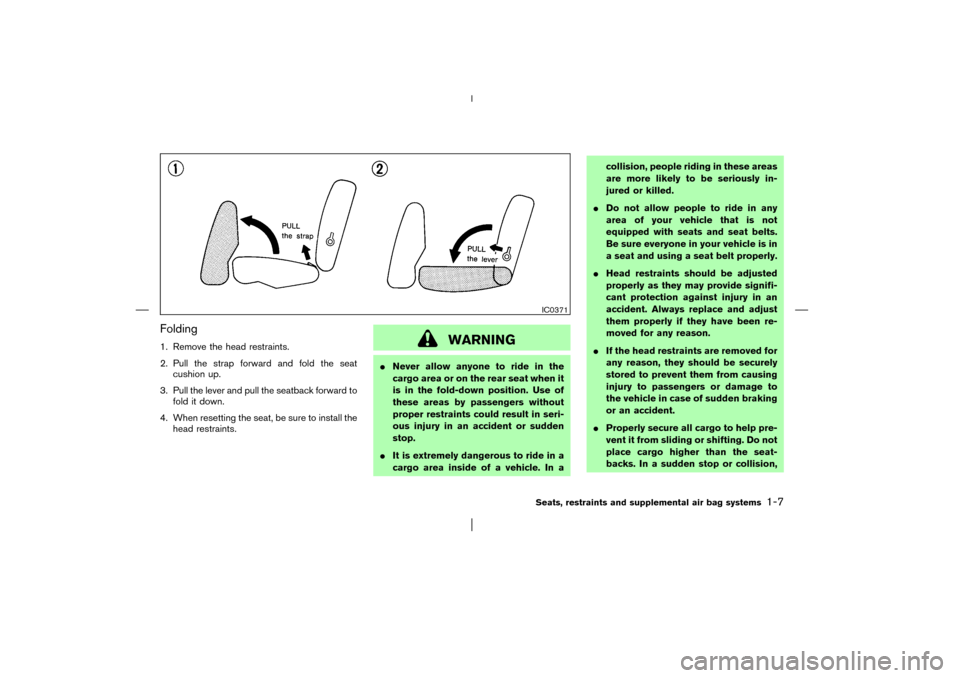

WARNING

Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop.

It is extremely dangerous to ride in a
cargo area inside of a vehicle. In acollision, people riding in these areas
are more likely to be seriously in-
jured or killed.

Do not allow people to ride in any
area of your vehicle that is not
equipped with seats and seat belts.
Be sure everyone in your vehicle is in
a seat and using a seat belt properly.

Head restraints should be adjusted
properly as they may provide signifi-
cant protection against injury in an
accident. Always replace and adjust
them properly if they have been re-
moved for any reason.

If the head restraints are removed for
any reason, they should be securely
stored to prevent them from causing
injury to passengers or damage to
the vehicle in case of sudden braking
or an accident.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
IC0371Seats, restraints and supplemental air bag systems
1-7


03.1.28/R50-D/V5


unsecured cargo could cause per-
sonal injury.

When returning the seatbacks to the
upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured in the right position, passen-
gers may be injured in an accident or
sudden stop.
Reclining (if so equipped)Pull the reclining lever and position the seat back
at the desired angle. Release the reclining lever
after positioning the seat at the desired angle.
WARNING

Do not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accidentyou could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap
belt and receive serious internal inju-
ries.

For most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well
back in the seat and adjust the seat
belt properly. See “Seat belts” later
in this section for precautions on
seat belt usage.

After adjustment, check to be sure
the seat is securely locked.
IC0385
1-8
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5


HEAD RESTRAINT ADJUSTMENT

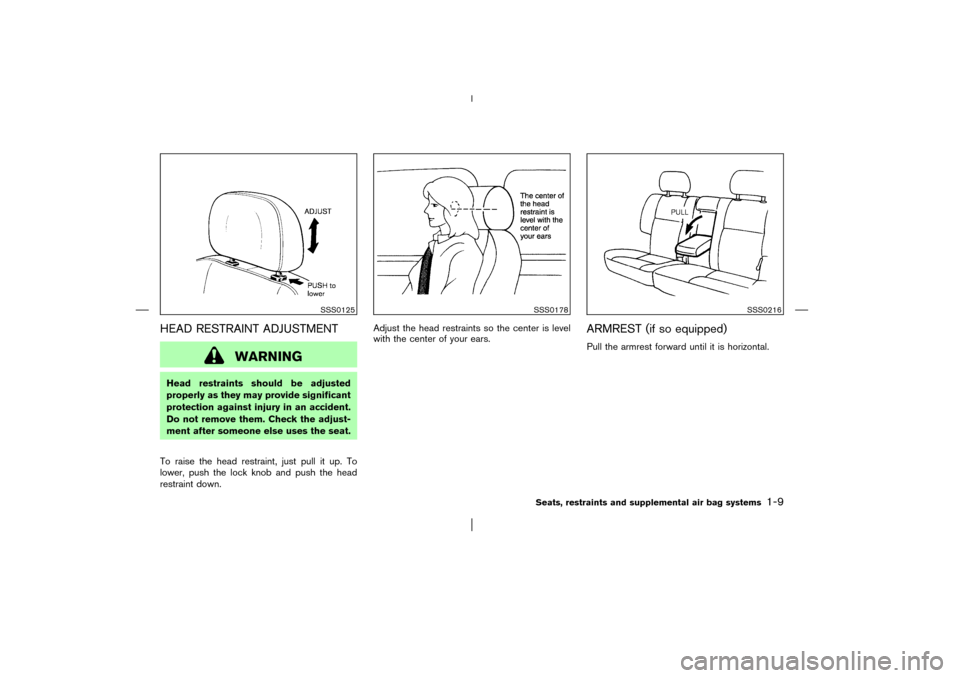

WARNING
Head restraints should be adjusted
properly as they may provide significant
protection against injury in an accident.
Do not remove them. Check the adjust-
ment after someone else uses the seat.
To raise the head restraint, just pull it up. To
lower, push the lock knoband push the head
restraint down.Adjust the head restraints so the center is level
with the center of your ears.
ARMREST (if so equipped)Pull the armrest forward until it is horizontal.
SSS0125
SSS0178
SSS0216
Seats, restraints and supplemental air bag systems
1-9


03.1.28/R50-D/V5


PRECAUTIONS ON
SUPPLEMENTAL RESTRAINT
SYSTEMThis Supplemental Restraint System (SRS) sec-
tion contains important information concerning
the driver and passenger front impact supple-
mental air bags, front seat side-impact supple-
mental air bags, curtain side-impact air bags and
front seat pre-tensioner seat belts.
Supplemental front impact air bag system:
This system can help cushion the impact force to
the face and chest of the driver and front
passenger in certain frontal collisions.
Supplemental side-impact air bag system
(if so equipped):This system can help cushion
the impact force to the chest area of the driver
and front passenger in certain side impact colli-
sions. The front seat side-impact supplemental
air bags are designed to inflate on the side
where the vehicle is impacted.
Supplemental curtain side-impact air bag
system (if so equipped):This system can help
cushion the impact force to the head of occu-
pants in front and rear outboard seating posi-
tions in certain side impact collisions. The cur-
tain side-impact air bags are designed to inflate
on the side where the vehicle is impacted.
These supplemental restraint systems are de-
signed tosupplementthe crash protectionprovided by the driver and passenger seat belts
and arenot a substitutefor them. Seat belts
should always be correctly worn and the occu-
pant seated a suitable distance away from the
steering wheel, instrument panel, door finishers
and side roof rails. (See “Seat belts” later in this
section for instructions and precautions on seat
belt usage.)
After turning the ignition key to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.SUPPLEMENTAL RESTRAINT
SYSTEM1-10
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5

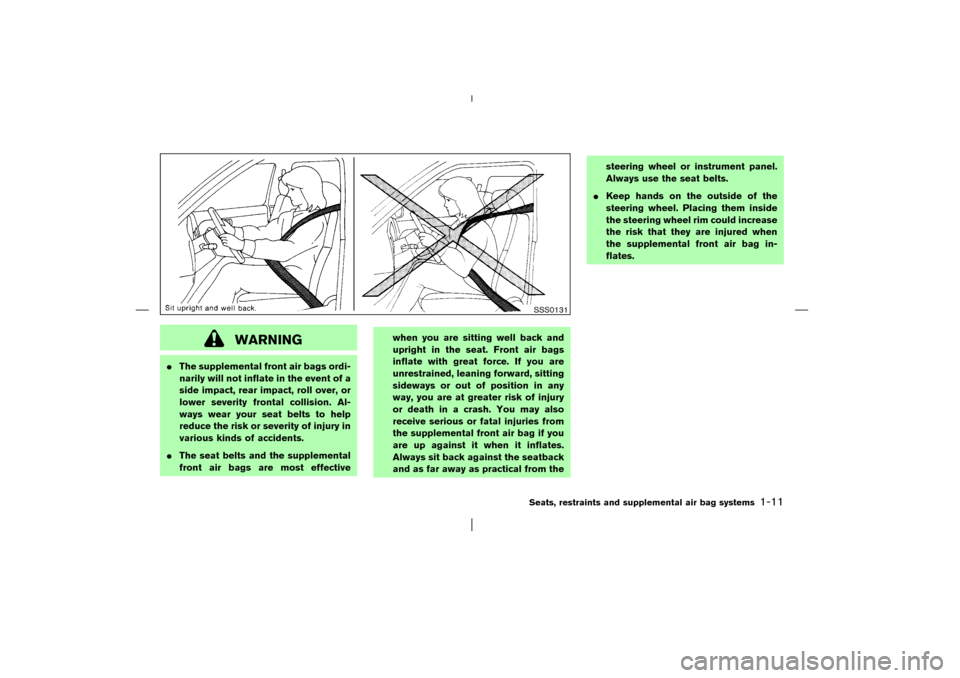

WARNING

The supplemental front air bags ordi-
narily will not inflate in the event of a
side impact, rear impact, roll over, or
lower severity frontal collision. Al-
ways wear your seat belts to help
reduce the risk or severity of injury in
various kinds of accidents.

The seat belts and the supplemental
front air bags are most effectivewhen you are sitting well back and
upright in the seat. Front air bags
inflate with great force. If you are
unrestrained, leaning forward, sitting
sideways or out of position in any
way, you are at greater risk of injury
or death in a crash. You may also
receive serious or fatal injuries from
the supplemental front air bag if you
are up against it when it inflates.
Always sit back against the seatback
and as far away as practical from thesteering wheel or instrument panel.
Always use the seat belts.

Keep hands on the outside of the
steering wheel. Placing them inside
the steering wheel rim could increase
the risk that they are injured when
the supplemental front air bag in-
flates.
SSS0131Seats, restraints and supplemental air bag systems
1-11


03.1.28/R50-D/V5


SSS0132
SSS0006SSS0007
1-12
Seats, restraints and supplemental air bag systems


03.1.28/R50-D/V5

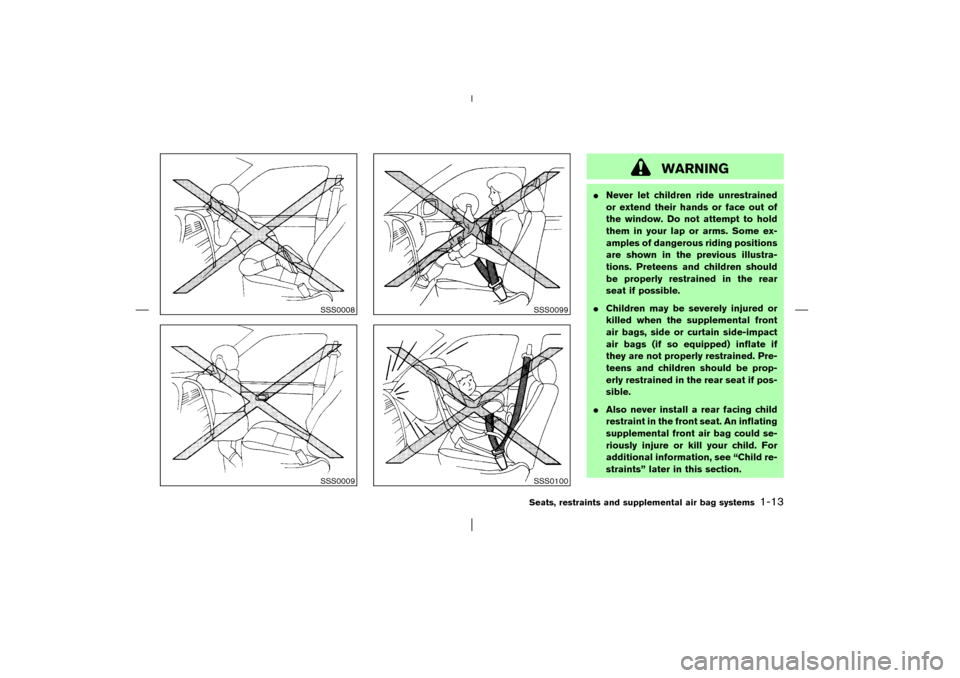

WARNING

Never let children ride unrestrained
or extend their hands or face out of
the window. Do not attempt to hold
them in your lap or arms. Some ex-
amples of dangerous riding positions
are shown in the previous illustra-
tions. Preteens and children should
be properly restrained in the rear
seat if possible.

Children may be severely injured or
killed when the supplemental front
air bags, side or curtain side-impact
air bags (if so equipped) inflate if
they are not properly restrained. Pre-
teens and children should be prop-
erly restrained in the rear seat if pos-
sible.

Also never install a rear facing child
restraint in the front seat. An inflating
supplemental front air bag could se-
riously injure or kill your child. For
additional information, see “Child re-
straints” later in this section.
SSS0008SSS0009
SSS0099SSS0100Seats, restraints and supplemental air bag systems
1-13


03.1.28/R50-D/V5
