NISSAN PATHFINDER 2003 R50 / 2.G Service Manual
Manufacturer: NISSAN, Model Year: 2003, Model line: PATHFINDER, Model: NISSAN PATHFINDER 2003 R50 / 2.GPages: 299, PDF Size: 2.56 MB
Page 41 of 299
use, store it in the trunk or keep it
secured with a seat belt to prevent it
from being thrown around in case of
a sudden stop or accident.
CAUTION
Remember that a child restraint left in a
closed vehicle can become very hot.
Check the seating surface and buckles
before placing your child in the child
restraint.
INSTALLATION ON REAR SEAT
CENTER POSITION
Front facingWhen you install a child restraint in a rear center
seat, follow these steps:
1. Position the child restraint on the seat as
illustrated. The direction of the child restraint
depends on the type of the child restraint and
the size of the child. Always follow the re-
straint manufacturer’s instructions.2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.
SSS0104
SSS0029
1-34
Seats, restraints and supplemental air bag systems
03.1.28/R50-D/V5
Page 42 of 299
3. Remove all slack in the lap belt for a very tight
fit by pulling forcefully on the lap belt adjust-
ment.4. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
5. If it is not secure, try to tighten the belt again,
or put the restraint in another seat.
6. Check to make sure the child restraint is
properly secured prior to each use.
Rear facingWhen you install a child restraint in a rear center
seat, follow these steps:
1. Position the child restraint on the seat as
illustrated. The direction of the child restraint
depends on the type of the child restraint and
the size of the child. Always follow the re-
straint manufacturer’s instructions.
SSS0105
SSS0031
SSS0033
Seats, restraints and supplemental air bag systems
1-35
03.1.28/R50-D/V5
Page 43 of 299
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.3. Remove all slack in the lap belt for a very tight
fit by pulling forcefully on the lap belt adjust-
ment.4. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
5. If it is not secure, try to tighten the belt again,
or put the restraint in another seat.
6. Check to make sure the child restraint is
properly secured prior to each use.
SSS0035
SSS0036
SSS0106
1-36
Seats, restraints and supplemental air bag systems
03.1.28/R50-D/V5
Page 44 of 299
INSTALLATION ON REAR SEAT
OUTBOARD POSITIONS
Front facing
WARNING
The three-point belt on your vehicle
is equipped with a locking mode re-
tractor which must be used when
installing a child restraint.
Failure to do so will result in the childrestraint not being properly secured.
It could tip over or otherwise be un-
secured and cause injury to the child
in a sudden stop or collision.
When you install a child restraint in a rear
outboard seat, follow these steps:
1. Position the child restraint on the seat. The
direction of the child restraint depends on the
type of the child restraint and the size of the
child. Always follow the restraint manufactur-
er’s instructions.
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage.
Be sure to follow the child restraint manufac-
turer’s instructions for belt routing.
SSS0041
SSS0043
Seats, restraints and supplemental air bag systems
1-37
03.1.28/R50-D/V5
Page 45 of 299
3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the buckle is unlatched
and the belt is allowed to fully retract.4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.5. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,
SSS0107
SSS0062
SSS0108
1-38
Seats, restraints and supplemental air bag systems
03.1.28/R50-D/V5
Page 46 of 299
the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
Rear facing
WARNING
The three-point belt on your vehicle
is equipped with a locking mode re-
tractor which must be used when
installing a child restraint.
Failure to do so will result in the child
restraint not being properly secured.
It could tip over or otherwise be un-
secured and cause injury to the childin a sudden stop or collision.
When you install a child restraint in a rear
outboard seat, follow these steps:
1. Position the child restraint on the seat. The
direction of the child restraint depends on the
type of the child restraint and the size of the
child. Always follow the restraint manufactur-
er’s instructions.
SSS0044Seats, restraints and supplemental air bag systems
1-39
03.1.28/R50-D/V5
Page 47 of 299
2. Route the seat belt tongue through the child
restraint and insert it into the buckle until you
hear and feel the latch engage. Be sure to
follow the child restraint manufacturer’s in-
structions for belt routing.3. Pull on the shoulder belt until all of the belt is
fully extended. At this time, the belt retractor
is in the automatic locking mode (child re-
straint mode). It reverts back to emergency
locking mode when the belt is fully retracted.4. Allow the belt to retract. Pull up on the belt to
remove any slack in the belt.
SSS0046
SSS0045A
SSS0109
1-40
Seats, restraints and supplemental air bag systems
03.1.28/R50-D/V5
Page 48 of 299
5. Before placing the child in the child restraint,
use force to tilt the child restraint from side to
side, and tug it forward to make sure that it is
securely held in place.
6. Check that the retractor is in the automatic
locking mode by trying to pull more belt out of
the retractor. If you cannot pull any more belt
webbing out of the retractor, the belt is in the
automatic locking mode.
7. Check to make sure that the child restraint is
properly secured prior to each use. If the belt
is not locked, repeat steps 3 through 6.
After the child restraint is removed and the seat
belt is allowed to wind back into the retractor,the automatic locking mode (child restraint
mode) is canceled; the seat belt only locks
during a sudden stop or impact.
LATCH (LOWER ANCHORS AND
TETHER FOR CHILDREN) SYSTEM
(if so equipped)
WARNING
Attach LATCH system compatible
child restraints only at the locations
shown. If a child restraint is not se-
cured properly, your child could be
seriously injured or killed in an
accident.
SSS0110
SSS0198
Seats, restraints and supplemental air bag systems
1-41
03.1.28/R50-D/V5
Page 49 of 299

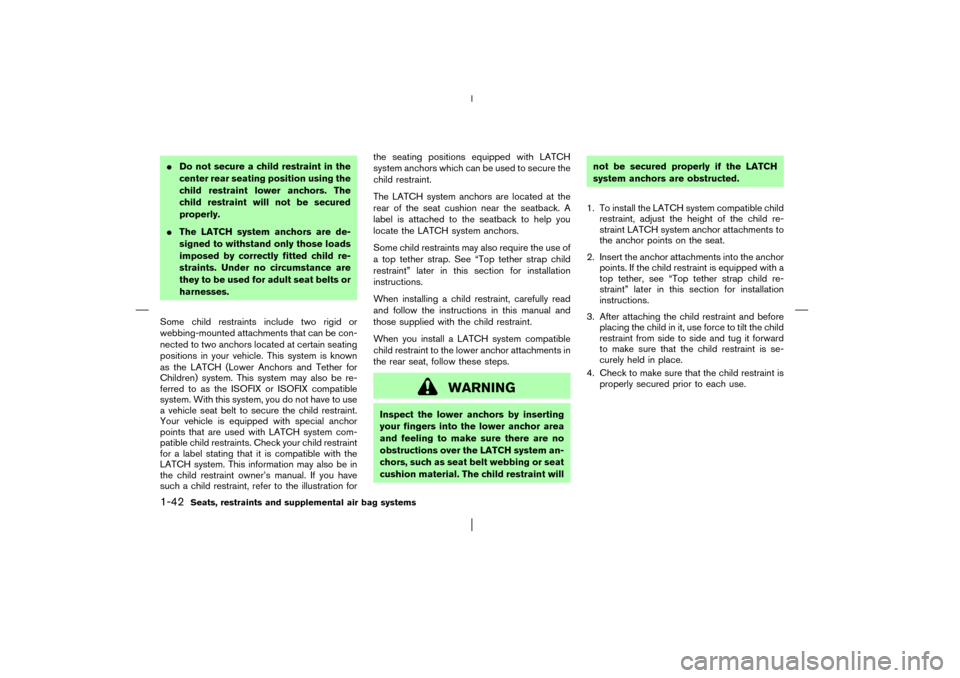

Do not secure a child restraint in the
center rear seating position using the
child restraint lower anchors. The
child restraint will not be secured
properly.
The LATCH system anchors are de-
signed to withstand only those loads
imposed by correctly fitted child re-
straints. Under no circumstance are
they to be used for adult seat belts or
harnesses.
Some child restraints include two rigid or
webbing-mounted attachments that can be con-
nected to two anchors located at certain seating
positions in your vehicle. This system is known
as the LATCH (Lower Anchors and Tether for
Children) system. This system may also be re-
ferred to as the ISOFIX or ISOFIX compatible
system. With this system, you do not have to use
a vehicle seat belt to secure the child restraint.
Your vehicle is equipped with special anchor
points that are used with LATCH system com-
patible child restraints. Check your child restraint
for a label stating that it is compatible with the
LATCH system. This information may also be in
the child restraint owner’s manual. If you have
such a child restraint, refer to the illustration forthe seating positions equipped with LATCH
system anchors which can be used to secure the
child restraint.
The LATCH system anchors are located at the
rear of the seat cushion near the seatback. A
label is attached to the seatback to help you
locate the LATCH system anchors.
Some child restraints may also require the use of
a top tether strap. See “Top tether strap child
restraint” later in this section for installation
instructions.
When installing a child restraint, carefully read
and follow the instructions in this manual and
those supplied with the child restraint.
When you install a LATCH system compatible
child restraint to the lower anchor attachments in
the rear seat, follow these steps.
WARNING
Inspect the lower anchors by inserting
your fingers into the lower anchor area
and feeling to make sure there are no
obstructions over the LATCH system an-
chors, such as seat belt webbing or seat
cushion material. The child restraint willnot be secured properly if the LATCH
system anchors are obstructed.
1. To install the LATCH system compatible child
restraint, adjust the height of the child re-
straint LATCH system anchor attachments to
the anchor points on the seat.
2. Insert the anchor attachments into the anchor
points. If the child restraint is equipped with a
top tether, see “Top tether strap child re-
straint” later in this section for installation
instructions.
3. After attaching the child restraint and before
placing the child in it, use force to tilt the child
restraint from side to side and tug it forward
to make sure that the child restraint is se-
curely held in place.
4. Check to make sure that the child restraint is
properly secured prior to each use.
1-42
Seats, restraints and supplemental air bag systems
03.1.28/R50-D/V5
Page 50 of 299
TOP TETHER STRAP CHILD
RESTRAINT

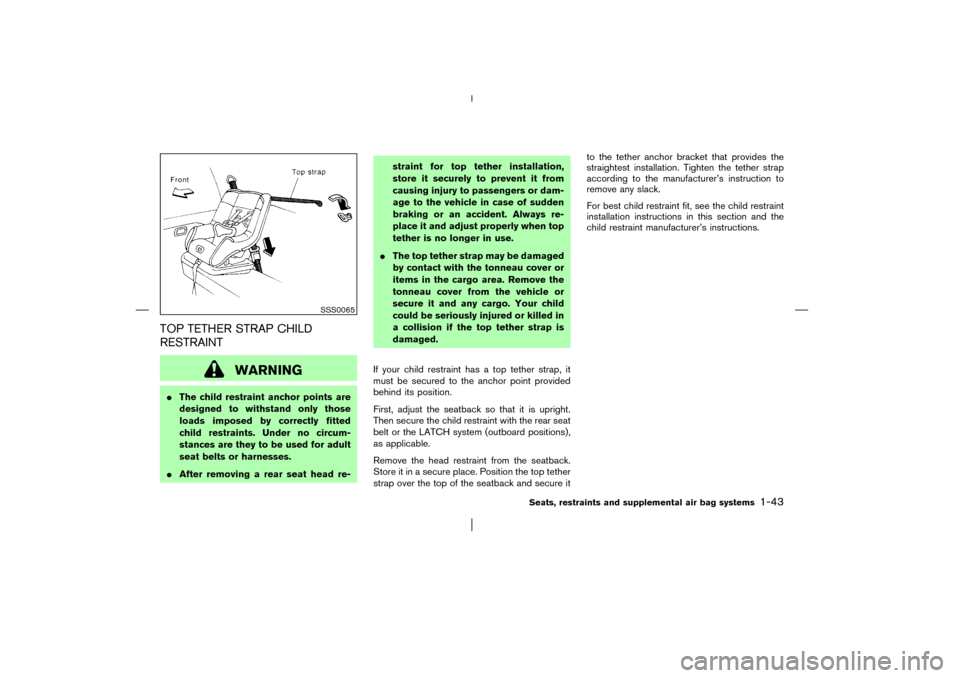

WARNING
The child restraint anchor points are
designed to withstand only those
loads imposed by correctly fitted
child restraints. Under no circum-
stances are they to be used for adult
seat belts or harnesses.
After removing a rear seat head re-straint for top tether installation,
store it securely to prevent it from
causing injury to passengers or dam-
age to the vehicle in case of sudden
braking or an accident. Always re-
place it and adjust properly when top
tether is no longer in use.
The top tether strap may be damaged
by contact with the tonneau cover or
items in the cargo area. Remove the
tonneau cover from the vehicle or
secure it and any cargo. Your child
could be seriously injured or killed in
a collision if the top tether strap is
damaged.
If your child restraint has a top tether strap, it
must be secured to the anchor point provided
behind its position.
First, adjust the seatback so that it is upright.
Then secure the child restraint with the rear seat
belt or the LATCH system (outboard positions),
as applicable.
Remove the head restraint from the seatback.
Store it in a secure place. Position the top tether
strap over the top of the seatback and secure itto the tether anchor bracket that provides the
straightest installation. Tighten the tether strap
according to the manufacturer’s instruction to
remove any slack.
For best child restraint fit, see the child restraint
installation instructions in this section and the
child restraint manufacturer’s instructions.
SSS0065
Seats, restraints and supplemental air bag systems
1-43
03.1.28/R50-D/V5
