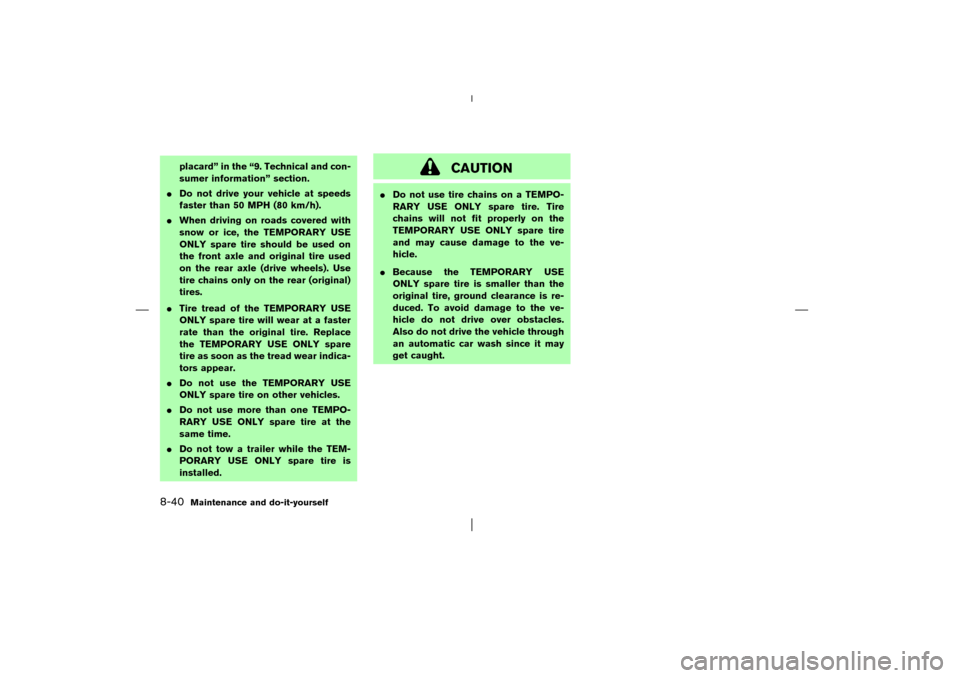

placard” in the “9. Technical and con-
sumer information” section.
Do not drive your vehicle at speeds
faster than 50 MPH (80 km/h).
When driving on roads covered with
snow or ice, the TEMPORARY USE
ONLY spare tire should be used on
the front axle and original tire used
on the rear axle (drive wheels). Use
tire chains only on the rear (original)
tires.
Tire tread of the TEMPORARY USE
ONLY spare tire will wear at a faster
rate than the original tire. Replace
the TEMPORARY USE ONLY spare
tire as soon as the tread wear indica-
tors appear.
Do not use the TEMPORARY USE
ONLY spare tire on other vehicles.
Do not use more than one TEMPO-
RARY USE ONLY spare tire at the
same time.
Do not tow a trailer while the TEM-
PORARY USE ONLY spare tire is
installed.
CAUTION
Do not use tire chains on a TEMPO-
RARY USE ONLY spare tire. Tire
chains will not fit properly on the
TEMPORARY USE ONLY spare tire
and may cause damage to the ve-
hicle.
Because the TEMPORARY USE
ONLY spare tire is smaller than the
original tire, ground clearance is re-
duced. To avoid damage to the ve-
hicle do not drive over obstacles.
Also do not drive the vehicle through
an automatic car wash since it may
get caught.
8-40
Maintenance and do-it-yourself
03.1.28/R50-D/V5
Page 262 of 299
MEMO
Maintenance and do-it-yourself
8-41
03.1.28/R50-D/V5
Page 263 of 299
MEMO8-42
Maintenance and do-it-yourself
03.1.28/R50-D/V5
Page 264 of 299
9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-4
Engine oil and oil filter recommendation.................... 9-6
Recommended SAE oil viscosity number.................. 9-7
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-8
Specifications.......................................................................... 9-9
Engine ................................................................................. 9-9
Wheels and tires ................................................................. 9-11
Dimensions and weights.............................................. 9-11
When traveling or registering your vehicle in another
country.................................................................................... 9-12
Vehicle identification ........................................................... 9-12
Vehicle identification number (VIN) plate ................ 9-12
Vehicle identification number (Chassis
number) ............................................................................ 9-12
Engine serial number .................................................... 9-13
F.M.V.S.S. certification label ....................................... 9-13
Emission control information label ............................ 9-14
Tire placard ..................................................................... 9-14Air conditioner specification label ............................. 9-14
Vehicle loading information ............................................... 9-15
Terms ................................................................................ 9-15
Determining vehicle payload capacity ...................... 9-15
Securing the load .......................................................... 9-16
Loading tips .................................................................... 9-16
Payload weight capacity .............................................. 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-17
Maximum load limits ...................................................... 9-17
Towing load/specification chart ................................. 9-19
Towing safety.................................................................. 9-19
Uniform tire quality grading ......................................... 9-21
Emission control system warranty ................................... 9-22
Reporting safety defects (US only) ................................ 9-22
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-23
Owner’s Manual/Service Manual order information ... 9-25
In the event of a collision ............................................ 9-25
03.1.28/R50-D/V5
Page 265 of 299
The following values are approximate capacities. The actual refill capacities may be a little different from them. When refilling, follow
the procedure instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Fuel 20-7/8 gal 17-3/8 gal 79Unleaded gasoline with an octane rating of
at least 91 AKI (RON 96) (VQ35DE) or
87AKI (RON 91) (VG33E)*1
Engine oil*4
Drain and refill
with oil filter
change5-1/4 qt 4-3/8 qt 5.0API Certification Mark*2 *3
API grade SG/SH, Energy Conserving I &
II or API grade SJ, SL, Energy Conserv-
ing*2 *3
ILSAC grade GF-I, GF-II & GF-III*2 *3 without oil filter
change5-1/8 qt 4-1/4 qt 4.8
Cooling system (with
heater and reservoir
tank)9-3/4 qt 8-1/8 qt 9.2Genuine Nissan Anti-Freeze Coolant or
equivalent
*1: See later in this section for fuel recommendation.
*2: See later in this section for recommended SAE viscosity number.
*3: See later in this section for engine oil and oil filter recommendation.
*4: See “Changing engine oil” in the “8. Maintenance and do-it-yourself” section for further details.CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information
03.1.28/R50-D/V5
Page 266 of 299
Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Manual transmission— — — API GL-4 Viscosity SAE 75W-85
Differential gear oil (exc. LSD)— — — API GL-5 Viscosity SAE 80W-90*1
Limited-slip differential (LSD) gear oil — — —Only LSD gear oil:
API GL-5 and SAE 80W-90*1 approved for Nissan LSD*2
Automatic transmission fluid
Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section.Nissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Power steering fluidGenuine Nissan PSF or equivalent*5
All-mode 4WD transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6 or API GL-4 Viscosity SAE 75W-90
Brake and clutch fluidGenuine Nissan Brake Fluid*4 or equivalent
DOT 3 (U.S. F.M.V.S.S. No. 116)
Propeller shaft grease— — — NLGI No. 2 (Lithium soap base)
Multi-purpose grease— — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant— — — HFC-134a (R-134a)*4
Air conditioning system lubricants———Nissan A/C System Oil Type S or exact equivalent*4
*1: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*2: Contact your NISSAN dealer for a list of approved oils.
*3: Available in mainland U.S. through your NISSAN dealer.
*4: See “Vehicle identification” later in this section for air conditioner specification label.
*5: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*6: Dexron
TMIII/Mercon
TM
or equivalent may also be used. Outside the continental U.S. and Alaska contact an authorized NISSAN dealer for more information regarding
suitable fluids, including recommended brand(s) of DEXRON
TMIII/MERCON
TMAutomatic Transmission Fluid.
Technical and consumer information
9-3
03.1.28/R50-D/V5
Page 267 of 299
FUEL RECOMMENDATIONVG33E engine:
Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
VQ35DE engine:
Use unleaded regular gasoline with an oc-
tane rating of at least 87 AKI (Anti-Knock
Index) number (Research octane number
91).
For improved vehicle performance,
NISSAN recommends the use of unleaded
premium gasoline with an octane rating of
at least 91 AKI number (Research octane
number 96).
CAUTION
Using a fuel other than that specified
could adversely affect the emission con-
trol devices and systems, and could also
affect the warranty coverage.
Under no circumstances should a
leaded gasoline be used since this willdamage the three way catalyst.
Reformulated gasolineSome fuel suppliers are now producing reformu-
lated gasolines. These gasolines are specially
designed to reduce vehicle emissions. NISSAN
supports efforts towards cleaner air and suggest
that you use reformulated gasoline when avail-
able.Gasoline containing oxygenatesSome fuel suppliers sell gasoline containing
oxygenates such as ethanol, MTBE and metha-
nol with or without advertising their presence.
Nissan does not recommend the use of fuels of
which the oxygenate content and the fuel com-
patibility for your Nissan cannot be readily deter-
mined.
If you use oxygenate-blend gasoline, please take
the following precautions as the usage of such
fuels may cause vehicle performance problems
and/or fuel system damage.
The fuel should be unleaded and have
an octane rating no lower than that
recommended for unleaded gasoline.
If an oxygenate-blend, excepting a
methanol blend, is used, it should con-tain no more than 10% oxygenate.
(MTBE may, however, be added up to
15%.)
If a methanol blend is used, it should
contain no more than 5% methanol (me-
thyl alcohol, wood alcohol). It should
also contain a suitable amount of ap-
propriate cosolvents and corrosion in-
hibitors. If not properly formulated with
appropriate cosolvents and corrosion
inhibitors, such methanol blends may
cause fuel system damage and/or ve-
hicle performance problems. At this
time, sufficient data is not available to
ensure that all methanol blends are
suitable for use in Nissan vehicles.
If any undesirable driveability problems such as
engine stalling and hard hot starting are experi-
enced after using oxygenate-blend fuels, imme-
diately change to a non-oxygenate fuel or a fuel
with a low blend of MTBE.
Take care not to spill gasoline during refu-
eling. Gasoline containing oxygenates can
cause paint damage.
Aftermarket fuel additivesNISSAN does not recommend the use of any
fuel additives (i.e.: fuel injector cleaner, octane
booster, intake valve deposit removers, etc.)
9-4
Technical and consumer information
03.1.28/R50-D/V5
Page 268 of 299
which are sold commercially. Many of these
additives intended for gum, varnish or deposit
removal may contain active solvents or similar
ingredients that can be harmful to the fuel sys-
tem and engine.Octane rating tipsIn most parts of North America, you should use
unleaded gasoline with an octane rating of at
least 91 AKI (Anti-Knock Index) number
(VQ35DE engine) or 87 AKI (Anti-knock Index)
number (VG33E engine). However, you may use
unleaded gasoline with an octane rating as low
as 85 AKI (Anti-Knock Index) number in these
high altitude areas [over 4,000 ft (1,219 m)]
such as: Colorado, Montana, New Mexico, Utah,
Wyoming, northeastern Nevada, southern Idaho,
western South Dakota, western Nebraska, and
that part of Texas which is directly south of New
Mexico.
Using unleaded gasoline with an octane
rating lower than stated above can cause
persistent, heavy spark knock. (Spark
knock is a metallic rapping noise.) If se-
vere, this can lead to engine damage. If you
detect a persistent heavy spark knock even
when using gasoline of the stated octane
rating, or if you hear steady spark knock
while holding a steady speed on level
roads, have your dealer correct the condi-tion. Failure to correct the condition is
misuse of the vehicle, for which NISSAN is
not responsible.
Incorrect ignition timing will result in knocking,
after-run or overheating. This in turn may cause
excessive fuel consumption or damage to the
engine. If any of the above symptoms are en-
countered, have your vehicle checked at a
NISSAN dealer or other competent service fa-
cility.
However, now and then you may notice
light spark knock for a short time while
accelerating or driving up hills. This is no
cause for concern, because you get the
greatest fuel benefit when there is light
spark knock for a short time.
Technical and consumer information
9-5
03.1.28/R50-D/V5
Page 269 of 299
ENGINE OIL AND OIL FILTER
RECOMMENDATION
Selecting the correct oilIt is essential to choose the correct quality, and
viscosity oil to ensure satisfactory engine life and
performance. Nissan recommends the use of a
low friction oil (energy conserving oil) in order to
improve fuel economy and conserve energy. Oils
which do not have the specified quality label
should not be used as they could cause engine
damage.
Only those engine oils with the American Petro-
leum Institute (API) CERTIFICATION MARK onthe front of the container should be used. This
type of oil supersedes the existing API SG, SH,
or SJ and Energy ConservingI&IIcategories.
If you cannot find engine oil with the API CER-
TIFICATION MARK, use an API grade SG/SH,
Energy ConservingI&IIorAPIgrade SJ, Energy
Conserving oil. An oil with a single designation
SG or SH, or in combination with other catego-
ries (for example, SG/CC or SG/CD) may also
be used if one with the API CERTIFICATION
MARK cannot be found. An ILSAC grade GF-I &
GF-II oil can also be used.
NISSAN does not recommend synthetic type
oils but recommends mineral based oils. Theseoils must however, meet the API quality and SAE
viscosity ratings specified for your vehicle.
Oil additivesNISSAN does not recommend the use of oil
additives. The use of an oil additive is not
necessary when the proper oil type is used and
maintenance intervals are followed.
Oil which may contain foreign matter or has
been previously used should not be used.Oil viscosityThe engine oil viscosity or thickness changes
with temperature. Because of this, it is important
that the engine oil viscosity be selected based
on the temperatures at which the vehicle will be
operated before the next oil change. The chart
recommended SAE viscosity number shows the
recommended oil viscosities for the expected
ambient temperatures. Choosing an oil viscosity
other than that recommended could cause seri-
ous engine damage.Selecting the correct oil filterYour new vehicle is equipped with a high-quality
genuine Nissan oil filter. When replacing, use the
genuine oil filter or its equivalent for the reason
described in change intervals.
STI0293
9-6
Technical and consumer information
03.1.28/R50-D/V5
Page 270 of 299
Change intervalsThe oil and oil filter change intervals for your
engine are based on the use of the specified
quality oils and filters. Oil and filter other than the
specified quality, or oil and filter change intervals
longer than recommended could reduce engine
life. Damage to engines caused by improper
maintenance or use of incorrect oil and filter
quality and/or viscosity is not covered by the
new Nissan vehicle warranties.
Your engine was filled with a high quality engine
oil when it was built. You do not have to change
the oil before the first recommended change
interval. Oil and filter change intervals depend
upon how you use your vehicle. Operation under
the following conditions may require more fre-
quent oil and filter changes.
— repeated short distance driving at cold out-
side temperatures,
— driving in dusty conditions,
— extensive idling,
— towing a trailer.
RECOMMENDED SAE OIL
VISCOSITY NUMBER
SAE 5W-30 viscosity oil is preferred for all
ambient temperatures. SAE 10W-30,
10W-40 viscosity oil may be used if the
ambient temperature is above 0°F (−18°C).AIR CONDITIONING SYSTEM
REFRIGERANT AND LUBRICANT
RECOMMENDATIONSThe air conditioning system in this NISSAN
vehicle must be charged with the refriger-
ant HFC-134a (R-134a) and the lubricant,
Nissan A/C System Oil Type S or the exact
equivalents.
CAUTION
The use of any other refrigerants or
lubricants will cause severe damage to
the air conditioning system and will re-
quire the replacement of all air condi-
tioning system components.
The refrigerant HFC-134a (R-134a) in your
NISSAN vehicle will not harm the earth’s ozone
layer. Although this refrigerant does not affect
the earth’s atmosphere, certain governmental
regulations require the recovery and recycling of
any refrigerant during automotive air condition-
TI1028-C
Technical and consumer information
9-7
03.1.28/R50-D/V5
