Page 11 of 306
1. Speedometer (P.2-3)
2. Warning/indicator lights (P.2-9)
3. Tachometer (P.2-4)
4. Fuel gauge (P.2-5)5. Odometer/trip odometer (P.2-3)
6. Reset knobfor trip odometer (P.2-3)
7. Engine coolant temperature gauge (P.2-4)
SIC2018
METERS AND GAUGES
Illustrated table of contents
0-5
04.3.9/R50-D/V5
Page 60 of 306

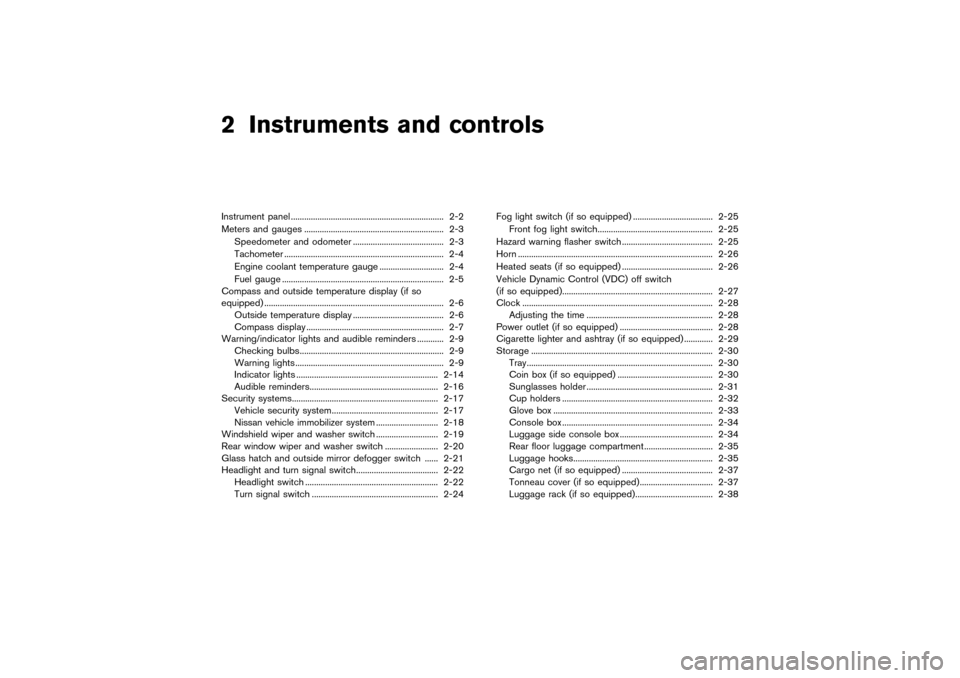

2 Instruments and controlsInstrument panel ..................................................................... 2-2
Meters and gauges ............................................................... 2-3
Speedometer and odometer ......................................... 2-3
Tachometer ........................................................................ 2-4
Engine coolant temperature gauge ............................. 2-4
Fuel gauge ......................................................................... 2-5
Compass and outside temperature display (if so
equipped) ................................................................................. 2-6
Outside temperature display ......................................... 2-6
Compass display .............................................................. 2-7
Warning/indicator lights and audible reminders ............ 2-9
Checking bulbs................................................................. 2-9
Warning lights ................................................................... 2-9
Indicator lights ................................................................ 2-14
Audible reminders.......................................................... 2-16
Security systems.................................................................. 2-17
Vehicle security system................................................ 2-17
Nissan vehicle immobilizer system ............................ 2-18
Windshield wiper and washer switch ............................ 2-19
Rear window wiper and washer switch ........................ 2-20
Glass hatch and outside mirror defogger switch ...... 2-21
Headlight and turn signal switch..................................... 2-22
Headlight switch ............................................................ 2-22
Turn signal switch ......................................................... 2-24Fog light switch (if so equipped) .................................... 2-25
Front fog light switch.................................................... 2-25
Hazard warning flasher switch ......................................... 2-25
Horn ........................................................................................ 2-26
Heated seats (if so equipped) ......................................... 2-26
Vehicle Dynamic Control (VDC) off switch
(if so equipped).................................................................... 2-27
Clock ...................................................................................... 2-28
Adjusting the time ......................................................... 2-28
Power outlet (if so equipped) .......................................... 2-28
Cigarette lighter and ashtray (if so equipped) ............. 2-29
Storage .................................................................................. 2-30
Tray.................................................................................... 2-30
Coin box (if so equipped) ........................................... 2-30
Sunglasses holder ......................................................... 2-31
Cup holders .................................................................... 2-32
Glove box ........................................................................ 2-33
Console box .................................................................... 2-34
Luggage side console box .......................................... 2-34
Rear floor luggage compartment............................... 2-35
Luggage hooks............................................................... 2-35
Cargo net (if so equipped) ......................................... 2-37
Tonneau cover (if so equipped)................................. 2-37
Luggage rack (if so equipped)................................... 2-38
04.3.9/R50-D/V5
Page 63 of 306

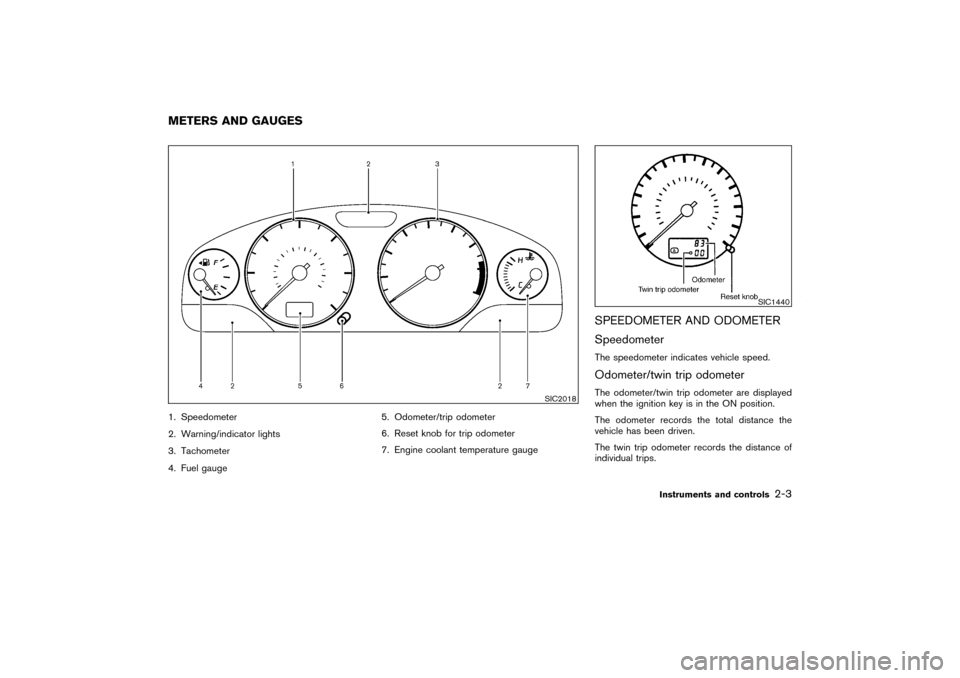

1. Speedometer
2. Warning/indicator lights
3. Tachometer
4. Fuel gauge5. Odometer/trip odometer
6. Reset knobfor trip odometer
7. Engine coolant temperature gauge
SPEEDOMETER AND ODOMETER
SpeedometerThe speedometer indicates vehicle speed.Odometer/twin trip odometerThe odometer/twin trip odometer are displayed
when the ignition key is in the ON position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
SIC2018
SIC1440
METERS AND GAUGES
Instruments and controls
2-3
04.3.9/R50-D/V5
Page 64 of 306

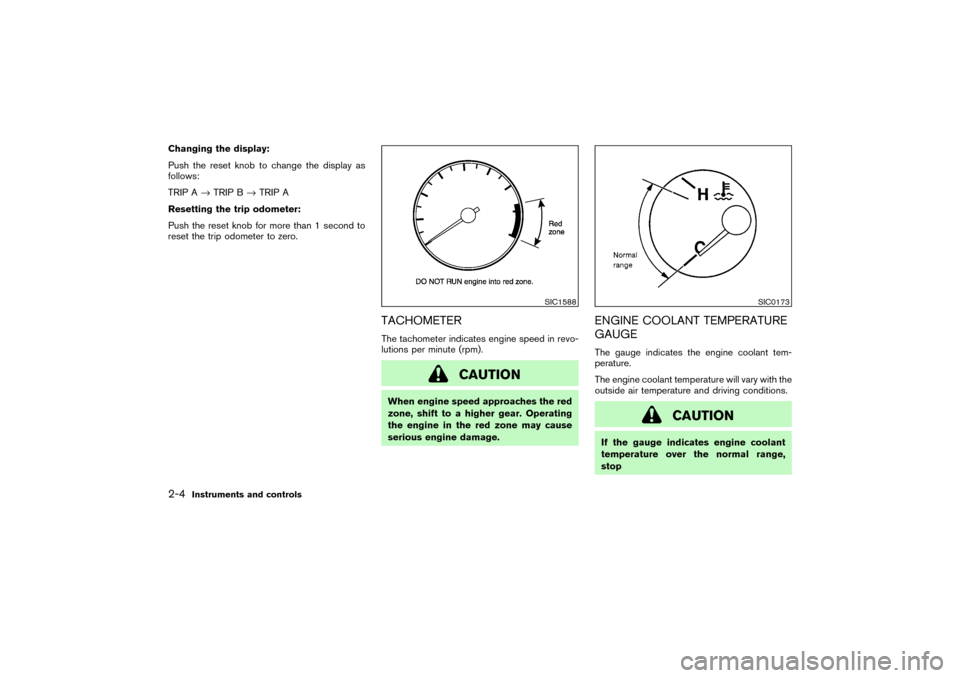

Changing the display:
Push the reset knobto change the display as
follows:
TRIP A→TRIP B→TRIP A
Resetting the trip odometer:
Push the reset knobfor more than 1 second to
reset the trip odometer to zero.
TACHOMETERThe tachometer indicates engine speed in revo-
lutions per minute (rpm).
CAUTION
When engine speed approaches the red
zone, shift to a higher gear. Operating
the engine in the red zone may cause
serious engine damage.
ENGINE COOLANT TEMPERATURE
GAUGEThe gauge indicates the engine coolant tem-
perature.
The engine coolant temperature will vary with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature over the normal range,
stop
SIC1588
SIC0173
2-4
Instruments and controls
04.3.9/R50-D/V5
Page 135 of 306

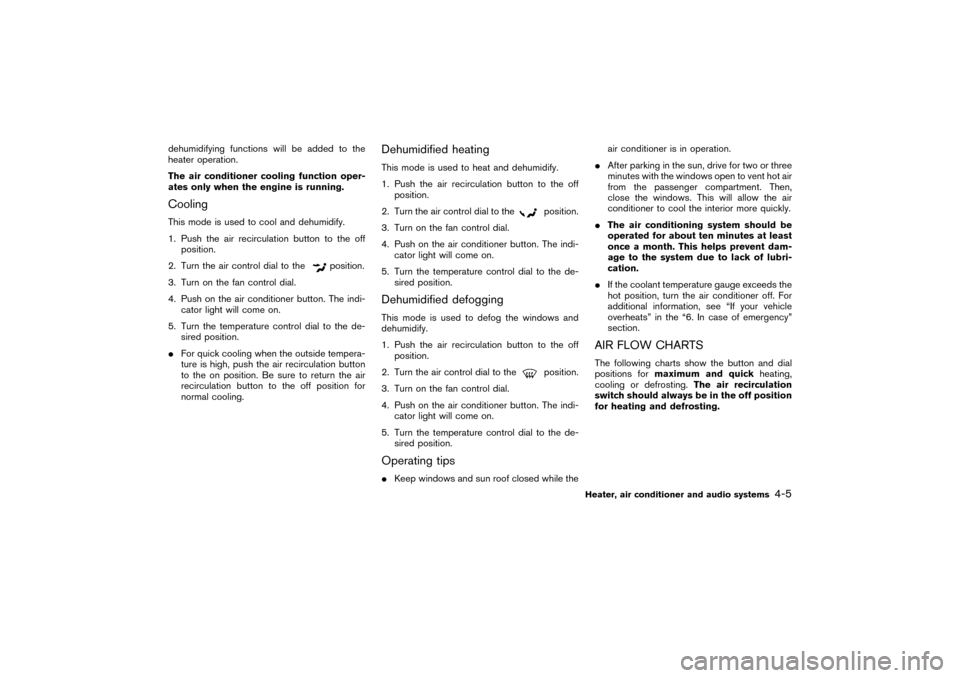

dehumidifying functions will be added to the
heater operation.
The air conditioner cooling function oper-
ates only when the engine is running.CoolingThis mode is used to cool and dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
For quick cooling when the outside tempera-
ture is high, push the air recirculation button
to the on position. Be sure to return the air
recirculation button to the off position for
normal cooling.
Dehumidified heatingThis mode is used to heat and dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
Dehumidified defoggingThis mode is used to defog the windows and
dehumidify.
1. Push the air recirculation button to the off
position.
2. Turn the air control dial to the
position.
3. Turn on the fan control dial.
4. Push on the air conditioner button. The indi-
cator light will come on.
5. Turn the temperature control dial to the de-
sired position.
Operating tipsKeep windows and sun roof closed while theair conditioner is in operation.
After parking in the sun, drive for two or three
minutes with the windows open to vent hot air
from the passenger compartment. Then,
close the windows. This will allow the air
conditioner to cool the interior more quickly.
The air conditioning system should be
operated for about ten minutes at least
once a month. This helps prevent dam-
age to the system due to lack of lubri-
cation.
If the coolant temperature gauge exceeds the
hot position, turn the air conditioner off. For
additional information, see “If your vehicle
overheats” in the “6. In case of emergency”
section.
AIR FLOW CHARTSThe following charts show the button and dial
positions formaximum and quickheating,
cooling or defrosting.The air recirculation
switch should always be in the off position
for heating and defrosting.Heater, air conditioner and audio systems
4-5
04.3.9/R50-D/V5
Page 142 of 306

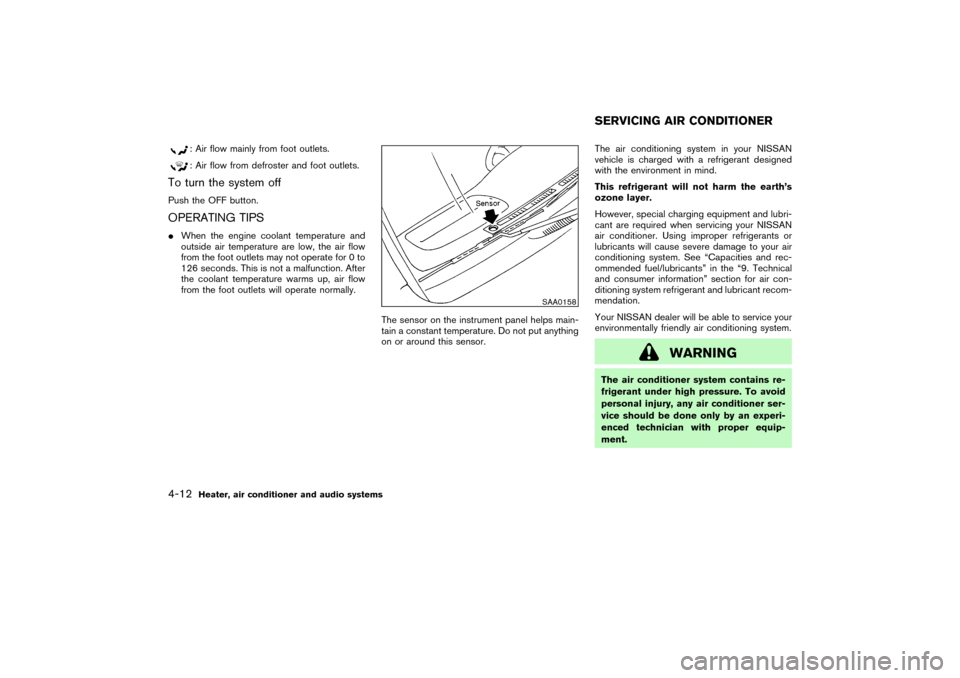

: Air flow mainly from foot outlets.: Air flow from defroster and foot outlets.
To turn the system offPush the OFF button.OPERATING TIPSWhen the engine coolant temperature and
outside air temperature are low, the air flow
from the foot outlets may not operate for 0 to
126 seconds. This is not a malfunction. After
the coolant temperature warms up, air flow
from the foot outlets will operate normally.
The sensor on the instrument panel helps main-
tain a constant temperature. Do not put anything
on or around this sensor.The air conditioning system in your NISSAN
vehicle is charged with a refrigerant designed
with the environment in mind.
This refrigerant will not harm the earth’s
ozone layer.
However, special charging equipment and lubri-
cant are required when servicing your NISSAN
air conditioner. Using improper refrigerants or
lubricants will cause severe damage to your air
conditioning system. See “Capacities and rec-
ommended fuel/lubricants” in the “9. Technical
and consumer information” section for air con-
ditioning system refrigerant and lubricant recom-
mendation.
Your NISSAN dealer will be able to service your
environmentally friendly air conditioning system.
WARNING
The air conditioner system contains re-
frigerant under high pressure. To avoid
personal injury, any air conditioner ser-
vice should be done only by an experi-
enced technician with proper equip-
ment.
SAA0158
SERVICING AIR CONDITIONER
4-12
Heater, air conditioner and audio systems
04.3.9/R50-D/V5
Page 180 of 306

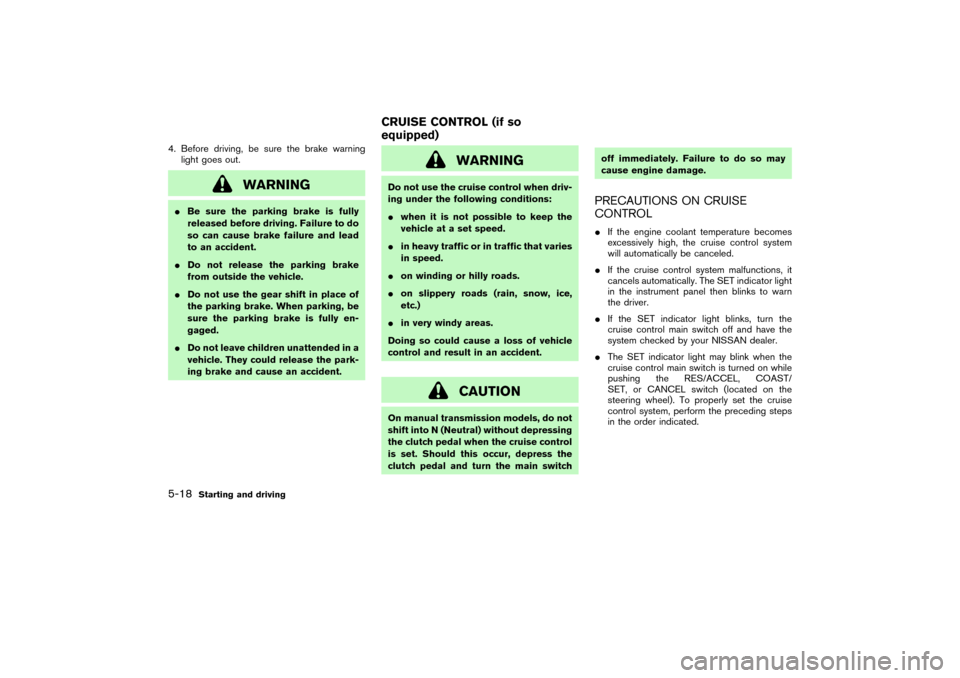

4. Before driving, be sure the brake warning
light goes out.
WARNING
Be sure the parking brake is fully
released before driving. Failure to do
so can cause brake failure and lead
to an accident.
Do not release the parking brake
from outside the vehicle.
Do not use the gear shift in place of
the parking brake. When parking, be
sure the parking brake is fully en-
gaged.
Do not leave children unattended in a
vehicle. They could release the park-
ing brake and cause an accident.
WARNING
Do not use the cruise control when driv-
ing under the following conditions:
when it is not possible to keep the
vehicle at a set speed.
in heavy traffic or in traffic that varies
in speed.
on winding or hilly roads.
on slippery roads (rain, snow, ice,
etc.)
in very windy areas.
Doing so could cause a loss of vehicle
control and result in an accident.
CAUTION
On manual transmission models, do not
shift into N(Neutral) without depressing
the clutch pedal when the cruise control
is set. Should this occur, depress the
clutch pedal and turn the main switchoff immediately. Failure to do so may
cause engine damage.
PRECAUTIONS ON CRUISE
CONTROLIf the engine coolant temperature becomes
excessively high, the cruise control system
will automatically be canceled.
If the cruise control system malfunctions, it
cancels automatically. The SET indicator light
in the instrument panel then blinks to warn
the driver.
If the SET indicator light blinks, turn the
cruise control main switch off and have the
system checked by your NISSAN dealer.
The SET indicator light may blink when the
cruise control main switch is turned on while
pushing the RES/ACCEL, COAST/
SET, or CANCEL switch (located on the
steering wheel). To properly set the cruise
control system, perform the preceding steps
in the order indicated.
CRUISE CONTROL (if so
equipped)
5-18
Starting and driving
04.3.9/R50-D/V5
Page 199 of 306

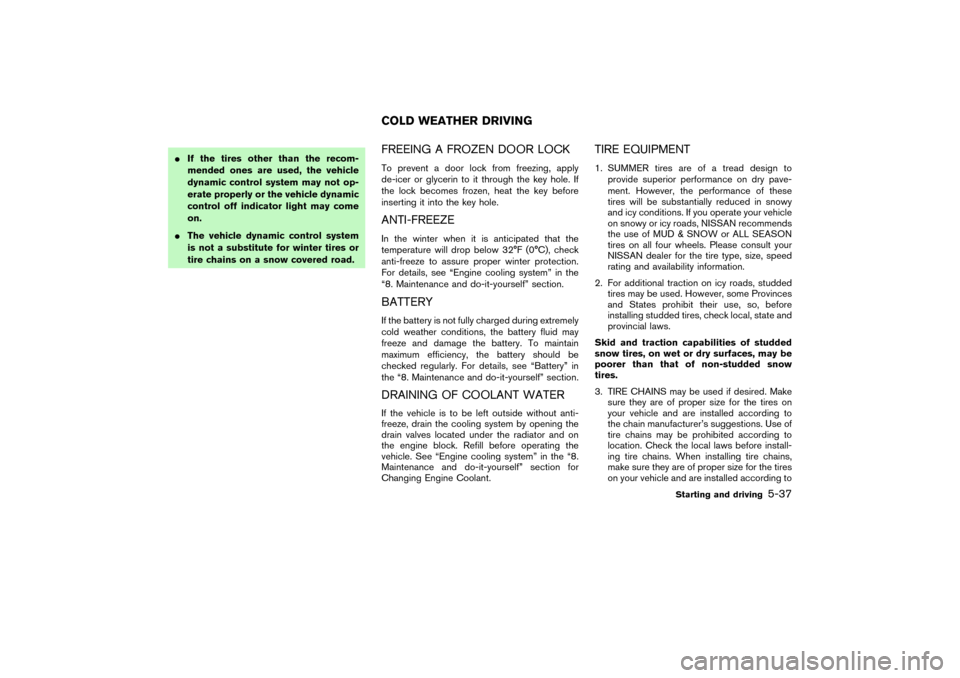

If the tires other than the recom-
mended ones are used, the vehicle
dynamic control system may not op-
erate properly or the vehicle dynamic
control off indicator light may come
on.
The vehicle dynamic control system
is not a substitute for winter tires or
tire chains on a snow covered road.
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
de-icer or glycerin to it through the key hole. If
the lock becomes frozen, heat the key before
inserting it into the key hole.ANTI-FREEZEIn the winter when it is anticipated that the
temperature will drop below 32°F (0°C), check
anti-freeze to assure proper winter protection.
For details, see “Engine cooling system” in the
“8. Maintenance and do-it-yourself” section.BATTERYIf the battery is not fully charged during extremely
cold weather conditions, the battery fluid may
freeze and damage the battery. To maintain
maximum efficiency, the battery should be
checked regularly. For details, see “Battery” in
the “8. Maintenance and do-it-yourself” section.DRAINING OF COOLANT WATERIf the vehicle is to be left outside without anti-
freeze, drain the cooling system by opening the
drain valves located under the radiator and on
the engine block. Refill before operating the
vehicle. See “Engine cooling system” in the “8.
Maintenance and do-it-yourself” section for
Changing Engine Coolant.
TIRE EQUIPMENT1. SUMMER tires are of a tread design to
provide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your vehicle
on snowy or icy roads, NISSAN recommends
the use of MUD & SNOW or ALL SEASON
tires on all four wheels. Please consult your
NISSAN dealer for the tire type, size, speed
rating and availability information.
2. For additional traction on icy roads, studded
tires may be used. However, some Provinces
and States prohibit their use, so, before
installing studded tires, check local, state and
provincial laws.
Skid and traction capabilities of studded
snow tires, on wet or dry surfaces, may be
poorer than that of non-studded snow
tires.
3. TIRE CHAINS may be used if desired. Make
sure they are of proper size for the tires on
your vehicle and are installed according to
the chain manufacturer’s suggestions. Use of
tire chains may be prohibited according to
location. Check the local laws before install-
ing tire chains. When installing tire chains,
make sure they are of proper size for the tires
on your vehicle and are installed according to
COLD WEATHER DRIVING
Starting and driving
5-37
04.3.9/R50-D/V5
Page 214 of 306
tioner temperature control to maximum hot
and fan control to high speed.
3. If engine overheating is caused by climbing a
long hill on a hot day, run the engine at a fast
idle (approximately 1,500 rpm) until the tem-
perature gauge indication returns to normal.
4. Get out of the vehicle. Look and listen for
steam or coolant escaping from the radiator
before opening the hood. Do not open the
hood until no further steam or coolant can be
seen.
5. Open the engine hood.
WARNING
If steam or water is coming from the
engine, stand clear to prevent getting
burned.
6. Visually check drive belts for damage or
looseness. Also check if the cooling fan is
running. The radiator hoses and radiator
should not leak water. If coolant is leaking,
the cooling fan belt is missing or loose or the
cooling fan does not run, stop the engine.
WARNING
Be careful not to allow your hands,
hair, jewelry or clothing to come into
contact with, or to get caught in, the
cooling fan, or drive belt.
The engine cooling fan can start at
any time when the coolant tempera-
ture is high.
7. After the engine cools down, check the cool-
ant level in the reservoir tank with the engine
running. Add coolant to the reservoir tank if
necessary. Have your vehicle repaired at the
nearest NISSAN dealer.For information about towing your vehicle behind
a recreational vehicle (RV), refer to “Flat towing”
in the “9. Technical and consumer information”
section of this manual.
When towing your vehicle, all State (Provincial in
Canada) and local regulations for towing must
be followed. Incorrect towing equipment could
damage your vehicle. Towing instructions are
available from your NISSAN dealer. Local ser-
vice operators are generally familiar with the
applicable laws and procedures for towing. To
assure proper towing and to prevent accidental
damage to your vehicle, NISSAN recommends
having a service operator tow your vehicle. It is
advisable to have the service operator carefully
read the following precautions:
WARNING
Never ride in a vehicle that is being
towed.
Never get under your vehicle after it
has been lifted by a tow truck.TOWING YOUR VEHICLE
6-12
In case of emergency
04.3.9/R50-D/V5
Page 227 of 306

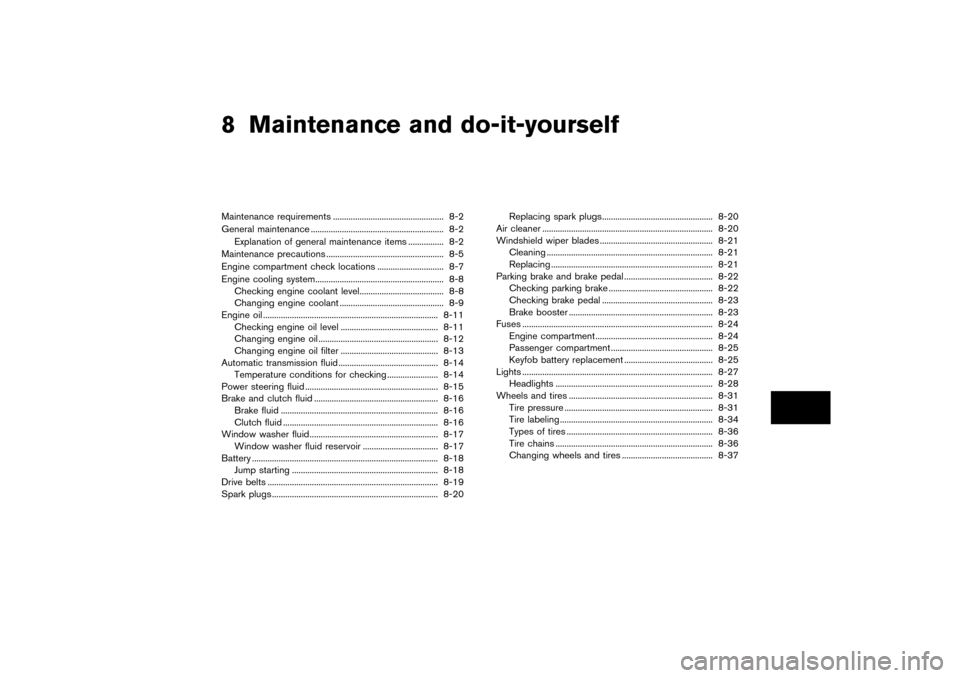

8 Maintenance and do-it-yourselfMaintenance requirements .................................................. 8-2
General maintenance ............................................................ 8-2
Explanation of general maintenance items ................ 8-2
Maintenance precautions ..................................................... 8-5
Engine compartment check locations .............................. 8-7
Engine cooling system.......................................................... 8-8
Checking engine coolant level...................................... 8-8
Changing engine coolant ............................................... 8-9
Engine oil ............................................................................... 8-11
Checking engine oil level ............................................ 8-11
Changing engine oil ...................................................... 8-12
Changing engine oil filter ............................................ 8-13
Automatic transmission fluid ............................................. 8-14
Temperature conditions for checking ....................... 8-14
Power steering fluid ............................................................ 8-15
Brake and clutch fluid ........................................................ 8-16
Brake fluid ....................................................................... 8-16
Clutch fluid ...................................................................... 8-16
Window washer fluid.......................................................... 8-17
Window washer fluid reservoir .................................. 8-17
Battery .................................................................................... 8-18
Jump starting .................................................................. 8-18
Drive belts ............................................................................. 8-19
Spark plugs ........................................................................... 8-20Replacing spark plugs.................................................. 8-20
Air cleaner ............................................................................. 8-20
Windshield wiper blades ................................................... 8-21
Cleaning ........................................................................... 8-21
Replacing ......................................................................... 8-21
Parking brake and brake pedal ........................................ 8-22
Checking parking brake ............................................... 8-22
Checking brake pedal .................................................. 8-23
Brake booster ................................................................. 8-23
Fuses ...................................................................................... 8-24
Engine compartment ..................................................... 8-24
Passenger compartment .............................................. 8-25
Keyfobbattery replacement ........................................ 8-25
Lights ...................................................................................... 8-27
Headlights ....................................................................... 8-28
Wheels and tires ................................................................. 8-31
Tire pressure ................................................................... 8-31
Tire labeling ..................................................................... 8-34
Types of tires .................................................................. 8-36
Tire chains ....................................................................... 8-36
Changing wheels and tires ......................................... 8-37
04.3.9/R50-D/V5
