NISSAN PATHFINDER 2004 R50 / 2.G Owners Manual

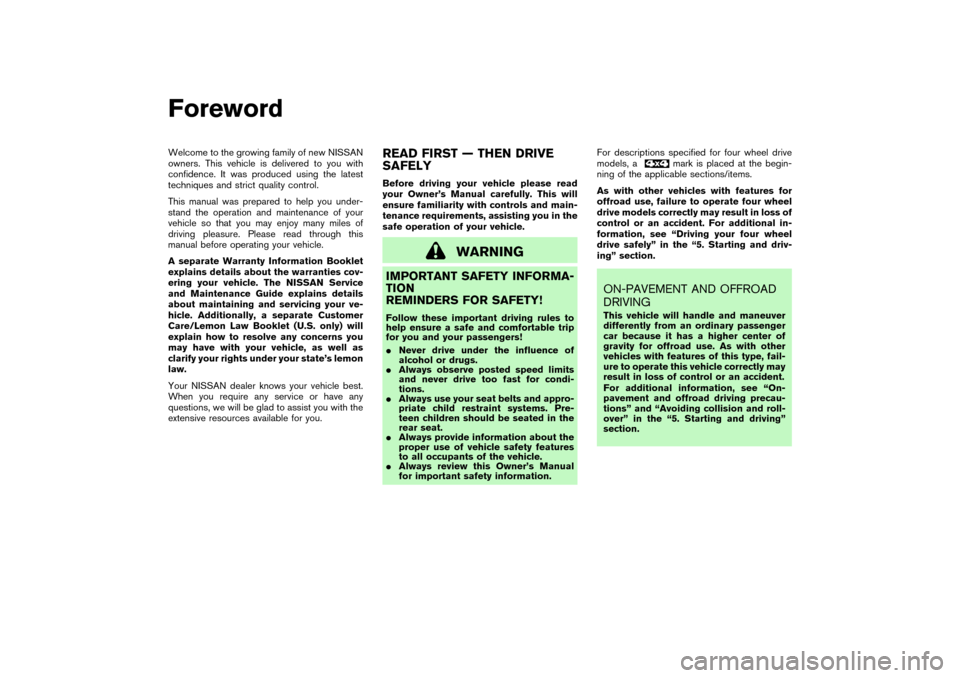

ForewordWelcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The NISSAN Service
and Maintenance Guide explains details
about maintaining and servicing your ve-
hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state’s lemon
law.
Your NISSAN dealer knows your vehicle best.
When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available for you.
READ FIRST — THENDRIVE
SAFELYBefore driving your vehicle please read
your Owner’s Manual carefully. This will
ensure familiarity with controls and main-
tenance requirements, assisting you in the
safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMA-
TION
REMINDERS FOR SAFETY!Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!

Never drive under the influence of
alcohol or drugs.

Always observe posted speed limits
and never drive too fast for condi-
tions.

Always use your seat belts and appro-
priate child restraint systems. Pre-
teen children should be seated in the
rear seat.

Always provide information about the
proper use of vehicle safety features
to all occupants of the vehicle.

Always review this Owner’s Manual
for important safety information.For descriptions specified for four wheel drive
models, a
mark is placed at the begin-
ning of the applicable sections/items.
As with other vehicles with features for
offroad use, failure to operate four wheel
drive models correctly may result in loss of
control or an accident. For additional in-
formation, see “Driving your four wheel
drive safely” in the “5. Starting and driv-
ing” section.
ON-PAVEMENT AND OFFROAD
DRIVINGThis vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity for offroad use. As with other
vehicles with features of this type, fail-
ure to operate this vehicle correctly may
result in loss of control or an accident.
For additional information, see “On-
pavement and offroad driving precau-
tions” and “Avoiding collision and roll-
over” in the “5. Starting and driving”
section.


04.3.9/R50-D/V5

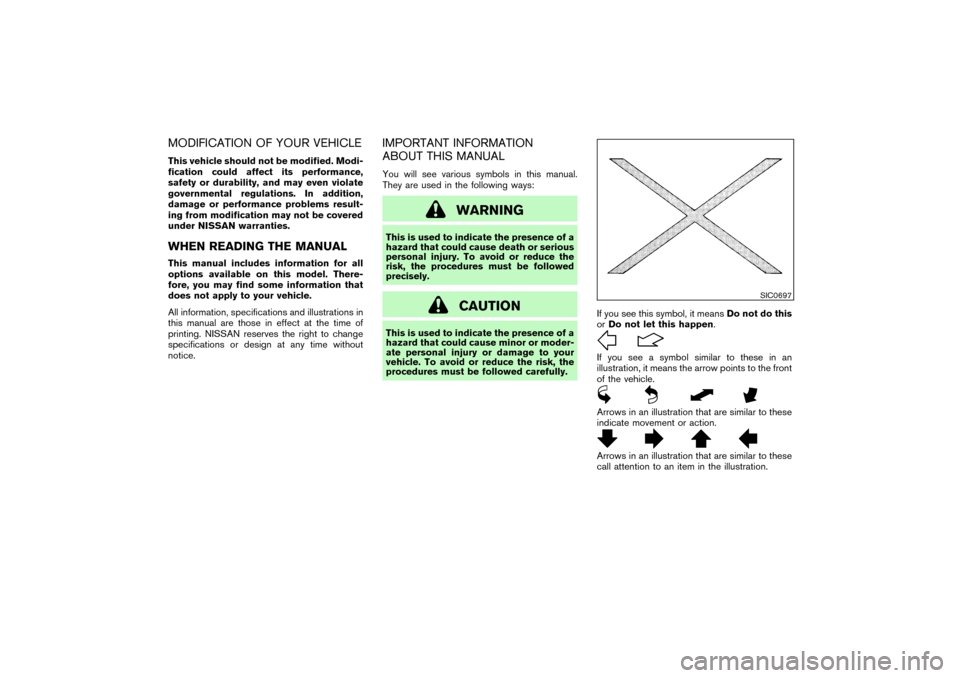

MODIFICATION OF YOUR VEHICLEThis vehicle should not be modified. Modi-
fication could affect its performance,
safety or durability, and may even violate
governmental regulations. In addition,
damage or performance problems result-
ing from modification may not be covered
under NISSAN warranties.WHEN READING THE MANUALThis manual includes information for all
options available on this model. There-
fore, you may find some information that
does not apply to your vehicle.
All information, specifications and illustrations in
this manual are those in effect at the time of
printing. NISSAN reserves the right to change
specifications or design at any time without
notice.
IMPORTANT INFORMATION
ABOUT THIS MANUALYou will see various symbols in this manual.
They are used in the following ways:
WARNING
This is used to indicate the presence of a
hazard that could cause death or serious
personal injury. To avoid or reduce the
risk, the procedures must be followed
precisely.
CAUTION
This is used to indicate the presence of a
hazard that could cause minor or moder-
ate personal injury or damage to your
vehicle. To avoid or reduce the risk, the
procedures must be followed carefully.If you see this symbol, it meansDo not do this
orDo not let this happen.
If you see a symbol similar to these in an
illustration, it means the arrow points to the front
of the vehicle.Arrows in an illustration that are similar to these
indicate movement or action.Arrows in an illustration that are similar to these
call attention to an item in the illustration.
SIC0697


04.3.9/R50-D/V5

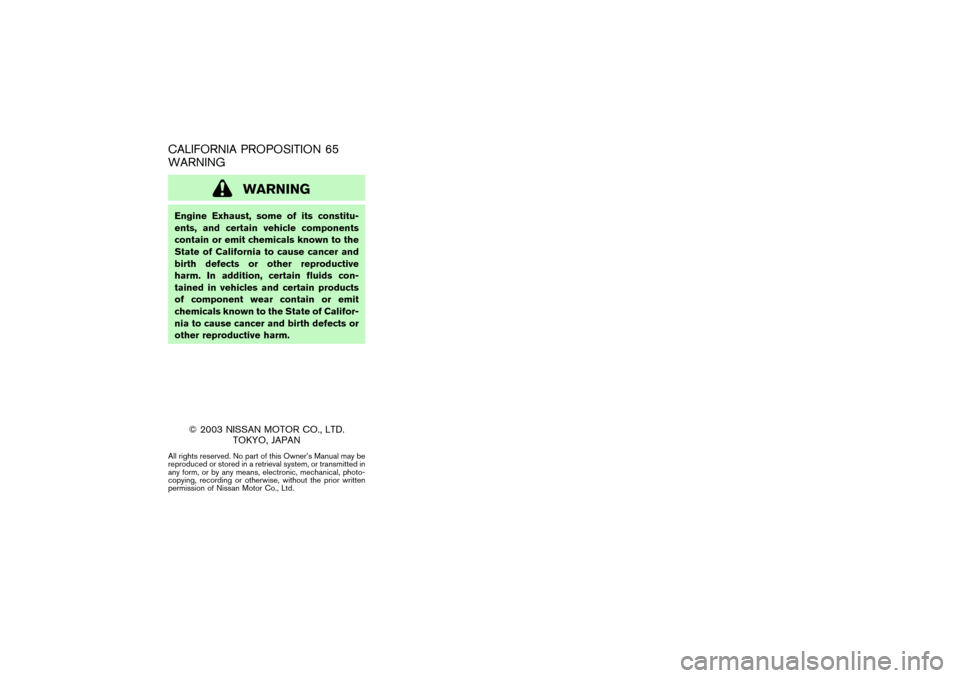

CALIFORNIA PROPOSITION 65
WARNING
WARNING
Engine Exhaust, some of its constitu-
ents, and certain vehicle components
contain or emit chemicals known to the
State of California to cause cancer and
birth defects or other reproductive
harm. In addition, certain fluids con-
tained in vehicles and certain products
of component wear contain or emit
chemicals known to the State of Califor-
nia to cause cancer and birth defects or
other reproductive harm.
© 2003 NISSAN MOTOR CO., LTD.
TOKYO, JAPANAll rights reserved. No part of this Owner’s Manual may be
reproduced or stored in a retrieval system, or transmitted in
any form, or by any means, electronic, mechanical, photo-
copying, recording or otherwise, without the prior written
permission of Nissan Motor Co., Ltd.


04.3.9/R50-D/V5

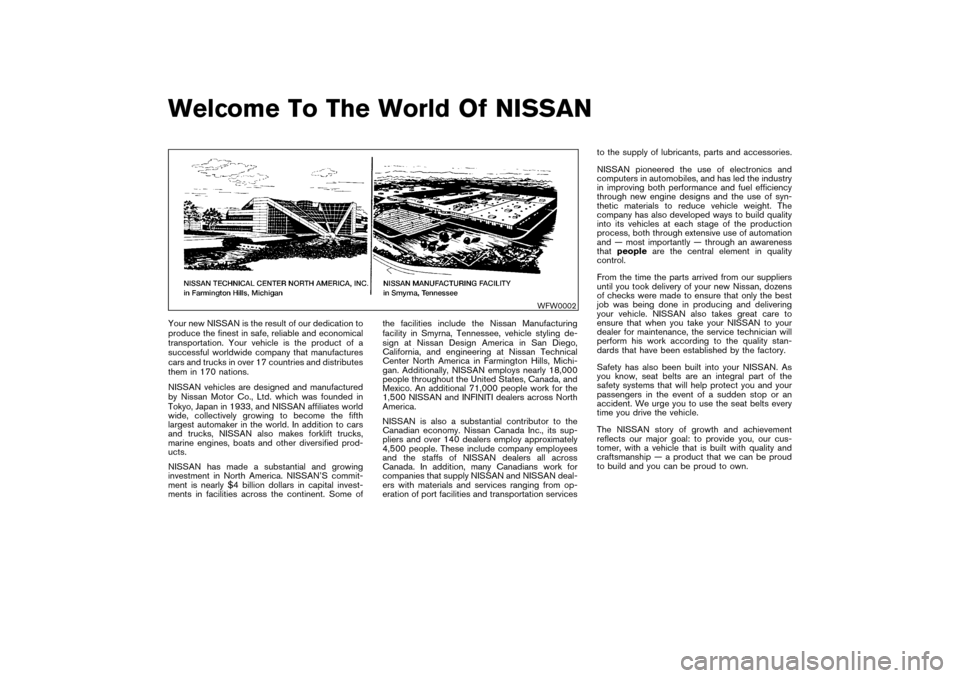

Welcome To The World Of NISSANYour new NISSAN is the result of our dedication to
produce the finest in safe, reliable and economical
transportation. Your vehicle is the product of a
successful worldwide company that manufactures
cars and trucks in over 17 countries and distributes
them in 170 nations.
NISSAN vehicles are designed and manufactured
by Nissan Motor Co., Ltd. which was founded in
Tokyo, Japan in 1933, and NISSAN affiliates world
wide, collectively growing to become the fifth
largest automaker in the world. In addition to cars
and trucks, NISSAN also makes forklift trucks,
marine engines, boats and other diversified prod-
ucts.
NISSAN has made a substantial and growing
investment in North America. NISSAN’S commit-
ment is nearly $4 billion dollars in capital invest-
ments in facilities across the continent. Some ofthe facilities include the Nissan Manufacturing
facility in Smyrna, Tennessee, vehicle styling de-
sign at Nissan Design America in San Diego,
California, and engineering at Nissan Technical
Center North America in Farmington Hills, Michi-
gan. Additionally, NISSAN employs nearly 18,000
people throughout the United States, Canada, and
Mexico. An additional 71,000 people work for the
1,500 NISSAN and INFINITI dealers across North
America.
NISSAN is also a substantial contributor to the
Canadian economy. Nissan Canada Inc., its sup-
pliers and over 140 dealers employ approximately
4,500 people. These include company employees
and the staffs of NISSAN dealers all across
Canada. In addition, many Canadians work for
companies that supply NISSAN and NISSAN deal-
ers with materials and services ranging from op-
eration of port facilities and transportation servicesto the supply of lubricants, parts and accessories.
NISSAN pioneered the use of electronics and
computers in automobiles, and has led the industry
in improving both performance and fuel efficiency
through new engine designs and the use of syn-
thetic materials to reduce vehicle weight. The
company has also developed ways to build quality
into its vehicles at each stage of the production
process, both through extensive use of automation
and — most importantly — through an awareness
thatpeopleare the central element in quality
control.
From the time the parts arrived from our suppliers
until you took delivery of your new Nissan, dozens
of checks were made to ensure that only the best
jobwas being done in producing and delivering
your vehicle. NISSAN also takes great care to
ensure that when you take your NISSAN to your
dealer for maintenance, the service technician will
perform his work according to the quality stan-
dards that have been established by the factory.
Safety has also been built into your NISSAN. As
you know, seat belts are an integral part of the
safety systems that will help protect you and your
passengers in the event of a sudden stop or an
accident. We urge you to use the seat belts every
time you drive the vehicle.
The NISSAN story of growth and achievement
reflects our major goal: to provide you, our cus-
tomer, with a vehicle that is built with quality and
craftsmanship — a product that we can be proud
to build and you can be proud to own.
WFW0002


04.3.9/R50-D/V5

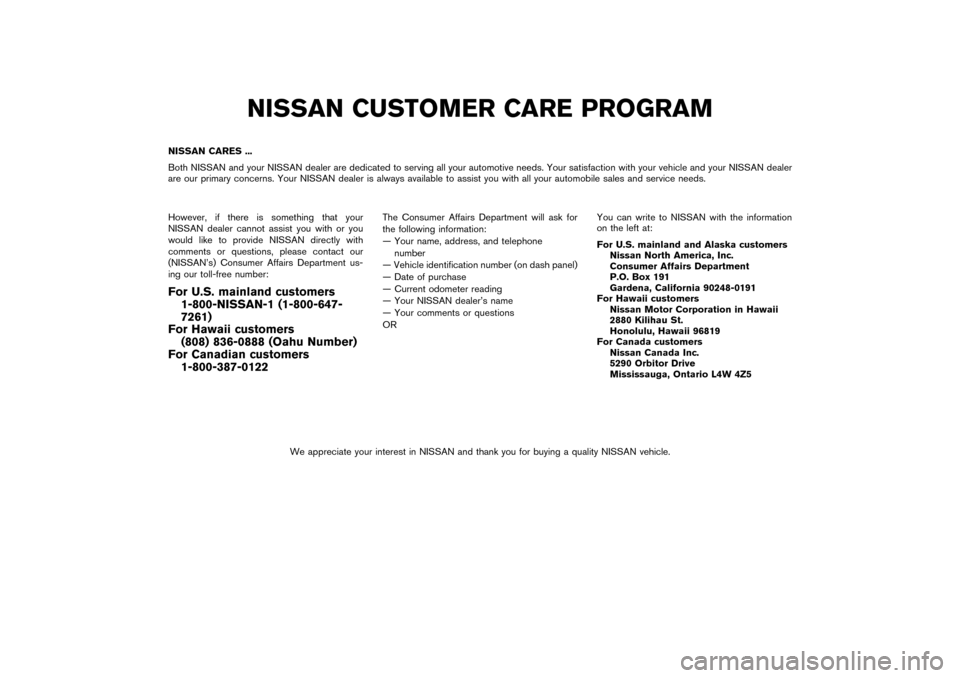

NISSAN CUSTOMER CARE PROGRAM
NISSAN CARES ...
Both NISSAN and your NISSAN dealer are dedicated to serving all your automotive needs. Your satisfaction with your vehicle and your NISSAN dealer
are our primary concerns. Your NISSAN dealer is always available to assist you with all your automobile sales and service needs.
However, if there is something that your
NISSAN dealer cannot assist you with or you
would like to provide NISSAN directly with
comments or questions, please contact our
(NISSAN’s) Consumer Affairs Department us-
ing our toll-free number:For U.S. mainland customers
1-800-NISSAN-1 (1-800-647-
7261)
For Hawaii customers
(808) 836-0888 (Oahu Number)
For Canadian customers
1-800-387-0122
The Consumer Affairs Department will ask for
the following information:
— Your name, address, and telephone
number
— Vehicle identification number (on dash panel)
— Date of purchase
— Current odometer reading
— Your NISSAN dealer’s name
— Your comments or questions
ORYou can write to NISSAN with the information
on the left at:
For U.S. mainland and Alaska customers
Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 191
Gardena, California 90248-0191
For Hawaii customers
Nissan Motor Corporation in Hawaii
2880 Kilihau St.
Honolulu, Hawaii 96819
For Canada customers
Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario L4W 4Z5
We appreciate your interest in NISSAN and thank you for buying a quality NISSAN vehicle.


04.3.9/R50-D/V5


Table of
Contents
Illustrated table of contentsSeats, restraints and supplemental air bag systemsInstruments and controlsPre-driving checks and adjustmentsHeater, air conditioner and audio systemsStarting and drivingIn case of emergencyAppearance and careMaintenance and do-it-yourselfTechnical and consumer informationIndex


04.3.9/R50-D/V5

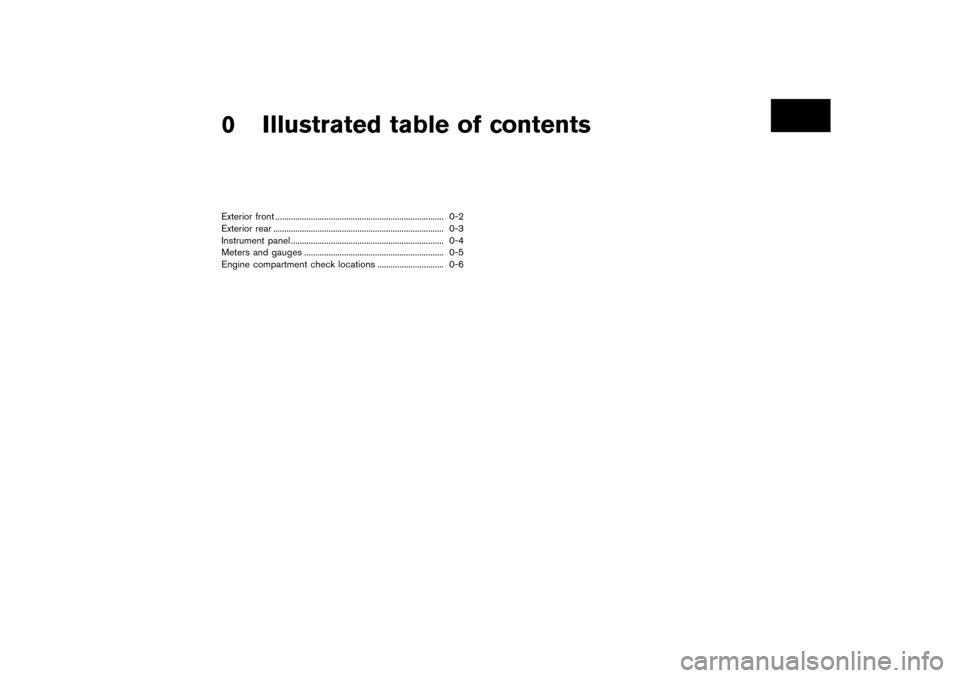

0 Illu\btrated table of content\bExter\for front ..................\n..................\n..................\n..................\n.... 0-2
Exter\for rear ..................\n..................\n..................\n..................\n..... 0-3
Instrument panel ..................\n..................\n..................\n............... 0-4
Metersandgauges..................\n..................\n..................\n.........0-5
Eng\fnecompartmentc\becklocat\fons..................\n............0-6


04.3.9/R50-D/V5

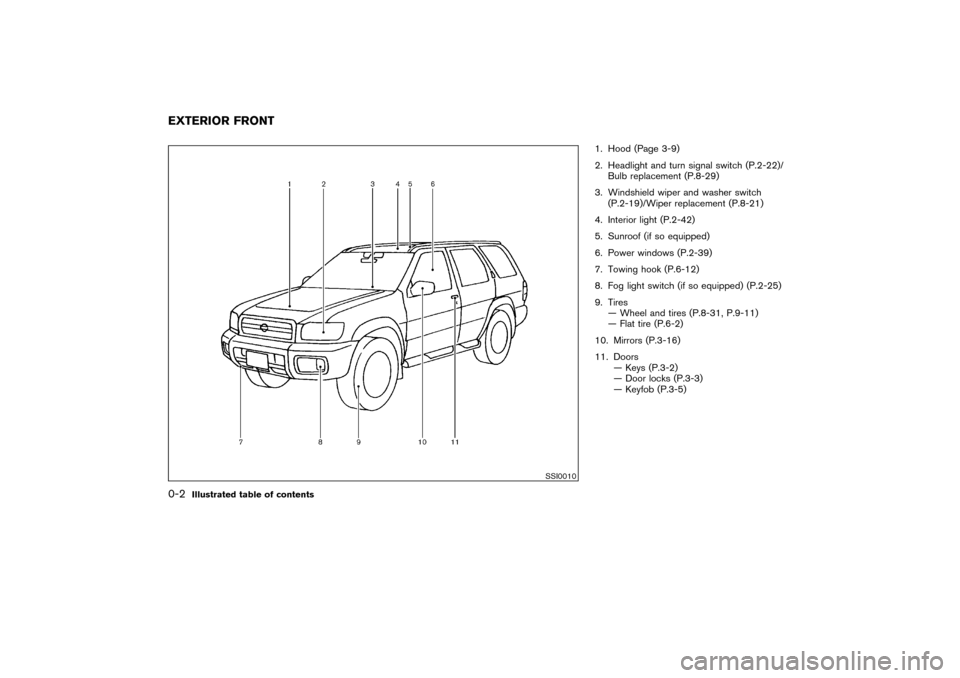

1. Hood (Page 3-9)
2. Headlight and turn signal switch (P.2-22)/
Bulbreplacement (P.8-29)
3. Windshield wiper and washer switch
(P.2-19)/Wiper replacement (P.8-21)
4. Interior light (P.2-42)
5. Sunroof (if so equipped)
6. Power windows (P.2-39)
7. Towing hook (P.6-12)
8. Fog light switch (if so equipped) (P.2-25)
9. Tires
— Wheel and tires (P.8-31, P.9-11)
— Flat tire (P.6-2)
10. Mirrors (P.3-16)
11. Doors
— Keys (P.3-2)
— Door locks (P.3-3)
— Keyfob(P.3-5)
SSI0010
EXTERIOR FRONT0-2
Illustrated table of contents


04.3.9/R50-D/V5


1. Fuel filler lid (P.3-13)
2. Fuel filler cap
3. Side marker, Stop/Tail, Turn signal light (Bulb
replacement) (P.8-29)
4. High-mounted stop light (P.8-29)
5. Rear window defroster switch (P.2-21)
6. Rear window wiper and washer switch
(P.2-20)
7. Back door opener handle (P.3-10)
SSI0011
EXTERIOR REAR
Illustrated table of contents
0-3


04.3.9/R50-D/V5

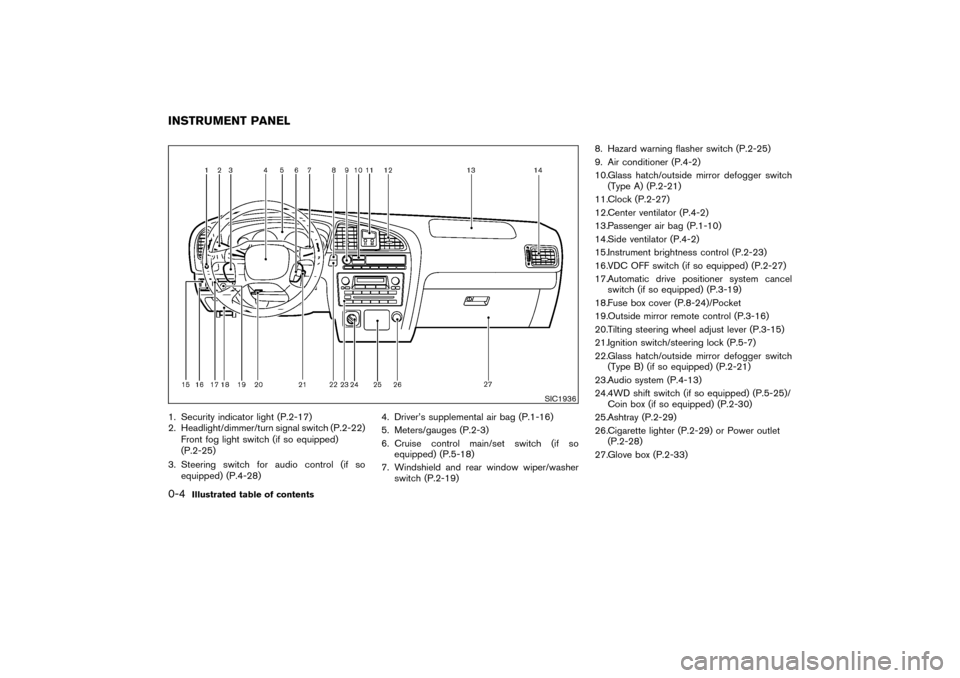

1. Security indicator light (P.2-17)
2. Headlight/dimmer/turn signal switch (P.2-22)
Front fog light switch (if so equipped)
(P.2-25)
3. Steering switch for audio control (if so
equipped) (P.4-28)4. Driver’s supplemental air bag (P.1-16)
5. Meters/gauges (P.2-3)
6. Cruise control main/set switch (if so
equipped) (P.5-18)
7. Windshield and rear window wiper/washer
switch (P.2-19)8. Hazard warning flasher switch (P.2-25)
9. Air conditioner (P.4-2)
10.Glass hatch/outside mirror defogger switch
(Type A) (P.2-21)
11.Clock (P.2-27)
12.Center ventilator (P.4-2)
13.Passenger air bag (P.1-10)
14.Side ventilator (P.4-2)
15.Instrument brightness control (P.2-23)
16.VDC OFF switch (if so equipped) (P.2-27)
17.Automatic drive positioner system cancel
switch (if so equipped) (P.3-19)
18.Fuse box cover (P.8-24)/Pocket
19.Outside mirror remote control (P.3-16)
20.Tilting steering wheel adjust lever (P.3-15)
21.Ignition switch/steering lock (P.5-7)
22.Glass hatch/outside mirror defogger switch
(Type B) (if so equipped) (P.2-21)
23.Audio system (P.4-13)
24.4WD shift switch (if so equipped) (P.5-25)/
Coin box (if so equipped) (P.2-30)
25.Ashtray (P.2-29)
26.Cigarette lighter (P.2-29) or Power outlet
(P.2-28)
27.Glove box (P.2-33)
SIC1936
INSTRUMENT PANEL0-4
Illustrated table of contents


04.3.9/R50-D/V5
