Page 238 of 306

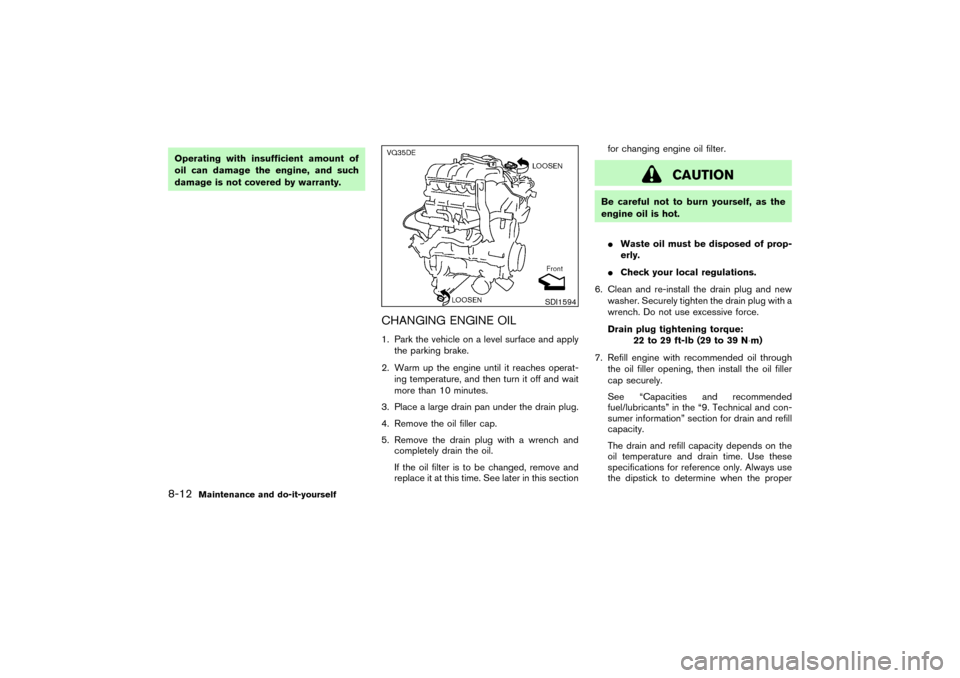

Operating with insufficient amount of
oil can damage the engine, and such
damage is not covered by warranty.
CHANGING ENGINE OIL1. Park the vehicle on a level surface and apply
the parking brake.
2. Warm up the engine until it reaches operat-
ing temperature, and then turn it off and wait
more than 10 minutes.
3. Place a large drain pan under the drain plug.
4. Remove the oil filler cap.
5. Remove the drain plug with a wrench and
completely drain the oil.
If the oil filter is to be changed, remove and
replace it at this time. See later in this sectionfor changing engine oil filter.
CAUTION
Be careful not to burn yourself, as the
engine oil is hot.
Waste oil must be disposed of prop-
erly.
Check your local regulations.
6. Clean and re-install the drain plug and new
washer. Securely tighten the drain plug with a
wrench. Do not use excessive force.
Drain plug tightening torque:
22 to 29 ft-lb (29 to 39 N⋅m)
7. Refill engine with recommended oil through
the oil filler opening, then install the oil filler
cap securely.
See “Capacities and recommended
fuel/lubricants” in the “9. Technical and con-
sumer information” section for drain and refill
capacity.
The drain and refill capacity depends on the
oil temperature and drain time. Use these
specifications for reference only. Always use
the dipstick to determine when the proper
SDI1594
8-12
Maintenance and do-it-yourself
04.3.9/R50-D/V5
Page 267 of 306
9 Technical and consumer informationCapacities and recommended fuel/lubricants ................ 9-2
Fuel recommendation ...................................................... 9-4
Engine oil and oil filter recommendation.................... 9-6
Recommended SAE oil viscosity number.................. 9-7
Air conditioning system refrigerant and lubricant
recommendations ............................................................. 9-7
Specifications.......................................................................... 9-9
Engine ................................................................................. 9-9
Wheels and tires ................................................................. 9-11
Dimensions and weights.............................................. 9-11
When traveling or registering your vehicle in another
country.................................................................................... 9-12
Vehicle identification ........................................................... 9-12
Vehicle identification number (VIN) plate ................ 9-12
Vehicle identification number (Chassis
number) ............................................................................ 9-12
Engine serial number .................................................... 9-13
F.M.V.S.S. certification label ....................................... 9-13
Emission control information label ............................ 9-13
Tire and Loading Information label............................ 9-14
Air conditioner specification label ............................. 9-14Vehicle loading information ............................................... 9-14
Terms ................................................................................ 9-14
Vehicle load capacity.................................................... 9-15
Securing the load .......................................................... 9-16
Loading tips .................................................................... 9-17
Vehicle load capacity.................................................... 9-17
Measurement of weights ............................................. 9-17
Towing a trailer .................................................................... 9-18
Maximum load limits ...................................................... 9-18
Towing load/specification chart ................................. 9-20
Towing safety.................................................................. 9-20
Flat towing ....................................................................... 9-22
Uniform tire quality grading ......................................... 9-23
Emission control system warranty ................................... 9-24
Reporting safety defects (US only) ................................ 9-24
Readiness for inspection/maintenance (I/M) test
(US only) ................................................................................ 9-25
Event data recorders ......................................................... 9-26
Owner’s Manual/Service Manual order information ... 9-27
In the event of a collision ............................................ 9-27
04.3.9/R50-D/V5
Page 268 of 306

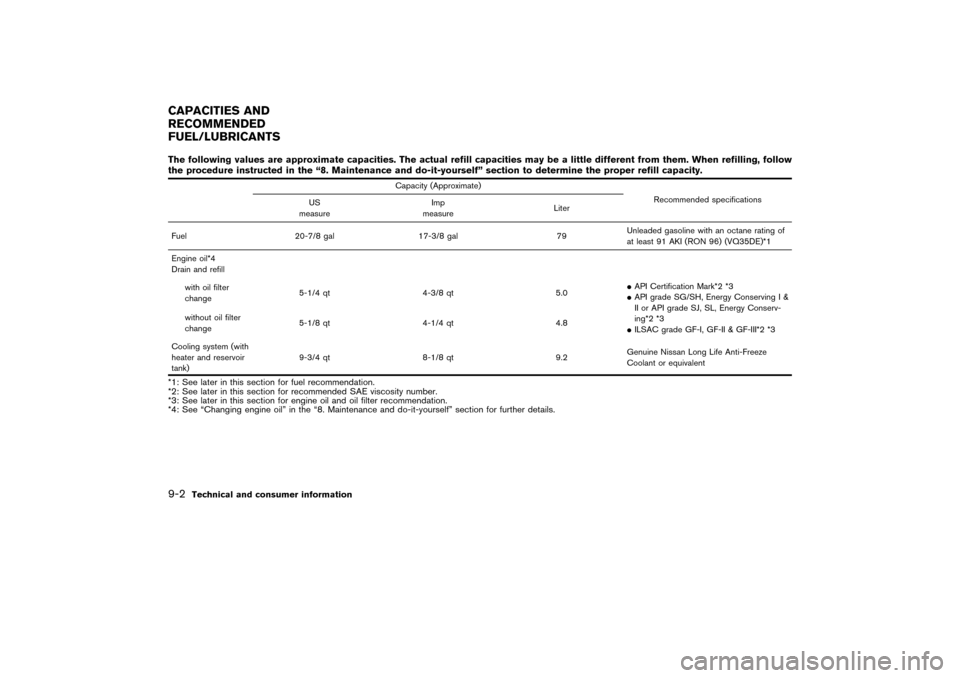

The following values are approximate capacities. The actual refill capacities may be a little different from them. When refilling, follow
the procedure instructed in the “8. Maintenance and do-it-yourself” section to determine the proper refill capacity.
Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Fuel 20-7/8 gal 17-3/8 gal 79Unleaded gasoline with an octane rating of
at least 91 AKI (RON 96) (VQ35DE)*1
Engine oil*4
Drain and refill
with oil filter
change5-1/4 qt 4-3/8 qt 5.0API Certification Mark*2 *3
API grade SG/SH, Energy Conserving I &
II or API grade SJ, SL, Energy Conserv-
ing*2 *3
ILSAC grade GF-I, GF-II & GF-III*2 *3 without oil filter
change5-1/8 qt 4-1/4 qt 4.8
Cooling system (with
heater and reservoir
tank)9-3/4 qt 8-1/8 qt 9.2Genuine Nissan Long Life Anti-Freeze
Coolant or equivalent
*1: See later in this section for fuel recommendation.
*2: See later in this section for recommended SAE viscosity number.
*3: See later in this section for engine oil and oil filter recommendation.
*4: See “Changing engine oil” in the “8. Maintenance and do-it-yourself” section for further details.CAPACITIES AND
RECOMMENDED
FUEL/LUBRICANTS9-2
Technical and consumer information
04.3.9/R50-D/V5
Page 269 of 306

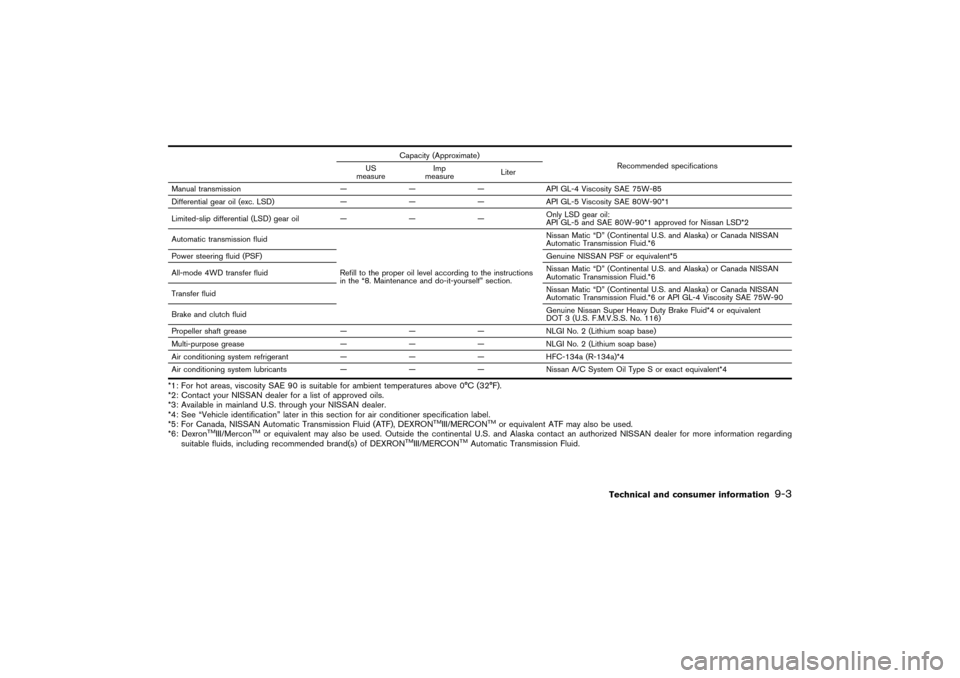

Capacity (Approximate)
Recommended specifications
US
measureImp
measureLiter
Manual transmission— — — API GL-4 Viscosity SAE 75W-85
Differential gear oil (exc. LSD)— — — API GL-5 Viscosity SAE 80W-90*1
Limited-slip differential (LSD) gear oil — — —Only LSD gear oil:
API GL-5 and SAE 80W-90*1 approved for Nissan LSD*2
Automatic transmission fluid
Refill to the proper oil level according to the instructions
in the “8. Maintenance and do-it-yourself” section.Nissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Power steering fluid (PSF)Genuine NISSAN PSF or equivalent*5
All-mode 4WD transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6
Transfer fluidNissan Matic “D” (Continental U.S. and Alaska) or Canada NISSAN
Automatic Transmission Fluid.*6 or API GL-4 Viscosity SAE 75W-90
Brake and clutch fluidGenuine Nissan Super Heavy Duty Brake Fluid*4 or equivalent
DOT 3 (U.S. F.M.V.S.S. No. 116)
Propeller shaft grease— — — NLGI No. 2 (Lithium soap base)
Multi-purpose grease— — — NLGI No. 2 (Lithium soap base)
Air conditioning system refrigerant— — — HFC-134a (R-134a)*4
Air conditioning system lubricants———Nissan A/C System Oil Type S or exact equivalent*4
*1: For hot areas, viscosity SAE 90 is suitable for ambient temperatures above 0°C (32°F).
*2: Contact your NISSAN dealer for a list of approved oils.
*3: Available in mainland U.S. through your NISSAN dealer.
*4: See “Vehicle identification” later in this section for air conditioner specification label.
*5: For Canada, NISSAN Automatic Transmission Fluid (ATF), DEXRON
TMIII/MERCON
TMor equivalent ATF may also be used.
*6: Dexron
TMIII/Mercon
TM
or equivalent may also be used. Outside the continental U.S. and Alaska contact an authorized NISSAN dealer for more information regarding
suitable fluids, including recommended brand(s) of DEXRON
TMIII/MERCON
TMAutomatic Transmission Fluid.
Technical and consumer information
9-3
04.3.9/R50-D/V5
Page 275 of 306

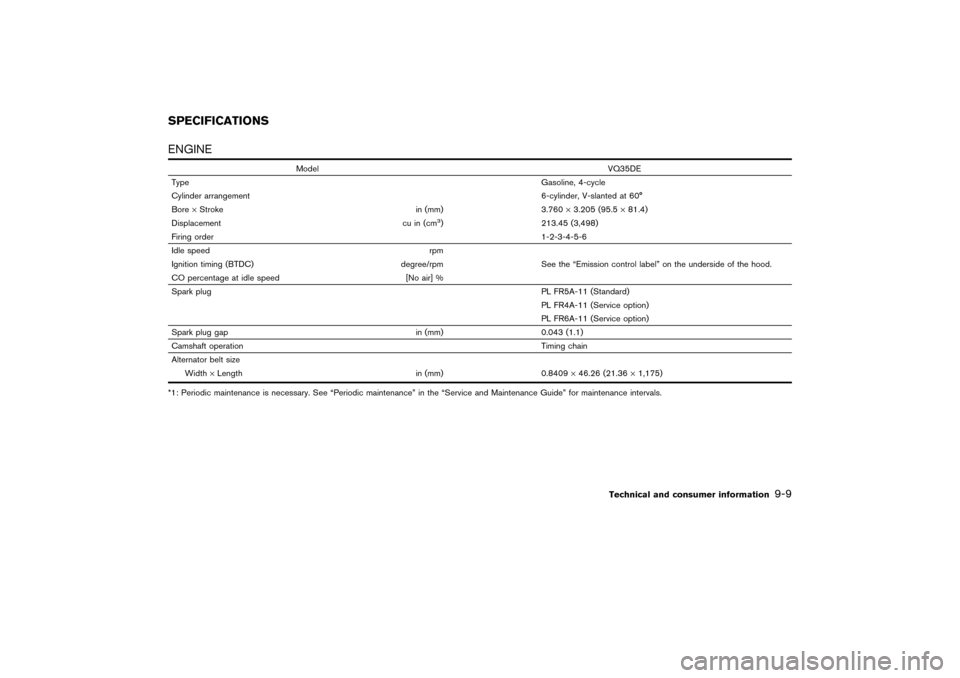

ENGINE
ModelVQ35DE
TypeGasoline, 4-cycle
Cylinder arrangement6-cylinder, V-slanted at 60°
Bore×Stroke in (mm) 3.760×3.205 (95.5×81.4)
Displacement cu in (cm
3) 213.45 (3,498)
Firing order1-2-3-4-5-6
Idle speed rpm
See the “Emission control label” on the underside of the hood. Ignition timing (BTDC) degree/rpm
CO percentage at idle speed [No air] %
Spark plugPL FR5A-11 (Standard)
PL FR4A-11 (Service option)
PL FR6A-11 (Service option)
Spark plug gap in (mm) 0.043 (1.1)
Camshaft operationTiming chain
Alternator belt size
Width×Length in (mm) 0.8409×46.26 (21.36×1,175)
*1: Periodic maintenance is necessary. See “Periodic maintenance” in the “Service and Maintenance Guide” for maintenance intervals.
SPECIFICATIONS
Technical and consumer information
9-9
04.3.9/R50-D/V5
Page 278 of 306

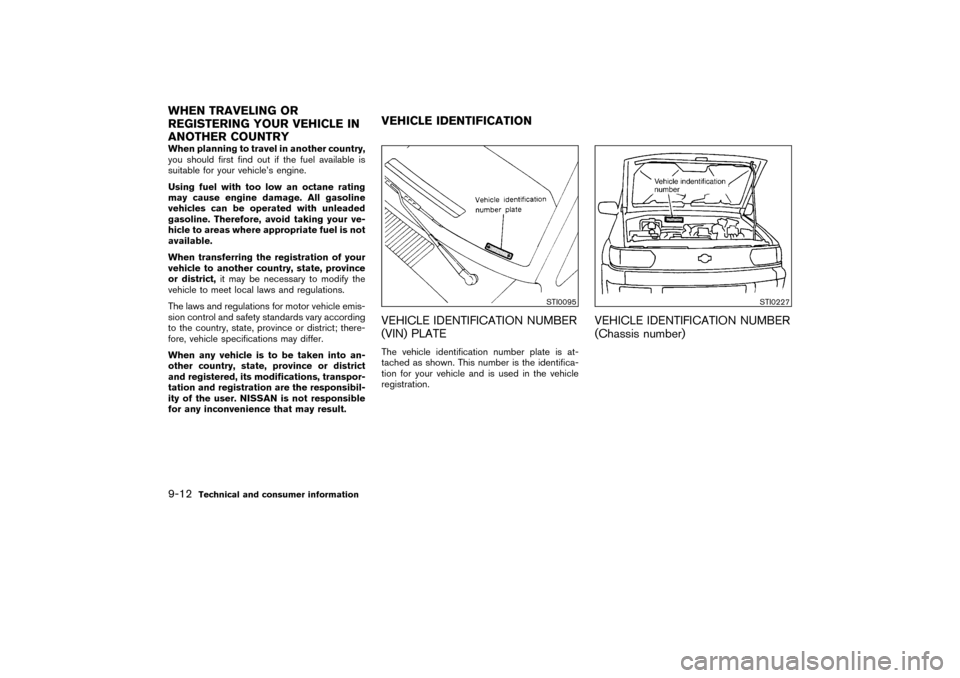

When planning to travel in another country,
you should first find out if the fuel available is
suitable for your vehicle’s engine.
Using fuel with too low an octane rating
may cause engine damage. All gasoline
vehicles can be operated with unleaded
gasoline. Therefore, avoid taking your ve-
hicle to areas where appropriate fuel is not
available.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle emis-
sion control and safety standards vary according
to the country, state, province or district; there-
fore, vehicle specifications may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.
VEHICLE IDENTIFICATION NUMBER
(VIN) PLATEThe vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(Chassis number)
STI0095
STI0227
WHENTRAVELING OR
REGISTERING YOUR VEHICLE IN
ANOTHER COUNTRYVEHICLE IDENTIFICATION9-12
Technical and consumer information
04.3.9/R50-D/V5
Page 285 of 306

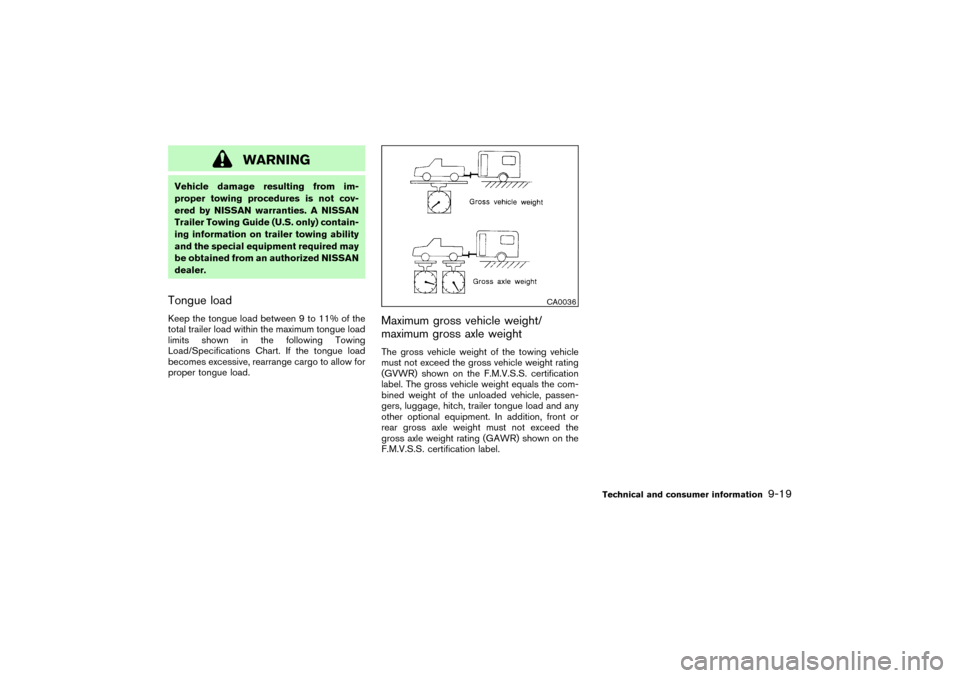

WARNING
Vehicle damage resulting from im-
proper towing procedures is not cov-
ered by NISSAN warranties. A NISSAN
Trailer Towing Guide (U.S. only) contain-
ing information on trailer towing ability
and the special equipment required may
be obtained from an authorized NISSAN
dealer.Tongue loadKeep the tongue load between 9 to 11% of the
total trailer load within the maximum tongue load
limits shown in the following Towing
Load/Specifications Chart. If the tongue load
becomes excessive, rearrange cargo to allow for
proper tongue load.
Maximum gross vehicle weight/
maximum gross axle weightThe gross vehicle weight of the towing vehicle
must not exceed the gross vehicle weight rating
(GVWR) shown on the F.M.V.S.S. certification
label. The gross vehicle weight equals the com-
bined weight of the unloaded vehicle, passen-
gers, luggage, hitch, trailer tongue load and any
other optional equipment. In addition, front or
rear gross axle weight must not exceed the
gross axle weight rating (GAWR) shown on the
F.M.V.S.S. certification label.
CA0036
Technical and consumer information
9-19
04.3.9/R50-D/V5
Page 287 of 306

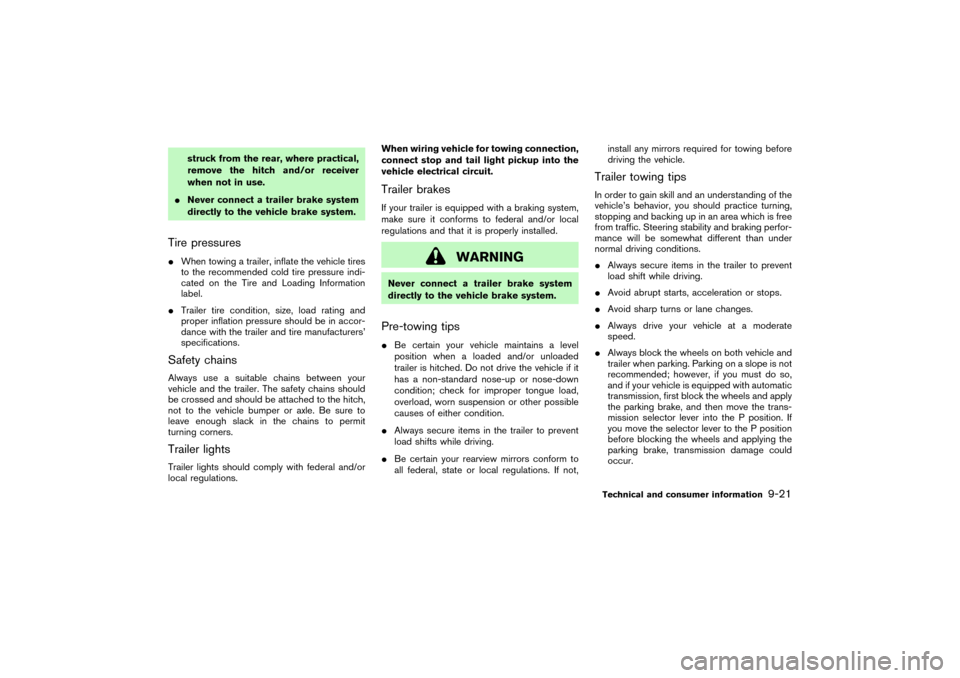

struck from the rear, where practical,
remove the hitch and/or receiver
when not in use.
Never connect a trailer brake system
directly to the vehicle brake system.
Tire pressuresWhen towing a trailer, inflate the vehicle tires
to the recommended cold tire pressure indi-
cated on the Tire and Loading Information
label.
Trailer tire condition, size, load rating and
proper inflation pressure should be in accor-
dance with the trailer and tire manufacturers’
specifications.Safety chainsAlways use a suitable chains between your
vehicle and the trailer. The safety chains should
be crossed and should be attached to the hitch,
not to the vehicle bumper or axle. Be sure to
leave enough slack in the chains to permit
turning corners.Trailer lightsTrailer lights should comply with federal and/or
local regulations.When wiring vehicle for towing connection,
connect stop and tail light pickup into the
vehicle electrical circuit.
Trailer brakesIf your trailer is equipped with a braking system,
make sure it conforms to federal and/or local
regulations and that it is properly installed.
WARNING
Never connect a trailer brake system
directly to the vehicle brake system.Pre-towing tipsBe certain your vehicle maintains a level
position when a loaded and/or unloaded
trailer is hitched. Do not drive the vehicle if it
has a non-standard nose-up or nose-down
condition; check for improper tongue load,
overload, worn suspension or other possible
causes of either condition.
Always secure items in the trailer to prevent
load shifts while driving.
Be certain your rearview mirrors conform to
all federal, state or local regulations. If not,install any mirrors required for towing before
driving the vehicle.
Trailer towing tipsIn order to gain skill and an understanding of the
vehicle’s behavior, you should practice turning,
stopping and backing up in an area which is free
from traffic. Steering stability and braking perfor-
mance will be somewhat different than under
normal driving conditions.
Always secure items in the trailer to prevent
load shift while driving.
Avoid abrupt starts, acceleration or stops.
Avoid sharp turns or lane changes.
Always drive your vehicle at a moderate
speed.
Always block the wheels on both vehicle and
trailer when parking. Parking on a slope is not
recommended; however, if you must do so,
and if your vehicle is equipped with automatic
transmission, first block the wheels and apply
the parking brake, and then move the trans-
mission selector lever into the P position. If
you move the selector lever to the P position
before blocking the wheels and applying the
parking brake, transmission damage could
occur.Technical and consumer information
9-21
04.3.9/R50-D/V5
