NISSAN PATHFINDER 2010 Owner´s Manual

1. DVD entertainment system
(if so equipped) (P. 4-88)
2. Moonroof (if so equipped) (P. 2-46)
3. Map lights (if so equipped) (P. 2-49)
4. Sun visors (P. 3-25)
5. HomeLinkTuniversal transceiver
(if so equipped) (P. 2-49)
6. Glove box (P. 2-37)
7. Front seats (P. 1-2)
8. 2nd row seats (P.1-14)
9. 3rd row seats (P. 1-16)
10. Cargo area storage (P. 2-40)
See the page number indicated in paren-
theses for operating details.
WII0050
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Ventilators (P. 4-36)
2. Headlight/fog light (if so equipped)/turn
signal switch (P. 2-27)
3. Steering wheel switch for audio control
(if so equipped) (P. 4-85)
4. Driver supplemental air bag/horn
(P. 1-44, P. 2-31)
5. Meters, gauges and warning/indicator
lights (P. 2-3, 2-12)
6. Cruise control main/set switches
(P. 5-20)
7. Windshield wiper/washer switch and
rear window wiper/washer switch
(P. 2-24, P. 2-25)
8. Navigation system* (if so equipped)
9. Navigation system* controls
if so equipped)
10. Front passenger supplemental air bag
(P. 1-44)
11. Upper and lower glove box (P. 2-37)
12. Power outlet (P. 2-34)
13. Heated seat switch (if so equipped)
(P. 2-32)
14. Shift selector (P. 5-14)
15. Vehicle dynamic control (VDC) OFF
switch (P. 2-33)
WIC1490
INSTRUMENT PANEL
0-6Illustrated table of contents

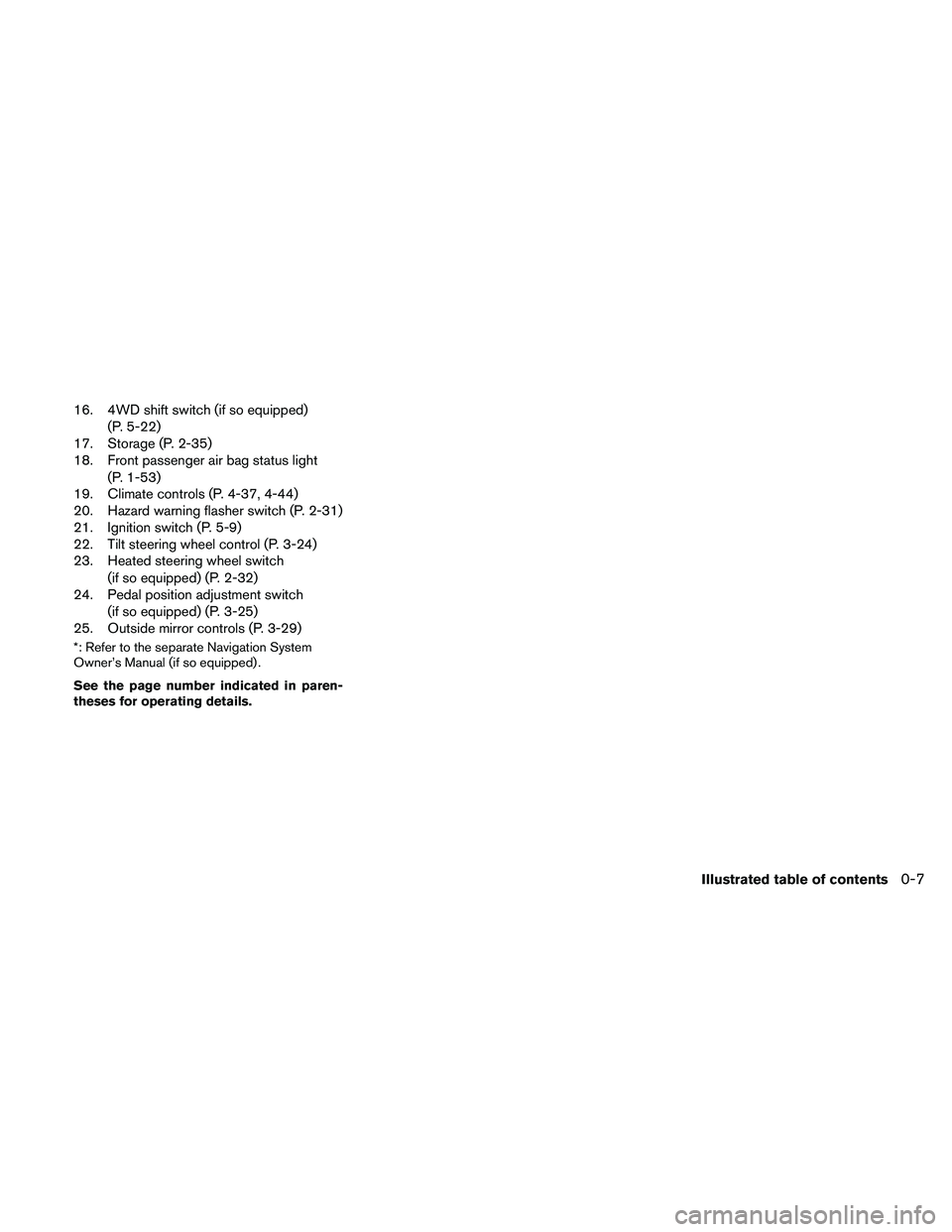

16. 4WD shift switch (if so equipped)
(P. 5-22)
17. Storage (P. 2-35)
18. Front passenger air bag status light
(P. 1-53)
19. Climate controls (P. 4-37, 4-44)
20. Hazard warning flasher switch (P. 2-31)
21. Ignition switch (P. 5-9)
22. Tilt steering wheel control (P. 3-24)
23. Heated steering wheel switch
(if so equipped) (P. 2-32)
24. Pedal position adjustment switch
(if so equipped) (P. 3-25)
25. Outside mirror controls (P. 3-29)
*: Refer to the separate Navigation System
Owner’s Manual (if so equipped) .
See the page number indicated in paren-
theses for operating details.
Illustrated table of contents0-7

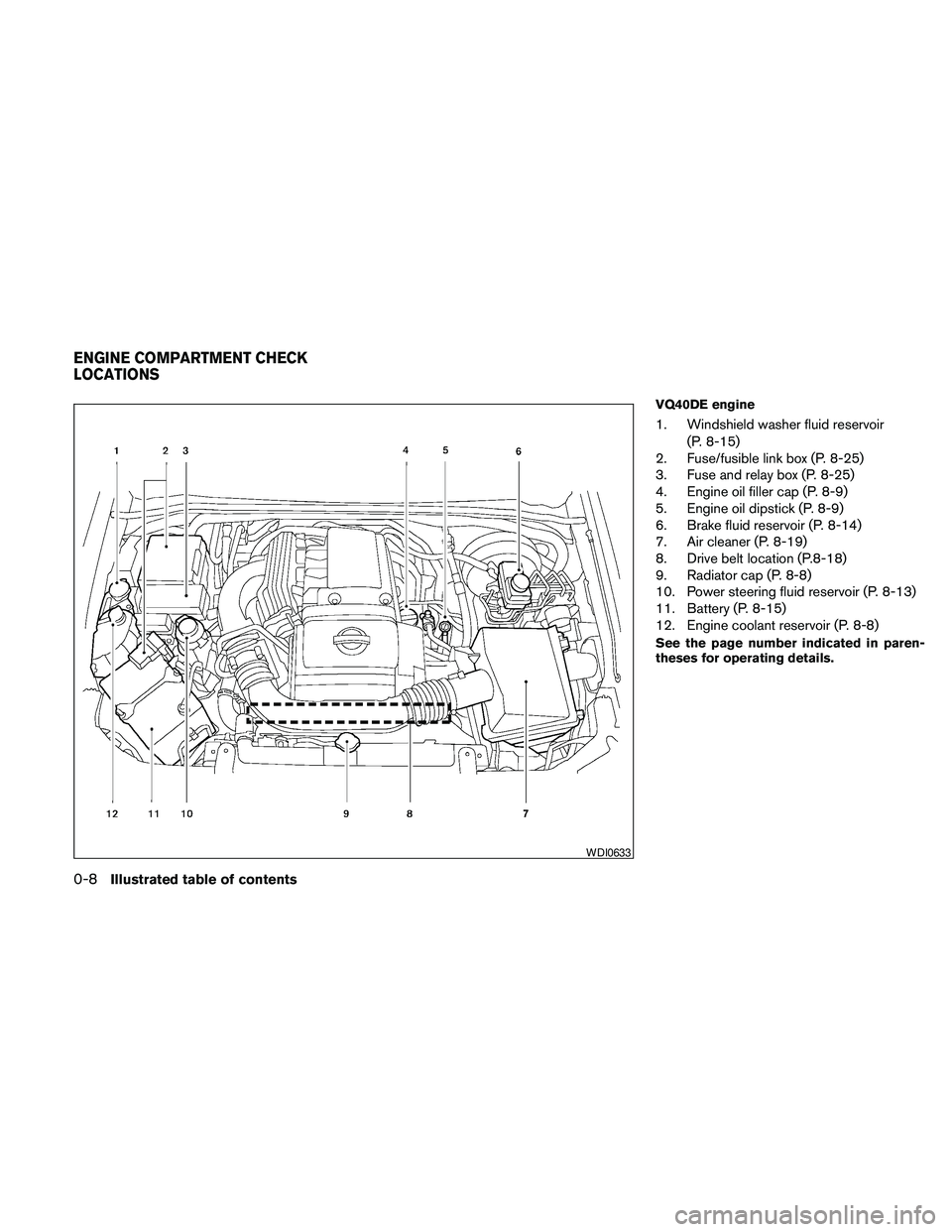

VQ40DE engine
1. Windshield washer fluid reservoir
(P. 8-15)
2. Fuse/fusible link box (P. 8-25)
3. Fuse and relay box (P. 8-25)
4. Engine oil filler cap (P. 8-9)
5. Engine oil dipstick (P. 8-9)
6. Brake fluid reservoir (P. 8-14)
7. Air cleaner (P. 8-19)
8. Drive belt location (P.8-18)
9. Radiator cap (P. 8-8)
10. Power steering fluid reservoir (P. 8-13)
11. Battery (P. 8-15)
12. Engine coolant reservoir (P. 8-8)
See the page number indicated in paren-
theses for operating details.
WDI0633
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

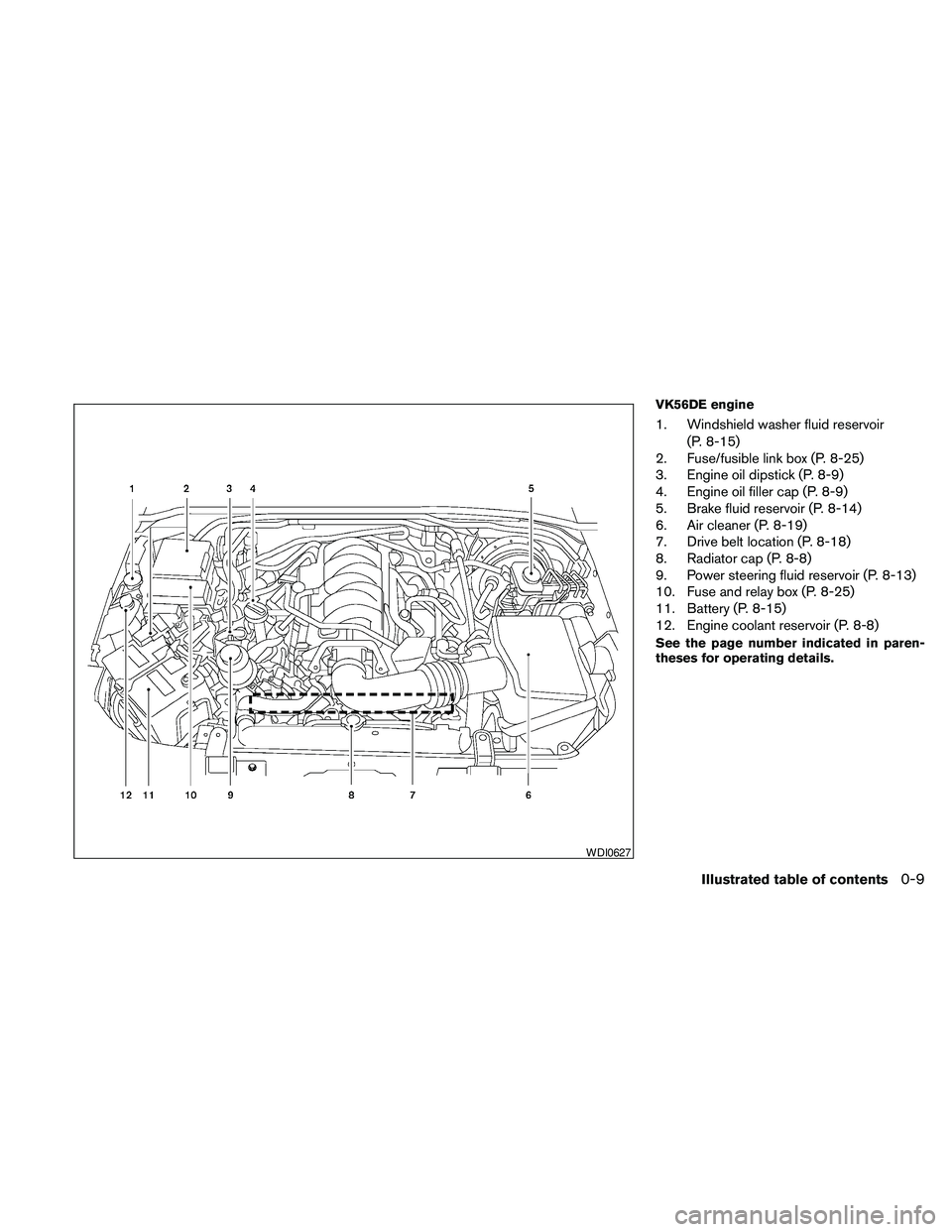

VK56DE engine
1. Windshield washer fluid reservoir
(P. 8-15)
2. Fuse/fusible link box (P. 8-25)
3. Engine oil dipstick (P. 8-9)
4. Engine oil filler cap (P. 8-9)
5. Brake fluid reservoir (P. 8-14)
6. Air cleaner (P. 8-19)
7. Drive belt location (P. 8-18)
8. Radiator cap (P. 8-8)
9. Power steering fluid reservoir (P. 8-13)
10. Fuse and relay box (P. 8-25)
11. Battery (P. 8-15)
12. Engine coolant reservoir (P. 8-8)
See the page number indicated in paren-
theses for operating details.
WDI0627
Illustrated table of contents0-9

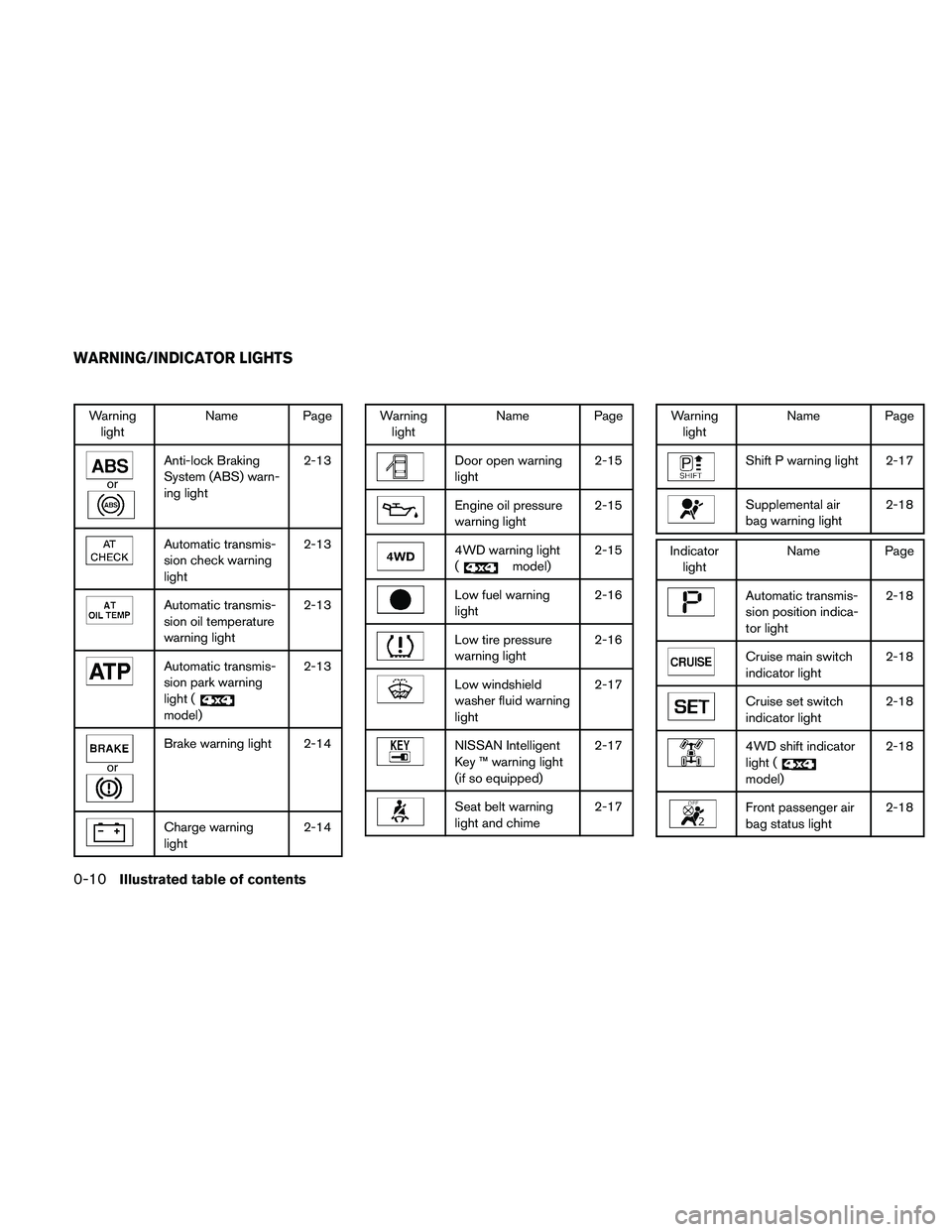

Warning
lightName Page
or
Anti-lock Braking
System (ABS) warn-
ing light2-13
Automatic transmis-
sion check warning
light2-13
Automatic transmis-
sion oil temperature
warning light2-13
Automatic transmis-
sion park warning
light (
model)2-13
or
Brake warning light 2-14
Charge warning
light2-14
Warning
lightName Page
Door open warning
light2-15
Engine oil pressure
warning light2-15
4WD warning light
(
model)2-15
Low fuel warning
light2-16
Low tire pressure
warning light2-16
Low windshield
washer fluid warning
light2-17
NISSAN Intelligent
Key ™ warning light
(if so equipped)2-17
Seat belt warning
light and chime2-17
Warning
lightName Page
Shift P warning light 2-17
Supplemental air
bag warning light2-18
Indicator
lightName Page
Automatic transmis-
sion position indica-
tor light2-18
Cruise main switch
indicator light2-18
Cruise set switch
indicator light2-18
4WD shift indicator
light (
model)2-18
Front passenger air
bag status light2-18
WARNING/INDICATOR LIGHTS
0-10Illustrated table of contents

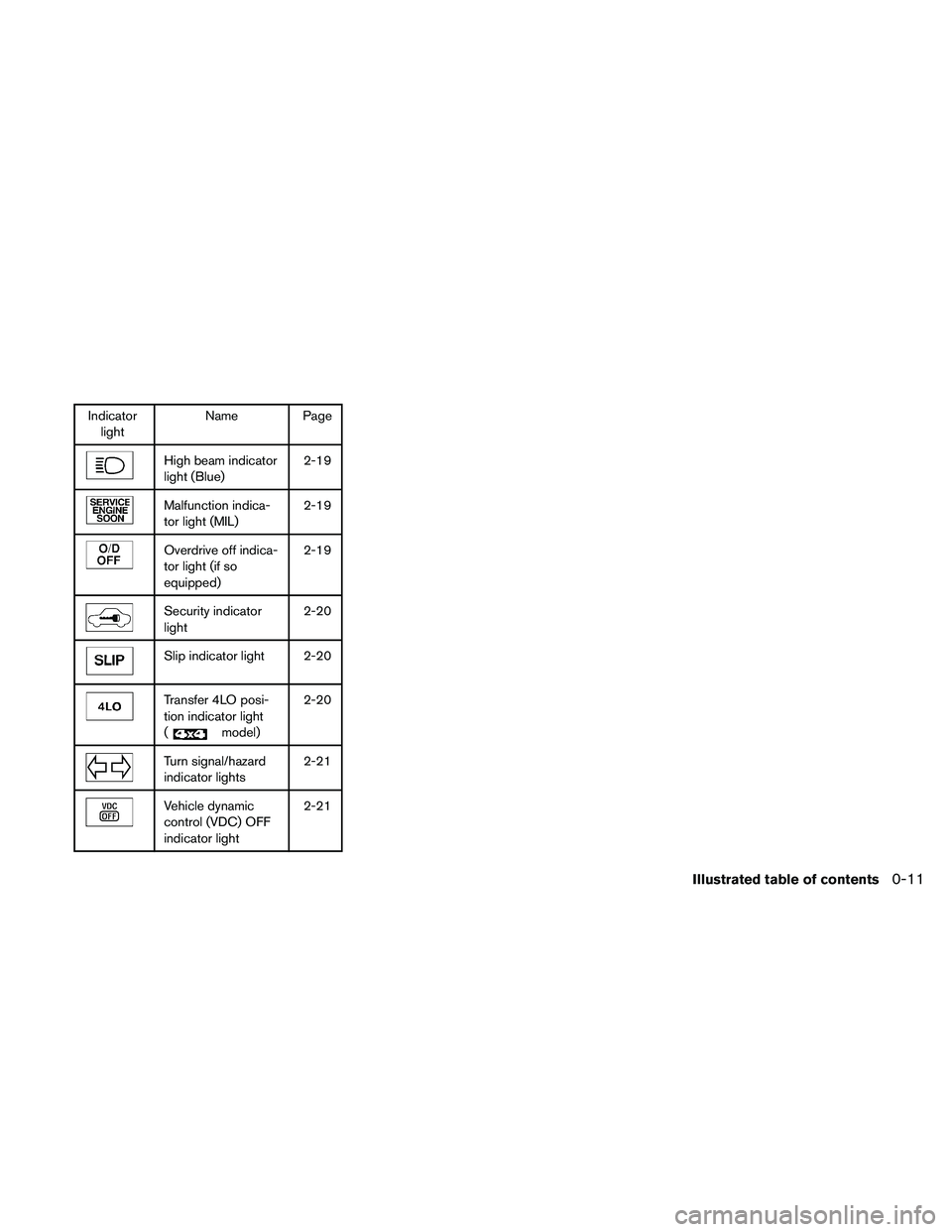

Indicator
lightName Page
High beam indicator
light (Blue)2-19
Malfunction indica-
tor light (MIL)2-19
Overdrive off indica-
tor light (if so
equipped)2-19
Security indicator
light2-20
Slip indicator light 2-20
Transfer 4LO posi-
tion indicator light
(
model)2-20
Turn signal/hazard
indicator lights2-21
Vehicle dynamic
control (VDC) OFF
indicator light2-21
Illustrated table of contents0-11

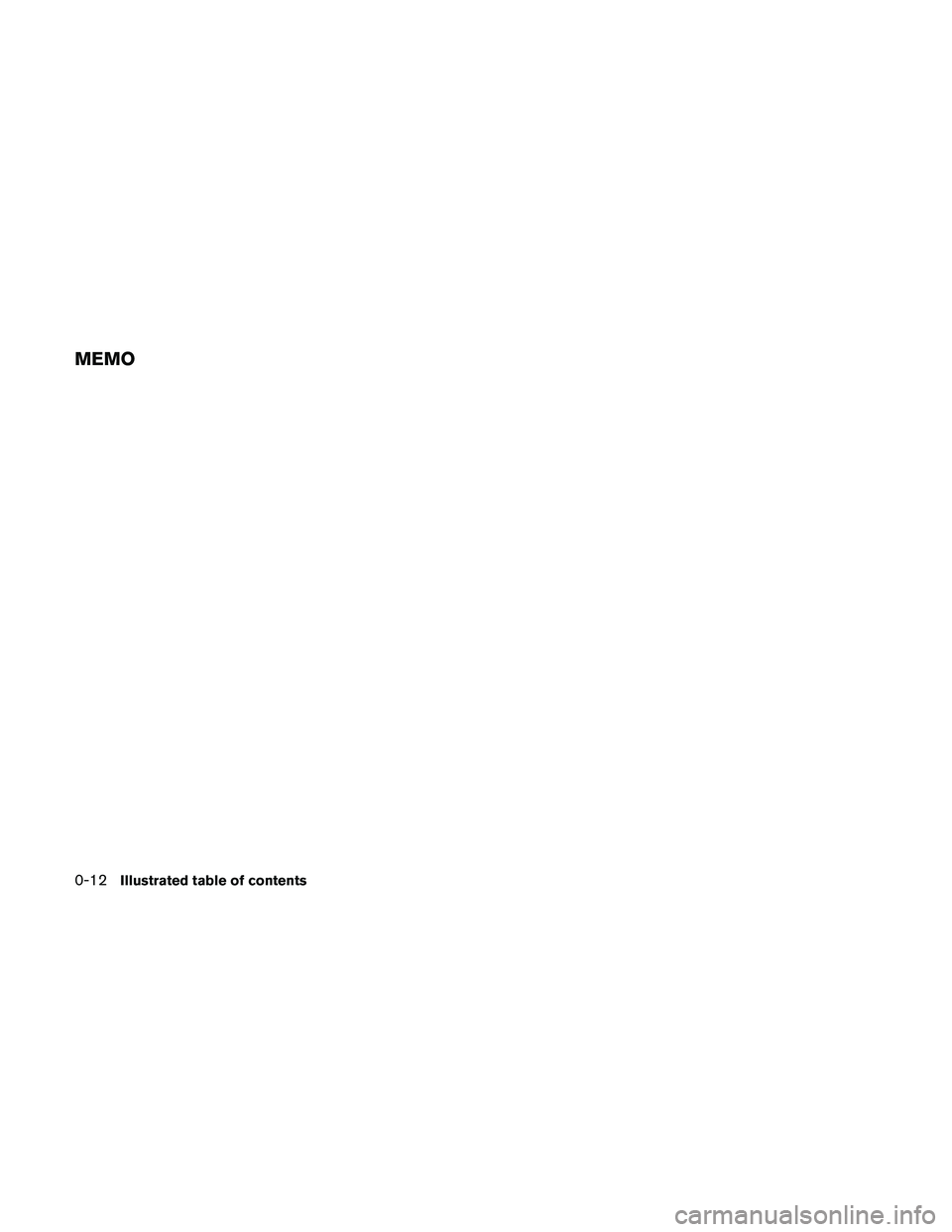

MEMO
0-12Illustrated table of contents

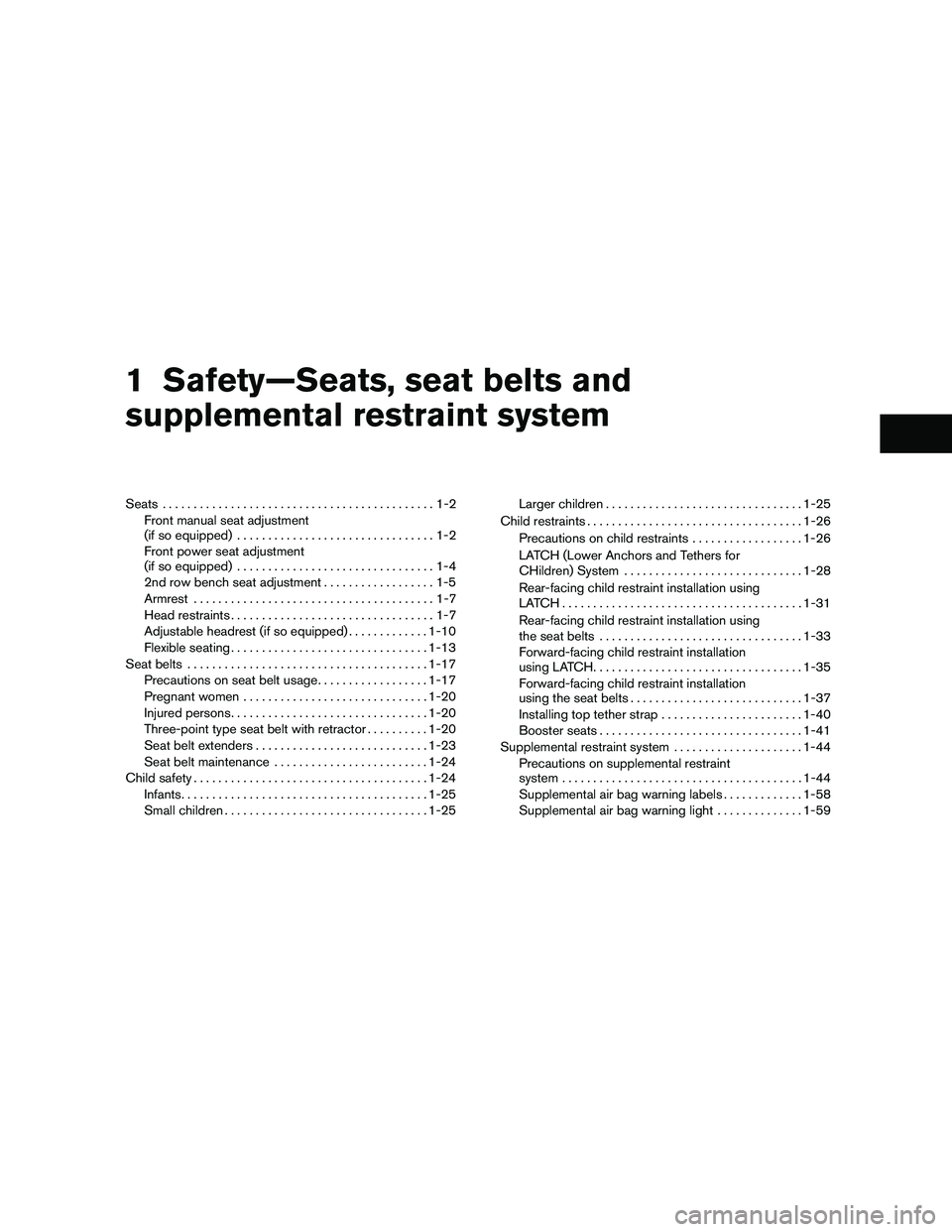

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................1-2
Front manual seat adjustment
(if so equipped)................................1-2
Front power seat adjustment
(if so equipped)................................1-4
2nd row bench seat adjustment..................1-5
Armrest.......................................1-7
Head restraints.................................1-7
Adjustable headrest (if so equipped).............1-10
Flexible seating................................1-13
Seat belts.......................................1-17
Precautions on seat belt usage..................1-17
Pregnant women..............................1-20
Injured persons................................1-20
Three-point type seat belt with retractor..........1-20
Seat belt extenders............................1-23
Seat belt maintenance.........................1-24
Child safety......................................1-24
Infants........................................1-25
Small children.................................1-25Larger children................................1-25
Child restraints...................................1-26
Precautions on child restraints..................1-26
LATCH (Lower Anchors and Tethers for
CHildren) System.............................1-28
Rear-facing child restraint installation using
LATCH.......................................1-31
Rear-facing child restraint installation using
the seat belts.................................1-33
Forward-facing child restraint installation
using LATCH..................................1-35
Forward-facing child restraint installation
using the seat belts............................1-37
Installing top tether strap.......................1-40
Booster seats.................................1-41
Supplemental restraint system.....................1-44
Precautions on supplemental restraint
system.......................................1-44
Supplemental air bag warning labels.............1-58
Supplemental air bag warning light..............1-59

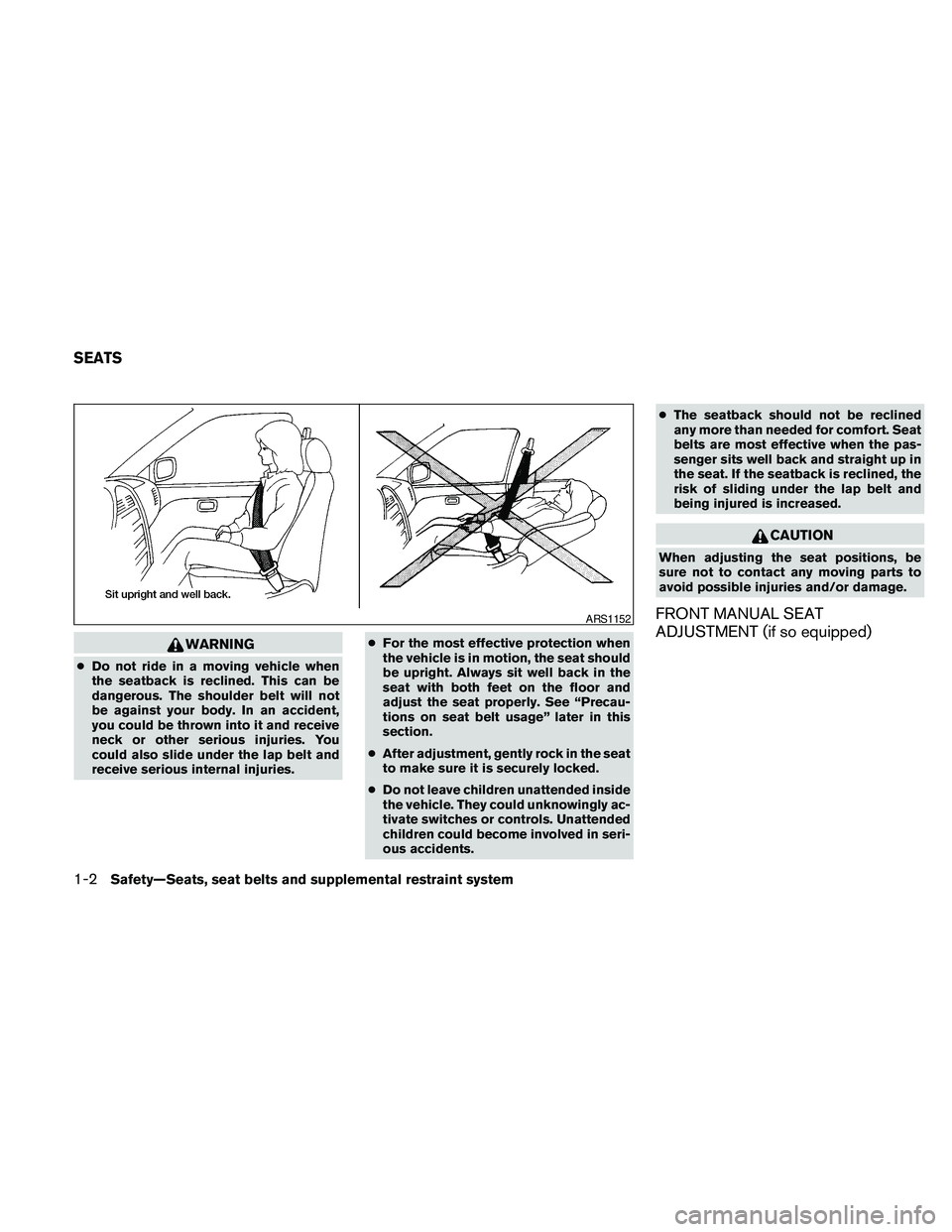

WARNING
cDo not ride in a moving vehicle when
the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.cFor the most effective protection when
the vehicle is in motion, the seat should
be upright. Always sit well back in the
seat with both feet on the floor and
adjust the seat properly. See “Precau-
tions on seat belt usage” later in this
section.
cAfter adjustment, gently rock in the seat
to make sure it is securely locked.
cDo not leave children unattended inside
the vehicle. They could unknowingly ac-
tivate switches or controls. Unattended
children could become involved in seri-
ous accidents.cThe seatback should not be reclined
any more than needed for comfort. Seat
belts are most effective when the pas-
senger sits well back and straight up in
the seat. If the seatback is reclined, the
risk of sliding under the lap belt and
being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system
