NOTE:
You can turn on or turn off the driving
speed dependent intermittent wiper func-
tion for vehicles with navigation system.
Refer to “Comfort & Convenience settings”
in the “Monitor, climate, audio, phone and
voice recognition systems” section later in
this manual.
2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed opera-
tion
Push the lever up
4to have one sweep opera-
tion (MIST) of the wiper.
Pull the lever toward you
5to operate the
washer. The wiper will also operate several times.
WARNING
In freezing temperatures the washer solu-
tion may freeze on the windshield and
obscure your vision which may lead to an
accident. Warm the windshield with the
defroster before you wash the windshield.
CAUTION
● Do not operate the washer continu-
ously for more than 30 seconds.
● Do not operate the washer if the reser-
voir tank is empty.
● Do not fill the windshield-washer fluid
reservoir with washer fluid concen-
trates at full strength. Some methyl al-
cohol based washer fluid concentrates
may permanently stain the grille if
spilled while filling the windshield-
washer fluid reservoir.
● Pre-mix washer fluid concentrates with
water to the manufacturer’s recom-
mended levels before pouring the fluid
into the windshield-washer fluid reser-
voir. Do not use the windshield-washer
fluid reservoir to mix the washer fluid
concentrate and water. The rear window wiper and washer operate when
the ignition switch is placed in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
1Intermittent (INT) – intermittent operation
(not adjustable)
2ON – continuous low speed operation
Push the switch forward
3to operate the
washer. The wiper will also operate several times.
WIC0844
REAR WINDOW WIPER AND
WASHER SWITCH
2-26Instruments and controls

DRAINING OF COOLANT WATER
If the vehicle is to be left outside without anti-
freeze, drain the cooling system, including the
engine block. Refill before operating the vehicle.
For details, see “Changing engine coolant” in the
“Maintenance and do-it-yourself” section of this
manual.
TIRE EQUIPMENT
1. SUMMER tires have a tread designed toprovide superior performance on dry pave-
ment. However, the performance of these
tires will be substantially reduced in snowy
and icy conditions. If you operate your ve-
hicle on snowy or icy roads, NISSAN recom-
mends the use of MUD & SNOW or ALL
SEASON TIRES on all four wheels. Please
consult a NISSAN dealer for the tire type,
size, speed rating and availability informa-
tion.
2. For additional traction on icy roads, studded tires may be used. However, some U.S.
states and Canadian provinces prohibit their
use. Check local, state and provincial laws
before installing studded tires.
Skid and traction capabilities of studded
snow tires on wet or dry surfaces may be
poorer than that of non-studded snow tires. 3. Tire chains may be used. For details see
“Tire chains” in the “Maintenance and do-it-
yourself” section of this manual.
SPECIAL WINTER EQUIPMENT
It is recommended that the following items be
carried in the vehicle during winter:
● A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades.
● A sturdy, flat board to be placed under the
jack to give it firm support.
● A shovel to dig the vehicle out of snowdrifts.
● Extra washer fluid to refill the windshield-
washer fluid reservoir.
DRIVING ON SNOW OR ICE
WARNING
● Wet ice (32°F, 0°C and freezing rain) ,
very cold snow or ice can be slick and
very hard to drive on. The vehicle will
have much less traction or “grip” under
these conditions. Try to avoid driving on
wet ice until the road is salted or
sanded. ●
Whatever the condition, drive with cau-
tion. Accelerate and slow down with
care. If accelerating or downshifting too
fast, the drive wheels will lose even
more traction.
● Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pavement.
● Allow greater following distances on
slippery roads.
● Watch for slippery spots (glare ice) .
These may appear on an otherwise
clear road in shaded areas. If a patch of
ice is seen ahead, brake before reach-
ing it. Try not to brake while on the ice,
and avoid any sudden steering
maneuvers.
● Do not use the cruise control on slip-
pery roads.
● Snow can trap dangerous exhaust
gases under your vehicle. Keep snow
clear of the exhaust pipe and from
around your vehicle.
5-40Starting and driving

8 Maintenance and do-it-yourself
Maintenance requirements..........................8-2
General maintenance ..............................8-2
Explanation of general maintenance items .........8-2
Maintenance precautions . . .........................8-5
Engine compartment check locations ................8-6
Engine cooling system .............................8-8
Checking engine coolant level ...................8-9
Changing engine coolant ........................8-9
Engine oil ........................................ 8-10
Checking engine oil level .......................8-10
Changing engine oil ........................... 8-11
Changing engine oil filter .......................8-12
5-speed automatic transmission fluid ...............8-13
Power steering fluid ............................... 8-14
Brake fluid ....................................... 8-14
Brake fluid .................................... 8-15
Windshield-washer fluid ........................... 8-15
Windshield-washer fluid reservoir ...............8-15
Battery .......................................... 8-16
Jump starting ................................. 8-17
Variable voltage control system .....................8-18
Drive belt ........................................ 8-18
Spark plugs ...................................... 8-19Replacing spark plugs
......................... 8-19
Air cleaner ....................................... 8-20
In-cabin microfilter ............................. 8-21
Windshield wiper blades .......................... 8-22
Cleaning ..................................... 8-22
Replacing .................................... 8-23
Brakes .......................................... 8-25
Fuses ........................................... 8-25
Engine compartment ........................... 8-26
Passenger compartment .......................8-27
Battery replacement .............................. 8-28
Keyfob (if so equipped) ........................ 8-29
NISSAN Intelligent Key™ (if so equipped) ........8-30
Lights ........................................... 8-31
Headlights .................................... 8-31
Exterior

and interior lights ....................... 8-33
Wheels and tires ................................. 8-36
Tire pressure .................................. 8-36
Tire labeling ................................... 8-40
Types of tires .................................. 8-42
Tire chains .................................... 8-43
Changing wheels and tires .....................8-43

Seat beltsCheck that all parts of the seat belt
system (for example, buckles, anchors, adjusters
and retractors) operate properly and smoothly,
and are installed securely. Check the belt web-
bing for cuts, fraying, wear or damage.
Steering wheel Check for changes in the steer-
ing system, such as excessive freeplay, hard
steering or strange noises.
Warning lights and chimes Make sure all
warning lights and chimes are operating properly.
Windshield wiper and washer* Check that
the wipers and washer operate properly and that
the wipers do not streak.
Windshield defroster Check that the air
comes out of the defroster outlets properly and in
sufficient quantity when operating the heater or
air conditioner.
Under the hood and vehicle
The maintenance items listed here should be
checked periodically (for example, each time you
check the engine oil or refuel) .
Battery* Check the fluid level in each cell. It
should be between the MAX and MIN lines. Ve-
hicles operated in high temperatures or under
severe conditions require frequent checks of the
battery fluid level. Brake fluid level*
Make sure that the brake fluid
level is between the MIN and MAX lines on the
reservoir.
Engine coolant level* Check the coolant level
when the engine is cold.
Engine drive belts* Make sure the drive belts
are not frayed, worn, cracked or oily.
Engine oil level* Check the level after parking
the vehicle on a level surface with the engine off.
Wait more than 10 minutes for the oil to drain
back into the oil pan.
Exhaust system Make sure there are no loose
supports, cracks or holes. If the sound of the
exhaust seems unusual or there is a smell of
exhaust fumes, immediately have the exhaust
system inspected by a NISSAN dealer. See the
carbon monoxide warning in the “Starting and
driving” section of this manual.
Fluid leaks Check under the vehicle for fuel, oil,
water or other fluid leaks after the vehicle has
been parked for a while. Water dripping from the
air conditioner after use is normal. If you should
notice any leaks or if gasoline fumes are evident,
check for the cause and have it corrected imme-
diately. Power steering fluid level* and lines
Check
the level when the fluid is cold, with the engine
off. Check the lines for proper attachment, leaks,
cracks, etc.
Radiator and hoses Check the front of the
radiator and clean off any dirt, insects, leaves,
etc., that may have accumulated. Make sure the
hoses have no cracks, deformation, rot or loose
connections.
Underbody The underbody is frequently ex-
posed to corrosive substances such as those
used on icy roads or to control dust. It is very
important to remove these substances from the
underbody, otherwise rust may form on the floor
pan, frame, fuel lines and exhaust system. At the
end of winter, the underbody should be thor-
oughly flushed with plain water, in those areas
where mud and dirt may have accumulated. See
the “Appearance and care” section of this
manual.
Windshield-washer fluid* Check that there is
adequate fluid in the reservoir.
8-4Maintenance and do-it-yourself

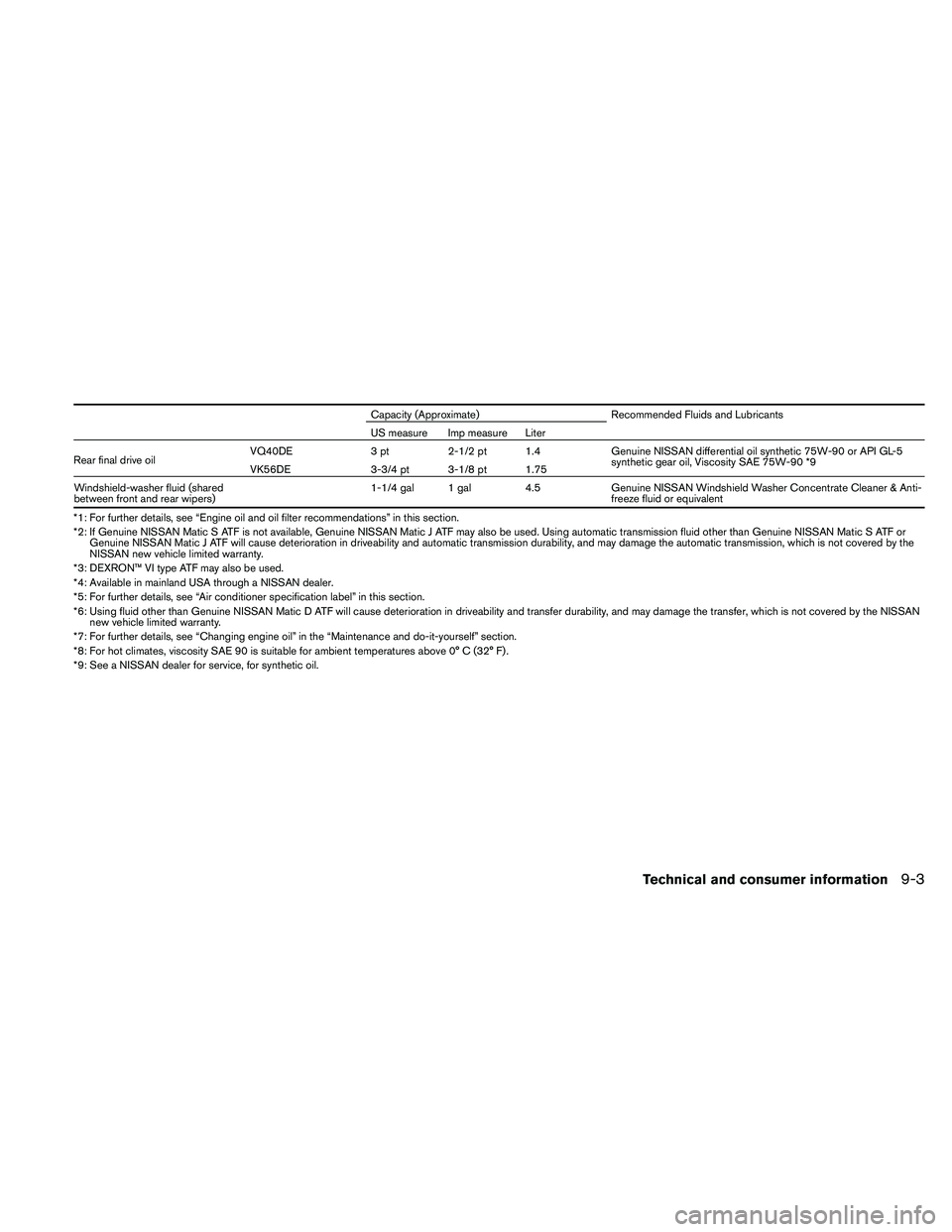

Capacity (Approximate)Recommended Fluids and Lubricants
US measure Imp measure Liter
Rear final drive oil VQ40DE
3 pt2-1/2 pt 1.4 Genuine NISSAN differential oil synthetic 75W-90 or API GL-5
synthetic gear oil, Viscosity SAE 75W-90 *9
VK56DE 3-3/4 pt 3-1/8 pt 1.75
Windshield-washer fluid (shared
between front and rear wipers) 1-1/4 gal 1 gal 4.5
Genuine NISSAN Windshield Washer Concentrate Cleaner & Anti-
freeze fluid or equivalent
*1: For further details, see “Engine oil and oil filter recommendations” in this section.
*2: If Genuine NISSAN Matic S ATF is not available, Genuine NISSAN Matic J ATF may also be used. Using automatic transmission fluid other than Genuine NISSAN Matic S ATF or Genuine NISSAN Matic J ATF will cause deterioration in driveability and automatic transmission durability, and may damage the automatic transmission, which is not covered by the
NISSAN new vehicle limited warranty.
*3: DEXRON™ VI type ATF may also be used.
*4: Available in mainland USA through a NISSAN dealer.
*5: For further details, see “Air conditioner specification label” in this section.
*6: Using fluid other than Genuine NISSAN Matic D ATF will cause deterioration in driveability and transfer durability, and may damage the transfer, which is not covered by the NISSAN new vehicle limited warranty.
*7: For further details, see “Changing engine oil” in the “Maintenance and do-it-yourself” section.
*8: For hot climates, viscosity SAE 90 is suitable for ambient temperatures above 0° C (32° F) .
*9: See a NISSAN dealer for service, for synthetic oil.
Technical and consumer information9-3

NISSAN mobile entertainment system
(MES).......................4-88
NISSAN vehicle immobilizer
system ................2-24, 3-4, 5-12
NISSAN voice recognition system ......4-130
O
Octane rating (See fuel octane rating) ......9-5
Odometer .....................2-4
Oil Capacities and recommended
fuel/lubricants .................9-2
Changing engine oil .............8-11
Changing engine oil filter ..........8-12
Checking engine oil level ..........8-10
Engine oil ...................8-10
Engine oil and oil filter recommendation . . .9-6
Engine oil viscosity ..............9-6
Outside mirror control ..............3-30
Outside mirrors .................3-30
Overdrive switch .................5-18
Overheat If your vehicle overheats ...........6-9
Owner’s manual order form ...........9-31
Owner’s manual/service manual order
information ....................9-31
P
Parking Parking brake operation ...........5-19
Parking/parking on hills ...........5-34
Pedal position adjustment ............3-26 Personal lights
..................2-49
Phone, Bluetooth hands-free
system .................4-104, 4-119
Power Front seat adjustment .............1-4
Power door locks ...............3-6
Power outlet .................2-35
Power rear windows .............2-46
Power steering fluid .............8-14
Power steering system ...........5-35
Power windows ...............2-44
Rear power windows ............2-46
Precautions Maintenance precautions ...........8-5
On-pavement
and off-road driving
precautions ..................5-5
Precautions on child
restraints .........1-26, 1-33, 1-37, 1-41
Precautions on seat belt usage .......1-17
Precautions on supplemental restraint
system ....................1-44
Precautions when starting and driving . . . .5-2
Pre-tensioner seat belt system .........1-57
Programmable features ..........4-11, 4-27
Push starting ....................6-9
R
Radio Car phone or CB radio ..........4-103
Compact Disc (CD) changer ........4-62
FM/AM radio with compact disc
(CD) player ..................4-54
FM/AM/SAT radio with compact disc
(CD) changer ................4-59 FM/AM/SAT radio with compact disc
(CD) player
..................4-67
Rear audio controls .............4-86
Steering wheel audio control switch . . . .4-85
Readiness for inspection maintenance
(I/M) test .....................9-30
Rear audio controls ...............4-86
Rear power windows ..............2-46
Rear seat air conditioner ............4-46
RearView Monitor ................4-34
Rear window and outside mirror defroster
switch .......................2-27
Rear window wiper and washer switches . . .2-26
Recorders Event data ..................9-30
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote controller (See NISSAN mobile
entertainment system) ..............4-90
Remote keyless entry system ...........3-7
Reporting safety defects (US only) .......9-29
Resetting the fuel economy ........4-7, 4-23
S
Safety Child safety rear door lock ..........3-7
Child seat belts .....1-26, 1-33, 1-37, 1-41
Reporting safety defects (US only) .....9-29
Screen (See NISSAN mobile entertainment
system) ......................4-90
Seat adjustment Front manual seat adjustment ........1-2
Front
power seat adjustment .........1-4
Second row bench seats ...........1-5
10-5

Seatback pockets................2-39
Seat belt Child safety ..................1-24
Infants and small children ..........1-25
Injured Person ................1-20
Larger children ................1-25
Precautions on seat belt usage .......1-17
Pregnant women ...............1-20
Pre-tensioner seat belt system .......1-57
Seat belt extenders .............1-23
Seat belt maintenance ............1-24
Seat belts ...................1-17
Shoulder belt height adjustment ......1-23
Three-point type with retractor .......1-20
Seat belt warning light ..............2-19
Seats Adjustment ...................1-2
Automatic drive positioner ..........3-31
Front seats ...................1-2
Heated seats .................2-33
Manual front seat adjustment .........1-2
Security indicator light ..............2-21
Security system (NISSAN vehicle immobilizer
system) , engine start ........2-24, 3-4, 5-12
Self-adjusting brakes ..............8-25
Service manual order form ...........9-31
Servicing air conditioner .............4-47
Setting button ...............4-11, 4-27
Shifting Automatic transmission ...........5-15
Shift lock release .................5-17
Shoulder belt height adjustment ........1-23
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-56
Spark plug replacement .............8-19
Speedometer ...................2-4 SRS warning label
................1-58
Starting Before starting the engine ..........5-13
Jump starting .................6-7
Precautions

when starting and driving . . . .5-2
Push starting ..................6-9
Starting the engine .............5-13
Startup screen ..................4-21
Steering Heated steering wheel ...........2-34
Power steering fluid .............8-14
Power steering system ...........5-35
Tilting steering wheel ............3-26
Steering wheel audio control switch ......4-85
Stop light .....................8-33
Storage ......................2-36
Storage bin ................2-37, 2-41
Storage tray ...................2-36
Sunglasses case .................2-38
Sunglasses holder ................2-38
Sunroof ......................2-47
Sunroof (see Moonroof) .............2-47
Sun visors ....................3-27
Supplemental air bag warning labels ......1-58
Supplemental air bag warning light . . .1-59, 2-19
Supplemental front impact air bag system . . .1-51
Supplemental restraint system Information and warning labels .......1-58
Precautions on supplemental restraint
system ....................1-44
Supplemental restraint system
(Supplemental air bag system) .........1-44
Switch Autolight switch ...............2-29
Automatic power window switch ......2-46
Fog light switch ...............2-32 Hazard warning flasher switch
.......2-32
Headlight and turn signal switch ......2-28
Headlight control switch ..........2-28
Ignition switch .................5-9
Overdrive switch ...............5-18
Power door lock switch ............3-6
Rear window and outside mirror defroster
switch .....................2-27
Rear window wiper and washer
switches ...................2-26
T
urn signal switch ..............2-31
Vehicle dynamic control (VDC) off
switch .....................2-34
Windshield wiper and washer switch . . .2-25
T
Tachometer ....................2-6
Temperature gauge Engine coolant temperature gauge .....2-6
Theft (NISSAN vehicle immobilizer system) ,
engine start .............2-24, 3-4, 5-12
Three-way catalyst ................5-2
Tilting steering wheel ..............3-26
Tire Flat tire .....................6-2
Spare tire ................6-3, 8-46
Tire and Loading Information label .....9-12
Tire chains ..................8-43
Tire placard ..................9-12
Tire pressure .................8-36
Tire rotation ..................8-43
Tires of 4-wheel drive ............8-45
Types of tires .................8-42
Uniform tire quality grading .........9-28
10-6

Wheels and tires...............8-36
Wheel/tire size .................9-9
Tire pressure Low tire pressure warning light .......2-17
Tire pressure display ............4-8, 4-23
Tire Pressure Monitoring System (TPMS) . . . .5-3
Tire rotation maintenance reminder . . . .4-8, 4-23
Top tether strap child restraint .........1-30
Towing 2-wheel drive models ............6-11
4-wheel drive models ............6-12
Flat towing ..................9-27
Towing load/specification ..........9-21
Tow truck towing ...............6-10
Trailer towing .................9-18
Transceiver HomeLink Universal Transceiver ......2-50
Transmission Driving with automatic transmission . . . .5-14
Shift selector lock release ..........5-17
Travel (See registering your vehicle in
another country) .................9-10
Trip computer ...................2-9
Trip odometer ...................2-4
Turn signal switch ................2-31
U
Uniform tire quality grading ...........9-28
V
Vanity mirror ...................3-27
Variable voltage control system .........8-18Vehicle dimensions and weights
.........9-9
Vehicle dynamic control (VDC) off switch . . .2-34
Vehicle dynamic control (VDC) system .....5-38
Vehicle electronic system ........4-15, 4-30
Vehicle identification ...............9-10
Vehicle identification number (VIN)
(Chassis number) ................9-10
Vehicle identification number (VIN) plate . . . .9-10
Vehicle loading information ...........9-13
Vehicle recovery ..............6-12, 6-13
Vehicle security system .............2-23
Vehicle security system (NISSAN vehicle immobi-
lizer system) , engine start ......2-24,
3-4, 5-12
Ventilators ....................4-36
Visors .......................3-27
Voice recognition system ...........4-130
Voltmeter ......................2-8
W
Warning 4WD warning light ..............2-16
Air bag warning light .........1-59, 2-19
Anti-lock brake warning light ........2-14
Battery charge warning light ........2-16
Brake warning light .............2-15
Door open warning light ...........2-16
Engine oil pressure warning light ......2-16
Hazard warning flasher switch .......2-32
Low fuel warning light ............2-17
Low tire pressure warning light .......2-17
Low windshield-washer fluid warning
light ......................2-18
Passenger air bag and status light .....1-53
Seat belt warning light ............2-19 Vehicle security system
...........2-23
Warning/indicator lights and audible
reminders ...................2-13
Warning labels (for SRS) ..........1-58
Warning lights ..................2-13
Washer switch Rear window wiper and washer
switches ...................2-26
Windshield wiper and washer switch . . .2-25
Weights (See dimensions and weights) .....9-9
Wheels and tires .................8-36
Wheel/tire size ...................9-9
When traveling or registering your vehicle
in another country ................9-10
Windows Locking passengers’ windows .......2-46
Power rear windows .............2-46
Power windows ...............2-44
Rear power windows ............2-46
Windshield-washer fluid .............8-15
Windshield wiper and washer switch .....2-25
Wiper Rear

window wiper and washer
switches ...................2-26
Windshield wiper and washer switch . . .2-25
Wiper blades .................8-22
10-7
