Page 481 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
Step 4.
6. If your vehic

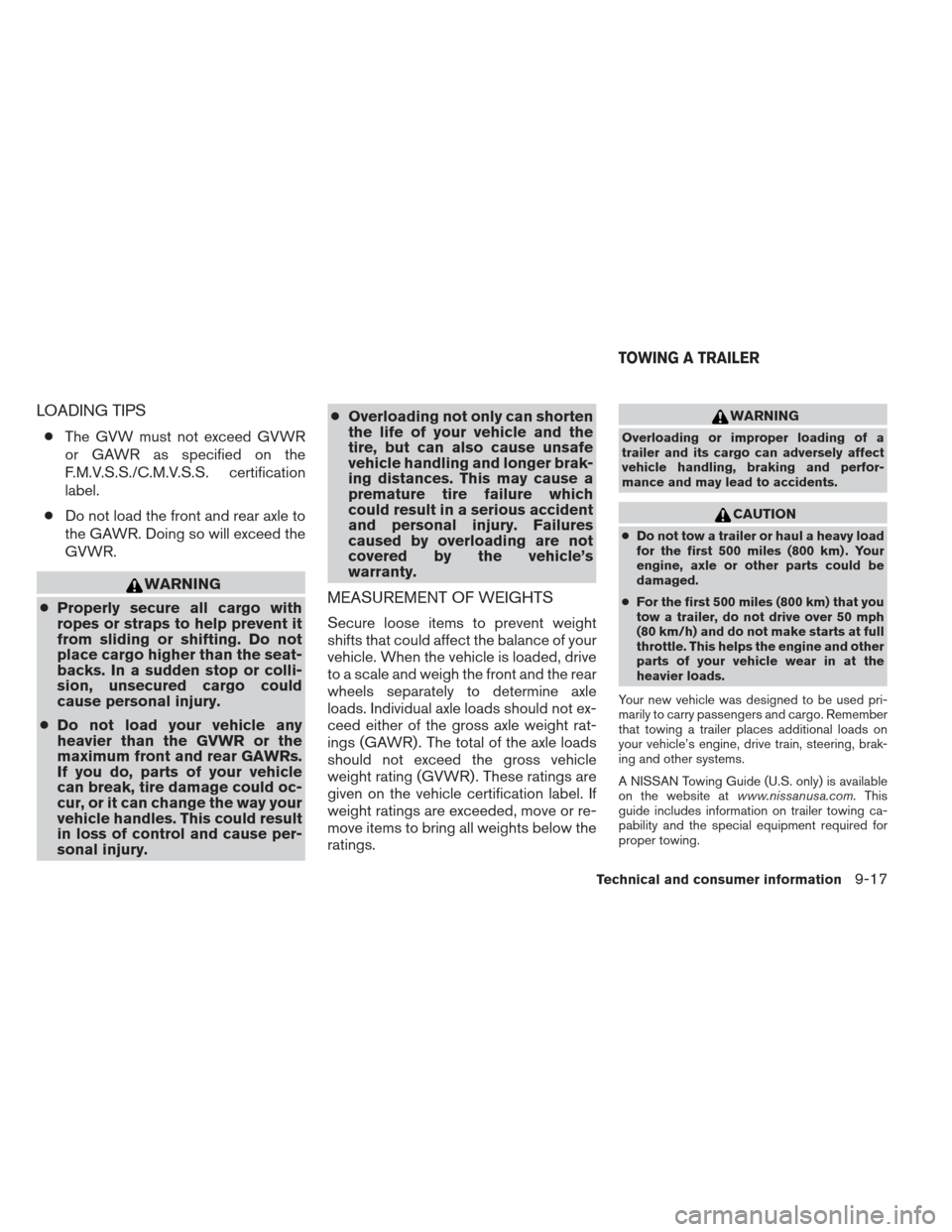

Page 482 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual LOADING TIPS
●The GVW must not exceed GVWR
or GAWR as specified on the
F.M.V.S.S./C.M.V.S.S. certification
label.
● Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.

Page 483 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual MAXIMUM LOAD LIMITS
Maximum trailer loads
Never allow the total trailer load to exceed the
value specified in the following Towing
Load/Specification Chart found later in this sec-
tion. The total tra

Page 484 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Tongue load
When using a weight carrying or a weight distrib-
uting hitch, keep the tongue load between 10 -
15 percent of the total trailer load or use the
trailer tongue load specified by the traile

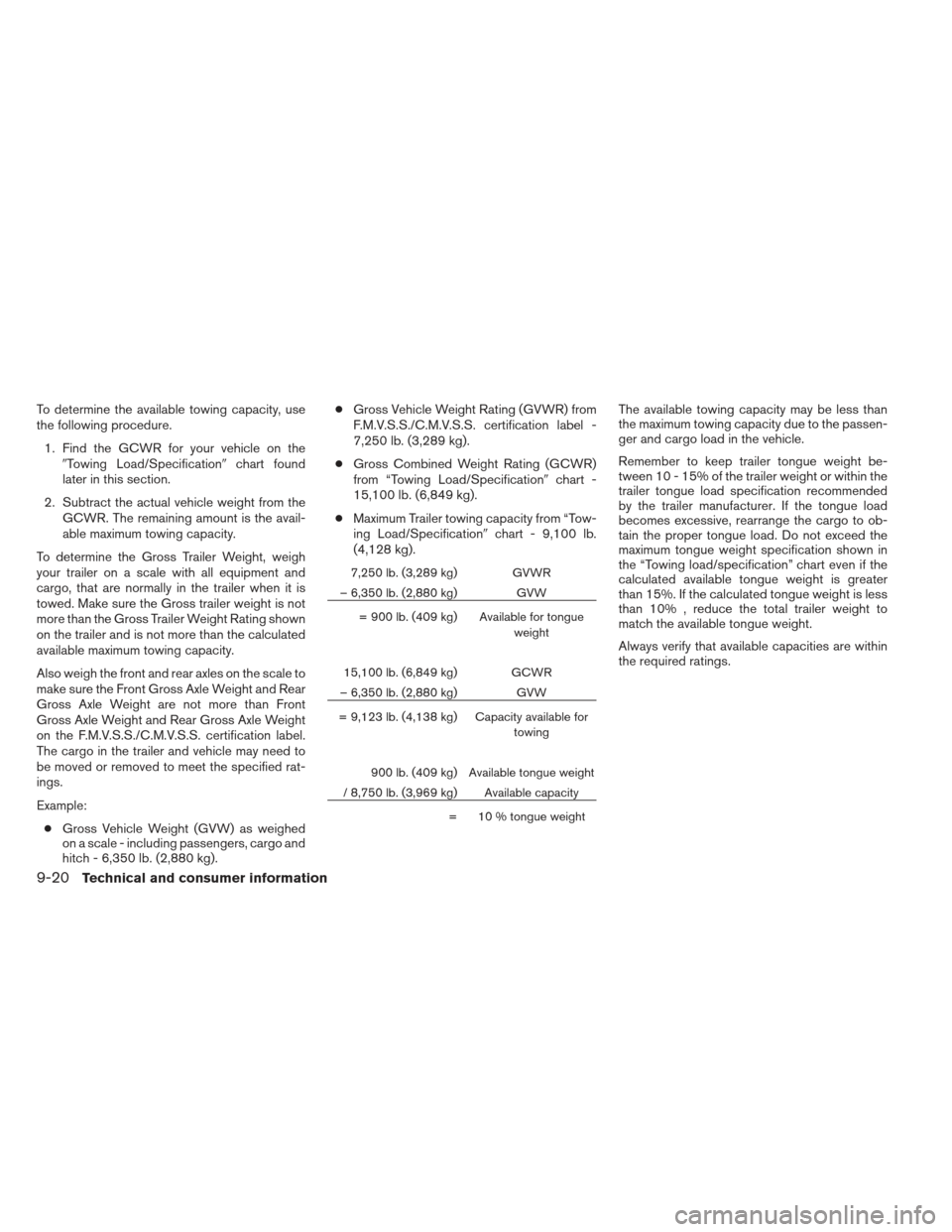

Page 485 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual To determine the available towing capacity, use
the following procedure.1. Find the GCWR for your vehicle on the Towing Load/Specification chart found
later in this section.
2. Subtract the actual v

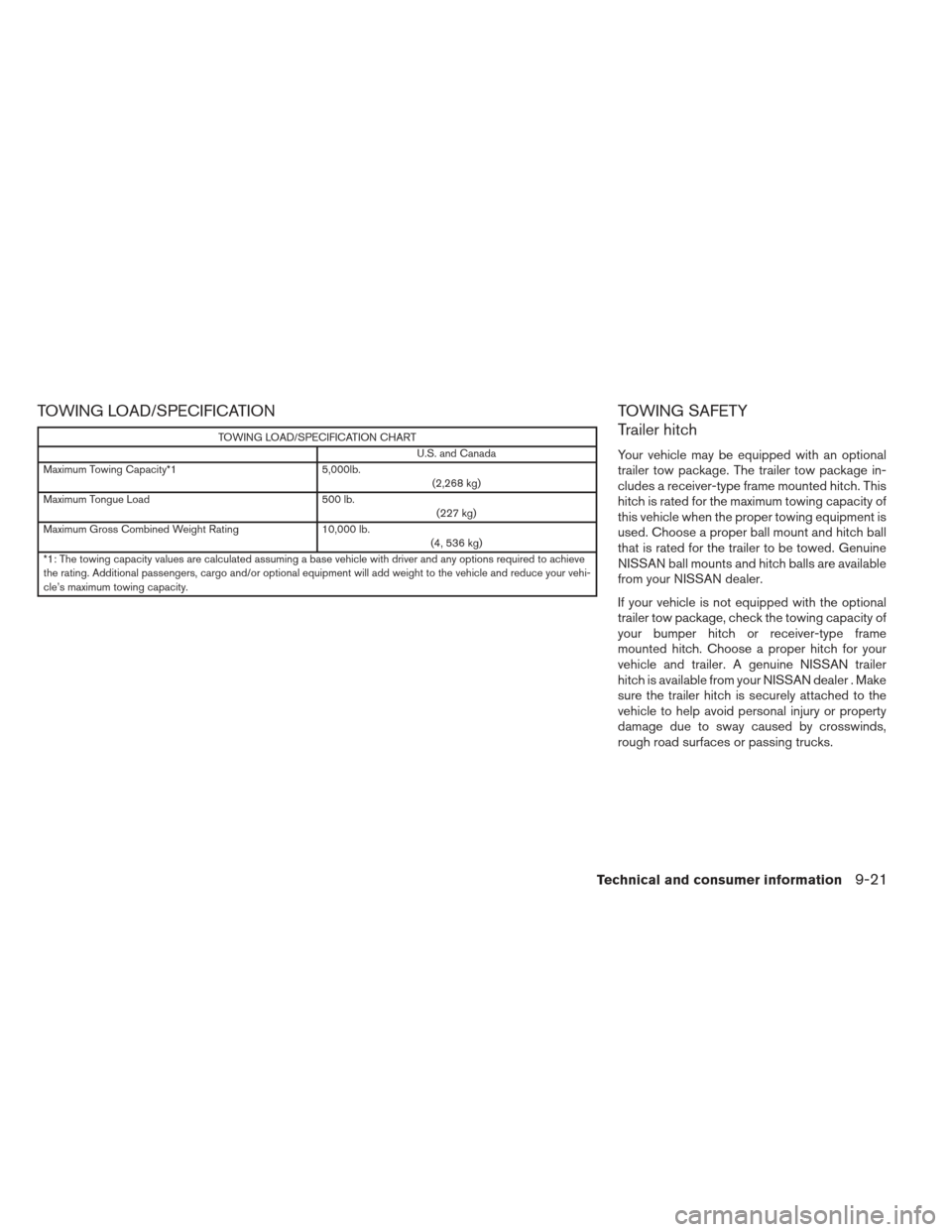

Page 486 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual TOWING LOAD/SPECIFICATION
TOWING LOAD/SPECIFICATION CHARTU.S. and Canada
Maximum Towing Capacity*1 5,000lb.
(2,268 kg)
Maximum Tongue Load 500 lb.
(227 kg)
Maximum Gross Combined Weight Rating 10,000

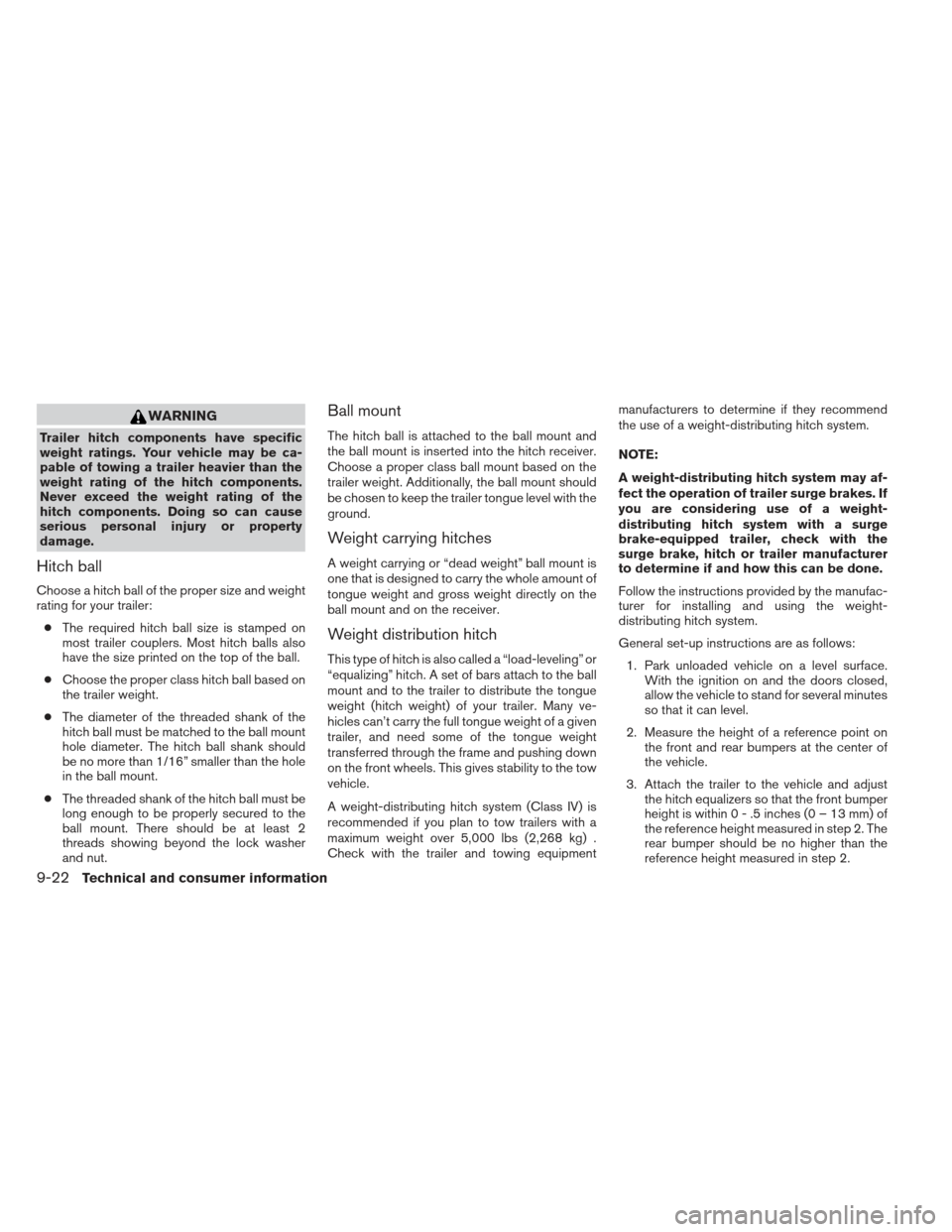

Page 487 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual WARNING
Trailer hitch components have specific
weight ratings. Your vehicle may be ca-
pable of towing a trailer heavier than the
weight rating of the hitch components.
Never exceed the weight rating

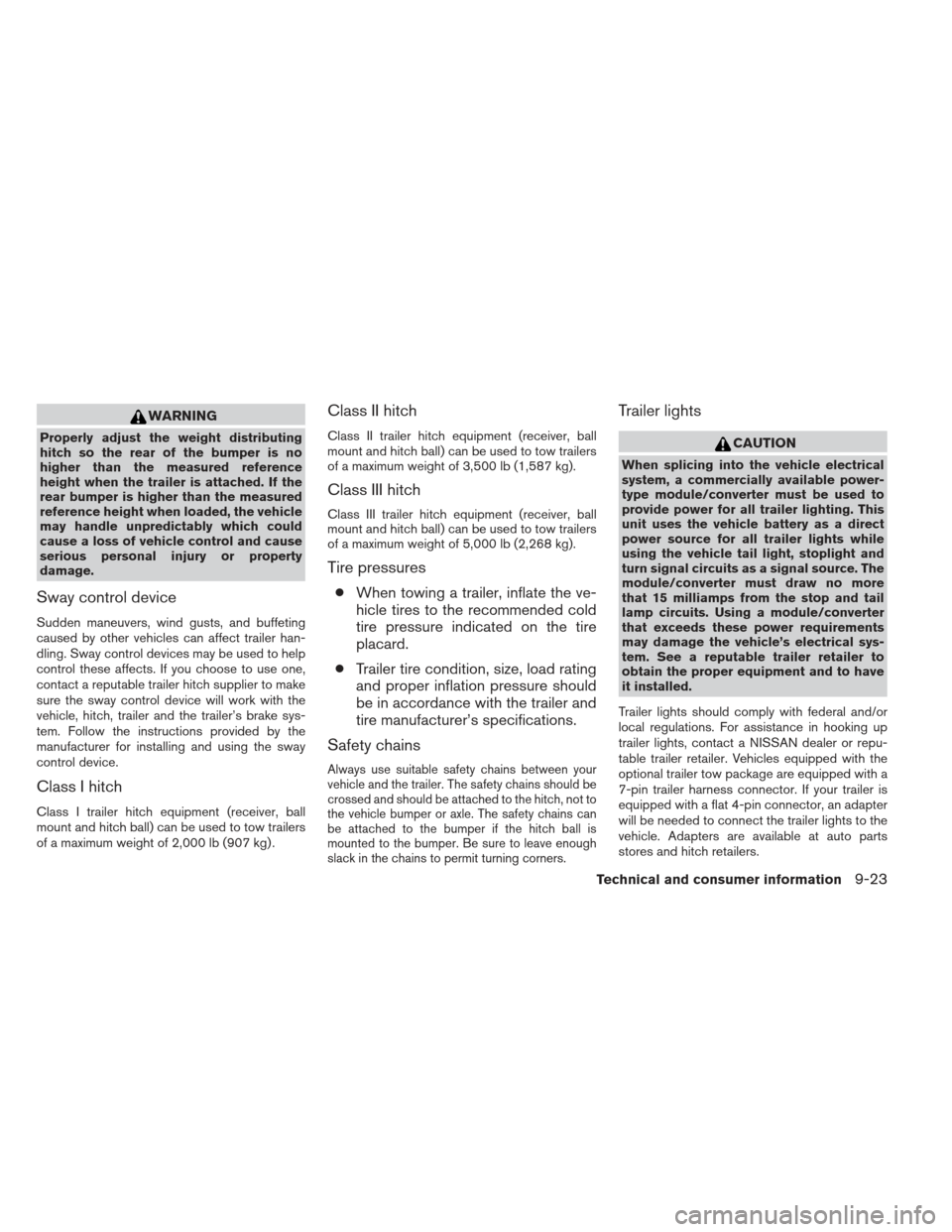

Page 488 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual WARNING
Properly adjust the weight distributing
hitch so the rear of the bumper is no
higher than the measured reference
height when the trailer is attached. If the
rear bumper is higher than the meas

Page 489 of 506

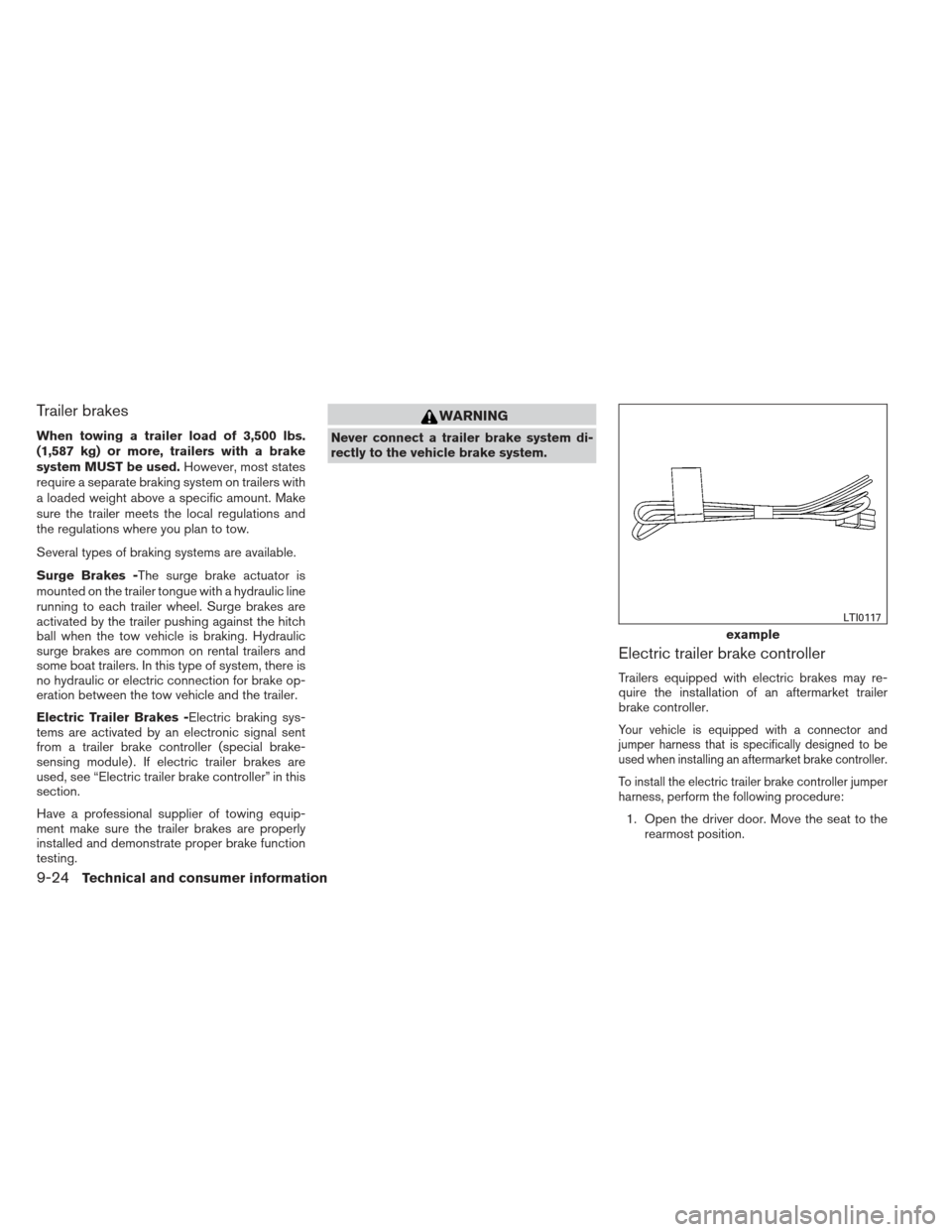

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual Trailer brakes
When towing a trailer load of 3,500 lbs.
(1,587 kg) or more, trailers with a brake
system MUST be used.However, most states
require a separate braking system on trailers with
a loaded w

Page 490 of 506

NISSAN PATHFINDER 2013 R52 / 4.G Owners Manual 2. Locate the jumper harness connector underthe lower portion of the instrument panel.
The connector is taped to the wiring harness
1as indicated.
● The connector is marked with a white tag
with
