NISSAN PATHFINDER 2014 R52 / 4.G Owners Manual

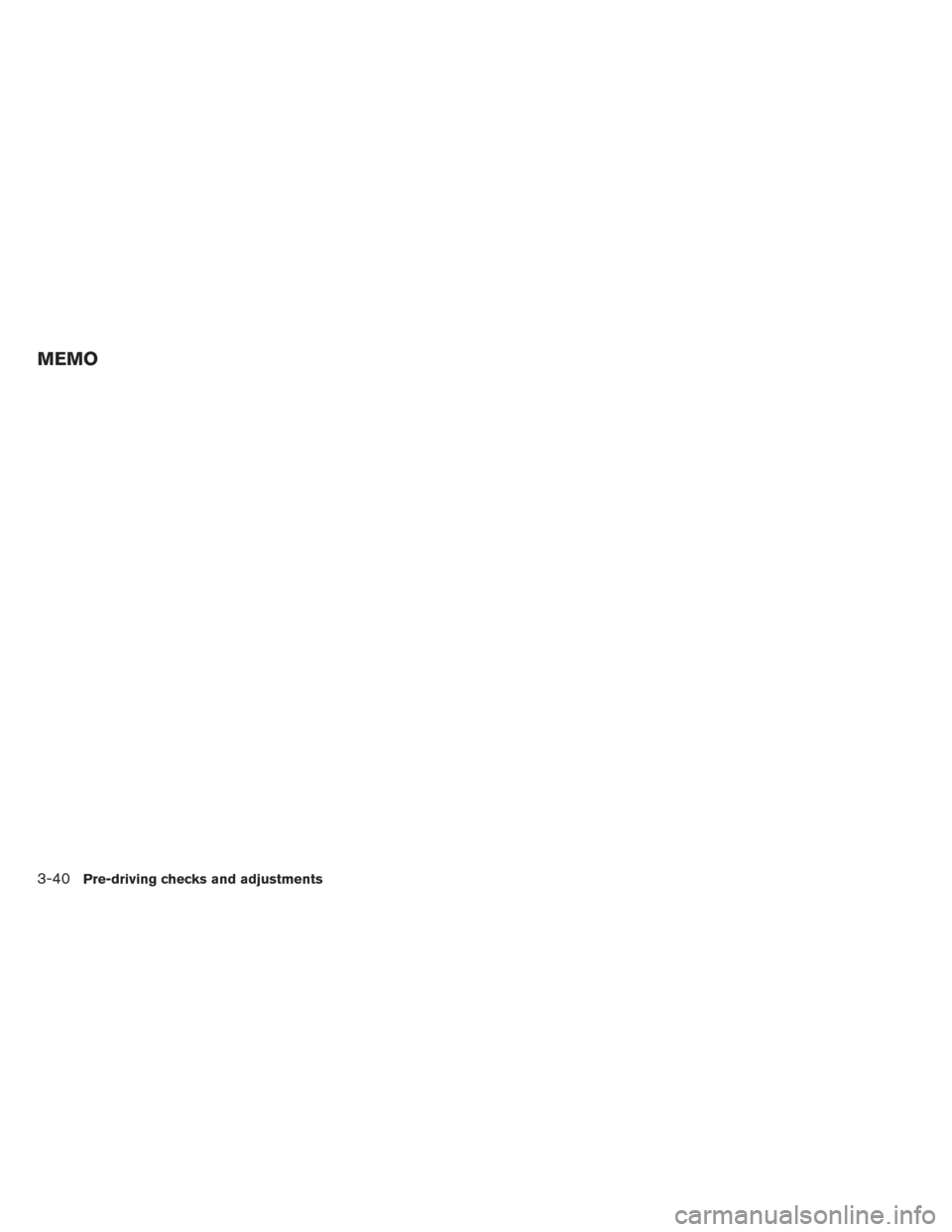

MEMO
3-40Pre-driving checks and adjustments

4 Monitor, climate, audio, phone and voice
recognition systems
Control panel buttons — color screen without
Navigation System (if so equipped)..................4-4
How to use the NISSAN controller ...............4-5
How to select menus on the screen ..............4-6
How to use the STATUS button ..................4-6
How to use the INFO button .....................4-6
How to use the SETTING button .................4-8
OFF button............................. 4-11
Control panel buttons — color screen with
Navigation System (if so equipped) .................4-11
How to use the NISSAN controller ..............4-12
How to use the touch screen ...................4-12
How to select menus on the screen .............4-14
How to use the STATUS button .................4-15
How to use the INFO button ....................4-15
How to use the SETTING button ................4-17
OFF button............................. 4-20
Image viewer (if so equipped) ......................4-20
Using the image viewer ........................ 4-20
RearView Monitor (if so equipped) ..................4-23
How to read the displayed lines .................4-23
How to park with predictive course lines .........4-24 Difference between predicted and actual
distances
..................................... 4-25
Predictive course line settings ..................4-27
How to adjust the screen .......................4-27
Operating tips ................................. 4-28
Around View® Monitor (if so equipped) .............4-28
Available views ................................ 4-30
Difference between predictive and actual
distances ..................................... 4-33
How to switch the display ......................4-35
Camera aiding sonar (parking sensor) ............4-36
How to adjust the screen view ..................4-37
View malfunction .............................. 4-38
Operating tips ................................. 4-38
Vents ........................................... 4-39
Heater and air conditioner (automatic) (Type A) ......4-40
Automatic operation ........................... 4-41
Manual operation .............................. 4-41
Rear seat air conditioner .......................4-42
Operating tips ................................. 4-43
Heater and air conditioner (automatic) (Type B) ......4-44
Automatic operation ........................... 4-45

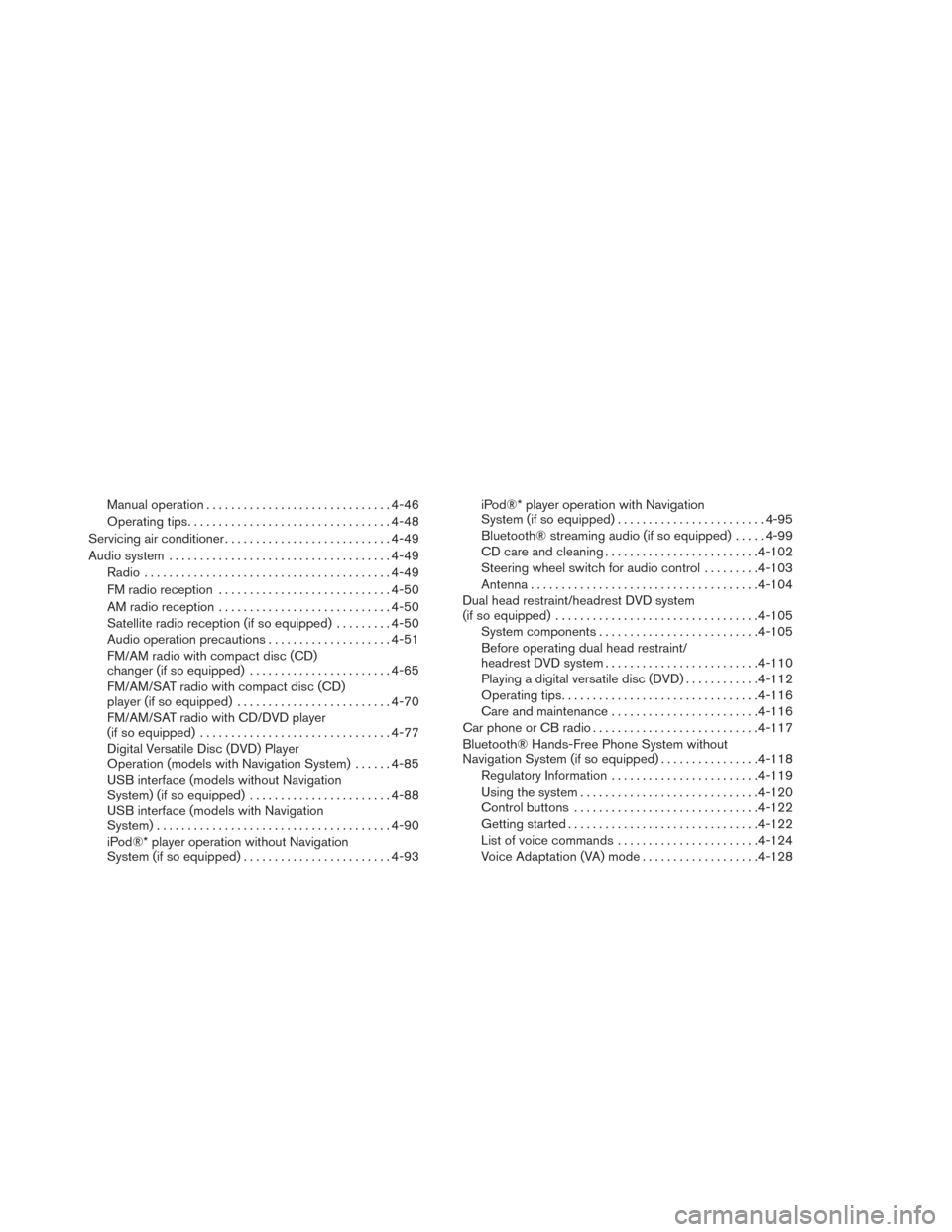

Manual operation.............................. 4-46
Operating tips ................................. 4-48
Servicing air conditioner ........................... 4-49
Audio system .................................... 4-49
Radio ........................................ 4-49
FM radio reception . . .......................... 4-50
AM radio reception . . .......................... 4-50
Satellite radio reception (if so equipped) .........4-50
Audio operation precautions ....................4-51
FM/AM radio with compact disc (CD)
changer (if so equipped) .......................4-65
FM/AM/SAT radio with compact disc (CD)
player (if so equipped) ......................... 4-70
FM/AM/SAT radio with CD/DVD player
(if so equipped) ............................... 4-77
Digital Versatile Disc (DVD) Player
Operation (models with Navigation System) ......4-85
USB interface (models without Navigation
System) (if so equipped) .......................4-88
USB interface (models with Navigation
System) ...................................... 4-90
iPod®* player operation without Navigation
System (if so equipped) ........................ 4-93iPod®* player operation with Navigation
System (if so equipped)
........................ 4-95
Bluetooth® streaming audio (if so equipped) .....4-99
CD care and cleaning ......................... 4-102
Steering wheel switch for audio control .........4-103
Antenna ..................................... 4-104
Dual head restraint/headrest DVD system
(if so equipped) . . . .............................. 4-105
System components .......................... 4-105
Before operating dual head restraint/
headrest DVD system ......................... 4-110
Playing a digital versatile disc (DVD) ............4-112
Operating tips ................................ 4-116
Care and maintenance ........................ 4-116
Car phone or CB radio ........................... 4-117
Bluetooth® Hands-Free Phone System without
Navigation System (if so equipped) ................4-118
Regulatory Information ........................ 4-119
Using the system ............................. 4-120
Control
buttons .............................. 4-122
Getting started ............................... 4-122
List of voice commands ....................... 4-124
Voice Adaptation (VA) mode ...................4-128

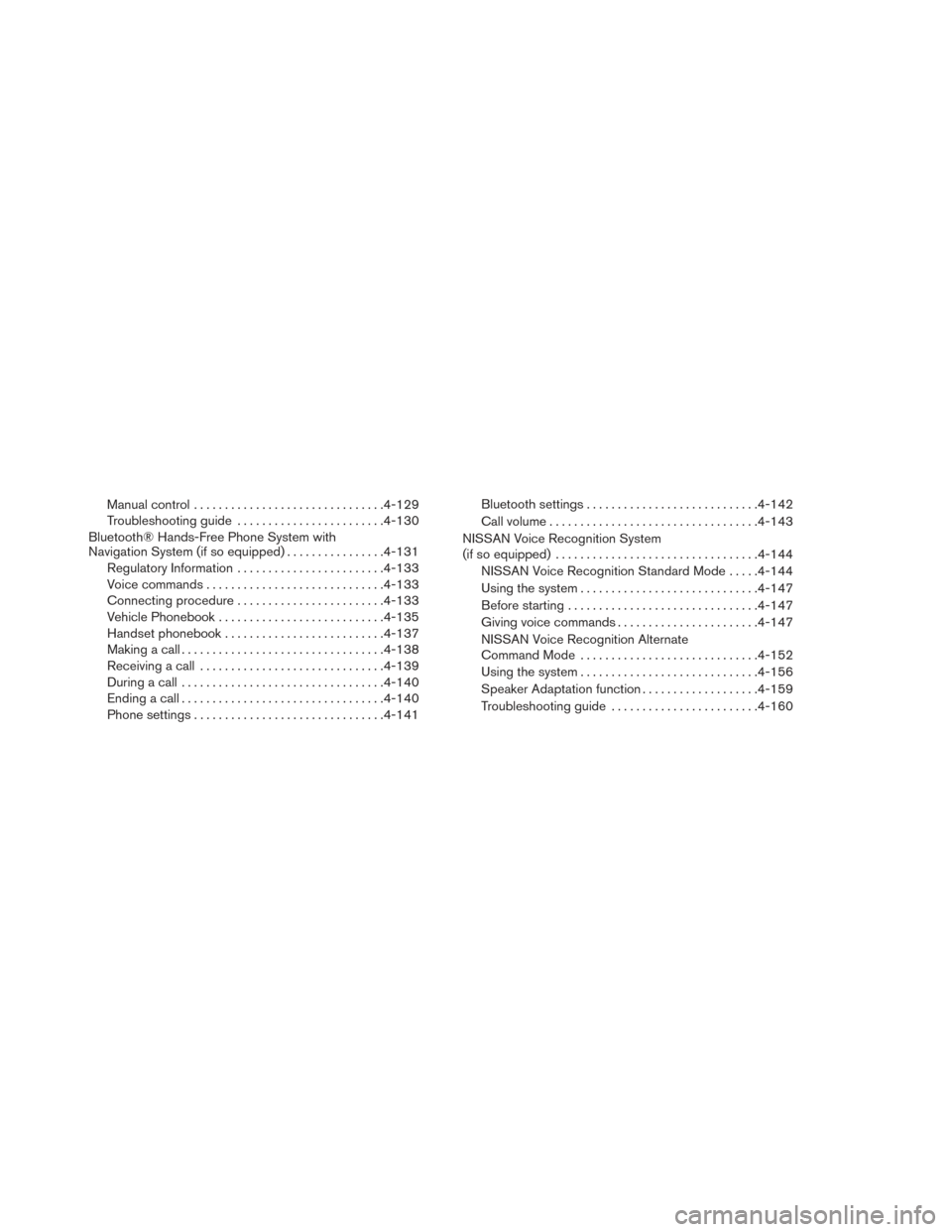

Manual control............................... 4-129
Troubleshooting guide ........................ 4-130
Bluetooth® Hands-Free Phone System with
Navigation System (if so equipped) ................4-131
Regulatory Information ........................ 4-133
Voice commands ............................. 4-133
Connecting procedure ........................ 4-133
Vehicle Phonebook ........................... 4-135
Handset phonebook .......................... 4-137
Making a call ................................. 4-138
Receiving a call .............................. 4-139
During a call ................................. 4-140
Ending a call ................................. 4-140
Phone settings ............................... 4-141Bluetooth settings
............................ 4-142
Call volume .................................. 4-143
NISSAN Voice Recognition System
(if so equipped) . . . .............................. 4-144
NISSAN Voice Recognition Standard Mode .....4-144
Using the system ............................. 4-147
Before starting ............................... 4-147
Giving voice commands ....................... 4-147
NISSAN Voice Recognition Alternate
Command Mode ............................. 4-152
Using the system ............................. 4-156
Speaker Adaptation function ...................4-159
Troubleshooting guide ........................ 4-160

WARNING
●Positioning of the heating or air condi-
tioning controls and display controls
should not be done while driving in or-
der that full attention may be given to
the driving operation.
● Do not disassemble or modify this sys-
tem. If you do, it may result in accidents,
fire, or electrical shock.
● Do not use this system if you notice any
abnormality, such as a frozen screen or
lack of sound. Continued use of the
system may result in accident, fire or
electric shock.
● In case you notice any foreign object in
the system hardware, spill liquid on it,
or notice smoke or smell coming from
it, stop using the system immediately
and contact your nearest NISSAN
dealer. Ignoring such conditions may
lead to accidents, fire or electrical
shock.
1. STATUS button (P. 4-6)
2. INFO button (P. 4-6)
3. NISSAN controller (P. 4-5)
4.
OFF brightness control button
(P. 4-11) 5. BRIGHT + (brightness control) button
6. BRIGHT – (brightness control) button
7.
BACK (previous) button
8. SETTING button (P. 4-8)
LHA2469
CONTROL PANEL BUTTONS — COLOR
SCREEN WITHOUT NAVIGATION
SYSTEM (if so equipped)
4-4Monitor, climate, audio, phone and voice recognition systems

CAUTION
●The glass display screen may break if it
is hit with a hard or sharp object. If the
glass screen breaks, do not touch it.
Doing so could result in an injury.
● To clean the display, never use a rough
cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
● Do not splash any liquid such as water
or car fragrance on the display. Contact
with liquid will cause the system to
malfunction.
When you use this system, make sure the engine
is running.
If you use the system with the engine not
running (ignition ON or ACC) for a long
time, it will discharge the battery, and the
engine will not start.
Reference symbols:
ENTER button — This is a button on the control
panel.
“Example” — Words marked in quotes refer to a
key shown on the display. These keys can only be
selected using the NISSAN controller.
HOW TO USE THE NISSAN
CONTROLLER
Use the NISSAN controller to choose an item on
the display screen. Highlight an item on the dis-
play using the main directional buttons
2or the
center dial
3. Then press the ENTER button1
to select the item or perform the action.
The BACK button
4has two functions:
● Go back to the previous display (cancel) . If you press the BACK button
4during setup,
the setup will be canceled and/or the display will
return to the previous screen.
● Finish setup.
In some screens pressing the BACK button
4
accepts the changes made during setup.
LHA2470
Monitor, climate, audio, phone and voice recognition systems4-5

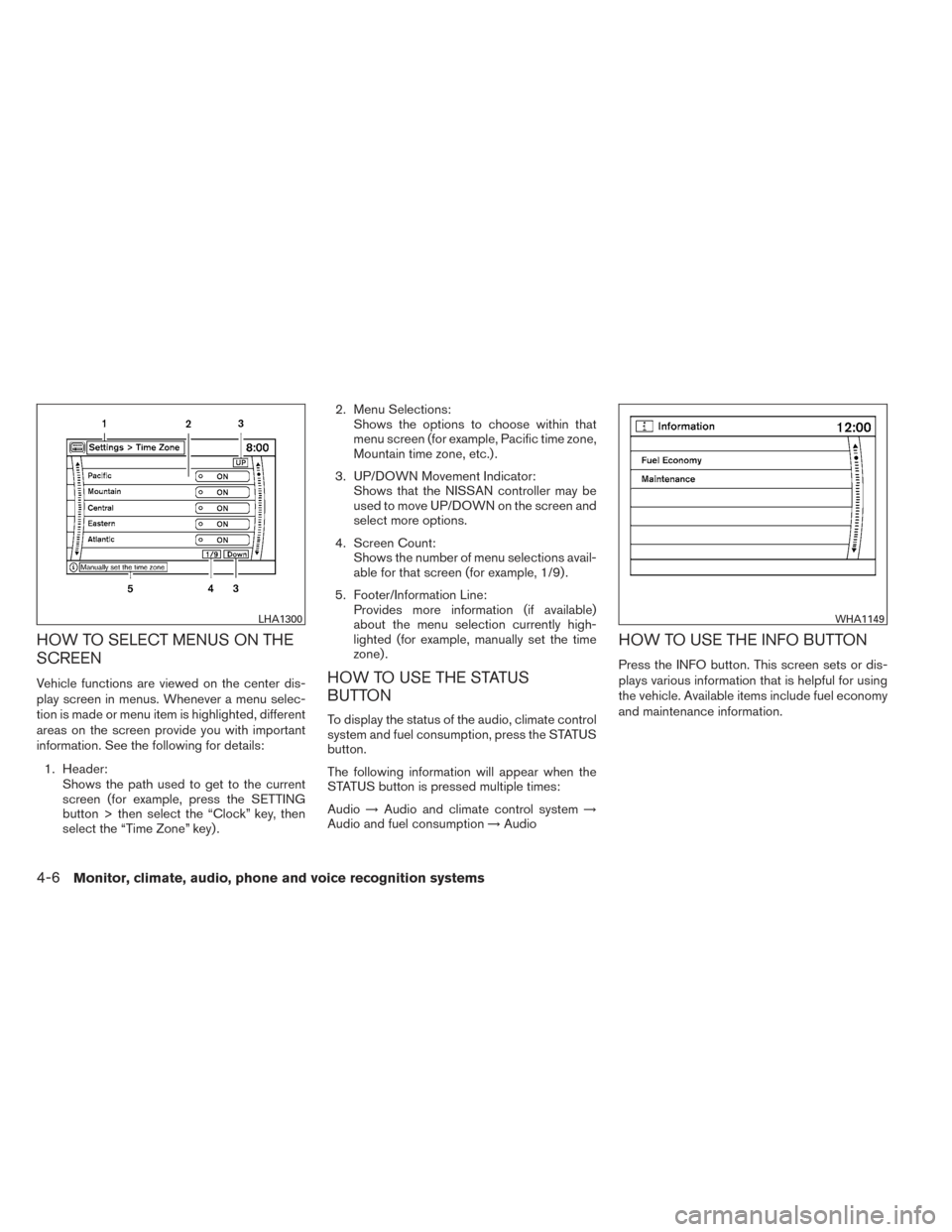

HOW TO SELECT MENUS ON THE
SCREEN
Vehicle functions are viewed on the center dis-
play screen in menus. Whenever a menu selec-
tion is made or menu item is highlighted, different
areas on the screen provide you with important
information. See the following for details:1. Header: Shows the path used to get to the current
screen (for example, press the SETTING
button > then select the “Clock” key, then
select the “Time Zone” key) . 2. Menu Selections:
Shows the options to choose within that
menu screen (for example, Pacific time zone,
Mountain time zone, etc.) .
3. UP/DOWN Movement Indicator: Shows that the NISSAN controller may be
used to move UP/DOWN on the screen and
select more options.
4. Screen Count: Shows the number of menu selections avail-
able for that screen (for example, 1/9) .
5. Footer/Information Line: Provides more information (if available)
about the menu selection currently high-
lighted (for example, manually set the time
zone) .HOW TO USE THE STATUS
BUTTON
To display the status of the audio, climate control
system and fuel consumption, press the STATUS
button.
The following information will appear when the
STATUS button is pressed multiple times:
Audio →Audio and climate control system →
Audio and fuel consumption →Audio
HOW TO USE THE INFO BUTTON
Press the INFO button. This screen sets or dis-
plays various information that is helpful for using
the vehicle. Available items include fuel economy
and maintenance information.
LHA1300WHA1149
4-6Monitor, climate, audio, phone and voice recognition systems

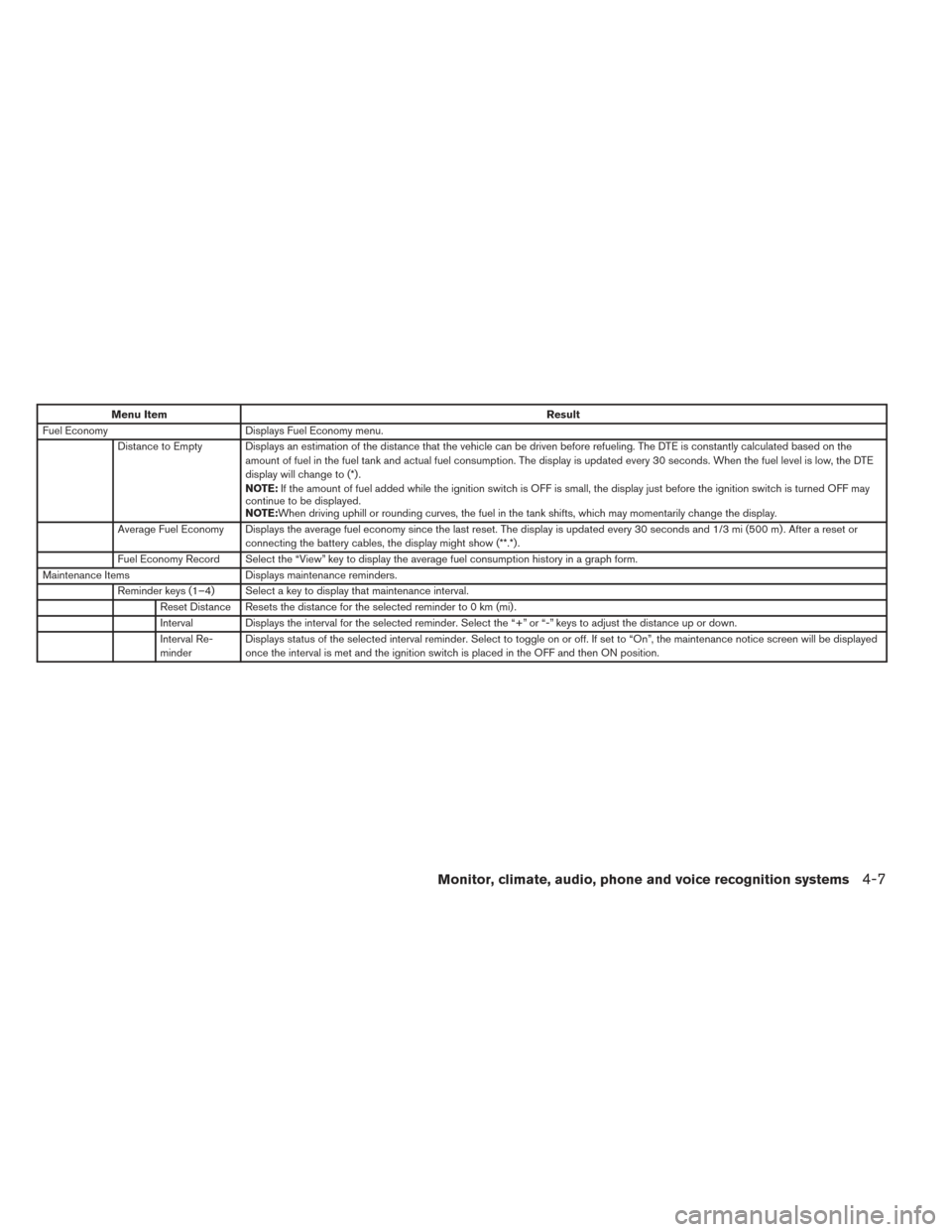

Menu ItemResult
Fuel Economy Displays Fuel Economy menu.
Distance to Empty Displays an estimation of the distance that the vehicle can be driven before refueling. The DTE is constantly calculated based on the amount of fuel in the fuel tank and actual fuel consumption. The display is updated every 30 seconds. When the fuel level is low, the DTE
display will change to (*) .
NOTE:If the amount of fuel added while the ignition switch is OFF is small, the display just before the ignition switch is turned OFF may
continue to be displayed.
NOTE:When driving uphill or rounding curves, the fuel in the tank shifts, which may momentarily change the display.
Average Fuel Economy Displays the average fuel economy since the last reset. The display is updated every 30 seconds and 1/3 mi (500 m) . After a reset or connecting the battery cables, the display might show (**.*) .
Fuel Economy Record Select the “View” key to display the average fuel consumption history in a graph form.
Maintenance Items Displays maintenance reminders.
Reminder keys (1–4) Select a key to display that maintenance interval. Reset Distance Resets the distance for the selected reminder to 0 km (mi) .
Interval Displays the interval for the selected reminder. Select the “+” or “-” keys to adjust the distance up or down.
Interval Re-
minder Displays status of the selected interval reminder. Select to toggle on or off. If set to “On”, the maintenance notice screen will be displayed
once the interval is met and the ignition switch is placed in the OFF and then ON position.
Monitor, climate, audio, phone and voice recognition systems4-7

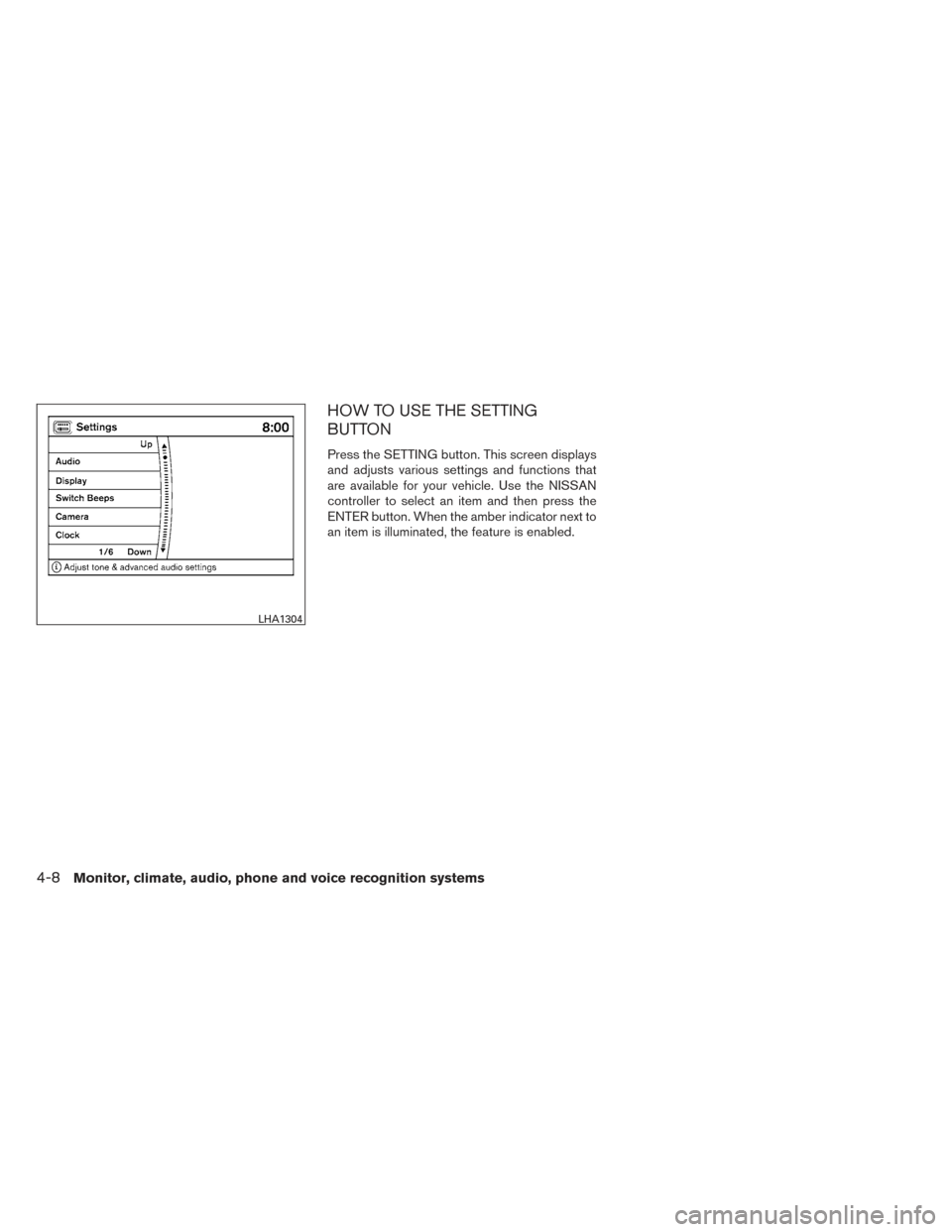

HOW TO USE THE SETTING
BUTTON
Press the SETTING button. This screen displays
and adjusts various settings and functions that
are available for your vehicle. Use the NISSAN
controller to select an item and then press the
ENTER button. When the amber indicator next to
an item is illuminated, the feature is enabled.
LHA1304
4-8Monitor, climate, audio, phone and voice recognition systems

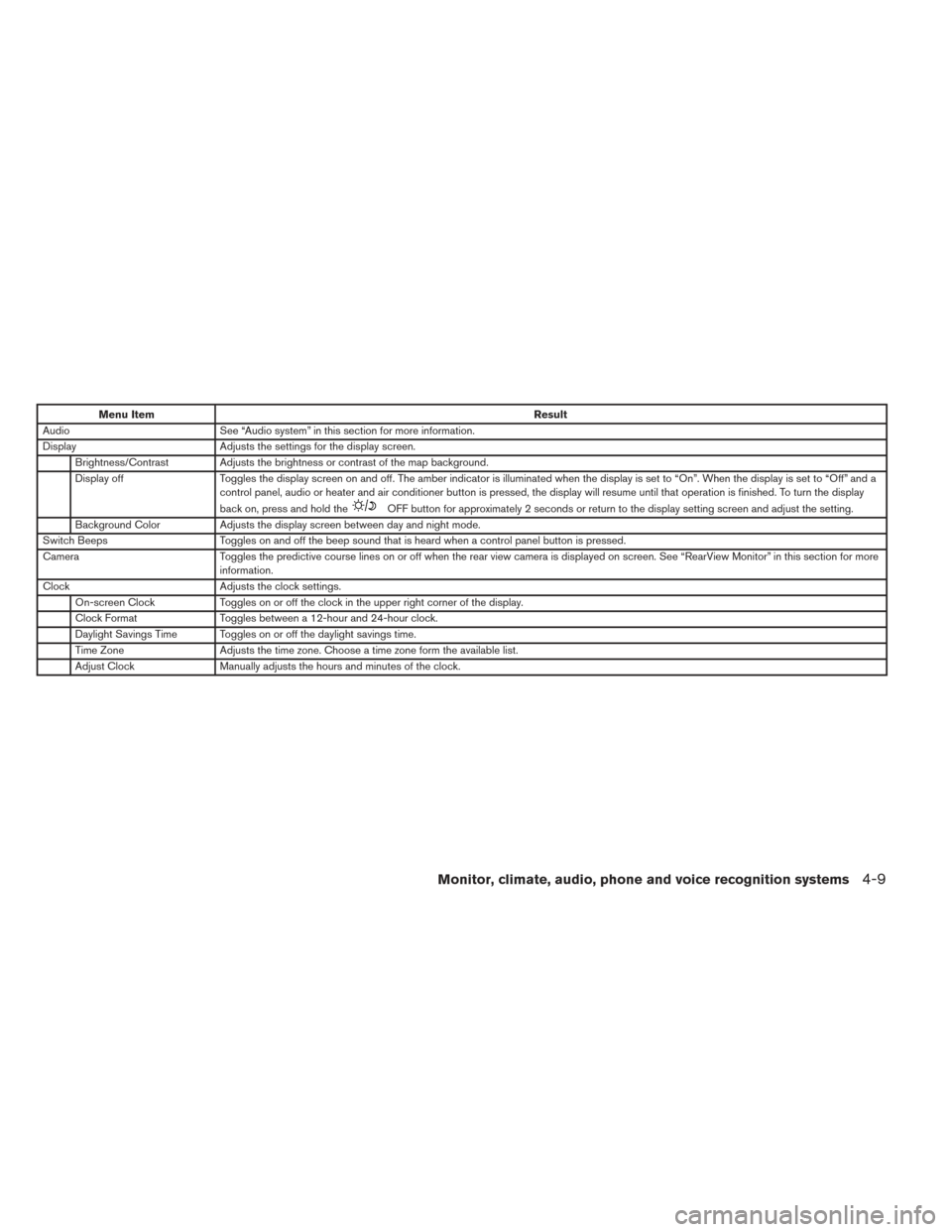

Menu ItemResult
Audio See “Audio system” in this section for more information.
Display Adjusts the settings for the display screen.
Brightness/Contrast Adjusts the brightness or contrast of the map background.
Display off Toggles the display screen on and off. The amber indicator is illuminated when the display is set to “On”. When the display is set to “Off” and a
control panel, audio or heater and air conditioner button is pressed, the display will resume until that operation is finished. To turn the display
back on, press and hold the
OFF button for approximately 2 seconds or return to the display setting screen and adjust the setting.
Background Color Adjusts the display screen between day and night mode.
Switch Beeps Toggles on and off the beep sound that is heard when a control panel button is pressed.
Camera Toggles the predictive course lines on or off when the rear view camera is displayed on screen. See “RearView Monitor” in this section for more
information.
Clock Adjusts the clock settings.
On-screen Clock Toggles on or off the clock in the upper right corner of the display.
Clock Format Toggles between a 12-hour and 24-hour clock.
Daylight Savings Time Toggles on or off the daylight savings time.
Time Zone Adjusts the time zone. Choose a time zone form the available list.
Adjust Clock Manually adjusts the hours and minutes of the clock.
Monitor, climate, audio, phone and voice recognition systems4-9
